MITSUBISHI ECLIPSE 2012 4.G Owners Manual

3-146 Features and controls
3
7. After the voice guide says “Please say a 4-digit pairing
code,” say a 4-digit code. The 4-digit code will be regis-
tered as a pairing code for the phone.
When the confirmation function is on, the system will
confirm whether the code said is acceptable. To continue
with the code, answer “Yes.”
Say “No” to return to pairing code selection.NOTE
The pairing code entered here is only used for the
Bluetooth
® connection certification. It is any 4-digit code
the user would like to select.
Remember the pairing code as it needs to be keyed into
the phone later in the pairing process.
Depending on the Bluetooth
® connection settings
selected, entry of this code may be required each time the
phone attempts to “connect” to the Bluetooth
® HFP. Refer
to your cellular phone owner’s manual for connection
defaults and settings.
8. The voice guide will say “Start pairing procedure on
phone. See phone’s manual for instructions.” Refer to the
owner’s manual for your cellular phone and enter into the
phone the pairing code that was registered in Step 7.9. When the system finds a Bluetooth
® compatible cellular
phone, the voice guide will say “Please say the name of
the phone after the beep.” After you hear the beep, name
the phone by saying a name of your preference.
When the confirmation function is on, the system will say
“Adding , is this correct?”
Answer “Yes” to accept that name or “No” to reenter a
new name.
NOTE
When the system cannot recognize the Bluetooth
® com-
patible cellular phone, the pairing process will end and the
system will beep and then return to normal status.
Try the pairing process again after reconfirming whether
or not the Bluetooth
® HFP supports your Bluetooth
®
compatible cellular phone.
10. The voice guide will say “Assign a priority for this phone
between 1 and 7 where 1 is the phone used most often.”
Say a number between 1 and 7 to set a priority level for
the cellular phone.
NOTE
If you selected a priority level that has already been set for
a different phone, the system will ask you whether you
wish to override that priority level.
To override the priority level, answer “Yes.”
Answer “No” to return to the priority level selection in
Step 10.
BK0132701US.book 146 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-147
3
11. After the voice guide says “ set to priority
,” the system will start the pairing process. Wait
a moment for the pairing process to complete.
When the confirmation function is on, the system will
confirm the assigned phone name and priority again.
Answer “Yes.”
Answer “No” to return to the priority level selection in
Step 10.
12. When the pairing process is completed, the voice guide
will say “Pairing Complete.” The system will then beep
and the voice recognition mode will be exited.NOTE
If you are having difficulty pairing the phone, assistance
can be obtained by calling Mitsubishi hands free con-
sumer support line 1-888-702-4100.Selecting the phone
N00507200035
When multiple paired phones are present in range of the
Bluetooth
® HFP, the phone with the highest priority (set during
the paring process) will be connected to the system.
Use the following procedure to connect to another paired
phone with lower priority.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Select phone.”4. After the voice guide says “Please say,” it will read out
each priority number and phone name pair in order, start-
ing with the phone that has the highest priority level (from
1 to 7).
Say the priority number of the phone that you want to con-
nect to.
NOTE
You can connect to a phone at any time by pressing the
SPEECH button and saying the priority number, even
before all of the priority number and phone name pairs are
read out by the system.
5. After the voice guide says “ selected,” the
system will reconnect to the cellular phone. Wait a
moment for the process to complete.
When the confirmation prompts are on, the system will
ask you again whether the phone that you want to recon-
nect to is correct. Answer “Yes” to continue and reconnect
to the cellular phone. If you answer “No,” the system will
ask “Which phone please?” Select the priority of the
phone that you want to connect to.
6. When the reconnection of the cellular phone is completed,
the voice guide will say “ will temporarily
override phone priorities” and then the system will return
to the main menu.NOTE
To change the priority level of a specific phone, redo the
pairing process for that phone. (Refer to “Pairing a cellu-
lar phone” on page 3-145.)
BK0132701US.book 147 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-148 Features and controls
3
Having the system tell you a list of the registered
cellular phones
N00507300052
You can use the following procedure to hear a list of the cellu-
lar phones that are currently registered.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Pairing Options.”
4. The voice guide will say “Do you want to Pair a phone,
delete a phone or list paired phones?” Say “list paired
phones.”
5. The Bluetooth
® HFP will read out the paired phones in
order, starting with the phone with the highest priority
level.
6. When the voice guide is done reading all phone names, it
will say “End of List, would you like to start from the
beginning?”
To hear the list again from the beginning, answer “Yes.”
When you are done, answer “No” to return to the main
menu.
NOTE
If you press and release the SPEECH button and say
“Continue” or “Previous” while the list is being read, the
system will advance or rewind the list. Say “Continue” to
proceed to the phone with the next highest priority level or
“Previous” to return to the phone with the previous prior-
ity level.
Deleting a phone
N00507400053
Use the following procedure to delete a paired Bluetooth
®
compatible cellular phone from the Bluetooth
® HFP.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Pairing Options.”
4. The voice guide will say “Do you want to Pair a phone,
delete a phone or list paired phones?” Say “Delete a
phone.”
5. After the voice guide says “Please say,” it will read out
each priority number and phone name pair in order, start-
ing with the phone that has the highest priority level (from
1 to 7). After it completes reading all pairs, the voice
guide will say “or all or say cancel to return to main
menu.”
Say the priority number of the phone that you want to
delete from the system.
Say “All” to delete all paired phones from the system, or
“Cancel” to end the deletion process and return to the
main menu.
6. For confirmation purposes, the voice guide will say
“Removing (all) is this correct?”
Answer “Yes” to delete the phone(s). If you answer “No,”
the voice guide will ask “Which phone please?” Say again
the priority number of the phone that you want to delete
from the system.
BK0132701US.book 148 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-149
3
7. When the phone deletion process is completed, the voice
guide will say “Deleted.” The system will then beep and
the voice recognition mode will be exited.
If the phone deletion process fails for some reason, the
voice guide will say “Delete failed.” The system will then
beep and the voice recognition mode will be exited. Start
over again from Step 1. To make a call
N00507500038
To use the Bluetooth
® HFP to make a call, a Bluetooth
® cellu-
lar phones with Hands-free Profile must be paired to the sys-
tem. If a cellular phone has not been paired to the system, do so
in accordance with the instructions provided in “Pairing a cel-
lular phone” on page 3-145.
Making a call by using the telephone number
N00507600101
You can make a call by saying the telephone number.
1. Press the SPEECH button.
2. Say “Dial.”
3. After the voice guide says “Number Please,” say the tele-
phone number.
The Bluetooth
® HFP will then make the call.
When the confirmation function is on, the system will
confirm the telephone number again. To continue with
that number, answer “Yes.”
To change the telephone number, answer “No” and then
say the telephone number again.
NOTE
In the case of English, the system will recognize both
“zero” and “oh (Letter “o”) for the number “0.” Refer to
“Commands and Alternatives” on page 3-159 for details.Making a call by saying a name in the system phone-
book
N00507700056
You can make a call by saying a name that has been registered
in the phonebook for the Bluetooth
® HFP.
For more information on the phonebook, refer to “Phonebook
function” on page 3-151.
1. Press the SPEECH button.
2. Say “Call.”
3. After the voice guide says “Name Please,” say the name
of the person that you want to call that is registered in the
phonebook.
4. If multiple telephone numbers are registered for the per-
son, the voice guide will ask “Would you like to call
at {home}, {work}, {mobile} or {pager}?”
Say the location of the number that you want to call.
NOTE
If a telephone number is not registered for the selected
location, the voice guide will say
“{home/work/mobile/pager} not found for .
Would you like to add location or try again, or say “can-
cel” to return to main menu.”
Say “Try again” to redo the phone call, “Add location” to
add a new location to the telephone book, or “Cancel” to
hang up the phone.
BK0132701US.book 149 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-150 Features and controls
3
5. After the voice guide says “Calling at tion>,” the Bluetooth
® HFP will make the call.
When the confirmation function is on, the system will
confirm whether or not the name of the recipient of the
call is correct. Answer “Yes” to use that name.
If you want to change the name or location to call, answer
“No.” The system will return to Step 3.
Redialing
N00507800015
You can redial the last number called, based on the history of
dialed calls in the paired cellular phone.
Use the following procedure to redial.
1. Press the SPEECH button.
2. Say “Redial.”SEND function
N00508000030
During a call, press the SPEECH button to enter the voice rec-
ognition mode and then say “{number string} SEND” to gener-
ate a DTMF tone.
For example, if during a call you need to simulate the press of a
PHONE button as a response to an automated system, press the
SPEECH button and speak “1 2 3 4 pound SEND” and the
1234# will be sent on your cellular phone.
BK0132701US.book 150 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-151
3
Switching between hands-free mode and private
mode
N00508100031
The Bluetooth
® HFP can switch between Hands-free mode
(Hands-free calls) and private mode (calls using cellular
phone).
If you press the SPEECH button and say “Transfer call” during
a Hands-free call, you can stop the Hands-free mode and talk in
private mode on your cellular phone.
To return to Hands-free mode, press the SPEECH button again
and say “Transfer call.”
Receiving calls
N00508200032
If an incoming phone call is received while the ignition switch
is in the “ACC” or “ON” position, the audio system will be
automatically turned on and Incoming Call will be played,
even when the audio system was originally off.
The voice guide announcement for the incoming call will be
output from the front passenger’s seat speaker.
If the CD player or radio was playing when the incoming call
was received, the audio system will mute the sound from the
CD player or radio and output only the Incoming Call.
To receive the call, press the PHONE button on the overhead
console control switch.
When the call is over, the audio system will return to its previ-
ous state.
Phonebook function
N00508300020
The Bluetooth
® HFP has its own phonebook separate from the
phonebook on the cellular phone.
This phonebook is used when making calls with the voice rec-
ognition function.
You can register up to 32 names for each language in the
phonebook.
Also, each entry has 4 locations associated with: HOME,
WORK, MOBILE and PAGER. You can register one telephone
number for each location.
The phonebook main menu is used to register or edit informa-
tion in the phonebook.
Use the following procedure to call up the phonebook main
menu.
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit, list names, delete or erase all, or say can-
cel to return to main menu” and will wait for your com-
mand.
NOTE
Disconnecting the battery cable will not delete informa-
tion registered in the phonebook.
BK0132701US.book 151 ページ ２０１０年１２月６日　月曜日　午後２時３分

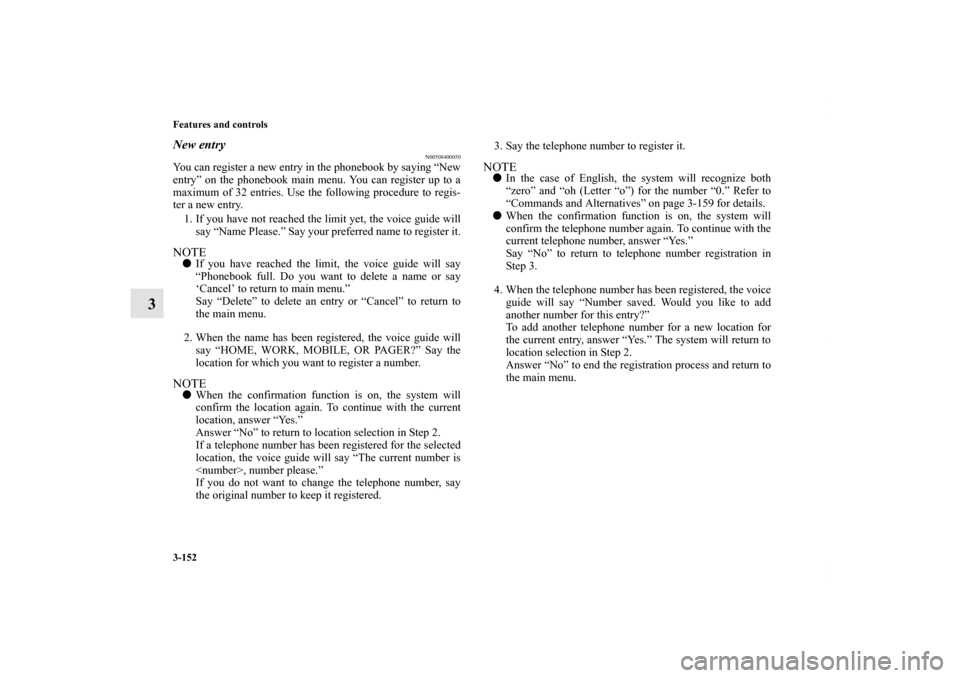

3-152 Features and controls
3
New entry
N00508400050
You can register a new entry in the phonebook by saying “New
entry” on the phonebook main menu. You can register up to a
maximum of 32 entries. Use the following procedure to regis-
ter a new entry.
1. If you have not reached the limit yet, the voice guide will
say “Name Please.” Say your preferred name to register it.NOTE
If you have reached the limit, the voice guide will say
“Phonebook full. Do you want to delete a name or say
‘Cancel’ to return to main menu.”
Say “Delete” to delete an entry or “Cancel” to return to
the main menu.
2. When the name has been registered, the voice guide will
say “HOME, WORK, MOBILE, OR PAGER?” Say the
location for which you want to register a number.NOTE
When the confirmation function is on, the system will
confirm the location again. To continue with the current
location, answer “Yes.”
Answer “No” to return to location selection in Step 2.
If a telephone number has been registered for the selected
location, the voice guide will say “The current number is
, number please.”
If you do not want to change the telephone number, say
the original number to keep it registered. 3. Say the telephone number to register it.
NOTE
In the case of English, the system will recognize both
“zero” and “oh (Letter “o”) for the number “0.” Refer to
“Commands and Alternatives” on page 3-159 for details.

When the confirmation function is on, the system will
confirm the telephone number again. To continue with the
current telephone number, answer “Yes.”
Say “No” to return to telephone number registration in
Step 3.
4. When the telephone number has been registered, the voice
guide will say “Number saved. Would you like to add
another number for this entry?”
To add another telephone number for a new location for
the current entry, answer “Yes.” The system will return to
location selection in Step 2.
Answer “No” to end the registration process and return to
the main menu.
BK0132701US.book 152 ページ ２０１０年１２月６日　月曜日　午後２時３分

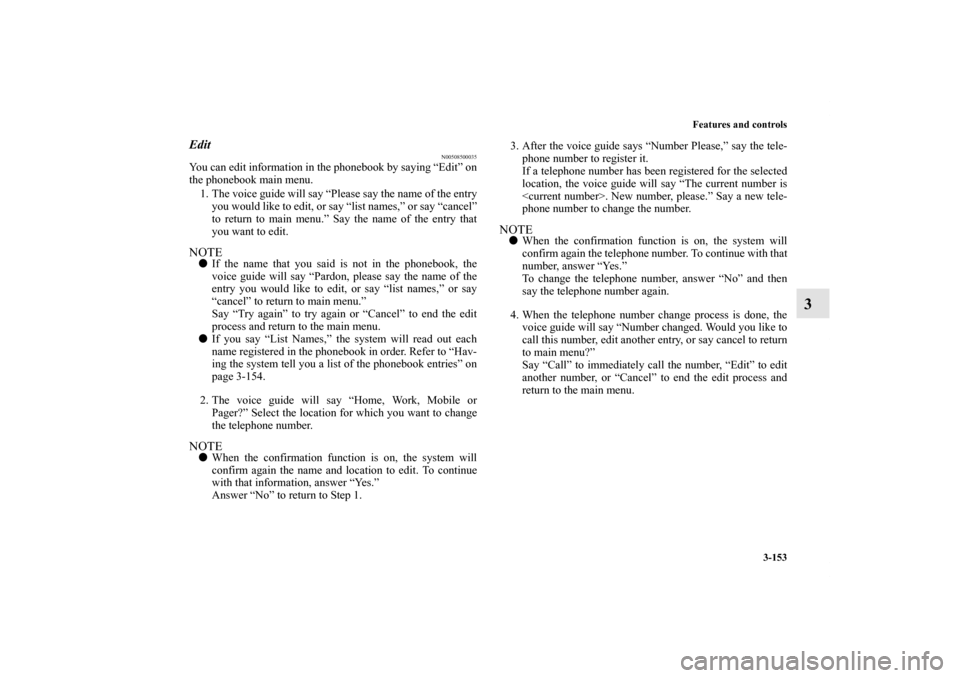

Features and controls
3-153
3
Edit
N00508500035
You can edit information in the phonebook by saying “Edit” on
the phonebook main menu.
1. The voice guide will say “Please say the name of the entry
you would like to edit, or say “list names,” or say “cancel”
to return to main menu.” Say the name of the entry that
you want to edit. NOTE
If the name that you said is not in the phonebook, the
voice guide will say “Pardon, please say the name of the
entry you would like to edit, or say “list names,” or say
“cancel” to return to main menu.”
Say “Try again” to try again or “Cancel” to end the edit
process and return to the main menu.

If you say “List Names,” the system will read out each
name registered in the phonebook in order. Refer to “Hav-
ing the system tell you a list of the phonebook entries” on
page 3-154.
2. The voice guide will say “Home, Work, Mobile or
Pager?” Select the location for which you want to change
the telephone number. NOTE
When the confirmation function is on, the system will
confirm again the name and location to edit. To continue
with that information, answer “Yes.”
Answer “No” to return to Step 1.3. After the voice guide says “Number Please,” say the tele-
phone number to register it.
If a telephone number has been registered for the selected
location, the voice guide will say “The current number is
. New number, please.” Say a new tele-
phone number to change the number.
NOTE
When the confirmation function is on, the system will
confirm again the telephone number. To continue with that
number, answer “Yes.”
To change the telephone number, answer “No” and then
say the telephone number again.
4. When the telephone number change process is done, the
voice guide will say “Number changed. Would you like to
call this number, edit another entry, or say cancel to return
to main menu?”
Say “Call” to immediately call the number, “Edit” to edit
another number, or “Cancel” to end the edit process and
return to the main menu.
BK0132701US.book 153 ページ ２０１０年１２月６日　月曜日　午後２時３分

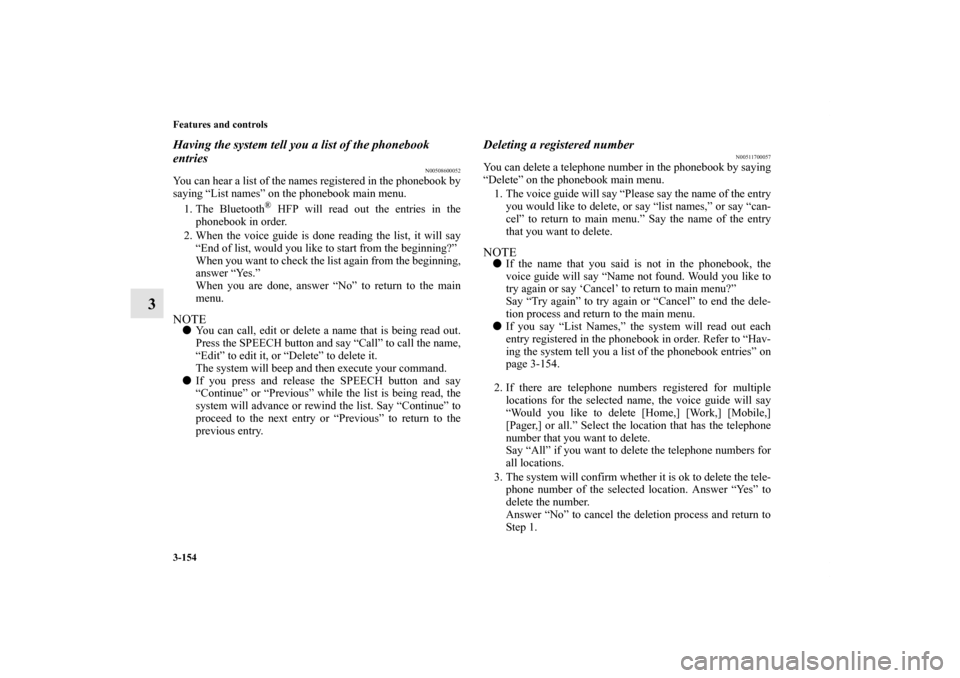

3-154 Features and controls
3
Having the system tell you a list of the phonebook
entries
N00508600052
You can hear a list of the names registered in the phonebook by
saying “List names” on the phonebook main menu.
1. The Bluetooth
® HFP will read out the entries in the
phonebook in order.
2. When the voice guide is done reading the list, it will say
“End of list, would you like to start from the beginning?”
When you want to check the list again from the beginning,
answer “Yes.”
When you are done, answer “No” to return to the main
menu.
NOTE
You can call, edit or delete a name that is being read out.
Press the SPEECH button and say “Call” to call the name,
“Edit” to edit it, or “Delete” to delete it.
The system will beep and then execute your command.

If you press and release the SPEECH button and say
“Continue” or “Previous” while the list is being read, the
system will advance or rewind the list. Say “Continue” to
proceed to the next entry or “Previous” to return to the
previous entry.
Deleting a registered number
N00511700057
You can delete a telephone number in the phonebook by saying
“Delete” on the phonebook main menu.
1. The voice guide will say “Please say the name of the entry
you would like to delete, or say “list names,” or say “can-
cel” to return to main menu.” Say the name of the entry
that you want to delete.NOTE
If the name that you said is not in the phonebook, the
voice guide will say “Name not found. Would you like to
try again or say ‘Cancel’ to return to main menu?”
Say “Try again” to try again or “Cancel” to end the dele-
tion process and return to the main menu.

If you say “List Names,” the system will read out each
entry registered in the phonebook in order. Refer to “Hav-
ing the system tell you a list of the phonebook entries” on
page 3-154.
2. If there are telephone numbers registered for multiple
locations for the selected name, the voice guide will say
“Would you like to delete [Home,] [Work,] [Mobile,]
[Pager,] or all.” Select the location that has the telephone
number that you want to delete.
Say “All” if you want to delete the telephone numbers for
all locations.
3. The system will confirm whether it is ok to delete the tele-
phone number of the selected location. Answer “Yes” to
delete the number.
Answer “No” to cancel the deletion process and return to
Step 1.
BK0132701US.book 154 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-155
3
4. When the deletion of the telephone number is completed,
the voice guide will say “ deleted”
and then the system will return to the main menu.NOTE
If you delete all telephone numbers registered for the 4
locations of an entry, the entry itself will be deleted from
the phonebook.Erasing the Phonebook
N00511800045
You can delete all registered information in the phonebook by
saying “Erase all” on the phonebook main menu.
1. For confirmation purposes, the voice guide will ask “Are
you sure you want to erase everything from your Hands-
free system phonebook?” Answer “Yes.”
Answer “No” to cancel the deletion of all registered infor-
mation in the phonebook and return to the main menu.
2. The system will confirm one more time. Answer “Yes” to
continue.
Answer “No” to cancel the deletion of all registered infor-
mation in the phonebook and return to the main menu.
3. When the deletion of all information in the phonebook is
completed, the voice guide will say “Hands-free system
Phonebook Erased” and then return to the main menu.
General information
N00511900046
MODEL: MMC FCC ID: CB2MBLUEC07 IC: 279B-
MBLUEC07
Your Hands-free Bluetooth
® cellular phone interface system
with voice recognition operates on a radio frequency subject to
Federal Communications Commission (FCC) Rules (For vehi-
cles sold in U.S.A.) and Industry Canada Rules (For vehicles
sold in Canada). This device complies with Part 15 of the FCC
Rules and RSS-210 of the Industry Canada Rules. Operation is
subject to the following two conditions.

This device may not cause interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
The term “IC:” before the radio certification number only sig-
nifies that Industry Canada technical specifications were met.
The antenna used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
End-users and installers must be provided with installation
instructions and transmitter operating conditions for satisfying
RF exposure compliance.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0132701US.book 155 ページ ２０１０年１２月６日　月曜日　午後２時３分
