Features and controls
3-71

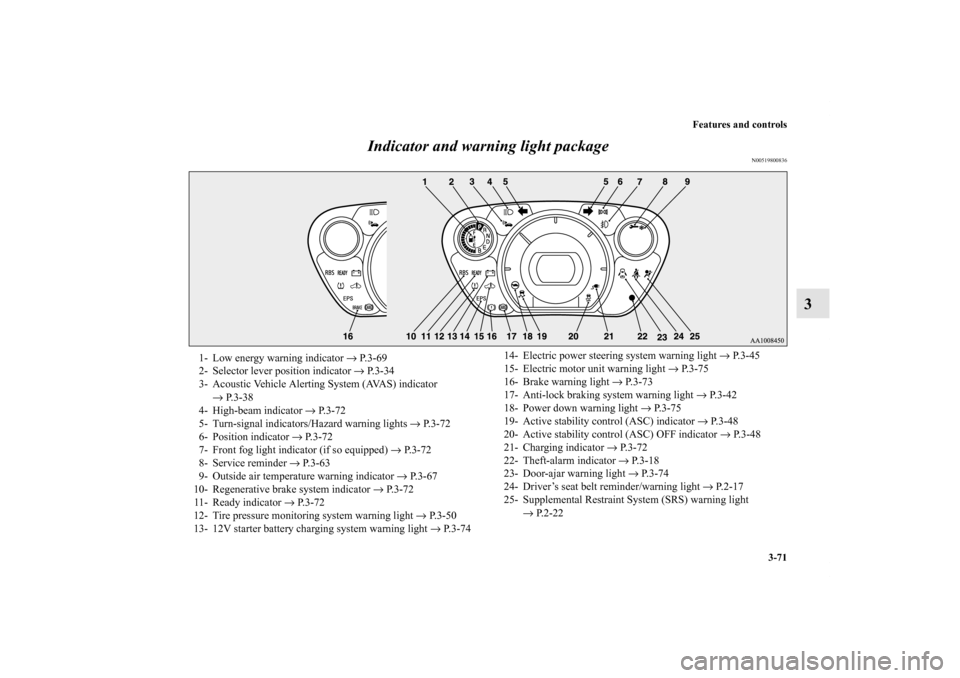

3 Indicator and warning light package
N00519800836
1- Low energy warning indicator → P.3-69
2- Selector lever position indicator → P.3-34
3- Acoustic Vehicle Alerting System (AVAS) indicator
→ P.3-38
4- High-beam indicator → P.3-72
5- Turn-signal indicators/Hazard warning lights → P.3-72
6- Position indicator → P.3-72
7- Front fog light indicator (if so equipped) → P.3-72
8- Service reminder → P.3-63
9- Outside air temperature warning indicator → P.3-67
10- Regenerative brake system indicator → P.3-72
11- Ready indicator → P. 3 - 7 2
12- Tire pressure monitoring system warning light → P.3-50
13- 12V starter battery charging system warning light → P.3-7414- Electric power steering system warning light → P.3-45
15- Electric motor unit warning light → P.3-75
16- Brake warning light → P.3-73
17- Anti-lock braking system warning light → P.3-42
18- Power down warning light → P.3-75
19- Active stability control (ASC) indicator → P.3-48
20- Active stability control (ASC) OFF indicator → P.3-48
21- Charging indicator → P.3-72
22- Theft-alarm indicator → P.3-18
23- Door-ajar warning light → P.3-74
24- Driver ’s seat belt reminder/warning light → P.2-17
25- Supplemental Restraint System (SRS) warning light
→ P. 2 - 2 2
BK0140800US.book 71 ページ ２０１１年９月２９日　木曜日　午後３時２８分

3-72 Features and controls
3Indicators
N00519900127
Turn signal indicators/Hazard warning lights
N00520000232
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed.NOTE
If the indicator flashes faster than usual or if the indicator
stays on without flashing, check for a malfunctioning turn
signal light bulb or turn signal connection.High beam indicator
N00520100086
A blue light comes on when the headlights are on high beam.Front fog light indicator
(if so equipped)
N00520200221
This indicator comes on while the front fog lights are on.Position indicator
N00551300039
This indicator turns on while the position lights are on.Ready indicator
N00573200012
This indicator comes on when the electric motor switch is
turned to “START” and driving becomes possible.
Charging indicator
N00573300013
This indicator flashes when the regular charging cable or quick
charging cable is connected.
After that, the light switches to being illuminated when charg-
ing starts and goes out when charging is completed.Regenerative brake system indicator
N00573400014
The indicator comes on when the regenerative brake perfor-
mance may be weakened. In this case, drive the vehicle at a
lower speed.
BK0140800US.book 72 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Features and controls
3-81
3

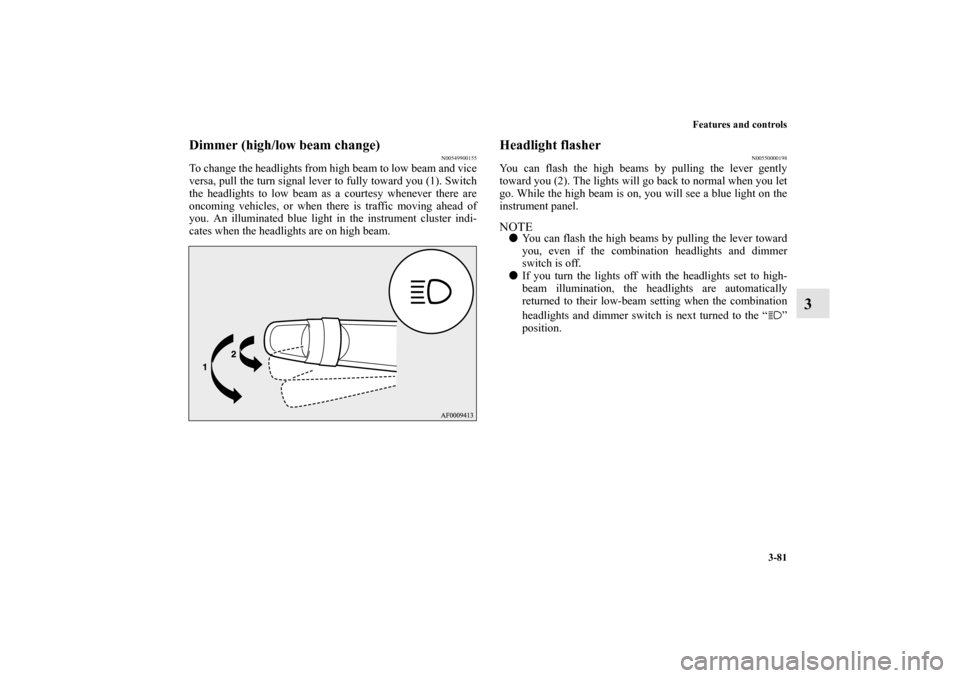

Dimmer (high/low beam change)
N00549900155
To change the headlights from high beam to low beam and vice
versa, pull the turn signal lever to fully toward you (1). Switch
the headlights to low beam as a courtesy whenever there are
oncoming vehicles, or when there is traffic moving ahead of
you. An illuminated blue light in the instrument cluster indi-
cates when the headlights are on high beam.
Headlight flasher
N00550000198
You can flash the high beams by pulling the lever gently
toward you (2). The lights will go back to normal when you let
go. While the high beam is on, you will see a blue light on the
instrument panel.NOTE
You can flash the high beams by pulling the lever toward
you, even if the combination headlights and dimmer
switch is off.

If you turn the lights off with the headlights set to high-
beam illumination, the headlights are automatically
returned to their low-beam setting when the combination
headlights and dimmer switch is next turned to the “ ”
position.
BK0140800US.book 81 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Features and controls
3-83

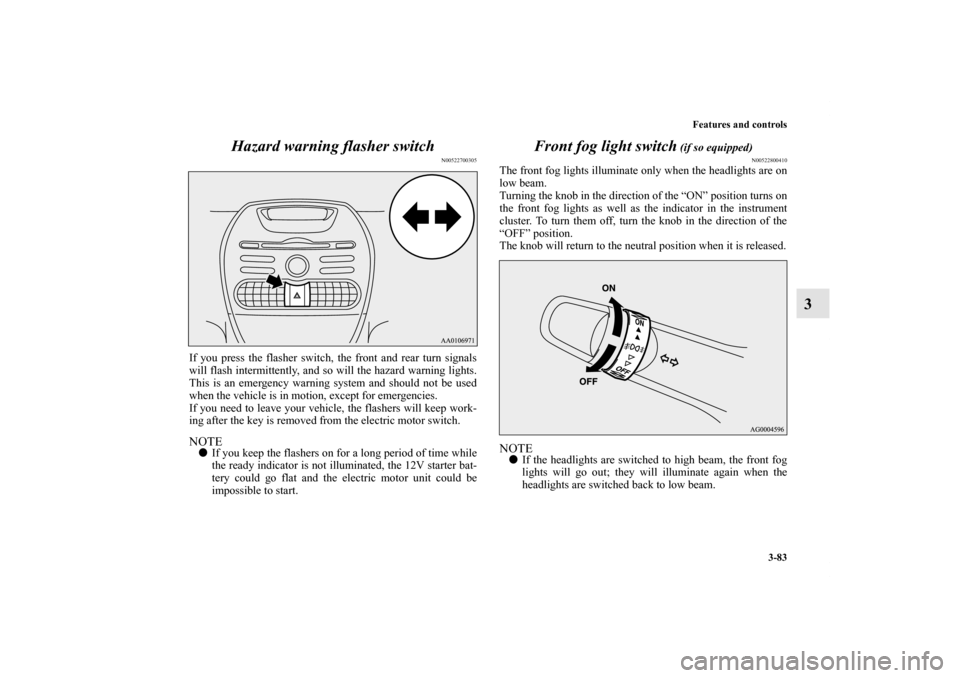

3 Hazard warning flasher switch
N00522700305
If you press the flasher switch, the front and rear turn signals
will flash intermittently, and so will the hazard warning lights.
This is an emergency warning system and should not be used
when the vehicle is in motion, except for emergencies.
If you need to leave your vehicle, the flashers will keep work-
ing after the key is removed from the electric motor switch.NOTE
If you keep the flashers on for a long period of time while
the ready indicator is not illuminated, the 12V starter bat-
tery could go flat and the electric motor unit could be
impossible to start.
Front fog light switch
(if so equipped)
N00522800410
The front fog lights illuminate only when the headlights are on
low beam.
Turning the knob in the direction of the “ON” position turns on
the front fog lights as well as the indicator in the instrument
cluster. To turn them off, turn the knob in the direction of the
“OFF” position.
The knob will return to the neutral position when it is released.NOTE
If the headlights are switched to high beam, the front fog
lights will go out; they will illuminate again when the
headlights are switched back to low beam.
BK0140800US.book 83 ページ ２０１１年９月２９日　木曜日　午後３時２８分

4-6 Driving safety
4

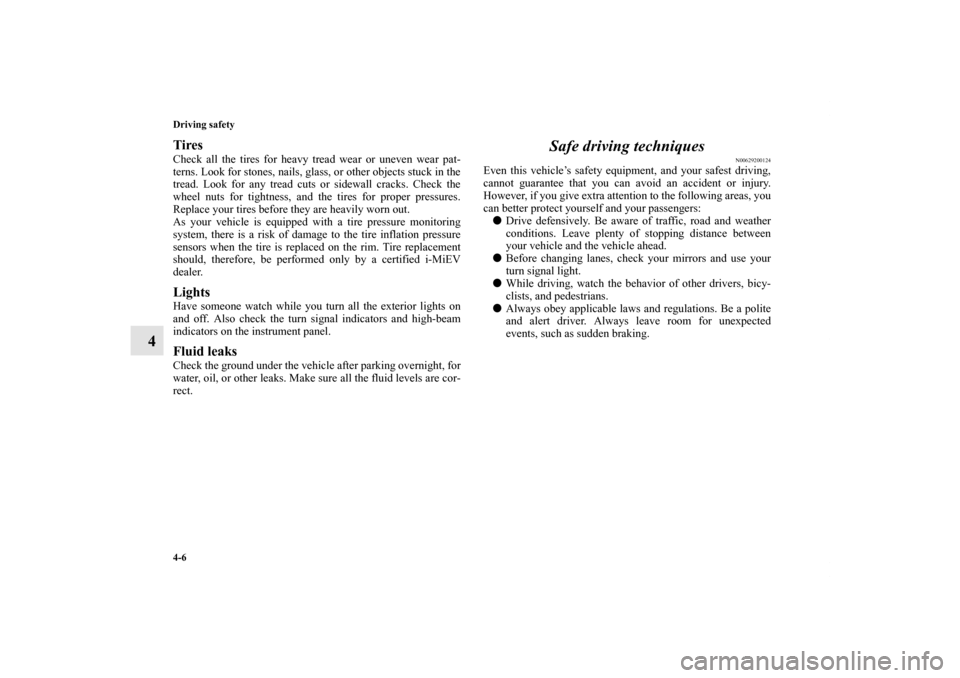

TiresCheck all the tires for heavy tread wear or uneven wear pat-
terns. Look for stones, nails, glass, or other objects stuck in the
tread. Look for any tread cuts or sidewall cracks. Check the
wheel nuts for tightness, and the tires for proper pressures.
Replace your tires before they are heavily worn out.
As your vehicle is equipped with a tire pressure monitoring
system, there is a risk of damage to the tire inflation pressure
sensors when the tire is replaced on the rim. Tire replacement
should, therefore, be performed only by a certified i-MiEV
dealer.LightsHave someone watch while you turn all the exterior lights on
and off. Also check the turn signal indicators and high-beam
indicators on the instrument panel. Fluid leaksCheck the ground under the vehicle after parking overnight, for
water, oil, or other leaks. Make sure all the fluid levels are cor-
rect.
Safe driving techniques
N00629200124
Even this vehicle’s safety equipment, and your safest driving,
cannot guarantee that you can avoid an accident or injury.
However, if you give extra attention to the following areas, you
can better protect yourself and your passengers:

Drive defensively. Be aware of traffic, road and weather
conditions. Leave plenty of stopping distance between
your vehicle and the vehicle ahead.

Before changing lanes, check your mirrors and use your
turn signal light.

While driving, watch the behavior of other drivers, bicy-
clists, and pedestrians.

Always obey applicable laws and regulations. Be a polite
and alert driver. Always leave room for unexpected
events, such as sudden braking.
BK0140800US.book 6 ページ ２０１１年９月２９日　木曜日　午後３時２８分

7-32 Vehicle care and maintenance
7

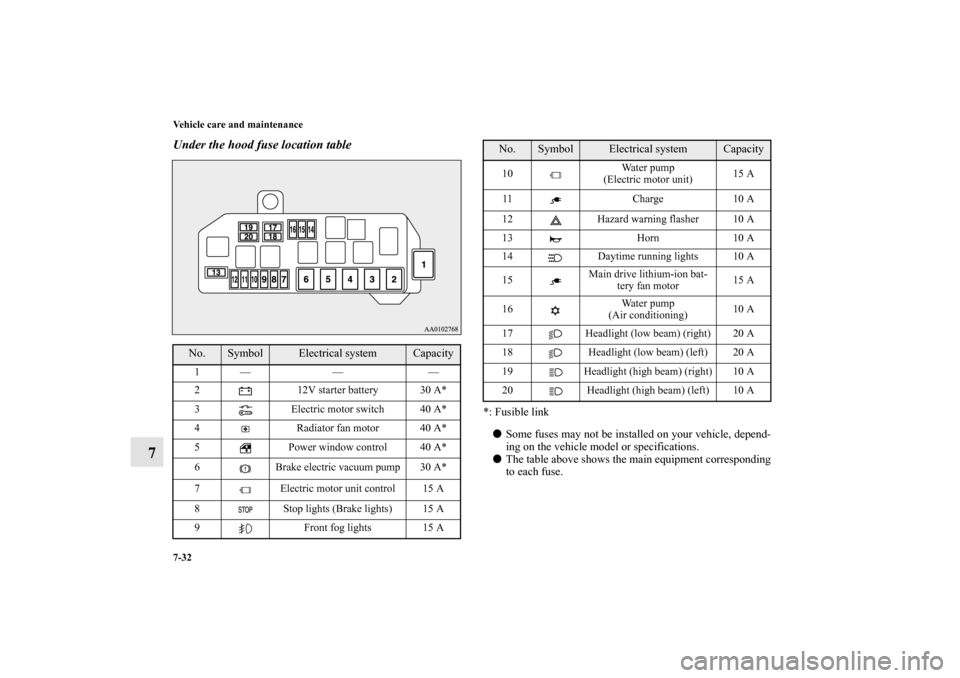

Under the hood fuse location table
*: Fusible link

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.
No.
Symbol
Electrical system
Capacity
1— — —
2 12V starter battery 30 A*
3 Electric motor switch 40 A*
4 Radiator fan motor 40 A*
5 Power window control 40 A*
6 Brake electric vacuum pump 30 A*
7 Electric motor unit control 15 A
8 Stop lights (Brake lights) 15 A
9 Front fog lights 15 A
10Wa t e r p u m p
(Electric motor unit)15 A
11 Charge 10 A
12 Hazard warning flasher 10 A
13 Horn 10 A
14 Daytime running lights 10 A
15Main drive lithium-ion bat-
tery fan motor15 A
16Wa t e r p u m p
(Air conditioning)10 A
17 Headlight (low beam) (right) 20 A
18 Headlight (low beam) (left) 20 A
19 Headlight (high beam) (right) 10 A
20 Headlight (high beam) (left) 10 ANo.
Symbol
Electrical system
Capacity
BK0140800US.book 32 ページ ２０１１年９月２９日　木曜日　午後３時２８分

7-36 Vehicle care and maintenance
7
Bulb capacity
N00943000099
The bulb should only be replaced with a new bulb with the
same rating and type. The type and rating are listed on the base
of the bulb.Outside
N00950300847
NOTE
Check with a certified i-MiEV dealer when the headlight
and the parking light need to be repaired or replaced.
Description
Wa t t a g e
ANSI Trade
No. or Bulb
type
1- Headlight, low beam 55 W H11
2- Head light, high beam 60 W 9005 HB3
3- Front fog light (if so
equipped)35 W H8Front
4- Daytime running light
(if so equipped)13 W P13W
5- Front turn signal light 21 W W21W
6- Parking light 5 W W5W
7- Front side-marker light 5 W W5W
Description
Wa t t a g e
ANSI Trade
No. or Bulb
type
BK0140800US.book 36 ページ ２０１１年９月２９日　木曜日　午後３時２８分
