MITSUBISHI L200 2015 (in English) Owner's Guide

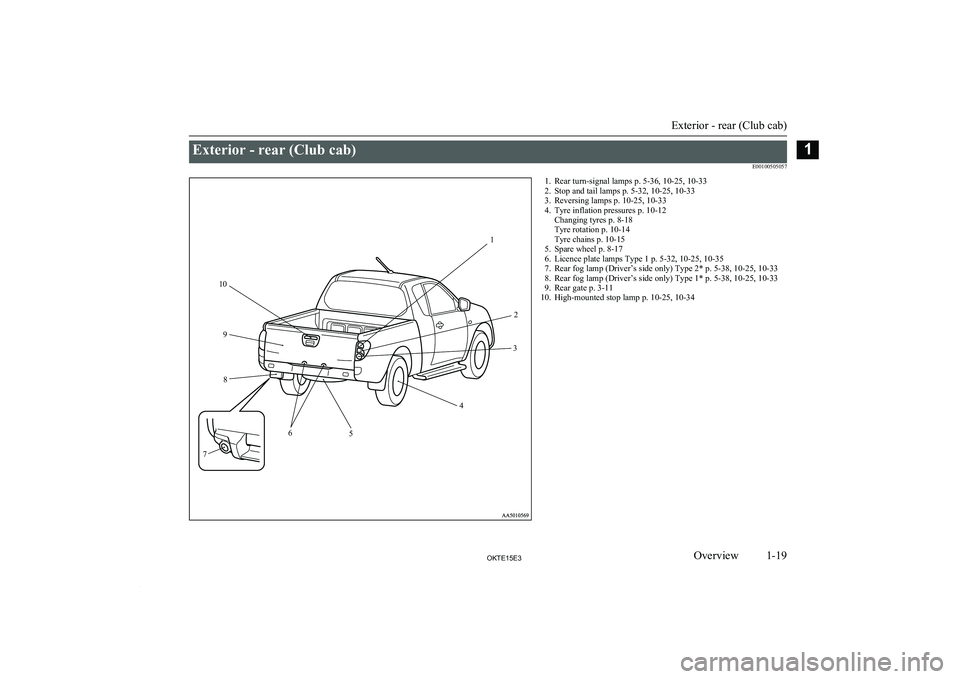

Exterior - rear (Club cab)E001005050571. Rear turn-signal lamps p. 5-36, 10-25, 10-33
2. Stop and tail lamps p. 5-32, 10-25, 10-33
3. Reversing lamps p. 10-25, 10-33
4. Tyre inflation pressures p. 10-12 Changing tyres p. 8-18
Tyre rotation p. 10-14
Tyre chains p. 10-15
5. Spare wheel p. 8-17
6. Licence plate lamps Type 1 p. 5-32, 10-25, 10-35
7. Rear fog lamp (Driver’s side only) Type 2* p. 5-38, 10-25, 10-33
8. Rear fog lamp (Driver’s side only) Type 1* p. 5-38, 10-25, 10-33
9. Rear gate p. 3-11
10. High-mounted stop lamp p. 10-25, 10-34
Exterior - rear (Club cab)
1-19OKTE15E3Overview112
3
4
5
6
7 8
9
10

Exterior - front (Double cab)E001005068651. Antenna* p. 7-832. Sunroof* p. 3-14
3. Antenna* p. 7-83
4. Outside rear-view mirrors p. 6-10
5. Side turn-signal lamps* p. 5-36, 10-25, 10-30
6. Fuel tank filler door p. 2-02
7. Locking and unlocking p. 3-02 Keyless entry system* p. 3-04
8. Side turn-signal lamps* p. 5-36, 10-25, 10-30
9. Front turn-signal lamps p. 5-36, 10-25, 10-30
10. Headlamps p. 5-32, 10-25, 10-27 Position lamps p. 5-32, 10-25, 10-29
11. Front fog lamps* p. 5-37, 10-25, 10-30
12. Headlamp washers* p. 5-42
13. Bonnet p. 10-03 Engine compartment p. 11-22
14. Wiper and washers p. 5-38
15. Rain sensor* p. 5-39
Exterior - front (Double cab)
1-20OKTE15E3Overview1

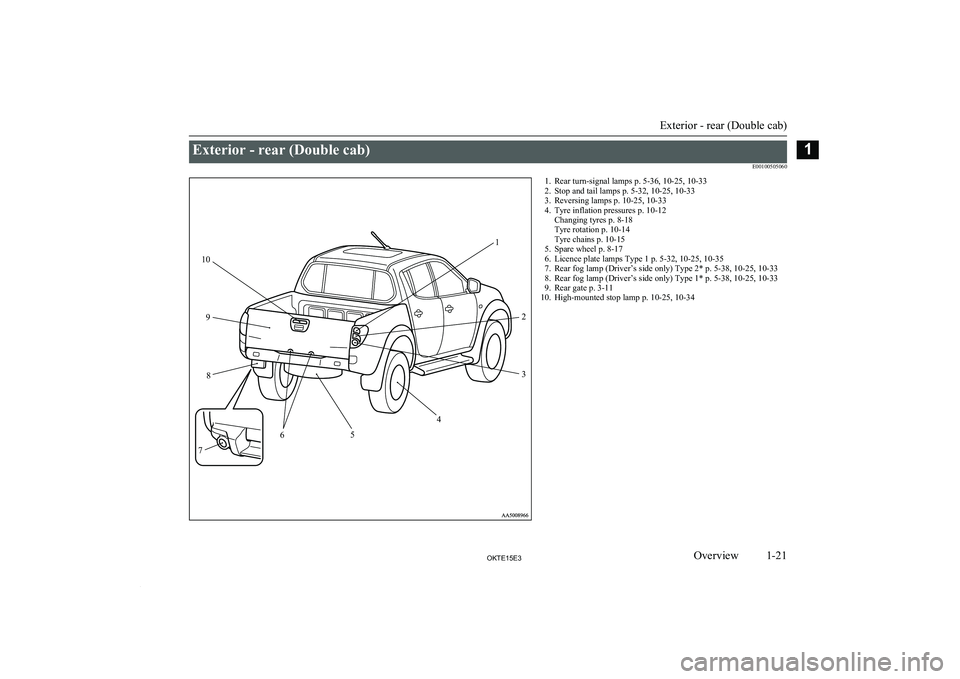

Exterior - rear (Double cab)E001005050601. Rear turn-signal lamps p. 5-36, 10-25, 10-33
2. Stop and tail lamps p. 5-32, 10-25, 10-33
3. Reversing lamps p. 10-25, 10-33
4. Tyre inflation pressures p. 10-12 Changing tyres p. 8-18
Tyre rotation p. 10-14
Tyre chains p. 10-15
5. Spare wheel p. 8-17
6. Licence plate lamps Type 1 p. 5-32, 10-25, 10-35
7. Rear fog lamp (Driver’s side only) Type 2* p. 5-38, 10-25, 10-33
8. Rear fog lamp (Driver’s side only) Type 1* p. 5-38, 10-25, 10-33
9. Rear gate p. 3-11
10. High-mounted stop lamp p. 10-25, 10-34
Exterior - rear (Double cab)
1-21OKTE15E3Overview112
3
4
5
6
7 8
9
10

OKTE15E3

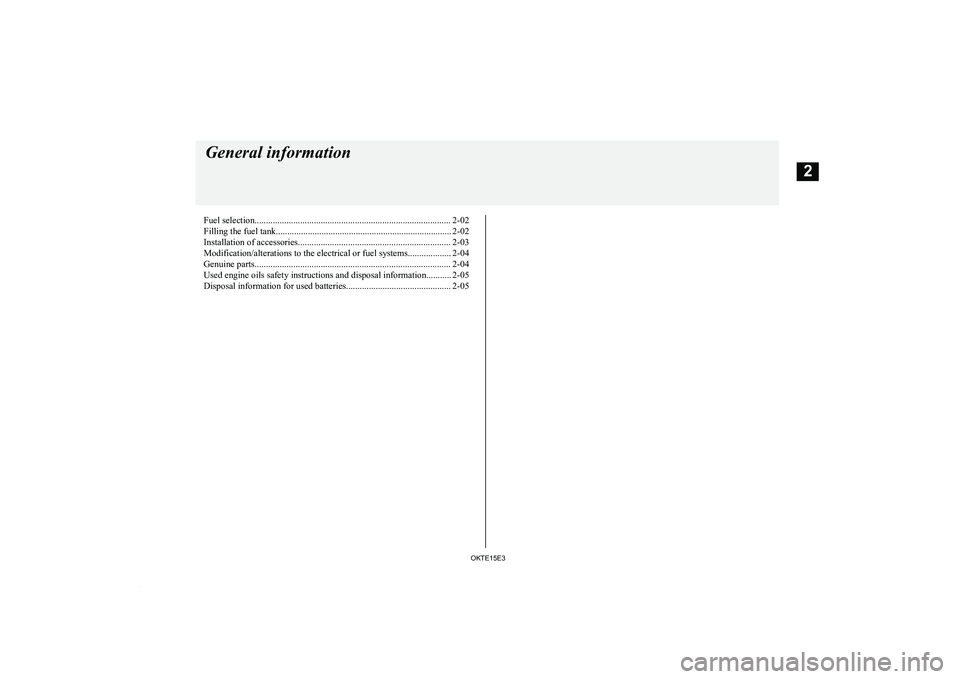

Fuel selection...................................................................................... 2-02Filling the fuel tank............................................................................. 2-02Installation of accessories................................................................... 2-03
Modification/alterations to the electrical or fuel systems................... 2-04
Genuine parts...................................................................................... 2-04 Used engine oils safety instructions and disposal information........... 2-05
Disposal information for used batteries.............................................. 2-05General information
OKTE15E32

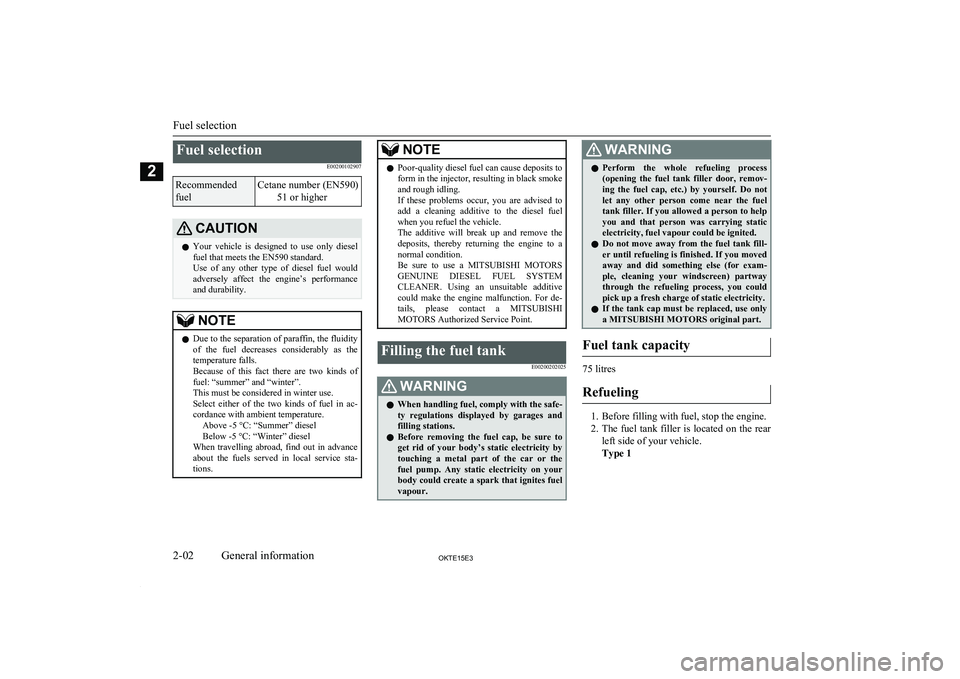

Fuel selectionE00200102907Recommended
fuelCetane number (EN590) 51 or higherCAUTIONlYour vehicle is designed to use only diesel
fuel that meets the EN590 standard.
Use of any other type of diesel fuel would
adversely affect the engine’s performance and durability.NOTEl Due to the separation of paraffin, the fluidity
of the fuel decreases considerably as the
temperature falls.
Because of this fact there are two kinds of
fuel: “summer” and “winter”.
This must be considered in winter use.
Select either of the two kinds of fuel in ac- cordance with ambient temperature. Above -5 °C: “Summer” diesel
Below -5 °C: “Winter” diesel
When travelling abroad, find out in advance
about the fuels served in local service sta- tions.NOTEl Poor-quality diesel fuel can cause deposits to
form in the injector, resulting in black smoke
and rough idling.
If these problems occur, you are advised to add a cleaning additive to the diesel fuelwhen you refuel the vehicle.
The additive will break up and remove the
deposits, thereby returning the engine to a normal condition.
Be sure to use a MITSUBISHI MOTORS
GENUINE DIESEL FUEL SYSTEM CLEANER. Using an unsuitable additive
could make the engine malfunction. For de- tails, please contact a MITSUBISHI
MOTORS Authorized Service Point.Filling the fuel tank
E00200202025WARNINGlWhen handling fuel, comply with the safe-
ty regulations displayed by garages and
filling stations.
l Before removing the fuel cap, be sure to
get rid of your body’s static electricity by touching a metal part of the car or the
fuel pump. Any static electricity on your body could create a spark that ignites fuel
vapour.WARNINGl Perform the whole refueling process
(opening the fuel tank filler door, remov- ing the fuel cap, etc.) by yourself. Do notlet any other person come near the fuel
tank filler. If you allowed a person to help you and that person was carrying static
electricity, fuel vapour could be ignited.
l Do not move away from the fuel tank fill-
er until refueling is finished. If you moved away and did something else (for exam-
ple, cleaning your windscreen) partway through the refueling process, you could
pick up a fresh charge of static electricity.
l If the tank cap must be replaced, use only
a MITSUBISHI MOTORS original part.
Fuel tank capacity
75 litres
Refueling
1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear
left side of your vehicle.
Type 1
Fuel selection
2-02OKTE15E3General information2

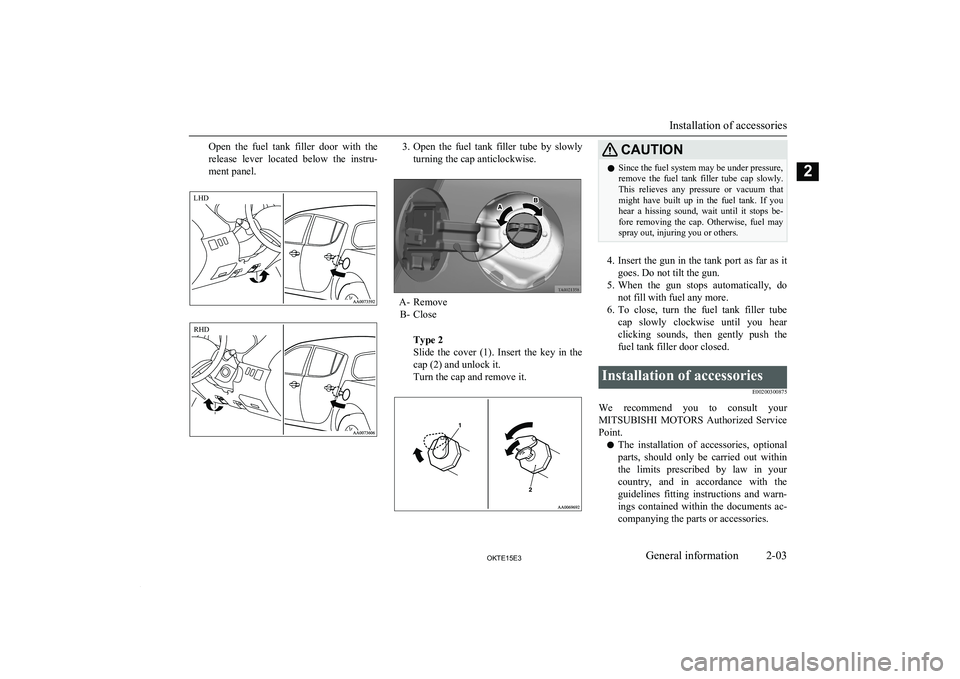

Open the fuel tank filler door with the
release lever located below the instru-
ment panel.3. Open the fuel tank filler tube by slowly
turning the cap anticlockwise.
A- Remove B- Close
Type 2
Slide the cover (1). Insert the key in the
cap (2) and unlock it.
Turn the cap and remove it.
CAUTIONl Since the fuel system may be under pressure,
remove the fuel tank filler tube cap slowly. This relieves any pressure or vacuum that
might have built up in the fuel tank. If you
hear a hissing sound, wait until it stops be- fore removing the cap. Otherwise, fuel may
spray out, injuring you or others.
4. Insert the gun in the tank port as far as it
goes. Do not tilt the gun.
5. When the gun stops automatically, do
not fill with fuel any more.
6. To close, turn the fuel tank filler tube
cap slowly clockwise until you hear clicking sounds, then gently push the
fuel tank filler door closed.
Installation of accessories
E00200300875
We recommend you to consult yourMITSUBISHI MOTORS Authorized Service
Point.
l The installation of accessories, optional
parts, should only be carried out within
the limits prescribed by law in your
country, and in accordance with the
guidelines fitting instructions and warn- ings contained within the documents ac-
companying the parts or accessories.
Installation of accessories
2-03OKTE15E3General information2LHD RHD

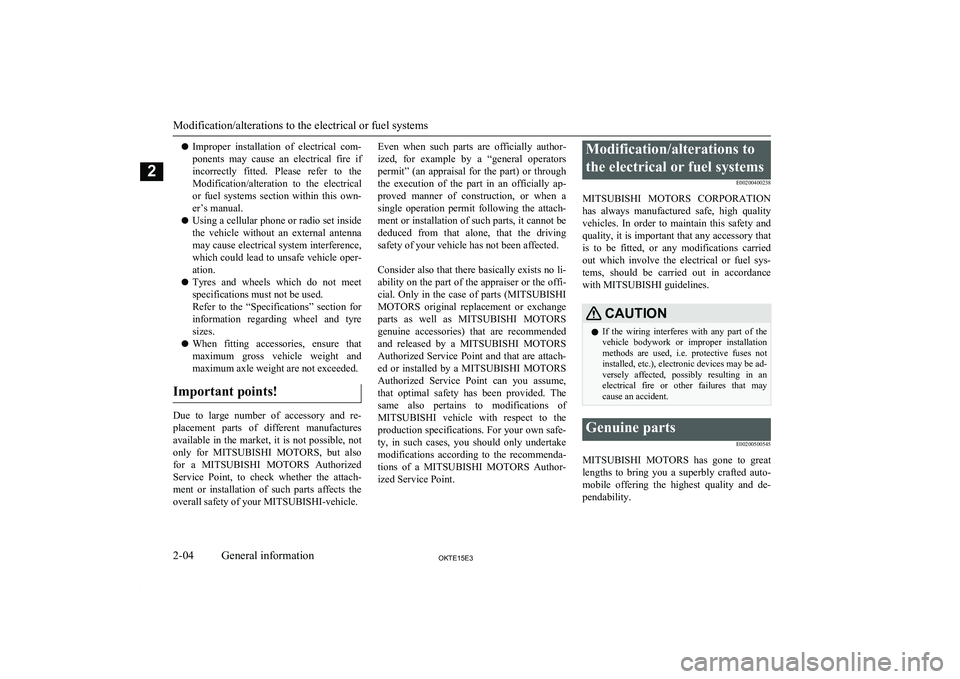

lImproper installation of electrical com-
ponents may cause an electrical fire if
incorrectly fitted. Please refer to the Modification/alteration to the electrical
or fuel systems section within this own- er’s manual.
l Using a cellular phone or radio set inside
the vehicle without an external antenna
may cause electrical system interference,
which could lead to unsafe vehicle oper- ation.
l Tyres and wheels which do not meet
specifications must not be used.
Refer to the “Specifications” section for information regarding wheel and tyre
sizes.
l When fitting accessories, ensure that
maximum gross vehicle weight and
maximum axle weight are not exceeded.
Important points!
Due to large number of accessory and re- placement parts of different manufactures available in the market, it is not possible, not
only for MITSUBISHI MOTORS , but also
for a MITSUBISHI MOTORS Authorized
Service Point, to check whether the attach-
ment or installation of such parts affects the overall safety of your MITSUBISHI-vehicle.

Even when such parts are officially author-
ized, for example by a “general operators permit” (an appraisal for the part) or throughthe execution of the part in an officially ap-
proved manner of construction, or when a single operation permit following the attach-
ment or installation of such parts, it cannot be deduced from that alone, that the driving
safety of your vehicle has not been affected.

Consider also that there basically exists no li- ability on the part of the appraiser or the offi- cial. Only in the case of parts ( MITSUBISHI
MOTORS original replacement or exchange
parts as well as MITSUBISHI MOTORS
genuine accessories) that are recommended and released by a MITSUBISHI MOTORS
Authorized Service Point and that are attach-
ed or installed by a MITSUBISHI MOTORS
Authorized Service Point can you assume, that optimal safety has been provided. Thesame also pertains to modifications of
MITSUBISHI vehicle with respect to the
production specifications. For your own safe-
ty, in such cases, you should only undertake
modifications according to the recommenda- tions of a MITSUBISHI MOTORS Author-
ized Service Point.Modification/alterations to
the electrical or fuel systems E00200400238
MITSUBISHI MOTORS CORPORATION
has always manufactured safe, high quality vehicles. In order to maintain this safety and
quality, it is important that any accessory that is to be fitted, or any modifications carried
out which involve the electrical or fuel sys- tems, should be carried out in accordancewith MITSUBISHI guidelines.CAUTIONl If the wiring interferes with any part of the
vehicle bodywork or improper installation methods are used, i.e. protective fuses not
installed, etc.), electronic devices may be ad- versely affected, possibly resulting in an
electrical fire or other failures that may cause an accident.Genuine parts
E00200500545
MITSUBISHI MOTORS has gone to great
lengths to bring you a superbly crafted auto-
mobile offering the highest quality and de- pendability.
Modification/alterations to the electrical or fuel systems
2-04OKTE15E3General information2

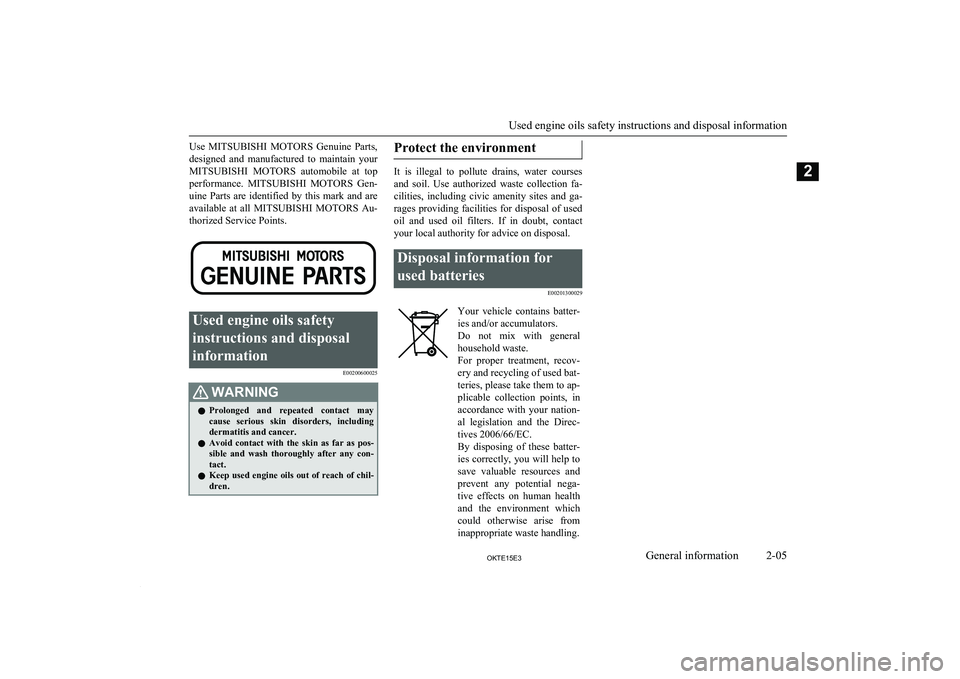

Use MITSUBISHI MOTORS Genuine Parts,
designed and manufactured to maintain your MITSUBISHI MOTORS automobile at top
performance. MITSUBISHI MOTORS Gen-
uine Parts are identified by this mark and are available at all MITSUBISHI MOTORS Au-
thorized Service Points.Used engine oils safety
instructions and disposal
information E00200600025WARNINGlProlonged and repeated contact may
cause serious skin disorders, including
dermatitis and cancer.
l Avoid contact with the skin as far as pos-
sible and wash thoroughly after any con- tact.
l Keep used engine oils out of reach of chil-
dren.Protect the environment
It is illegal to pollute drains, water courses
and soil. Use authorized waste collection fa-cilities, including civic amenity sites and ga- rages providing facilities for disposal of used
oil and used oil filters. If in doubt, contact your local authority for advice on disposal.
Disposal information for
used batteries E00201300029Your vehicle contains batter-
ies and/or accumulators.
Do not mix with general household waste.
For proper treatment, recov-
ery and recycling of used bat-
teries, please take them to ap- plicable collection points, in accordance with your nation-
al legislation and the Direc- tives 2006/66/EC.
By disposing of these batter- ies correctly, you will help to
save valuable resources and
prevent any potential nega-
tive effects on human health and the environment which could otherwise arise frominappropriate waste handling.
Used engine oils safety instructions and disposal information
2-05OKTE15E3General information2
