MITSUBISHI LANCER 2013 8.G Owners Manual

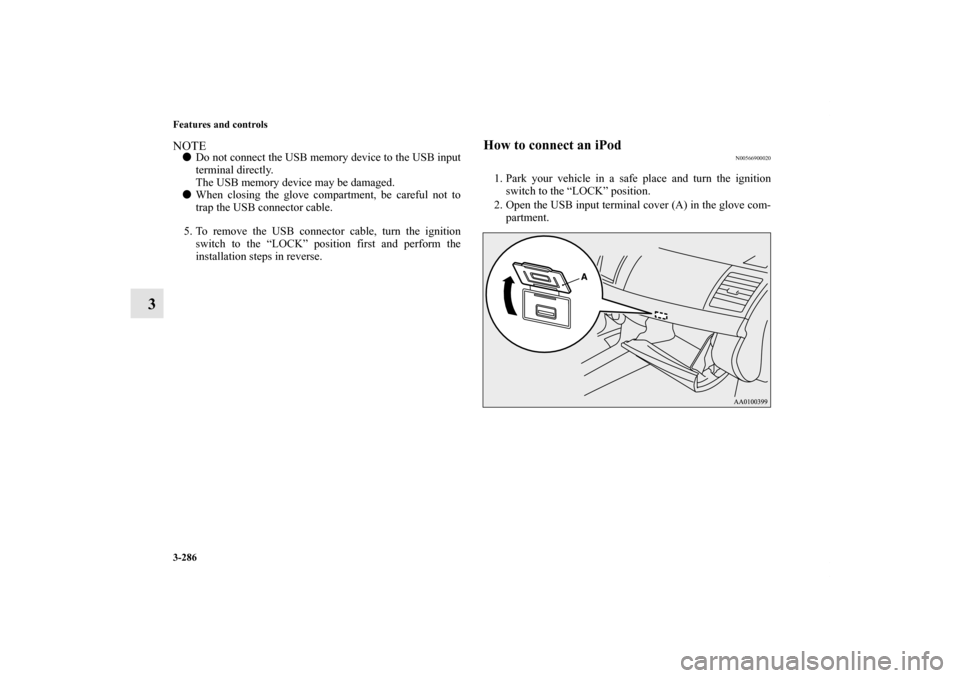

3-286 Features and controls
3
NOTE
Do not connect the USB memory device to the USB input
terminal directly.
The USB memory device may be damaged.

When closing the glove compartment, be careful not to
trap the USB connector cable.
5. To remove the USB connector cable, turn the ignition
switch to the “LOCK” position first and perform the
installation steps in reverse.
How to connect an iPod
N00566900020
1. Park your vehicle in a safe place and turn the ignition
switch to the “LOCK” position.
2. Open the USB input terminal cover (A) in the glove com-
partment.
BK0150800US.book 286 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-287
3
3. Connect the Dock connector (C) to the iPod (B).NOTE
Use a genuine Dock connector from Apple Inc.4. Connect the Dock connector (C) to the USB input termi-
nal (D).
NOTE
When closing the glove compartment, be careful not to
trap the connector cable.
WA R N I N G
!
An open glove compartment door can cause a seri-
ous injury or death to the front passenger in an acci-
dent, even if the passenger is wearing his/her seat
belt. Always keep the glove compartment door
closed when driving.
BK0150800US.book 287 ページ ２０１２年３月２９日　木曜日　午後２時３８分

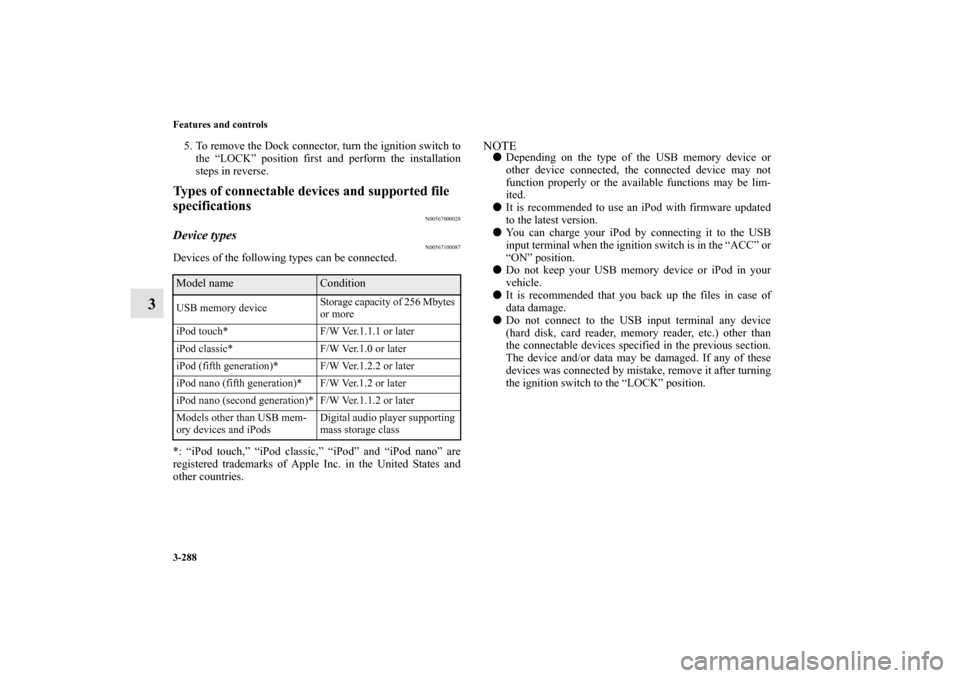

3-288 Features and controls
3
5. To remove the Dock connector, turn the ignition switch to
the “LOCK” position first and perform the installation
steps in reverse.Types of connectable devices and supported file
specifications
N00567000028
Device types
N00567100087
Devices of the following types can be connected.
*: “iPod touch,” “iPod classic,” “iPod” and “iPod nano” are
registered trademarks of Apple Inc. in the United States and
other countries.
NOTE
Depending on the type of the USB memory device or
other device connected, the connected device may not
function properly or the available functions may be lim-
ited.

It is recommended to use an iPod with firmware updated
to the latest version.

You can charge your iPod by connecting it to the USB
input terminal when the ignition switch is in the “ACC” or
“ON” position.

Do not keep your USB memory device or iPod in your
vehicle.

It is recommended that you back up the files in case of
data damage.

Do not connect to the USB input terminal any device
(hard disk, card reader, memory reader, etc.) other than
the connectable devices specified in the previous section.
The device and/or data may be damaged. If any of these
devices was connected by mistake, remove it after turning
the ignition switch to the “LOCK” position.
Model name
Condition
USB memory deviceStorage capacity of 256 Mbytes
or more
iPod touch* F/W Ver.1.1.1 or later
iPod classic* F/W Ver.1.0 or later
iPod (fifth generation)* F/W Ver.1.2.2 or later
iPod nano (fifth generation)* F/W Ver.1.2 or later
iPod nano (second generation)* F/W Ver.1.1.2 or later
Models other than USB mem-
ory devices and iPodsDigital audio player supporting
mass storage classBK0150800US.book 288 ページ ２０１２年３月２９日　木曜日　午後２時３８分

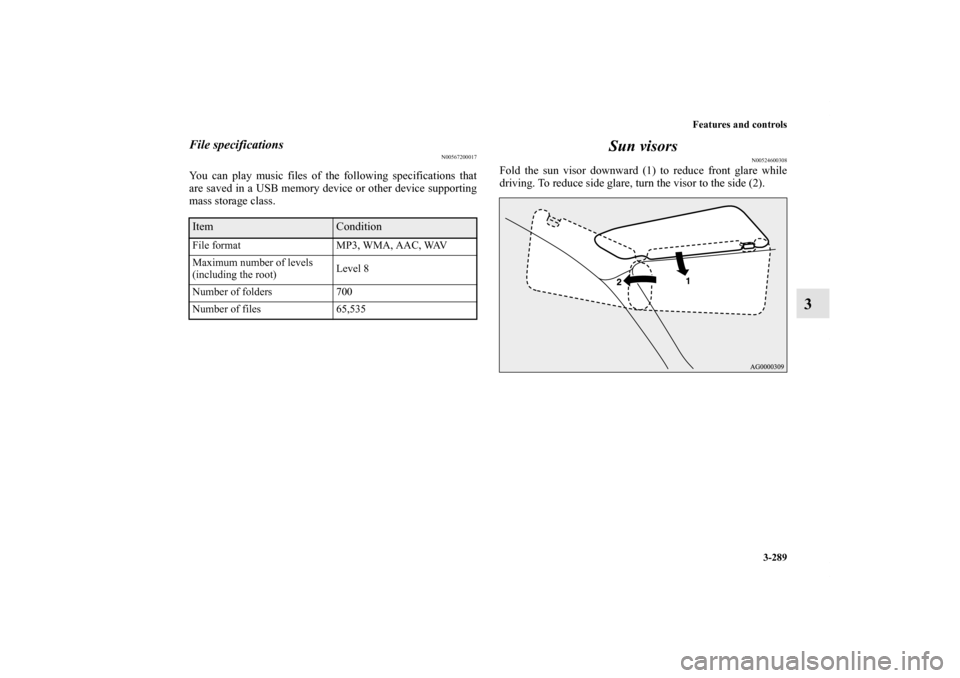

Features and controls
3-289
3
File specifications
N00567200017
You can play music files of the following specifications that
are saved in a USB memory device or other device supporting
mass storage class.
Sun visors
N00524600308
Fold the sun visor downward (1) to reduce front glare while
driving. To reduce side glare, turn the visor to the side (2).
Item
Condition
File format MP3, WMA, AAC, WAV
Maximum number of levels
(including the root)Level 8
Number of folders 700
Number of files 65,535
BK0150800US.book 289 ページ ２０１２年３月２９日　木曜日　午後２時３８分

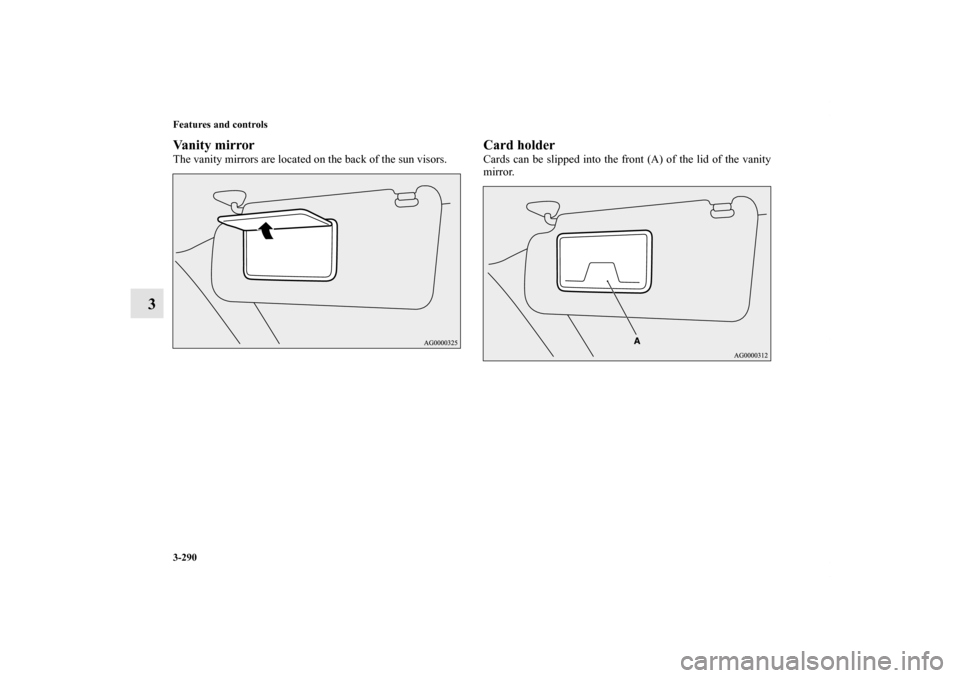

3-290 Features and controls
3
Va n i t y m i r r o rThe vanity mirrors are located on the back of the sun visors.
Card holderCards can be slipped into the front (A) of the lid of the vanity
mirror.
BK0150800US.book 290 ページ ２０１２年３月２９日　木曜日　午後２時３８分

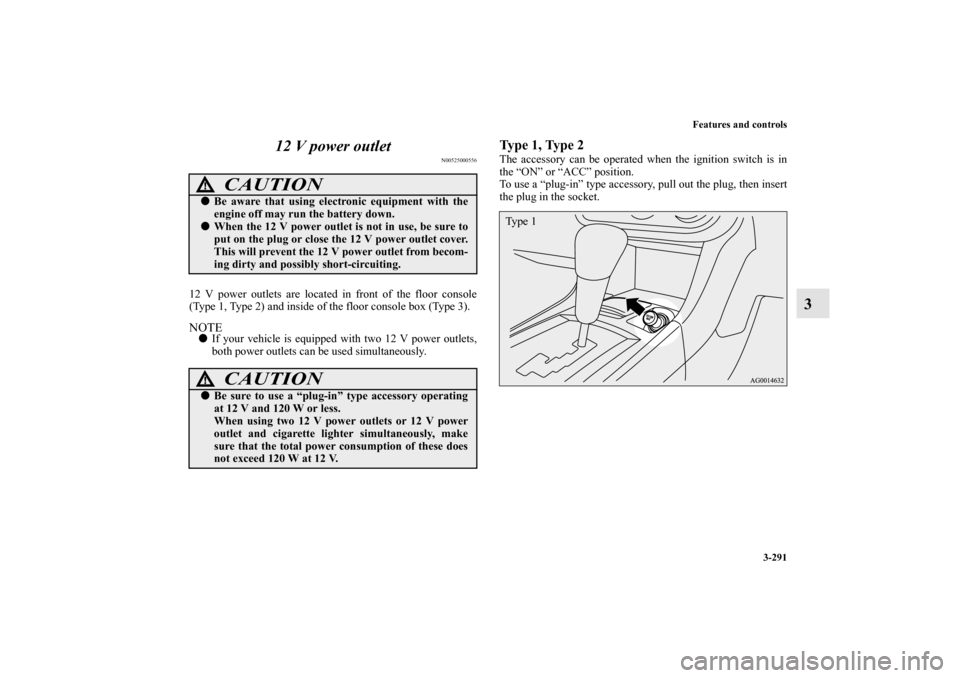

Features and controls
3-291
3 12 V power outlet
N00525000556
12 V power outlets are located in front of the floor console
(Type 1, Type 2) and inside of the floor console box (Type 3).NOTE
If your vehicle is equipped with two 12 V power outlets,
both power outlets can be used simultaneously.
Type 1, Type 2The accessory can be operated when the ignition switch is in
the “ON” or “ACC” position.
To use a “plug-in” type accessory, pull out the plug, then insert
the plug in the socket.
CAUTION
!
Be aware that using electronic equipment with the
engine off may run the battery down.
When the 12 V power outlet is not in use, be sure to
put on the plug or close the 12 V power outlet cover.
This will prevent the 12 V power outlet from becom-
ing dirty and possibly short-circuiting.
CAUTION
!
Be sure to use a “plug-in” type accessory operating
at 12 V and 120 W or less.
When using two 12 V power outlets or 12 V power
outlet and cigarette lighter simultaneously, make
sure that the total power consumption of these does
not exceed 120 W at 12 V.
Ty p e 1
BK0150800US.book 291 ページ ２０１２年３月２９日　木曜日　午後２時３８分

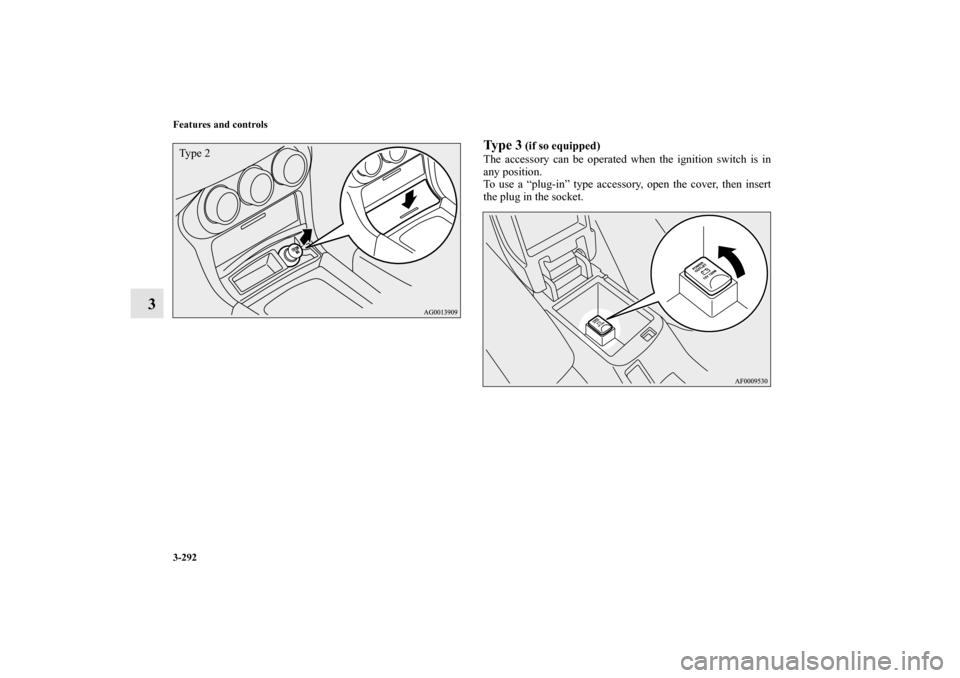

3-292 Features and controls
3
Ty p e 3
(if so equipped)
The accessory can be operated when the ignition switch is in
any position.
To use a “plug-in” type accessory, open the cover, then insert
the plug in the socket.
Ty p e 2BK0150800US.book 292 ページ ２０１２年３月２９日　木曜日　午後２時３８分

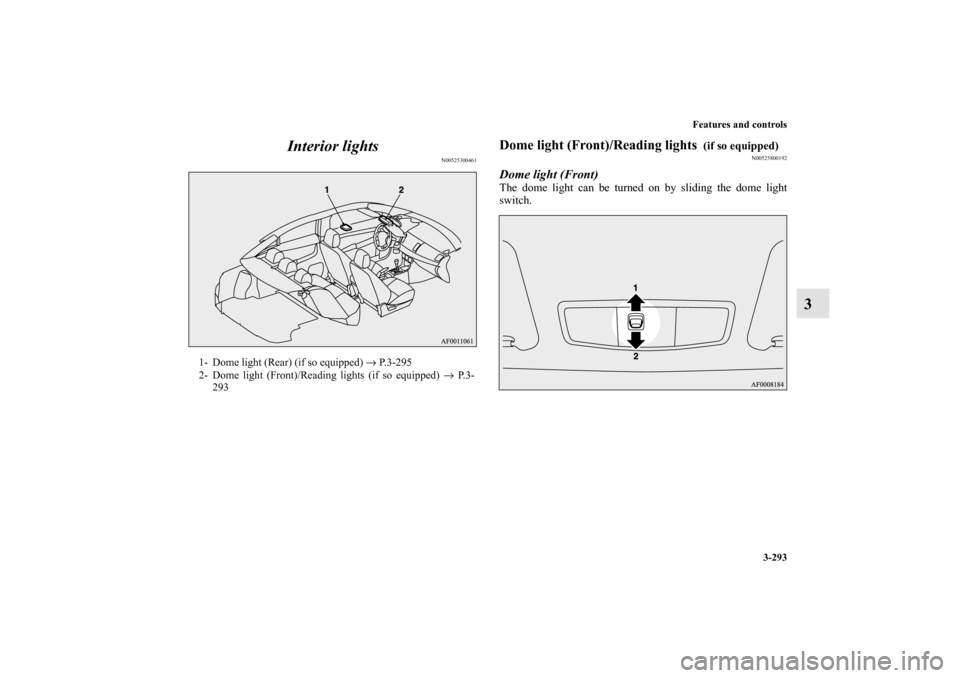

Features and controls
3-293
3 Interior lights
N00525300461
Dome light (Front)/Reading lights
(if so equipped)
N00525800192
Dome light (Front)The dome light can be turned on by sliding the dome light
switch.
1- Dome light (Rear) (if so equipped) → P.3-295
2- Dome light (Front)/Reading lights (if so equipped) → P. 3 -
293
BK0150800US.book 293 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-294 Features and controls
3
1- (DOOR)
The dome light comes on when any door is opened. When
all the doors are closed, the dome light illuminates for about
30 seconds then goes off. However, the light goes off imme-
diately if:

The door is closed while the ignition switch is in the
“ON” position.

The driver’s door is closed after all the other doors are
closed while the lock knob of the driver’s door is in the
lock position.

The door is closed and the power door lock switch is
used to lock the doors.

In vehicles equipped with the keyless entry system, the
keyless entry system remote control transmitter is used
to lock the doors.

In vehicles equipped with the F.A.S.T.-key, the doors
are locked using the F.A.S.T.-key.
NOTE
When the engine is started using the key while the
doors are closed, if you remove the key, the dome light
will illuminate for about 30 seconds before going off.

When the engine is started using the F.A.S.T.-key while
the doors are closed, if the ignition switch is moved to
the “LOCK” position, the dome light will illuminate
for about 30 seconds before going off.

The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
2- (OFF)
The dome light goes off.
BK0150800US.book 294 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-295
3

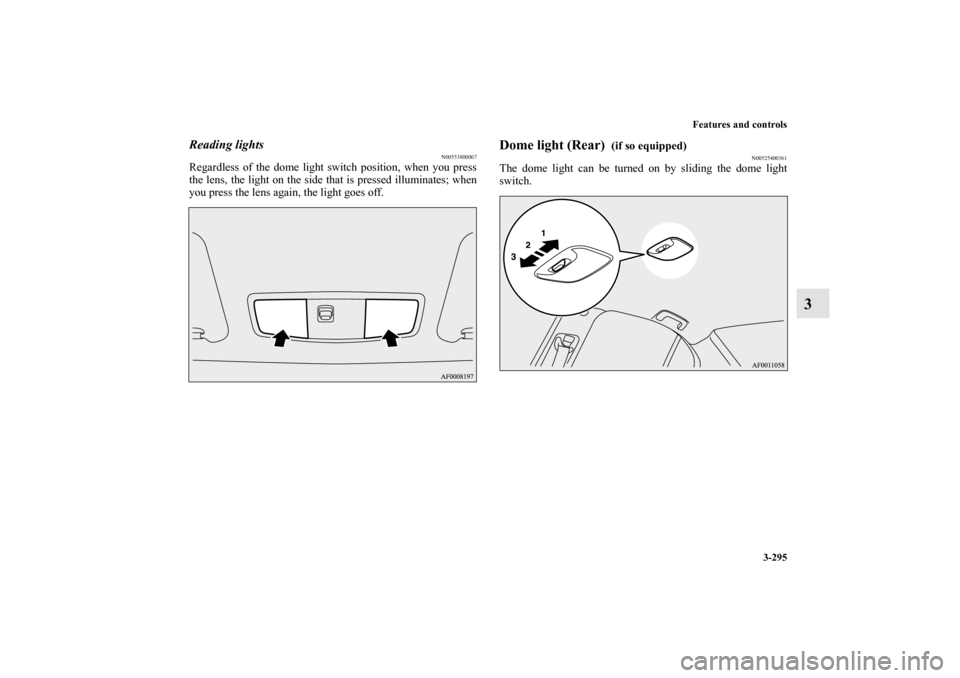

Reading lights
N00553800067
Regardless of the dome light switch position, when you press
the lens, the light on the side that is pressed illuminates; when
you press the lens again, the light goes off.
Dome light (Rear)
(if so equipped)
N00525400361
The dome light can be turned on by sliding the dome light
switch.
