navigation MITSUBISHI LANCER EVOLUTION 2010 10.G MMCS Manual

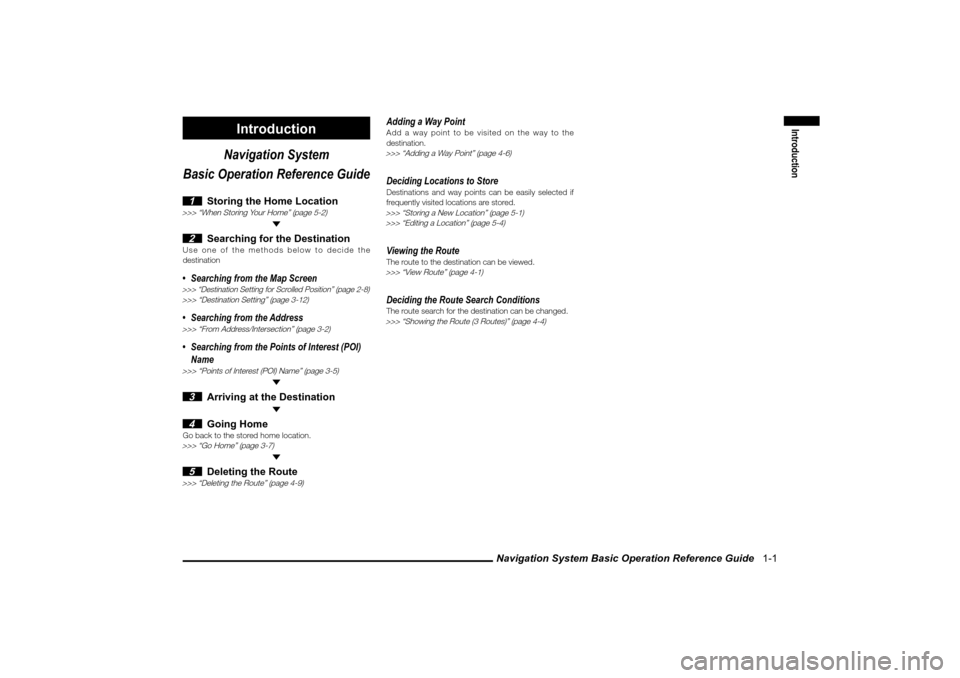

Navigation System Basic Operation Reference Guide 1-1
Introduction
Introduction
Navigation System
Basic Operation Reference Guide
1 Storing the Home Location
>>> “When Storing Your Home” (page 5-2) 2 Searching for the Destination
Use one of the methods below to decide the
destination• Searching from the Map Screen>>> “Destination Setting for Scrolled Position” (page 2-8)>>> “Destination Setting” (page 3-12)• Searching from the Address>>> “From Address/Intersection” (page 3-2)• Searching from the Points of Interest (POI)
Name>>> “Points of Interest (POI) Name” (page 3-5) 3 Arriving at the Destination
4 Going Home
Go back to the stored home location.>>> “Go Home” (page 3-7) 5 Deleting the Route
>>> “Deleting the Route” (page 4-9)
Adding a Way PointAdd a way point to be visited on the way to the
destination.>>> “Adding a Way Point” (page 4-6)Deciding Locations to StoreDestinations and way points can be easily selected if
frequently visited locations are stored.>>> “Storing a New Location” (page 5-1)
>>> “Editing a Location” (page 5-4)Viewing the RouteThe route to the destination can be viewed.>>> “View Route” (page 4-1)Deciding the Route Search ConditionsThe route search for the destination can be changed.>>> “Showing the Route (3 Routes)” (page 4-4)









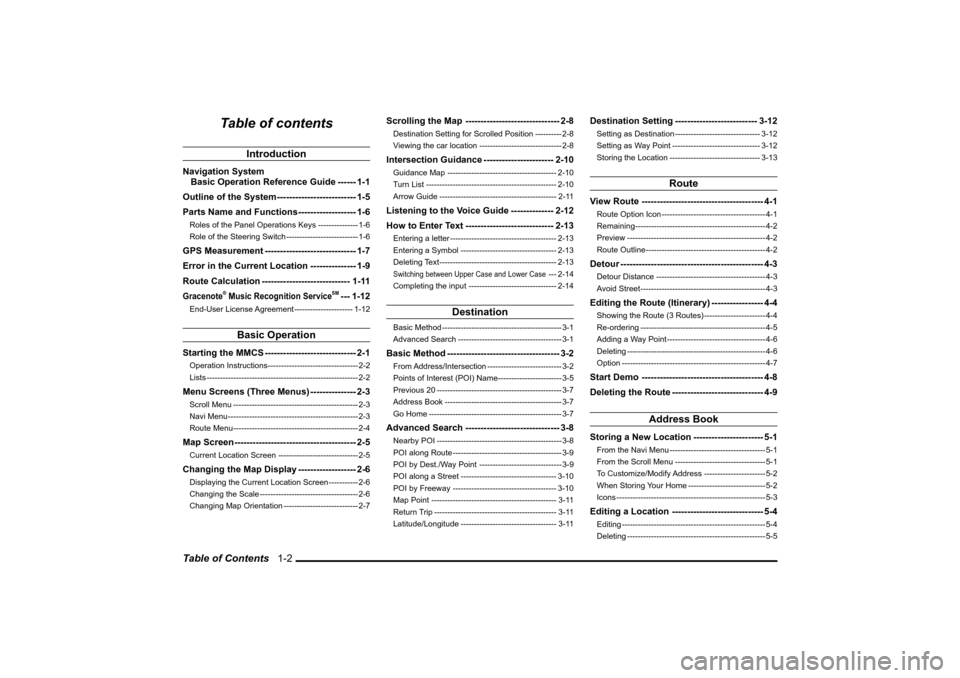

Table of Contents 1-2
Table of contents
Introduction
Navigation System
Basic Operation Reference Guide ------ 1-1
Outline of the System -------------------------- 1-5
Parts Name and Functions ------------------- 1-6Roles of the Panel Operations Keys --------------- 1-6
Role of the Steering Switch --------------------------- 1-6GPS Measurement ------------------------------ 1-7
Error in the Current Location --------------- 1-9
Route Calculation ----------------------------- 1-11Gracenote
® Music Recognition Service
SM --- 1-12
End-User License Agreement ---------------------- 1-12
Basic Operation
Starting the MMCS ------------------------------ 2-1Operation Instructions ---------------------------------- 2-2
Lists --------------------------------------------------------- 2-2Menu Screens (Three Menus) --------------- 2-3Scroll Menu ----------------------------------------------- 2-3
Navi Menu ------------------------------------------------- 2-3
Route Menu ----------------------------------------------- 2-4Map Screen ---------------------------------------- 2-5Current Location Screen ------------------------------ 2-5Changing the Map Display ------------------- 2-6Displaying the Current Location Screen ----------- 2-6
Changing the Scale ------------------------------------- 2-6
Changing Map Orientation ---------------------------- 2-7
Scrolling the Map ------------------------------- 2-8Destination Setting for Scrolled Position ---------- 2-8
Viewing the car location ------------------------------- 2-8Intersection Guidance ----------------------- 2-10Guidance Map ----------------------------------------- 2-10
Turn List ------------------------------------------------- 2-10
Arrow Guide -------------------------------------------- 2-11Listening to the Voice Guide -------------- 2-12
How to Enter Text ----------------------------- 2-13Entering a letter ---------------------------------------- 2-13
Entering a Symbol ------------------------------------ 2-13
Deleting Text -------------------------------------------- 2-13Switching between Upper Case and Lower Case
--- 2-14
Completing the input --------------------------------- 2-14
Destination
Basic Method --------------------------------------------- 3-1
Advanced Search --------------------------------------- 3-1Basic Method ------------------------------------- 3-2From Address/Intersection ---------------------------- 3-2
Points of Interest (POI) Name ------------------------ 3-5
Previous 20 ----------------------------------------------- 3-7
Address Book -------------------------------------------- 3-7
Go Home -------------------------------------------------- 3-7Advanced Search ------------------------------- 3-8Nearby POI ----------------------------------------------- 3-8
POI along Route ----------------------------------------- 3-9
POI by Dest./Way Point ------------------------------- 3-9
POI along a Street ------------------------------------ 3-10
POI by Freeway --------------------------------------- 3-10
Map Point ----------------------------------------------- 3-11
Return Trip ---------------------------------------------- 3-11
Latitude/Longitude ------------------------------------ 3-11
Destination Setting --------------------------- 3-12Setting as Destination -------------------------------- 3-12
Setting as Way Point --------------------------------- 3-12
Storing the Location ---------------------------------- 3-13
Route
View Route ---------------------------------------- 4-1Route Option Icon --------------------------------------- 4-1
Remaining ------------------------------------------------- 4-2
Preview ---------------------------------------------------- 4-2
Route Outline --------------------------------------------- 4-2Detour ----------------------------------------------- 4-3Detour Distance ----------------------------------------- 4-3
Avoid Street ----------------------------------------------- 4-3Editing the Route (Itinerary) ----------------- 4-4Showing the Route (3 Routes) ----------------------- 4-4
Re-ordering ----------------------------------------------- 4-5
Adding a Way Point ------------------------------------- 4-6
Deleting ---------------------------------------------------- 4-6
Option ------------------------------------------------------ 4-7Start Demo ---------------------------------------- 4-8
Deleting the Route ------------------------------ 4-9
Address Book
Storing a New Location ----------------------- 5-1From the Navi Menu ------------------------------------ 5-1
From the Scroll Menu ---------------------------------- 5-1
To Customize/Modify Address ----------------------- 5-2
When Storing Your Home ----------------------------- 5-2
Icons -------------------------------------------------------- 5-3Editing a Location ------------------------------ 5-4Editing ------------------------------------------------------ 5-4
Deleting ---------------------------------------------------- 5-5










Starting the MMCS 2-1
Basic Operation
Basic Operation
Starting the MMCS
WARNING
 Do not operate the Mitsubishi Multi Communication
System (MMCS) while driving. Always concentrate on your driving rst. Keep your

eyes and mind on the road. If distracted while
driving, you could cause an accident.
 When operating the MMCS, do not park with the
engine running in a closed or poorly ventilated
area. Carbon monoxide gas, which is odorless and
extremely poisonous, can build up and cause serious
injury or death.
1 Turn “ON” the ignition switch
eng_244

eng_a002
The opening screen is displayed.

If any function other than AUDIO was used last time,
go to Step 2.NOTE If special days and anniversaries
(page 9-1)
have
been set, when the date matches the settings, the
set icon is displayed on screen.
 If maintenance information
(page 9-9)
has been set,
when the maintenance distance has been exceeded
or the maintenance timing has been exceeded, a
telop will be displayed in the opening screen.
2 Touch the desired language
eng_a001-1
NOTE When the meter is set to Auto, the language of both
sides can be changed by performing operations on
either the MMCS side or the meter side.
 When the meter is set to Manual, the language
of the meter side and the MMCS side can be set
separately. 3 Touch [OK]
After a moment, the display is changed to the
navigation screen.NOTE If the battery voltage is low in cold regions, etc., the
navigation screen is displayed rather than the screen
last used.









Starting the MMCS 2-2
Operation Instructions
With this navigation system, operations
can be performed by pressing the panel
keys or touching the screen buttons.
Operate the screen by touching lightly with
a ngertip.
mb447
WARNING
 While driving, do not perform complicated
operations or concentrate on the screen. Failure to
pay attention to the road ahead may cause traf c
accidents. Have a front seat passenger perform
the operations, or stop the car in a safe location
before operating.NOTE Do not touch the screen with wet hands or press
it with hard, sharp objects, as this may cause
malfunction.
The Screens in this ManualThe screens described in this manual are for
explanation. They may be different from actual
screens, and their operation may also be different.
Lists
This section explains the list operation
buttons when a list has been displayed.
Scrolls forward through a list one line at
a time.Scrolls forward through a list one page
at a time.Scrolls back through a list one line at a
time.Scrolls back through a list one page at
a time.









Menu Screens (Three Menus) 2-3
Basic Operation
Menu Screens (Three Menus)
Scroll Menu
After scrolling the map, press the [ENT]
key to display.
eng_a003-2
1) [Set as Dest.]
Sets the cursor position as the destination.>>> “Destination Setting for Scrolled Position” (page 2-8)2) [Address Book]
The cursor position can be stored in the address
book.
>>> “Storing a New Location” (page 5-1)3) [Nearby POI ]
POI can be searched for in the vicinity of the cursor
position.
>>> “Nearby POI
” (page 3-8)
4) [Location check]
The positional relationship between the cursor
position and the current location can be viewed.>>> “Viewing the car location” (page 2-8)5) Cursor
Navi Menu
Press the [MENU] key to display.
eng_a004-2
1) [Address/Intersection] The location can be searched for using the address
or street name of the destination. >>> “From Address/Intersection” (page 3-2)2) [Point of Interest]
The location can be searched for using a POI
name.
>>> “Points of Interest (POI) Name” (page 3-5)3) [Advanced Search]
An advanced search is possible based on the POI
search.
>>> “Advanced Search” (page 3-8)4) [Previous 20] A new destination can be set from the 20 destinations
that have been previously set. >>> “Previous 20” (page 3-7)5) [Address Book] A previously stored location can be called up and
set as the destination.
>>> “Address Book” (page 5-1)6) [Go Home]
A route can be set for returning home.
>>> “Go Home” (page 3-7)
7) [Navigation Settings]
Various functions related to the navigation can be
set.
>>> “Settings” (page 10-1)
8) [Navigation Tools]
The Demo of the set route and basic information
related to the navigation can be viewed.
>>> “Start Demo” (page 4-8)9) [Route]
The [Route] button is displayed when a destination
has been set.
>>> “Route Menu” (page 2-4)
1)2)3)4)
5)









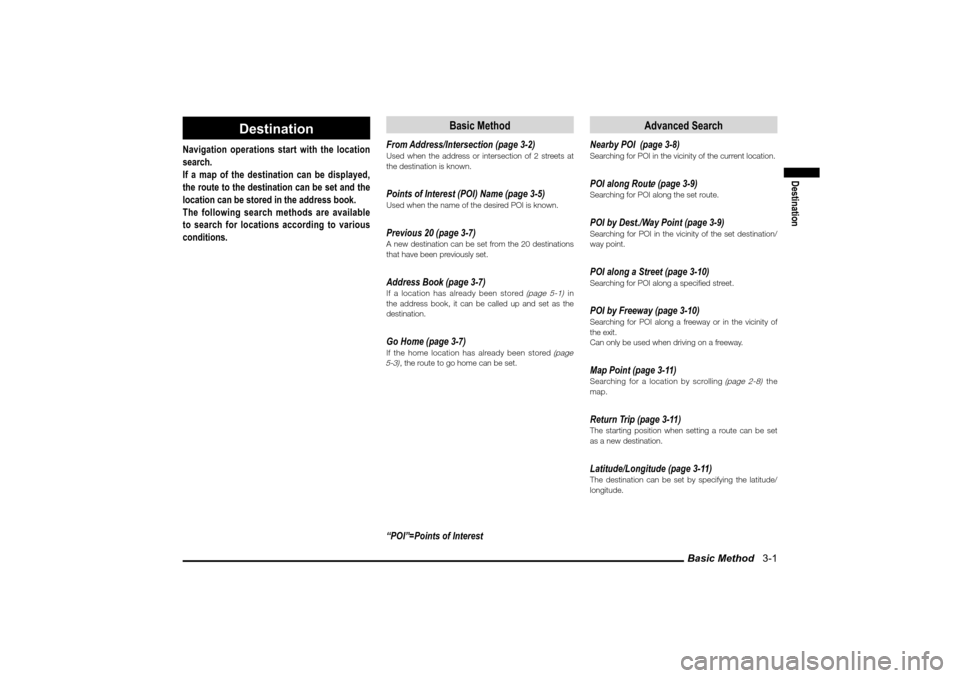

Basic Method 3-1
Destination
Destination
Navigation operations start with the location
search.
If a map of the destination can be displayed,
the route to the destination can be set and the
location can be stored in the address book.
The following search methods are available
to search for locations according to various
conditions.
Basic Method
From Address/Intersection (page 3-2)Used when the address or intersection of 2 streets at
the destination is known.Points of Interest (POI) Name (page 3-5)Used when the name of the desired POI is known.Previous 20 (page 3-7)A new destination can be set from the 20 destinations
that have been previously set.Address Book (page 3-7)If a location has already been stored
(page 5-1)
in
the address book, it can be called up and set as the
destination.
Go Home (page 3-7)If the home location has already been stored
(page
5-3)
, the route to go home can be set.
“POI”=Points of Interest
Advanced Search
Nearby POI
(page 3-8)
Searching for POI in the vicinity of the current location.POI along Rout
e (page 3-9)
Searching for POI along the set route.POI by Dest./Way Point (page 3-9)Searching for POI in the vicinity of the set destination/
way point.POI along a Street (page 3-10)Searching for POI along a speci ed street.POI by Freeway (page 3-10)Searching for POI along a freeway or in the vicinity of
the exit.
Can only be used when driving on a freeway.Map Point (page 3-11)Searching for a location by scrolling
(page 2-8)
the
map.
Return Trip (page 3-11)The starting position when setting a route can be set
as a new destination.Latitude/Longitude (page 3-11)The destination can be set by specifying the latitude/
longitude.









Start Demo 4-8
Start Demo
The set route can be viewed with a demo.
1 Display the Navi Menu, and touch
[Navigation Tools]
eng_a004-2
The navigation tools screen is displayed 2 Touch [Start Demo]
eng_a104

eng_a105
The demo is started.
Stop DemoStopping the demo that is operating. 1 Display the Navigation Tools
screen during the demo
2 Touch [Stop Demo]
eng_a106
The demo is stopped.





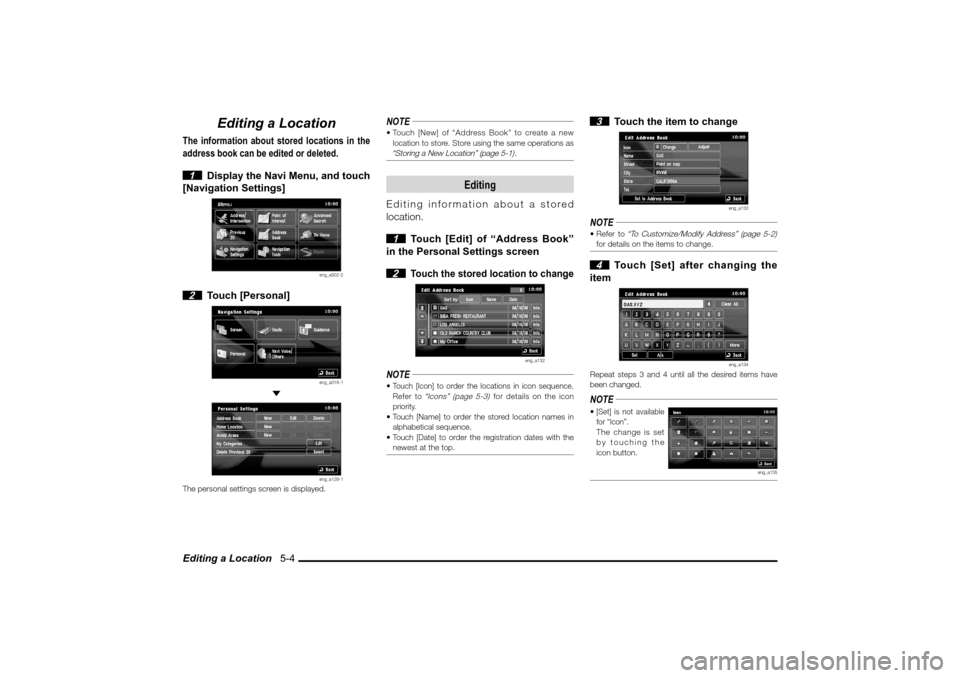

Editing a Location 5-4
Editing a Location
The information about stored locations in the
address book can be edited or deleted.
1 Display the Navi Menu, and touch
[Navigation Settings]
eng_a502-2
2 Touch [Personal]
eng_a016-1

eng_a128-1
The personal settings screen is displayed.
NOTE Touch [New] of “Address Book” to create a new
location to store. Store using the same operations as “Storing a New Location” (page 5-1)
.
Editing
Editing information about a stored
location.
1 Touch [Edit] of “Address Book”
in the Personal Settings screen
2
Touch the stored location to change
eng_a132
NOTE Touch [Icon] to order the locations in icon sequence.
Refer to
“Icons” (page 5-3)
for details on the icon
priority.
 Touch [Name] to order the stored location names in
alphabetical sequence.
 Touch [Date] to order the registration dates with the
newest at the top.
3 Touch the item to change
eng_a133
NOTE Refer to
“To Customize/Modify Address” (page 5-2)

for details on the items to change.
4 Touch [Set] after changing the
item
eng_a134
Repeat steps 3 and 4 until all the desired items have
been changed.NOTE [Set] is not available
for “Icon”. The change is set
by touching the
icon button.
eng_a135









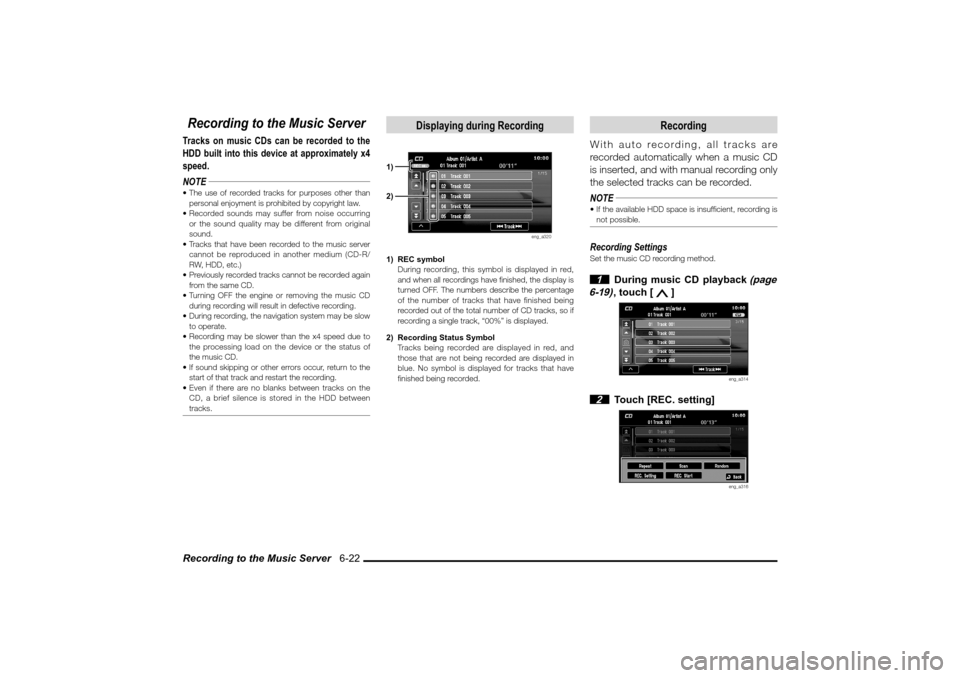

Recording to the Music Server 6-22Recording to the Music ServerTracks on music CDs can be recorded to the
HDD built into this device at approximately x4
speed.
NOTE The use of recorded tracks for purposes other than
personal enjoyment is prohibited by copyright law.
 Recorded sounds may suffer from noise occurring
or the sound quality may be different from original
sound.
 Tracks that have been recorded to the music server
cannot be reproduced in another medium (CD-R/
RW, HDD, etc.)
 Previously recorded tracks cannot be recorded again
from the same CD.
 Turning OFF the engine or removing the music CD
during recording will result in defective recording.
 During recording, the navigation system may be slow
to operate.
 Recording may be slower than the x4 speed due to
the processing load on the device or the status of
the music CD.
 If sound skipping or other errors occur, return to the
start of that track and restart the recording.
 Even if there are no blanks between tracks on the
CD, a brief silence is stored in the HDD between
tracks.
Displaying during Recording
eng_a320
1) REC symbol
During recording, this symbol is displayed in red,
and when all recordings have nished, the display is
turned OFF. The numbers describe the percentage
of the number of tracks that have finished being
recorded out of the total number of CD tracks, so if
recording a single track, “00%” is displayed.
2) Recording Status Symbol
Tracks being recorded are displayed in red, and
those that are not being recorded are displayed in
blue. No symbol is displayed for tracks that have
nished being recorded.
Recording
With auto recording, all tracks are
recorded automatically when a music CD
is inserted, and with manual recording only
the selected tracks can be recorded.
NOTE If the available HDD space is insuf cient, recording is
not possible.Recording SettingsSet the music CD recording method. 1 During music CD playback
(page
6-19)
, touch [
]
eng_a314
2 Touch [REC. setting]
eng_a316
1)2)





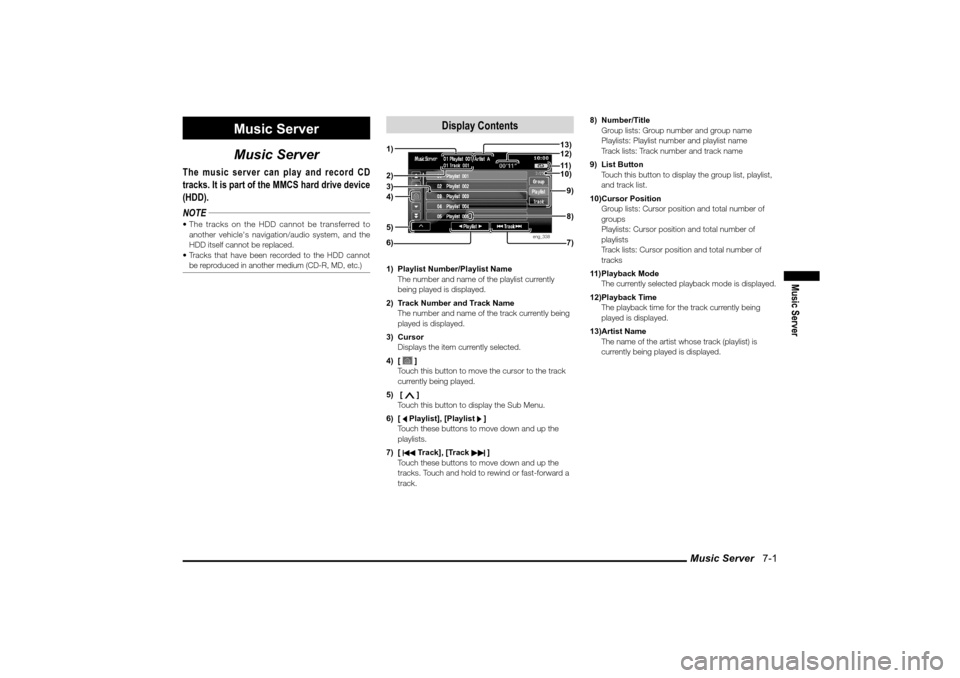

Music Server 7-1
Music Server
Music Server
Music Server
The music server can play and record CD
tracks. It is part of the MMCS hard drive device
(HDD).
NOTE The tracks on the HDD cannot be transferred to
another vehicle's navigation/audio system, and the
HDD itself cannot be replaced.
 Tracks that have been recorded to the HDD cannot
be reproduced in another medium (CD-R, MD, etc.)
Display Contents
eng_338
1) Playlist Number/Playlist Name
The number and name of the playlist currently
being played is displayed.
2) Track Number and Track Name
The number and name of the track currently being
played is displayed.
3) Cursor
Displays the item currently selected.
4) [
]
Touch this button to move the cursor to the track
currently being played.
5) [ ]
Touch this button to display the Sub Menu.
6) [ Playlist], [Playlist ]
Touch these buttons to move down and up the
playlists.
7) [ Track], [Track
]
Touch these buttons to move down and up the
tracks. Touch and hold to rewind or fast-forward a
track.8) Number/Title
Group lists: Group number and group name
Playlists: Playlist number and playlist name
Track lists: Track number and track name
9) List Button
Touch this button to display the group list, playlist,
and track list.
10) Cursor Position
Group lists: Cursor position and total number of
groups
Playlists: Cursor position and total number of
playlists
Track lists: Cursor position and total number of
tracks
11) Playback Mode
The currently selected playback mode is displayed.
12) Playback Time
The playback time for the track currently being
played is displayed.
13) Artist Name
The name of the artist whose track (playlist) is
currently being played is displayed.
4) 2)1)3)
6) 7)8) 9) 10) 11 ) 13)
12)5)
