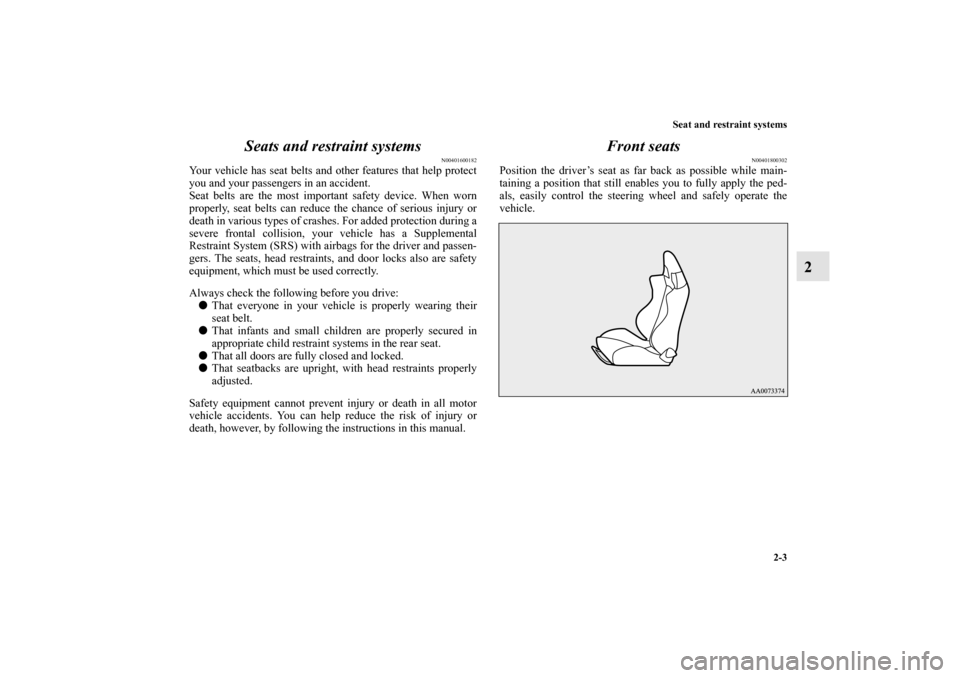

Seat and restraint systems
2-3
2 Seats and restraint systems
N00401600182
Your vehicle has seat belts and other features that help protect
you and your passengers in an accident.
Seat belts are the most important safety device. When worn
properly, seat belts can reduce the chance of serious injury or
death in various types of crashes. For added protection during a
severe frontal collision, your vehicle has a Supplemental
Restraint System (SRS) with airbags for the driver and passen-
gers. The seats, head restraints, and door locks also are safety
equipment, which must be used correctly.
Always check the following before you drive:

That everyone in your vehicle is properly wearing their
seat belt.


That infants and small children are properly secured in
appropriate child restraint systems in the rear seat.


That all doors are fully closed and locked.


That seatbacks are upright, with head restraints properly
adjusted.
Safety equipment cannot prevent injury or death in all motor
vehicle accidents. You can help reduce the risk of injury or
death, however, by following the instructions in this manual.
Front seats
N00401800302
Position the driver’s seat as far back as possible while main-
taining a position that still enables you to fully apply the ped-
als, easily control the steering wheel and safely operate the
vehicle.
BK0105501US.book 3 ページ ２００９年８月１０日　月曜日　午前１０時３２分

3

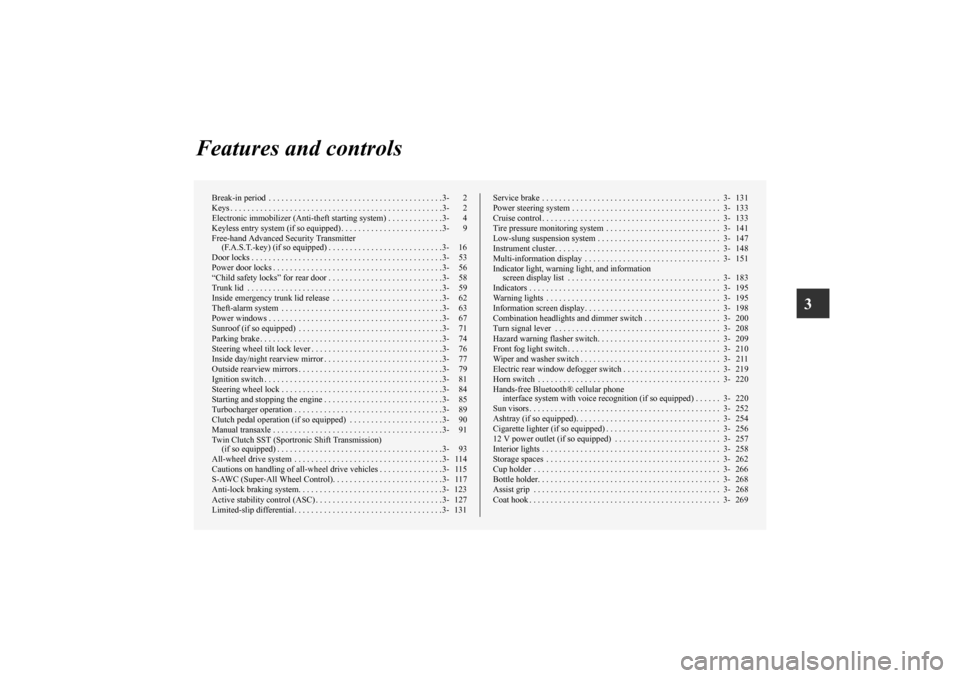

Features and controls
Break-in period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . . . . .3- 4
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . .3- 9
Free-hand Advanced Security Transmitter
(F.A.S.T.-key) (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 16
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 53
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 56
“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 58
Trunk lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 59
Inside emergency trunk lid release . . . . . . . . . . . . . . . . . . . . . . . . . .3- 62
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 63
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 67
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 71
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 74
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 76
Inside day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 77
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 79
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 81
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 84
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 85
Turbocharger operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 89
Clutch pedal operation (if so equipped) . . . . . . . . . . . . . . . . . . . . . .3- 90
Manual transaxle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 91
Twin Clutch SST (Sportronic Shift Transmission)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 93
All-wheel drive system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 114
Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . . . . .3- 115
S-AWC (Super-All Wheel Control). . . . . . . . . . . . . . . . . . . . . . . . . .3- 117
Anti-lock braking system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 123
Active stability control (ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 127
Limited-slip differential. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 131Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 131
Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 133
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 133
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 141
Low-slung suspension system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 147
Instrument cluster. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 148
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 151
Indicator light, warning light, and information
screen display list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 183
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 195
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 195
Information screen display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 198
Combination headlights and dimmer switch . . . . . . . . . . . . . . . . . . 3- 200
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 208
Hazard warning flasher switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 209
Front fog light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 210
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . . . . 3- 219
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 220
Hands-free Bluetooth® cellular phone
interface system with voice recognition (if so equipped) . . . . . . 3- 220
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 252
Ashtray (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 254
Cigarette lighter (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 256
12 V power outlet (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 257
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 258
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 262
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 266
Bottle holder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 268
Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 268
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 269
BK0105501US.book 1 ページ ２００９年８月１０日　月曜日　午前１０時３２分

3-2 Features and controls

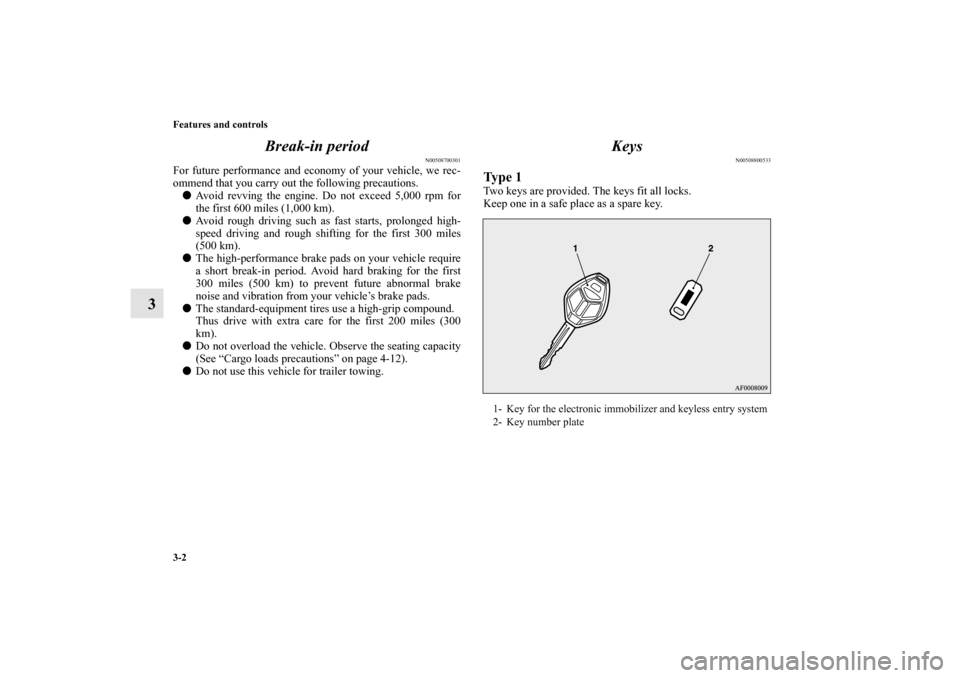

3Break-in period
N00508700301
For future performance and economy of your vehicle, we rec-
ommend that you carry out the following precautions.

Avoid revving the engine. Do not exceed 5,000 rpm for
the first 600 miles (1,000 km).


Avoid rough driving such as fast starts, prolonged high-
speed driving and rough shifting for the first 300 miles
(500 km).


The high-performance brake pads on your vehicle require
a short break-in period. Avoid hard braking for the first
300 miles (500 km) to prevent future abnormal brake
noise and vibration from your vehicle’s brake pads.


The standard-equipment tires use a high-grip compound.
Thus drive with extra care for the first 200 miles (300
km).


Do not overload the vehicle. Observe the seating capacity
(See “Cargo loads precautions” on page 4-12).


Do not use this vehicle for trailer towing.
Keys
N00508800533
Ty p e 1Two keys are provided. The keys fit all locks.
Keep one in a safe place as a spare key.1- Key for the electronic immobilizer and keyless entry system
2- Key number plate
BK0105501US.book 2 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-3
3

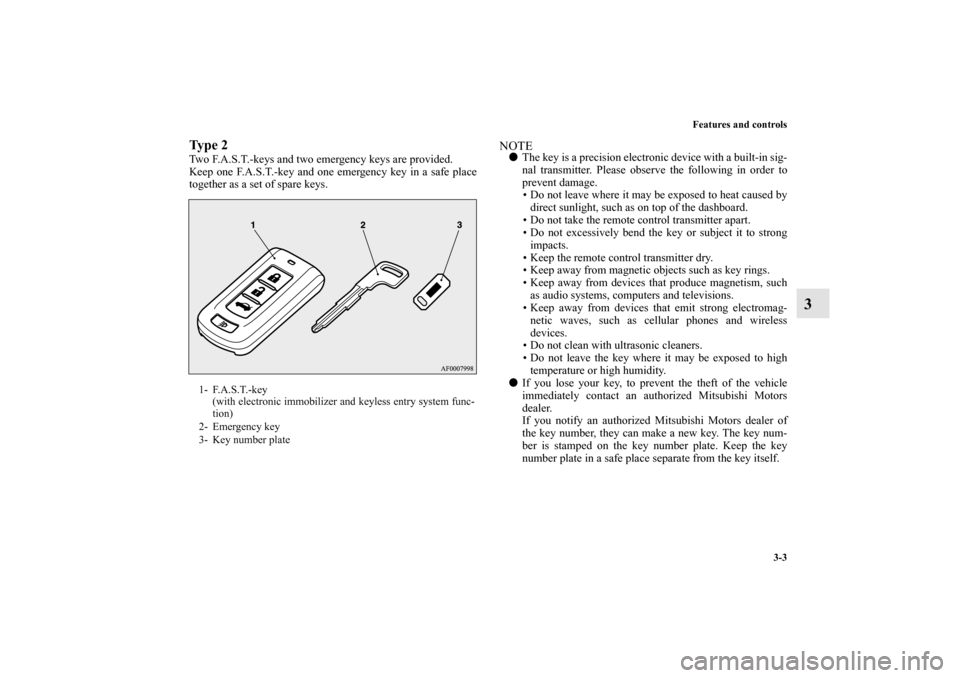

Ty p e 2Two F.A.S.T.-keys and two emergency keys are provided.
Keep one F.A.S.T.-key and one emergency key in a safe place
together as a set of spare keys.
NOTE

The key is a precision electronic device with a built-in sig-
nal transmitter. Please observe the following in order to
prevent damage.
 Do not leave where it may be exposed to heat caused by
direct sunlight, such as on top of the dashboard.
 Do not take the remote control transmitter apart.
 Do not excessively bend the key or subject it to strong
impacts.
 Keep the remote control transmitter dry.
 Keep away from magnetic objects such as key rings.
 Keep away from devices that produce magnetism, such
as audio systems, computers and televisions.
 Keep away from devices that emit strong electromag-
netic waves, such as cellular phones and wireless
devices.
 Do not clean with ultrasonic cleaners.
 Do not leave the key where it may be exposed to high
temperature or high humidity.


If you lose your key, to prevent the theft of the vehicle
immediately contact an authorized Mitsubishi Motors
dealer.
If you notify an authorized Mitsubishi Motors dealer of
the key number, they can make a new key. The key num-
ber is stamped on the key number plate. Keep the key
number plate in a safe place separate from the key itself.
1- F.A.S.T.-key
(with electronic immobilizer and keyless entry system func-
tion)
2- Emergency key
3- Key number plate
BK0105501US.book 3 ページ ２００９年８月１０日　月曜日　午前１０時３２分

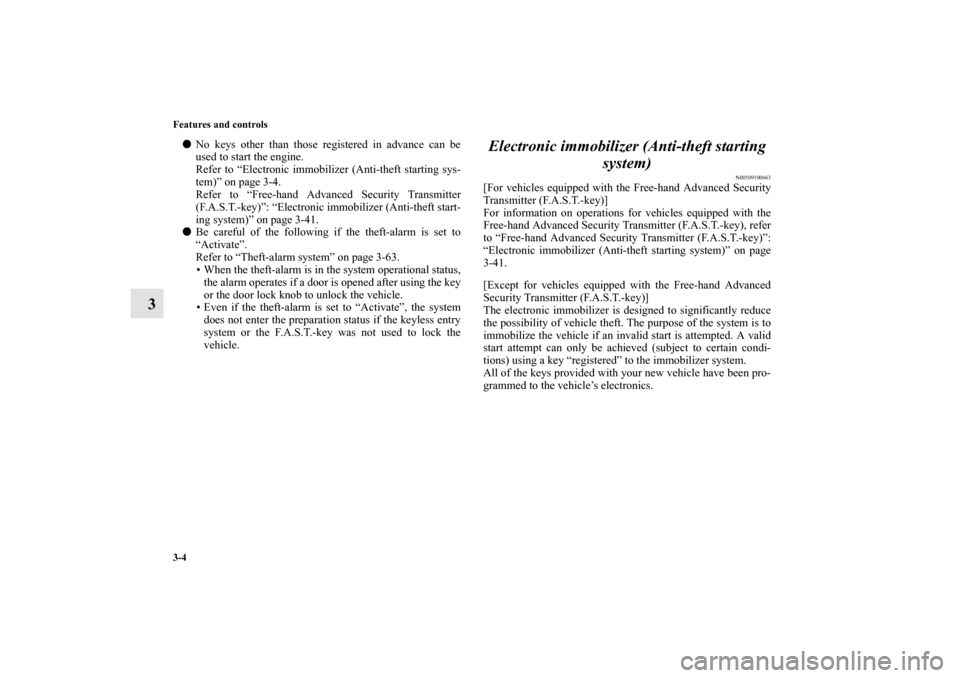

3-4 Features and controls
3


No keys other than those registered in advance can be
used to start the engine.
Refer to “Electronic immobilizer (Anti-theft starting sys-
tem)” on page 3-4.
Refer to “Free-hand Advanced Security Transmitter
(F.A.S.T.-key)”: “Electronic immobilizer (Anti-theft start-
ing system)” on page 3-41.


Be careful of the following if the theft-alarm is set to
“Activate”.
Refer to “Theft-alarm system” on page 3-63.
 When the theft-alarm is in the system operational status,
the alarm operates if a door is opened after using the key
or the door lock knob to unlock the vehicle.
 Even if the theft-alarm is set to “Activate”, the system
does not enter the preparation status if the keyless entry
system or the F.A.S.T.-key was not used to lock the
vehicle.
Electronic immobilizer (Anti-theft starting
system)
N00509100663
[For vehicles equipped with the Free-hand Advanced Security
Transmitter (F.A.S.T.-key)]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key)”:
“Electronic immobilizer (Anti-theft starting system)” on page
3-41.
[Except for vehicles equipped with the Free-hand Advanced
Security Transmitter (F.A.S.T.-key)]
The electronic immobilizer is designed to significantly reduce
the possibility of vehicle theft. The purpose of the system is to
immobilize the vehicle if an invalid start is attempted. A valid
start attempt can only be achieved (subject to certain condi-
tions) using a key “registered” to the immobilizer system.
All of the keys provided with your new vehicle have been pro-
grammed to the vehicle’s electronics.
BK0105501US.book 4 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-5
3
NOTE

Do not attach additional keys or accessories to the ignition
key. Such objects could prevent the driver’s knee airbag
from inflating normally. Refer to “Deployment of front
airbags” on page 2-44.

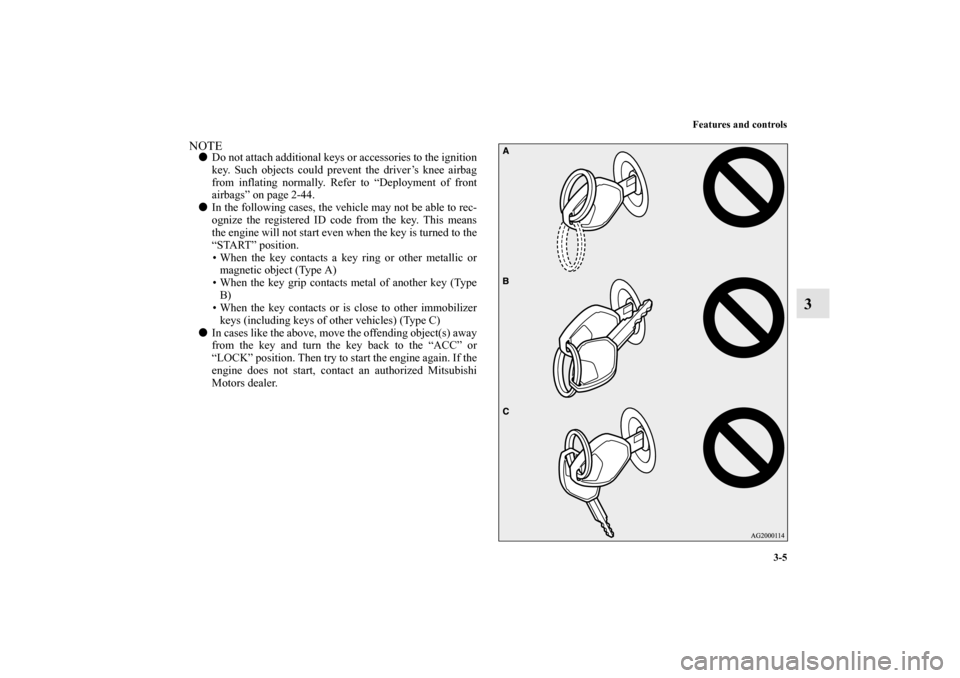

In the following cases, the vehicle may not be able to rec-
ognize the registered ID code from the key. This means
the engine will not start even when the key is turned to the
“START” position.
 When the key contacts a key ring or other metallic or
magnetic object (Type A)
 When the key grip contacts metal of another key (Type
B)
 When the key contacts or is close to other immobilizer
keys (including keys of other vehicles) (Type C)


In cases like the above, move the offending object(s) away
from the key and turn the key back to the “ACC” or
“LOCK” position. Then try to start the engine again. If the
engine does not start, contact an authorized Mitsubishi
Motors dealer.
BK0105501US.book 5 ページ ２００９年８月１０日　月曜日　午前１０時３２分

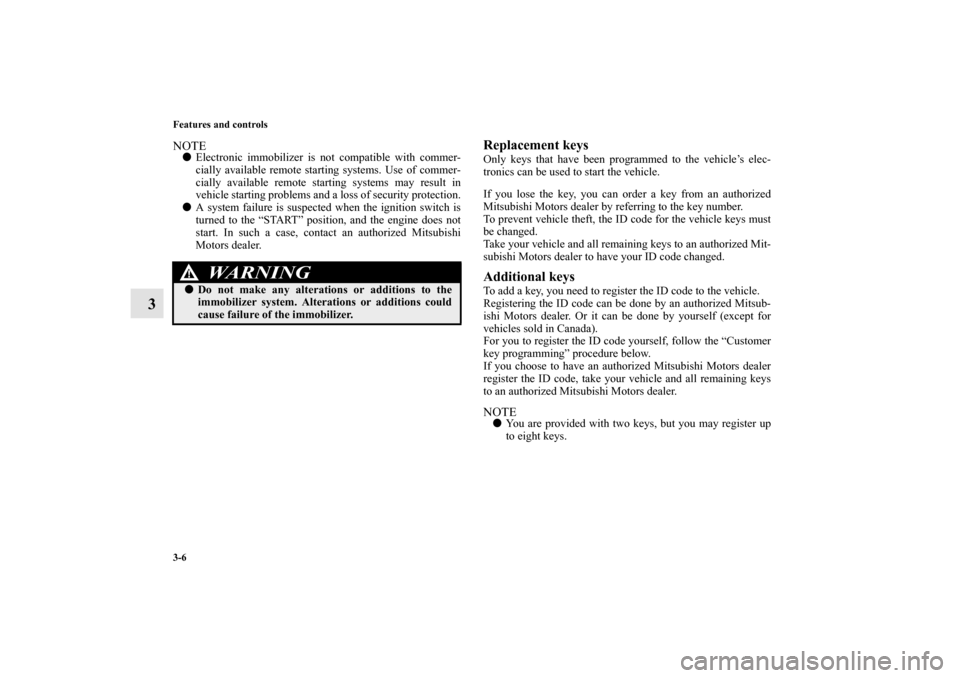

3-6 Features and controls
3
NOTE

Electronic immobilizer is not compatible with commer-
cially available remote starting systems. Use of commer-
cially available remote starting systems may result in
vehicle starting problems and a loss of security protection.


A system failure is suspected when the ignition switch is
turned to the “START” position, and the engine does not
start. In such a case, contact an authorized Mitsubishi
Motors dealer.
Replacement keysOnly keys that have been programmed to the vehicle’s elec-
tronics can be used to start the vehicle.
If you lose the key, you can order a key from an authorized
Mitsubishi Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the vehicle keys must
be changed.
Take your vehicle and all remaining keys to an authorized Mit-
subishi Motors dealer to have your ID code changed.Additional keysTo add a key, you need to register the ID code to the vehicle.
Registering the ID code can be done by an authorized Mitsub-
ishi Motors dealer. Or it can be done by yourself (except for
vehicles sold in Canada).
For you to register the ID code yourself, follow the “Customer
key programming” procedure below.
If you choose to have an authorized Mitsubishi Motors dealer
register the ID code, take your vehicle and all remaining keys
to an authorized Mitsubishi Motors dealer.NOTE

You are provided with two keys, but you may register up
to eight keys.
WA R N I N G
!

Do not make any alterations or additions to the
immobilizer system. Alterations or additions could
cause failure of the immobilizer.
BK0105501US.book 6 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-7
3

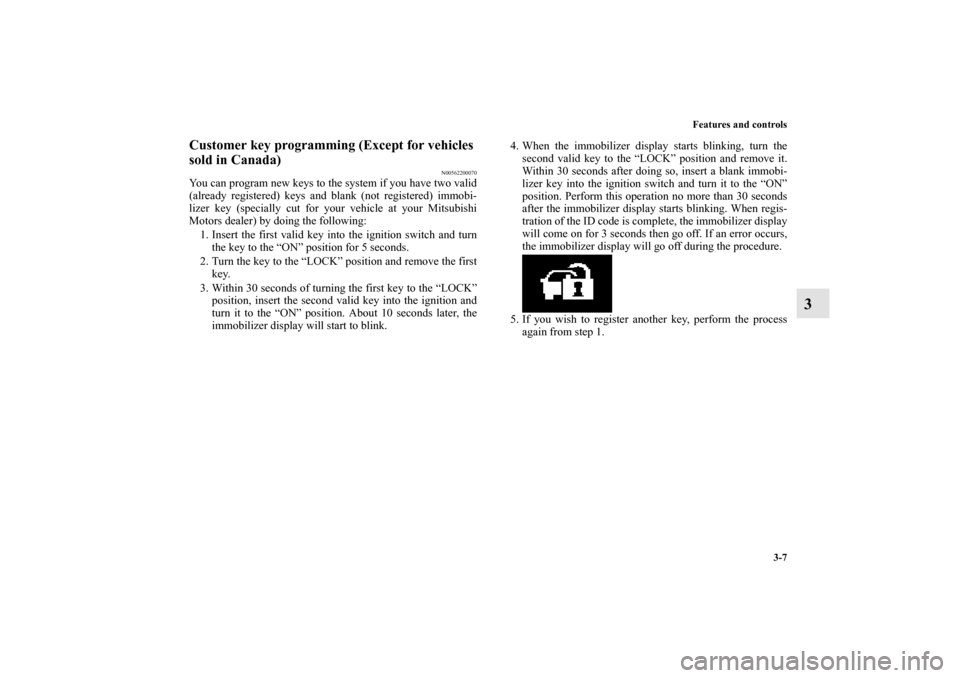

Customer key programming (Except for vehicles
sold in Canada)
N00562200070
You can program new keys to the system if you have two valid
(already registered) keys and blank (not registered) immobi-
lizer key (specially cut for your vehicle at your Mitsubishi
Motors dealer) by doing the following:
1. Insert the first valid key into the ignition switch and turn
the key to the “ON” position for 5 seconds.
2. Turn the key to the “LOCK” position and remove the first
key.
3. Within 30 seconds of turning the first key to the “LOCK”
position, insert the second valid key into the ignition and
turn it to the “ON” position. About 10 seconds later, the
immobilizer display will start to blink.4. When the immobilizer display starts blinking, turn the
second valid key to the “LOCK” position and remove it.
Within 30 seconds after doing so, insert a blank immobi-
lizer key into the ignition switch and turn it to the “ON”
position. Perform this operation no more than 30 seconds
after the immobilizer display starts blinking. When regis-
tration of the ID code is complete, the immobilizer display
will come on for 3 seconds then go off. If an error occurs,
the immobilizer display will go off during the procedure.
5. If you wish to register another key, perform the process
again from step 1.
BK0105501US.book 7 ページ ２００９年８月１０日　月曜日　午前１０時３２分

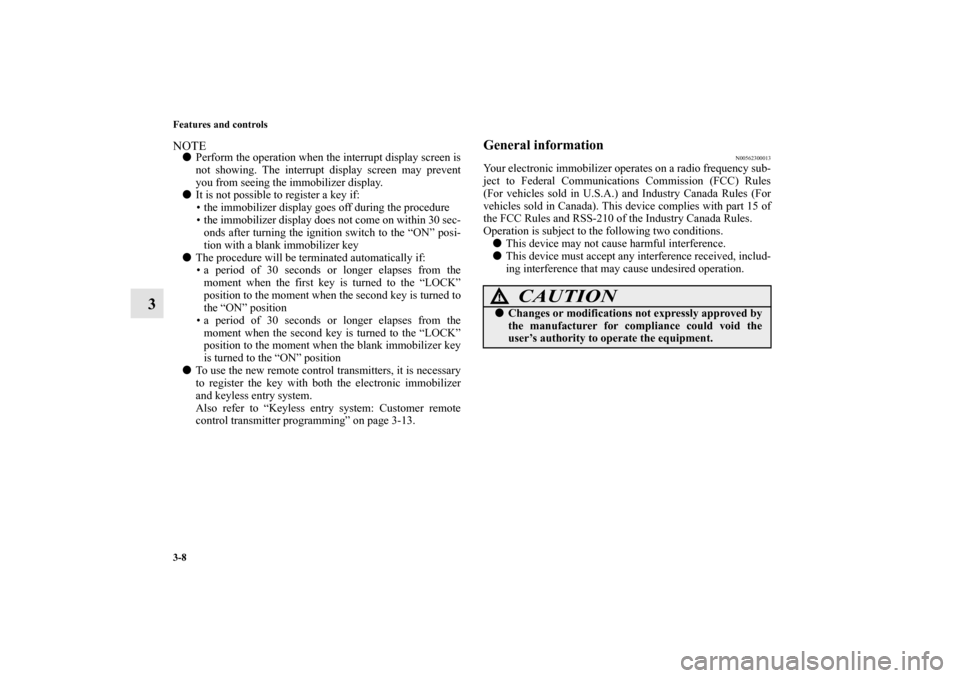

3-8 Features and controls
3
NOTE

Perform the operation when the interrupt display screen is
not showing. The interrupt display screen may prevent
you from seeing the immobilizer display.


It is not possible to register a key if:
 the immobilizer display goes off during the procedure
 the immobilizer display does not come on within 30 sec-
onds after turning the ignition switch to the “ON” posi-
tion with a blank immobilizer key


The procedure will be terminated automatically if:
 a period of 30 seconds or longer elapses from the
moment when the first key is turned to the “LOCK”
position to the moment when the second key is turned to
the “ON” position
 a period of 30 seconds or longer elapses from the
moment when the second key is turned to the “LOCK”
position to the moment when the blank immobilizer key
is turned to the “ON” position


To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Keyless entry system: Customer remote
control transmitter programming” on page 3-13.
General information
N00562300013
Your electronic immobilizer operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with part 15 of
the FCC Rules and RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.


This device must accept any interference received, includ-
ing interference that may cause undesired operation.
CAUTION
!

Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0105501US.book 8 ページ ２００９年８月１０日　月曜日　午前１０時３２分
