DASH PANEL
CONFIGURATION DIAGRAMS80-28
DASH PANEL (CONTINUED)
AC502053
C-140C-102
C-103
C-141
C-101
C-132
C-139
C-148
C-130
C-146C-145
Y
4
Connector
symbol
-101
thru
-149
C
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Instrument panel
wiring harness
C-131
C-133
C-147
AB
C-101(4)Hazard warning lamp switch
C-102(4)Clock
C-103(22-GR)J/C (1)
C-104(22-GR)J/C (3)
C-106(7)Instrument panel wiring harness and A/C
wiring harness combination A/C>
C-107(7)Outside /Inside air selection damper
control motor
C-108(2-R)Air bag module (squib) side>
C-109(4)Resistor
C-110(2)Blower motor
C-112(16)Instrument panel wiring harness and front
door wiring harness (RH) combination
C-114(25)Front wiring harness (RH) and instrument
panel wiring har
ness combination
C-116(9-GR*)Instrument panel wiring harness and floor
wiring harness (RH) combination
C-119(13)Instrument panel wiring harness and floor
wiring harness (RH) combination
C-122(35-GR)Engine-A/T-ECU
C-123(26-Y)Engine-ECU
C-124(26-GR)Engine-A/T-ECU
C-125(16-Y)Engine-ECU
C-126(28-GR)Engine-A/T-ECU
C-127(12-Y)Engine-ECU
C-128(30-GR)Engine-A/T-ECU
C-129(22-Y)Engine-ECU
C-130(4)Engine control oxygen sensor (Rear)
C-131(20-Y)SRS-ECU

DASH PANEL
CONFIGURATION DIAGRAMS80-30
DASH PANEL (CONTINUED)
AC301179
Connector
symbol
-201
thru
-227
C
AB
STEERING COLUMN
C-207
C-206 C-201
C-202
C-203C-203
C-204
C-205 Instrument panel
wiring harness
Clock spring
Y
C-201(6)Ignition switch
C-202(7)Key reminder switch
C-203(10)Column switch
C-204(6)Clock spring
C-205(4-Y)Clock spring
C-206(1)Horn switch
C-207(2)Air bag module (squib)
C-208(13)Instrument panel wiring harness and J/B
combination
C-209(14)Instrument panel wiring harness and J/B
combination
C-210(6)Instrument panel wiring harness and J/B
combination
C-211(1-B)Instrument panel wiring harness and J/B
combination
C-212(28)Instrument panel wiring harness and J/B
combination

DASH PANEL
CONFIGURATION DIAGRAMS80-34
DASH PANEL (CONTINUED)
AC502057
Y
16
C-105
C-106
C-143
C-107
C-108
A/C wiring
harness
C-109
C-149
C-110
C-144
C-111
C-113
C-115
C-117
Instrument panel
wiring harness
Control wiring
harness
C-118 C-120
C-121C-128
C-129 C-126
C-127C-124
C-125
C-122
C-123
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
3
Connector
symbol
-101
thru
-149
C
Antenna
feeder
cable
AB
C-142
C-101(4)Hazard warning lamp switch
C-102(4)Clock
C-103(22-GR)J/C (1)
C-105(13)J/C (5)
C-106(7)Instrument panel wiring harness and A/C
wiring harness combination A/C>
C-107(7)Outside /Inside air selection damper
control motor
C-108(2-R)Air bag module (squib) side>
C-109(4)Resistor <
C-110(2)Blower motor
C-111(12)Front wiring harness (LH) and control
wiring harness combination
C-113(16)Instrument panel wiring harness and front
door wiring harness (LH) combination
C-115(25)Front wiring harness (LH) and instrument
panel wiring harn
ess combination
C-117(11-B*)Instrument panel wiring harness and floor
wiring harness (LH) combination
C-118(6-L)Instrument panel wiring harness and floor
wiring harness (LH) combination
C-120(13)Instrument panel wiring harness and floor
wiring harness (LH) combination
C-121(3)Front wiring harness (LH) and instrument
panel wiring harness combination
C-122(35-GR)Engine-A/T-ECU
C-123(26-Y)Engine-ECU
C-124(26-GR)Engine-A/T-ECU
C-125(16-Y)Engine-ECU
C-126(28-GR)Engine-A/T-ECU
C-127(12-Y)Engine-ECU
C-128(30-GR)Engine-A/T-ECU
C-129(22-Y)Engine-ECU
C-134(33)J/C (6)
C-135(22-L)Instrument panel wiring harness and
control wiring harness combination

DASH PANEL
CONFIGURATION DIAGRAMS80-36
DASH PANEL (CONTINUED)
AC206572
Connector
symbol
-201
thru
-227
C
AC
STEERING COLUMN
C-207
C-206
C-205
C-204
C-203C-203
C-202
C-201
Instrument panel
wiring harness
Clock spring
Y
C-201(6)Ignition switch
C-202(7)Key reminder switch
C-203(10)Column switch
C-204(6)Clock spring
C-205(4-Y)Clock spring
C-206(1)Horn switch
C-207(2)Air bag module (squib)
C-208(13)Instrument panel wiring harness and J/B
combination
C-209(14)Instrument panel wiring harness and J/B
combination
C-210(6)Instrument panel wiring harness and J/B
combination
C-211(1-B)Instrument panel wiring harness and J/B
combination
C-212(28)Instrument panel wiring harness and J/B
combination

90-3
CENTRAL DOOR LOCKING
SYSTEM . . . . . . . . . . . . . . . . . . . . . . .90-212
CENTRAL DOOR LOCKING SYSTEM
. . . . 90-212
CENTRAL DOOR LOCKING SYSTEM
. . . . 90-216
CENTRAL DOOR LOCKING SYSTEM
. . 90-220
CENTRAL DOOR LOCKING SYSTEM
. 90-226
CENTRAL DOOR LOCKING SYSTEM
. 90-232
CENTRAL DOOR LOCKING SYSTEM
90-240
HEATER . . . . . . . . . . . . . . . . . . . . . . .90-248
HEATER . . . . . . . . . . . . . . . . . . . . . 90-248
HEATER . . . . . . . . . . . . . . . . . . . . . 90-252
MANUAL AIR CONDITIONER . . . . . .90-256
MANUAL AIR CONDITIONER . . . . 90-256
MANUAL AIR CONDITIONER . . . . 90-260
AUTOMATIC AIR CONDITIONER . . .90-264
AUTOMATIC AIR CONDITIONER
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90-264
AUTOMATIC AIR CONDITIONER
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 90-270
WINDSHIELD WIPER AND WASHER90-276
WINDSHIELD WIPER AND WASHER
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90-276
WINDSHIELD WIPER AND WASHER
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 90-280
REAR WIPER AND WASHER . . . . . .90-284
REAR WIPER AND WASHER . . . . 90-284
REAR WIPER AND WASHER . . . . 90-288
REAR WINDOW DEFOGGER AND
DOOR MIRROR HEATER . . . . . . . . .90-292
REAR WINDOW DEFOGGER AND
DOOR MIRROR HEATER . . . . . . . 90-292
REAR WINDOW DEFOGGER AND
DOOR MIRROR HEATER . . . . . . . 90-294
REMOTE CONTROLLED MIRROR . .90-296
REMOTE CONTROLLED MIRROR
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90-296
REMOTE CONTROLLED MIRROR
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90-297
HEADLAMP WASHER . . . . . . . . . . . .90-298
SPARE CONNECTOR
(FOR AUDIO) . . . . . . . . . . . . . . . . . . .90-300
SPARE CONNECTOR (FOR AUDIO)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90-300
SPARE CONNECTOR (FOR AUDIO)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90-302
CLOCK . . . . . . . . . . . . . . . . . . . . . . . .90-304
CIGARETTE LIGHTER AND
ASHTRAY ILLUMINATION LAMP . . .90-305
ACCESSORY SOCKET . . . . . . . . . . .90-306
IMMOBILIZER SYSTEM . . . . . . . . . . .90-308
IMMOBILIZER SYSTEM . . . . . . . . . 90-308
IMMOBILIZER SYSTEM . . . . . . . . 90-310
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . .90-312
ABS . . . . . . . . . . . . . . . . . . . . . . . . . 90-312
ABS . . . . . . . . . . . . . . . . . . . . . . . . 90-316
HEATED SEAT . . . . . . . . . . . . . . . . . .90-320
RHEOSTAT . . . . . . . . . . . . . . . . . . . . .90-322
RHEOSTAT . . . . . . . . . . . . . . . . . . . 90-322
RHEOSTAT . . . . . . . . . . . . . . . . . . 90-323
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS) . . . . . . . . . . . . . . . . . .90-324
SUPPLEMENTAL RESTRAINT SYSTEM
(SRS) . . . . . . . . . . . . . . . . . . . . . . . 90-324
SUPPLEMENTAL RESTRAINT SYSTEM
(SRS) . . . . . . . . . . . . . . . . . . . . . . . 90-330
SPARE CONNECTOR
(FOR FRONT FOG LAMP) . . . . . . . . .90-336

J/C
CIRCUIT DIAGRAMS90-6
J/C
J/C M1901014201956
NOTE: IN ACTUAL VEHICLES, ANY OF THE TERMINALS CONNECTED IN J/C
ARE USED. THE TERMINAL ARRANGEMENT DESCRIBED IN THE CIRCUIT
DIAGRAM MAY NOT BE IDENTICAL TO THOSE OF THE VEHICLES.
·CENTRAL DOOR
LOCKING SYSTEM
·FRONT FOG
LAMP
·HEADLAMP
·HEADLAMP
WASHER
·POWER WINDOWS
·REAR FOG LAMP
·ROOM LAMP AND
LUGGAGE
COMPARTMENT
LAMP
·ROOM LAMP
PERSONAL LAMP
AND LUGGAGE
ROOM LAMP ·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND
LIGHTING MONITOR
BUZZER
·TURN-SIGNAL
LAMP AND
HAZARD
WARNING LAMP
·WINDSHIELD
WIPER AND
WASHER
RELAY BOX
(FUSE )·FRONT FOG LAMP
·HEADLAMP
·HEADLAMP WASHER
·REAR FOG LAMP
·TAIL LAMP, POSITION
LAMP, LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·TURN-SIGNAL LAMP AND
HAZARD WARNING LAMP
·WINDSHIELD WIPER
AND WASHER
SPARE
CONNECTOR
(FOR AUDIO)CLOCK
·FUEL WARNING
LAMP
·INVECS-II
4A/T
·METER AND
GAUGE
RELAY BOX
(FUSE )
TURN-SIGNAL
LAMP AND
HAZARD WARNING
LAMP HEATED
SEAT
·AUTOMATIC AIR
CONDITIONER
·HEATER
·MANUAL AIR
CONDITIONER
·REAR WINDOW
DEFOGGER
AND DOOR
MIRROR HEATER CIGARETTE
LIGHTER AND
ASHTRAY
ILLUMINATION
LAMP RHEOSTAT
SPARE
CONNECTOR
(FOR AUDIO) HEADLAMP
LEVELLING
SYSTEM
·FRONT
FOG LAMP
·REAR
FOG LAMP
20
22
AUTOMATIC AIR
CONDITIONER

J/C

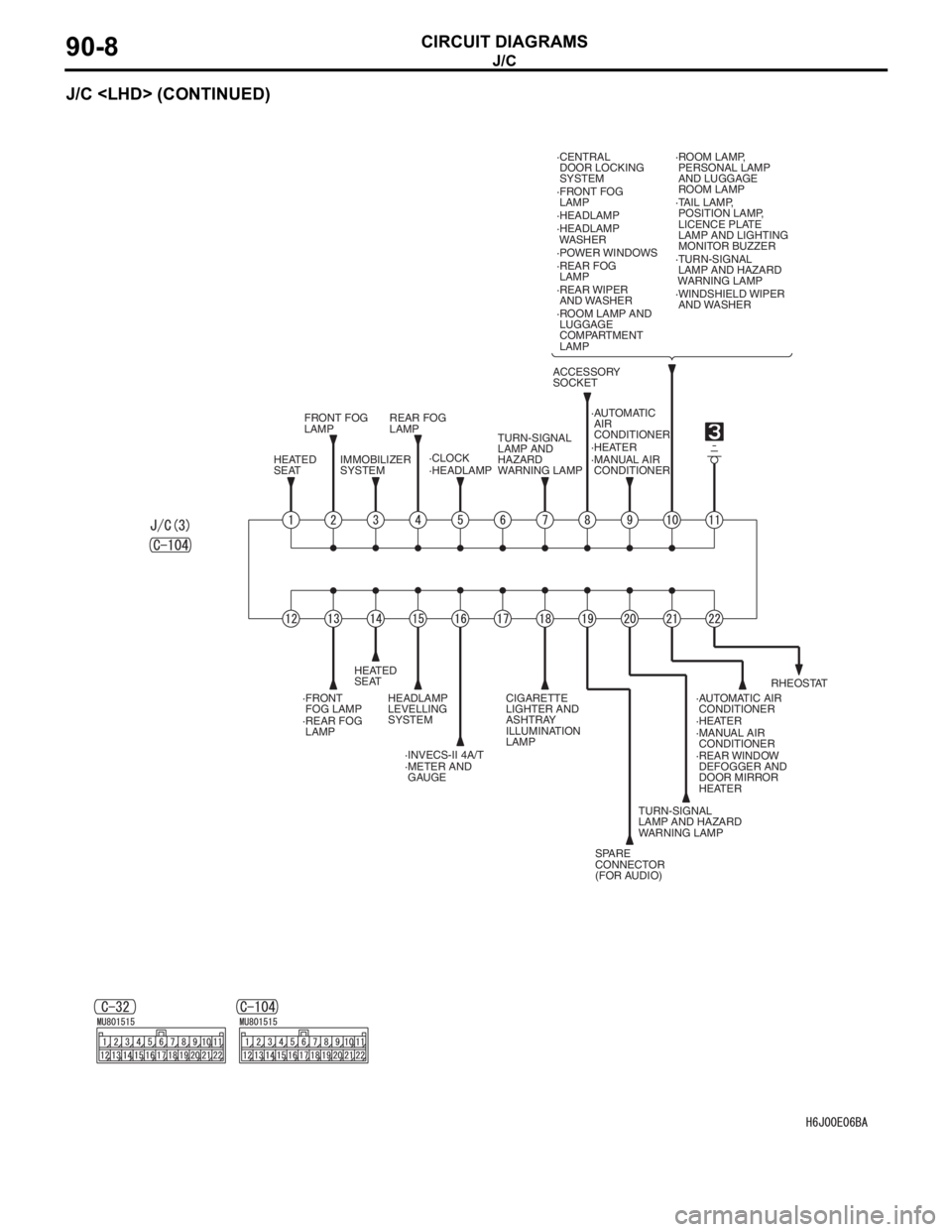

CIRCUIT DIAGRAMS90-8
J/C (CONTINUED)
FRONT FOG
LAMP
·FRONT
FOG LAMP·FRONT FOG
LAMP
REAR FOG
LAMP
·REAR FOG
LAMP·REAR FOG
LAMP
HEATED
SEAT
HEATED
SEAT IMMOBILIZER
SYSTEM·CLOCK·HEATER TURN-SIGNAL
LAMP AND
HAZARD
WARNING LAMP·TURN-SIGNAL
LAMP AND HAZARD
WARNING LAMP
TURN-SIGNAL
LAMP AND HAZARD
WARNING LAMP ·MANUAL AIR
CONDITIONER
·HEATER
·MANUAL AIR
CONDITIONER ·HEADLAMP·HEADLAMP
·HEADLAMP
WASHER
ACCESSORY
SOCKET·CENTRAL
DOOR LOCKING
SYSTEM
·POWER WINDOWS
·REAR WIPER
AND WASHER
·ROOM LAMP AND
LUGGAGE
COMPARTMENT
LAMP·ROOM LAMP,
PERSONAL LAMP
AND LUGGAGE
ROOM LAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·WINDSHIELD WIPER
AND WASHER
HEADLAMP
LEVELLING
SYSTEM
·INVECS-II 4A/T
·METER AND
GAUGECIGARETTE
LIGHTER AND
ASHTRAY
ILLUMINATION
LAMP
SPARE
CONNECTOR
(FOR AUDIO)·REAR WINDOW
DEFOGGER AND
DOOR MIRROR
HEATERRHEOSTAT ·AUTOMATIC
AIR
CONDITIONER
·AUTOMATIC AIR
CONDITIONER

J/C
CIRCUIT DIAGRAMS90-10
J/C (CONTINUED)
·FRONT FOG
LAMP ·FRONT FOG
LAMP
FRONT FOG
LAMP
·TURN-SIGNAL
LAMP AND HAZARD
WARNING LAMP ·HEADLAMP
WASHER ·ROOM LAMP AND
LUGGAGE
COMPARTMENT
LAMP
·ROOM LAMP,
PERSONAL LAMP
AND LUGGAGE
ROOM LAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·WINDSHIELD WIPER
AND WASHER·WINDSHIELD
WIPER AND
WASHER
WINDSHIELD
WIPER AND
WASHER
DIAGNOSIS
CONNECTOR·METER AND
GAUGE
·METER AND
GAUGE METER AND
GAUGESPARE
CONNECTOR
(FOR AUDIO)
SPARE
CONNECTOR
(FOR FRONT
FOG LAMP)·SPARE
CONNECTOR
(FOR FRONT
FOG LAMP) CLOCK(FUSE )
23
(FUSE )2
RELAY
BOX
·REAR FOG
LAMP
·REAR WIPER AND
WASHER ·ABS
·BRAKE
WARNING LAMP
·CHARGING
SYSTEM
·ENGINE
CONTROL
SYSTEM
·FUEL WARNING
LAMP
·INVECS-II
4A/T
·SUPPLEMENTAL
RESTRAINT
SYSTEM (SRS) ·OIL PRESSURE
WARNING LAMP J/B
(FUSE )
11J/B ACCESSORY
SOCKET
REMOTE
CONTROLLED
MIRROR

J/C
CIRCUIT DIAGRAMS90-12
J/C
M1901014201967
·ROOM LAMP
AND LUGGAGE
COMPARTMENT
LAMP
·ROOM LAMP,
PERSONAL LAMP
AND LUGGAGE
ROOM LAMP ·CENTRAL DOOR
LOCKING SYSTEM
·FRONT FOG LAMP
·HEADLAMP
·POWER WINDOWS
·REAR FOG LAMP
·REAR WIPER
AND WASHER·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND
LIGHTING MONITOR
BUZZER
·TURN-SIGNAL
LAMP AND
HAZARD
WARNING LAMP
·WINDSHIELD
WIPER AND WASHER
CLOCKSPARE CONNECTOR
(FOR AUDIO)
·FUEL WARNING
LAMP
·INVECS-II 4A/T
·METER AND GAUGE·FRONT FOG LAMP
·HEADLAMP
·REAR FOG LAMP
·REAR WIPER
AND WASHER
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND
LIGHTING MONITOR
BUZZER
·TURN-SIGNAL
LAMP AND
HAZARD
WARNING LAMP
·WINDSHIELD
WIPER AND WASHER
(FUSE ) RELAY BOX
22
RHEOSTAT
·CIGARETTE
LIGHTER AND
ASHTRAY
ILLUMINATION
LAMP HEADLAMP
LEVELLING
SYSTEM
·HEATER
·MANUAL AIR
CONDITIONER SPARE CONNECTOR
(FOR AUDIO)
·REAR WINDOW
DEFOGGER
AND DOOR
MIRROR
HEATERFRONT FOG
LAMPTURN-SIGNAL
LAMP AND
HAZARD
WARNING LAMP ·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER ·INVECS-II 4A/T
·METER AND GAUGE(FUSE ) RELAY BOX
20
NOTE: IN ACTUAL VEHICLES, ANY OF THE TERMINALS CONNECTED IN J/C
ARE USED. THE TERMINAL ARRANGEMENT DESCRIBED IN THE CIRCUIT
DIAGRAM MAY NOT BE IDENTICAL TO THOSE OF THE VEHICLES.
AUTOMATIC AIR
CONDITIONER

J/C

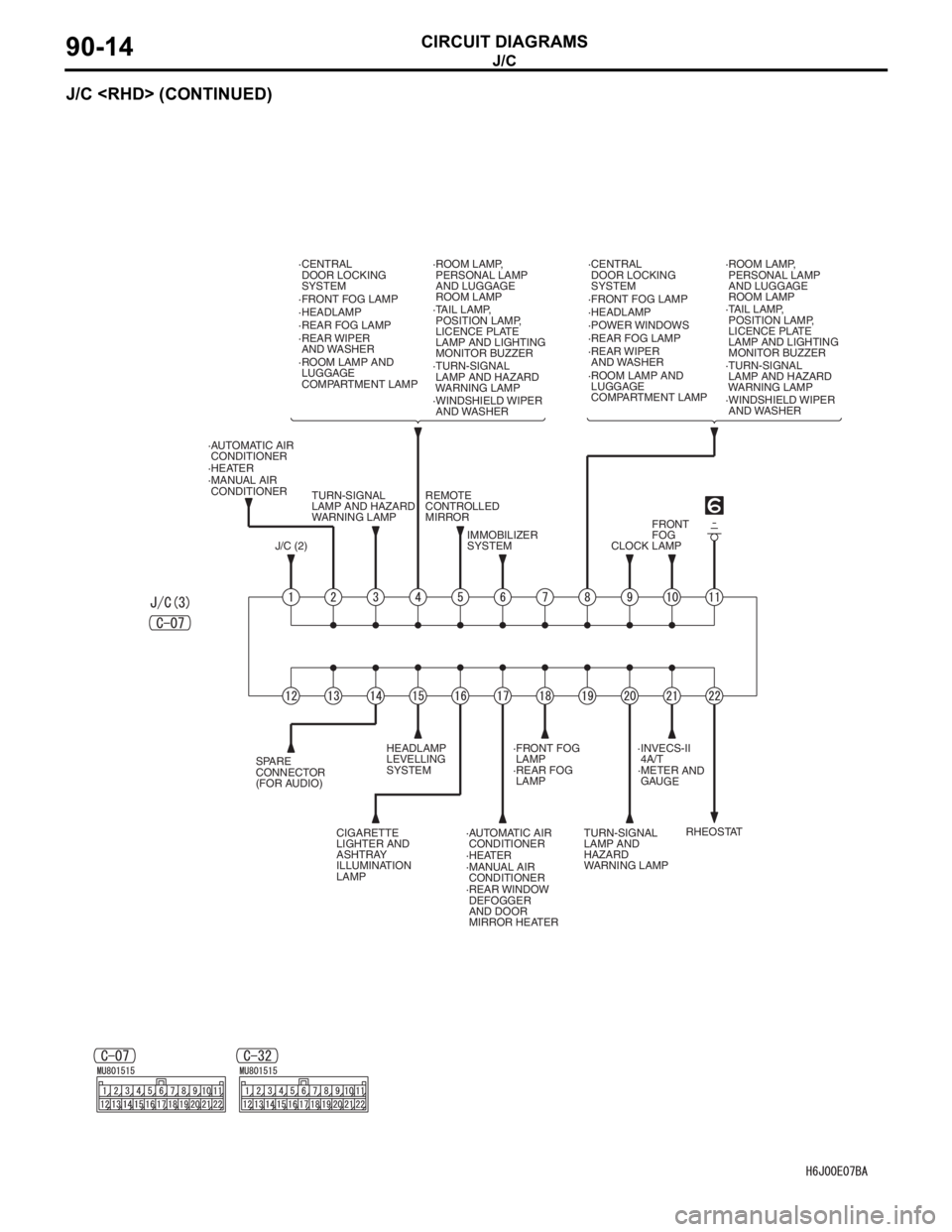

CIRCUIT DIAGRAMS90-14
J/C (CONTINUED)
·METER AND
GAUGESPARE
CONNECTOR
(FOR AUDIO)·REAR FOG
LAMP·INVECS-II
4A/T IMMOBILIZER
SYSTEMFRONT
FOG
LAMP CLOCK REMOTE
CONTROLLED
MIRROR TURN-SIGNAL
LAMP AND HAZARD
WARNING LAMP
TURN-SIGNAL
LAMP AND
HAZARD
WARNING LAMP J/C (2)·FRONT FOG LAMP
·TURN-SIGNAL
LAMP AND HAZARD
WARNING LAMP ·HEADLAMP ·CENTRAL
DOOR LOCKING
SYSTEM
·POWER WINDOWS
·REAR WIPER
AND WASHER
·ROOM LAMP AND
LUGGAGE
COMPARTMENT LAMP·ROOM LAMP,
PERSONAL LAMP
AND LUGGAGE
ROOM LAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·HEATER
·MANUAL AIR
CONDITIONER
·MANUAL AIR
CONDITIONER HEADLAMP
LEVELLING
SYSTEM
CIGARETTE
LIGHTER AND
ASHTRAY
ILLUMINATION
LAMP
·REAR WINDOW
DEFOGGER
AND DOOR
MIRROR HEATERRHEOSTAT ·FRONT FOG LAMP
·REAR FOG LAMP
·TURN-SIGNAL
LAMP AND HAZARD
WARNING LAMP ·HEADLAMP ·CENTRAL
DOOR LOCKING
SYSTEM
·REAR WIPER
AND WASHER
·ROOM LAMP AND
LUGGAGE
COMPARTMENT LAMP·ROOM LAMP,
PERSONAL LAMP
AND LUGGAGE
ROOM LAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·WINDSHIELD WIPER
AND WASHER·REAR FOG LAMP
·HEATER·WINDSHIELD WIPER
AND WASHER
·FRONT FOG
LAMP ·AUTOMATIC AIR
CONDITIONER
·AUTOMATIC AIR
CONDITIONER
