5-44 Comfort controls
5

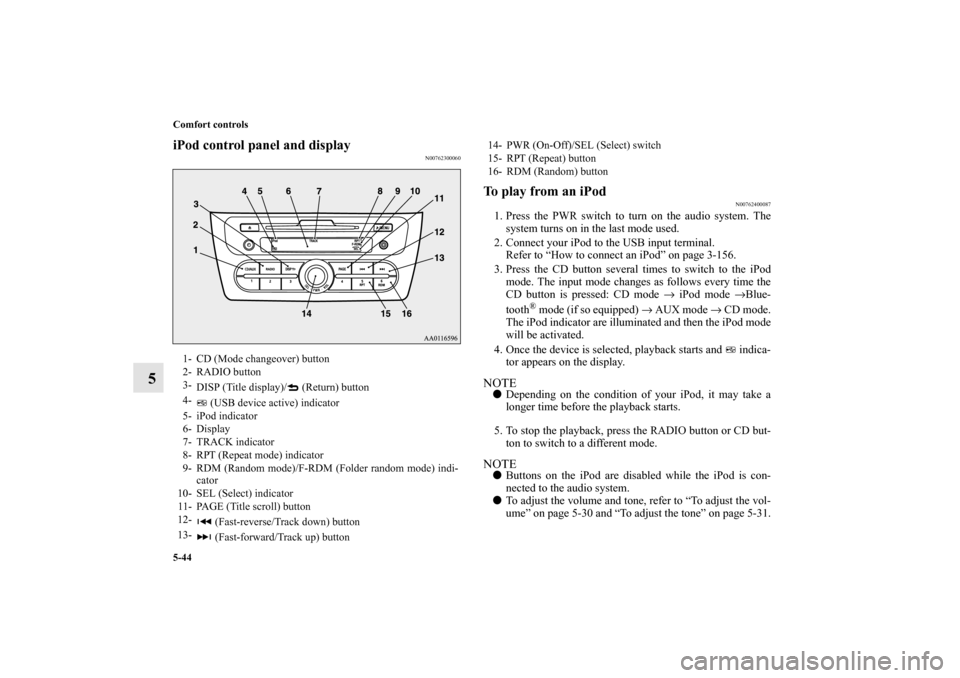

iPod control panel and display
N00762300060
To play from an iPod
N00762400087
1. Press the PWR switch to turn on the audio system. The
system turns on in the last mode used.
2. Connect your iPod to the USB input terminal.
Refer to “How to connect an iPod” on page 3-156.
3. Press the CD button several times to switch to the iPod
mode. The input mode changes as follows every time the
CD button is pressed: CD mode → iPod mode →Blue-
tooth
® mode (if so equipped) → AUX mode → CD mode.
The iPod indicator are illuminated and then the iPod mode
will be activated.
4. Once the device is selected, playback starts and indica-
tor appears on the display.
NOTE
Depending on the condition of your iPod, it may take a
longer time before the playback starts.
5. To stop the playback, press the RADIO button or CD but-
ton to switch to a different mode.NOTE
Buttons on the iPod are disabled while the iPod is con-
nected to the audio system.

To adjust the volume and tone, refer to “To adjust the vol-
ume” on page 5-30 and “To adjust the tone” on page 5-31.
1- CD (Mode changeover) button
2- RADIO button
3-
DISP (Title display)/ (Return) button
4-
(USB device active) indicator
5- iPod indicator
6- Display
7- TRACK indicator
8- RPT (Repeat mode) indicator
9- RDM (Random mode)/F-RDM (Folder random mode) indi-
cator
10- SEL (Select) indicator
11- PAGE (Title scroll) button
12-
(Fast-reverse/Track down) button
13-
(Fast-forward/Track up) button
14- PWR (On-Off)/SEL (Select) switch
15- RPT (Repeat) button
16- RDM (Random) button
BK0162600US.book 44 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Comfort controls
5-51
5

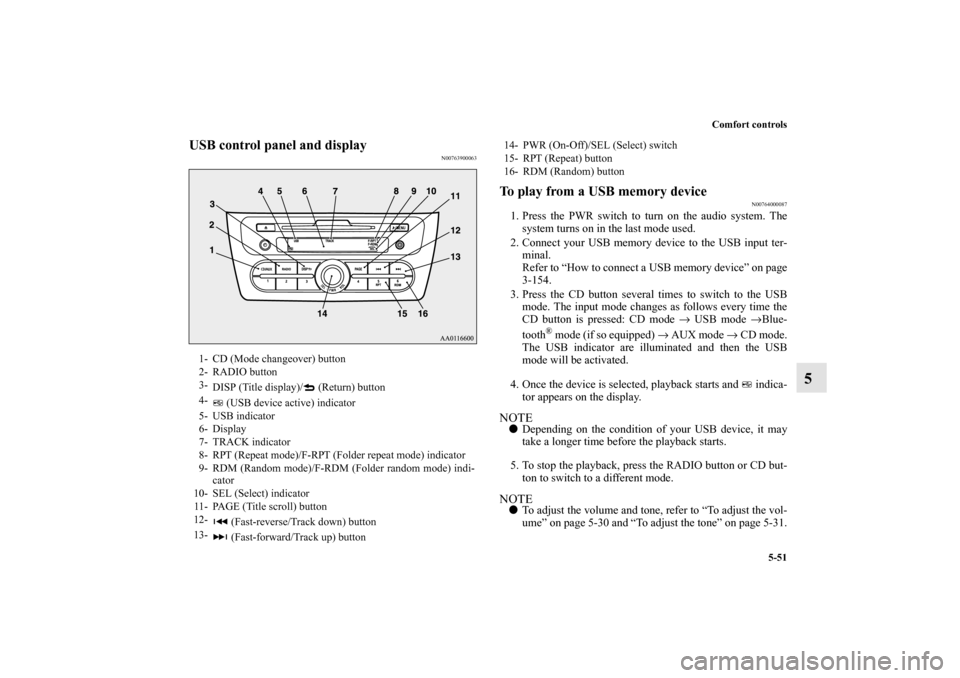

USB control panel and display
N00763900063
To play from a USB memory device
N00764000087
1. Press the PWR switch to turn on the audio system. The
system turns on in the last mode used.
2. Connect your USB memory device to the USB input ter-
minal.
Refer to “How to connect a USB memory device” on page
3-154.
3. Press the CD button several times to switch to the USB
mode. The input mode changes as follows every time the
CD button is pressed: CD mode → USB mode →Blue-
tooth
® mode (if so equipped) → AUX mode → CD mode.
The USB indicator are illuminated and then the USB
mode will be activated.
4. Once the device is selected, playback starts and indica-
tor appears on the display.
NOTE
Depending on the condition of your USB device, it may
take a longer time before the playback starts.
5. To stop the playback, press the RADIO button or CD but-
ton to switch to a different mode.NOTE
To adjust the volume and tone, refer to “To adjust the vol-
ume” on page 5-30 and “To adjust the tone” on page 5-31.
1- CD (Mode changeover) button
2- RADIO button
3-
DISP (Title display)/ (Return) button
4-
(USB device active) indicator
5- USB indicator
6- Display
7- TRACK indicator
8- RPT (Repeat mode)/F-RPT (Folder repeat mode) indicator
9- RDM (Random mode)/F-RDM (Folder random mode) indi-
cator
10- SEL (Select) indicator
11- PAGE (Title scroll) button
12-
(Fast-reverse/Track down) button
13-
(Fast-forward/Track up) button
14- PWR (On-Off)/SEL (Select) switch
15- RPT (Repeat) button
16- RDM (Random) button
BK0162600US.book 51 ページ ２０１３年３月２２日　金曜日　午後２時４１分

5-52 Comfort controls
5

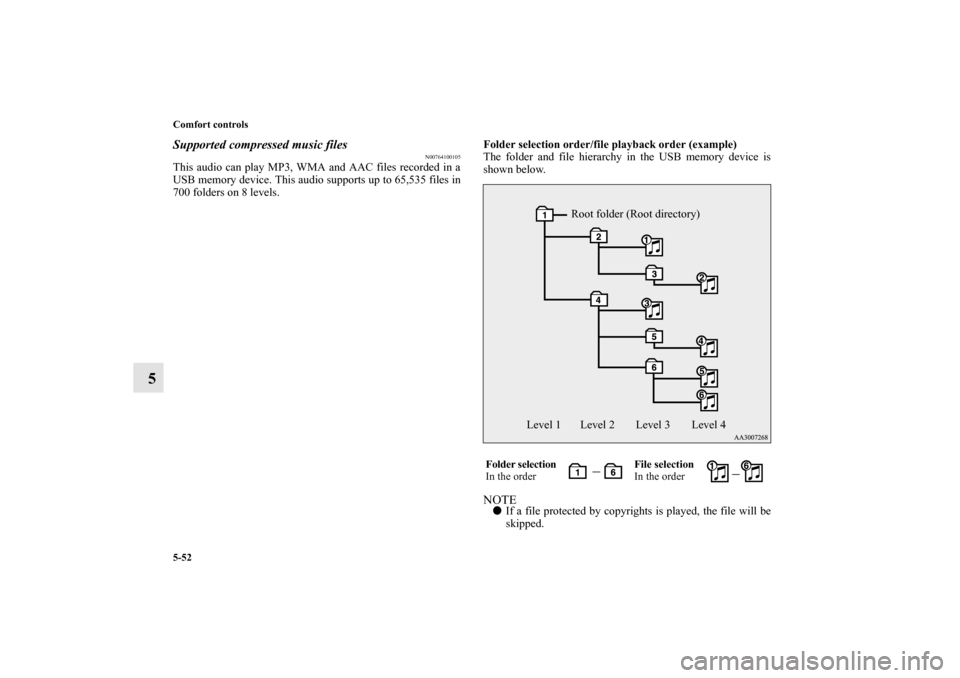

Supported compressed music files
N00764100105
This audio can play MP3, WMA and AAC files recorded in a
USB memory device. This audio supports up to 65,535 files in
700 folders on 8 levels.Folder selection order/file playback order (example)
The folder and file hierarchy in the USB memory device is
shown below.
NOTE
If a file protected by copyrights is played, the file will be
skipped.Folder selection
In the orderFile selection
In the order
Root folder (Root directory)
Level 1 Level 2 Level 3 Level 4
BK0162600US.book 52 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Comfort controls
5-55
5

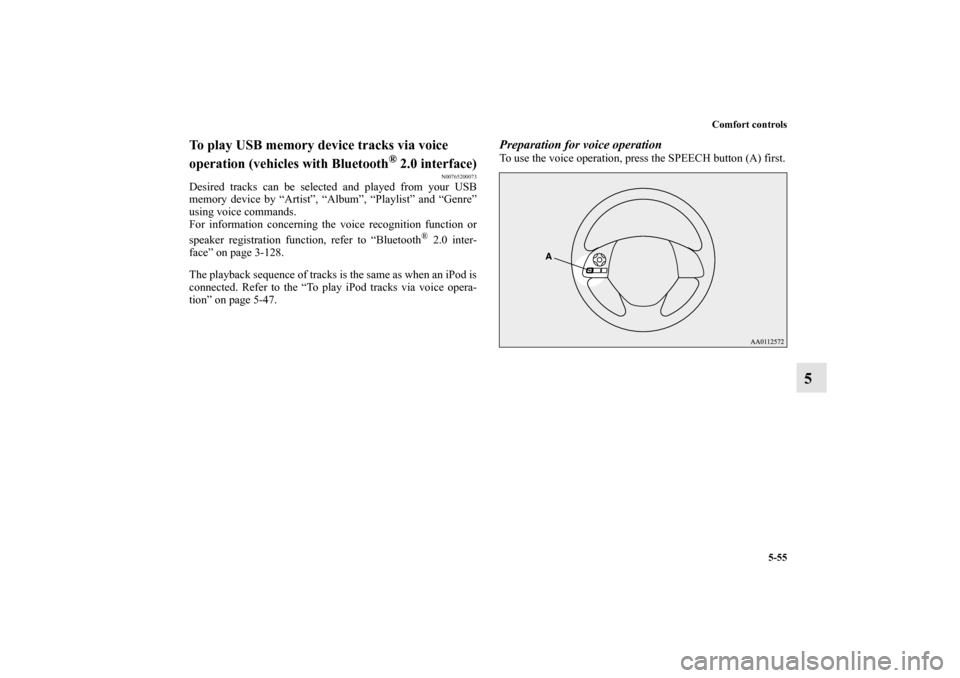

To play USB memory device tracks via voice
operation (vehicles with Bluetooth
® 2.0 interface)
N00765200073
Desired tracks can be selected and played from your USB
memory device by “Artist”, “Album”, “Playlist” and “Genre”
using voice commands.
For information concerning the voice recognition function or
speaker registration function, refer to “Bluetooth
® 2.0 inter-
face” on page 3-128.
The playback sequence of tracks is the same as when an iPod is
connected. Refer to the “To play iPod tracks via voice opera-
tion” on page 5-47.
Preparation for voice operationTo use the voice operation, press the SPEECH button (A) first.
BK0162600US.book 55 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Comfort controls
5-61
5

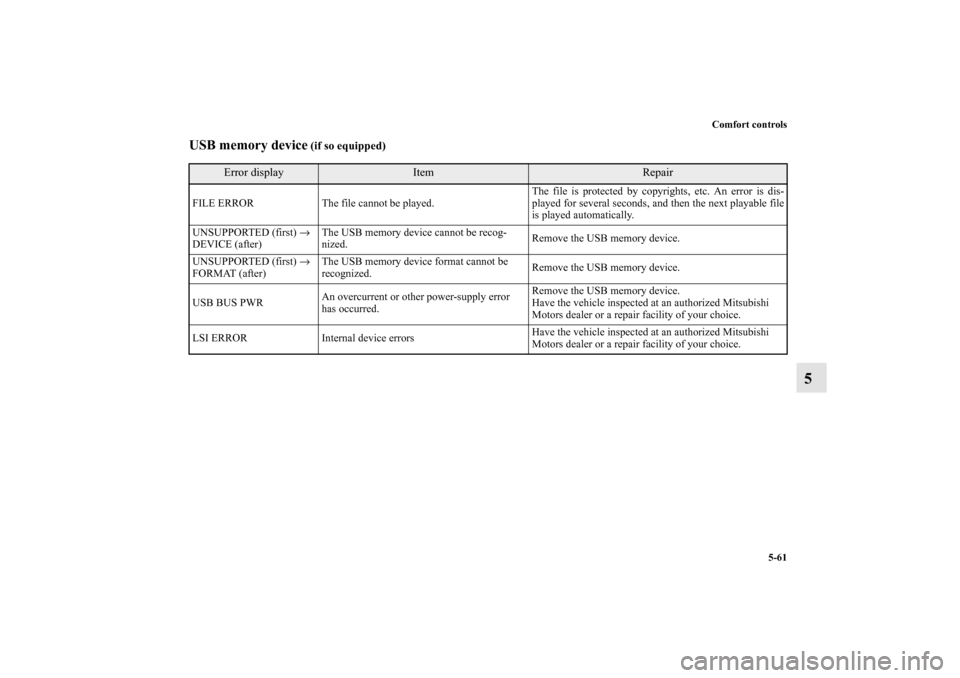

USB memory device
(if so equipped)
Error display
Item
Repair
FILE ERROR The file cannot be played. The file is protected by copyrights, etc. An error is dis-
played for several seconds, and then the next playable file
is played automatically.
UNSUPPORTED (first) →
DEVICE (after)The USB memory device cannot be recog-
nized. Remove the USB memory device.
UNSUPPORTED (first) →
FORMAT (after)The USB memory device format cannot be
recognized. Remove the USB memory device.
USB BUS PWRAn overcurrent or other power-supply error
has occurred.Remove the USB memory device.
Have the vehicle inspected at an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
LSI ERROR Internal device errors Have the vehicle inspected at an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
