POWER WINDOWS
1998 Mitsubishi Montero
1998 ACCESSORIES & EQUIPMENT
Mitsubishi - Power Windows
Mirage, Montero, Montero Sport & 3000GT
DESCRIPTION & OPERATION
With ignition switch in RUN position, battery voltage is
applied to master power window switch located on driver's door. Master
power window switch provides power and ground for all power window
switches and motors. Master power window switch offers one-touch
operation of driver's window. A solid state control unit, incorporated
in master switch, fully lowers driver's window when switch is
completely depressed. Master switch also includes lock-out feature to
prevent passengers from operating any of the other power window door
switches.
COMPONENT LOCATIONS
COMPONENT LOCATIONS TABLE








\









\









\









\









\









\






Component Location
Power Window Relay ( 1) .......... In Passenger Compartment
Fuse/Relay Block
( 1) - See Fig. 1.









\









\









\









\









\









\






TROUBLE SHOOTING
POWER WINDOWS INOPERATIVE
Check for faulty fusible link, faulty power window relay or
faulty power window switches. See WIRING DIAGRAMS.
ONE WINDOW FAILS TO OPERATE
If one window does not operate, even if both master and
passenger side power window switches are pressed, check for faulty
master power window switch or power window motor that is inoperative.
If one window does not operate only when either master or passenger
side power window switch is pressed, but does operate when both
switches are pressed, check power window switch that is inoperative.
ONE-TOUCH SWITCH FUNCTION INOPERATIVE
Replace master power window switch.
COMPONENT TESTS
CIRCUIT BREAKER TEST
Press UP switch to fully close window. Continue to press
switch for 10 seconds. Release UP switch and immediately press DOWN
switch. If window begins to open within 60 seconds, circuit breaker is

okay. Circuit breaker is part of window motor.
POWER WINDOW RELAY TEST
Mirage & 3000GT
1) Remove power window relay from fuse/relay block. See
Fig. 1 . Check for continuity between power window relay terminals No.
1 and 3. See Fig. 5. Continuity should be present.
2) Connect positive lead of a 12-volt battery to power window
relay terminal No. 1, and negative lead of battery to terminal No. 3.
Continuity should be present between terminals No. 4 and 5 with
voltage applied. Replace power window relay if continuity is not as
specified.
Montero & Montero Sport
1) Remove power window relay from fuse/relay block. See
Fig. 2 or 3. Check for continuity between power window relay terminals
No. 2 and 4. See Fig. 6. Continuity should be present.
2) Connect positive lead of a 12-volt battery to power window
relay terminal No. 2, and negative lead of battery to terminal No. 4.
Continuity should be present between terminals No. 1 and 3 with
voltage applied. Replace power window relay if continuity is not as
specified.
Fig. 1: Locating Power Window Relay (Mirage)
Courtesy of Mitsubishi Motor Sales of America

Fig. 2: Locating Power Window Relay (Montero)
Courtesy of Mitsubishi Motor Sales of America
Fig. 3: Locating Power Window Relay (Montero Sport)
Courtesy of Mitsubishi Motor Sales of America

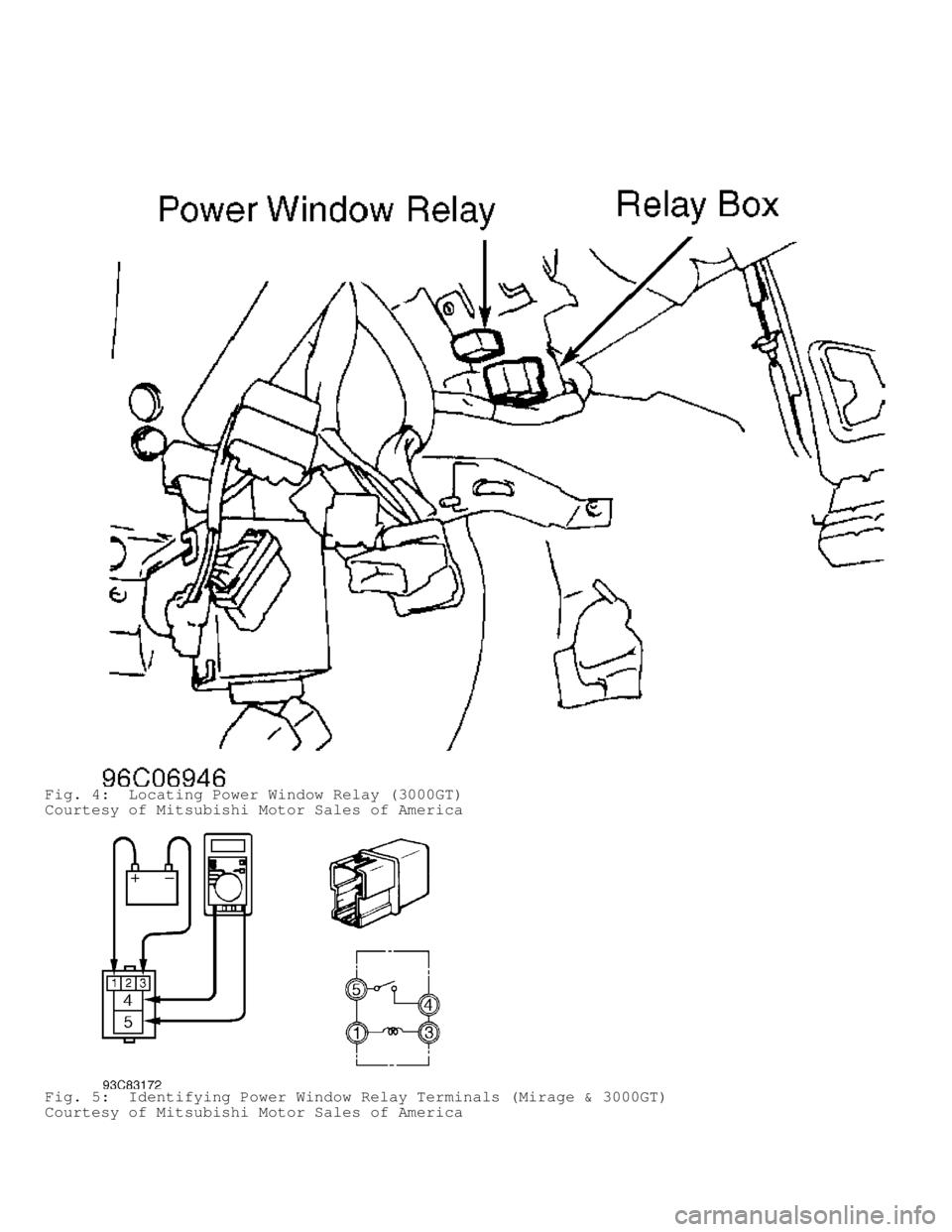

Fig. 4: Locating Power Window Relay (3000GT)
Courtesy of Mitsubishi Motor Sales of America
Fig. 5: Identifying Power Window Relay Terminals (Mirage & 3000GT)
Courtesy of Mitsubishi Motor Sales of America

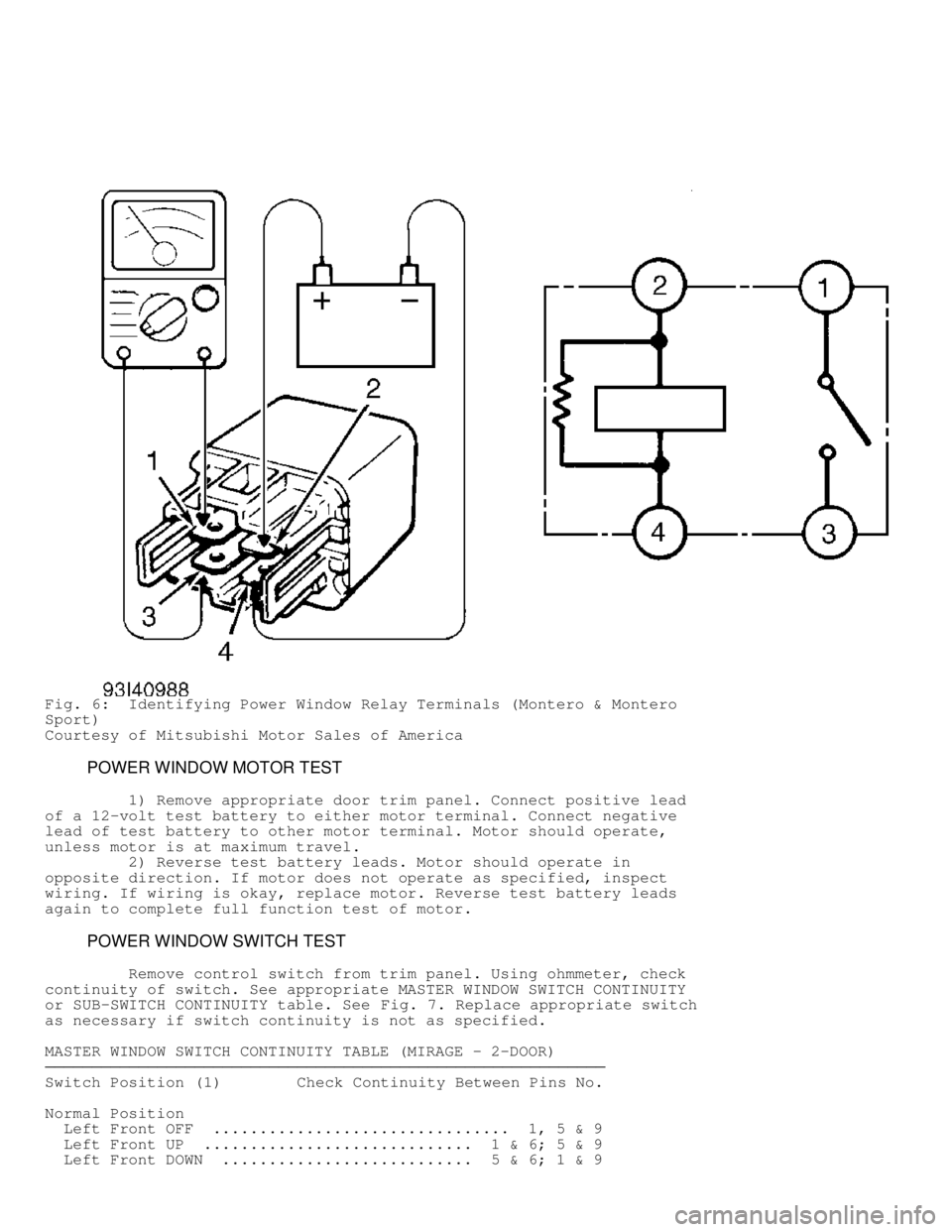

Fig. 6: Identifying Power Window Relay Terminals (Montero & Montero
Sport)
Courtesy of Mitsubishi Motor Sales of America
POWER WINDOW MOTOR TEST
1) Remove appropriate door trim panel. Connect positive lead
of a 12-volt test battery to either motor terminal. Connect negative
lead of test battery to other motor terminal. Motor should operate,
unless motor is at maximum travel.
2) Reverse test battery leads. Motor should operate in
opposite direction. If motor does not operate as specified, inspect
wiring. If wiring is okay, replace motor. Reverse test battery leads
again to complete full function test of motor.
POWER WINDOW SWITCH TEST
Remove control switch from trim panel. Using ohmmeter, check
continuity of switch. See appropriate MASTER WINDOW SWITCH CONTINUITY
or SUB-SWITCH CONTINUITY table. See Fig. 7. Replace appropriate switch
as necessary if switch continuity is not as specified.
MASTER WINDOW SWITCH CONTINUITY TABLE (MIRAGE - 2-DOOR)









\









\









\









\









\









\






Switch Position (1) Check Continuity Between Pins No.
Normal Position
Left Front OFF ................................ 1, 5 & 9
Left Front UP ............................. 1 & 6; 5 & 9
Left Front DOWN ........................... 5 & 6; 1 & 9

SEATS - POWER
1998 Mitsubishi Montero
1998 ACCESSORIES & EQUIPMENT
Mitsubishi - Power Seats
Eclipse, Galant, Montero, 3000GT
DESCRIPTION & OPERATION
Power seat system consists of reversible motors, a control
switch assembly and a wiring harness. Circuit is protected by a
fusible link, located in main relay box in engine compartment.
Power assist adjustments offered are: forward and backward
movement, height adjustment and separately adjusted front or rear seat
tilt. Controls are located on side of seat cushion or on center
console.
COMPONENT LOCATIONS
COMPONENT LOCATIONS TABLE








\









\









\









\









\









\






Component Location
Data Link Connector (DLC) ............ Under Left Of Dash,
Below Steering Column
ETACS-ECU
3000GT ......................... Left Of Steering Column
Seat Adjusting Motors .............. Under Each Front Seat









\









\









\









\









\









\






COMPONENT TESTS
LIMIT SWITCH/SENSOR
Galant (Driver's Seat)
Disconnect each limit switch harness connector. Operate each
switch to check continuity between specified pins using ohmmeter. See
LIMIT SWITCH CONTINUITY TABLE (GALANT) . See Fig. 1. Replace power seat
adjuster assembly if any switch fails testing.
LIMIT SWITCH CONTINUITY TABLE (GALANT)









\









\









\









\









\









\






Switch Check Continuity
Position Between Pins No.
Slide Limit Switch
Forward .......................................... 1 & 2
Backward ......................................... 1 & 3
Middle (ON) ................................... 1, 2 & 3
Front & Rear Height Limit Switch
Front Up ......................................... 1 & 3
Front Down ....................................... 1 & 2
Front Middle (ON) ............................. 1, 2 & 3
Rear Up .......................................... 1 & 3
Rear Down ........................................ 1 & 2
Rear Middle (ON) .............................. 1, 2 & 3









\









\









\









\









\









\

STARTER
1998 Mitsubishi Montero
1998 STARTING & CHARGING SYSTEMS
Mitsubishi - Starters
Diamante, Eclipse, Galant, Mirage, Montero, Montero Sport,
3000GT
DESCRIPTION & OPERATION
Starter is a conventional 12-volt, 4-pole brush-type motor,
with direct or gear reduction drive. Starter-mounted solenoid shifts
overrunning clutch and pinion into flywheel when starter is energized.
TROUBLE SHOOTING
NOTE: See TROUBLE SHOOTING article in the GENERAL INFORMATION
section.
ON-VEHICLE TESTING
TROUBLE SHOOTING
1) If starter motor does not operate at all:
* Check starter coil.
* Check electrical connections.
* Check clutch pedal position switch (M/T).
* Check starter relay (M/T).
* Check park/neutral position switch (A/T).
2) If starter motor does not stop, check starter magnetic
switch solenoid.
STARTER RELAY
Diamante, Galant & Montero
1) Remove starter relay. See STARTER RELAY LOCATIONS table.
With no power supplied to any relay, continuity should exist between
relay terminals No. 1 and 2. See WIRING DIAGRAMS.
2) Connect a jumper wire from positive battery terminal to
relay terminal No. 1 and another jumper wire from negative battery
terminal to relay terminal No. 2. Continuity should exist between
relay terminals No. 3 and 4. Replace relay as necessary.
Eclipse (A/T With Theft Alarm)
1) Remove starter relay. See STARTER RELAY LOCATIONS table.
With no power supplied to any relay, continuity should exist between
relay terminals No. 1 and 2. See WIRING DIAGRAMS.
2) Connect a jumper wire from positive battery terminal to
relay terminal No. 1 and another jumper wire from negative battery
terminal to relay terminal No. 2. Continuity should exist between
relay terminals No. 3 and 4. Replace relay as necessary.
Eclipse (A/T Without Theft Alarm)
1) Remove starter relay. See STARTER RELAY LOCATIONS table.
With no power supplied to any relay, continuity should exist between
relay terminals No. 1 and 3. See WIRING DIAGRAMS.
2) Connect a jumper wire from positive battery terminal to
relay terminal No. 1 and another jumper wire from negative battery

terminal to relay terminal No. 3. Continuity should exist between
relay terminals No. 4 and 5. Replace relay as necessary.
Eclipse (M/T With Theft Alarm)
1) Remove starter relay. See STARTER RELAY LOCATIONS table.
With no power supplied to any relay, continuity should exist between
relay terminals No. 1 and 3. See WIRING DIAGRAMS.
2) Connect a jumper wire from positive battery terminal to
relay terminal No. 3 and another jumper wire from negative battery
terminal to relay terminal No. 1. Continuity should exist between
relay terminals No. 2 and 5. Replace relay as necessary.
Eclipse (M/T Without Theft Alarm)
1) Remove starter relay. See STARTER RELAY LOCATIONS table.
With no power supplied to any relay, continuity should exist between
relay terminals No. 1 and 2. See WIRING DIAGRAMS.
2) Connect a jumper wire from positive battery terminal to
relay terminal No. 1 and another jumper wire from negative battery
terminal to relay terminal No. 2. Continuity should exist between
relay terminals No. 3 and 4. Replace relay as necessary.
Mirage
1) Remove starter relay. See STARTER RELAY LOCATIONS table.
With no power supplied to any relay, continuity should exist between
relay terminals No. 1 and 3. See WIRING DIAGRAMS.
2) Connect a jumper wire from positive battery terminal to
relay terminal No. 3 and another jumper wire from negative battery
terminal to relay terminal No. 1. Continuity should exist between
relay terminals No. 2 and 4. Replace relay as necessary.
Montero Sport With A/T
1) Remove starter relay. See STARTER RELAY LOCATIONS table.
With no power supplied to any relay, continuity should exist between
relay terminals No. 1 and 3. See WIRING DIAGRAMS.
2) Connect a jumper wire from positive battery terminal to
relay terminal No. 3 and another jumper wire from negative battery
terminal to relay terminal No. 1. Continuity should exist between
relay terminals No. 2 and 5. Replace relay as necessary.
Montero Sport With M/T
1) Remove starter relay. See STARTER RELAY LOCATIONS table.
With no power supplied to any relay, continuity should exist between
relay terminals No. 1 and 3. See WIRING DIAGRAMS.
2) Connect a jumper wire from positive battery terminal to
relay terminal No. 1 and another jumper wire from negative battery
terminal to relay terminal No. 3. Continuity should exist between
relay terminals No. 2 and 4. Replace relay as necessary.
3000GT
1) Remove starter relay. See STARTER RELAY LOCATIONS table.
With no power supplied to any relay, continuity should exist between

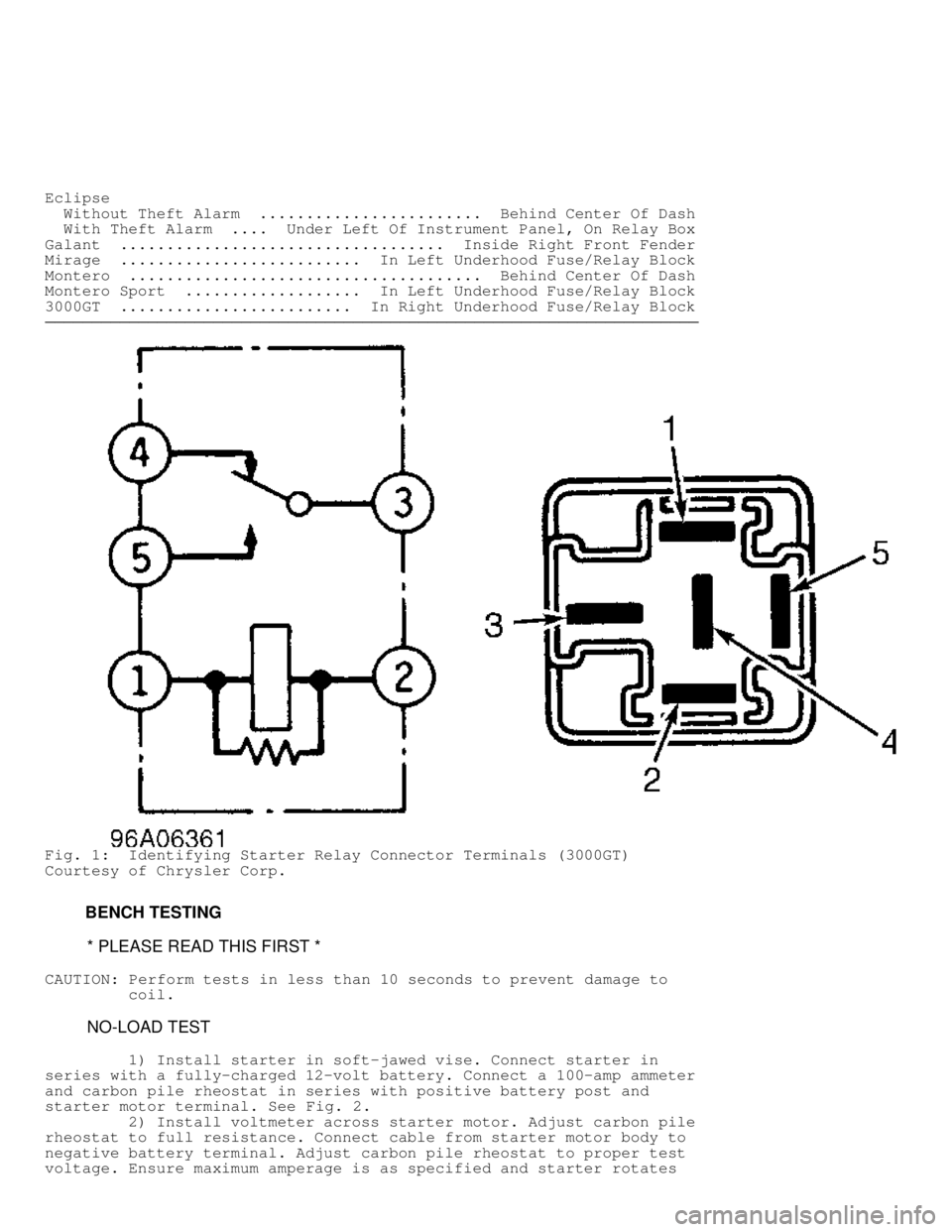

relay terminals No. 1 and 2 and between relay terminals No. 3 and 4.
See Fig. 1 .
2) Connect a jumper wire from positive battery terminal to
relay terminal No. 1 and another jumper wire from negative battery
terminal to relay terminal No. 2. Continuity should exist between
relay terminals No. 3 and 5. See Fig. 1. Replace relay as necessary.
STARTER RELAY LOCATIONS TABLE









\









\









\









\









\









\









\







Application Location
Diamante ............. At Left Front Fender, Inside Fuse/Relay Block

Eclipse
Without Theft Alarm ........................ Behind Center Of Dash
With Theft Alarm .... Under Left Of Instrument Panel, On Relay Box
Galant ................................... Inside Right Front Fender
Mirage .......................... In Left Underhood Fuse/Relay Block
Montero ...................................... Behind Center Of Dash
Montero Sport ................... In Left Underhood Fuse/Relay Block
3000GT ......................... In Right Underhood Fuse/Relay Block









\









\









\









\









\









\









\







Fig. 1: Identifying Starter Relay Connector Terminals (3000GT)
Courtesy of Chrysler Corp.
BENCH TESTING
* PLEASE READ THIS FIRST *
CAUTION: Perform tests in less than 10 seconds to prevent damage to
coil.
NO-LOAD TEST
1) Install starter in soft-jawed vise. Connect starter in
series with a fully-charged 12-volt battery. Connect a 100-amp ammeter
and carbon pile rheostat in series with positive battery post and
starter motor terminal. See Fig. 2.
2) Install voltmeter across starter motor. Adjust carbon pile
rheostat to full resistance. Connect cable from starter motor body to
negative battery terminal. Adjust carbon pile rheostat to proper test
voltage. Ensure maximum amperage is as specified and starter rotates

STEERING COLUMN SWITCHES
1998 Mitsubishi Montero
1998 ACCESSORIES & EQUIPMENT
Mitsubishi - Steering Column Switches
Diamante, Eclipse, Galant, Mirage, Montero, Montero Sport,
3000GT
* PLEASE READ THIS FIRST *
WARNING: Deactivate air bag system before performing any service
operation. See AIR BAG RESTRAINT SYSTEMS article. DO NOT
apply electrical power to any component on steering column
without first deactivating air bag system. Air bag may
deploy.
DESCRIPTION
Headlight and turn signal switch and wiper/washer switch are
part of combination switch. For information on cruise control switch
(right side of column), see appropriate CRUISE CONTROL SYSTEMS
article.
COMPONENT LOCATIONS
COMPONENT LOCATIONS TABLE








\









\









\









\









\









\






Component Location
Headlight Relay .................... In Engine Compartment
Fuse/Relay Block
Foglight Relay
Except Montero & Montero Sport ... In Engine Compartment
Fuse/Relay Block
Taillight Relay
Except Montero Sport ............. In Engine Compartment
Fuse/Relay Block
Turn Signal/Hazard Flasher Unit
Diamante ............................ At Left Kick Panel
Eclipse .......................... Behind Center Of Dash
Except Diamante & Eclipse ..... Behind Left Side Of Dash
Wiper Relay
Front
Except Diamante & 3000GT .......... On Steering Column
Rear
Eclipse ........................ Behind Center Of Dash
Montero & Montero Sport .............. On Relay Block,
Behind Left Side Of Dash
3000GT ................ Behind Left Rear Quarter Panel









\









\









\









\









\









\






COMPONENT TESTS
DIAMANTE
Turn Signal, Lighting & Dimmer/Passing Switch Tests
Disconnect steering column combination switch connector. See
Fig. 1 . Check continuity between specified terminals. See
STEERING COLUMN COMBINATION SWITCH CONTINUITY CHECK TABLE (DIAMANTE) .
