Page 21 of 714
1-4 General information

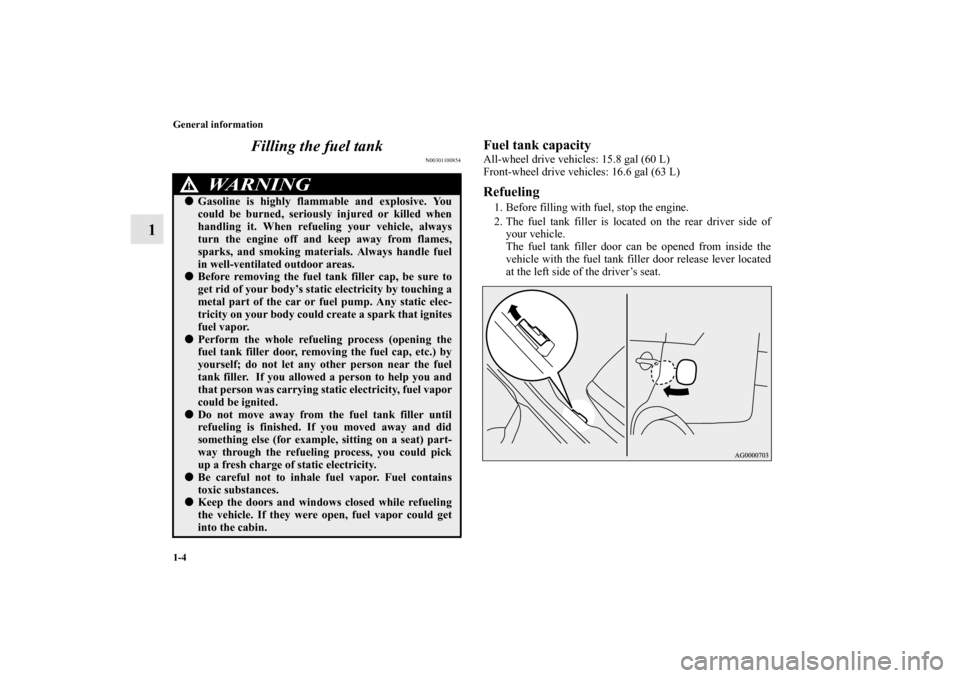

1Filling the fuel tank
N00301100854
Fuel tank capacityAll-wheel drive vehicles: 15.8 gal (60 L)
Front-wheel drive vehicles: 16.6 gal (63 L)Refueling1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear driver side of
your vehicle.
The fuel tank filler door can be opened from inside the
vehicle with the fuel tank filler door release lever located
at the left side of the driver’s seat.
WA R N I N G
!
Gasoline is highly flammable and explosive. You
could be burned, seriously injured or killed when
handling it. When refueling your vehicle, always
turn the engine off and keep away from flames,
sparks, and smoking materials. Always handle fuel
in well-ventilated outdoor areas.
Before removing the fuel tank filler cap, be sure to
get rid of your body’s static electricity by touching a
metal part of the car or fuel pump. Any static elec-
tricity on your body could create a spark that ignites
fuel vapor.
Perform the whole refueling process (opening the
fuel tank filler door, removing the fuel cap, etc.) by
yourself; do not let any other person near the fuel
tank filler. If you allowed a person to help you and
that person was carrying static electricity, fuel vapor
could be ignited.
Do not move away from the fuel tank filler until
refueling is finished. If you moved away and did
something else (for example, sitting on a seat) part-
way through the refueling process, you could pick
up a fresh charge of static electricity.
Be careful not to inhale fuel vapor. Fuel contains
toxic substances.
Keep the doors and windows closed while refueling
the vehicle. If they were open, fuel vapor could get
into the cabin.
BK0115300US.book 4 ページ 2009年7月16日 木曜日 午前9時13分
Page 22 of 714
General information
1-5
1

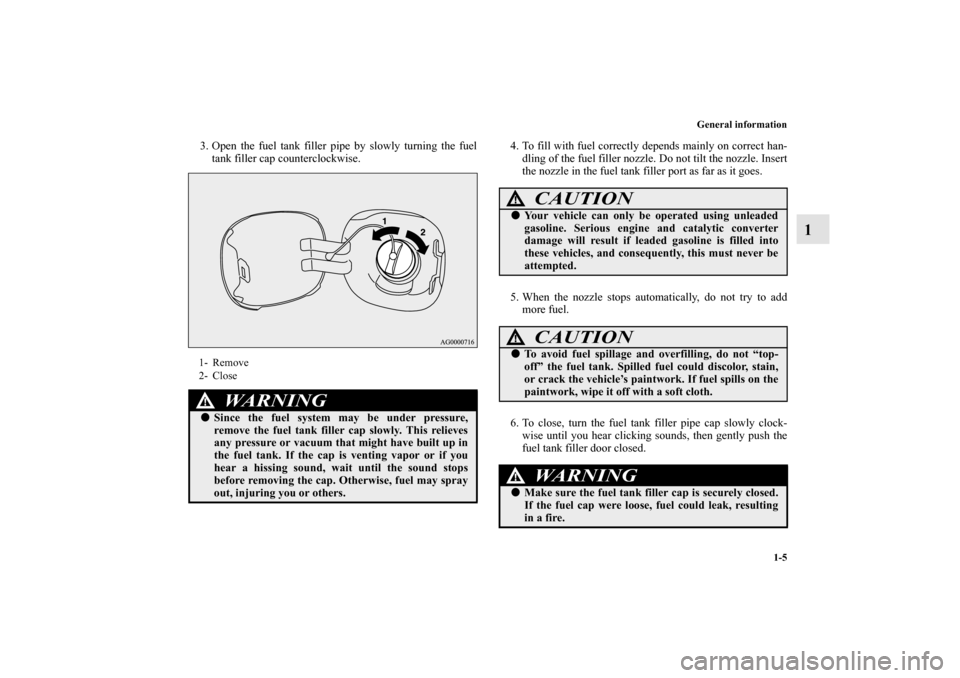

3. Open the fuel tank filler pipe by slowly turning the fuel
tank filler cap counterclockwise.4. To fill with fuel correctly depends mainly on correct han-
dling of the fuel filler nozzle. Do not tilt the nozzle. Insert
the nozzle in the fuel tank filler port as far as it goes.
5. When the nozzle stops automatically, do not try to add
more fuel.
6. To close, turn the fuel tank filler pipe cap slowly clock-
wise until you hear clicking sounds, then gently push the
fuel tank filler door closed.1- Remove
2- Close
WA R N I N G
!
Since the fuel system may be under pressure,
remove the fuel tank filler cap slowly. This relieves
any pressure or vacuum that might have built up in
the fuel tank. If the cap is venting vapor or if you
hear a hissing sound, wait until the sound stops
before removing the cap. Otherwise, fuel may spray
out, injuring you or others.
CAUTION
!
Your vehicle can only be operated using unleaded
gasoline. Serious engine and catalytic converter
damage will result if leaded gasoline is filled into
these vehicles, and consequently, this must never be
attempted.CAUTION
!
To avoid fuel spillage and overfilling, do not “top-
off” the fuel tank. Spilled fuel could discolor, stain,
or crack the vehicle’s paintwork. If fuel spills on the
paintwork, wipe it off with a soft cloth.WA R N I N G
!
Make sure the fuel tank filler cap is securely closed.
If the fuel cap were loose, fuel could leak, resulting
in a fire.
BK0115300US.book 5 ページ 2009年7月16日 木曜日 午前9時13分
Page 23 of 714
1-6 General information
1

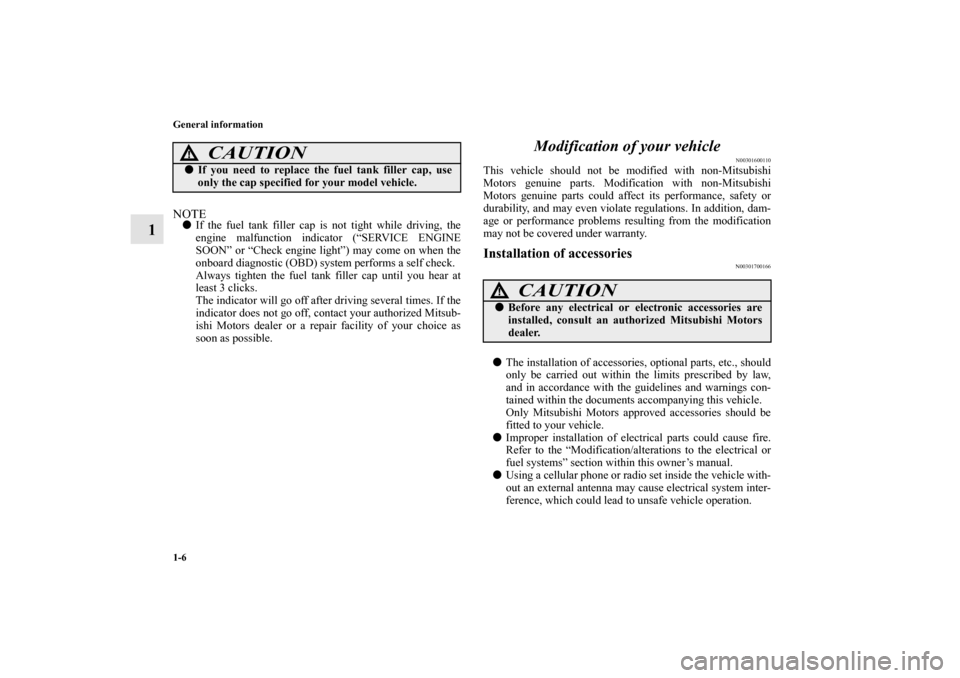

NOTE
If the fuel tank filler cap is not tight while driving, the
engine malfunction indicator (“SERVICE ENGINE
SOON” or “Check engine light”) may come on when the
onboard diagnostic (OBD) system performs a self check.
Always tighten the fuel tank filler cap until you hear at
least 3 clicks.
The indicator will go off after driving several times. If the
indicator does not go off, contact your authorized Mitsub-
ishi Motors dealer or a repair facility of your choice as
soon as possible.
Modification of your vehicle
N00301600110
This vehicle should not be modified with non-Mitsubishi
Motors genuine parts. Modification with non-Mitsubishi
Motors genuine parts could affect its performance, safety or
durability, and may even violate regulations. In addition, dam-
age or performance problems resulting from the modification
may not be covered under warranty.Installation of accessories
N00301700166
The installation of accessories, optional parts, etc., should
only be carried out within the limits prescribed by law,
and in accordance with the guidelines and warnings con-
tained within the documents accompanying this vehicle.
Only Mitsubishi Motors approved accessories should be
fitted to your vehicle.
Improper installation of electrical parts could cause fire.
Refer to the “Modification/alterations to the electrical or
fuel systems” section within this owner’s manual.
Using a cellular phone or radio set inside the vehicle with-
out an external antenna may cause electrical system inter-
ference, which could lead to unsafe vehicle operation.
CAUTION
!
If you need to replace the fuel tank filler cap, use
only the cap specified for your model vehicle.
CAUTION
!
Before any electrical or electronic accessories are
installed, consult an authorized Mitsubishi Motors
dealer.
BK0115300US.book 6 ページ 2009年7月16日 木曜日 午前9時13分
Page 24 of 714
General information
1-7
1

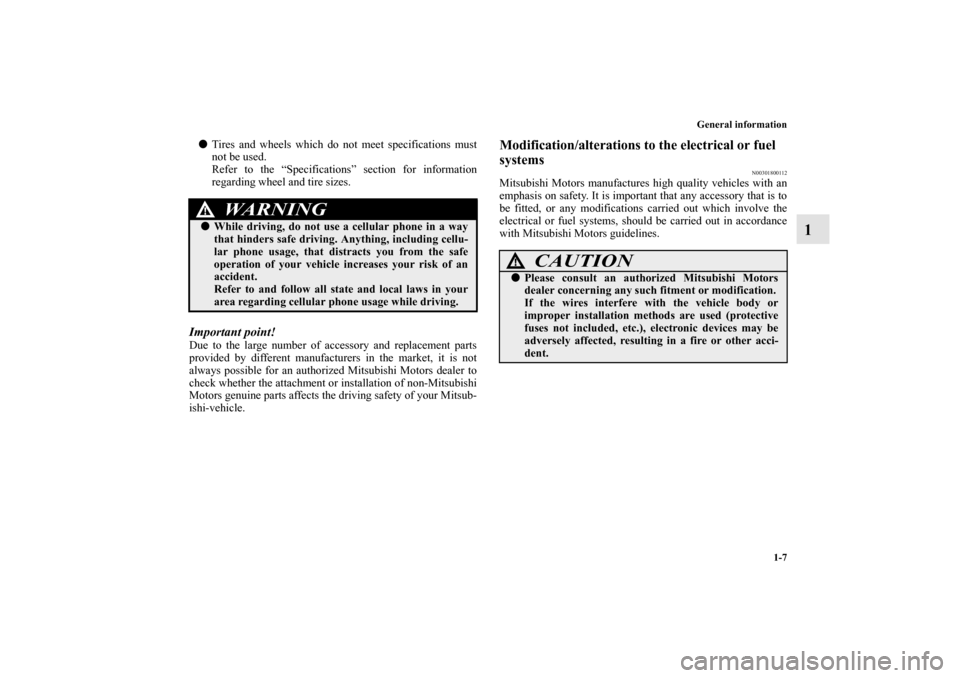

Tires and wheels which do not meet specifications must
not be used.
Refer to the “Specifications” section for information
regarding wheel and tire sizes.
Important point!Due to the large number of accessory and replacement parts
provided by different manufacturers in the market, it is not
always possible for an authorized Mitsubishi Motors dealer to
check whether the attachment or installation of non-Mitsubishi
Motors genuine parts affects the driving safety of your Mitsub-
ishi-vehicle.
Modification/alterations to the electrical or fuel
systems
N00301800112
Mitsubishi Motors manufactures high quality vehicles with an
emphasis on safety. It is important that any accessory that is to
be fitted, or any modifications carried out which involve the
electrical or fuel systems, should be carried out in accordance
with Mitsubishi Motors guidelines.
WA R N I N G
!
While driving, do not use a cellular phone in a way
that hinders safe driving. Anything, including cellu-
lar phone usage, that distracts you from the safe
operation of your vehicle increases your risk of an
accident.
Refer to and follow all state and local laws in your
area regarding cellular phone usage while driving.
CAUTION
!
Please consult an authorized Mitsubishi Motors
dealer concerning any such fitment or modification.
If the wires interfere with the vehicle body or
improper installation methods are used (protective
fuses not included, etc.), electronic devices may be
adversely affected, resulting in a fire or other acci-
dent.
BK0115300US.book 7 ページ 2009年7月16日 木曜日 午前9時13分
Page 25 of 714
1-8 General information
1Genuine Mitsubishi Motors parts
N00301400219
Mitsubishi Motors Genuine Parts are designed and manufac-
tured to meet high standards of performance, and are recom-
mended for all of your maintenance needs. Also available from
your Mitsubishi Motors dealer are a wide variety of accessories
to personalize your new vehicle. Each Mitsubishi Motors vehi-
cle has a selection of Mitsubishi Motors authorized accessories
to choose from to tailor your new vehicle to your own personal
preference. Your Mitsubishi Motors dealer’s Parts Manager has
information on various audio systems, protection items, as well
as interior and exterior accessories available for your specific
model.
California Perchlorate Materials Require-
ments
N00300100017
Certain components of this vehicle, such as airbag modules,
seat belt pretensioners, and button cell batteries, may contain
perchlorate materials.
Special handling may apply. For additional information, see
www.dtsc.ca.gov/hazardouswaste/perchlorate.
BK0115300US.book 8 ページ 2009年7月16日 木曜日 午前9時13分
Page 26 of 714
2
Seat and restraint systems
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 2
Seat arrangement . . . . . . . . . . . . . . . . . . . . . . . . . .2- 3
Seats and restraint systems. . . . . . . . . . . . . . . . . . .2- 5
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 5
Second row seats
(60/40 split fold/tumble seats) . . . . . . . . . . . . . .2- 13
Third row seat (Seating 7 passengers) . . . . . . . . . .2- 16
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 25
Making a cargo area . . . . . . . . . . . . . . . . . . . . . . . .2- 28
Making a flat seat . . . . . . . . . . . . . . . . . . . . . . . . . .2- 34
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 37
Seat belt use during pregnancy . . . . . . . . . . . . . . .2- 46
Seat belt pre-tensioner and
force limiter systems. . . . . . . . . . . . . . . . . . . . . .2- 47
Child restraint systems . . . . . . . . . . . . . . . . . . . . . .2- 49
Maintenance and inspection of seat belts. . . . . . . .2- 59
Supplemental Restraint System (SRS) - airbag . . .2- 60
BK0115300US.book 1 ページ 2009年7月16日 木曜日 午前9時13分
Page 27 of 714
2-2 Seat and restraint systems

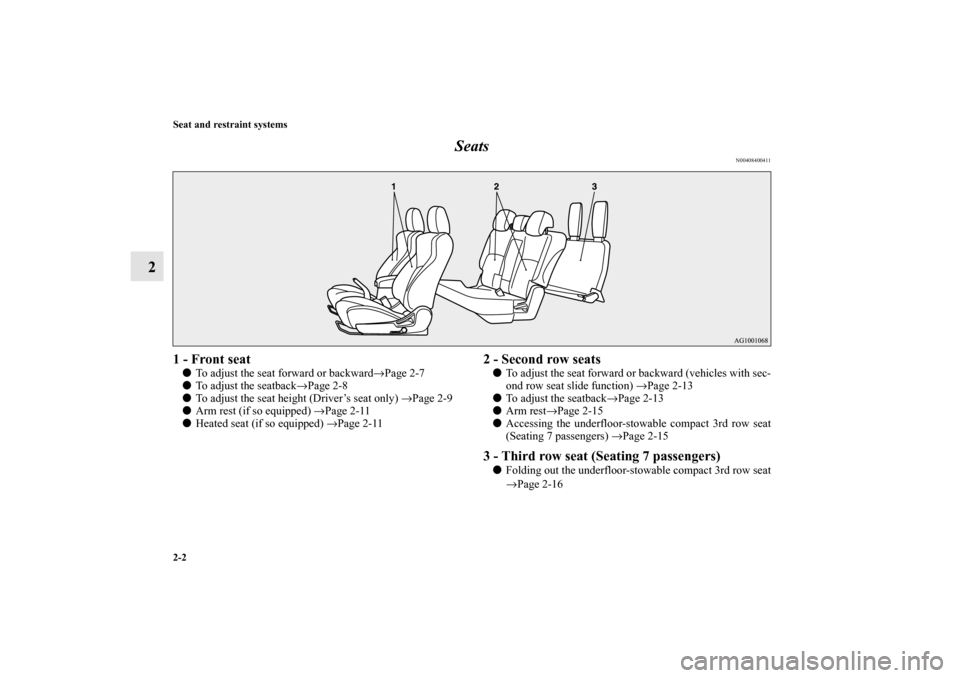

2Seats
N00408400411
1 - Front seat
To adjust the seat forward or backward→Page 2-7
To adjust the seatback→Page 2-8
To adjust the seat height (Driver’s seat only) →Page 2-9
Arm rest (if so equipped) →Page 2-11
Heated seat (if so equipped) →Page 2-11
2 - Second row seats
To adjust the seat forward or backward (vehicles with sec-
ond row seat slide function) →Page 2-13
To adjust the seatback→Page 2-13
Arm rest→Page 2-15
Accessing the underfloor-stowable compact 3rd row seat
(Seating 7 passengers) →Page 2-15
3 - Third row seat (Seating 7 passengers)
Folding out the underfloor-stowable compact 3rd row seat
→Page 2-16
BK0115300US.book 2 ページ 2009年7月16日 木曜日 午前9時13分
Page 28 of 714
Seat and restraint systems
2-3

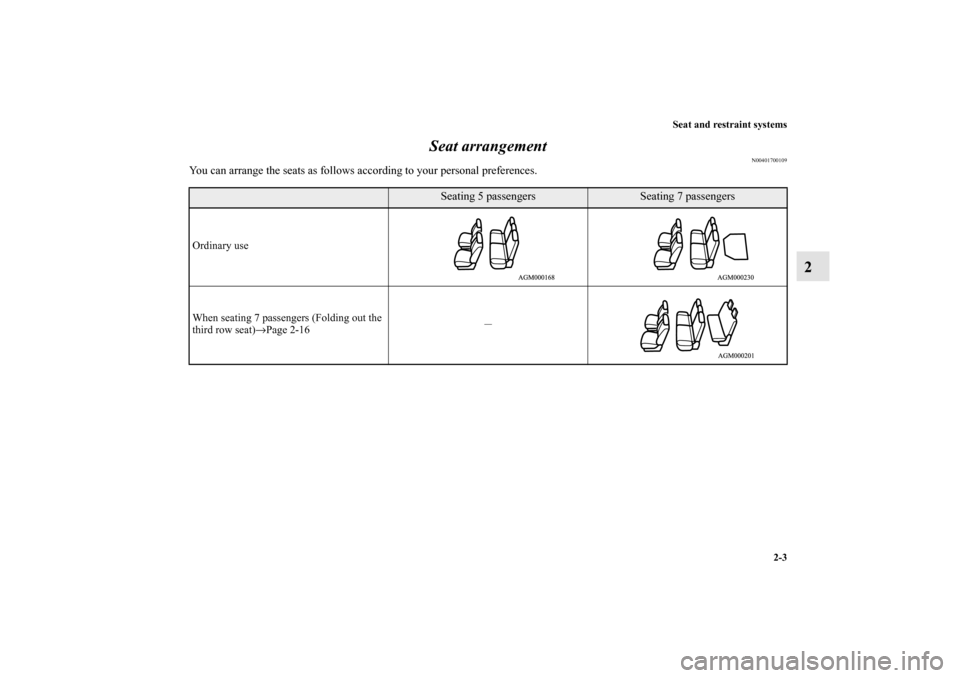

2 Seat arrangement
N00401700109
You can arrange the seats as follows according to your personal preferences.
Seating 5 passengers
Seating 7 passengers
Ordinary use
When seating 7 passengers (Folding out the
third row seat)→Page 2-16-
BK0115300US.book 3 ページ 2009年7月16日 木曜日 午前9時13分
Page 29 of 714
2-4 Seat and restraint systems
2

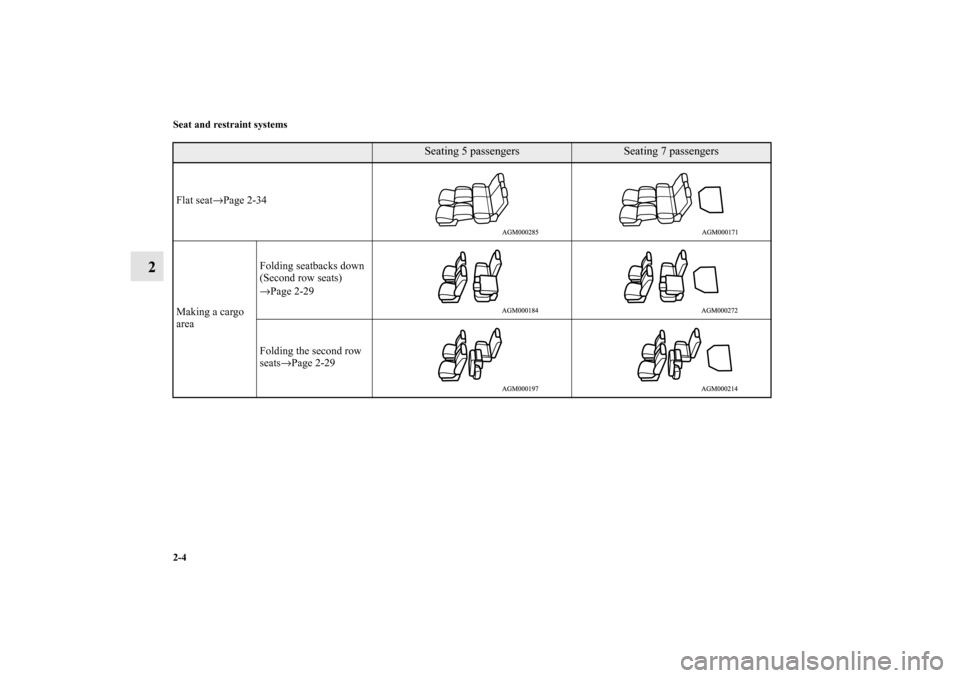

Seating 5 passengers
Seating 7 passengers
Flat seat→Page 2-34
Making a cargo
areaFolding seatbacks down
(Second row seats)
→Page 2-29
Folding the second row
seats→Page 2-29BK0115300US.book 4 ページ 2009年7月16日 木曜日 午前9時13分
Page 30 of 714
Seat and restraint systems
2-5
2 Seats and restraint systems
N00401600153
Your vehicle has seat belts and other features that help protect
you and your passengers in an accident.
Seat belts are the most important safety device. When worn
properly, seat belts can reduce the chance of serious injury or
death in various types of crashes. For added protection during a
severe frontal collision, your vehicle has a Supplemental
Restraint System (SRS) with airbags for the driver and passen-
gers. The seats, head restraints, and door locks also are safety
equipment, which must be used correctly.
Always check the following before you drive:
That everyone in your vehicle is properly wearing their
seat belt.
That infants and small children are properly secured in
appropriate child restraint systems in the rear seat.
That all doors are fully closed and locked.
That seatbacks are upright, with head restraints properly
adjusted.
Safety equipment cannot prevent injury or death in all motor
vehicle accidents. You can help reduce the risk of injury or
death, however, by following the instructions in this manual.
Front seats
N00401800331
Position the driver’s seat as far back as possible while main-
taining a position that still enables you to fully apply the ped-
als, easily control the steering wheel and safely operate the
vehicle.
Power seat adjustment Manual seat adjustment
BK0115300US.book 5 ページ 2009年7月16日 木曜日 午前9時13分
