2-16 Seat and restraint systems
2Third row seat (Seating 7 passengers)
N00419500047
The third row seat can be used for two additional passengers.
When the third row seat is not in use, it can be stowed under
the floor to provide more cargo area.
When using the third row seat, be sure the head restraint is
properly positioned. Refer to page 2-20.
WA R N I N G
!
The third row seats are intended for use by no more
than two belted occupants, each of which does not
exceed 160 cm (63 inches) in height.
Exceeding these limitations can result in an
increased risk of personal injury or death in the
event of an accident.
The third row seats are not intended for use by
infants and small children who must use rear facing
or forward facing child safety seats.
Third row seat operation should always be made
before driving. Operating the seat while driving
could cause the seat to move more than necessary
and result in a serious injury or death.
Before using, check that the third row seat is firmly
secured. If not secured, the third row seat could
move and cause a serious injury or death in an acci-
dent.
The third row seat should not be used when the sec-
ond row seats are folded forward. Third row seat
passengers can suffer a serious or fatal injury if the
second row seats fell backward in a collision or when
heavy breaking is applied.
For vehicles equipped with the cargo area cover,
when the third row seat is in use, always remove the
cargo area cover to avoid serious injury or death in
the event of an accident.
Refer to “Cargo area cover”, page 3-291.CAUTION
!
The third row seat should be adjusted only by an
adult. If it is adjusted by a child, an unexpected acci-
dent might occur.
When adjusting the third row seat, keep your hands
and feet away from moving parts and the space
below the seat.
Be careful not to touch the exhaust pipe, because it
will remain hot for some time after the engine is
stopped.WA R N I N G
!
BK0115300US.book 16 ページ 2009年7月16日 木曜日 午前9時13分
Page 42 of 714
Seat and restraint systems
2-17
2

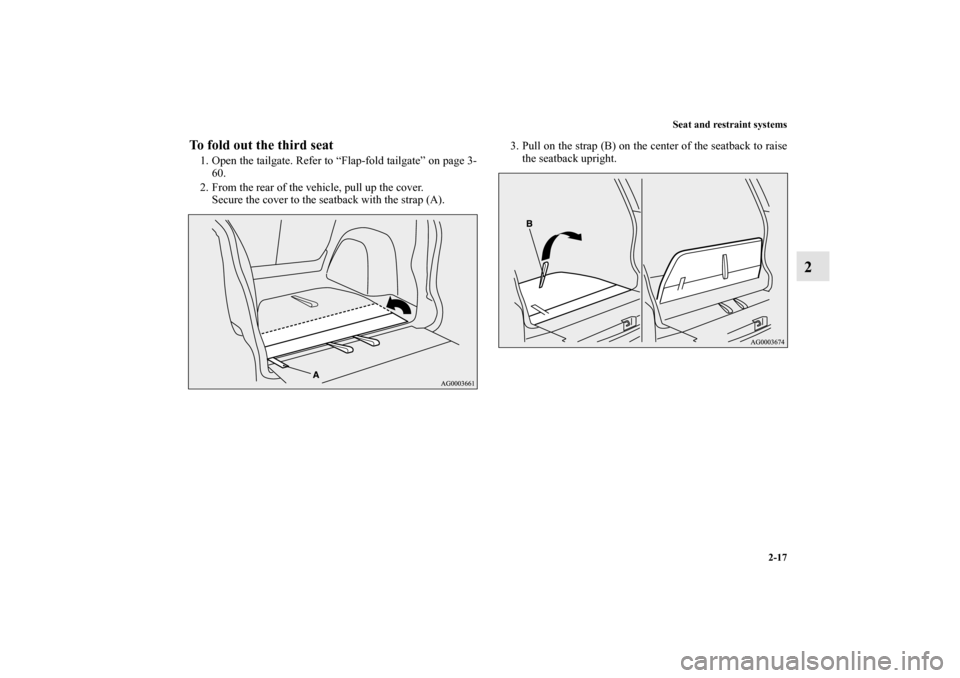

To fold out the third seat1. Open the tailgate. Refer to “Flap-fold tailgate” on page 3-
60.
2. From the rear of the vehicle, pull up the cover.
Secure the cover to the seatback with the strap (A).3. Pull on the strap (B) on the center of the seatback to raise
the seatback upright.
BK0115300US.book 17 ページ 2009年7月16日 木曜日 午前9時13分
Page 43 of 714
2-18 Seat and restraint systems
2

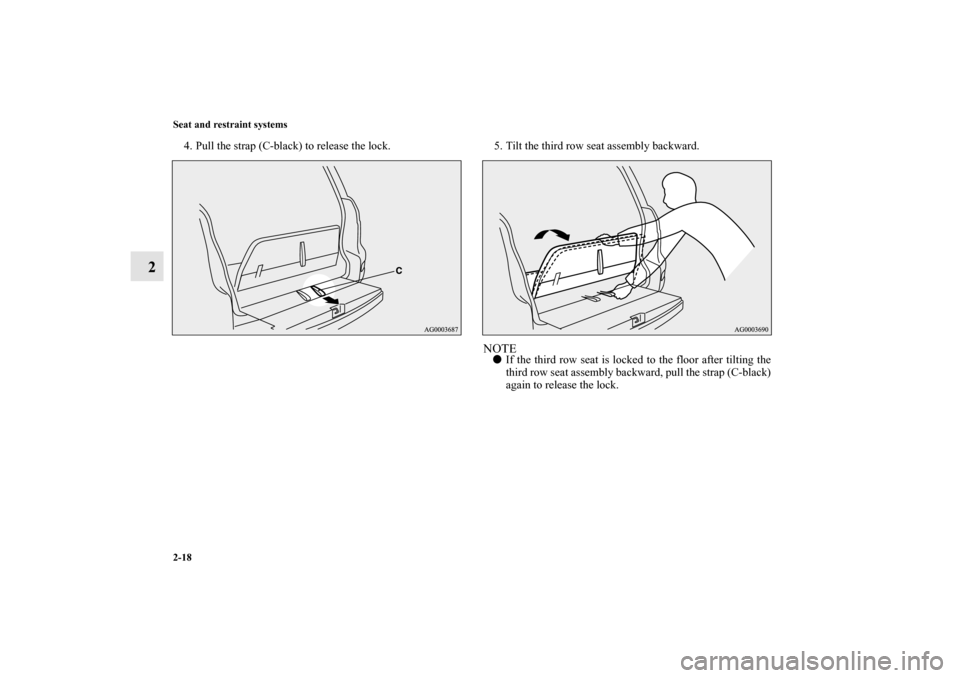

4. Pull the strap (C-black) to release the lock. 5. Tilt the third row seat assembly backward.
NOTE
If the third row seat is locked to the floor after tilting the
third row seat assembly backward, pull the strap (C-black)
again to release the lock.
BK0115300US.book 18 ページ 2009年7月16日 木曜日 午前9時13分
Page 44 of 714
Seat and restraint systems
2-19
2
6. Lift the third row seat assembly up from the floor and
move it forward to secure it in place.
WA R N I N G
!
When lifting the third row seat, do not place your
hands on or near the red labels (D). Your fingers
could get caught and injured on the seat hinge mech-
anism.
BK0115300US.book 19 ページ 2009年7月16日 木曜日 午前9時13分
Page 45 of 714
2-20 Seat and restraint systems
2

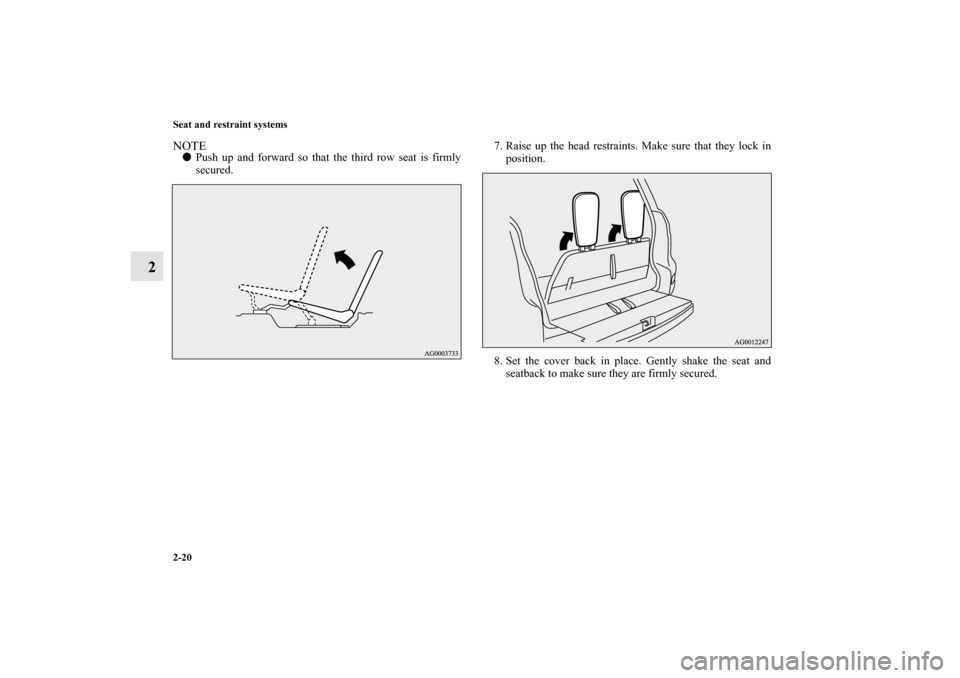

NOTE
Push up and forward so that the third row seat is firmly
secured.7. Raise up the head restraints. Make sure that they lock in
position.
8. Set the cover back in place. Gently shake the seat and
seatback to make sure they are firmly secured.
BK0115300US.book 20 ページ 2009年7月16日 木曜日 午前9時13分
Page 46 of 714
Seat and restraint systems
2-21
2

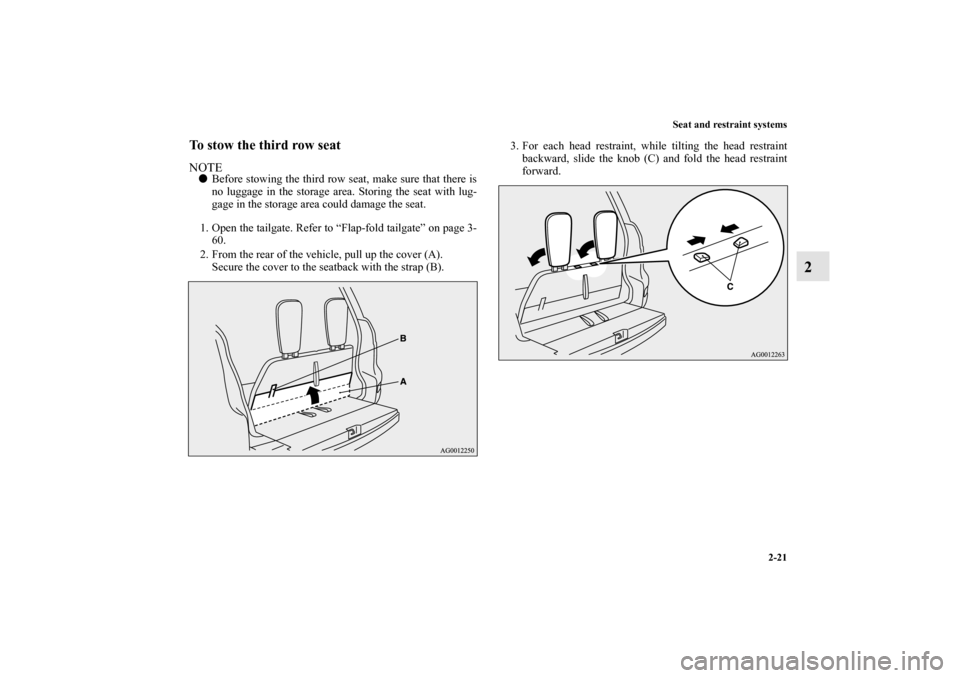

To stow the third row seatNOTE
Before stowing the third row seat, make sure that there is
no luggage in the storage area. Storing the seat with lug-
gage in the storage area could damage the seat.
1. Open the tailgate. Refer to “Flap-fold tailgate” on page 3-
60.
2. From the rear of the vehicle, pull up the cover (A).
Secure the cover to the seatback with the strap (B).3. For each head restraint, while tilting the head restraint
backward, slide the knob (C) and fold the head restraint
forward.
BK0115300US.book 21 ページ 2009年7月16日 木曜日 午前9時13分
Page 47 of 714
2-22 Seat and restraint systems
2

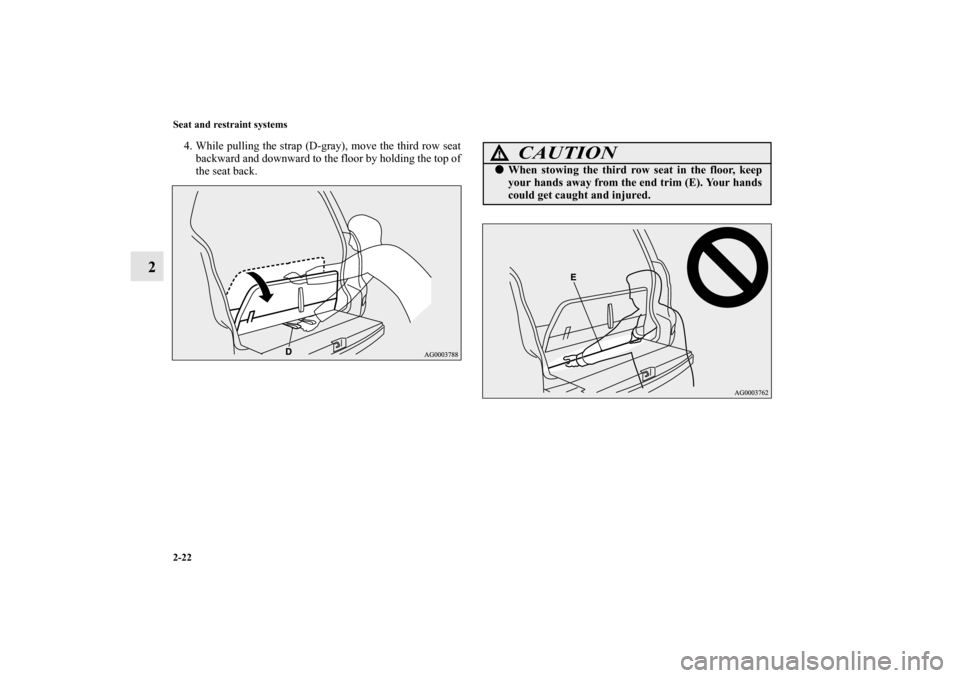

4. While pulling the strap (D-gray), move the third row seat
backward and downward to the floor by holding the top of
the seat back.
CAUTION
!
When stowing the third row seat in the floor, keep
your hands away from the end trim (E). Your hands
could get caught and injured.
BK0115300US.book 22 ページ 2009年7月16日 木曜日 午前9時13分
Page 48 of 714
Seat and restraint systems
2-23
2

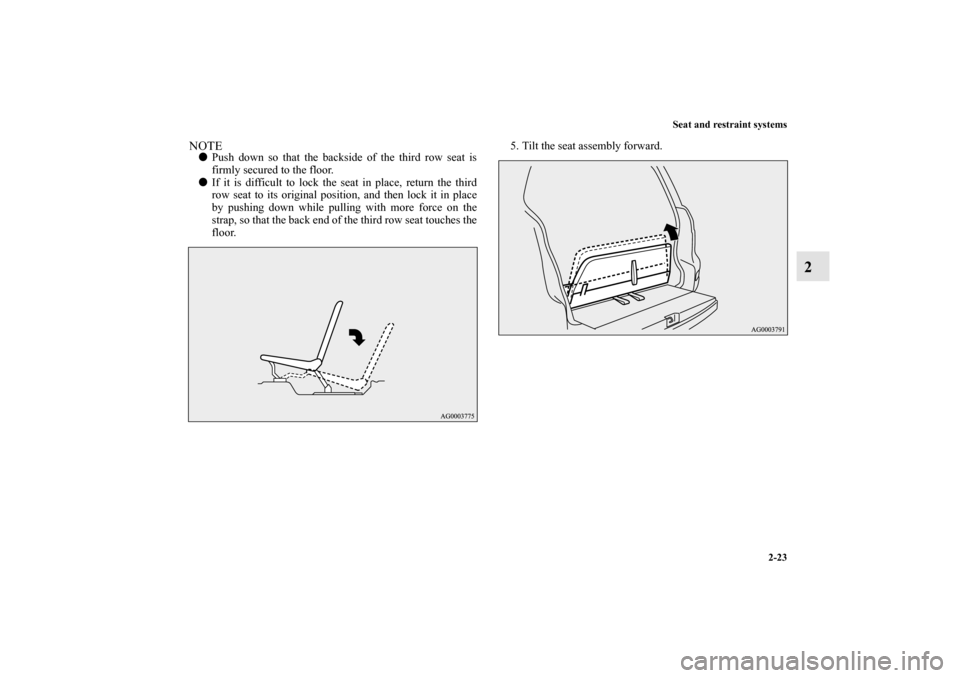

NOTE
Push down so that the backside of the third row seat is
firmly secured to the floor.
If it is difficult to lock the seat in place, return the third
row seat to its original position, and then lock it in place
by pushing down while pulling with more force on the
strap, so that the back end of the third row seat touches the
floor.5. Tilt the seat assembly forward.
BK0115300US.book 23 ページ 2009年7月16日 木曜日 午前9時13分
Page 49 of 714
2-24 Seat and restraint systems
2
NOTE

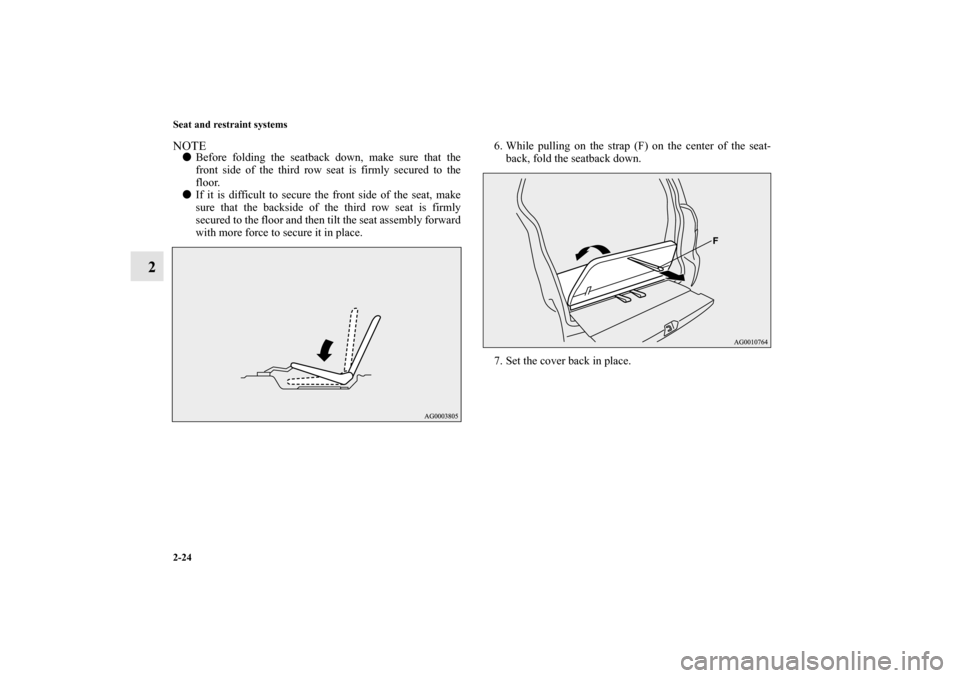

Before folding the seatback down, make sure that the
front side of the third row seat is firmly secured to the
floor.
If it is difficult to secure the front side of the seat, make
sure that the backside of the third row seat is firmly
secured to the floor and then tilt the seat assembly forward
with more force to secure it in place.6. While pulling on the strap (F) on the center of the seat-
back, fold the seatback down.
7. Set the cover back in place.
BK0115300US.book 24 ページ 2009年7月16日 木曜日 午前9時13分
Page 50 of 714
Seat and restraint systems
2-25

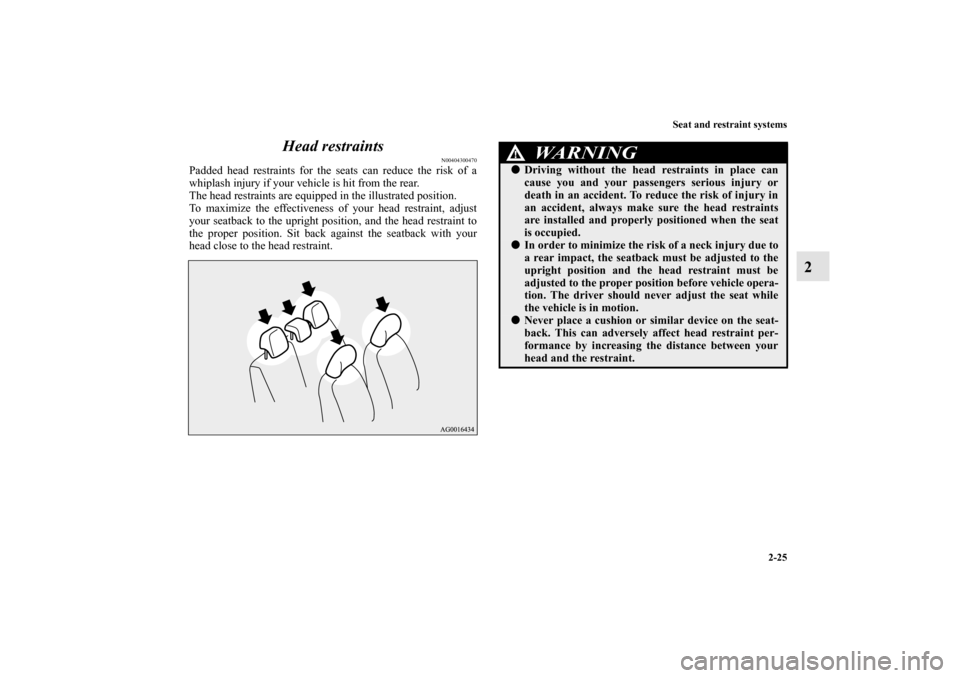

2 Head restraints
N00404300470
