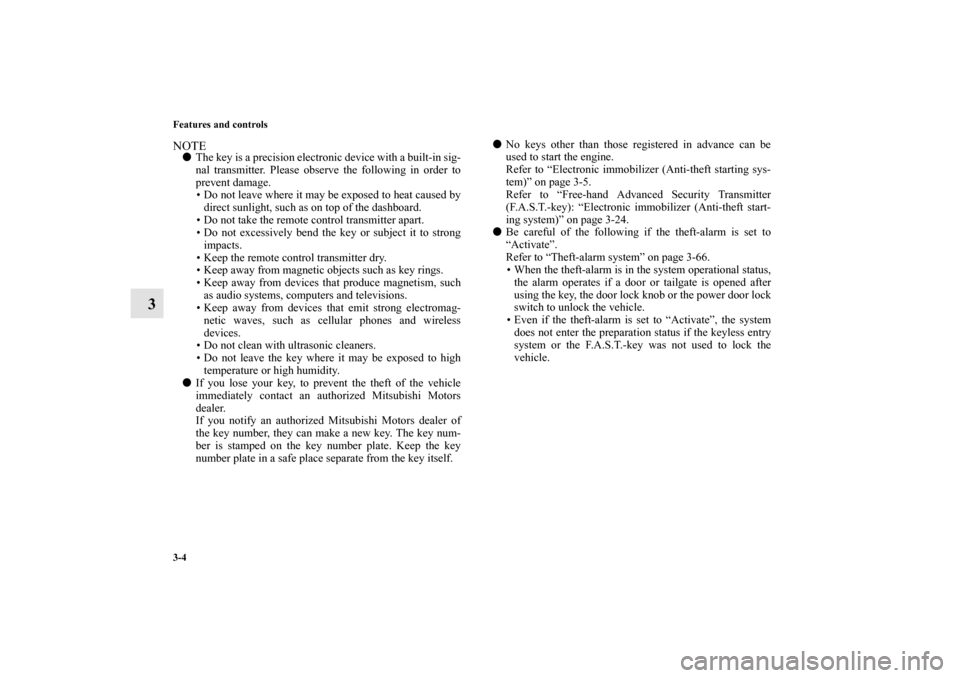

3-4 Features and controls
3
NOTE

The key is a precision electronic device with a built-in sig-
nal transmitter. Please observe the following in order to
prevent damage.
 Do not leave where it may be exposed to heat caused by
direct sunlight, such as on top of the dashboard.
 Do not take the remote control transmitter apart.
 Do not excessively bend the key or subject it to strong
impacts.
 Keep the remote control transmitter dry.
 Keep away from magnetic objects such as key rings.
 Keep away from devices that produce magnetism, such
as audio systems, computers and televisions.
 Keep away from devices that emit strong electromag-
netic waves, such as cellular phones and wireless
devices.
 Do not clean with ultrasonic cleaners.
 Do not leave the key where it may be exposed to high
temperature or high humidity.


If you lose your key, to prevent the theft of the vehicle
immediately contact an authorized Mitsubishi Motors
dealer.
If you notify an authorized Mitsubishi Motors dealer of
the key number, they can make a new key. The key num-
ber is stamped on the key number plate. Keep the key
number plate in a safe place separate from the key itself.


No keys other than those registered in advance can be
used to start the engine.
Refer to “Electronic immobilizer (Anti-theft starting sys-
tem)” on page 3-5.
Refer to “Free-hand Advanced Security Transmitter
(F.A.S.T.-key): “Electronic immobilizer (Anti-theft start-
ing system)” on page 3-24.


Be careful of the following if the theft-alarm is set to
“Activate”.
Refer to “Theft-alarm system” on page 3-66.
 When the theft-alarm is in the system operational status,
the alarm operates if a door or tailgate is opened after
using the key, the door lock knob or the power door lock
switch to unlock the vehicle.
 Even if the theft-alarm is set to “Activate”, the system
does not enter the preparation status if the keyless entry
system or the F.A.S.T.-key was not used to lock the
vehicle.
BK0115300US.book 4 ページ ２００９年７月１６日　木曜日　午前９時１３分

3-6 Features and controls
3
NOTE

The key may not operate properly when it is near an
object or facility that emits strong electromagnetic waves.


Electronic immobilizer is not compatible with commer-
cially available remote starting systems. Use of commer-
cially available remote starting systems may result in
vehicle starting problems and a loss of security protection.


A system failure is suspected when the ignition switch is
turned to the “START” position, and the engine does not
start. In such a case, contact an authorized Mitsubishi
Motors dealer.
CAUTION
!

Do not make any alterations or additions to the
immobilizer system. Alterations or additions could
cause failure of the immobilizer.
BK0115300US.book 6 ページ ２００９年７月１６日　木曜日　午前９時１３分

3-16 Features and controls
3Free-hand Advanced Security Transmitter
(F.A.S.T.-key)
(if so equipped)
N00503100094
The Free-hand Advanced Security Transmitter (F.A.S.T.-key)
enables the doors and the tailgate to be locked and unlocked
and the engine to be started simply by carrying it.
The F.A.S.T.-key can also be used as the remote control trans-
mitter of the keyless entry system.
Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-
key): Keyless entry system” on page 3-47.
CAUTION
!

When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-
key is required for vehicle operations such as locking and
unlocking the doors and the tailgate, and starting the engine.
When leaving the vehicle, make sure you are carrying the
F.A.S.T.-key and then lock the vehicle.
WA R N I N G
!

Individuals who use implantable pacemakers or
implantable cardiovascular-defibrillators should
keep away from the external and internal transmit-
ters. The electromagnetic waves used in the F.A.S.T.-
key may affect the operation of implantable pace-
makers and implantable cardiovascular-defibrilla-
tors.
BK0115300US.book 16 ページ ２００９年７月１６日　木曜日　午前９時１３分

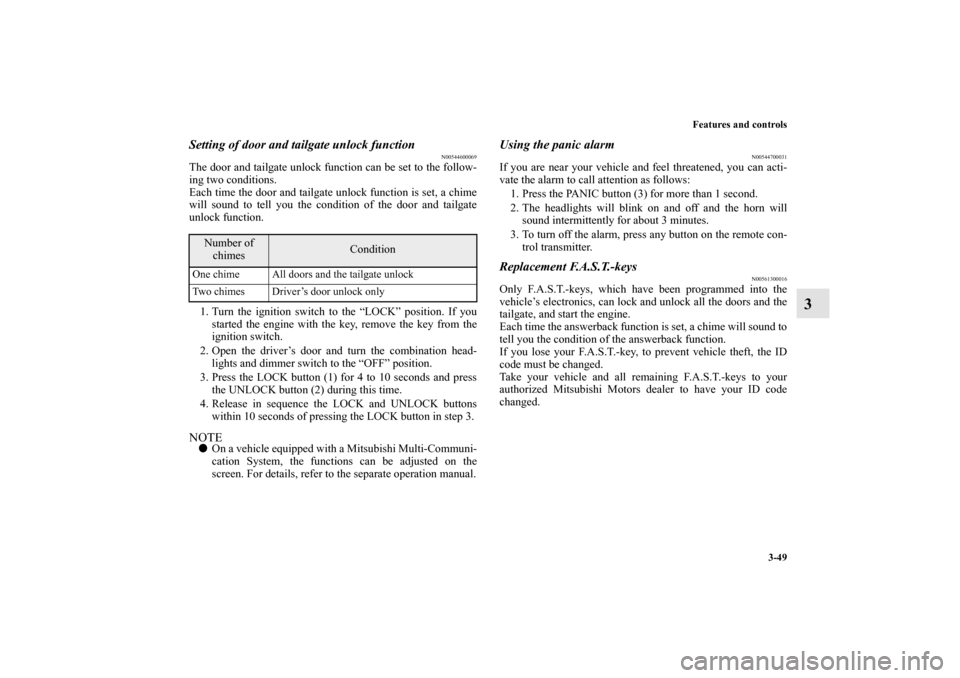

Features and controls
3-49
3
Setting of door and tailgate unlock function
N00544600069
The door and tailgate unlock function can be set to the follow-
ing two conditions.
Each time the door and tailgate unlock function is set, a chime
will sound to tell you the condition of the door and tailgate
unlock function.
1. Turn the ignition switch to the “LOCK” position. If you
started the engine with the key, remove the key from the
ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE

On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Using the panic alarm
N00544700031
If you are near your vehicle and feel threatened, you can acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.Replacement F.A.S.T.-keys
N00561300016
Only F.A.S.T.-keys, which have been programmed into the
vehicle’s electronics, can lock and unlock all the doors and the
tailgate, and start the engine.
Each time the answerback function is set, a chime will sound to
tell you the condition of the answerback function.
If you lose your F.A.S.T.-key, to prevent vehicle theft, the ID
code must be changed.
Take your vehicle and all remaining F.A.S.T.-keys to your
authorized Mitsubishi Motors dealer to have your ID code
changed.
Number of
chimes
Condition
One chime All doors and the tailgate unlock
Two chimes Driver’s door unlock only
BK0115300US.book 49 ページ ２００９年７月１６日　木曜日　午前９時１３分

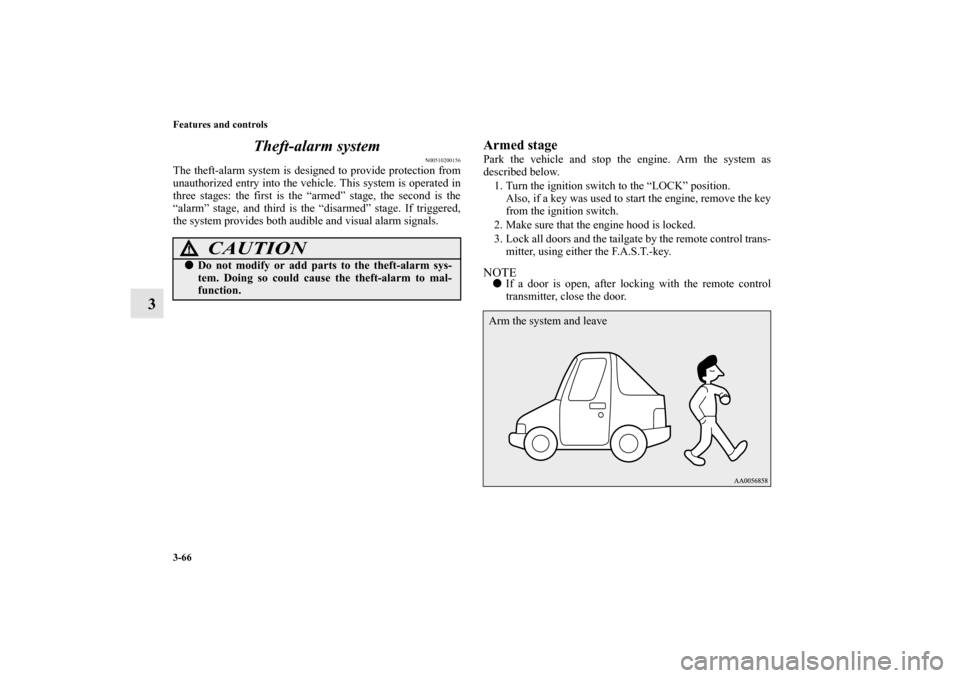

3-66 Features and controls
3Theft-alarm system
N00510200156
The theft-alarm system is designed to provide protection from
unauthorized entry into the vehicle. This system is operated in
three stages: the first is the “armed” stage, the second is the
“alarm” stage, and third is the “disarmed” stage. If triggered,
the system provides both audible and visual alarm signals.
Armed stagePark the vehicle and stop the engine. Arm the system as
described below.
1. Turn the ignition switch to the “LOCK” position.
Also, if a key was used to start the engine, remove the key
from the ignition switch.
2. Make sure that the engine hood is locked.
3. Lock all doors and the tailgate by the remote control trans-
mitter, using either the F.A.S.T.-key.NOTE

If a door is open, after locking with the remote control
transmitter, close the door.
CAUTION
!

Do not modify or add parts to the theft-alarm sys-
tem. Doing so could cause the theft-alarm to mal-
function.
Arm the system and leave
BK0115300US.book 66 ページ ２００９年７月１６日　木曜日　午前９時１３分

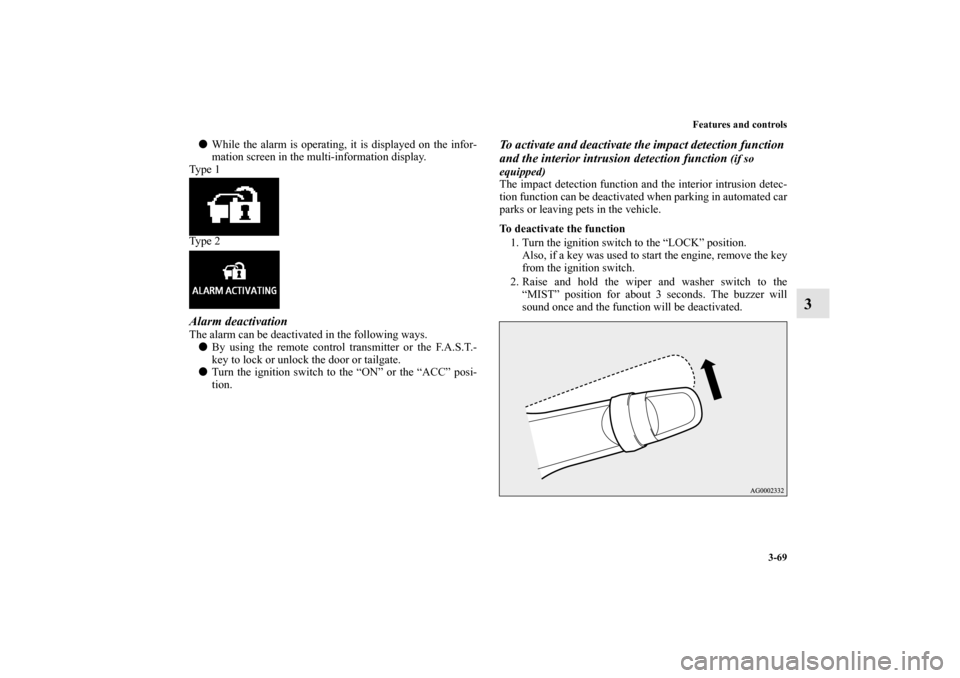

Features and controls
3-69
3


While the alarm is operating, it is displayed on the infor-
mation screen in the multi-information display.
Ty p e 1
Ty p e 2
Alarm deactivationThe alarm can be deactivated in the following ways.

By using the remote control transmitter or the F.A.S.T.-
key to lock or unlock the door or tailgate.


Turn the ignition switch to the “ON” or the “ACC” posi-
tion.
To activate and deactivate the impact detection function
and the interior intrusion detection function
(if so
equipped)
The impact detection function and the interior intrusion detec-
tion function can be deactivated when parking in automated car
parks or leaving pets in the vehicle.
To deactivate the function
1. Turn the ignition switch to the “LOCK” position.
Also, if a key was used to start the engine, remove the key
from the ignition switch.
2. Raise and hold the wiper and washer switch to the
“MIST” position for about 3 seconds. The buzzer will
sound once and the function will be deactivated.
BK0115300US.book 69 ページ ２００９年７月１６日　木曜日　午前９時１３分

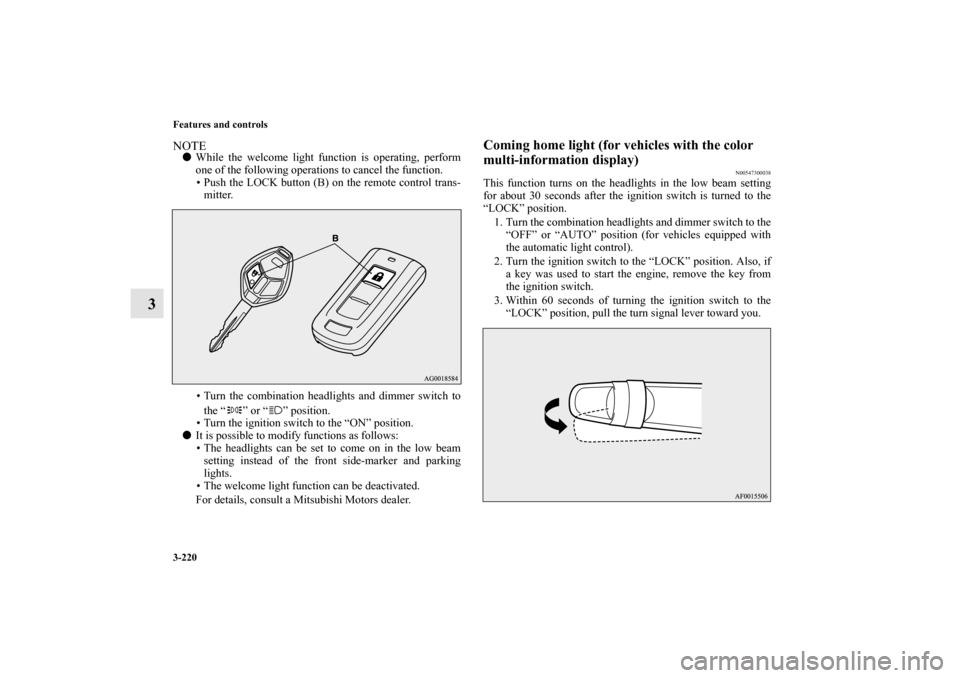

3-220 Features and controls
3
NOTE

While the welcome light function is operating, perform
one of the following operations to cancel the function.
 Push the LOCK button (B) on the remote control trans-
mitter.
 Turn the combination headlights and dimmer switch to
the “ ” or “ ” position.
 Turn the ignition switch to the “ON” position.


It is possible to modify functions as follows:
 The headlights can be set to come on in the low beam
setting instead of the front side-marker and parking
lights.
 The welcome light function can be deactivated.
For details, consult a Mitsubishi Motors dealer.
Coming home light (for vehicles with the color
multi-information display)
N00547300038
This function turns on the headlights in the low beam setting
for about 30 seconds after the ignition switch is turned to the
“LOCK” position.
1. Turn the combination headlights and dimmer switch to the
“OFF” or “AUTO” position (for vehicles equipped with
the automatic light control).
2. Turn the ignition switch to the “LOCK” position. Also, if
a key was used to start the engine, remove the key from
the ignition switch.
3. Within 60 seconds of turning the ignition switch to the
“LOCK” position, pull the turn signal lever toward you.
BK0115300US.book 220 ページ ２００９年７月１６日　木曜日　午前９時１３分

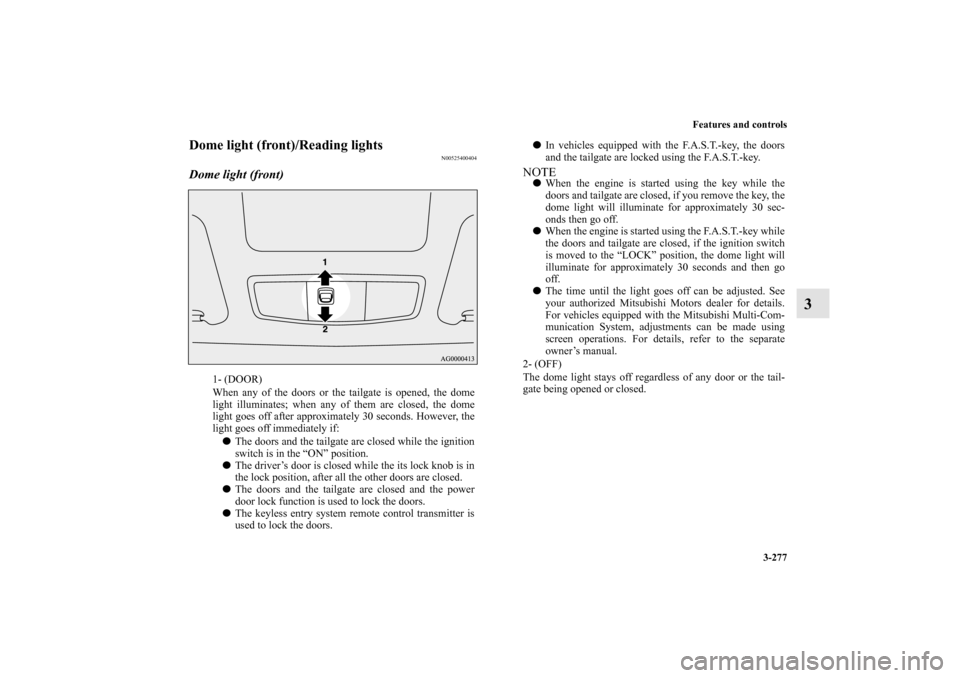

Features and controls
3-277
3
Dome light (front)/Reading lights
N00525400404
Dome light (front)
1- (DOOR)
When any of the doors or the tailgate is opened, the dome
light illuminates; when any of them are closed, the dome
light goes off after approximately 30 seconds. However, the
light goes off immediately if:

The doors and the tailgate are closed while the ignition
switch is in the “ON” position.

The driver’s door is closed while the its lock knob is in
the lock position, after all the other doors are closed.

The doors and the tailgate are closed and the power
door lock function is used to lock the doors.

The keyless entry system remote control transmitter is
used to lock the doors.

In vehicles equipped with the F.A.S.T.-key, the doors
and the tailgate are locked using the F.A.S.T.-key.NOTE
When the engine is started using the key while the
doors and tailgate are closed, if you remove the key, the
dome light will illuminate for approximately 30 sec-
onds then go off.

When the engine is started using the F.A.S.T.-key while
the doors and tailgate are closed, if the ignition switch
is moved to the “LOCK” position, the dome light will
illuminate for approximately 30 seconds and then go
off.

The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
2- (OFF)
The dome light stays off regardless of any door or the tail-
gate being opened or closed.
BK0115300US.book 277 ページ ２００９年７月１６日　木曜日　午前９時１３分

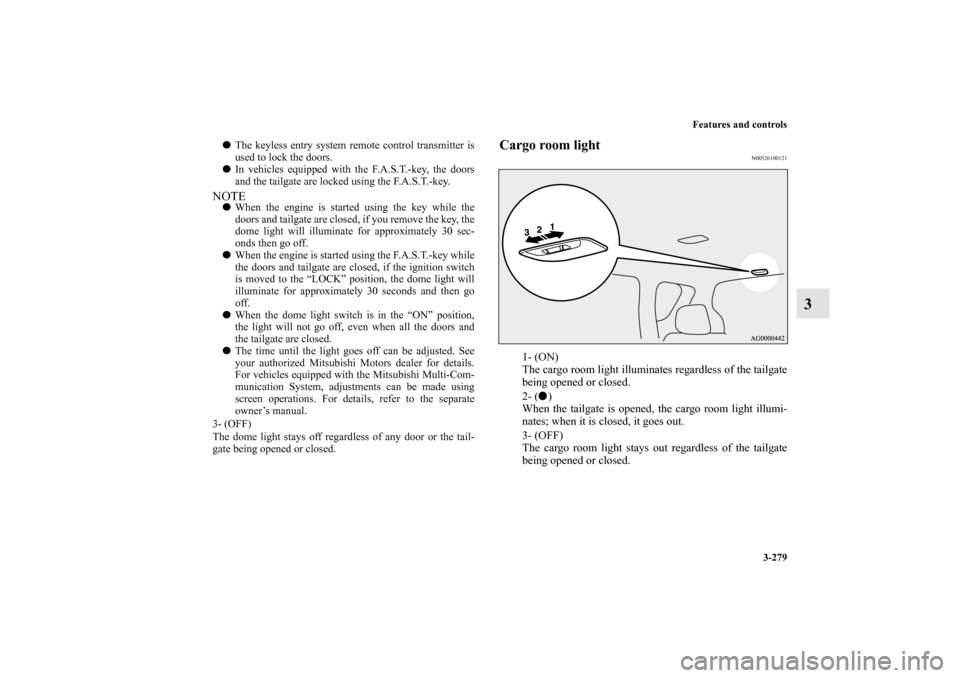

Features and controls
3-279
3
Cargo room light
N00526100121
1- (ON)
The cargo room light illuminates regardless of the tailgate
being opened or closed.
2- (

)
When the tailgate is opened, the cargo room light illumi-
nates; when it is closed, it goes out.
3- (OFF)
The cargo room light stays out regardless of the tailgate
being opened or closed.

The keyless entry system remote control transmitter is
used to lock the doors.

In vehicles equipped with the F.A.S.T.-key, the doors
and the tailgate are locked using the F.A.S.T.-key.NOTE
When the engine is started using the key while the
doors and tailgate are closed, if you remove the key, the
dome light will illuminate for approximately 30 sec-
onds then go off.

When the engine is started using the F.A.S.T.-key while
the doors and tailgate are closed, if the ignition switch
is moved to the “LOCK” position, the dome light will
illuminate for approximately 30 seconds and then go
off.

When the dome light switch is in the “ON” position,
the light will not go off, even when all the doors and
the tailgate are closed.

The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
3- (OFF)
The dome light stays off regardless of any door or the tail-
gate being opened or closed.
BK0115300US.book 279 ページ ２００９年７月１６日　木曜日　午前９時１３分
