MITSUBISHI OUTLANDER 2012 3.G MMCS Manual

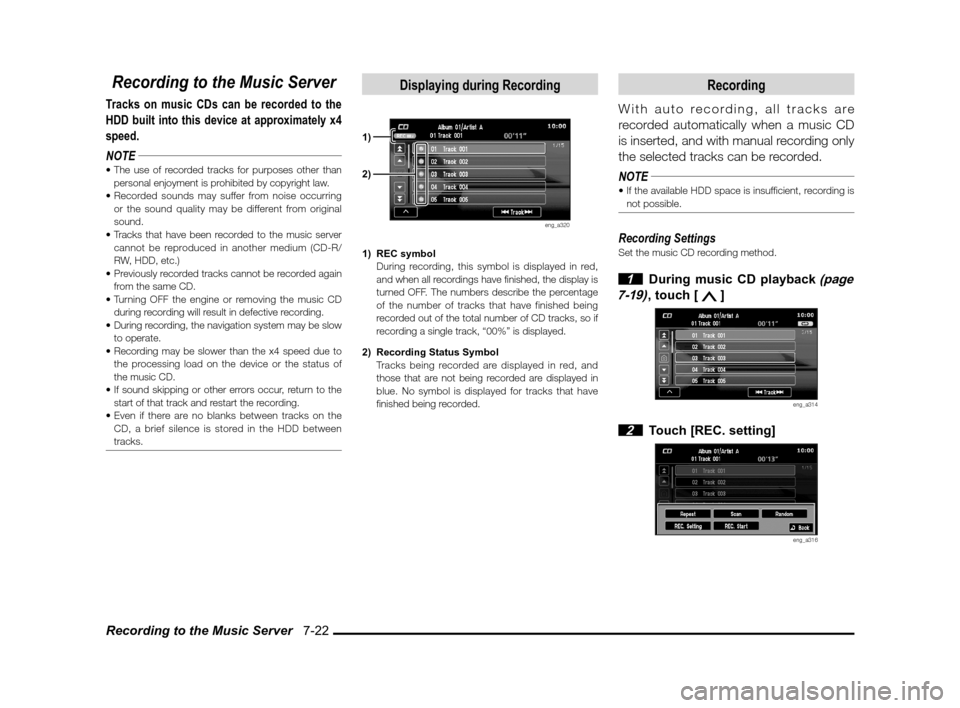

Recording to the Music Server 7-22
Recording to the Music Server
Tracks on music CDs can be recorded to the
HDD built into this device at approximately x4
speed.
NOTE
personal enjoyment is prohibited by copyright law.
or the sound quality may be different from original
sound.
cannot be reproduced in another medium (CD-R/
RW, HDD, etc.)
from the same CD.
during recording will result in defective recording.
to operate.
the processing load on the device or the status of
the music CD.
start of that track and restart the recording.
CD, a brief silence is stored in the HDD between
tracks.
Displaying during Recording
eng_a320
1) REC symbol
During recording, this symbol is displayed in red, and when all recordings have nished, the display is
turned OFF. The numbers describe the percentage
of the number of tracks that have finished being
recorded out of the total number of CD tracks, so if
recording a single track, “00%” is displayed.
2) Recording Status Symbol
Tracks being recorded are displayed in red, and those that are not being recorded are displayed in
blue. No symbol is displayed for tracks that have
nished being recorded.
Recording
With auto recording, all tracks are
recorded automatically when a music CD
is inserted, and with manual recording only
the selected tracks can be recorded.
NOTE
not possible.
Recording SettingsSet the music CD recording method.
1 During music CD playback (page
7-19)
, touch [ ]
eng_a314
2 Touch [REC. setting]
eng_a316
1)
2)
\b \b
\f \

  \b \b


Recording to the Music Server 7-23
Audio
3 Touch one of the settings
eng_a321-2
4 Touch [Back] The recording settings are completed.[Auto REC.] R e c o r ding to the music server is
performed automatically when a music
CD is inserted.
>>> “Auto Recording” (page 7-23)
[Manual
REC.] Tracks can be recorded individually
during playback.
>>> “Manual Recording” (page 7-23)
[Single REC.]
Only one track from the music CD is
recorded.
>>> “Single Recording” (page 7-24)
Auto RecordingRecording to the music server is performed
automatically when a music CD is inserted.
NOTE
advance. >>> “Recording Settings” (page 7-22)
1 Insert a CDAll the tracks on the music CD are recorded
automatically on the HDD and played back as the
recording proceeds without waiting for the recording
to complete.
NOTE
during recording, the recording is continued, and
the selected track is played. If a track that has
not yet been recorded is selected, the recording
underway is stopped and recording of the selected
track is started, then the track is played back as the
recording proceeds without waiting for the recording
to complete.
Manual RecordingTracks can be recorded individually during playback.
NOTEadvance. >>> “Recording Settings” (page 7-22)
1 Play the music CD track to be
recorded

2 Touch [REC. start]
eng_a316
eng_a320Recording is started, and the track is played from the
start.
NOTE
recording is stopped, and the selected track is
played.
\b \b
\f \

  \b \b


Recording to the Music Server 7-24
Single RecordingOnly one track from the music CD is recorded.
NOTEadvance. >>> “Recording Settings” (page 7-22)
1 Play the music CD to be recorded

2 Touch [REC. start]
eng_a316
eng_a322If the track being played is the rst track, recording is
started.
NOTE recording is stopped, and the selected track is
played.
even if [REC. start] is touched when any track other
than the rst track is being played.
Stopping Recording
1 During music CD recording (page
7-19)
, touch [ ]
eng_a320
2 Touch [REC. stop]
eng_a323
eng_a443Recording is stopped.
\b \b
\f \

 \b \b \b

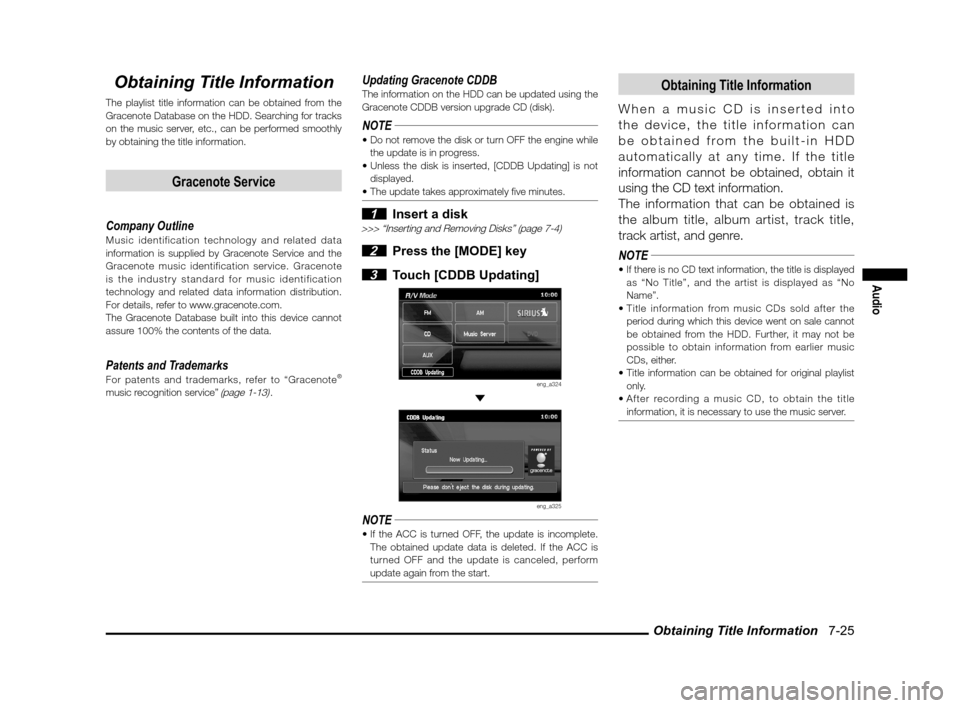

Obtaining Title Information 7-25
Audio
Obtaining Title Information
The playlist title information can be obtained from the
Gracenote Database on the HDD. Searching for tracks
on the music server, etc., can be performed smoothly
by obtaining the title information.
Gracenote Service
Company OutlineMusic identification technology and related data
information is supplied by Gracenote Service and the
Gracenote music identification service. Gracenote
is the industry standard for music identification
technology and related data information distribution.
For details, refer to www.gracenote.com.
The Gracenote Database built into this device cannot
assure 100% the contents of the data.
Patents and TrademarksFor patents and trademarks, refer to “Gracenote®
music recognition service” (page 1-13).
Updating Gracenote CDDBThe information on the HDD can be updated using the
Gracenote CDDB version upgrade CD (disk).
NOTE the update is in progress.
displayed.

1 Insert a disk>>> “Inserting and Removing Disks” (page 7-4)
2 Press the [MODE] key

3 Touch [CDDB Updating]
eng_a324
eng_a325
NOTE The obtained update data is deleted. If the ACC is
turned OFF and the update is canceled, perform
update again from the start.
Obtaining Title Information
When a music CD is inserted into
the device, the title information can
be obtained from the built-in HDD
automatically at any time. If the title
information cannot be obtained, obtain it
using the CD text information.
The information that can be obtained is
the album title, album artist, track title,
track artist, and genre.
NOTE
as “No Title”, and the artist is displayed as “No
Name”.
period during which this device went on sale cannot
be obtained from the HDD. Further, it may not be
possible to obtain information from earlier music
CDs, either.
only.
information, it is necessary to use the music server.
\b \b
\f \

   \b \b

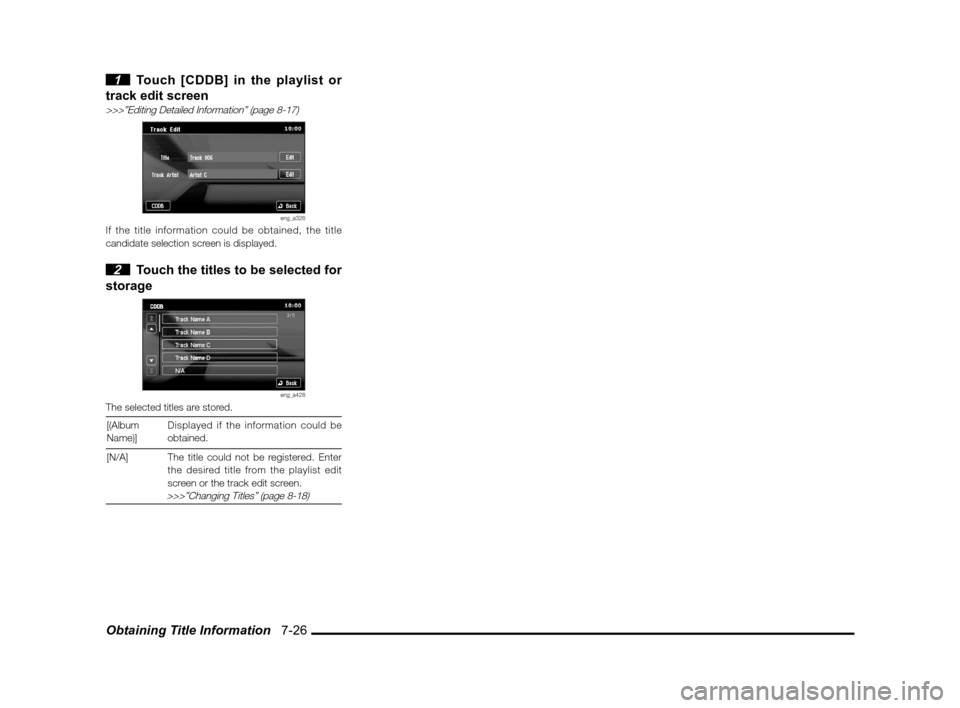

Obtaining Title Information 7-26
1 Touch [CDDB] in the playlist or
track edit screen
>>>”Editing Detailed Information” (page 8-17)
eng_a326If the title information could be obtained, the title
candidate selection screen is displayed.
2 Touch the titles to be selected for
storage
eng_a428The selected titles are stored.
[(Album
Name)] Displayed if the information could be
obtained.
[N/A] The title could not be registered. Enter
the desired title from the playlist edit
screen or the track edit screen.
>>>”Changing Titles” (page 8-18)
\b \b
\f \

  \b \b

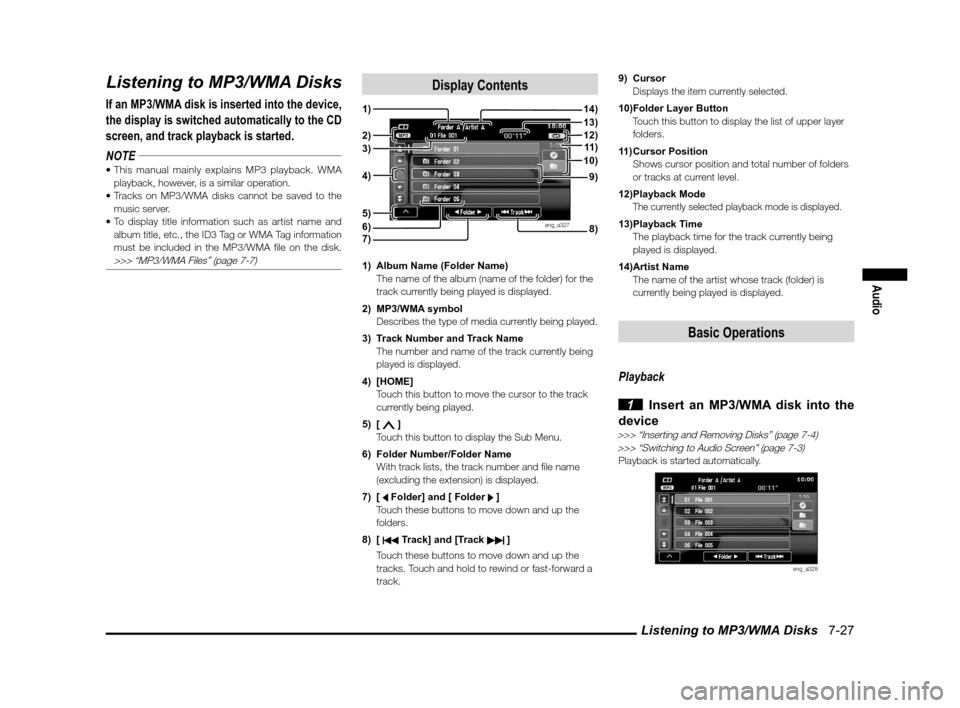

Listening to MP3/WMA Disks 7-27
Audio
Listening to MP3/WMA Disks
If an MP3/WMA disk is inserted into the device,
the display is switched automatically to the CD
screen, and track playback is started.
NOTE

playback, however, is a similar operation.
music server.
album title, etc., the ID3 Tag or WMA Tag information
must be included in the MP3/WMA le on the disk.
>>> “MP3/WMA Files” (page 7-7)
Display Contents
eng_a327
1) Album Name (Folder Name)
The name of the album (name of the folder) for the track currently being played is displayed.
2) MP3/WMA symbol
Describes the type of media currently being played.
3) Track Number and Track Name
The number and name of the track currently being played is displayed.
4) [HOME]
Touch this button to move the cursor to the track currently being played.
5) [ ]
Touch this button to display the Sub Menu.
6) Folder Number/Folder Name
With track lists, the track number and le name (excluding the extension) is displayed.
7) [
Folder] and [ Folder ]
T
ouch these buttons to move down and up the
folders.
8) [
Track] and [Track ]
T
ouch these buttons to move down and up the
tracks. Touch and hold to rewind or fast-forward a
track.
9) Cursor
Displays the item currently selected.
10) Folder Layer Button
Touch this button to display the list of upper layer folders.
11) Cursor Position
Shows cursor position and total number of folders or tracks at current level.
12) Playback Mode

The currently selected playback mode is displayed.
13) Playback Time
The playback time for the track currently being played is displayed.
14) Artist Name
The name of the artist whose track (folder) is currently being played is displayed.
Basic Operations
Playback

1 Insert an MP3/WMA disk into the
device
>>> “Inserting and Removing Disks” (page 7-4)
>>> “Switching to Audio Screen” (page 7-3)
Playback is started automatically.
eng_a328
1)
4)
5) 3)6)8)
9)
12)13)14)
2)
7)
10)11 )
\b \b
\f \

  \b \b

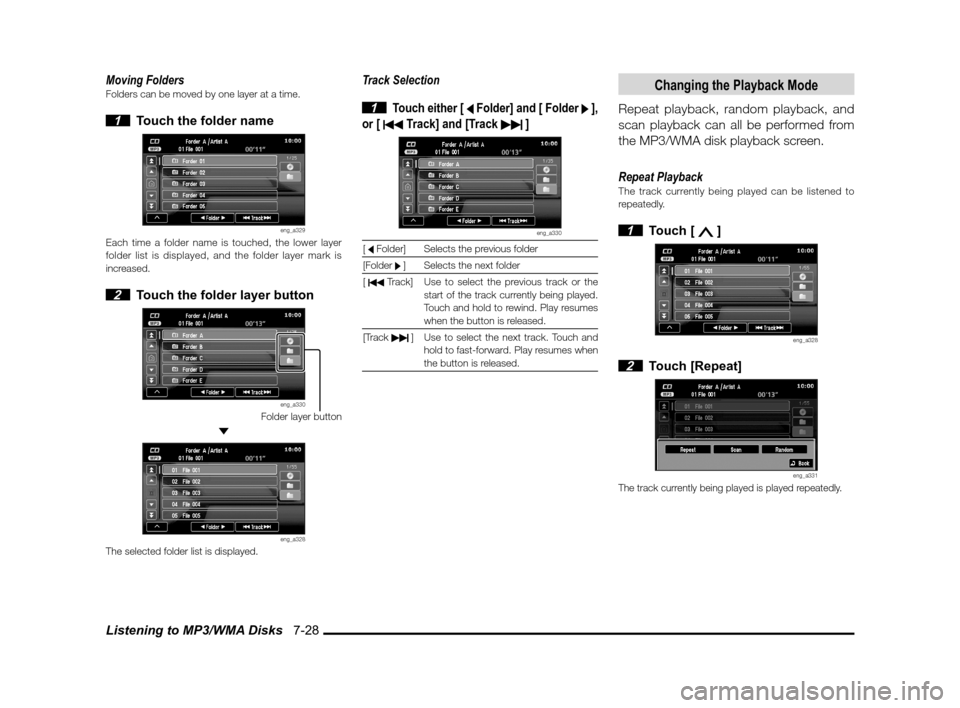

Listening to MP3/WMA Disks 7-28
Moving FoldersFolders can be moved by one layer at a time.
1 Touch the folder name
eng_a329Each time a folder name is touched, the lower layer
folder list is displayed, and the folder layer mark is
increased.
2 Touch the folder layer button
eng_a330Folder layer button

eng_a328The selected folder list is displayed.
Track Selection

1 Touch either [ Folder] and [ Folder ],
or [
Track] and [Track ]
eng_a330
[ Folder] Selects the previous folder
[Folder ] Selects the next folder
[
Track] Use to select the previous track or the
start of the track currently being played.
T
ouch and hold to rewind. Play resumes
when the button is released.
[Track
] Use to select the next track. Touch and hold to fast-forward. Play resumes when
the button is released.
Changing the Playback Mode
Repeat playback, random playback, and
scan playback can all be performed from
the MP3/WMA disk playback screen.
Repeat Playback
The track currently being played can be listened to
repeatedly.
1 Touch [ ]
eng_a328
2 Touch [Repeat]
eng_a331The track currently being played is played repeatedly.
\b \b
\f \

  \b \b


Listening to MP3/WMA Disks 7-29
Audio
3 Touch [Repeat] again
REPEAT
eng_a332
FOLDER-REPEAT
eng_a333Each time [Repeat] is touched, the playback mode
changes.REPEAT The track currently being played plays repeatedly.
FOLDER-
REPEAT All tracks in the folder currently being
played play repeatedly.
(OFF) Cancels the repeat playback.
Scan PlaybackThe start of each track is played for approximately 10
seconds each. Use to nd a desired track.
1 Touch [ ]
eng_a328
2 Touch [Scan]
eng_a331Scan playback is started.
3 Touch [Scan] again
SCAN
eng_a334
FOLDER-SCAN
eng_a335Each time [Scan] is touched, the playback mode
changes.SCAN Performs scan playback on all the tracks in the folder currently being played.
FOLDER-
SCANPerforms scan playback on the first
track in all the folders on the disk.
(OFF) Cancels the scan playback.
4 Touch the name of the track
during playback
Scanning is stopped, and the selected track is played.
NOTE
returns to the rst track.
\b \b
\f \

  \b \b

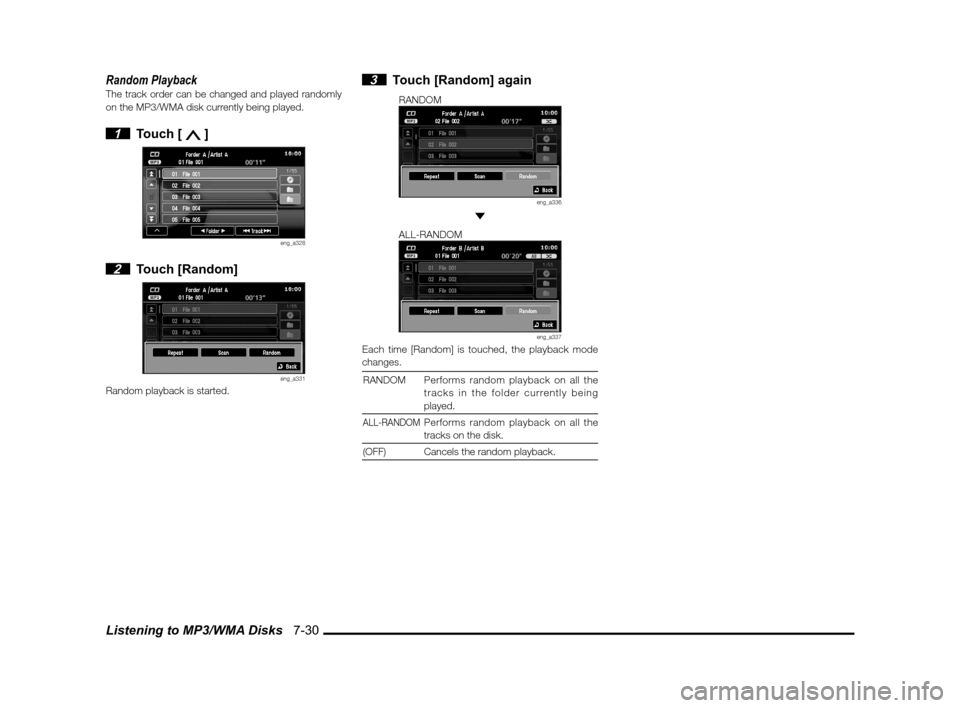

Listening to MP3/WMA Disks 7-30
Random PlaybackThe track order can be changed and played randomly
on the MP3/WMA disk currently being played.
1 Touch [ ]
eng_a328
2 Touch [Random]
eng_a331Random playback is started.
3 Touch [Random] again
RANDOM
eng_a336
ALL-RANDOM
eng_a337Each time [Random] is touched, the playback mode
changes.RANDOM Performs random playback on all the
tracks in the folder currently being
played.
ALL-RANDOMPerforms random playback on all the
tracks on the disk.
(OFF) Cancels the random playback.
\b \b
\f \

  \b \b

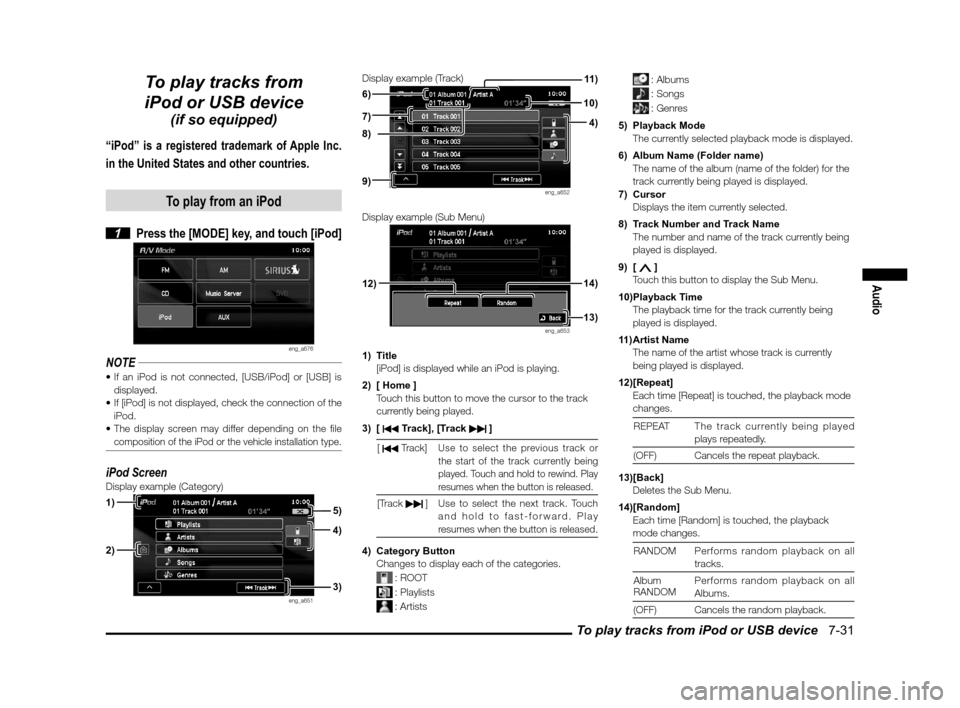

To play tracks from iPod or USB device 7-31
Audio
To play tracks from
iPod or USB device
(if so equipped)
“iPod” is a registered trademark of Apple Inc.
in the United States and other countries.
To play from an iPod
1 Press the [MODE] key, and touch [iPod]
eng_a676
NOTE
displayed.
iPod.

The display screen may differ depending on the file
composition of the iPod or the vehicle installation type.
iPod ScreenDisplay example (Category)
eng_a651
Display example (Track)
eng_a652
Display example (Sub Menu)
eng_a653
1) Title
[iPod] is displayed while an iPod is playing.
2) [ Home ]
Touch this button to move the cursor to the track currently being played.
3) [
Track], [Track ]
[
Track]Use to select the previous track or
the start of the track currently being
played. Touch and hold to rewind. Play
resumes when the button is released.
[Track ]Use to select the next track. Touch
and hold to fast-forward. Play
resumes when the button is released.
4) Category Button
Changes to display each of the categories.

: ROOT
: Playlists
: Artists
: Albums
: Songs
: Genres
5) Playback Mode
The currently selected playback mode is displayed.
6) Album Name (Folder name)
The name of the album (name of the folder) for the track currently being played is displayed.
7) Cursor
Displays the item currently selected.
8) Track Number and Track Name
The number and name of the track currently being played is displayed.
9) [ ]
Touch this button to display the Sub Menu.
10) Playback Time
The playback time for the track currently being played is displayed.
11) Artist Name
The name of the artist whose track is currently being played is displayed.
12) [Repeat]
Each time [Repeat] is touched, the playback mode changes.
REPEAT T h e t r a c k c u r re n tly being played
plays repeatedly.
(OFF) Cancels the repeat playback.
13) [Back]
Deletes the Sub Menu.
14) [Random]
Each time [Random] is touched, the playback mode changes.
RANDOM Performs random playback on all
tracks.
Album
RANDOM Performs random playback on all
Albums.
(OFF) Cancels the random playback.
12)
14)
13)
1)
2)
3)
5)
4)
8)
10)
11 )
6)
7)
9)
4)
\b \b
\f \


 \b \b
