MITSUBISHI OUTLANDER 2014 3.G Rear Entertainment
Manufacturer: MITSUBISHI, Model Year: 2014, Model line: OUTLANDER, Model: MITSUBISHI OUTLANDER 2014 3.GPages: 56, PDF Size: 9.69 MB
Page 1 of 56
3
Using this manual
- Contents -
Contents ......................................................................................................................
..................................................................... 3 Using this manual ............................................................................................................................................................................. 4
System overview .............................................................................................................. ................................................................ 5
Names and functions of parts ........................................................................................................................................................... 7
Precautions for use ......................................................................................................................................................................... 14
Supported disc types ...................................................................................................................................................................... 15
Basic operations ............................................................................................................. ................................................................ 23
DVD video/DVD-VR ........................................................................................................................................................................ 31
Music CD/MP3/WMA/AAC ......................................................................................................... .................................................... 46
Video CD ..................................................................................................................... ................................................................... 49
Error display messages .................................................................................................................................................................. 51
Troubleshooting .............................................................................................................. ................................................................ 52
Handling of discs ............................................................................................................................................................................ 55
Glossary ..................................................................................................................... .................................................................... 56
Index ........................................................................................................................ ....................................................................... 57
Page 2 of 56

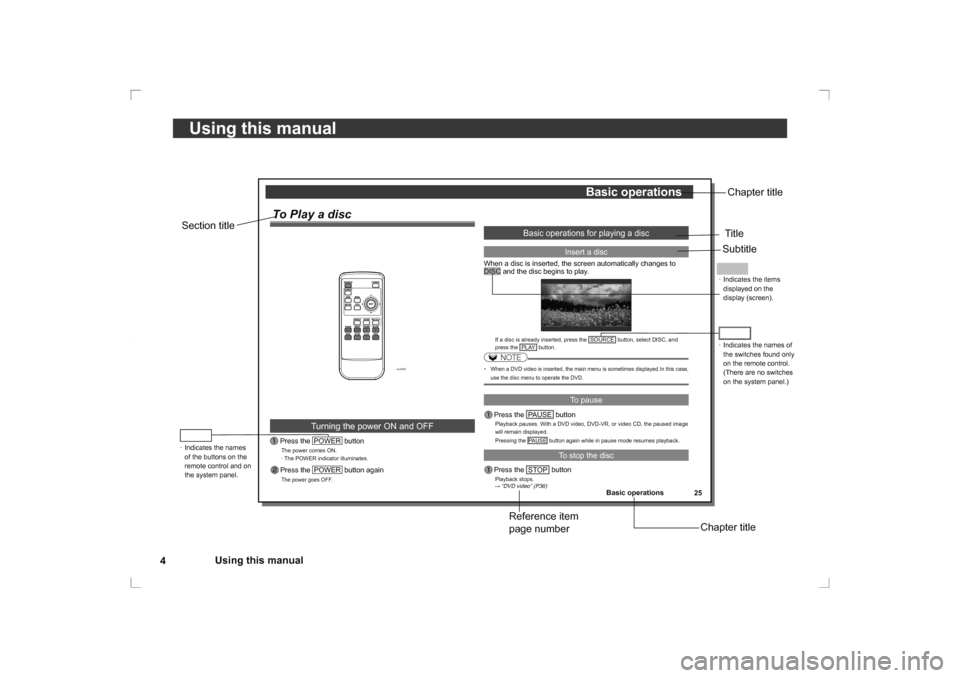

4Using this manual
Using this manual
25
Basic operations
Basic operations
Basic operations for playing a disc
Insert a disc
When a disc is inserted, the screen automatically changes to
DISC and the disc begins to play.If a disc is already inserted, press the
SOURCE
button, select DISC, and
press the PLAY
button.
NOTE
·When a DVD video is inserted, the main menu is sometimes displayed.In this case,
use the disc menu to operate the DVD.
To pause
Press the PAUSE
button
Playback pauses. With a DVD video, DVD-VR, or video CD, the paused image
will remain displayed.
Pressing the PAUSE
button again while in pause mode resumes playback.To stop the disc
Press the STOP
button
Playback stops.
To Play a disc
mc4383
Turning the power ON and OFF
Press the POWER
button
The power comes ON.
· The POWER indicator illuminates. Press the POWER
button again
The power goes OFF.
→ “DVD video” (P36)
· Indicates the names of
the switches found only
on the remote control.
(There are no switches on the system panel.)Chapter title
Section title Title
Subtitle
· Indicates the names of the buttons on the
remote control and on
the system panel.
Chapter title
· Indicates the items displayed on the
display (screen).
Reference item
page number
Page 3 of 56
5
Using this manual

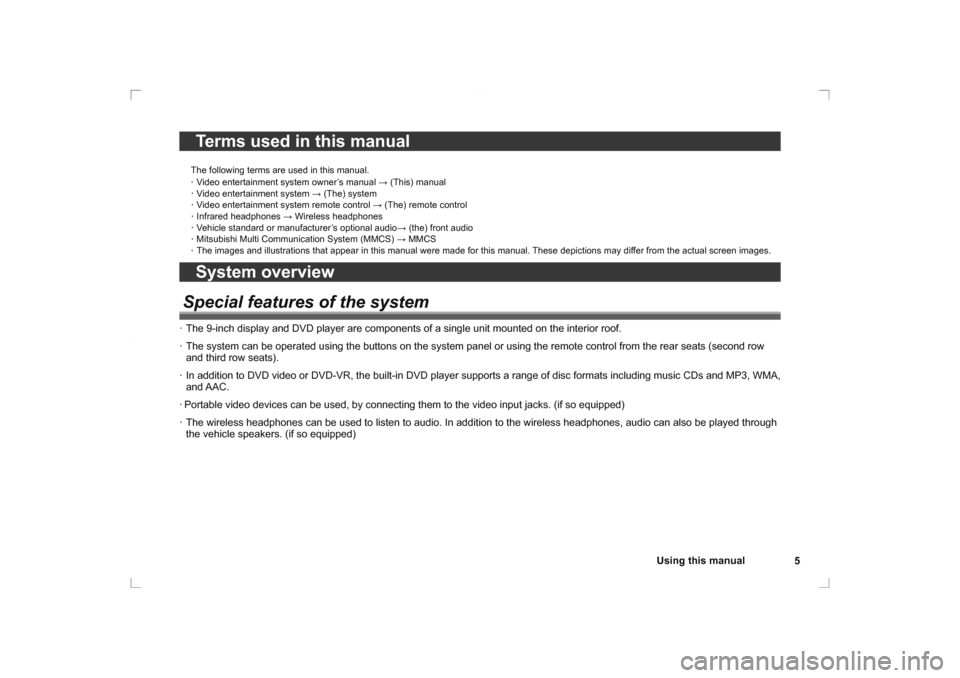

Terms used in this manualThe following terms are used in this manual.
· Video entertainment system owner’s manual → (This) manual· Video entertainment system → (The) system· Video entertainment system remote control → (The) remote control· Infrared headphones → Wireless headphones· Vehicle standard or manufacturer’s optional audio → (the) front audio· Mitsubishi Multi Communication System (MMCS) → MMCS· The images and illustrations that appear in this manual were made for this manual. These depictions may differ from the actual screen images.System overview
Special features of the system
· The 9-inch display and DVD player are components of a single unit mounted on the interior roof.
· The system can be operated using the buttons on the system panel or using the remote control from the rear seats (second row and third row seats).
· In addition to DVD video or DVD-VR, the built-in DVD player supports a range of disc formats including music CDs and MP3, WMA ,
and AAC.
· Portable video devices can be used, by connecting them to the video input jacks. (if so equipped)
· The wireless headphones can be used to listen to audio. In addition to the wireless headphones, audio can also be played through the vehicle speakers. (if so equipped)
Page 4 of 56

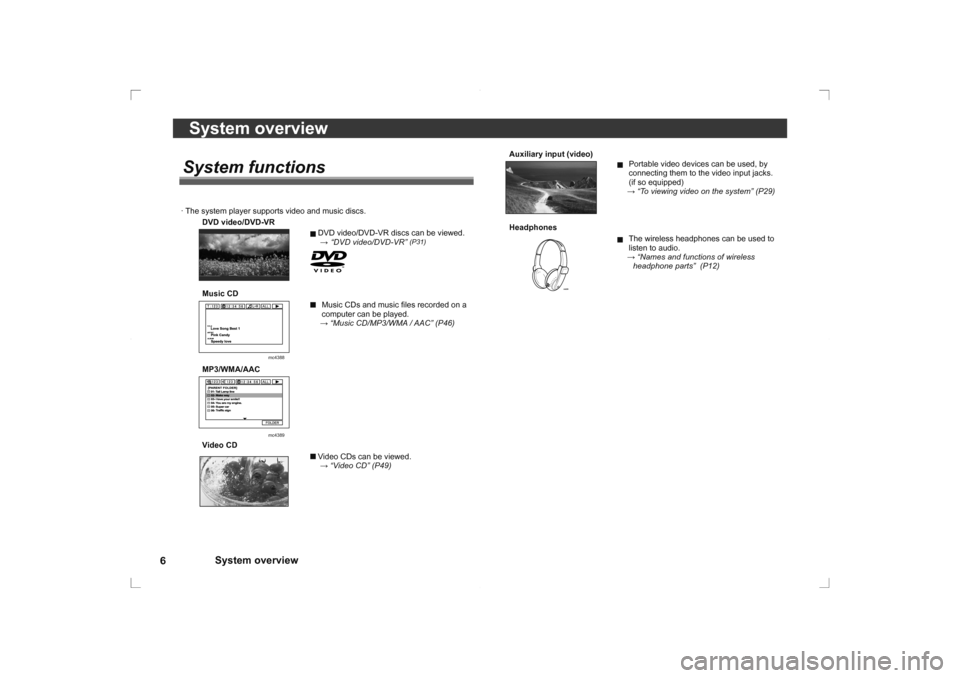

System overview
6System overview
Auxiliary input (video)
Portable video devices can be used, by
connecting them to the video input jacks.
(if so equipped)
→ “To viewing video on the system” (P29)
Headphones
The wireless headphones can be used to
listen to audio.
→ “Names and functions of wireless
headphone parts” (P12)
System functions· The system player supports video and music discs.
DVD video/DVD-VR
DVD video/DVD-VR discs can be viewed.
→
“DVD video/DVD-VR”
(P31)
Music CD
Music CDs and music fi les recorded on a
computer can be played.
→ “Music CD/MP3/WMA / AAC” (P46)
mc4388
MP3/WMA/AACMMMMMM
mc4389
Video CD
Video CDs can be viewed.
→ “Video CD” (P49)
Page 5 of 56
7

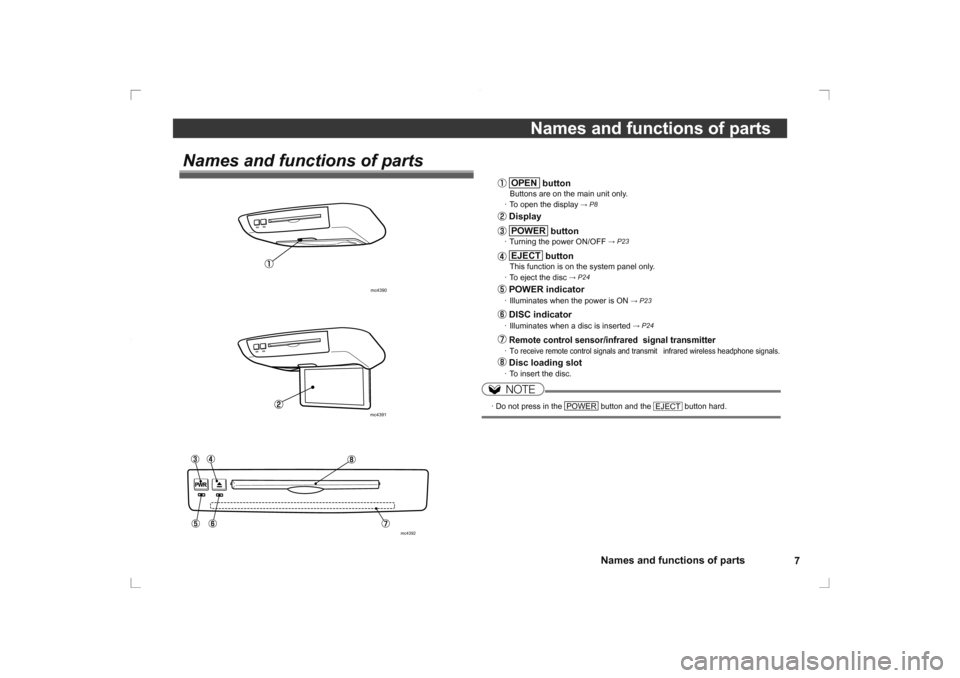

Names and functions of parts
Names and functions of parts
OPEN
button
Buttons are on the main unit only.
· To open the display
→ P8
Display POWER
button
· Turning the power ON/OFF
→ P23
EJECT
button
This function is on the system panel only.
· To eject the disc
→ P24
POWER indicator
· Illuminates when the power is ON
→ P23
DISC indicator
· Illuminates when a disc is inserted
→ P24
Remote control sensor/infrared signal transmitter
· To receive remote control signals and transmit infrared wireless headphone signals. Disc loading slot
· To insert the disc.NOTE
·
Do not press in the
POWER
button and the
EJECT
button hard.
Names and functions of parts
mc4390mc4391
mc4392
Page 6 of 56
8Names and functions of parts
Names and functions of parts
NOTE
· When the display screen is opened, the system
automatically comes on and the power indicator
illuminates.
· Close the display when the system is not in use. Opening and closing the display and system powerDisplay
System power
Open → Closed
(ACC ON) Only the display indications go
OFF (the audio that was playing
continues to play).
Closed → Open
(ACC ON) The display indications come
ON.
(The audio that was playing
continues to play.)
Open
(When the
ACC is
turned from
OFF to ON
while the
display is
open.) The system power comes ON
and the video and audio that
were playing before the ACC
was turned to OFF resume
playing.
Closed
(When the
ACC is
turned from
OFF to ON
while the
display is
closed.) The power remains OFF.
Open the display or press the
POWER
button to use.

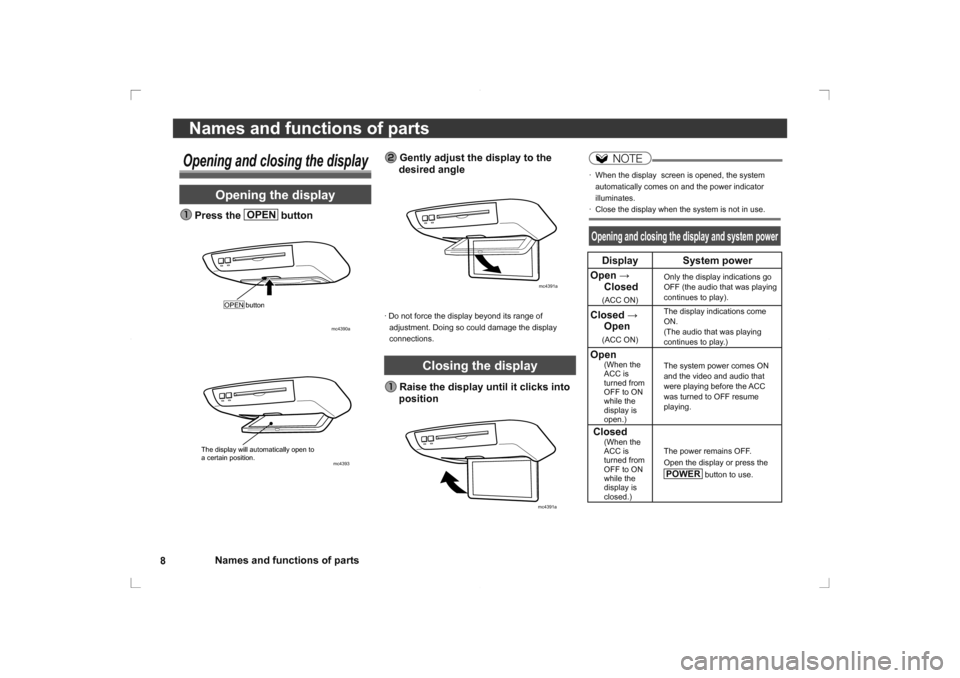

Opening and closing the display
Opening the display
Press the OPEN
button
mc4390a
OPEN button
mc4393
The display will automatically open to
a certain position.
Gently adjust the display to the
desired angle
mc4391a
· Do not force the display beyond its range of
adjustment. Doing so could damage the display
connections.
Closing the display
Raise the display until it clicks into position
mc4391a
Page 7 of 56
9
Names and functions of parts
Names and functions of parts
PAUSE
button
· To execute the pause function
→ P25
SLOW
button
· To execute the slow playback function
→ P26
REW
button
· To execute the fast reverse function
→ P26
STOP
button
· To execute the stop function
→ P25
PLAY
button
· To execute the play function
→ P25
FWD
button
· To execute the fast forward function
→ P26

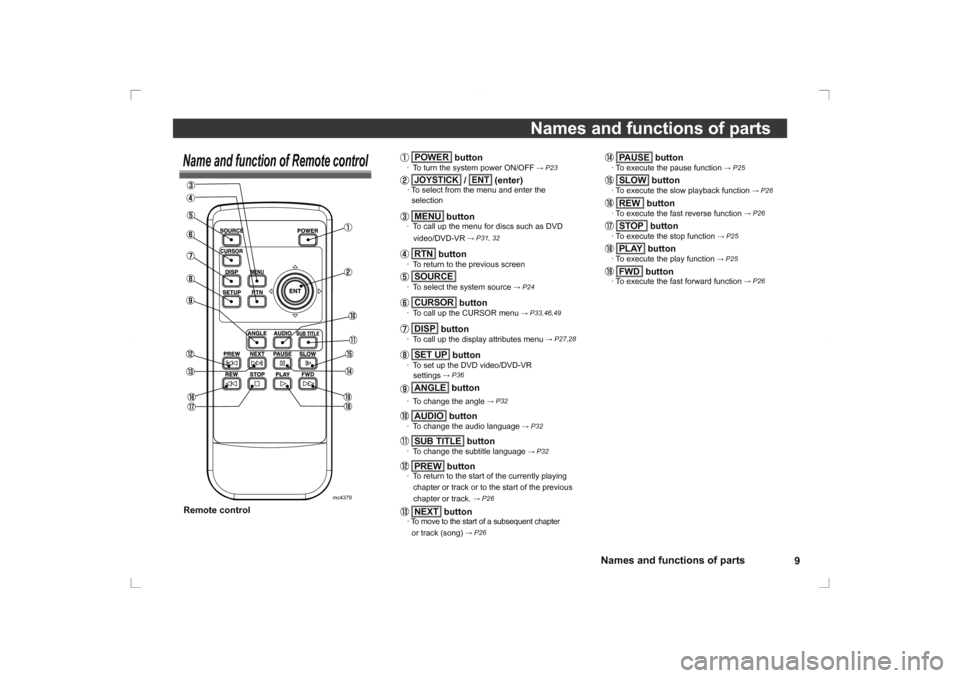

Name and function of Remote control
mc4379
POWER
button
· To turn the system power ON/OFF
→ P23
JOYSTICK
/ ENT
(enter)
· To select from the menu and enter the
selection
MENU
button
· To call up the menu for discs such as DVD
video/DVD-VR
→ P31, 32
RTN
button
· To return to the previous screen SOURCE
· To select the system source
→ P24
CURSOR
button
· To call up the CURSOR menu
→ P33,46,49
DISP
button
· To call up the display attributes menu
→ P27,28
SET UP
button
· To set up the DVD video/DVD-VR
settings
→ P36
ANGLE
button
· To change the angle
→ P32
AUDIO
button
· To change the audio language
→ P32
SUB TITLE
button
· To cha nge the subtitle language
→ P32
PREW
button
· To return to the start of the currently playing
chapter or track or to the start of the previous
chapter or track.
→ P26
NEXT
button
· To move to the start of a subsequent chapter or track (song)
→ P26
Remote control
Page 8 of 56
10Names and functions of parts
Names and functions of parts

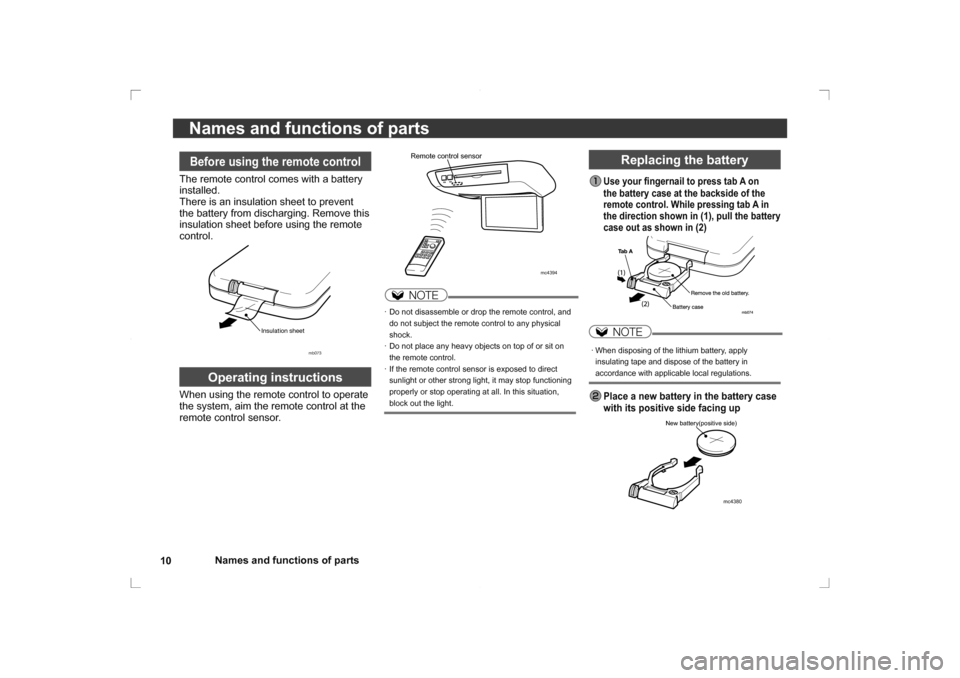

Replacing the battery
Use your fi
ngernail to press tab A on
the battery case at the backside of the
remote control. While pressing tab A in
the direction shown in (1), pull the battery
case out as shown in (2)NOTE
· When disposing of the lithium battery, apply
insulating tape and dispose of the battery in
accordance with applicable local regulations. Place a new battery in the battery case
with its positive side facing up
New battery(positive side)
mc4380
Before using the remote controlThe remote control comes with a battery
installed.
There is an insulation sheet to prevent
the battery from discharging. Remove this
insulation sheet before using the remote
control.
mb073
Insulation sheet
Operating instructions
When using the remote control to operate
the system, aim the remote control at the
remote control sensor.
mc4394
Remote control sensorNOTE
· Do not disassemble or drop the remote control, and
do not subject the remote control to any physical
shock.
· Do not place any heavy objects on top of or sit on the remote control.
· If the remote control sensor is exposed to direct sunlight or other strong light, it may stop functioning
properly or stop operating at all. In this situation,
block out the light.
Page 9 of 56
11
Names and functions of parts
Names and functions of parts

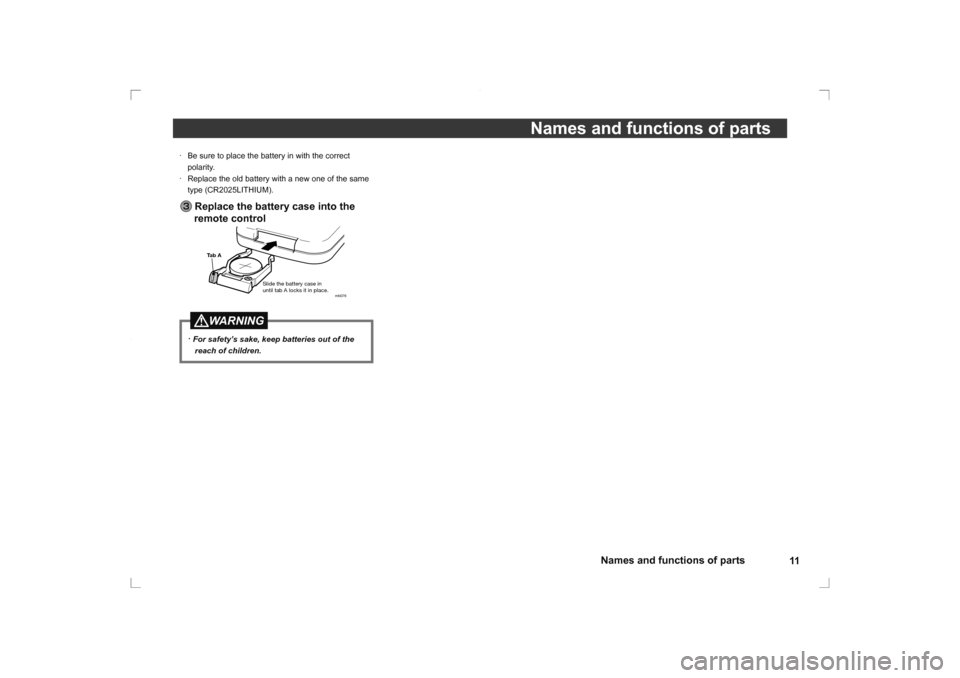

· Be sure to place the battery in with the correct
polarity.
· Replace the old battery with a new one of the same type (CR2025LITHIUM).
Replace the battery case into the
remote control
mb076
Slide the battery case in
until tab A locks it in place.
Tab A
·
For safety’s sake, keep batteries out of the
reach of children.
WARNING
Page 10 of 56
12Names and functions of parts
Names and functions of parts

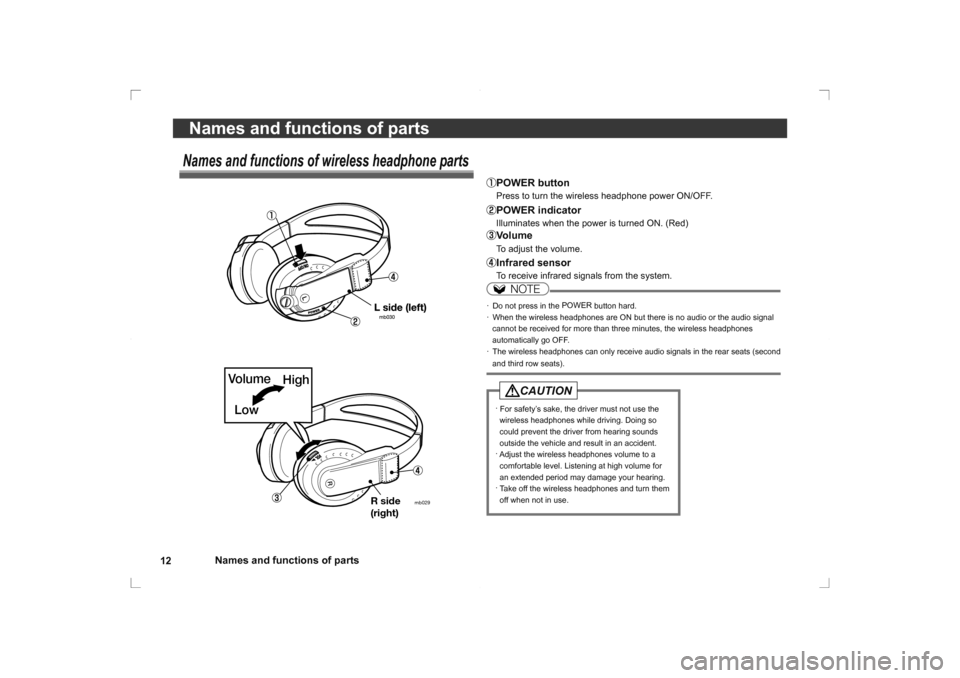

POWER button Press to turn the wireless headphone power ON/OFF.POWER indicator
Illuminates when the power is turned ON. (Red)Volume To adjust the volume.Infrared sensor To receive infrared signals from the system.
NOTE
· Do not press in the POWER
button hard.
· When the wireless headphones are ON but there is no audio or the audio signal cannot be received for more than three minutes, the wireless headphones
automatically go OFF.
· The wireless headphones can only receive audio signals in the rear seats (second
and third row seats).
· For safety’s sake, the driver must not use the
wireless headphones while driving. Doing so
could prevent the driver from hearing sounds
outside the vehicle and result in an accident.
· Adjust the wireless headphones volume to a
comfortable level. Listening at high volume for
an extended period may damage your hearing.
· Take off the wireless headphones and turn them
off when not in use.
CAUTION
Names and functions of wireless headphone parts
R
Volume
High
Low
mb029
R side
(right)
