MITSUBISHI OUTLANDER PHEV 2017 Owner's Manual (in English)

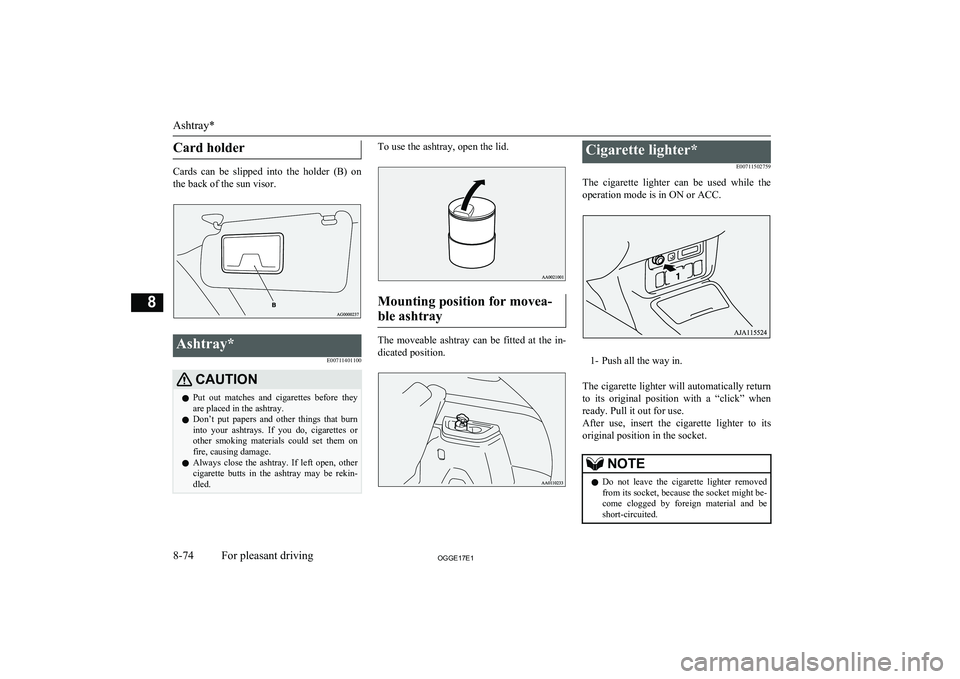

Card holder
Cards can be slipped into the holder (B) onthe back of the sun visor.
Ashtray*
E00711401100CAUTIONlPut out matches and cigarettes before they
are placed in the ashtray.
l Don’t put papers and other things that burn
into your ashtrays. If you do, cigarettes or
other smoking materials could set them on fire, causing damage.
l Always close the ashtray. If left open, other
cigarette butts in the ashtray may be rekin-
dled.To use the ashtray, open the lid.
Mounting position for movea-
ble ashtray
The moveable ashtray can be fitted at the in- dicated position.
Cigarette lighter*
E00711502759
The cigarette lighter can be used while the
operation mode is in ON or ACC.
1- Push all the way in.
The cigarette lighter will automatically return to its original position with a “click” when ready. Pull it out for use.
After use, insert the cigarette lighter to its
original position in the socket.
NOTEl Do not leave the cigarette lighter removed
from its socket, because the socket might be- come clogged by foreign material and be
short-circuited.
Ashtray*
8-74OGGE17E1For pleasant driving8

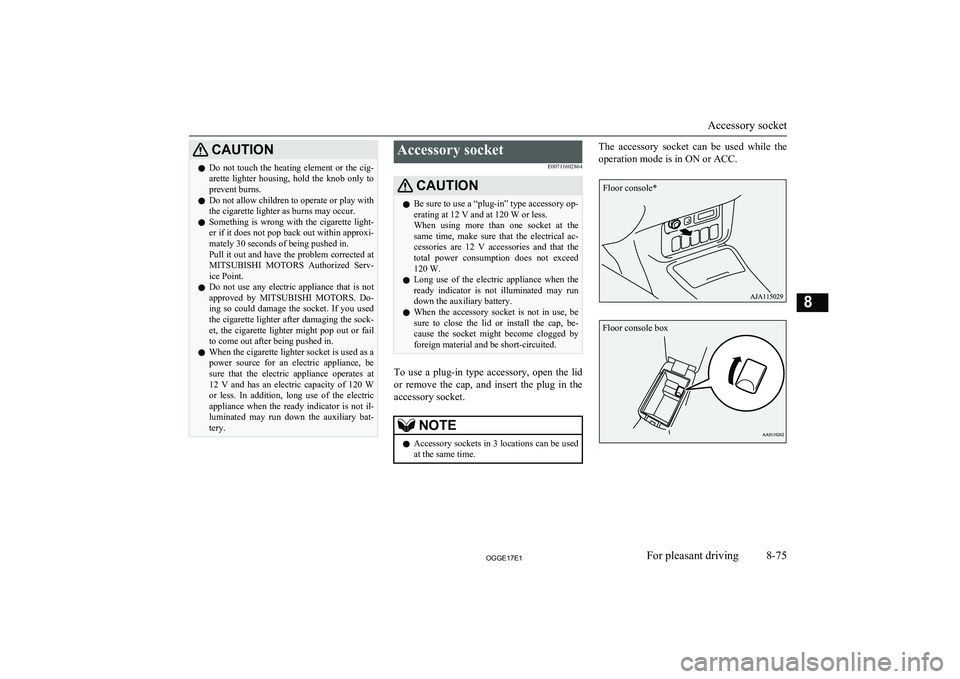

CAUTIONlDo not touch the heating element or the cig-
arette lighter housing, hold the knob only to prevent burns.
l Do not allow children to operate or play with
the cigarette lighter as burns may occur.
l Something is wrong with the cigarette light-
er if it does not pop back out within approxi-
mately 30 seconds of being pushed in.
Pull it out and have the problem corrected at MITSUBISHI MOTORS Authorized Serv-
ice Point.
l Do not use any electric appliance that is not
approved by MITSUBISHI MOTORS . Do-
ing so could damage the socket. If you used
the cigarette lighter after damaging the sock- et, the cigarette lighter might pop out or fail
to come out after being pushed in.
l When the cigarette lighter socket is used as a
power source for an electric appliance, be sure that the electric appliance operates at
12 V and has an electric capacity of 120 W or less. In addition, long use of the electricappliance when the ready indicator is not il-
luminated may run down the auxiliary bat- tery.Accessory socket
E00711602864CAUTIONlBe sure to use a “plug-in” type accessory op-
erating at 12 V and at 120 W or less.
When using more than one socket at the same time, make sure that the electrical ac-
cessories are 12 V accessories and that the total power consumption does not exceed
120 W.
l Long use of the electric appliance when the
ready indicator is not illuminated may run
down the auxiliary battery.
l When the accessory socket is not in use, be
sure to close the lid or install the cap, be-
cause the socket might become clogged by foreign material and be short-circuited.
To use a plug-in type accessory, open the lid
or remove the cap, and insert the plug in the accessory socket.
NOTEl Accessory sockets in 3 locations can be used
at the same time.The accessory socket can be used while the
operation mode is in ON or ACC.
Accessory socket
8-75OGGE17E1For pleasant driving8 Floor console* Floor console box

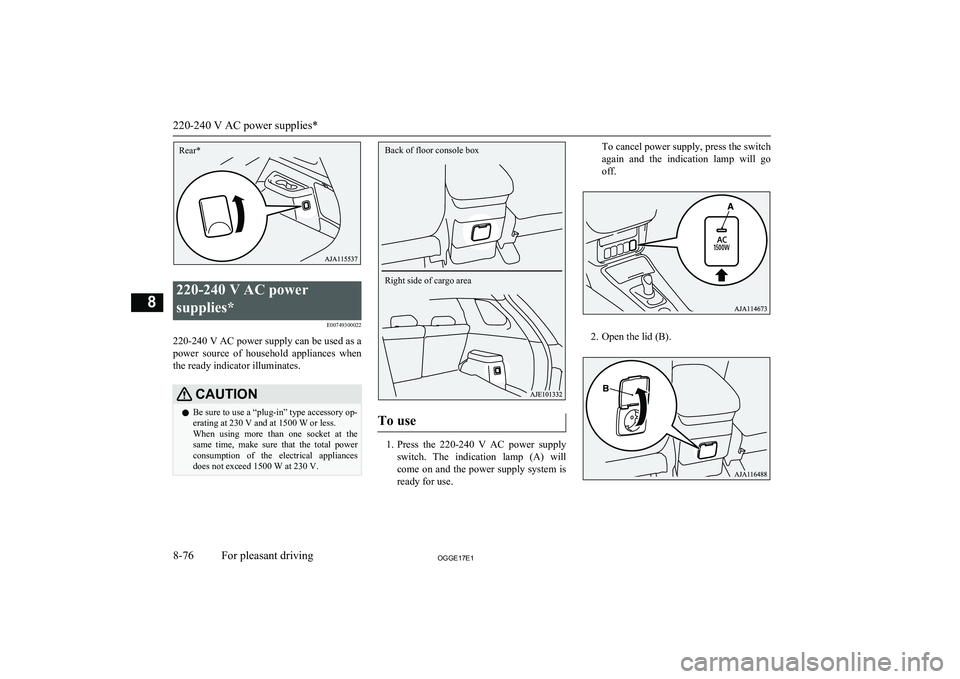

220-240 V AC power
supplies* E00749300022
220-240 V AC power supply can be used as a
power source of household appliances when
the ready indicator illuminates.
CAUTIONl Be sure to use a “plug-in” type accessory op-
erating at 230 V and at 1500 W or less.
When using more than one socket at the same time, make sure that the total power
consumption of the electrical appliances
does not exceed 1500 W at 230 V.
To use
1. Press the 220-240 V AC power supply
switch. The indication lamp (A) will come on and the power supply system is ready for use.
To cancel power supply, press the switch
again and the indication lamp will go
off.
2. Open the lid (B).
220-240 V AC power supplies*
8-76OGGE17E1For pleasant driving8Rear* Back of floor console box
Right side of cargo area

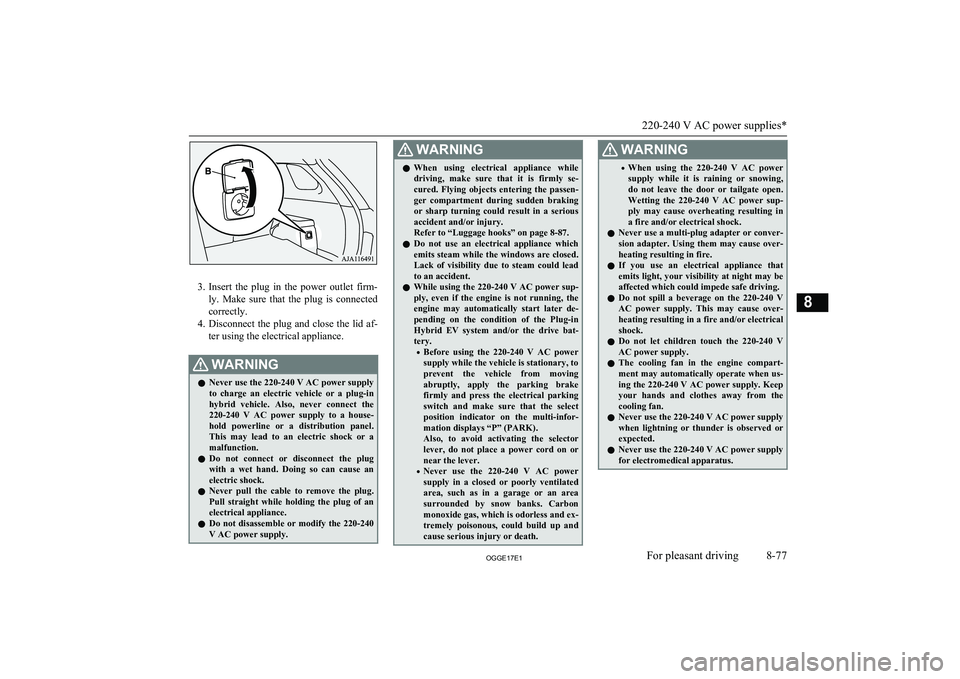

3.Insert the plug in the power outlet firm-
ly. Make sure that the plug is connected
correctly.
4. Disconnect the plug and close the lid af-
ter using the electrical appliance.
WARNINGl Never use the 220-240 V AC power supply
to charge an electric vehicle or a plug-in
hybrid vehicle. Also, never connect the 220-240 V AC power supply to a house-
hold powerline or a distribution panel. This may lead to an electric shock or a
malfunction.
l Do not connect or disconnect the plug
with a wet hand. Doing so can cause an electric shock.
l Never pull the cable to remove the plug.
Pull straight while holding the plug of an electrical appliance.
l Do not disassemble or modify the 220-240
V AC power supply.WARNINGl When using electrical appliance while
driving, make sure that it is firmly se- cured. Flying objects entering the passen-
ger compartment during sudden braking or sharp turning could result in a serious
accident and/or injury.
Refer to “Luggage hooks” on page 8-87.
l Do not use an electrical appliance which
emits steam while the windows are closed.Lack of visibility due to steam could lead
to an accident.
l While using the 220-240 V AC power sup-
ply, even if the engine is not running, the engine may automatically start later de- pending on the condition of the Plug-in
Hybrid EV system and/or the drive bat-
tery.
• Before using the 220-240 V AC power
supply while the vehicle is stationary, to
prevent the vehicle from moving abruptly, apply the parking brake
firmly and press the electrical parking switch and make sure that the select
position indicator on the multi-infor- mation displays “P” (PARK).
Also, to avoid activating the selector
lever, do not place a power cord on or
near the lever.
• Never use the 220-240 V AC power
supply in a closed or poorly ventilated area, such as in a garage or an area
surrounded by snow banks. Carbon
monoxide gas, which is odorless and ex- tremely poisonous, could build up and
cause serious injury or death.WARNING• When using the 220-240 V AC power
supply while it is raining or snowing,
do not leave the door or tailgate open.
Wetting the 220-240 V AC power sup- ply may cause overheating resulting in a fire and/or electrical shock.
l Never use a multi-plug adapter or conver-
sion adapter. Using them may cause over-
heating resulting in fire.
l If you use an electrical appliance that
emits light, your visibility at night may be
affected which could impede safe driving.
l Do not spill a beverage on the 220-240 V
AC power supply. This may cause over- heating resulting in a fire and/or electrical
shock.
l Do not let children touch the 220-240 V
AC power supply.
l The cooling fan in the engine compart-
ment may automatically operate when us-ing the 220-240 V AC power supply. Keep your hands and clothes away from the
cooling fan.
l Never use the 220-240 V AC power supply
when lightning or thunder is observed or
expected.
l Never use the 220-240 V AC power supply
for electromedical apparatus.
220-240 V AC power supplies*
8-77OGGE17E1For pleasant driving8

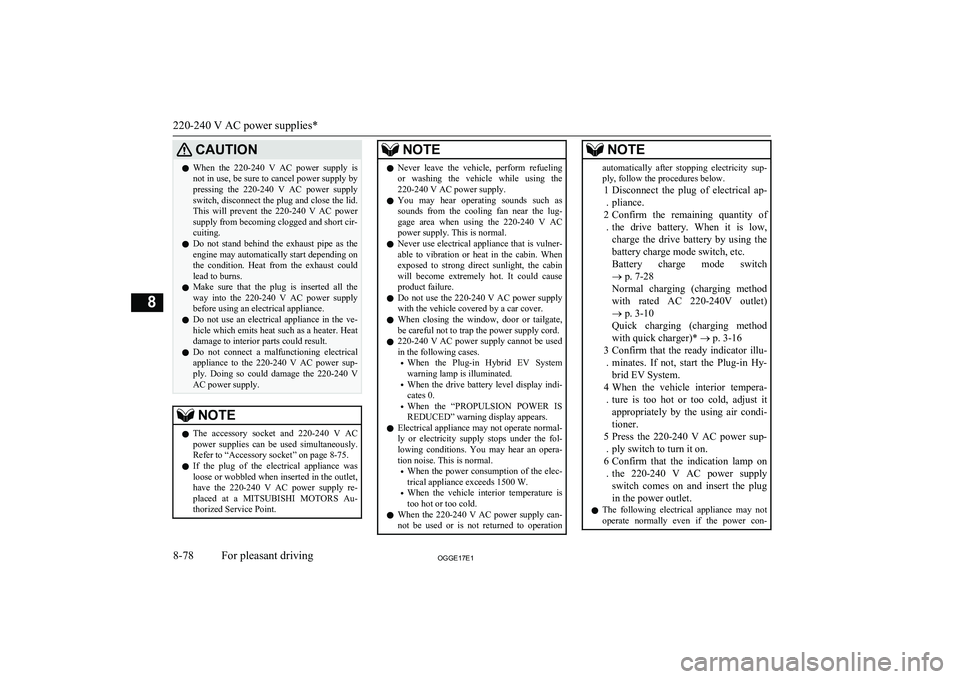

CAUTIONlWhen the 220-240 V AC power supply is
not in use, be sure to cancel power supply by pressing the 220-240 V AC power supply
switch, disconnect the plug and close the lid.
This will prevent the 220-240 V AC power
supply from becoming clogged and short cir-
cuiting.
l Do not stand behind the exhaust pipe as the
engine may automatically start depending on the condition. Heat from the exhaust could
lead to burns.
l Make sure that the plug is inserted all the
way into the 220-240 V AC power supplybefore using an electrical appliance.
l Do not use an electrical appliance in the ve-
hicle which emits heat such as a heater. Heat
damage to interior parts could result.
l Do not connect a malfunctioning electrical
appliance to the 220-240 V AC power sup- ply. Doing so could damage the 220-240 VAC power supply.NOTEl The accessory socket and 220-240 V AC
power supplies can be used simultaneously.
Refer to “Accessory socket” on page 8-75.
l If the plug of the electrical appliance was
loose or wobbled when inserted in the outlet, have the 220-240 V AC power supply re-
placed at a MITSUBISHI MOTORS Au-
thorized Service Point.NOTEl Never leave the vehicle, perform refueling
or washing the vehicle while using the
220-240 V AC power supply.
l You may hear operating sounds such as
sounds from the cooling fan near the lug-
gage area when using the 220-240 V AC power supply. This is normal.
l Never use electrical appliance that is vulner-
able to vibration or heat in the cabin. When
exposed to strong direct sunlight, the cabin will become extremely hot. It could cause
product failure.
l Do not use the 220-240 V AC power supply
with the vehicle covered by a car cover.
l When closing the window, door or tailgate,
be careful not to trap the power supply cord.
l 220-240 V AC power supply cannot be used
in the following cases.
• When the Plug-in Hybrid EV System
warning lamp is illuminated.
• When the drive battery level display indi-
cates 0.
• When the “PROPULSION POWER IS
REDUCED” warning display appears.
l Electrical appliance may not operate normal-
ly or electricity supply stops under the fol- lowing conditions. You may hear an opera- tion noise. This is normal.
• When the power consumption of the elec-
trical appliance exceeds 1500 W.
• When the vehicle interior temperature is
too hot or too cold.
l When the 220-240 V AC power supply can-
not be used or is not returned to operationNOTEautomatically after stopping electricity sup-
ply, follow the procedures below.
1
. Disconnect the plug of electrical ap-
pliance.
2 . Confirm the remaining quantity of
the drive battery. When it is low,
charge the drive battery by using the battery charge mode switch, etc.
Battery charge mode switch ® p. 7-28
Normal charging (charging method
with rated AC 220-240V outlet)
® p. 3-10
Quick charging (charging method with quick charger)* ® p. 3-16
3 . Confirm that the ready indicator illu-
minates. If not, start the Plug-in Hy-
brid EV System.
4 . When the vehicle interior tempera-
ture is too hot or too cold, adjust it
appropriately by the using air condi-
tioner.
5 . Press the 220-240 V AC power sup-
ply switch to turn it on.
6 . Confirm that the indication lamp on
the 220-240 V AC power supply
switch comes on and insert the plug in the power outlet.
l The following electrical appliance may not
operate normally even if the power con-
220-240 V AC power supplies*
8-78OGGE17E1For pleasant driving8

NOTEsumption is less than 1500 W. Also be awarethat the electric power that can be used will vary depending on the drive battery condi- tion.
• Electrical appliance to which large
amounts of current flow momentarily
• Electrical appliance that gauges precise
data
• Electrical appliance that does not operate
normally when it is not placed horizontal-
ly
• Electrical appliance that needs extremely
stable operation
• Electrical appliance with a timer function,
that needs the consecutive output
l The AC power output may shut off and the
electrical appliance may be turned off ac- cordingly depending on the drive batterycondition even if the battery level displaydoes not indicate 0.
l The use of electrical appliance could cause
radio or television noise.
l The voltage of the 220-240 V AC power
supply cannot be correctly gauged with a commercially available tester. Consult a MITSUBISHI MOTORS Authorized Serv-
ice Point when you need measurement of the voltage.
l Also refer to the instruction manual and la-
bel accompanying the electrical appliance.NOTEl When the remaining power in the drive bat-
tery is low, the engine starts and charges thedrive battery automatically. Be careful not to
run out of fuel since it will be consumed

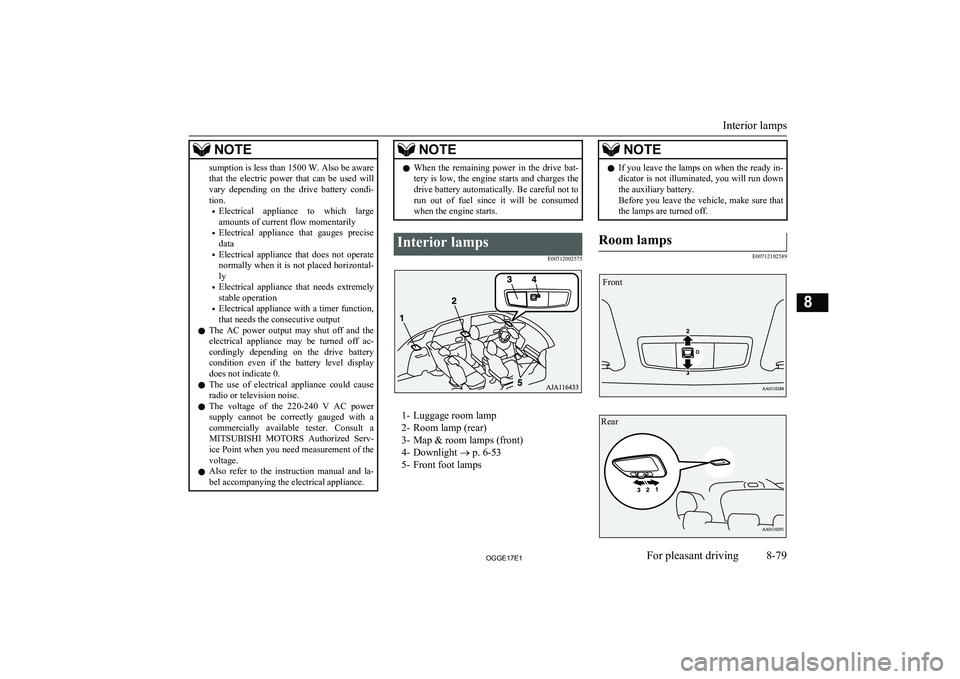

when the engine starts.Interior lamps
E00712002575
1- Luggage room lamp
2- Room lamp (rear)
3- Map & room lamps (front)
4- Downlight ® p. 6-53
5- Front foot lamps
NOTEl If you leave the lamps on when the ready in-
dicator is not illuminated, you will run down the auxiliary battery.
Before you leave the vehicle, make sure that

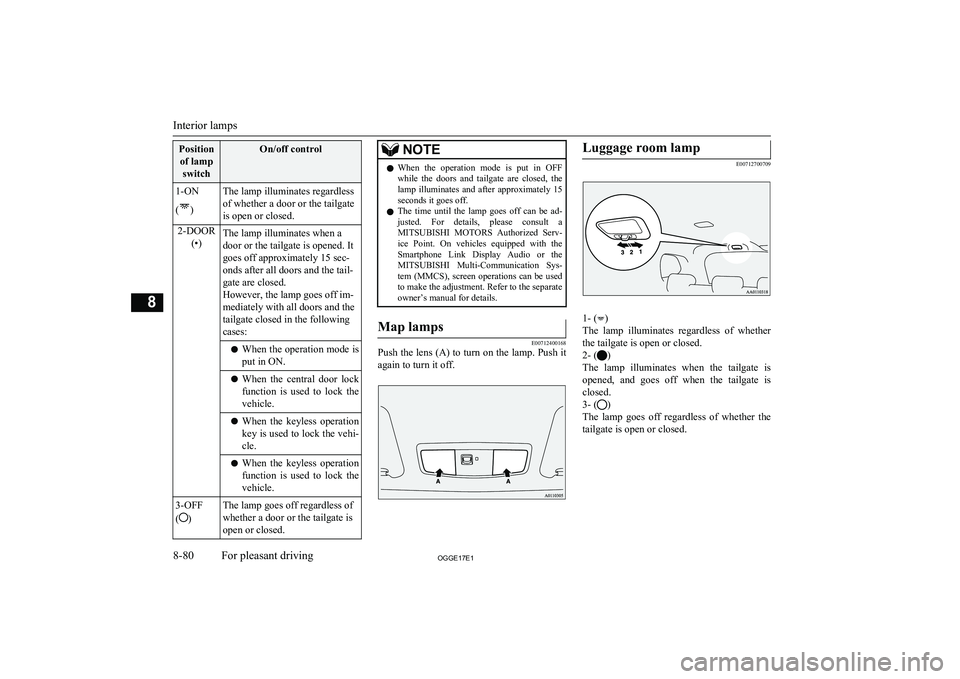

the lamps are turned off.Room lamps
E00712102589
Interior lamps
8-79OGGE17E1For pleasant driving8 Front Rear

Positionof lamp switchOn/off control1-ON
(
)
The lamp illuminates regardless
of whether a door or the tailgate
is open or closed.2-DOOR (•)The lamp illuminates when a
door or the tailgate is opened. It
goes off approximately 15 sec-
onds after all doors and the tail-
gate are closed.
However, the lamp goes off im-
mediately with all doors and the
tailgate closed in the following
cases:l When the operation mode is
put in ON.l When the central door lock
function is used to lock thevehicle.l When the keyless operation
key is used to lock the vehi-cle.l When the keyless operation
function is used to lock thevehicle.3-OFF
(
)
The lamp goes off regardless of
whether a door or the tailgate is
open or closed.NOTEl When the operation mode is put in OFF
while the doors and tailgate are closed, the
lamp illuminates and after approximately 15 seconds it goes off.
l The time until the lamp goes off can be ad-
justed. For details, please consult a
MITSUBISHI MOTORS Authorized Serv-
ice Point. On vehicles equipped with the Smartphone Link Display Audio or the MITSUBISHI Multi-Communication Sys-
tem (MMCS), screen operations can be used to make the adjustment. Refer to the separate
owner’s manual for details.Map lamps
E00712400168
Push the lens (A) to turn on the lamp. Push it
again to turn it off.
Luggage room lamp
E00712700709
1- ()
The lamp illuminates regardless of whether the tailgate is open or closed.
2- (
)
The lamp illuminates when the tailgate is opened, and goes off when the tailgate is
closed.
3- (
)
The lamp goes off regardless of whether the tailgate is open or closed.
Interior lamps
8-80OGGE17E1For pleasant driving8

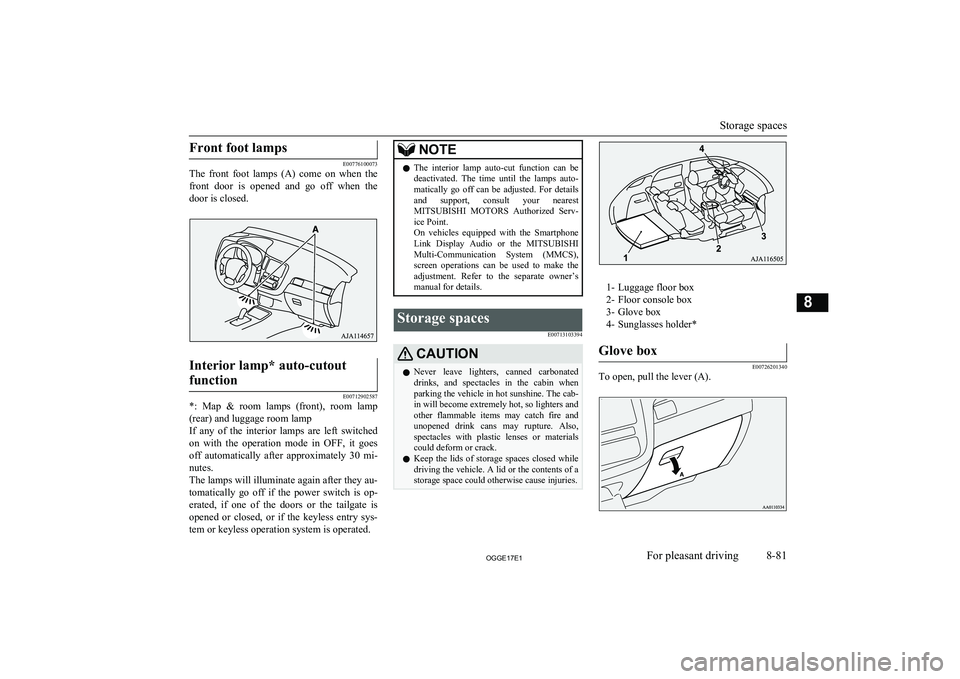

Front foot lamps
E00776100073
The front foot lamps (A) come on when the
front door is opened and go off when the
door is closed.
Interior lamp* auto-cutout
function
E00712902587
*: Map & room lamps (front), room lamp (rear) and luggage room lamp
If any of the interior lamps are left switched
on with the operation mode in OFF, it goes off automatically after approximately 30 mi- nutes.
The lamps will illuminate again after they au- tomatically go off if the power switch is op-
erated, if one of the doors or the tailgate is opened or closed, or if the keyless entry sys-
tem or keyless operation system is operated.
NOTEl The interior lamp auto-cut function can be
deactivated. The time until the lamps auto- matically go off can be adjusted. For details
and support, consult your nearest
MITSUBISHI MOTORS Authorized Serv-
ice Point.
On vehicles equipped with the Smartphone
Link Display Audio or the MITSUBISHI
Multi-Communication System (MMCS), screen operations can be used to make theadjustment. Refer to the separate owner’s
manual for details.Storage spaces
E00713103394CAUTIONlNever leave lighters, canned carbonated
drinks, and spectacles in the cabin when
parking the vehicle in hot sunshine. The cab- in will become extremely hot, so lighters and
other flammable items may catch fire and
unopened drink cans may rupture. Also, spectacles with plastic lenses or materials could deform or crack.
l Keep the lids of storage spaces closed while
driving the vehicle. A lid or the contents of a storage space could otherwise cause injuries.
1- Luggage floor box
2- Floor console box
3- Glove box
4- Sunglasses holder*
Glove box
E00726201340
To open, pull the lever (A).
Storage spaces
8-81OGGE17E1For pleasant driving8

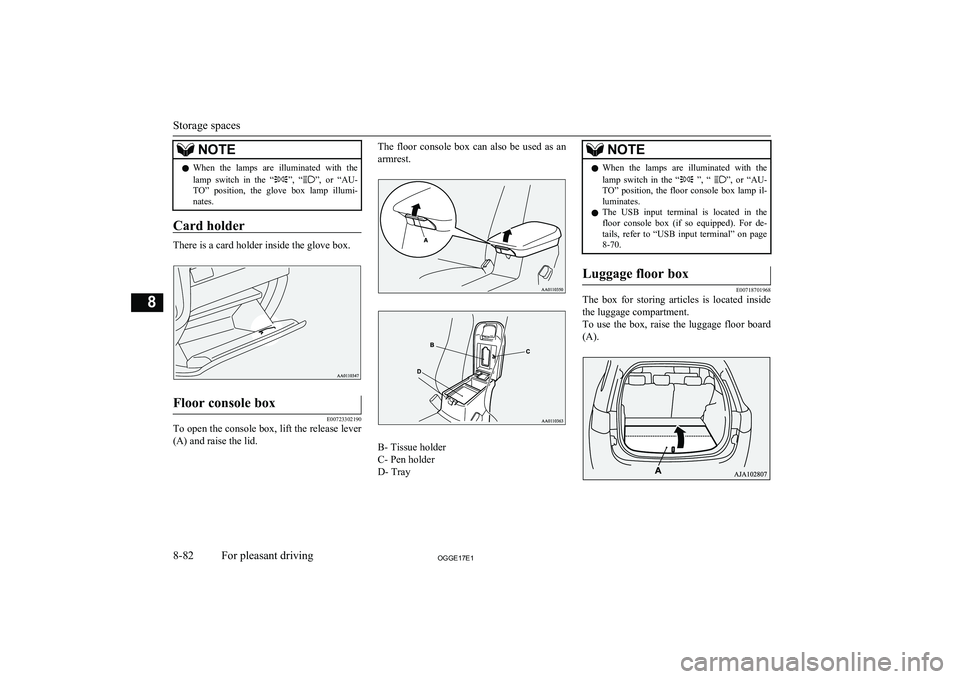

NOTElWhen the lamps are illuminated with the
lamp switch in the “”, “”, or “AU-
TO” position, the glove box lamp illumi- nates.
Card holder
There is a card holder inside the glove box.
Floor console box
E00723302190
To open the console box, lift the release lever
(A) and raise the lid.
The floor console box can also be used as an
armrest.
B- Tissue holder
C- Pen holder
D- Tray
NOTEl When the lamps are illuminated with the
lamp switch in the “ ”, “ ”, or “AU-
TO” position, the floor console box lamp il- luminates.
l The USB input terminal is located in the
floor console box (if so equipped). For de-
tails, refer to “USB input terminal” on page 8-70.Luggage floor box
E00718701968
The box for storing articles is located inside
the luggage compartment.
To use the box, raise the luggage floor board (A).
Storage spaces
8-82OGGE17E1For pleasant driving8

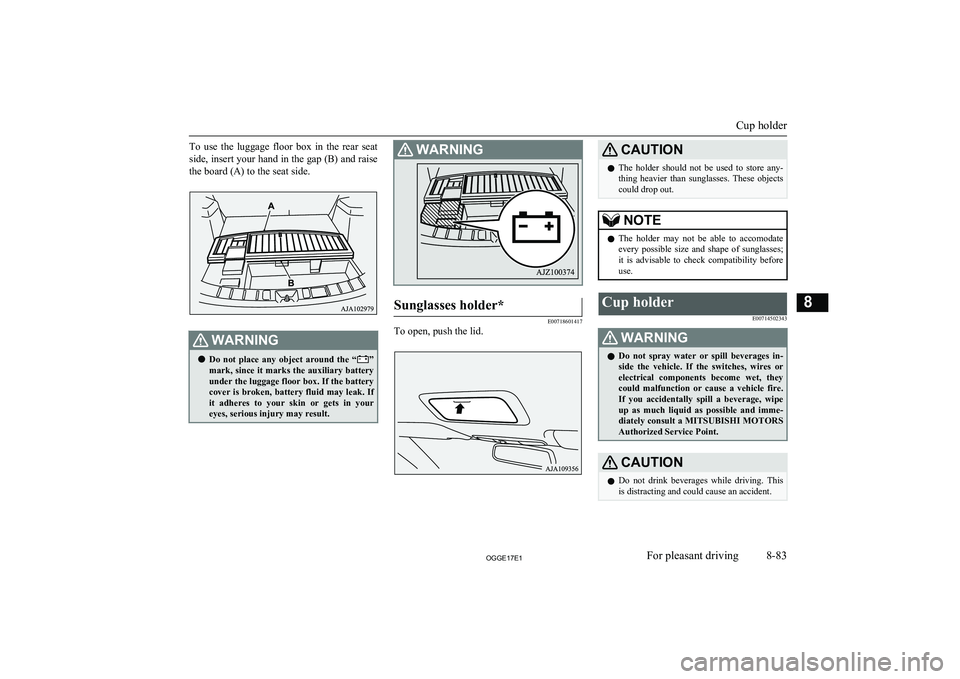

To use the luggage floor box in the rear seat
side, insert your hand in the gap (B) and raise the board (A) to the seat side.WARNINGl Do not place any object around the “”
mark, since it marks the auxiliary battery
under the luggage floor box. If the battery cover is broken, battery fluid may leak. If it adheres to your skin or gets in your
eyes, serious injury may result.WARNINGSunglasses holder*
E00718601417
To open, push the lid.
CAUTIONl The holder should not be used to store any-
thing heavier than sunglasses. These objects
could drop out.NOTEl The holder may not be able to accomodate
every possible size and shape of sunglasses;
it is advisable to check compatibility before use.Cup holder
E00714502343WARNINGlDo not spray water or spill beverages in-
side the vehicle. If the switches, wires or electrical components become wet, they
could malfunction or cause a vehicle fire. If you accidentally spill a beverage, wipe
up as much liquid as possible and imme- diately consult a MITSUBISHI MOTORS
Authorized Service Point.CAUTIONl Do not drink beverages while driving. This
is distracting and could cause an accident.
Cup holder
8-83OGGE17E1For pleasant driving8
