2018 OUTLANDER SPORT
OWNER’S HANDBOOK
MITSUBISHICARS.COM
REV 06/17
2018 OUTLANDER SPORT
Page 2 of 22
1
Thank you for buying a Mitsubishi Outlander Sport. There’s no doubt you’ve already realized how well your
car drives on the open road. What you may not know is all the great features that help your car perform
the way it does. In the pages ahead we’re going to run through the basics and prepare you for the road.
We hope you will visit the Mitsubishi Owner’s site where we store the latest Mitsubishi news
and special offers. Here you can also keep track of your car’s warranty and servicing needs,
get Roadside Assistance Information and tap into other owner-centric details. Just log on to
WWW.MITSUBISHICARS.COM/OWNERSONLY.
TABLE OF CONTENTS
Driver’s View .............. 2-3
Controls ................. 4-6
Own the Road ............... 7
Safety ................... 8-9
Technology ............. 10-11
HomeLink
® (if equipped) .....12
Audio System . . . . . . . . . . . . . . 13
Display Audio (if equipped) ...14
Smartphone Link Display Audio
(SDA) (if equipped) ......15-16
Bluetooth
® ................ 17
FAQ’s ................. 18-20
Some of the information contained in this booklet may not be correct due to product changes which may have occurred after the time it was
published. Mitsubishi Motors North America, Inc. reserves the right to make changes at any time, without notice, to prices, color, materials,
specification and models.
Page 3 of 22
2

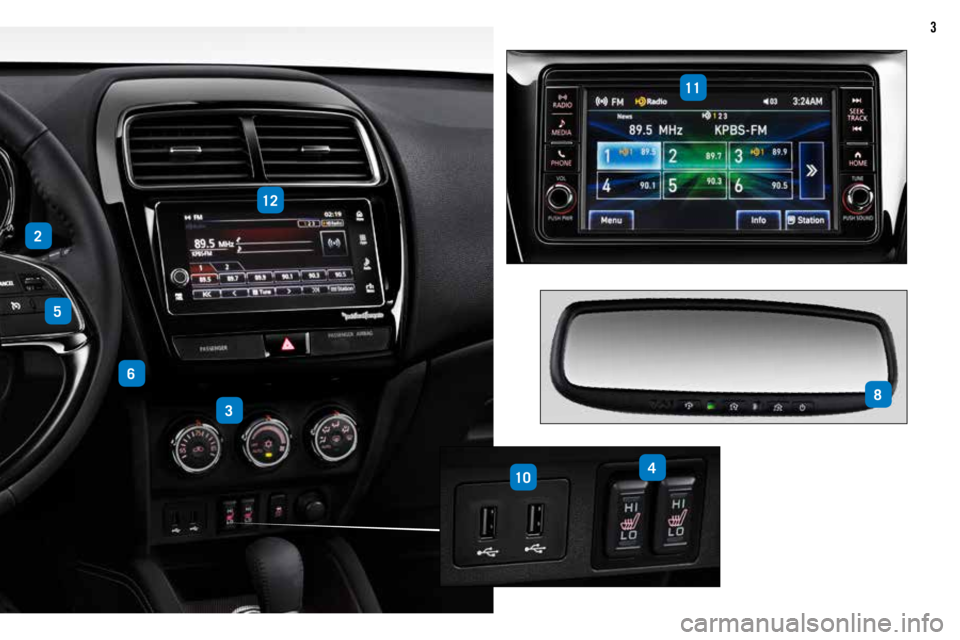

DRIVER’S VIEW
1 Headlights and Fog Lights ...........
Page 4
2 Windshield Wiper Lever
.............Page 5
3 Automatic Climate Controls ..........
Page 6
4 Seat Heater Switch (if equipped) ......
Page 6
5 Cruise Control
.................... Page 7
6 Engine Start Switch (if equipped)
....Page 10
7 Multi-Information Display (MID) ......
Page 11
8 HomeLink® (if equipped)
........... Page 12
9 Audio Remote Control Switch ........
Page 13
10 USB and iPod® Input
.............. Page 13
11 Display Audio ....................
Page 14
12 Smartphone Link Display Audio (SDA)
(if equipped) .................... Page 15
13 Bluetooth® Controls ...............
Page 17
1
7
9
13
Page 4 of 22
3
3
6
5
11
12
8
2
104
Page 5 of 22
4CONTROLS
FOG LIGHTS (IF EQUIPPED)Fog Lights will illuminate only when
headlights are on low beam. Turning
the knob in the direction of the ON
position turns on the fog lights.
Turning the knob in the direction of
the OFF position turns off the fog
lights. The knob will return to the
neutral position when released. HIGH /LOW BEAM SWITCH
To change the headlights from high
beam to low beam and vice versa, pull
the turn signal lever fully towards you
(1). An illuminated blue light in the
instrument cluster indicates when the
headlights are on high beam.
Headlight flasher – you can flash the
high beams by pulling the lever gently
towards you (2).
REGULAR HEADLIGHTSAUTOMATIC HEADLIGHTS (IF EQUIPPED)
Headlights and other lights on.
Parking, tail, front and rear sidemarker lights, license plate
and instrument panel lights on.
Headlights and other lights turn on and off automatically in
accordance with outside light level.
All lights off.
Page 6 of 22
5CONTROLS

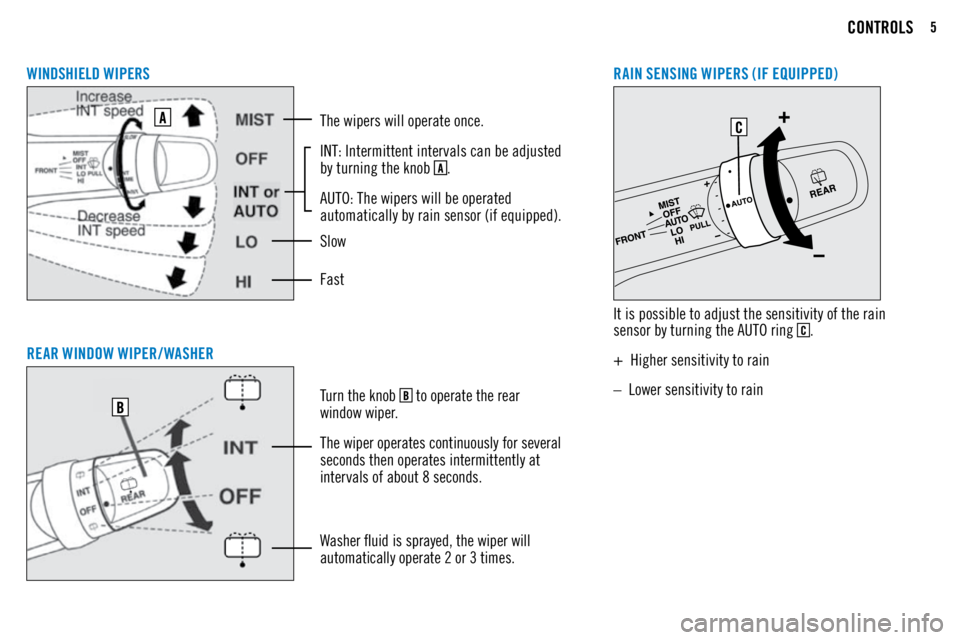

WINDSHIELD WIPERS
The wipers will operate once.
INT: Intermittent intervals can be adjusted
by turning the knob
.
AUTO: The wipers will be operated
automatically by rain sensor (if equipped).
Slow
Fast
RAIN SENSING WIPERS (IF EQUIPPED)
Turn the knob to operate the rear
window wiper.
The wiper operates continuously for several
seconds then operates intermittently at
intervals of about 8 seconds.
Washer fluid is sprayed, the wiper will
automatically operate 2 or 3 times.
Page 7 of 22
6
SEAT HEATER SWITCH (IF EQUIPPED)POSITION ACTION
HI For quick heating
NEUTRAL Heater off
LO Keeps seat warm
- Turn for temperature control.
- Push to select outside air (Indicator light off) or recirculated air
(Indicator light on).
- Turn to select the blower speed. To the right increases blower speed. To
the left decreases blower speed. Turned all the way to the left turns the
blower off. Note: OFF is located above AUTO.
- Push for air conditioning ON/OFF (Indicator light on/Indicator light off).
- Turn to select the air flow and direction mode.
- Push to defog the rear window (Indicator light on). Rear window
defogger light automatically turns off after 20 minutes.
TO DEFOG FRONT WINDSHIELD (FOR BOTH AUTOMATIC AND MANUAL)
1. Set the Mode Dial
to defrost position.
2. Set the blower speed
to the maximum position.
3. Set the temperature
to the highest position.
PANORAMIC SUNSHADE (IF EQUIPPED)
The sunshade can be operated with
the ignition switch or the operation
mode in ON.
- Push the switch in the arrow direction to close the sunshade.
Pushing the switch all the way automatically closes the sunshade
completely.
- Push the switch up to stop the moving sunshade. If an object
obstructs the sunshade from closing, the safety mechanism
will cause the sunshade to re-open automatically. The opened
sunshade will become operational again after a few seconds.
- The sunshade illumination turns on with the ignition switch or
when the operation mode is in ON or ACC.
• Push the switch to change brightness of the sunshade
illumination. The brightness switches in sequence from
High → Middle → Low → Off → High.
Page 8 of 22
7OWN THE ROAD

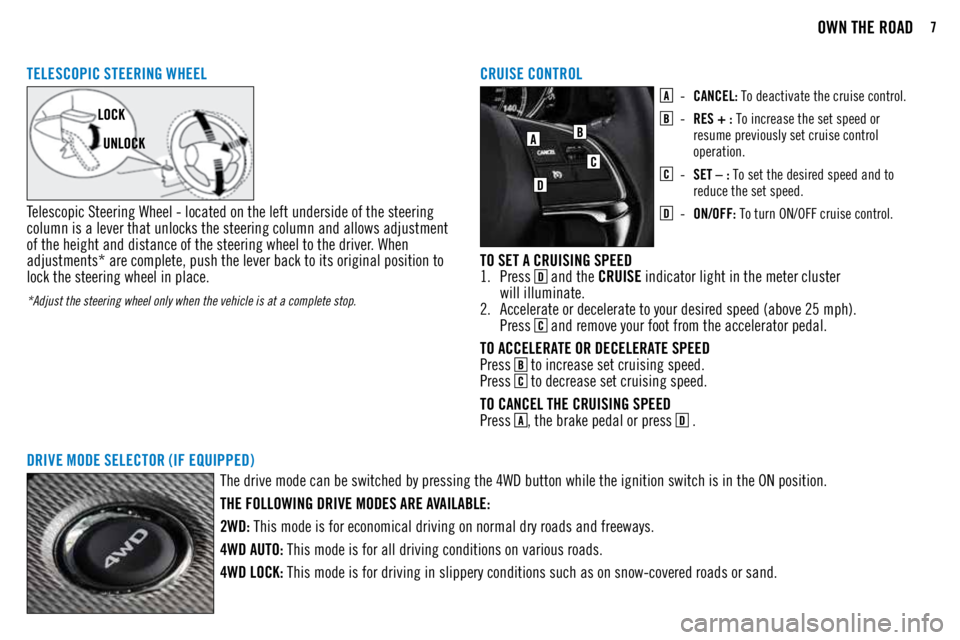

TELESCOPIC STEERING WHEEL
Telescopic Steering Wheel - located on the left underside of the steering
column is a lever that unlocks the steering column and allows adjustment
of the height and distance of the steering wheel to the driver. When
adjustments* are complete, push the lever back to its original position to
lock the steering wheel in place.
*Adjust the steering wheel only when the vehicle is at a complete stop.
- CANCEL: To deactivate the cruise control.
- RES + : To increase the set speed or
resume previously set cruise control
operation.
- SET – : To set the desired speed and to
reduce the set speed.
- ON/OFF: To turn ON/OFF cruise control.
CRUISE CONTROL
TO SET A CRUISING SPEED
1. Press
and the CRUISE indicator light in the meter cluster
will illuminate.
2. Accelerate or decelerate to your desired speed (above 25 mph).
Press
and remove your foot from the accelerator pedal.
TO ACCELERATE OR DECELERATE SPEED
Press
to increase set cruising speed.
Press
to decrease set cruising speed.
TO CANCEL THE CRUISING SPEED
Press
, the brake pedal or press .
DRIVE MODE SELECTOR (IF EQUIPPED) The drive mode can be switched by pressing the 4WD button while the ignition switch is in the ON position.
THE FOLLOWING DRIVE MODES ARE AVAILABLE:
2WD: This mode is for economical driving on normal dry roads and freeways.
4WD AUTO: This mode is for all driving conditions on various roads.
4WD LOCK: This mode is for driving in slippery conditions such as on snow-covered roads or sand.
Page 9 of 22
8SAFETY

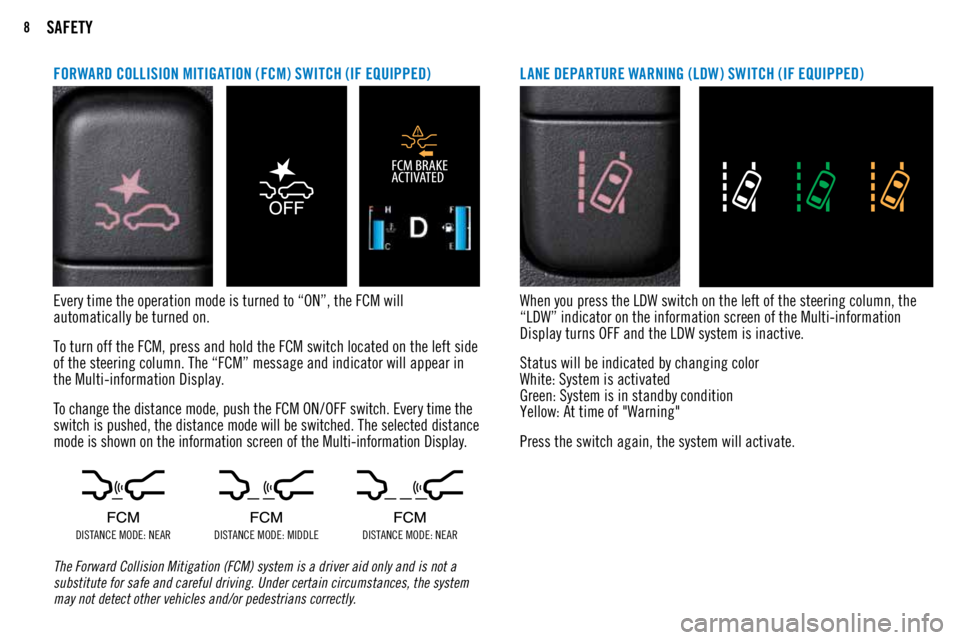

Every time the operation mode is turned to “ON”, the FCM will
automatically be turned on.
To turn off the FCM, press and hold the FCM switch located on the left side
of the steering column. The “FCM” message and indicator will appear in
the Multi-information Display.
To change the distance mode, push the FCM ON/OFF switch. Every time the
switch is pushed, the distance mode will be switched. The selected distance
mode is shown on the information screen of the Multi-information Display.
DISTANCE MODE: NEARDISTANCE MODE: MIDDLE DISTANCE MODE: NEAR
The Forward Collision Mitigation (FCM) system is a driver aid only and is not a
substitute for safe and careful driving. Under certain circumstances, the system
may not detect other vehicles and/or pedestrians correctly.
FORWARD COLLISION MITIGATION (FCM) SWITCH (IF EQUIPPED)
When you press the LDW switch on the left of the steering column, the
“LDW” indicator on the information screen of the Multi-information
Display turns OFF and the LDW system is inactive.
Status will be indicated by changing color
White: System is activated
Green: System is in standby condition
Yellow: At time of "Warning"
Press the switch again, the system will activate.
LANE DEPARTURE WARNING (LDW) SWITCH (IF EQUIPPED)
Page 10 of 22
9SAFETY

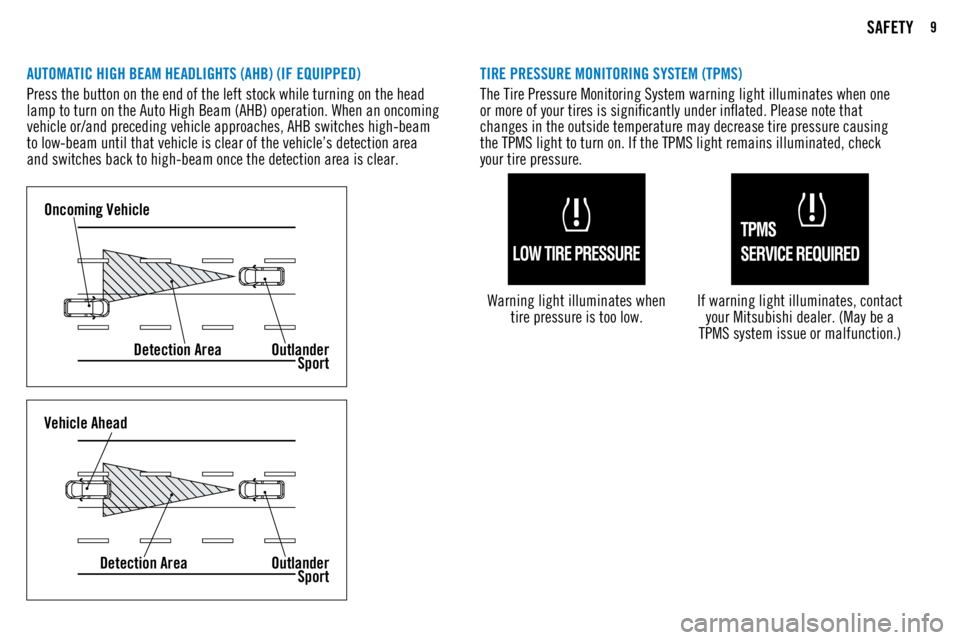

AUTOMATIC HIGH BEAM HEADLIGHTS (AHB) (IF EQUIPPED)
Press the button on the end of the left stock while turning on the head
lamp to turn on the Auto High Beam (AHB) operation. When an oncoming
vehicle or/and preceding vehicle approaches, AHB switches high-beam
to low-beam until that vehicle is clear of the vehicle’s detection area
and switches back to high-beam once the detection area is clear.
Oncoming VehicleDetection Area Outlander
Sport
Vehicle Ahead
Detection Area Outlander
Sport
TIRE PRESSURE MONITORING SYSTEM (TPMS)
The Tire Pressure Monitoring System warning light illuminates when one
or more of your tires is significantly under inflated. Please note that
changes in the outside temperature may decrease tire pressure causing
the TPMS light to turn on. If the TPMS light remains illuminated, check
your tire pressure.
Warning light illuminates when tire pressure is too low.
If warning light illuminates, contact your Mitsubishi dealer. (May be a
TPMS system issue or malfunction.)
