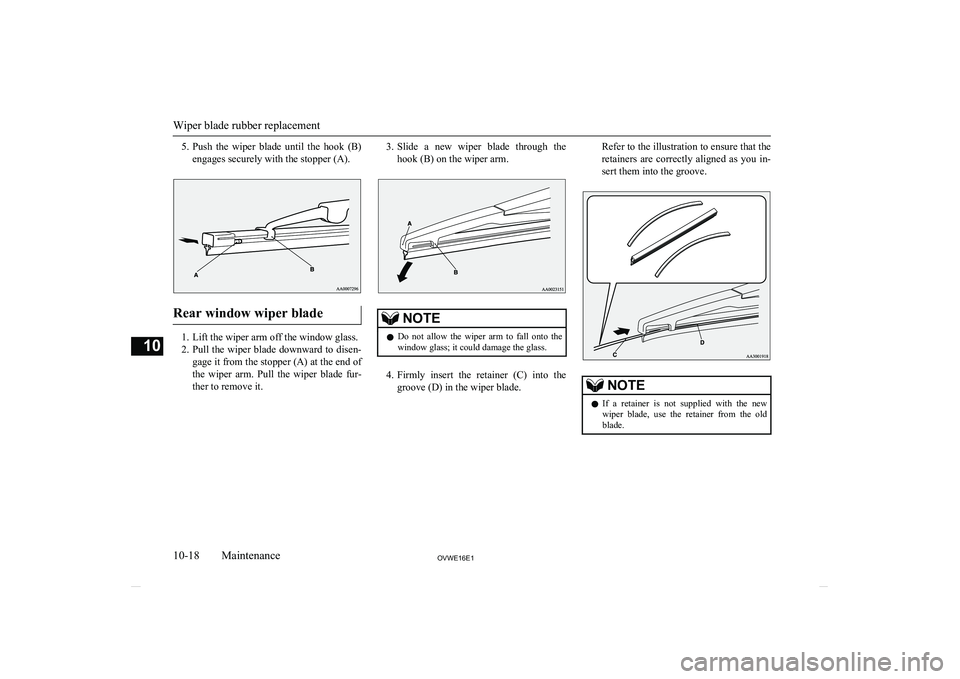

5.Push the wiper blade until the hook (B)
engages securely with the stopper (A).
Rear window wiper blade
1. Lift the wiper arm off the window glass.
2. Pull the wiper blade downward to disen-
gage it from the stopper (A) at the end of
the wiper arm. Pull the wiper blade fur-
ther to remove it.
3. Slide a new wiper blade through the
hook (B) on the wiper arm.NOTEl Do not allow the wiper arm to fall onto the
window glass; it could damage the glass.
4. Firmly insert the retainer (C) into the
groove (D) in the wiper blade.
Refer to the illustration to ensure that the
retainers are correctly aligned as you in-
sert them into the groove.NOTEl If a retainer is not supplied with the new
wiper blade, use the retainer from the old
blade.
Wiper blade rubber replacement
10-18OVWE16E1Maintenance10

General maintenanceE01002700360
Fuel, engine coolant, oil and ex- haust gas leakage
Look under the body of your vehicle to check
for fuel, engine coolant, oil and exhaust gas
leaks.
WARNINGl If you see a suspicious fuel leak or if you
smell fuel, do not operate the vehicle; we recommend you to call for assistance.
Exterior and interior lamp op-
eration
Operate the combination lamp switch to
check that all lamps are functioning properly.
If the lamps do not illuminate, the probable cause is a blown fuse or defective lamp bulb.
Check the fuses first. If there is no blown
fuses, check the lamp bulbs.
For information regarding the inspection and
replacement of the fuses and the lamp bulbs, refer to “Fuses” on page 10-20 and “Re-
placement of lamp bulbs” on page 10-24.
If the fuses and bulbs are all OK, we recom- mend you to have your vehicle checked and
repaired.
Meter, gauge and indicator/
warning lamps operation
Run the engine to check the operation of all meters, gauges, and indicator/warning lamps.
If there is anything wrong, we recommend you to have your vehicle inspected.
Hinges and latches lubrication
Check all latches and hinges, and, if necessa- ry, have them lubricated.
For cold and snowy weather
E01002800299
Ventilation slots
The ventilation slots in front of the wind-
screen should be kept clear of leaves or brushed clear after heavy snowfall, so that
the operation of the heating and ventilation
systems will not be impaired.
Weatherstripping
To prevent freezing of the weatherstripping
on the doors, bonnet, etc., they should be treated with silicone grease.
Additional equipment
It is a good idea to carry a shovel or a short-
handled spade in the vehicle during the win-ter so that you can clear away snow if you get
stranded. A small hand-brush for sweeping snow off the vehicle and a plastic scraper for
the windscreen and rear window are also use- ful.
Fusible links
E01002900434
The fusible links will melt to prevent a fire if
a large current attempts to flow through cer- tain electrical systems.
In case of a melted fusible link, we recom- mend you to have your vehicle inspected.For the fusible links, please refer to “Fuse
load capacity” on page 10-20.
WARNINGl Fusible links must not be replaced by any
other device. Failing to fit the correct fusi- ble link may result in fire in the vehicle,
property destruction and serious or fatal injuries at any time.
General maintenance
10-19OVWE16E1Maintenance10

FusesE01003000849Fuse block location
E01007601521
To prevent damage to the electrical systemdue to short-circuiting or overloading, each individual circuit is provided with a fuse.
There are fuse blocks in the passenger com- partment and in the engine compartment.
Passenger compartment
The fuse block in the passenger compartment is located in front of the driver’s seat at the position shown in the illustration.
Engine compartment
In the engine compartment, the fuse blocks
are located as shown in the illustration.
Type AType BFuse load capacity
E01007700105
The fuse capacity and the name of the electri- cal systems protected by the fuses are indica-
ted on the inside of the lid located at the driv-
er’s leg area and on the inside of the fuse block cover for fuses located in the engine
compartment.
Passenger compartment fuse lo-
cation table
E01007901957
NOTEl Spare fuses are contained in the fuse block
lid. Always use a fuse of the same capacity
for replacement.Passenger compartment fuse location
Fuses
10-20OVWE16E1Maintenance10

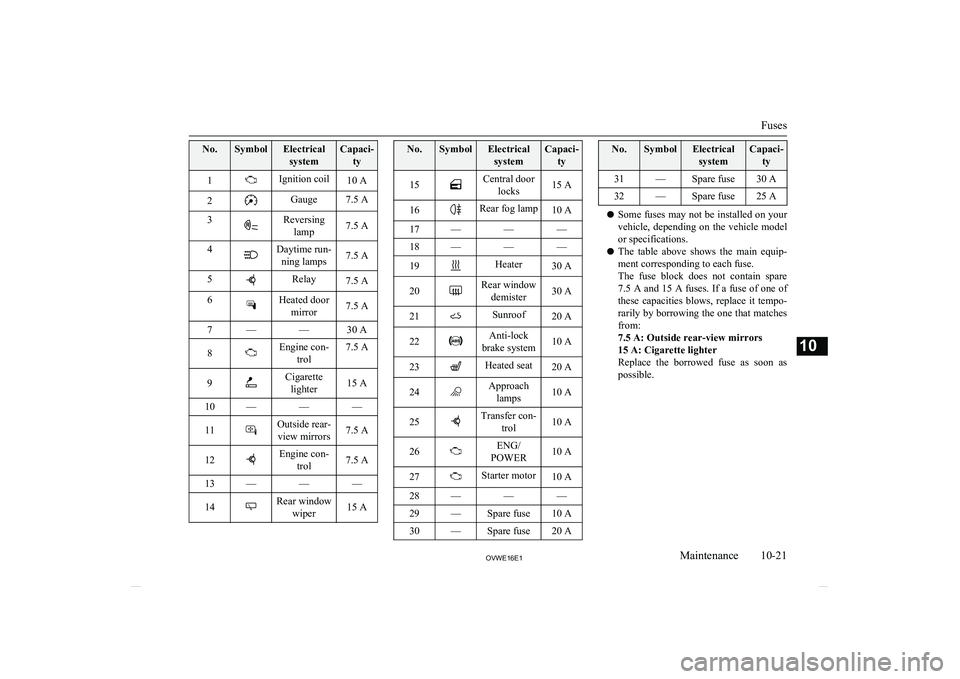

No.SymbolElectricalsystemCapaci- ty1Ignition coil10 A2Gauge7.5 A3Reversinglamp7.5 A4Daytime run-ning lamps7.5 A5Relay7.5 A6Heated door mirror7.5 A7——30 A8Engine con- trol7.5 A9Cigarettelighter15 A10———11Outside rear-view mirrors7.5 A12Engine con- trol7.5 A13———14Rear windowwiper15 ANo.SymbolElectricalsystemCapaci- ty15Central door locks15 A16Rear fog lamp10 A17———18———19Heater30 A20Rear windowdemister30 A21Sunroof20 A22Anti-lock
brake system10 A23Heated seat20 A24Approach lamps10 A25Transfer con- trol10 A26ENG/
POWER10 A27Starter motor10 A28———29—Spare fuse10 A30—Spare fuse20 ANo.SymbolElectrical systemCapaci- ty31—Spare fuse30 A32—Spare fuse25 A
lSome fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
l The table above shows the main equip-
ment corresponding to each fuse.
The fuse block does not contain spare
7.5 A and 15 A fuses. If a fuse of one of these capacities blows, replace it tempo-
rarily by borrowing the one that matches
from:
7.5 A: Outside rear-view mirrors
15 A: Cigarette lighter
Replace the borrowed fuse as soon as
possible.
Fuses
10-21OVWE16E1Maintenance10

Engine compartment fuse loca-tion table
E01008001913
Engine compartment fuse location (Type A)

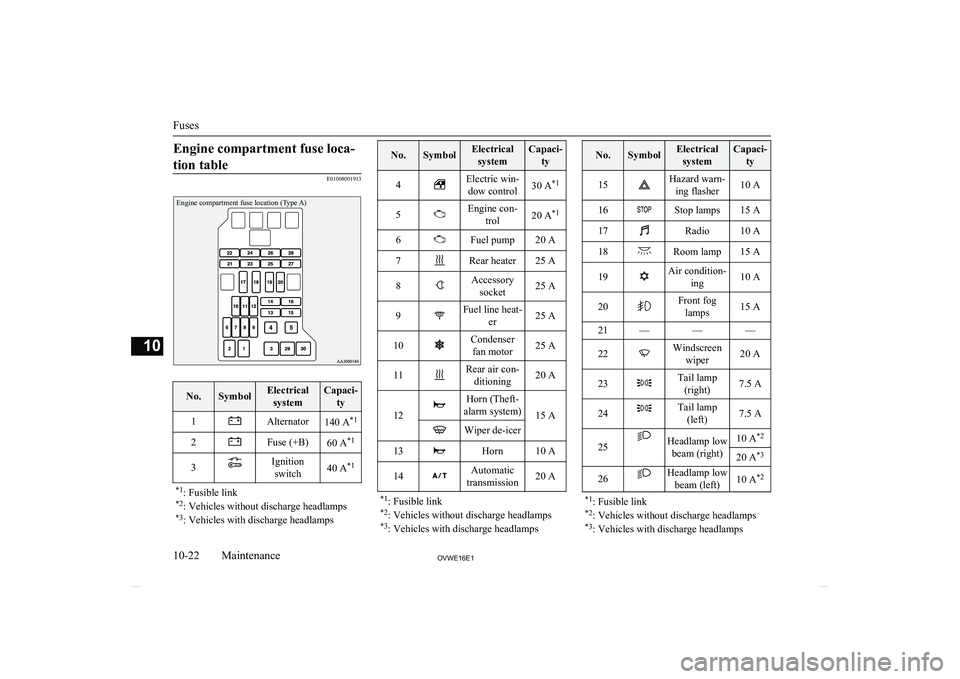

No.SymbolElectrical systemCapaci- ty1Alternator140 A *12Fuse (+B)60 A*13Ignition
switch40 A *1*1
: Fusible link
*2 : Vehicles without discharge headlamps
*3 : Vehicles with discharge headlampsNo.SymbolElectrical
systemCapaci- ty4Electric win-dow control30 A *15Engine con-
trol20 A *16Fuel pump20 A7Rear heater25 A8Accessory
socket25 A9Fuel line heat- er25 A10Condenserfan motor25 A11Rear air con- ditioning20 A
12
Horn (Theft-
alarm system)
15 A
Wiper de-icer13Horn10 A14Automatic
transmission20 A*1 : Fusible link
*2 : Vehicles without discharge headlamps
*3 : Vehicles with discharge headlampsNo.SymbolElectrical
systemCapaci- ty15Hazard warn-ing flasher10 A16Stop lamps15 A17Radio10 A18Room lamp15 A19Air condition- ing10 A20Front foglamps15 A21———22Windscreen wiper20 A23Tail lamp(right)7.5 A24Tail lamp (left)7.5 A25Headlamp lowbeam (right)10 A *220 A*326Headlamp low
beam (left)10 A *2*1
: Fusible link
*2 : Vehicles without discharge headlamps
*3 : Vehicles with discharge headlamps
Fuses
10-22OVWE16E1Maintenance10

No.SymbolElectricalsystemCapaci- ty20 A *327
Headlamp
high-beam (right)
10 A28
Headlamp
high-beam (left)
10 A29Audio40 A *130Heater50 A*1*1
: Fusible link
*2 : Vehicles without discharge headlamps
*3 : Vehicles with discharge headlamps
l Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
l The table above shows the main equip-
ment corresponding to each fuse.Engine compartment fuse location (Type B)No.SymbolElectrical systemCapaci- ty31Anti-lock
brake system60 A *32Brake system40 A*33Glow relay80 A**
: Fusible link
l Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
l The table above shows the main equip-
ment corresponding to each fuse.
Identification of fuse
E01008100164
Ca-
pacityColour7.5 ABrown10 ARed15 ABlue20 AYellow (fuse type)/Light blue (fu- sible link type)25 ATransparent30 AGreen (fuse type)/
Pink (fusible link type)40 AGreen50 ARed60 AYellow80 ABlack140 AReddish brownFuse replacement
E01007801901
1. Before replacing a fuse, always turn off
the electrical circuit concerned and place
the ignition switch in the “LOCK” posi-
tion.
2. Pull the fuse block lid (A) to remove it.
Fuses
10-23OVWE16E1Maintenance10

3. Remove the fuse puller (B) from the fuseblock lid.
4.The replacement of fuses located in the
driver’s seat leg area should be per- formed from the hole of the fuse block
lid.
5. Referring to the fuse load capacity table,
check the fuse pertaining to the problem.
C- Fuse is OK
D- Blown fuse
NOTEl If any system does not function but the fuse
corresponding to that system is normal, theremay be a fault in the system elsewhere. We recommend you to have your vehiclechecked.
6. Insert a new fuse of the same capacity
by using the fuse puller into the same
place at the fuse block.
CAUTIONl If the newly inserted fuse blows again after a
short time, we recommend you to have the electrical system checked to find the causeand rectify it.
l Never use a fuse with a capacity larger than
that specified or any substitute, such as wire,
foil, etc.; doing so will cause the circuit wir-
ing to heat up and could cause a fire.Replacement of lamp bulbs
E01003100521
Before replacing a bulb, ensure the lamp isoff. Do not touch the glass part of the new
bulb with your bare fingers; the skin oil left
on the glass will evaporate when the bulb gets hot and the vapour will condense on the
reflector and dim the surface.
Replacement of lamp bulbs
10-24OVWE16E1Maintenance10

CAUTIONlBulbs are extremely hot immediately after
being turned off.
When replacing a bulb, wait for it to cool
sufficiently before touching it. You could otherwise be burnt.NOTEl Do not attempt to repair or replace the lamp
bulbs other than described in this owner’s manual. For repair or replacement, contact aMITSUBISHI MOTORS Authorized Serv-
ice Point.
l If you are unsure of how to carry out the
work as required, we recommend you to consult a specialist.
l Be careful not to scratch the vehicle body
when removing a lamp or lens.
l When it rains or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy. This is the same phenomenon as when window glass mists up on a humid
day, and does not indicate a functional prob- lem. When the lamp is switched on, the heat
will remove the fog. However, if water gath-
ers inside the lamp, we recommend you to have it checked.Bulb capacity
E01003200014
When replacing a bulb, use a new bulb with
the same wattage and colour.
Outside
E01003304303
1- Headlamps, high-beam: 65 W (H9)2- Position and Daytime running lamps*
3- Front fog lamps*: 55 W (H11)
4- Headlamps, low beam with discharge
lamp: 35 W
Headlamps, low beam without discharge lamp: 55 W (H11)
5- Position lamps: 5 W (W5W)
6- Front turn-signal lamps: 21 W
(WY21W)
7- Side turn-signal lamps (on fender)*: 5 W
8- Side turn-signal lamps (on outside rear-
view mirror)*
Codes in parentheses indicate bulb
types.CAUTIONl On vehicles with discharge headlamps, do
not attempt to disassemble or repair dis-
charge headlamps, and do not attempt to re- place their bulbs. A high voltage is presentin the power circuit and in the bulbs andbulb terminals. To avoid the risk of an elec-
tric shock, contact by a MITSUBISHI
MOTORS Authorized Service Point when-
ever repair or replacement is necessary.NOTEl The following lamps are not possible to re-
pair or replace only the bulb.
If you need to repair or replace these lamp
bulbs, contact a MITSUBISHI MOTORS
Authorized Service Point.
• Position and Daytime running lamps
• Side turn-signal lamps (on fender)
• Side turn-signal lamps (on outside rear-
view mirror)
Replacement of lamp bulbs
10-25OVWE16E1Maintenance10 Front

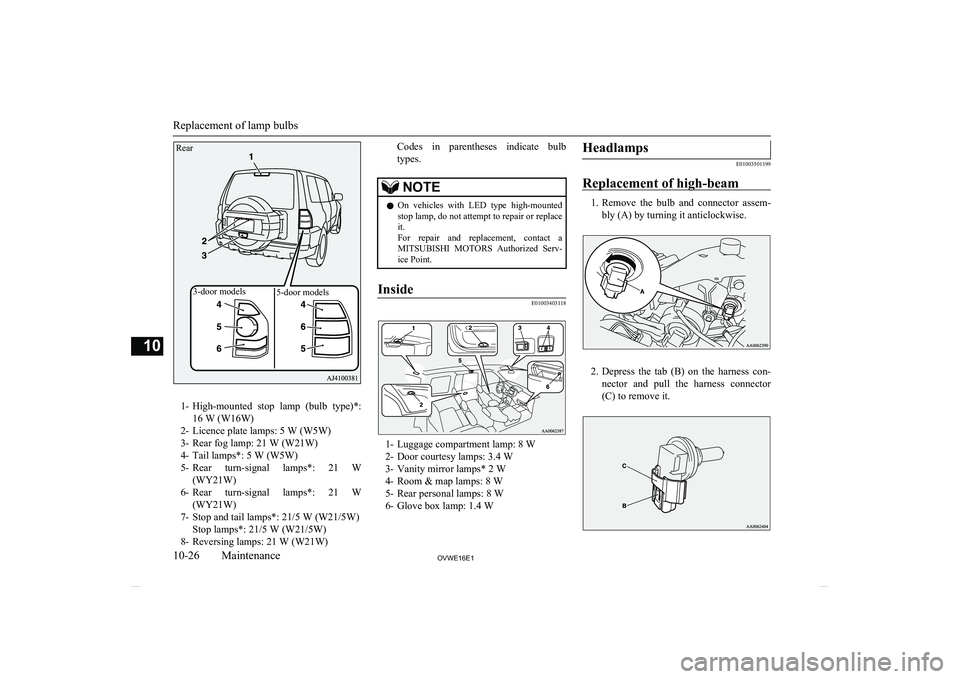

1-High-mounted stop lamp (bulb type)*:
16 W (W16W)
2- Licence plate lamps: 5 W (W5W)
3- Rear fog lamp: 21 W (W21W)
4- Tail lamps*: 5 W (W5W)
5- Rear turn-signal lamps*: 21 W
(WY21W)
6- Rear turn-signal lamps*: 21 W
(WY21W)
7- Stop and tail lamps*: 21/5 W (W21/5W) Stop lamps*: 21/5 W (W21/5W)
8- Reversing lamps: 21 W (W21W)
Codes in parentheses indicate bulb
types.NOTEl On vehicles with LED type high-mounted
stop lamp, do not attempt to repair or replaceit.
For repair and replacement, contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point.Inside
E01003403118
1- Luggage compartment lamp: 8 W
2- Door courtesy lamps: 3.4 W
3- Vanity mirror lamps* 2 W
4- Room & map lamps: 8 W
5- Rear personal lamps: 8 W
6- Glove box lamp: 1.4 W
Headlamps
E01003501199
Replacement of high-beam
1. Remove the bulb and connector assem-
bly (A) by turning it anticlockwise.
2. Depress the tab (B) on the harness con-
nector and pull the harness connector
(C) to remove it.
Replacement of lamp bulbs
10-26OVWE16E1Maintenance103-door models5-door models
Rear

3.To install the bulb, perform the removal
steps in reverse.
Replacement of low beam (ex-
cept for vehicles with discharge
headlamps)
1. Remove the bulb and connector assem-
bly (A) by turning it anticlockwise.
2. Depress the tab (B) on the harness con-
nector and pull the harness connector
(C) to remove it.
3. To install the bulb, perform the removal
steps in reverse.
CAUTIONl Handle halogen lamp bulbs with care. The
gas inside halogen lamp bulbs is highly pres- surized, so dropping, knocking, or scratching
a halogen lamp bulb can cause it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the bulb to break the next time the headlamps are op-
erated. If the glass surface is dirty, it must be cleaned with alcohol, paint thinner, etc., andrefit it after drying it thoroughly.Position lamps (except for vehi-
cles with discharge headlamps)
E01003702332
1. Turn the bulb socket anticlockwise to re-
move it.
2. Remove the bulb from the socket by
pulling out.
3. To install the bulb, perform the removal
steps in reverse.
Replacement of lamp bulbs
10-27OVWE16E1Maintenance10
