NISSAN 350Z 2007 Z33 Quick Reference Guide

Sh ift_obsession

2007
350Z
Q U I C K R E F E R E N C E G U I D E

0502
07
06
03
11
04
12
1009
01
08
headlight and turn
signal COntrOl
03
instru Ment Brightness

CO ntr Ol*
01
steering Wheel

s W itCh FO r audi O
CO ntr Ol
04
W indshield WiP er /

W asher s W itCh

C
ruise COntr Ol
05
tri P COMP uter MOde/

setting Butt Ons
02
06
Fuel -Filler

d OO r release
t C s /V dC

OFF sW itCh
s
OF t t OP
OP erating s W itCh
( r oadster Models)
0708
09
h OO d release *
10
steering Wheel

tilt ad Just Ment *
11
COntr Ol P anel

dis Pla Y
12
1314
audi O sY ste M
13
Cli M ate COntr Ols
14
*See your Owner’s Manual fpr more information.

headlight and turn signal CO ntrOl
HEADLIGHT SWITCH
 Turn the headlight switch to theposition to turn on the front parking, side marker, tail, license plate and instrument panel lights.
 Turn the headlight switch to theposition to turn on
the headlights. All other lights remain on.
HIGH BEAM
 Push the headlight switch forward to select the high beam function. The blue indicator light illuminates. Pull the headlight switch back to the original position to select the low beam. The blueindicator light goes off.
 Pull and release the headlight switch to flash the headlight high beams on and off.
TURN SIGNAL SWITCH
 Move the headlight control switch up or down to signal the turning direction. When the turn is completed, the turn signals cancel automatically.
 To signal a lane change, move the headlight control switch up or down to the point where the indicator light begins to flash, but the headlight control switch does not latch.
W indshield W iP er /W asher sW itCh
 The ignition switch must be in the ON position
to activate the windshield wipers.
 Move the lever to the following positions to
operate the windshield wipers:
1a Intermittent (INT) – Front wipers operate
intermittently and can be further adjusted
by twisting the time control ring 1B.
02 Low Speed (LO) – Continuous low-speed
operation of front wipers.
03 High Speed (HI) – Continuous high-speed
operation of front wipers.
04 Mist (MIST) – Lift the lever up for one sweep of the front wipers.
05 Rear Wipers (REAR) – Twist the end section to operate the first (INT)
or second (ON) speed settings for the rear wipers.
 The washer function activates the washer fluid and several sweeps of the wipers:
• For F
RONT WASHER, pull lever toward you.
• For REAR WASHER, push lever away from you. (Coupe only)

1a
02
03
04
1B05

triP COMP uter
The trip computer may be used to check items such as
speed, outside air temperature, distance to empty (fuel),
average mileage and speed, elapsed time and distance
traveled. Additionally, it can function as a stopwatch or be
used to operate the RPM shift feature (REV) (Manual
transmission only).
To operate the Trip Computer:
Turn the ignition switch on. Then press the side of the buttons.
 Press the button 01 toward the left to scroll through
each mode.

Press the button 02 toward the left to reset or adjust
the various mode selections.
01
02
rPM shiFt indi Cat Or
(Manual transmission only)
The engine RPM shift indicator light (REV) is located in
the tachometer. During driving, it indicates ‘shift point’,
or time to up-shift.
 The shift indicator light will begin flashing about
500 RPM before a pre-set engine RPM is reached
in any gear. Then, when the actual pre-set RPM is
reached, the shift indicator light will stop flashing
and remain on.
 The engine RPM shift point may be set by the driver using the Trip Computer
display. Or it may be deactivated, also using the Trip Computer display.
tire P ressure MO nitOring sY ste M (tPM s)
This system monitors tire pressure. If the low tire pressure warning
light illuminates, check the tire pressure in all four tires.
Adjust the low tire pressure to the recommended COLD tire
pressure shown on the Tire and Loading Information label located
in the driver’s door opening. After tire pressures are adjusted, the
vehicle will need to be driven at speeds above 16 MPH (25 km/h)
to activate the TPMS and turn off the low tire pressure warning light.

Cruise CO ntrOl (if so equipped)
 To activate the cruise control, push the ON.OFF switch.
The indicator light in the instrument panel will illuminate.
 To set cruising speed, accelerate the vehicle to the
desired speed, push the COAST/SET switch and
release it. The SET indicator light in the instrument panel
will illuminate.
 To reset at a faster cruising speed, push and hold the
ACCEL/RES switch. When the vehicle reaches the speed you desire, release the switch.
 To reset at a slower cruising speed, push and hold the COAST/SET switch. Release
the switch when the vehicle slows to the desired speed.
 To cancel cruise control, push the CANCEL switch or tap the brake pedal. The SET
indicator light in the instrument panel will go out.
 To resume a preset speed, push and release the ACCEL/RES switch. The vehicle
returns to the last set cruising speed when the vehicle speed is over 25 MPH (40 km/h).
 To turn off cruise control, push the ON.OFF switch. Both the CRUISE indicator light
and the SET indicator light in the instrument panel will go out.
steering W heel sW itChes FO r audi O
CO ntr Ol (if so equipped)
 With the ignition switch turned to the ACC or ON
position, push the PWR (Power) on/off switch to turn
the audio system on or off.
 Push the MODE select switch to change the mode.
• Without satellite radio: AM, FM1, FM2, and
CD or CD changer.
• With satellite radio: AM, FM1, FM2, SAT1, SAT2 and CD changer.
 The SEEK switch can be used to perform the following:
• Radio memory change – Push the

< >
switch for less than 1.5 seconds to
change the radio frequency.
• Radio tuning – Push and hold the

< >
switch for more than 1.5 seconds to

seek the next or previous radio station.
• CD track change – Push the

< >
switch for less than 1.5 seconds to return to the

beginning of a CD track or skip to the next track.
• CD disc change – Push and hold the

< >
switch for more than 1.5 seconds to
change the playing disc.
• MP3 folder change – Push and hold the

< >
switch up or down for more than 1.5

seconds to change the folders (if folders exist).

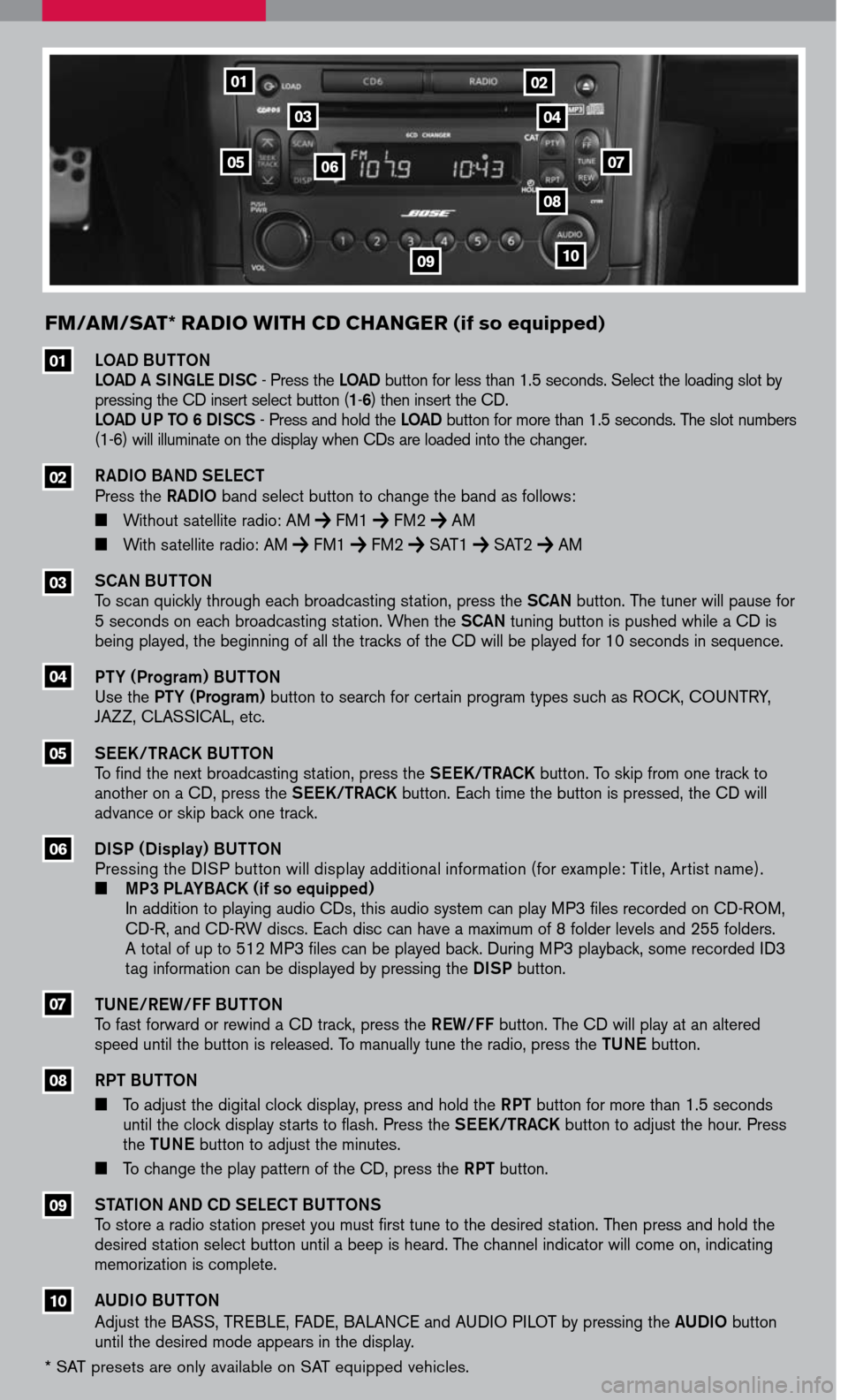

FM/aM/ sat * radi O With Cd C hanger (if so equipped)
0910
0705
01
08
03
06
04
02
LOAD BUTTON LOAD A SINGLE DISC - Press the LOAD button for less than 1.5 seconds. Select the loading slot by pressing the CD insert select button (1-6) then insert the CD. LOAD UP TO 6 DISCS - Press and hold the LOAD button for more than 1.5 seconds. The slot numbers (1-6) will illuminate on the display when CDs are loaded into the changer.
RADIO BAND SELECT Press the RADIO band select button to change the band as follows:

Without satellite radio: AM FM1 FM2 AM
 With satellite radio: AM FM1 FM2 SAT1 SAT2 AM
SCAN BUTTON To scan quickly through each broadcasting station, press the SCAN button. The tuner will pause for 5 seconds on each broadcasting station. When the SCAN tuning button is pushed while a CD is being played, the beginning of all the tracks of the CD will be played for 10 seconds in sequence.
PTY (Program) BUTTON Use the PTY (Program) button to search for certain program types such as ROCK, COUNTRY, JAZZ, CLASSICAL, etc.
SEEK/TRACK BUTTON To find the next broadcasting station, press the SEEK/TRACK button. To skip from one track to another on a CD, press the SEEK/TRACK button. Each time the button is pressed, the CD will advance or skip back one track.
DISP ( Display) BUTTON Pressing the DISP button will display additional information (for example: Title, Artist name).  MP3 PLAYBACK (if so equipped)
In addition to playing audio CDs, this audio system can play MP3 files recorded on CD-ROM,
CD-R, and CD-RW discs. Each disc can have a maximum of 8 folder levels and 255 folders.
A total of up to 512 MP3 files can be played back. During MP3 playback, some recorded ID3

tag information can be displayed by pressing the DISP button.
01
02
03
04
05
06
07
08
09
10
* SAT presets are only available on SAT equipped vehicles.
TUNE/REW/FF BUTTON To fast forward or rewind a CD track, press the REW/FF button. The CD will play at an altered speed until the button is released. To manually tune the radio, press the TUNE button.
RPT BUTTON
 To adjust the digital clock display, press and hold the RPT button for more than 1.5 seconds until the clock display starts to flash. Press the SEEK/TRACK button to adjust the hour. Press the TUNE button to adjust the minutes.
 To change the play pattern of the CD, press the RPT button.
STATION AND CD SELECT BUTTONS To store a radio station preset you must first tune to the desired station. Then press and hold the desired station select button until a beep is heard. The channel indicator will come on, indicating memorization is complete.
AUDIO BUTTON Adjust the BASS, TREBLE, FADE, BALANCE and AUDIO PILOT by pressing the AUDIO button until the desired mode appears in the display.

030204
010605
0807
AUTO MODE
Turn both the fan speed control dial 04 and the air flow control dial 03 to the AUTO positions 01. Then turn the temperature control dial 02 to the desired temperature. This will allow the fan speed, air flow distribution and temperature to be automatically maintained.
TEMPERATURE CONTROL DIAL
Turn the temperature control dial left for cold air or right for hot air.
AIR FLOW CONTROL DIAL
Turn the dial to select the following air flow outlets:
Air flows from the center and side vents.
Air flows from the center, side, and foot vents.
Air flows mainly from the foot vents.
Air flows from the defroster and foot vents.
Air flows mainly from the defroster vents.
autO
The air flow distribution of the passenger compartment will be maintained
automatically when the control dial is turned to the AUTO position.
FAN SPEED CONTROL DIAL
Turn the fan speed control dial to the left (slower) or right (faster) to manually control fan speed. Turn the dial to the AUTO position to automatically control fan speed.
DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS
 Turn the air flow control dial to the front window defroster mode . The A/C automatically turns on when the defroster mode is selected.
 Turn the temperature control dial left or right to set the desired temperature.
 To set the defroster on high, turn the fan speed dial all the way to the right.
DEFROSTING/DEFOGGING REAR WINDOW AND OUTSIDE
HEATED MIRROR
Push the rear window defroster switch on. Push the switch again to manually turn the defroster off. This function automatically turns off in approximately 15 minutes.
A/C ON/OFF BUTTON
Press the A/C button to manually turn the A/C on or off.
AIR RECIRCULATION/ FRESH AIR BUTTON
 Press the air intake button to alternate between(air recirculation) and (fresh air).
 The air recirculation mode cannot be selected if the air flow control dial is in the defrost position .
04
03
02
01
aut OMatiC Cli Mate C Ontr Ol
05
06
07
08
NOTE: When the center button is pressed to recirculate the interior air, the A/C will
automatically turn on (if not already on). This is done to help reduce window fogging.
01

tr aCti On CO ntr Ol s Y ste M (tC s) OFF sW itCh
(if so equipped)
The vehicle should be driven with the Traction Control System (TCS)
on for most driving conditions. TCS reduces the engine output to
reduce wheel spin. The engine speed will be reduced even if the
accelerator is depressed to the floor. If maximum engine power is
needed to free a stuck vehicle, such as from mud or snow, turn the
TCS off.
 To turn off the TCS, push the TCS OFF switch. The indicator light will illuminate.
 Push the switch again or restart the engine and the system will operate normally.
F r O nt -Passenger air Bag status light
This vehicle is equipped with the Nissan Advanced Air
Bag system. Under some conditions, depending on
the type of occupant or object detected in the front
passenger seat by the occupant classification sensor, the
front-passenger air bag is designed to automatically turn
OFF. When the front-passenger air bag is OFF, the front-
passenger air bag status light will illuminate*. For example:
 When the system detects that the front-passenger’s
seat is occupied by a small adult, child or child restraint as outlined in the Owner’s
Manual, the will illuminate to indicate that the front-passenger air bag is OFF and
will not inflate in a crash.
 When the front-passenger’s seat is occupied and the passenger meets the conditions
outlined in the Owner’s Manual, the will not illuminate to indicate that the front-
passenger air bag is operational.
*When the system detects that the front-passenger’s seat is unoccupied, the
passenger air bag status light will not illuminate even though the front-passenger
air bag is OFF.
Refer to the Owner’s Manual for detailed information regarding the Nissan Advanced Air
Bag System.
seatBaCK tilt Can Cel s W itCh (r oadster only)
The passenger seat of the 350Z Roadster automatically tilts
forward when operating the soft top. This function can be
cancelled by pushing the seatback tilt cancel switch to the
CANCEL position. Push the seatback tilt cancel switch to the
AUTO position to reactivate the power seatback tilt switch.
If the seatback tilt cancel switch is in the CANCEL position,
the seatback tilt paddle switch (located on the back of the
passenger seat) will not work. In this situation, tilt the passenger
seatback forward using the power seat position switch.

seat Belt Warning light and ChiMe
 The light and chime remind you to fasten your seat belts. The
light illuminates whenever the ignition key is turned to the ON
or START position and remains illuminated until the driver’s seat
belt is fastened. At the same time, the chime sounds for about 6
seconds unless the driver’s seat belt is securely fastened.
 The seat belt warning light may also illuminate if the front
passenger’s seat belt is not fastened when the front passenger’s seat is occupied
(if so equipped). For 5 seconds after the ignition switch is in the ON position, the
system does not activate the warning light for the front passenger.
Refer to the Owner’s Manual for detailed information regarding seat belt usage.
Fr O nt seat ad Just Ments
WITH MANUAL SEATS
 Pull up on the lever under the front of the
seat and slide backward or forward to the
desired position. Release the lever to lock
the seat in position.
 Lift the lever on the side of the seat to
adjust your seatback backward or forward;
release the lever when you have found a comfortable angle and the seat belt fits
properly.
 Turn either dial to adjust the angle and height of the seat cushion to the desired
position.
W ITH POWER SEATS (
if so equipped)
 Move the sliding switch 01 forward or
backward to adjust the seat cushion to the
desired position.
 Move the reclining switch 02 forward or
backward to adjust the seatback to the
desired angle.
 Turn either dial to adjust the angle and
height of the seat cushion to the desired position.
01
02

reMO te KeY less entr Y sY ste M
LOCK DOORS
Press the LPD0150 button to lock all doors.
UNLOCK DOORS
Press the
lpd0151
button once to unlock the driver’s door only. Press the button again within 5 seconds to unlock all doors.
RELEASING HATCH/TRUNK LID
Press and hold the trunk release button for longer than 0.5 seconds to open the trunk lid.
USING THE PANIC ALARM
Press and hold the button for longer than 0.5 seconds. The panic alarm will sound and the headlights will stay on for 25 seconds. The panic alarm stops when it has run for 25 seconds, or when any button is pressed on the keyfob.
POW er Wind OWs
The power windows operate when the ignition key is in the ON position, and for about
45 seconds after the ignition key is turned to the OFF position.
Automatic Adjusting Function:
The front door power windows have an automatic adjusting function. This ensures the
windows close completely to help seal against wind noise and weather leaks.
When the front doors are being opened, the windows
automatically lower slightly to avoid contact between the
windows and the side roof panels.
When the doors are closed, the windows automatically raise
slightly.
seCO ndar Y rear hat Ch release
Your vehicle is equipped with a secondary rear
hatch release mechanism. This allows opening of
the rear hatch in the event of a discharged battery
or in an emergency.
 The secondary rear hatch release is located
under the strut tower bar (Coupe), or inside the
storage bin compartment (Roadster - upper right
side).
 To open the rear hatch from the inside, firmly
pull the release handle to the left towards the
passenger side until the lock releases.
