NISSAN 370Z 2019 Owner´s Manual

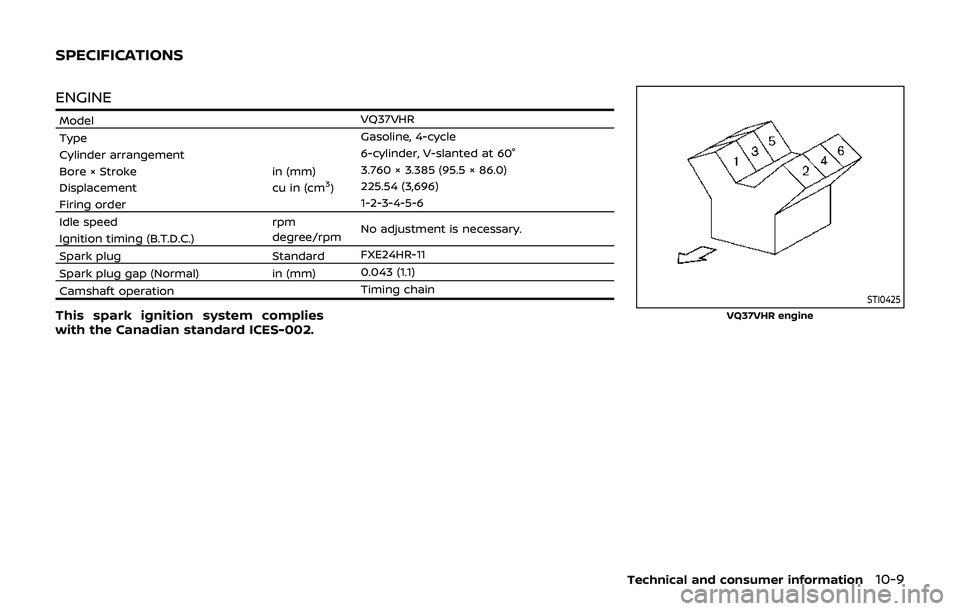

ENGINE
ModelVQ37VHR
Type Gasoline, 4-cycle
Cylinder arrangement 6-cylinder, V-slanted at 60°
Bore × Stroke in (mm) 3.760 × 3.385 (95.5 × 86.0)
Displacement cu in (cm
3) 225.54 (3,696)
Firing order 1-2-3-4-5-6
Idle speed rpm No adjustment is necessary.
Ignition timing (B.T.D.C.) degree/rpm
Spark plug Standard FXE24HR-11
Spark plug gap (Normal) in (mm) 0.043 (1.1)
Camshaft operation Timing chain
This spark ignition system complies
with the Canadian standard ICES-002.
STI0425
VQ37VHR engine
Technical and consumer information10-9
SPECIFICATIONS

10-10Technical and consumer information

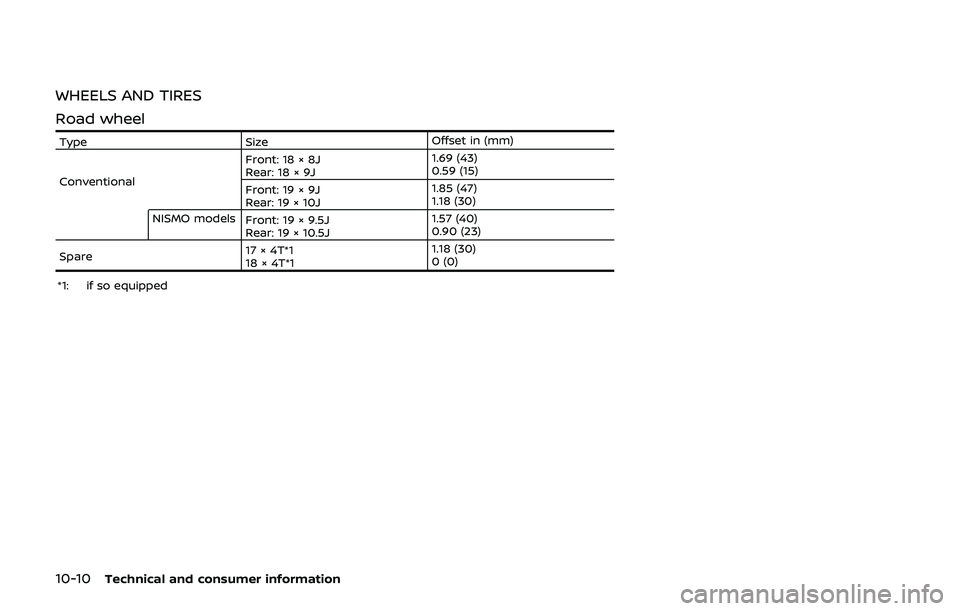

WHEELS AND TIRES
Road wheel
TypeSize Offset in (mm)
Conventional Front: 18 × 8J
Rear: 18 × 9J
1.69 (43)
0.59 (15)
Front: 19 × 9J
Rear: 19 × 10J 1.85 (47)
1.18 (30)
NISMO models Front: 19 × 9.5J
Rear: 19 × 10.5J 1.57 (40)
0.90 (23)
Spare 17 × 4T*1
18 × 4T*1 1.18 (30)
0 (0)
*1: if so equipped

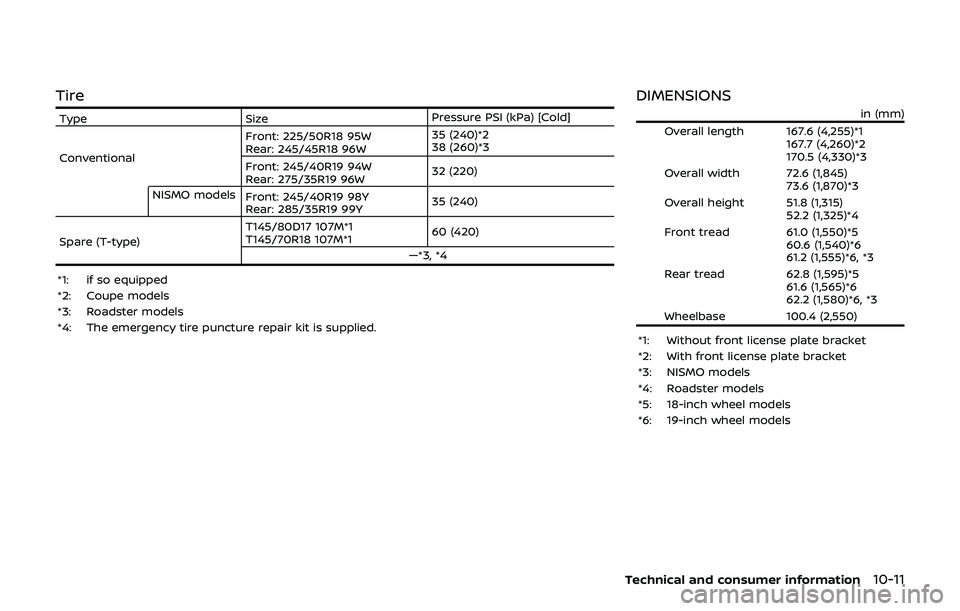

Tire
TypeSize Pressure PSI (kPa) [Cold]
Conventional Front: 225/50R18 95W
Rear: 245/45R18 96W
35 (240)*2
38 (260)*3
Front: 245/40R19 94W
Rear: 275/35R19 96W 32 (220)
NISMO models Front: 245/40R19 98Y
Rear: 285/35R19 99Y 35 (240)
Spare (T-type) T145/80D17 107M*1
T145/70R18 107M*1
60 (420)
—*3, *4
*1: if so equipped
*2: Coupe models
*3: Roadster models
*4: The emergency tire puncture repair kit is supplied.
DIMENSIONS
in (mm)
Overall length 167.6 (4,255)*1 167.7 (4,260)*2
170.5 (4,330)*3
Overall width 72.6 (1,845) 73.6 (1,870)*3
Overall height 51.8 (1,315) 52.2 (1,325)*4
Front tread 61.0 (1,550)*5 60.6 (1,540)*6
61.2 (1,555)*6, *3
Rear tread 62.8 (1,595)*5
61.6 (1,565)*6
62.2 (1,580)*6, *3
Wheelbase 100.4 (2,550)
*1: Without front license plate bracket
*2: With front license plate bracket
*3: NISMO models
*4: Roadster models
*5: 18-inch wheel models
*6: 19-inch wheel models
Technical and consumer information10-11

10-12Technical and consumer information

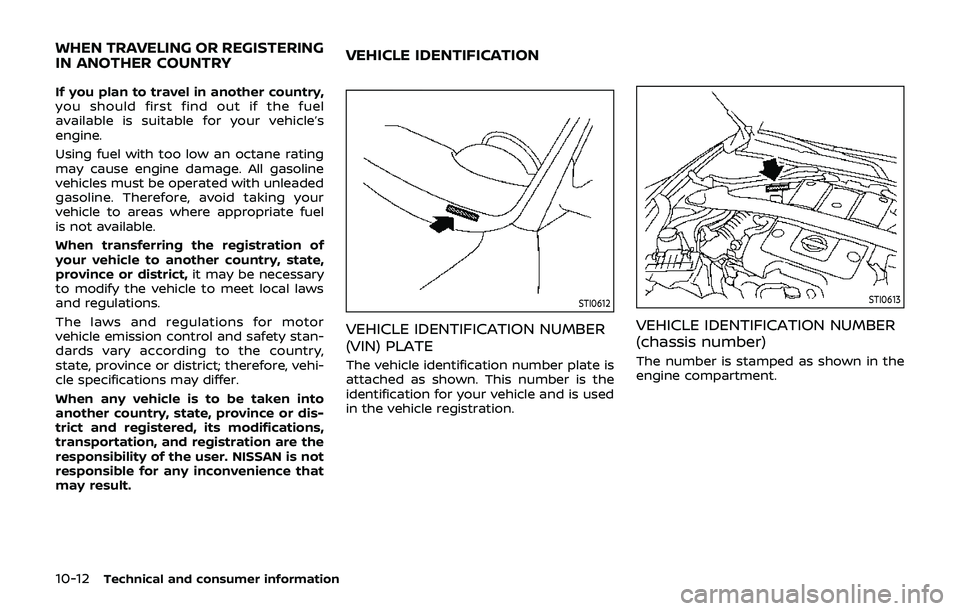

If you plan to travel in another country,
you should first find out if the fuel
available is suitable for your vehicle’s
engine.
Using fuel with too low an octane rating
may cause engine damage. All gasoline
vehicles must be operated with unleaded
gasoline. Therefore, avoid taking your
vehicle to areas where appropriate fuel
is not available.
When transferring the registration of
your vehicle to another country, state,
province or district,it may be necessary
to modify the vehicle to meet local laws
and regulations.
The laws and regulations for motor
vehicle emission control and safety stan-
dards vary according to the country,
state, province or district; therefore, vehi-
cle specifications may differ.
When any vehicle is to be taken into
another country, state, province or dis-
trict and registered, its modifications,
transportation, and registration are the
responsibility of the user. NISSAN is not
responsible for any inconvenience that
may result.
STI0612
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number plate is
attached as shown. This number is the
identification for your vehicle and is used
in the vehicle registration.
STI0613
VEHICLE IDENTIFICATION NUMBER
(chassis number)
The number is stamped as shown in the
engine compartment.
WHEN TRAVELING OR REGISTERING
IN ANOTHER COUNTRYVEHICLE IDENTIFICATION

STI0509

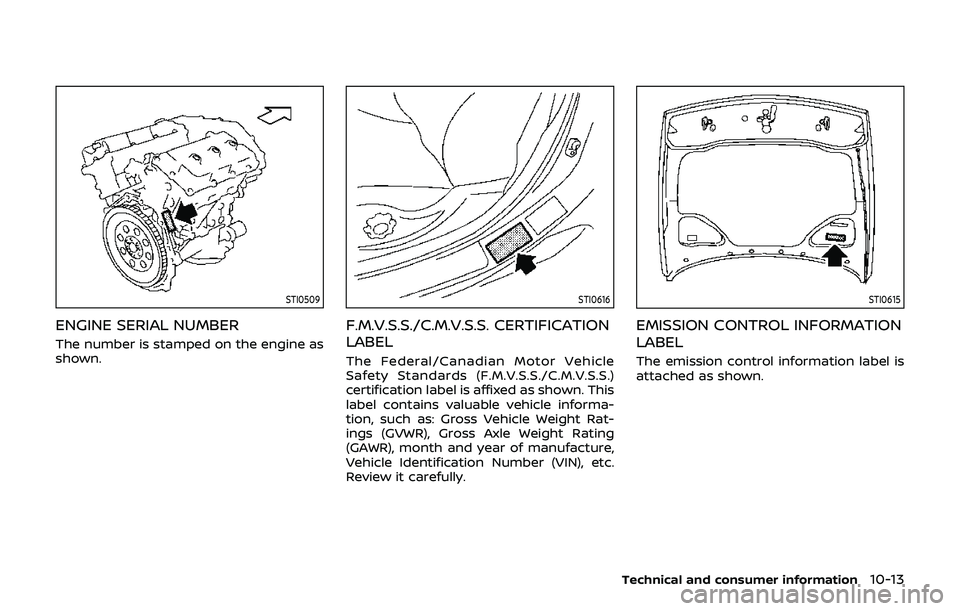

ENGINE SERIAL NUMBER
The number is stamped on the engine as
shown.
STI0616
F.M.V.S.S./C.M.V.S.S. CERTIFICATION
LABEL
The Federal/Canadian Motor Vehicle
Safety Standards (F.M.V.S.S./C.M.V.S.S.)
certification label is affixed as shown. This
label contains valuable vehicle informa-
tion, such as: Gross Vehicle Weight Rat-
ings (GVWR), Gross Axle Weight Rating
(GAWR), month and year of manufacture,
Vehicle Identification Number (VIN), etc.
Review it carefully.
STI0615
EMISSION CONTROL INFORMATION
LABEL
The emission control information label is
attached as shown.
Technical and consumer information10-13

10-14Technical and consumer information
STI0614
TIRE AND LOADING INFORMATION
LABEL
The cold tire pressure is shown on the
Tire and Loading Information label affixed
to the pillar as illustrated.
STI0617
AIR CONDITIONER SPECIFICATION
LABEL
The air conditioner specification label is
attached as shown.

STI0618

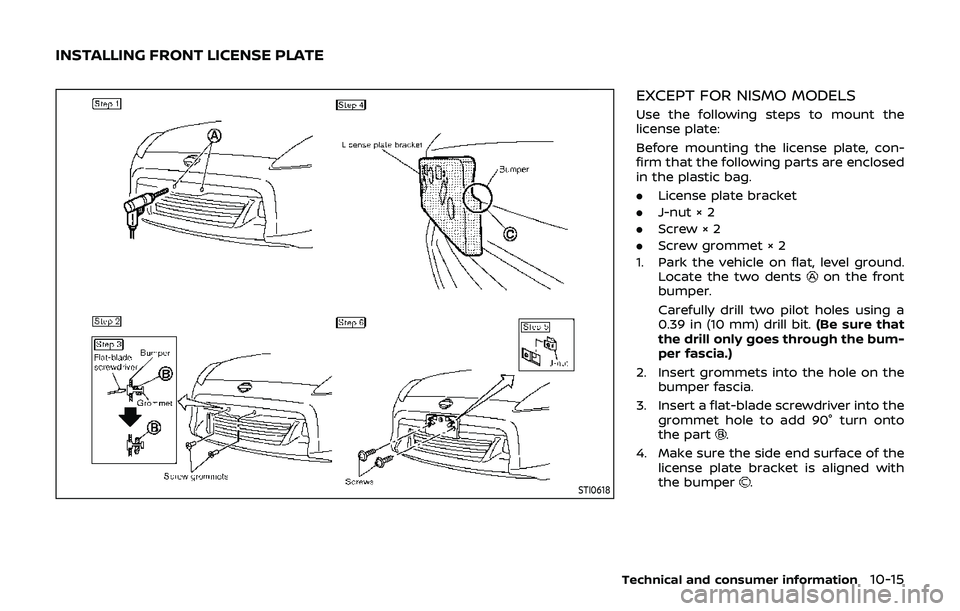

EXCEPT FOR NISMO MODELS
Use the following steps to mount the
license plate:
Before mounting the license plate, con-
firm that the following parts are enclosed
in the plastic bag.
.License plate bracket
. J-nut × 2
. Screw × 2
. Screw grommet × 2
1. Park the vehicle on flat, level ground. Locate the two dents
on the front
bumper.
Carefully drill two pilot holes using a
0.39 in (10 mm) drill bit. (Be sure that
the drill only goes through the bum-
per fascia.)
2. Insert grommets into the hole on the bumper fascia.
3. Insert a flat-blade screwdriver into the grommet hole to add 90° turn onto
the part
.
4. Make sure the side end surface of the license plate bracket is aligned with
the bumper
.
Technical and consumer information10-15
INSTALLING FRONT LICENSE PLATE

10-16Technical and consumer information

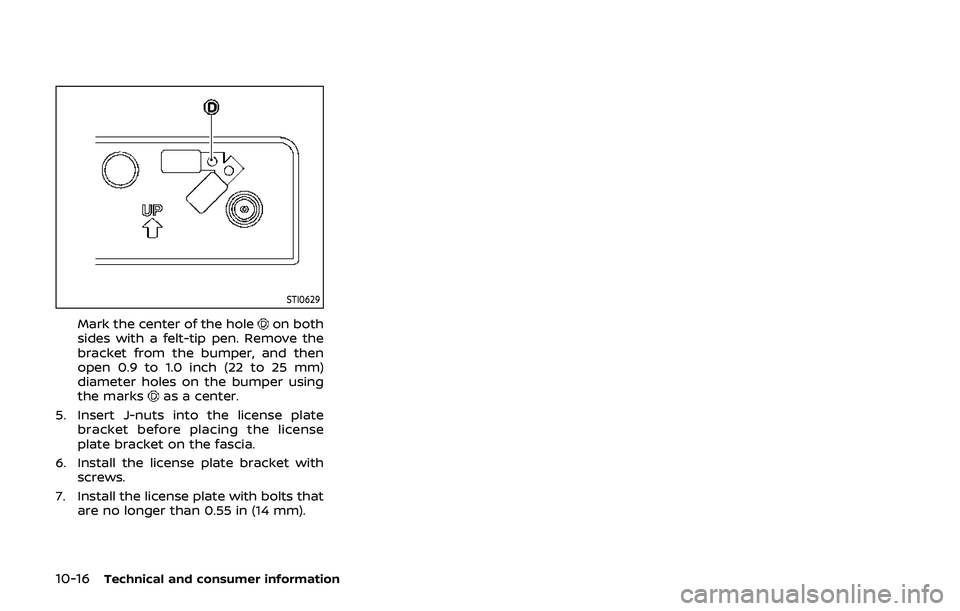

STI0629
Mark the center of the holeon both
sides with a felt-tip pen. Remove the
bracket from the bumper, and then
open 0.9 to 1.0 inch (22 to 25 mm)
diameter holes on the bumper using
the marks
as a center.
5. Insert J-nuts into the license plate bracket before placing the license
plate bracket on the fascia.
6. Install the license plate bracket with screws.
7. Install the license plate with bolts that are no longer than 0.55 in (14 mm).

JVT0332X

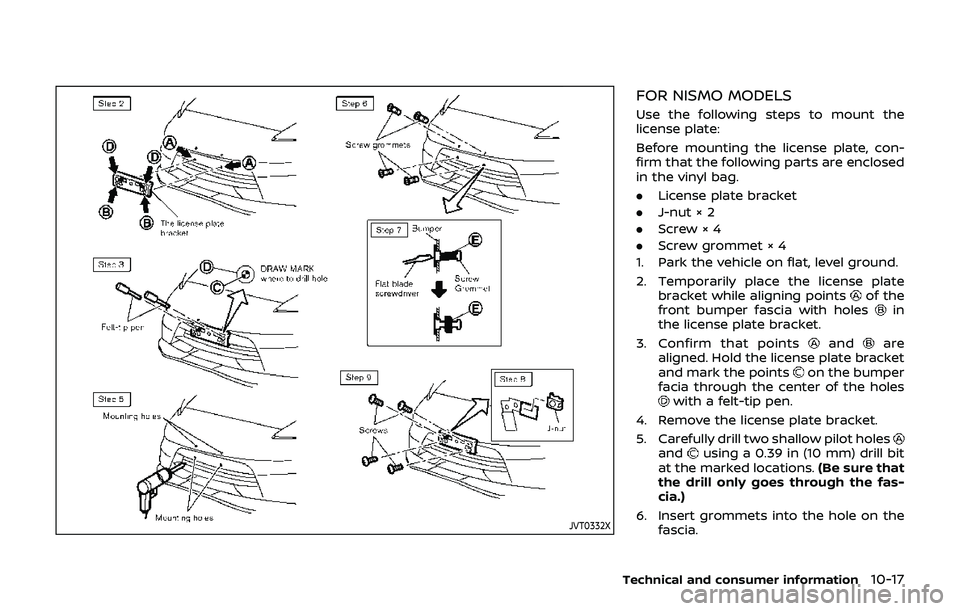

FOR NISMO MODELS
Use the following steps to mount the
license plate:
Before mounting the license plate, con-
firm that the following parts are enclosed
in the vinyl bag.
.License plate bracket
. J-nut × 2
. Screw × 4
. Screw grommet × 4
1. Park the vehicle on flat, level ground.
2. Temporarily place the license plate bracket while aligning points
of the
front bumper fascia with holesin
the license plate bracket.
3. Confirm that points
andare
aligned. Hold the license plate bracket
and mark the points
on the bumper
facia through the center of the holes
with a felt-tip pen.
4. Remove the license plate bracket.
5. Carefully drill two shallow pilot holes
andusing a 0.39 in (10 mm) drill bit
at the marked locations. (Be sure that
the drill only goes through the fas-
cia.)
6. Insert grommets into the hole on the fascia.
Technical and consumer information10-17

10-18Technical and consumer information
7. Insert a flat-blade screwdriver into thegrommet hole to add a 90° turn onto
the part
.
8. Insert a J-nut into the license plate bracket before placing the license
plate bracket on the fascia.
9. Install the license plate bracket with the screws.
10. Install the license plate with bolts that are not longer than 0.55 in (14 mm).

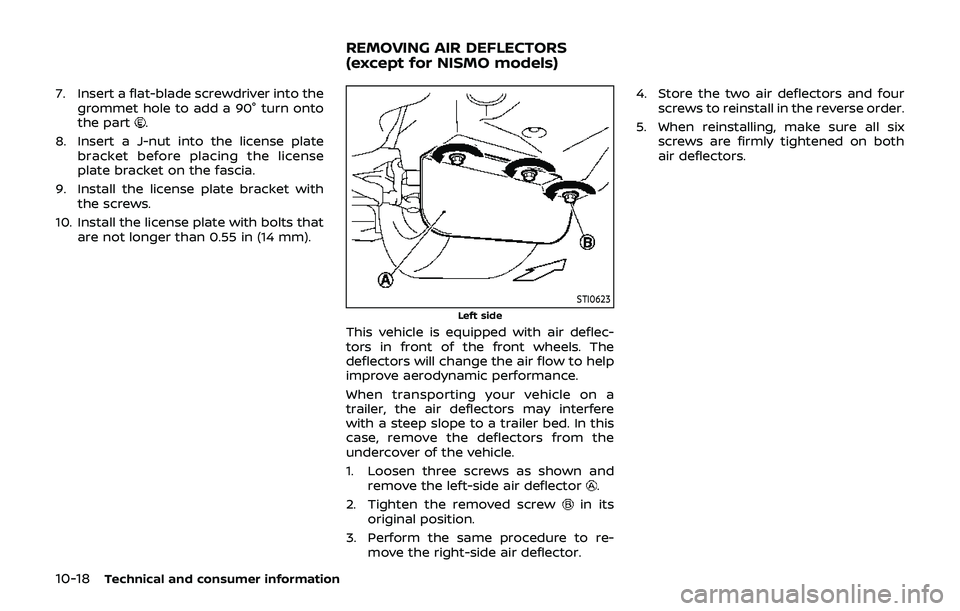

STI0623
Left side
This vehicle is equipped with air deflec-
tors in front of the front wheels. The
deflectors will change the air flow to help
improve aerodynamic performance.
When transporting your vehicle on a
trailer, the air deflectors may interfere
with a steep slope to a trailer bed. In this
case, remove the deflectors from the
undercover of the vehicle.
1. Loosen three screws as shown andremove the left-side air deflector
.
2. Tighten the removed screw
in its
original position.
3. Perform the same procedure to re- move the right-side air deflector. 4. Store the two air deflectors and four
screws to reinstall in the reverse order.
5. When reinstalling, make sure all six screws are firmly tightened on both
air deflectors.
REMOVING AIR DEFLECTORS
(except for NISMO models)
