NISSAN ALMERA 2001 Service Manual

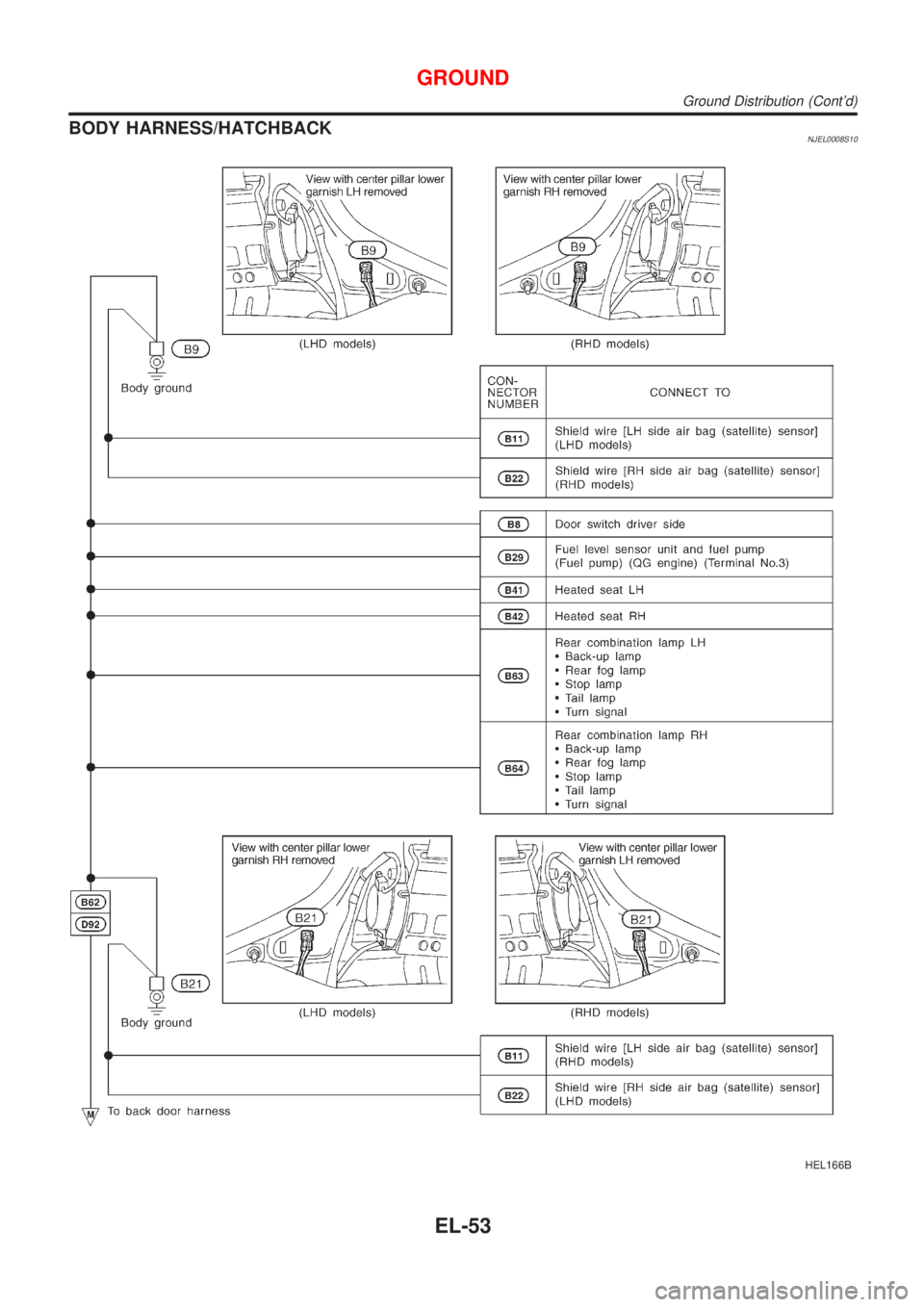

BODY HARNESS/HATCHBACKNJEL0008S10
HEL166B
GROUND
Ground Distribution (Cont'd)
EL-53

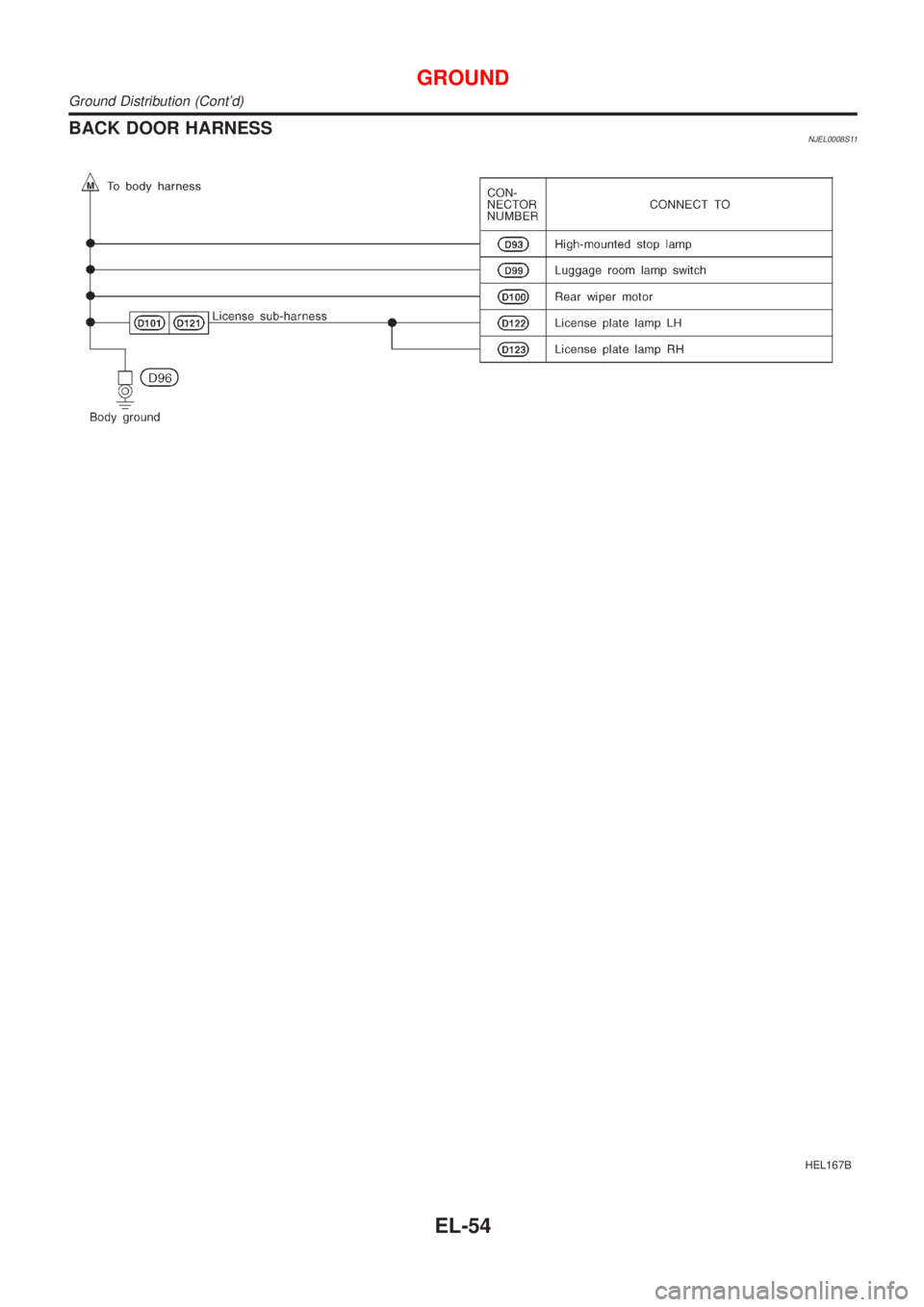

BACK DOOR HARNESSNJEL0008S11
HEL167B
GROUND
Ground Distribution (Cont'd)
EL-54

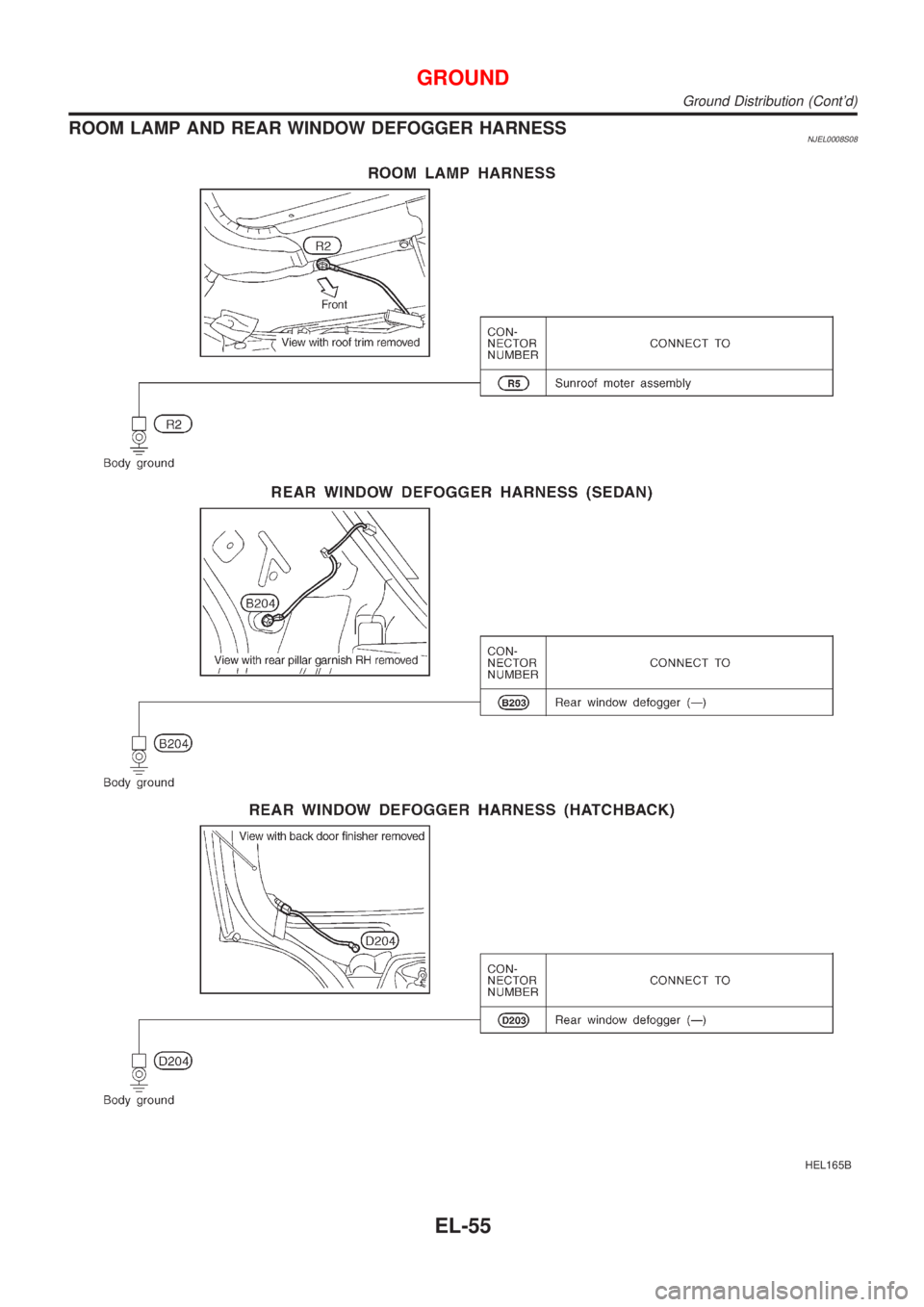

ROOM LAMP AND REAR WINDOW DEFOGGER HARNESSNJEL0008S08
HEL165B
GROUND
Ground Distribution (Cont'd)
EL-55

Check/SedanNJEL0009
HEL851A
COMBINATION SWITCH
Check/Sedan
EL-56

Check/HatchbackNJEL0423
MEL933L
COMBINATION SWITCH
Check/Hatchback
EL-57

CEL501

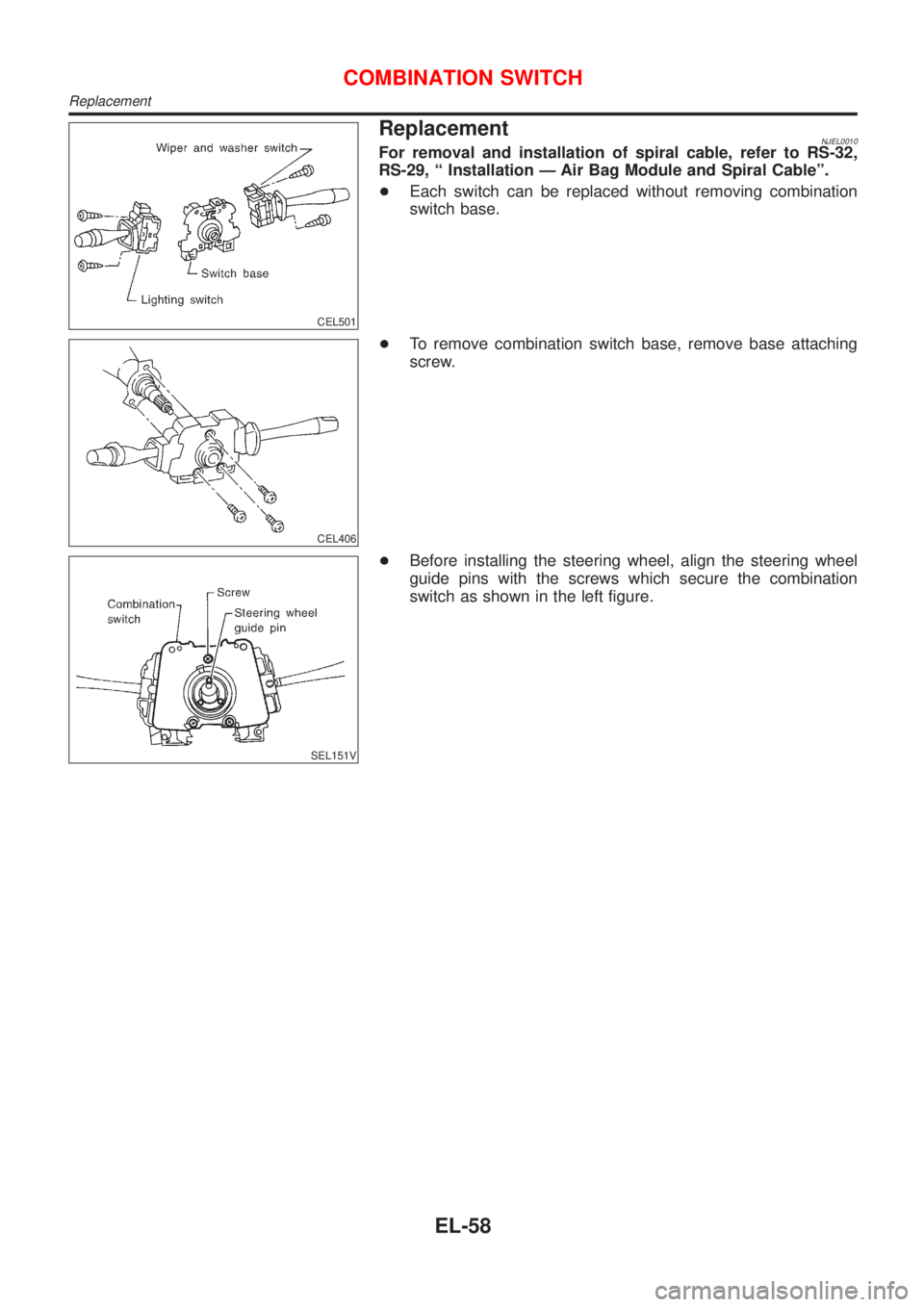

ReplacementNJEL0010For removal and installation of spiral cable, refer to RS-32,
RS-29, ª Installation Ð Air Bag Module and Spiral Cableº.
+Each switch can be replaced without removing combination
switch base.
CEL406
+To remove combination switch base, remove base attaching
screw.
SEL151V
+Before installing the steering wheel, align the steering wheel
guide pins with the screws which secure the combination
switch as shown in the left figure.
COMBINATION SWITCH
Replacement
EL-58

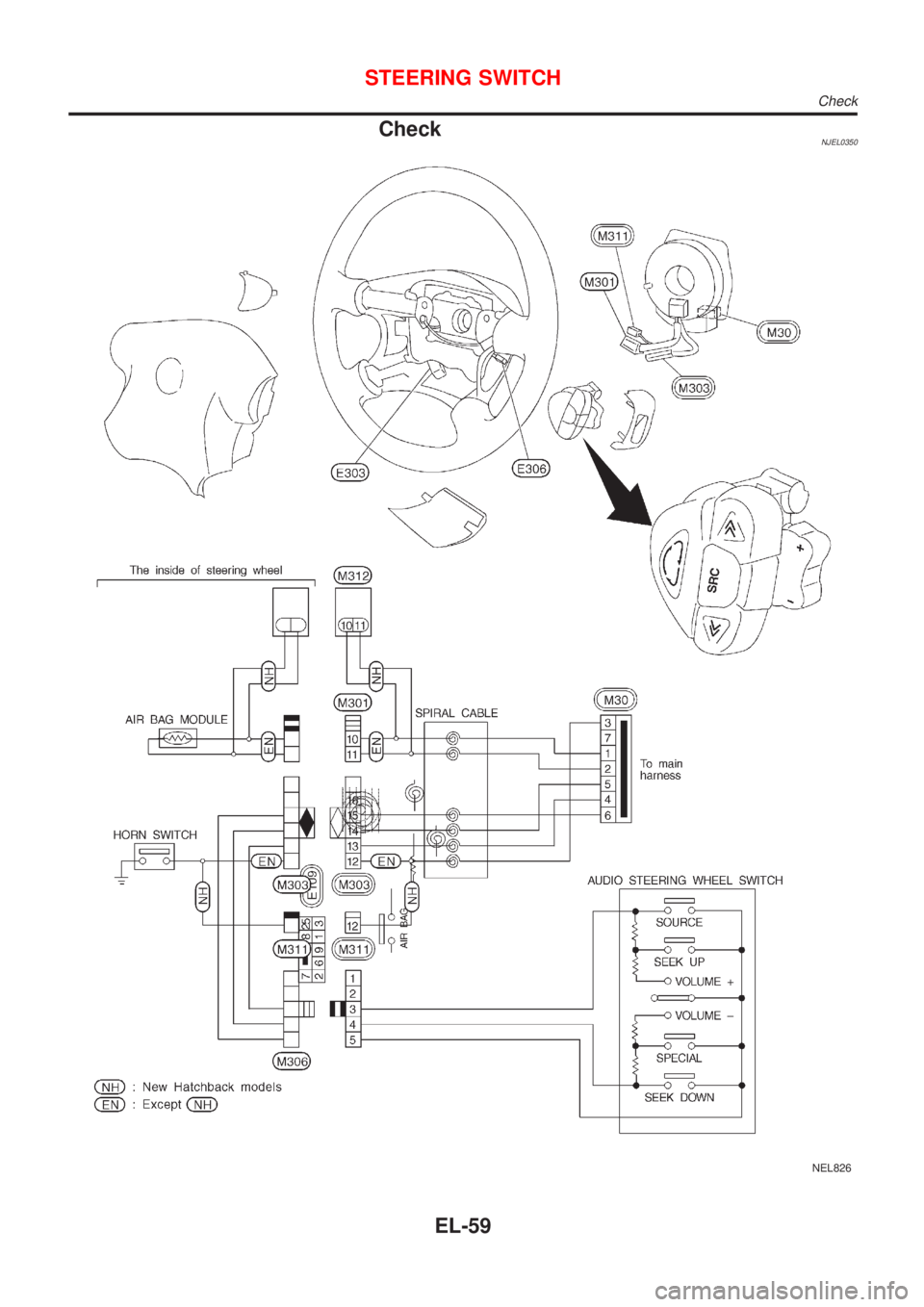

CheckNJEL0350
NEL826
STEERING SWITCH
Check
EL-59

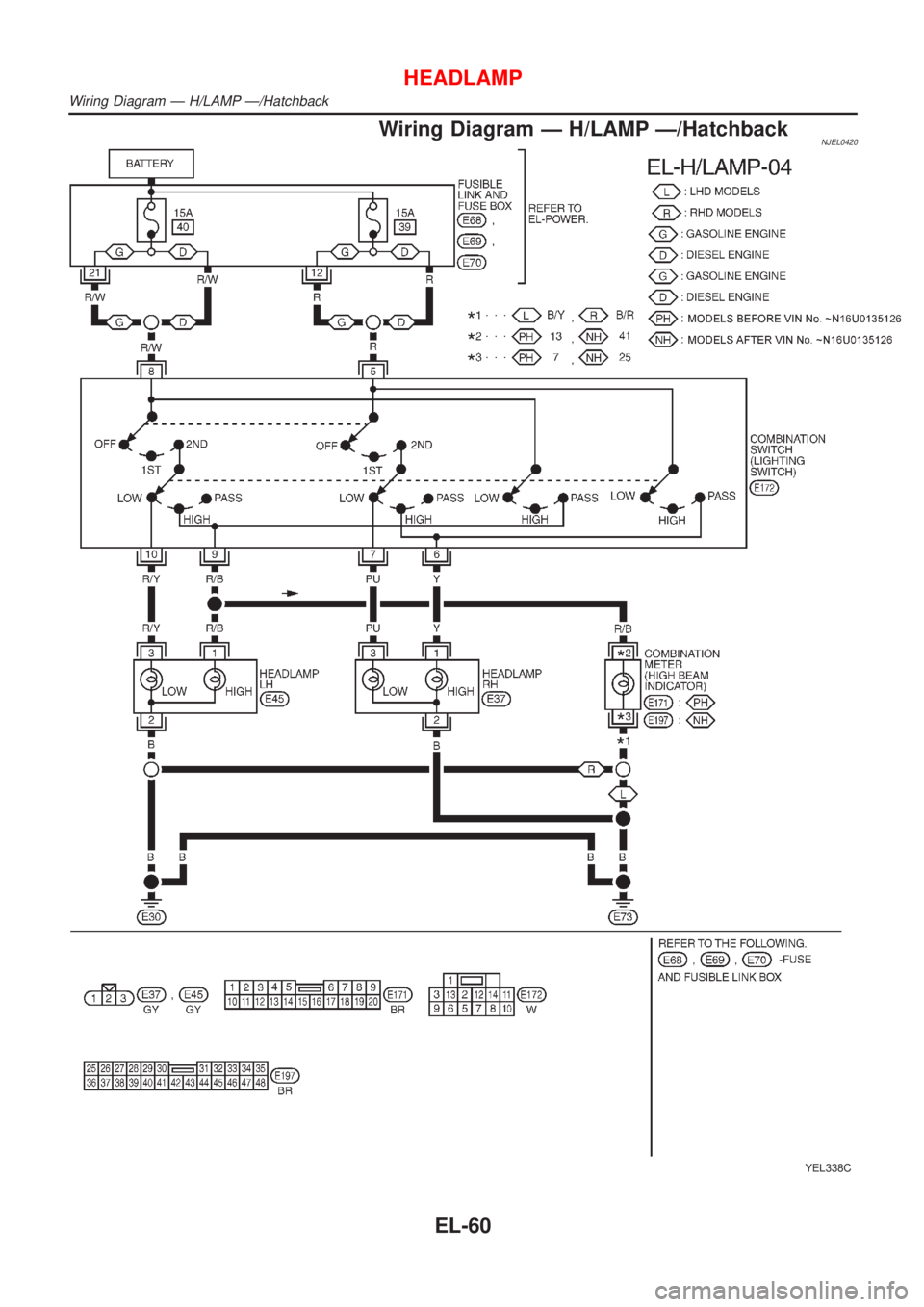

Wiring Diagram Ð H/LAMP Ð/HatchbackNJEL0420
YEL338C
HEADLAMP
Wiring Diagram Ð H/LAMP Ð/Hatchback
EL-60

Wiring Diagram Ð H/LAMP Ð/SedanNJEL0508
HEL363B
HEADLAMP
Wiring Diagram Ð H/LAMP Ð/Sedan
EL-61

HEL364B
HEADLAMP
Wiring Diagram Ð H/LAMP Ð/Sedan (Cont'd)
EL-62
