NISSAN ALMERA 2001 Service Manual

Diagnostic ProcedureNJAT0305
1 CHECK VALVE RESISTANCE
1. Turn ignition switch to ªOFFº position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 2 and ground.
Resistance:
20-30W
SAT900JB
OK or NG
OK©GO TO 2.
NG©1. Remove control valve assembly. Refer to AT-351.
2. Check the following items:
+Shift solenoid valve A
Refer to ªComponent Inspectionº, AT-251.
+Harness of terminal cord assembly for short or open
DTC P0750 SHIFT SOLENOID VALVE AEURO-OBD
Diagnostic Procedure
AT-249

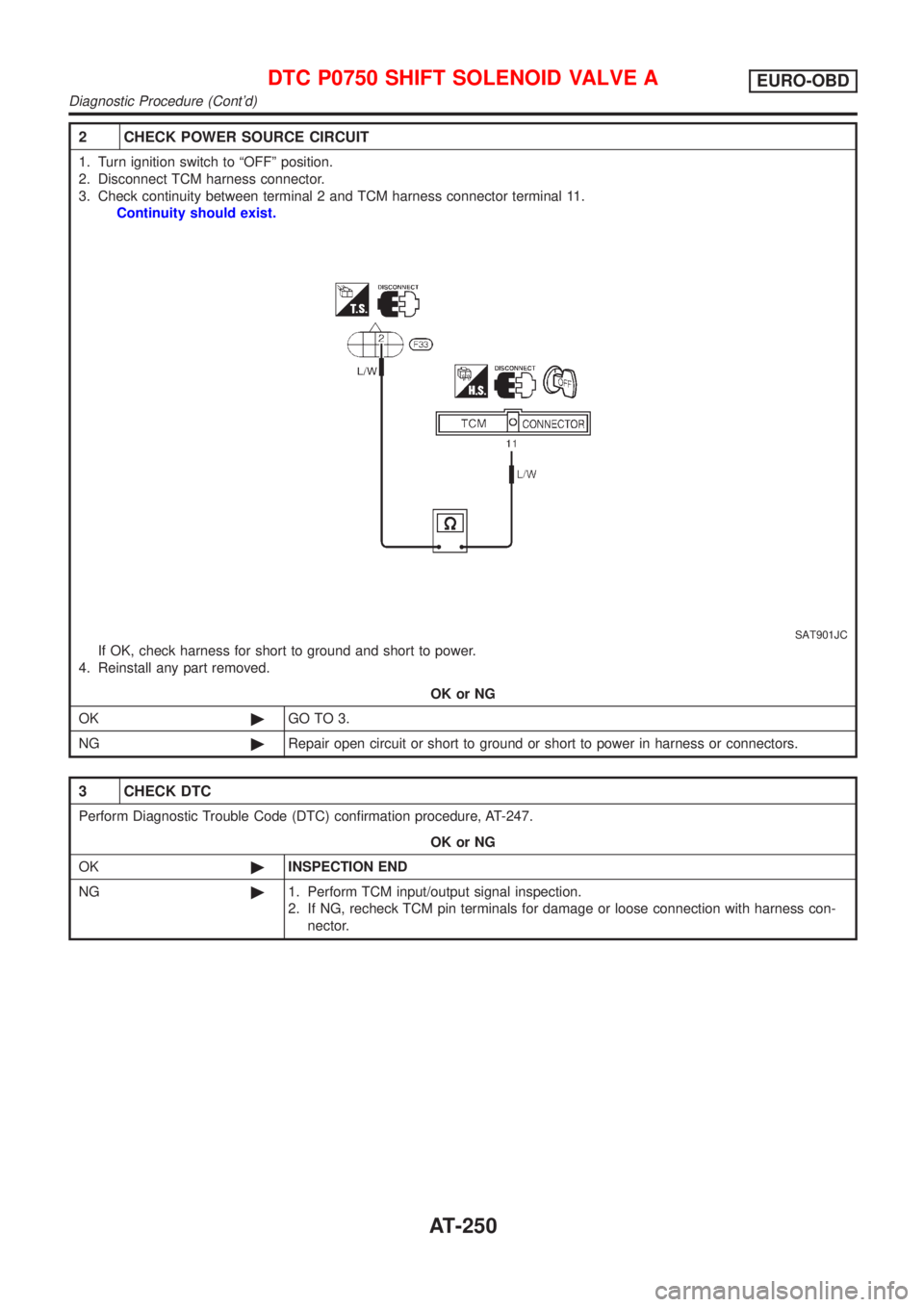

2 CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to ªOFFº position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 2 and TCM harness connector terminal 11.
Continuity should exist.
SAT901JC
If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
OK©GO TO 3.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
3 CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-247.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
DTC P0750 SHIFT SOLENOID VALVE AEURO-OBD
Diagnostic Procedure (Cont'd)
AT-250

SAT056KA

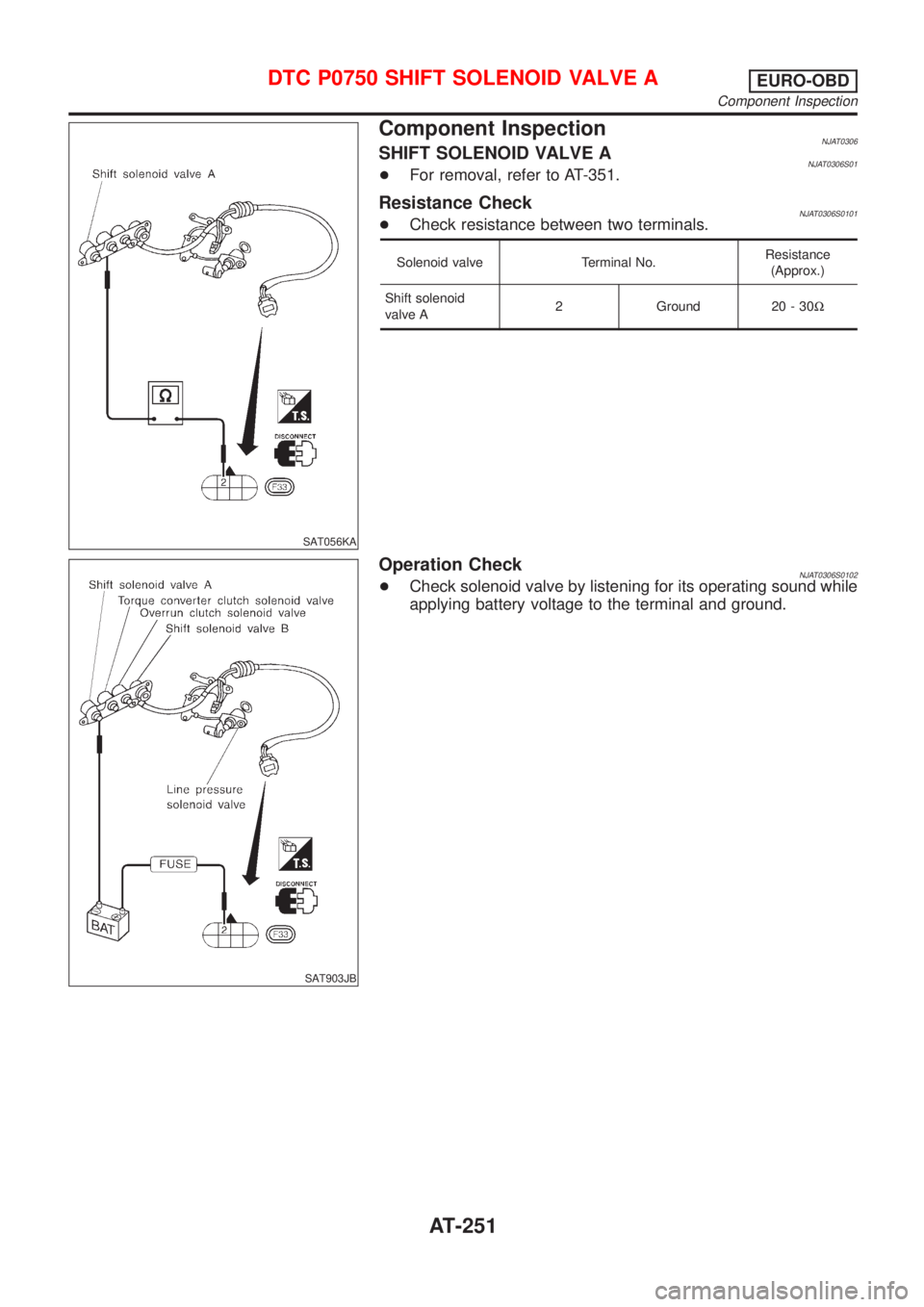

Component InspectionNJAT0306SHIFT SOLENOID VALVE ANJAT0306S01+For removal, refer to AT-351.
Resistance CheckNJAT0306S0101+Check resistance between two terminals.
Solenoid valve Terminal No.Resistance
(Approx.)
Shift solenoid
valve A2 Ground 20 - 30W
SAT903JB
Operation CheckNJAT0306S0102+Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
DTC P0750 SHIFT SOLENOID VALVE AEURO-OBD
Component Inspection
AT-251

SAT322GC

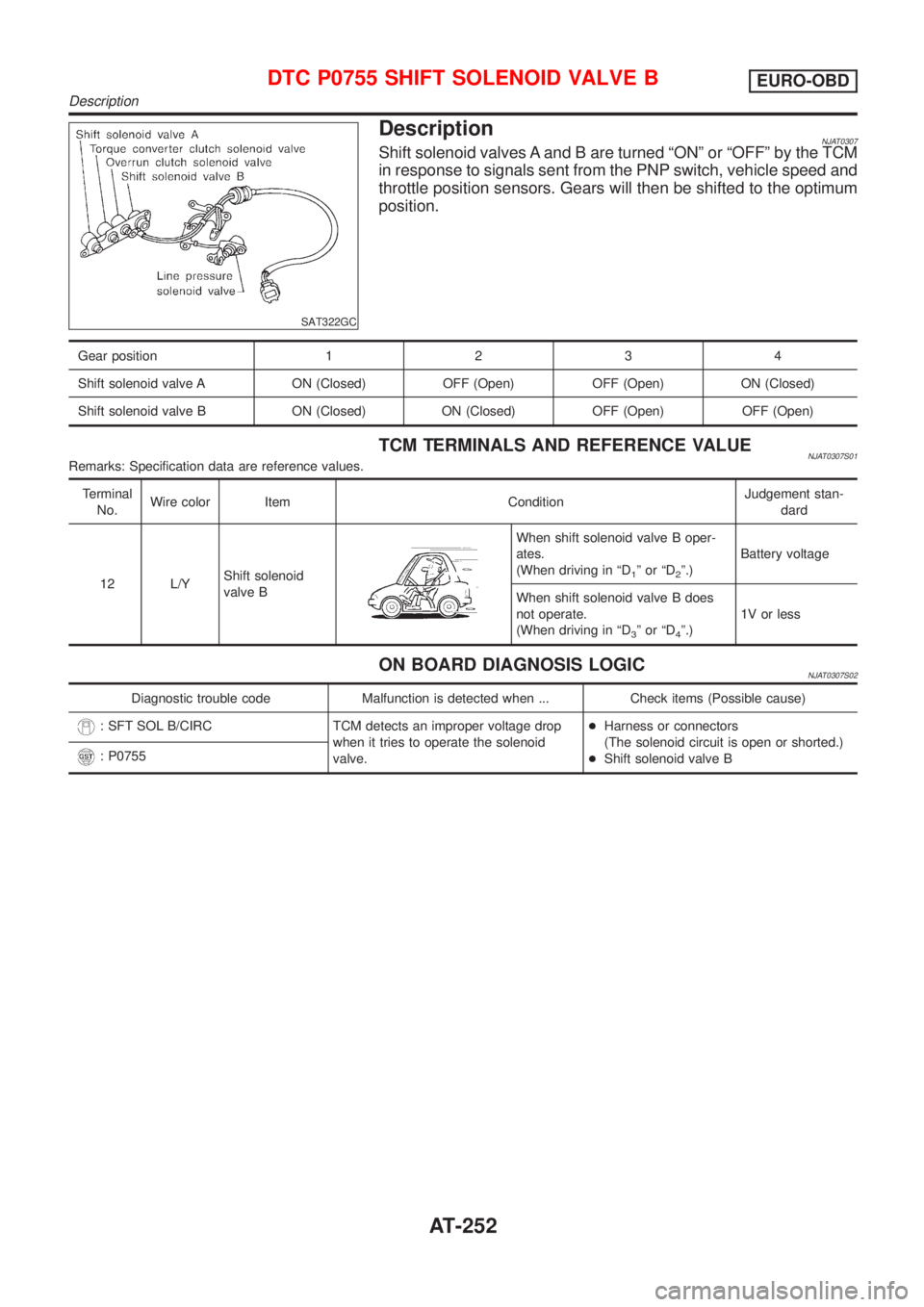

DescriptionNJAT0307Shift solenoid valves A and B are turned ªONº or ªOFFº by the TCM
in response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.
Gear position1234
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
TCM TERMINALS AND REFERENCE VALUENJAT0307S01Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard
12 L/YShift solenoid
valve B
When shift solenoid valve B oper-
ates.
(When driving in ªD
1ºorªD2º.)Battery voltage
When shift solenoid valve B does
not operate.
(When driving in ªD
3ºorªD4º.)1V or less
ON BOARD DIAGNOSIS LOGICNJAT0307S02
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: SFT SOL B/CIRC TCM detects an improper voltage drop
when it tries to operate the solenoid
valve.+Harness or connectors
(The solenoid circuit is open or shorted.)
+Shift solenoid valve B
: P0755
DTC P0755 SHIFT SOLENOID VALVE BEURO-OBD
Description
AT-252

SAT014K
SAT020K

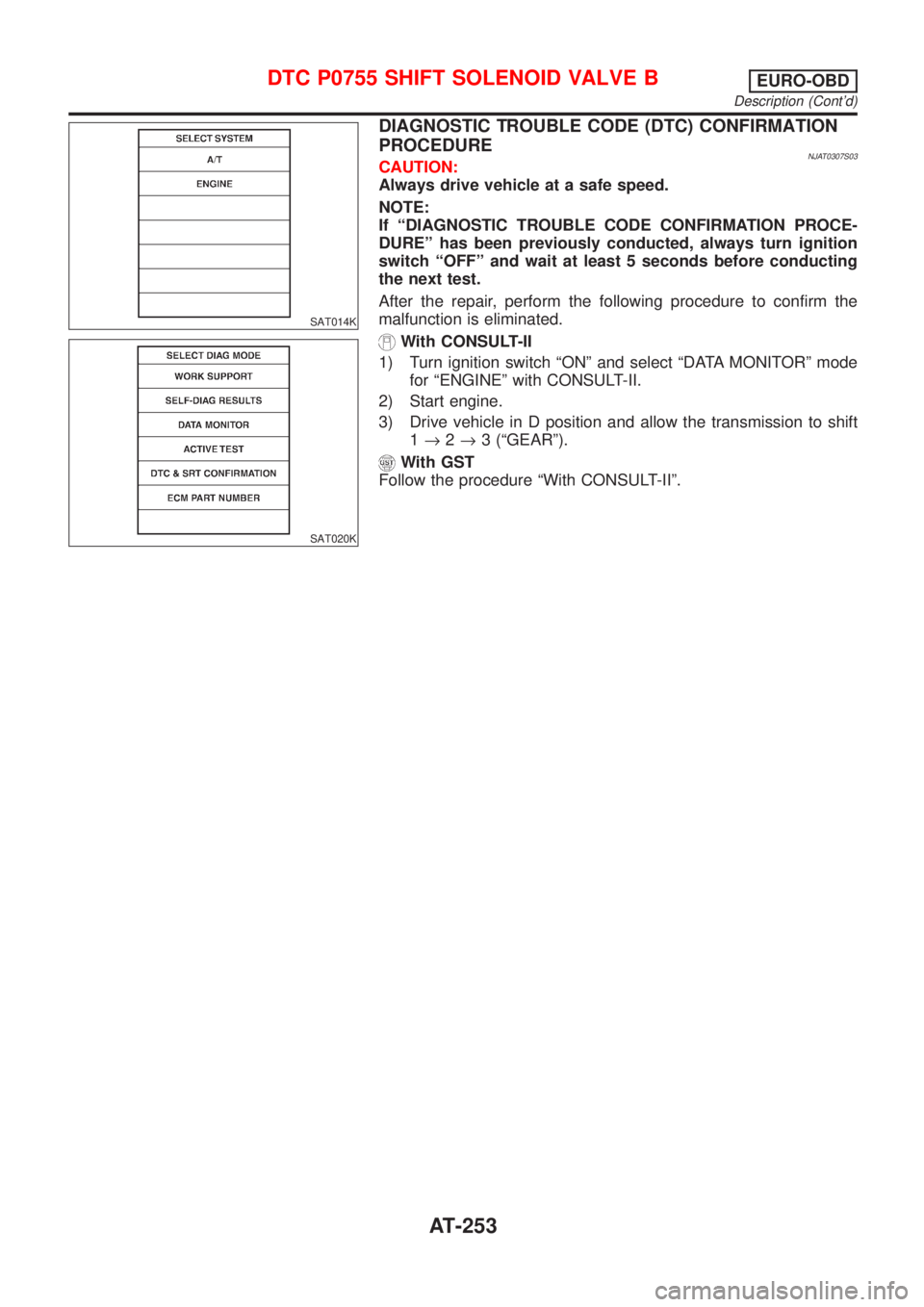

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE
NJAT0307S03CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If ªDIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DUREº has been previously conducted, always turn ignition
switch ªOFFº and wait at least 5 seconds before conducting
the next test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-II
1) Turn ignition switch ªONº and select ªDATA MONITORº mode
for ªENGINEº with CONSULT-II.
2) Start engine.
3) Drive vehicle in D position and allow the transmission to shift
1®2®3 (ªGEARº).
With GST
Follow the procedure ªWith CONSULT-IIº.
DTC P0755 SHIFT SOLENOID VALVE BEURO-OBD
Description (Cont'd)
AT-253

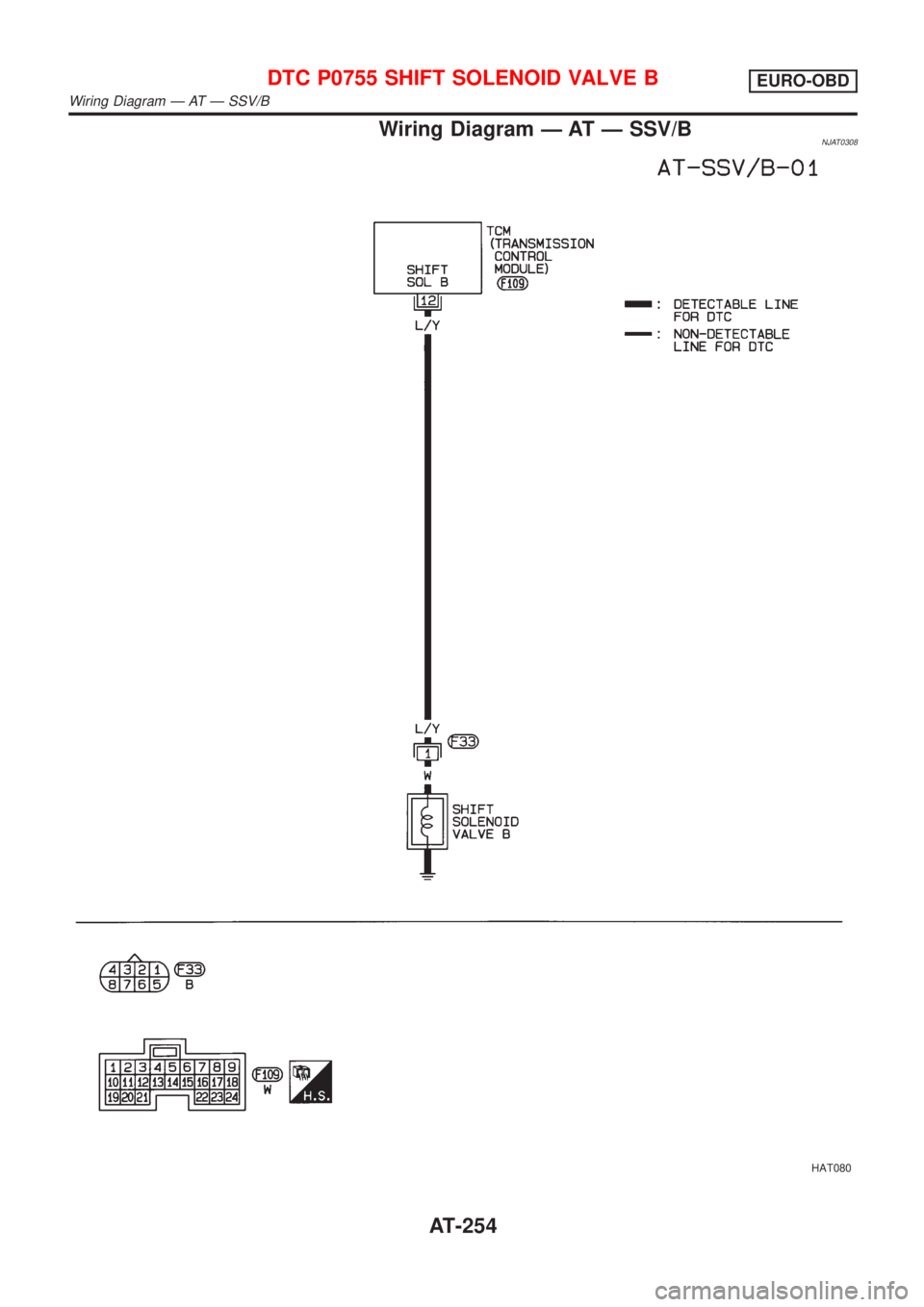

Wiring Diagram Ð AT Ð SSV/BNJAT0308
HAT080
DTC P0755 SHIFT SOLENOID VALVE BEURO-OBD
Wiring Diagram Ð AT Ð SSV/B
AT-254

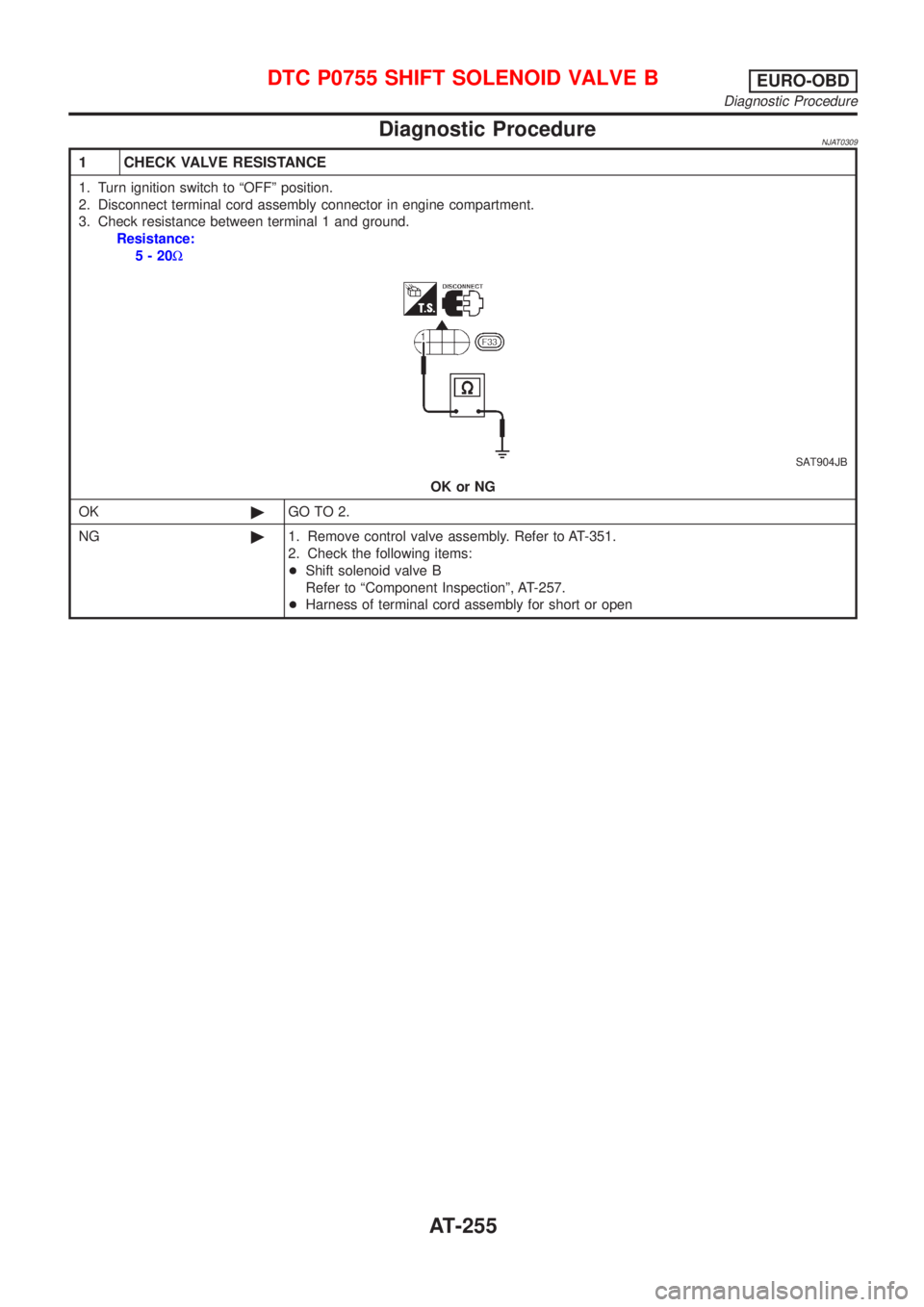

Diagnostic ProcedureNJAT0309
1 CHECK VALVE RESISTANCE
1. Turn ignition switch to ªOFFº position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 1 and ground.
Resistance:
5-20W
SAT904JB
OK or NG
OK©GO TO 2.
NG©1. Remove control valve assembly. Refer to AT-351.
2. Check the following items:
+Shift solenoid valve B
Refer to ªComponent Inspectionº, AT-257.
+Harness of terminal cord assembly for short or open
DTC P0755 SHIFT SOLENOID VALVE BEURO-OBD
Diagnostic Procedure
AT-255

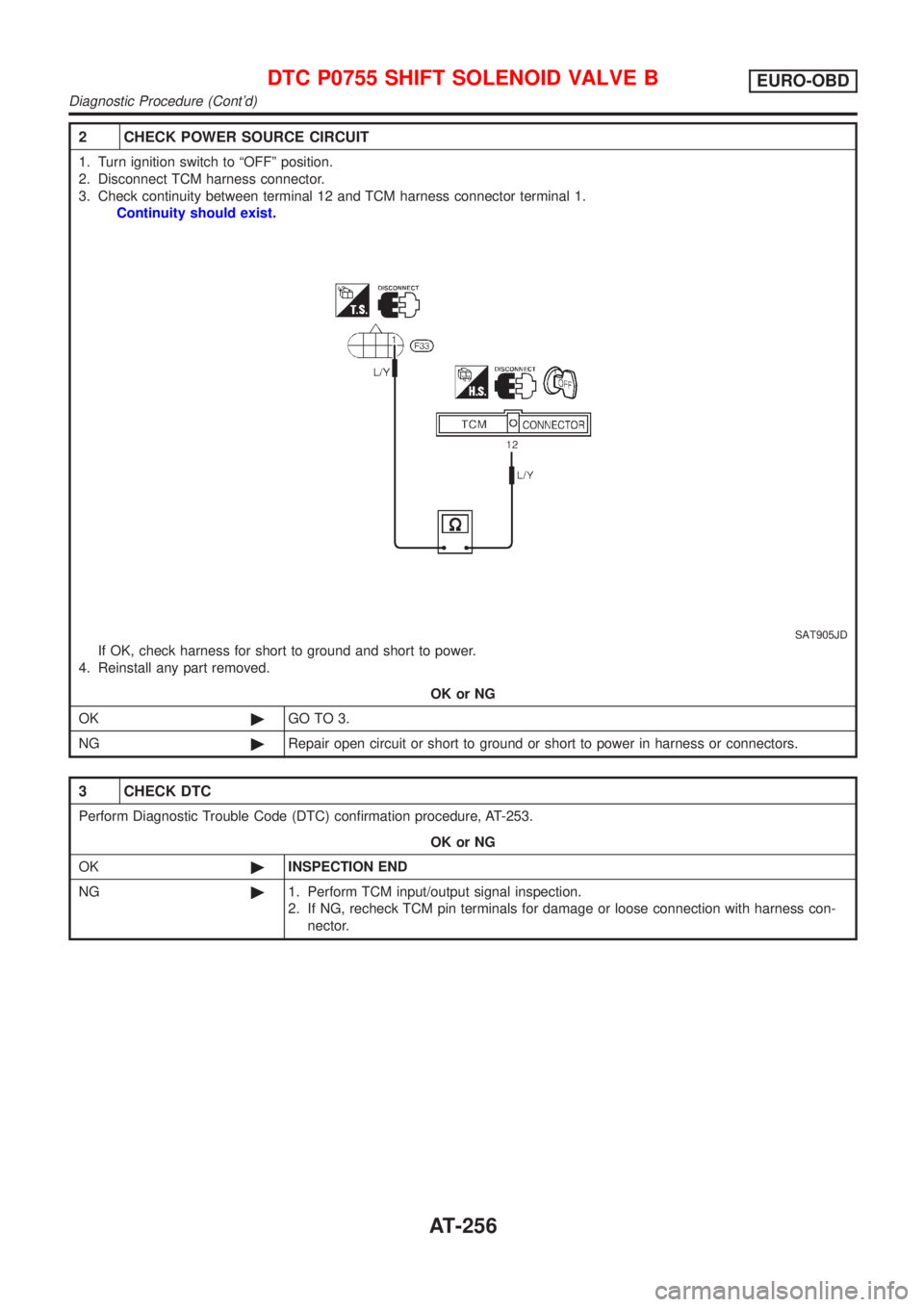

2 CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to ªOFFº position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 12 and TCM harness connector terminal 1.
Continuity should exist.
SAT905JD
If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
OK©GO TO 3.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
3 CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-253.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
DTC P0755 SHIFT SOLENOID VALVE BEURO-OBD
Diagnostic Procedure (Cont'd)
AT-256

SAT057KA
Component InspectionNJAT0310SHIFT SOLENOID VALVE BNJAT0310S01+For removal, refer to AT-351.
Resistance CheckNJAT0310S0101+Check resistance between two terminals.
Solenoid valve Terminal No.Resistance
(Approx.)
Shift solenoid
valve B1 Ground 5 - 20W
SAT907JB
Operation CheckNJAT0310S0102+Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
DTC P0755 SHIFT SOLENOID VALVE BEURO-OBD
Component Inspection
AT-257

SAT004K

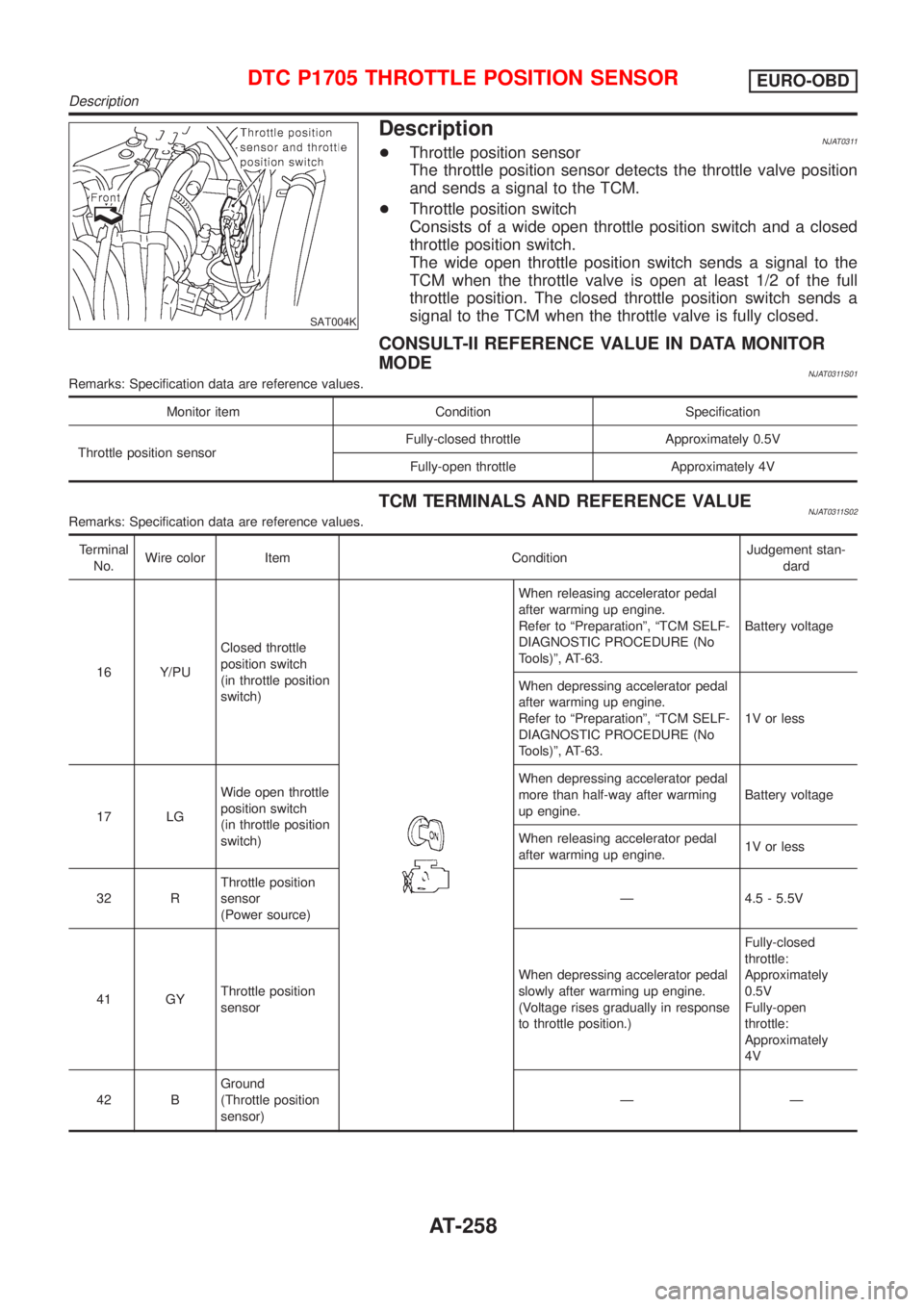

DescriptionNJAT0311+Throttle position sensor
The throttle position sensor detects the throttle valve position
and sends a signal to the TCM.
+Throttle position switch
Consists of a wide open throttle position switch and a closed
throttle position switch.
The wide open throttle position switch sends a signal to the
TCM when the throttle valve is open at least 1/2 of the full
throttle position. The closed throttle position switch sends a
signal to the TCM when the throttle valve is fully closed.
CONSULT-II REFERENCE VALUE IN DATA MONITOR
MODE
NJAT0311S01Remarks: Specification data are reference values.
Monitor item Condition Specification
Throttle position sensorFully-closed throttle Approximately 0.5V
Fully-open throttle Approximately 4V
TCM TERMINALS AND REFERENCE VALUENJAT0311S02Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard
16 Y/PUClosed throttle
position switch
(in throttle position
switch)
When releasing accelerator pedal
after warming up engine.
Refer to ªPreparationº, ªTCM SELF-
DIAGNOSTIC PROCEDURE (No
Tools)º, AT-63.Battery voltage
When depressing accelerator pedal
after warming up engine.
Refer to ªPreparationº, ªTCM SELF-
DIAGNOSTIC PROCEDURE (No
Tools)º, AT-63.1V or less
17 LGWide open throttle
position switch
(in throttle position
switch)When depressing accelerator pedal
more than half-way after warming
up engine.Battery voltage
When releasing accelerator pedal
after warming up engine.1V or less
32 RThrottle position
sensor
(Power source)Ð 4.5 - 5.5V
41 GYThrottle position
sensorWhen depressing accelerator pedal
slowly after warming up engine.
(Voltage rises gradually in response
to throttle position.)Fully-closed
throttle:
Approximately
0.5V
Fully-open
throttle:
Approximately
4V
42 BGround
(Throttle position
sensor)ÐÐ
DTC P1705 THROTTLE POSITION SENSOREURO-OBD
Description
AT-258
