Page 152 of 489

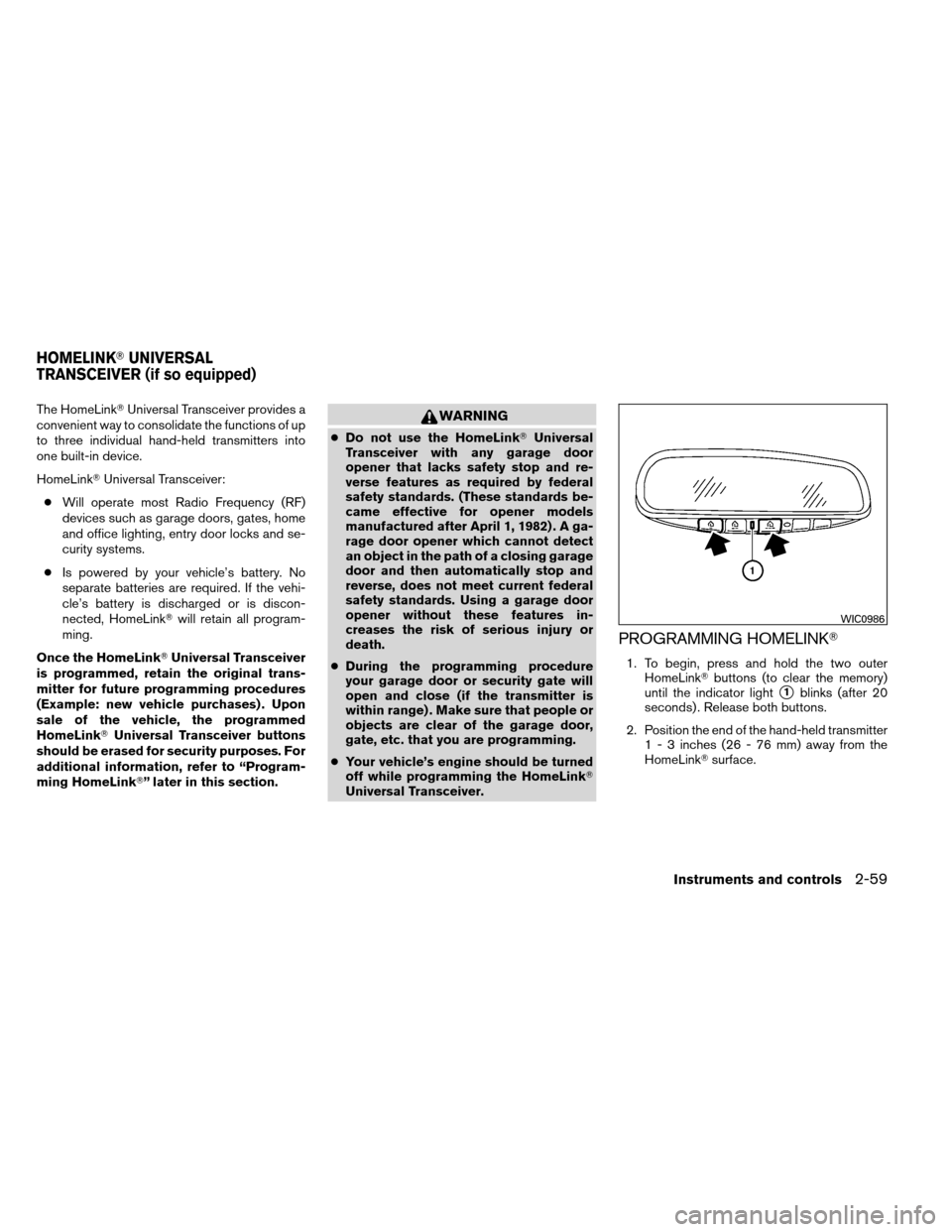

The HomeLinkUniversal Transceiver provides a
convenient way to consolidate the functions of up
to three individual hand-held transmitters into
one built-in device.
HomeLink Universal Transceiver:
● Will operate most Radio Frequency (RF)
devices such as garage doors, gates, home
and office lighting, entry door locks and se-
curity systems.
● Is powered by your vehicle’s battery. No
separate batteries are required. If the vehi-
cle’s battery is discharged or is discon-
nected, HomeLink will retain all program-
ming.
Once the HomeLink Universal Transceiver
is programmed, retain the original trans-
mitter for future programming procedures
(Example: new vehicle purchases) . Upon
sale of the vehicle, the programmed
HomeLink Universal Transceiver buttons
should be erased for security purposes. For
additional information, refer to “Program-
ming HomeLink” later in this section.WARNING
● Do not use the HomeLink Universal
Transceiver with any garage door
opener that lacks safety stop and re-
verse features as required by federal
safety standards. (These standards be-
came effective for opener models
manufactured after April 1, 1982) . A ga-
rage door opener which cannot detect
an object in the path of a closing garage
door and then automatically stop and
reverse, does not meet current federal
safety standards. Using a garage door
opener without these features in-
creases the risk of serious injury or
death.
● During the programming procedure
your garage door or security gate will
open and close (if the transmitter is
within range) . Make sure that people or
objects are clear of the garage door,
gate, etc. that you are programming.
● Your vehicle’s engine should be turned
off while programming the HomeLink
Universal Transceiver.
PROGRAMMING HOMELINK
1. To begin, press and hold the two outer HomeLink buttons (to clear the memory)
until the indicator light
1blinks (after 20
seconds) . Release both buttons.
2. Position the end of the hand-held transmitter 1 - 3 inches (26 - 76 mm) away from the
HomeLink surface.
WIC0986
HOMELINK UNIVERSAL
TRANSCEIVER (if so equipped)
Instruments and controls2-59
Page 195 of 489
4 Monitor, climate, audio, phone and voice
recognition systems
Control panel buttons — color screen without
Navigation System (if so equipped)..................4-2
How to use the NISSAN controller ...............4-3
How to select menus on the screen ..............4-4
How to use the STATUS button ..................4-4
How to use the INFO button .....................4-4
How to use the SETTING button .................4-9
OFF button............................. 4-16
Control panel buttons — color screen with
Navigation System (if so equipped) .................4-16
How to use the NISSAN controller ..............4-17
How to use the touch screen ...................4-17
Start-up screen ............................... 4-19
How to select menus on the screen .............4-19
How to use the STATUS button .................4-20
How to use the INFO button ....................4-20
How to use the SETTING button ................4-25
OFF button............................. 4-32
RearView Monitor (if so equipped) ..................4-33
How to read the displayed lines .................4-33
Adjusting the screen ........................... 4-34
Operating tips ................................. 4-34
Vents . .......................................... 4-35Heater and air conditioner (automatic)
..............4-36
Automatic operation ........................... 4-36
Manual operation .............................. 4-37
Operating tips ................................. 4-38
Rear seat air conditioner .......................... 4-38
Controls ...................................... 4-39
Servicing air conditioner ........................... 4-39
Audio system .................................... 4-40
Radio ........................................ 4-40
FM radio reception ............................ 4-40
AM radio reception ............................ 4-40
Satellite radio reception (if so equipped) . . . ......4-41
Audio operation precautions ....................4-41
FM/AM/SAT radio with compact disc (CD)
changer (if so equipped) .......................4-48
FM/AM/SAT radio with compact disc (CD)
player (if so equipped) ......................... 4-56
CompactFlash (CF) player operation
(if so equipped) ............................... 4-61
Music Box (if so equipped) .................... 4-63
CD/CF (CompactFlash) care and cleaning ......4-72
Steering wheel switch for audio control ..........4-74
Rear audio controls ............................ 4-76
Antenna ...................................... 4-77
Page 196 of 489
NISSAN mobile entertainment system (MES)
(if so equipped).................................. 4-77
Digital video disc (DVD) player controls ..........4-78
Remote control ................................ 4-79
Flip-down screen .............................. 4-79
Before operating the DVD mobile
entertainment system .......................... 4-80
Playing a digital versatile disc (DVD) .............4-82
Remote control operation .......................4-86
Care and maintenance ......................... 4-88
How to handle the DVD ........................ 4-89
Car phone or CB radio . . .......................... 4-91
Bluetooth Hands-Free Phone System without
Navigation System (if so equipped) .................4-92
Regulatory Information ......................... 4-94
Using the system .............................. 4-94
Control buttons ............................... 4-96
Getting started ................................ 4-97
List of voice commands ........................ 4-99
Speaker adaptation (SA) mode................. 4-104
Troubleshooting guide ........................ 4-106
Bluetooth Hands-Free Phone System with
Navigation System (if so equipped) ................4-107 Regulatory Information
........................ 4-109
Voice commands ............................. 4-109
Pairing procedure ............................ 4-109
Phonebook .................................. 4-111
Making a call ................................. 4-112
Receiving a call .............................. 4-113
During a call ................................. 4-114
Ending a call ................................. 4-115
Phone setting ................................ 4-115
Call volume .................................. 4-117
NISSAN Voice Recognition System
(if so equipped) . . . .............................. 4-118
NISSAN Voice Recognition Standard Mode .....4-118
Using
the system ............................. 4-121
Before starting ............................... 4-121
Giving voice commands ....................... 4-122
NISSAN Voice Recognition Alternate
Command Mode ............................. 4-129
Using the system ............................. 4-137
Speaker Adaptation function ...................4-139
Troubleshooting guide ........................ 4-142
Page 255 of 489
SEEK/CAT and TRACKbuttons:
When the SEEK/CAT
button is pressed
while a compact disc is playing, the track being
played returns to its beginning. Press several
times to skip back through tracks. The compact
disc will go back the number of times the button
is pressed.
When the TRACK
button is pressed while
the compact disc is playing, the next track will
start to play from its beginning. Press several
times to skip through tracks. The compact disc
will advance the number of times the button is
pressed. (When the last track on the compact
disc is skipped through, the first track will be
played.)
The NISSAN controller can also be used to se-
lect tracks when a CD is being played.
SEEK/CAT and TRACK
(Rewind·Fast Forward)
buttons:
Press and hold the SEEK/CAT
(rewind)
button or the TRACK
(fast forward) button
while a compact disc is playing; the compact disc
will play while rewinding or fast forwarding. When the button is released, the compact disc will
return to normal play speed.
When the CD button is pressed with the system
off and the compact disc loaded the system will
turn on and the compact disc will start to play.
When the CD button is pressed with the com-
pact disc loaded with the tape or the radio play-
ing, the tape or radio will automatically be turned
off and the compact disc will start to play.
TUNE FLDR (Folder) knob
While playing an MP3/WMA CD, turn the
TUNE/FLDR knob right or left to scan forward or
backward through available folders.
SCAN·RPT (random and repeat) button:
When the SCAN·RPT button is pressed while the
compact disc is being played, the play pattern
can be changed as follows:
CD:
1 DISC RPT
→1 TRK RPT →1 DISC RDM →1
DISC RPT
MP3/WMA CD:
1 DISC RPT →1 FOLDER RPT →1 TRK RPT →
1 DISC RDM →1 FOLDER RDM →1 DISC RPT
1 DISC RPT: the entire disc will be repeated. 1 TRK RPT: the current track playing will be
repeated.
1 DISC RDM: all tracks will be played randomly.
1 FOLDER RPT: the folder currently being ac-
cessed will be repeated.
1 FOLDER RDM: the tracks in the current folder
being accessed will be played randomly.
REAR CTRL:
Pressing the REAR CTRL button turns the rear
seat audio controller on. Rear Controls UN-
LOCKED will display. Pressing the REAR CTRL
button again will turn the rear seat audio control-
ler off. Rear Controls LOCKED will display. If the
vehicle is not equipped with a rear seat audio
controller, the display will show “Rear Controls
Not Available”.
Press and hold the REAR CTRL button for ap-
proximately 1.5 seconds to turn the rear display
screen on. Rear Display ON will display. Press
and hold the REAR CTRL button again to turn the
rear display screen off. Rear Display OFF will
display. If the vehicle is not equipped with a rear
display screen, the display will show “Rear Con-
trols Not Available”.
4-60Monitor, climate, audio, phone and voice recognition systems
Page 271 of 489
1. VOL (volume) control button
2. MODE select button
3.
speaker control button
4. NEXT button
5. SEEK button
6. Headphone jacks 7. Infrared headphone transmitter lens*
*Red transmitters will be visible when
infrared headphones are on.
REAR AUDIO CONTROLS
One or two infrared headphones are included if
the vehicle is equipped with the DVD entertain-
ment system. Most portable radio headphones
work with the rear audio controls.
VOL (volume) button:
(SPEAKER CONTROL) button:
Press this
button to turn the rear speakers
off and headphones on. Press this
button
again to turn rear seat speakers back on and
headphones off.
MODE button:
The MODE button allows the rear passengers to
change between AM, FM, CD, DVD and AUX.
The media options are listed on the face plate of
the rear audio controls. When a source of media
is selected, the media label will be illuminated.
SEEK button:
In AM or FM mode, the SEEK button allows the
rear seat passengers to find the next radio station
up or down the station band frequency.
In CD mode, the SEEK button allows the rear
passengers to find the next or previous selection
on the CD.
LHA0322
4-76Monitor, climate, audio, phone and voice recognition systems
Page 480 of 489
10 Index
4WD warning light...............2-16
A
Adjusting pedal position ............3-30
Air bag (See supplemental restraint
system) .....................1-57
Air bag system Front (See supplemental front impact
air bag system) ...............1-64
Air bag warning labels .............1-71
Air bag warning light ...........1-72, 2-18
Air cleaner housing filter ............8-17
Air conditioner Air conditioner service ...........4-39
Air conditioner specification label .....9-13
Air conditioner system refrigerant and
oil recommendations .............9-8
Heater and air conditioner controls . . . .4-36
Rear seat air conditioner ..........4-38
Servicing air conditioner ..........4-39
Alarm system
(See vehicle security system) .........2-26
Anchor point locations .............1-42
Antenna .....................4-77
Anti-lock brake warning light ..........2-14
Anti-lock Braking System (ABS) ........5-32
Audible reminders ...............2-20
Audio system ..................4-40
Compact Disc (CD) changer .......4-51
Compact disc (CD) player .........4-59Audio System
CompactFlash (CF) player .........4-61
Audio system FM/AM/SAT radio with compact disc (CD)
changer ...................4-48
FM/AM/SAT radio with compact disc (CD)
player ....................4-56
Audio System Music Box hard-disk drive audio
system ....................4-63
Audio system Radio ....................4-40
Rear audio controls .............4-76
Audio System Settings ...............4-48, 4-56
Audio system Steering wheel audio control switch . . .4-74
Autolight switch ................ .2-31
Automatic Automatic
drive positioner .........3-36
Automatic power window switch .....2-53
Automatic transmission position
indicator light ................2-25
Driving with automatic transmission . . . .5-15
Automatic anti-glare inside mirror .......3-32
Automatic door locks ..............3-6
Automatic transmission fluid temperature
gauge .......................2-8
AUX jack .................4-54, 4-61 B
Battery ......................8-14
Charge warning light ............2-15
Before starting the engine ...........5-13
Belt (See drive belt) ..............8-16
Block heater Engine ....................5-38
Bluetooth hands-free phone system . . . .4-92,
4-107
Booster seats ..................1-54
Brake Anti-lock Braking System (ABS) ......5-32
Brake fluid ..................8-12
Brake light (See stop light) .........8-32
Brake system ................5-31
Brake warning light .............2-14
Brake wear indicators ........2-20, 8-23
Parking brake operation ..........5-19
Self-adjusting brakes ............8-23
Brakes ......................8-23
Break-in schedule ...............5-21
Brightness/contrast button .......4-16, 4-32
Brightness control Instrument panel ..............2-33
Bulb check/instrument panel ..........2-13
Bulb replacement ................8-32
Page 481 of 489
C
Capacities and recommended fuel/lubricants . .9-2
Captain’s chair adjustment (2nd row) ......1-5
Cargo light ....................2-58
Cargo (See vehicle loading information) . . . .9-14
Car phone or CB radio .............4-91
CD care and cleaning ..............4-72
CD changer (See audio system) ........4-51
CD player (See audio system) .........4-59
Check tire pressure ...............2-25
Child restraints .......1-35, 1-35, 1-36, 1-38
Precautions on child restraints . . .1-36, 1-44, 1-49, 1-54
Top tether strap anchor point locations . .1-42
Child restraint with top tether strap .......1-41
Child safety rear door lock ............3-7
Chimes, audible reminders ...........2-20
Cleaning exterior and interior ...........7-2
Clock ...................4-49, 4-57
(models with navigation system) . . .4-11, 4-27
Clock set .................4-11, 4-27
C.M.V.S.S. certification label ..........9-12
Cold weather driving ..............5-37
Compact disc (CD) player ...........4-59
CompactFlash (CF) player ...........4-61
Console box ................2-41, 2-47
Control panel buttons ..............4-16
Brightness/contrast button ......4-16, 4-32
Enter button ...............4-2, 4-16
Setting button .............4-9, 4-25
Startup screen ................4-19
Without navigation system ..........4-2
Controls Audio controls (steering wheel) .......4-74Heater and air conditioner controls
.....4-36
Rear audio controls .............4-76
Rear seat air conditioner ..........4-38
Coolant Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-8
Checking
engine coolant level ........8-8
Engine coolant temperature gauge .....2-6
Corrosion protection ...............7-5
Cruise control ..................5-20
Cup holders ...................2-44
Curtain side-impact and rollover air bag . . . .1-69
D
Daytime running light system (Canada only) . .2-32
Defroster switch Rear window and outside mirror defroster
switch .....................2-30
Digital video disc DVD ..............4-77
Dimensions and weights ............9-10
Dimmer switch for instrument panel ......2-33
Display controls
(see control panel buttons) ........4-2, 4-16
Distance to empty .............4-5, 4-21
Door locks .....................3-5
Drive belt .....................8-16
Drive positioner, Automatic ...........3-36
Driving Cold weather driving ............5-37
Driving with automatic transmission . . . .5-15
Precautions when starting and driving . . . .5-2 E
Economy - fuel ..................5-22
Emission control information label .......9-12
Emission control system warranty .......9-33
Engine Before starting the engine ..........5-13
Block heater .................5-38
Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-8
Changing engine oil .............8-10
Changing engine oil filter ..........8-11
Checking engine coolant level ........8-8
Checking engine oil level ...........8-9
Engine compartment check locations . . . .8-6
Engine coolant temperature gauge .....2-6
Engine cooling system ............8-7
Engine oil ...................8-9
Engine
oil and oil filter recommendation . . .9-7
Engine oil viscosity ..............9-7
Engine serial number ............9-12
Engine specifications .............9-9
Starting the engine .............5-13
Engine oil pressure gauge ............2-7
Engine oil pressure low/engine coolant
temperature high warning light .........2-15
Enter button .................4-2, 4-16
Event data recorders ..............9-34
Exhaust gas (Carbon monoxide) .........5-2
Extended storage switch ............8-26
Eyeglass case ..................2-42
10-2
Page 484 of 489
N
NISSAN Intelligent Key™ ..........3-2, 3-12
NISSAN mobile entertainment system
(MES) .......................4-77
NISSAN vehicle immobilizer system . . .2-27, 3-4, 5-13
NISSAN voice recognition system ......4-118
O
Octane rating (See fuel octane rating) ......9-5
Odometer .....................2-5
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil .............8-10
Changing engine oil filter ..........8-11
Checking engine oil level ...........8-9
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-7
Engine oil pressure low/engine coolant
temperature high warning light .......2-15
Engine oil viscosity ..............9-7
Outside mirror control ..............3-34
Outside mirrors .................3-34
Overheat If your vehicle overheats ...........6-10
Owner’s manual order form ...........9-35
Owner’s manual/service manual order
information ....................9-35 P
Parking Parking brake operation ...........5-19
Parking/parking on hills ...........5-30
Pedal position adjustment ............3-30
Personal lights ..................2-58
Phone, Bluetooth hands-free
system ..................4-92, 4-107
Power Power door locks ...............3-6
Power outlet .................2-39
Power rear windows .............2-53
Power steering fluid .............8-12
Power steering system ...........5-31
Power vent windows .............2-54
Power windows ...............2-51
Rear power windows ............2-53
Precautions Maintenance
precautions ...........8-5
On-pavement and off-road driving
precautions ..................5-3
Precautions on child restraints . . .1-36, 1-44,
1-49, 1-54
Precautions on seat belt usage .......1-25
Precautions on supplemental restraint
system ....................1-57
Precautions when starting and driving . . . .5-2
Pre-tensioner seat belt system .........1-70
Programmable features ..........4-9, 4-25
Push starting ...................6-10 R
Radio Car phone or CB radio ...........4-91
Compact Disc (CD) changer ........4-51
FM/AM/SAT radio with compact disc (CD)
changer ....................4-48
FM/AM/SAT radio with compact disc (CD)
player .....................4-56
Rear audio controls .............4-76
Steering wheel audio control switch . . . .4-74
Readiness for inspection maintenance (I/M)
test ........................9-34
Rear audio controls ...............4-76
Rear center seat belt ..............1-31
Rear power windows ..............2-53
Rear seat air conditioner ............4-38
Rear sonar system ................5-35
Rear sonar system off switch ..........2-37
RearView Monitor ................4-33
Rear window and outside mirror defroster
switch .......................2-30
Rear window wiper and washer switches . . .2-29
Recorders Event data ..................9-34
Refrigerant recommendation ...........9-8
Registering your vehicle in another country . .9-11
Remote controller (See NISSAN mobile
entertainment system) ..............4-79
Remote keyless entry system ...........3-7
Reporting safety defects (US only) .......9-33
Resetting the fuel economy ........4-5, 4-21
Roof rack .....................2-50
10-5
