NISSAN ARMADA 2012 1.G Quick Reference Guide

Quick RefeRence Guide
2 012
ARMAdA

*See your Owner’s Manual for information.
HeAd LiGHT And Tu Rn S iG nAL c OnTROL
in STR uM enT BR iGHTne SS cOnTROL*
Ve Hic Le infORMATi On di SPLAY*
LOW T iRe PRe SSuRe WARnin G LiGHT
W ind SHieL d W iPeR / WASHeR SW iT c H STee
Rin G WH eeL SW iTc HeS fOR
A udi O* / BLueTOOTH
® / nAVi GATiOn
cR uiSe cOn TROL
POW eR LifTGATe SW iTc H
POW eR VenT W indOWS*
P ed AL POS iTiOn Ad Ju STM enT SW iTc H* R
eAR SO nAR SYSTe M Off SW iTc H*
ST eeRin G WHeeL T iLT AdJu STMen T*
HOO d ReLeAS e*
cOn TROL PA neL diSPLAY*
A u d i O SYST eM
A uTOMATic c LiMATe c OnTROLS f
RO nT PASS enGeR Ai R BAG
STATu S LiGHT*
A u XiLiARY JA ck*
TOW MOde SWiTcH*
Ve Hic Le d YnAM ic cOnTROL (Vdc)
Off SWi TcH*
H eATed S eAT SWiTc H*
0102030405
0607080910
11 12131415
17
16
18192021
01
02
04
03
05
08
09
10
11
12
13
14
1516
17
18
19
21
21
20
06
07

TABLe Of cOnTenTS
Ess Ential i nformation
Loose fuel cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . 2
Tire Pressure Monitoring System (TPMS) ...........................2
first DrivE fEatur Es
ni SSAn intelligent k ey
® System (if so equipped) ....................3
Power Liftgate Release (if so equipped) ............................3
Power Seat Adjustments (if so equipped) ...........................4
Automatic drive Positioner (if so equipped) ......................... 4
Outside Mirror control Switch .................................... 5
Starting/Stopping the engine (ni SSAn intelligent key
® models only -
if so equipped)) ................................................ 5
Headlight control Switch ........................................ 5
Windshield Wiper/Washer Switch ................................. 6
Automatic climate controls ...................................... 7
f M/AM/XM
® Satellite Radio with cd Player (if so equipped) .......... 8
cruise control ................................................. 9
fuel-filler door ............................................... 10
s yst Em GuiDE
Trip computer (if so equipped) .................................. 11
Bluetooth
® Hands-free Phone System (if so equipped)
System Operating Tips ....................................... 11
Bluetooth
® System without navigation (if so equipped) ............ 12
Bluetooth® System with navigation (if so equipped) ...............14
navigation System (if so equipped) ...............................16
ni SSAn Mobile entertainment System (M eS) (if so equipped) ........16
HomeLink
® universal Transceiver (if so equipped) ...................17
• A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
f or more information, refer to the “safety –– seats, seat belts and
supplemental restraint system (section 1)”, “monitor, climate, audio,
phone and voice recognition systems (section 4)” and “starting and
driving (section 5)” of your Owner’s Manual.
Additional information about your vehicle is also available in your Owner’s Manual, navigation System Owner’s Manual and at www.nissanusa.com.
To view detailed
instructional videos, go to
www.nissanownersinfo.mobi/2012/armada or snap this barcode with an appropriate barcode reader.

tirE Pr Essur E monitorin G systEm (tPms)
A ChEC k tirE PrEssurE warning message will

appear in the vehicle information display
01 and
the low tire pressure warning light 02 will illuminate
when one or more tires are low on pressure
and air is needed.
• The tire pressures should be checked when the
tires are cold. The tires are considered cold after
the vehicle has been parked for 3 hours or more or
driven less than 1 mile (1.6km) at moderate speeds.

After tire pressures are adjusted, drive the vehicle
at speeds above 16 MPH (25km/h). The Ch ECk
tirE P rEssurE warning message and the
low tire pressure warning light will disappear.

When the low tire pressure warning light flashes for
1 minute and then remains on, the TPMS is not
functioning properly. Have the system checked by a ni SSAn dealer.

Tire pressure rises and falls depending on the heat caused by the vehicle’s operation and the
outside temperature. Low outside temperature can lower the temperature o\
f the air inside the
tire, which can cause a lower tire inflation pressure. This may cause the low tire pressure
warning light to illuminate. if the warning light illuminates in low ambient temperature, check
the tire pressure in your tires.
• Check the tire pressure (including the spare tire) often and always prior to long distance trips.

The Tire and Loading information label contains valuable information. Please refer to section 9,
“Technical and consumer information”, in your Owner’s Manual for the location of the Tire and
Loading information label.
for more information, refer to the “instruments and controls (section 2)”, the “starting and driving (section 5)” and the
“maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
loos E fuEl C aP
A loos E fuEl CaP warning message will appear
in the vehicle information display

01 when the fuel-
filler cap is not tightened correctly.

To tighten, turn the cap clockwise until a single click
is heard.

The warning message will disappear when the vehicle
detects the fuel-filler cap is properly tightened and the
reset button

02 is pressed.


if the cap is not properly tightened, the Malfunction indicator Light may illuminate.
f
or more information, refer to the “instruments and controls (section 2)” and the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
2
essential information
0102
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
02
01

3
01
first drive features
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
nissan intE lliGE nt k Ey® systE m (if so equipped)
The niSSAn intelligent k ey® System allows you to lock or
unlock the vehicle, open the liftgate and start the engine.
n OTe: it is important to make sure the intelligent k ey is
with you (that is, in your pocket or purse).

The operating range of the intelligent k ey is within
31.5 in (80 cm) from each request switch.

To lock the vehicle, push either door handle request
switch

01 once or press the
button
02 on the keyfob.

To unlock the vehicle, perform one of the following procedures:
• Push either door handle request switch

01 once;
the corresponding
door will unlock. Push the door handle request switch
01 again within
30 seconds; all other doors will unlock, or
• Press the

button
03 on the keyfob to unlock the driver’s side door.
Press the
button again; all other doors will unlock.

To open the liftgate, press the
button
04 for more than 0.5 seconds.

The intelligent k ey can also be used to activate the panic alarm by pressing and holding \
the


button
05 for more than 0.5 seconds. Once activated, the panic alarm and headlight\
s

will stay on for 25 seconds.
for more information, refer to the “Pre-driving checks and adjustments (section 3)”, the “starting and driving (section 5)”
and the “maintenance and do-it yourself (section 8)” of your Owner’s Manual.
P o WE r li ft Gat E rElE as E (if so equipped)
When the liftgate is closed, the liftgate will fully open
automatically by:

Pushing the power liftgate switch
01 on the
instrument panel.

Pulling the power liftgate handle
02 , once the
vehicle is unlocked.

Pressing the rear liftgate release button
03 on the keyfob for more
than 0.5 seconds.
for more information, refer to the “Pre-driving checks and adjustments (section 3)” of your
Owner’s Manual.
02
01
03
02
03
04
05

4
first drive features
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
Po WE r s Eat aDJ ustmEnts (if so equipped)
To slide the seat forward or backward, push the
control switch

01 forward or backward.

To adjust the angle of the seatback, push the switch


02 forward or backward.
SeAT LifTe R (driver’s seat only)

To adjust the angle and height of the seat cushion,
push the front or rear end of the switch

01 up
or down.
MAnu AL LuMBAR S uPPORT (driver’s seat only)

To adjust the lumbar area, move the lever
03 up or down.
f
or more information, refer to the “safety –– seats, seat belts and supplemental restraint system (section 1)” of your
Owner’s Manual.
0102
03
automati C DrivE P osition Er (if so equipped)
Two positions for the driver’s seat, accelerator and
brake pedals and outside mirrors can be stored in
the automatic drive positioner memory.

follow these procedures to set the memory positions:
• Confirm the shift lever is in the P (P ark) position.
• Place the ignition switch in the on position.
• Adjust the driver’s seat, accelerator and brake
pedals and outside mirrors to the desired positions
using the adjusting switches for each feature.
• Push the s Et switch and within 5 seconds, push the memory switch (1 or 2) for at least
1 second.
• The indicator light on the memory switch you select will illuminate for approximately 5 seconds.
• The driver’s seat, accelerator and brake pedals and outside mirror positions are now set to
your preference.

These memorized positions can also be linked to your ni SSAn intelligent key®.
for more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.

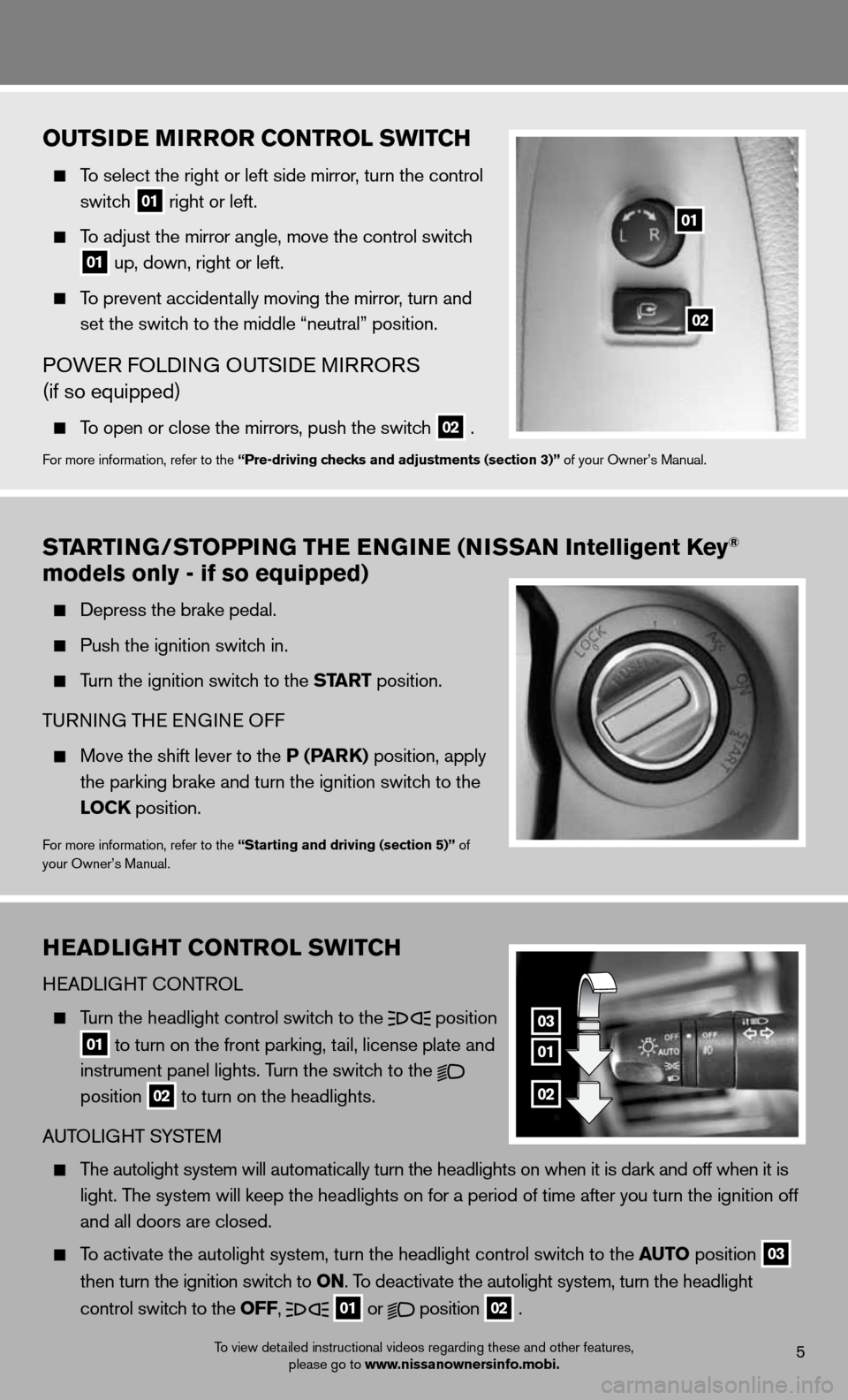

outsiDE mirror Control sWit Ch
To select the right or left side mirror , turn the control
switch

01 right or left.

To adjust the mirror angle, move the control switch

01 up, down, right or left.

To prevent accidentally moving the mirror, turn and
set the switch to the middle “neutral” position.
POWe R fOLdinG Ou TSide MiRRORS
(if so equipped)
To open or close the mirrors, push the switch
02 .f
or more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
02
01
startinG/stoPPin G thE EnG in E (nissan intelligent k ey®
models only - if so equipped)
depress the brake pedal.

Push the ignition switch in.

Turn the ignition switch to the start position.
T uRnin G THe enGine Off

Move the shift lever to the P (P ark) position, apply
the parking brake and turn the ignition switch to the
loCk position.
for more information, refer to the “starting and driving (section 5)” of
your Owner’s Manual.
5To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
hEaD liGht Control sWit Ch
H eAd LiGHT c OnTROL

Turn the headlight control switch to the
position


01 to turn on the front parking, tail, license plate and

instrument panel lights. Turn the switch to the

position
02 to turn on the headlights.
A uTOLi GHT SYSTe M

The autolight system will automatically turn the headlights on when it is\
dark and off when it is
light. The system will keep the headlights on for a period of time after you tur\
n the ignition off
and all doors are closed.

To activate the autolight system, turn the headlight control switch to the auto position
03
then turn the ignition switch to on. To deactivate the autolight system, turn the headlight

control switch to the off,

01 or
position
02 .

01
03
02

WinDshiEl D WiPEr/W ashEr sW itCh
Move the lever to the following positions to operate
the windshield wipers:

01 Mist (mist) - One sweep operation of the
front wipers.

02 intermittent (int) - front wipers operate
intermittently. The intermittent operation speed
can be adjusted by twisting the time control
ring
03 .

04 Low (lo) - front wipers operate at a continuous
low-speed.

05 High (hi) - front wipers operate at a continuous
high-speed.

06 Pull the lever toward you to activate the front
washer. The front wipers will operate several
times.
Re AR W indSHieL d W iPeR A nd WASHeR

07 intermittent (int) - Rear wiper operates
intermittently.

08 Low (on) - Rear wiper operates at a continuous
low-speed.

09 Push the lever forward to activate the rear washer.
The rear wiper will operate several times.
for more information, refer to the “instruments and controls (section 2)” of your Owner’s Manual.
6
first drive features
To view detailed instructional videos regarding these and other features,
please go to www.nissanownersinfo.mobi.
HiGH B eAM S eLec T

Push the headlight control switch forward
04 to

select the high beam function. The blue indicator
light
illuminates in the instrument panel. Pull
the headlight switch back to the original position
to select the low beam. The blue indicator light
goes off.
Pull and release the headlight control switch
05
to flash the headlight high beams on and off.

fOG Li GHT SW iTc H (if so equipped)
n OTe: The headlights must be on and the low beams

selected for the fog lights to operate.

Turn the switch (inside collar) to the
position
06
to turn the fog lights on.

Turn the switch (inside collar)
to the off position to
turn the fog lights off.
for more information, refer to the “instruments and controls (section 2)” of your Owner’s Manual.
04
05
06
03
01
02
04
05
mist
off
int
lo
hi
06
09
int
on07
08

7To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
01
0408
09
05
0607
0203
automatiC ClimatE Controls
01 auto B
utton/DrivE r’s si DE tEmPE ratur E Control D ial

The auto mode may be used year-round. Press the auto button to turn the system on
and the system will automatically control the inside temperature (autom\
atic cooling and/or
dehumidified heating), air flow distribution and fan speed.

Turn the driver’s side temperature control dial left for cooler air or\
right for warmer air.
02 D
ual B utton /Pass En GE r’s si DE tEmPE ratur E Control D ial

Press the passenger’s side D ual control button to turn the passenger’s side temperature
controls on or off. This will allow the passenger’s side temperature to be adjusted
independently from the driver’s side by turning the passenger’s side control.

Turn the passenger’s side temperature control dial left for cooler air\
or right for
warmer air.
03 fan s
PEED Control B uttons

Press the fan speed control buttons to manually adjust the fan speed fas\
ter
or

slower

.
04 DE
frostin G/DEfoGG inG front an D siDE Win Do Ws

Press the front window defroster button
to turn the system on. The A/c automatically

turns on when the defroster mode is selected. This feature removes humidity from the air.

use the temperature control dial
01 to set the desired temperature.

To set the defroster on high, press the fan speed control button to increase the fan
speed to the maximum setting.
05 moDE B
utton

Press the moDE button
05 to cycle through the following air flow outlets:

Air flows from the center and side vents.

Air flows from the center, side, and foot vents.

Air flows mainly from the foot vents.

Air flows from the defroster and foot vents.
06 r
Ear Win Do W an D outsi DE mirror (if so equipped) DE frostEr sWitCh

Push the rear window defroster switch
to turn the system on or off.

The rear window defroster automatically turns off after approximately 15 minutes.

fm/am /Xm®* satE llitE raD io With CD PlayE r (if so equipped)
01 VOLUME/ON•OFF CONTROL KNOB

Press the VOL/ON•OFF control knob to turn the system on or off.

Turn the knob right or left to increase or decrease the volume.
02 tun
E/folDE r/au Dio Control knoB

To manually tune the radio, turn the tunE/fol DEr/auDio knob left or right.
03 s
EE k/C at an D tra Ck Buttons

To scan quickly and stop at the previous or next broadcast station, press the sEEk /Cat
button or the tra Ck button.

f or XM® satellite radio, press the sEEk /Cat button or the tra Ck button to switch
to the first channel of the previous or next category.

To change tracks on a cd, press the sEEk /Cat button or the tra Ck button.

To fast forward or rewind a track on a cd, press and hold the sEEk /Cat button or
the tra Ck button.
02
03
05
06
01
0404
8
first drive features
To view detailed instructional videos regarding these and other features,
please go to www.nissanownersinfo.mobi.
07 air r
ECirCulation B utton

Press the air recirculation button
to recirculate air inside the vehicle. The indicator

light on the button will illuminate. This system is used to avoid outside odors and helps to
adjust the inside vehicle temperature more effectively.

Press the air recirculation button
again to turn air recirculation off. This allows outside

air to be drawn into the passenger compartment to prevent fogging in def\
rost, floor or
defrost/floor modes.

The air recirculation mode can only be selected if the air flow control\
mode is in the
or
position.
08 a/C B
utton

Press the a/C button to manually turn the A/c on or off.
09 off B
utton

Press the off button to turn the climate control system off.
for more information, refer to the “instruments and controls (section 2)” and the “monitor, climate, audio, phone and voice
recognition systems (section 4)” of your Owner’s Manual.
*XM® Satellite Radio is only available on vehicles equipped with optional XM® satellite subscription service.
