NISSAN CUBE 2011 3.G Quick Reference Guide

2011
cube
Quick RefeRence Guide

*See your Owner’s Manual for more information.
LOW TiRe PR eSS uRe WAR ninG Li GHT
H eAd LiGHT And Tu Rn S iG nAL c OnTROL
in STR uM enT BR iGHTne SS cOnTROL*
TW in TR iP O dOM eTe R / TR iP c OMP uTeR*
W ind SHieLd W iP eR / WASH eR SW iTc H STee
Rin G WH eeL SW iTc HeS fOR
A udi O / BLueTOOTH
®
cRui Se c OnTROL
O uTS ide M iRROR c OnTROL SW iTc H
STee Rin G WH eeL Ti LT Ad Ju STM enT* Ve
Hic Le d YnAM ic cOnTROL (Vdc)
O ff SW iTc H*
fue L-fiLLe R dOOR R eLeAS e
HOO d ReLeAS e*
A udi O And nAVi GATiOn SYSTe M f
RO nT PASS enGeR Ai R BAG
STATu S LiGHT*
P u SH B uTTO n iGniTi On SW iTc H
A uTOMATic c LiMATe c OnTROLS
POW eR O uTLeT*
0102030405
09
10
16
06
11
17
07
12
14
08
13
15
01
03
04
02
05
1008
06
13
15
07
09
16
17
12
11
14

This easy-to-use Quick Reference Guide is intended to help you more fully
appreciate some of the unique features and functions of your new vehicle.
However, it is not intended to replace your Owner’s Manual. The Owner’s
Manual contains more detailed information to help you better understand
the important safety warnings, features, operation and maintenance of your
vehicle. All information, specifications, photographs and illustrations in this
publication are those in effect at the time of printing. niSSA n reserves the
right to change specifications or design without notice and without obligation.
TABLe O f cOnTenTS
Additional information about your vehicle is also available in your Owner’s
Manual, navigation System Owner’s Manual, electronic Quick Reference
Guide (e QRG) and at www.nissanusa.com.
New SYSTe M FeaTureS
navigation System (if so equipped) ................................2
e SS eNTIaL INFOr MaTION
Loose fuel cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . 3
Tire Pressure Monitoring System (TPMS) ...........................3
FI rST D rIVe Fea TureS
ni SSAn intelligent k ey™ System (if so equipped) ....................4
Seat Adjustments .............................................. 4
Outside Mirror control Switch .................................... 4
Starting/Stopping the engine ..................................... 5
Headlight control Switch ........................................ 5
Windshield Wiper Switch ........................................ 6
Automatic climate controls (if so equipped) ........................ 6
f M/AM/XM
® Radio with cd Player (if so equipped) ..................7
Parking Brake .................................................. 7
Opening the Back door ......................................... 8
fuel-filler door ................................................. 8
SYSTe M GuID e
cruise control (if so equipped) ................................... 9
Bluetooth
® Hands-free Phone System (if so equipped) ................9
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat properly secured
in child restraints or seat belts according to their age and weight.
• Do not drink and drive.
for more information, refer to the “Safety –– Seats, seat belts and
supplemental restraint system (section 1)” of your Owner’s Manual.

2
new system features
NaVIGa TION SYSTe M (if so equipped)
Your navigation System can calculate a route from the current location to a pr\
eferred destination.
The real-time map display and turn-by-turn voice guidance will lead you a\
long the route.

The navigation System will continually update your vehicle’s position. if you have deviated
from the original route, it will recalculate the route from your current\
location.
for more information, refer to your navigation System Owner’s Manual.

3
essential information
LOOSe Fue L CaP
A LOOS e fue L cAP warning message will display
in the twin trip odometer/trip computer display

01
when the fuel-filler cap is not tightened correctly.

The warning message will disappear when the vehicle
detects the fuel-filler cap is properly tightened and the
reset button

02 is pressed.

if the cap is not properly tightened, the Malfunction
indicator Light
may illuminate.
f
or more information, refer to the “Instruments and controls (section 2)”
and the “Pre-driving checks and adjustments (section 3)” of your
Owner’s Manual.
01
02
TI re Pre SSure MONITOr ING SYSTeM (TPMS)
The TPMS monitors tire pressure. if the TPMS is not
functioning properly, the low tire pressure warning light
will flash for approximately 1 minute and the light will
remain on after 1 minute. Have the system checked by
a niSSAn dealer.

i f the low tire pressure warning light illuminates but
does not blink, check the tire pressure in all four tires.
Adjust the tire pressure to the recommended cOL d
tire pressure shown on the Tire and Loading information
label located in the driver’s door opening.

After tire pressures are adjusted, the vehicle will need to be driven at\
speeds above 16 MPH
(25km/h) to turn off the low tire pressure warning light.

Tire pressure rises and falls depending on the heat caused by the vehicle\
’s operation and the
outside temperature. Low outside temperature can lower the temperature of the air inside the
tire, which can cause a lower tire inflation pressure. This may cause the low tire pressure
warning light to illuminate. if the warning light illuminates in low ambient temperature, check
the tire pressure in all four tires.
for more information, refer to the “Instruments and controls (section 2)” and the “Starting and driving (section 5)” of your
Owner’s Manual.

OuTSIDe MIrrOr CONTr OL SwITCH
The outside mirror control switch is located on the
left side of the instrument panel.

Move the switch
01 to select the left or right mirror.


Adjust each mirror to the desired position using the
switch

02 .
f
or more information, refer to the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
S ea T aDJ uSTM eNTS
Pull up on the lever
01 under the front of the seat and
slide forward or backward. Release the lever to lock
the seat in position.

Pull up on the lever
02 on the side of the seat to adjust
your seatback forward or backward. Release the lever
when you have found a comfortable angle and the seat
belt fits properly.
SeAT LifTe R (driver’s seat)

Pull up or push down on the adjusting lever
03
repeatedly to adjust the seat height.
f
or more information, refer to the “Safety –– Seats, seat belts and
supplemental restraint system (section 1)” of your Owner’s Manual.
4
NISSaN INTe LLIGeNT K eY™ SYSTe M (if so equipped)
The niSSA n intelligent key™ System allows you to lock or
unlock your vehicle, open your back door and start the engine.

To lock or unlock a door, push any door handle request
switch

01 once.

Push any door handle request switch
01 within one
minute of unlocking the door and all other doors will
unlock.
n OT e: it is important to make sure the intelligent key is
with you (that is, in your pocket or purse).
f or more information, refer to the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
first drive features
02
0203
01
01
01

01
5
STarTING/STOPPING TH e eNGIN e
cO nTinu OuSLY VAR iABL e TRA nSM iSS iO n
(ni SSAn intelligent k ey™ models only - if so equipped)

depress the brake pedal.

Move the shift lever to P (PAR k).

Push the ignition switch to start the engine.
n OTe: it is important to make sure the ni SSAn key is
with you (that is, in your pocket or purse).

T uRnin G THe en Gine Off

Move the shift lever to the P (PAR k) position, apply
the parking brake and push the ignition switch.
P u SH B uTTO n eMeRG enc Y en Gine SH uT Off
To shut off the engine in an emergency situation while driving, perform one of the following procedures:

Rapidly push the push button ignition switch 3 consecutive times, or

Push and hold the push button ignition switch for more than 2 seconds.
MAnu AL TRAn SMiSS iO n (if so equipped)

depress the brake pedal.

Move the shift lever to n (neutral).

depress the clutch pedal to the floor.

Turn the ignition switch to start the engine.
T uRnin G THe en Gine Off

Apply the foot brake and place the vehicle in first gear, then apply the parking brake and turn
the ignition switch to O ff.
for more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
H eaDLIGHT CONTr OL SwITCH
Turn the headlight control switch
01 to the
position to turn on the front parking, side marker, tail,
license plate and instrument panel lights.

Turn the switch
01 to the
position to turn on
the headlights.
fOG Li GHT OP eRATi On (if so equipped)
The headlights must be on and the low beams selected for the fog lights to operate.

Turn the switch (inside collar)
02 to the
position to turn on the fog lights.

Turn the switch (inside collar)
02 to the OFF position to turn off the fog lights.
f
or more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
02

6
wINDSHIeLD wIPer SwITCH
Move the lever to the following positions to operate the
windshield wipers:

01 intermittent (INT) - front wipers operate
intermittently.

02 Low (LO) - front wipers operate at a continuous
low-speed.

03 High (HI) - front wipers operate at a continuous
high-speed.

04 Rear Wiper (rear) – Twist the end of the
lever to operate the first (INT) or second (ON) speed settings for the rear wiper.
for more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
first drive features
auTOMa TIC CLIMa Te CONTrOLS (if so equipped)
01 auTO B
uTTON

Press the auTO button to turn the system on and the fan speed, air flow distribution and
temperature will be automatically maintained.
02 Te
MPera Ture CONTr OL BuTTONS

Press the temperature control buttons up for warmer air or down for cool\
er air.
03 F
aN SPee D CONTrOL BuTTONS

Press the fan speed control buttons to manually adjust the fan speed up \
or down .
04 D
eFr OSTING/D eFOGGING Fr ONT aND SID e wINDOwS

Press the front defroster button
to turn the system on or off.

05 D
eFr OSTING rear wINDO w aND OuTSIDe MIrrOr S (if so equipped)

Push the rear window defroster switch
to turn the system on or off.
f
or more information, refer to the “Instruments and controls (section 2)” and the “Heater, air conditioner, audio and
phone systems (section 4)” of your Owner’s Manual.
01
0405
04
01
02
03
0302

7
Par KING B raKe
To apply, pull the parking brake lever
01 up.

To release, firmly press the foot brake while slightly
pulling up on the parking brake lever. Press the
button

02 and lower the lever completely.
f
or more information, refer to the “Starting and driving (section 5)” of your
Owner’s Manual.
0201
0102
FM/ aM/XM®* raDIO wITH CD PLa Yer (if so equipped)
01 VOL/ON•OFF CONTROL KNOB

Press the VOL/ON•OFF control knob to turn the system on or off.

Turn the VOL/ON•OFF control knob to the right or left to increase or decrease the volume.
02 Tu
Ne/SCr OLL/auDIO KNOB

To manually tune the radio, turn the Tu Ne/SCr OLL/auDIO knob left or right.
*XM® Satellite Radio is only available on vehicles equipped with optional XM® satellite subscription service.
for more information, refer to the “Heater, air conditioner, audio and phone systems (section 4)” of your Owner’s Manual.
0102

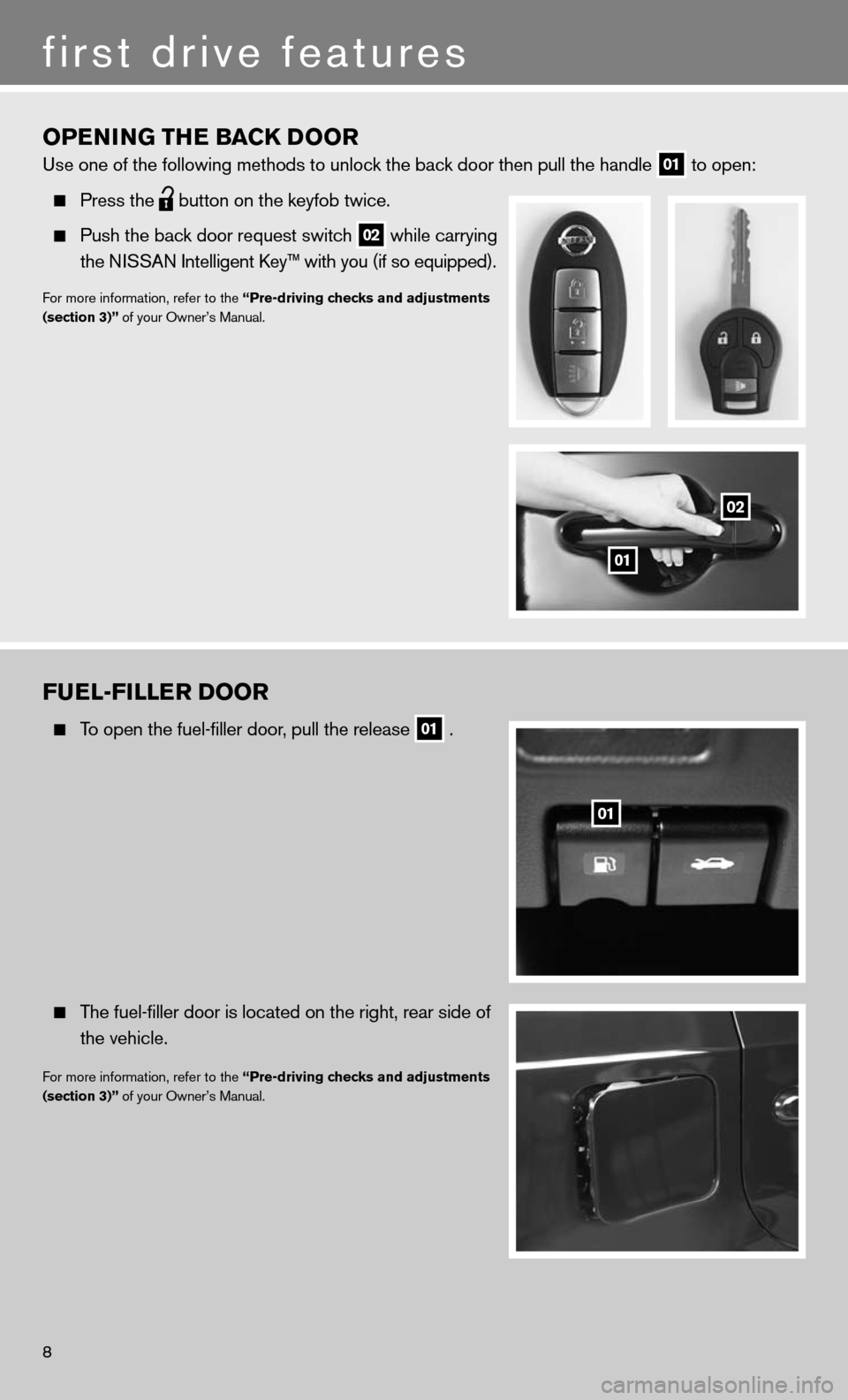

OPeNING TH e BaCK DOOr
use one of the following methods to unlock the back door then pull the handle
01 to open:

Press the
button on the keyfob twice.

Push the back door request switch
02 while carrying
the ni SSAn intelligent k ey™ with you (if so equipped).
for more information, refer to the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
first drive features
8
Fue L-FILLer DOOr
To open the fuel-filler door, pull the release
01 .

The fuel-filler door is located on the right, rear side of
the vehicle.
for more information, refer to the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
01
02
01
