REPAIR FOR COMPONENT PARTS
5. Remove control valve lower body (1) from control valve interbody (2).
(3): Control valve upper body
6. Turn over control valve lower body (1).
7. Remove bolts (E), support plates (2) and separating plate (3) from control valve lower body (1).
8. Remove check balls (1), line pressure relief valve springs (2) and torque converter pressure holding spring (3) from control
valve lower body (4).
CAUTION:
Be careful not to lose check ba lls (1), line pressure relief
valve springs (2) and torque converter pressure holding
spring (3).
9. Remove control valve inter body from control valve upper body.
10. Remove pilot filter (1) from control valve upper body (2).
11. Remove separating plate from control valve upper body (2).
SCIA7181E
SCIA7009E
SCIA6491J
SCIA4977E
SCIA7011E
Revision: January 20102010 Versa

REPAIR FOR COMPONENT PARTSAT-285
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
12. Check to see that steel balls are properly positioned in control
valve inter body and then remove them.
CAUTION:
Be careful not to lose steel balls.
13. Check to see that steel balls are properly positioned in control
valve upper body and then remove them.
CAUTION:
Be careful not to lose steel balls.
INSPECTION
Control Valve Lower and Upper Bodies
CAUTION:
Be careful not to lose these parts.
• Check to see that retainer plates are properly positioned in control
valve lower body.
• Check to see that retainer plates are properly positioned in control
valve upper body.
Oil Strainer
SAT870J
SAT871J
SCIA4978E
SCIA4979E
Revision: January 20102010 Versa

AT-286
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS

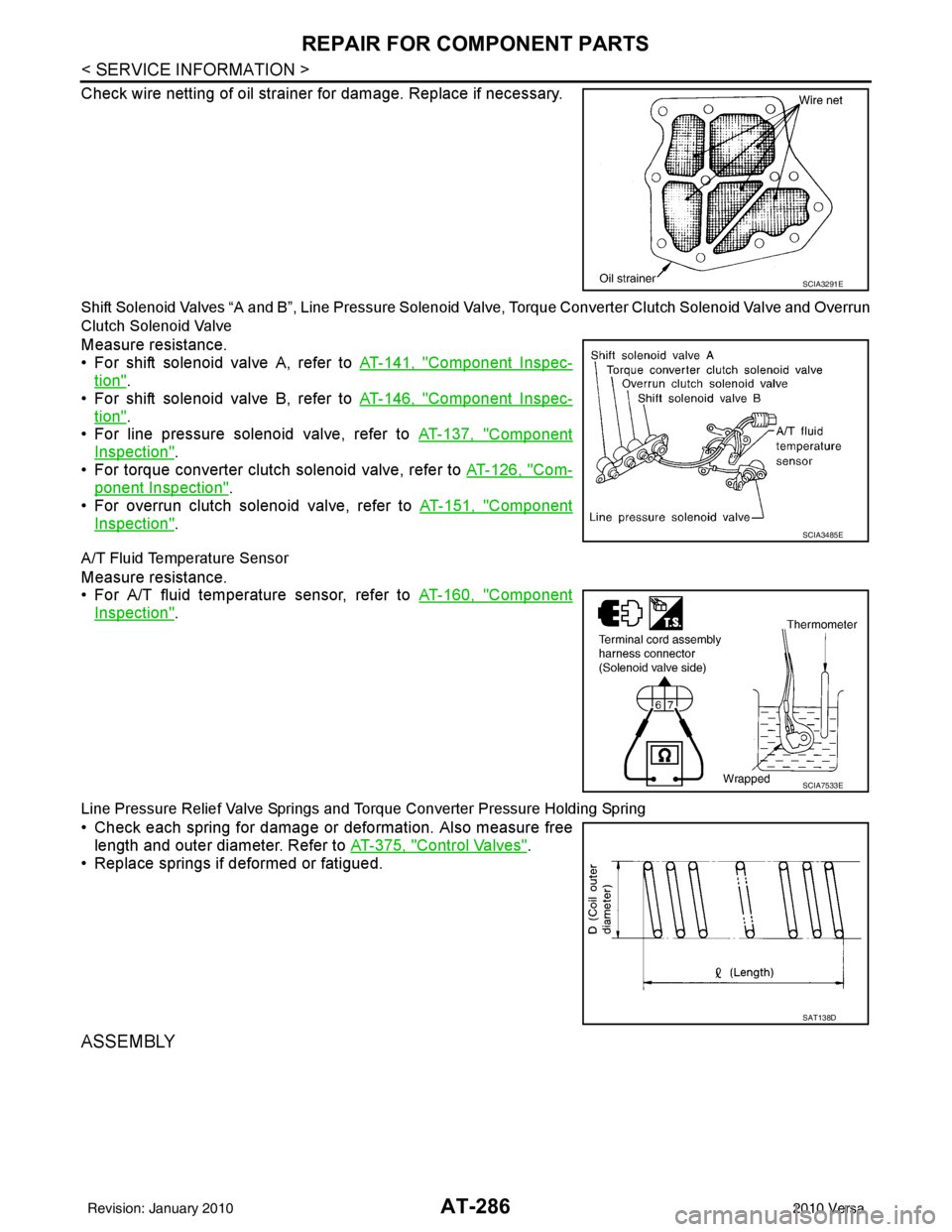

Check wire netting of oil strainer for damage. Replace if necessary.
Shift Solenoid Valves “A and B”, Line Pressure Solenoid Valve, Torque Converter Clutch Solenoid Valve and Overrun
Clutch Solenoid Valve
Measure resistance.
• For shift solenoid valve A, refer to AT-141, "
Component Inspec-
tion".
• For shift solenoid valve B, refer to AT-146, "
Component Inspec-
tion".
• For line pressure solenoid valve, refer to AT-137, "
Component
Inspection".
• For torque converter clutch solenoid valve, refer to AT-126, "
Com-
ponent Inspection".
• For overrun clutch solenoid valve, refer to AT-151, "
Component
Inspection".
A/T Fluid Temperature Sensor
Measure resistance.
• For A/T fluid temperature sensor, refer to AT-160, "
Component
Inspection".
Line Pressure Relief Valve Springs and Torque Converter Pressure Holding Spring
• Check each spring for damage or deformation. Also measure free
length and outer diameter. Refer to AT-375, "
Control Valves".
• Replace springs if deformed or fatigued.
ASSEMBLY
SCIA3291E
SCIA3485E
SCIA7533E
SAT138D
Revision: January 20102010 Versa

REPAIR FOR COMPONENT PARTSAT-287
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
1. Install control valve upper, inter and lower body.

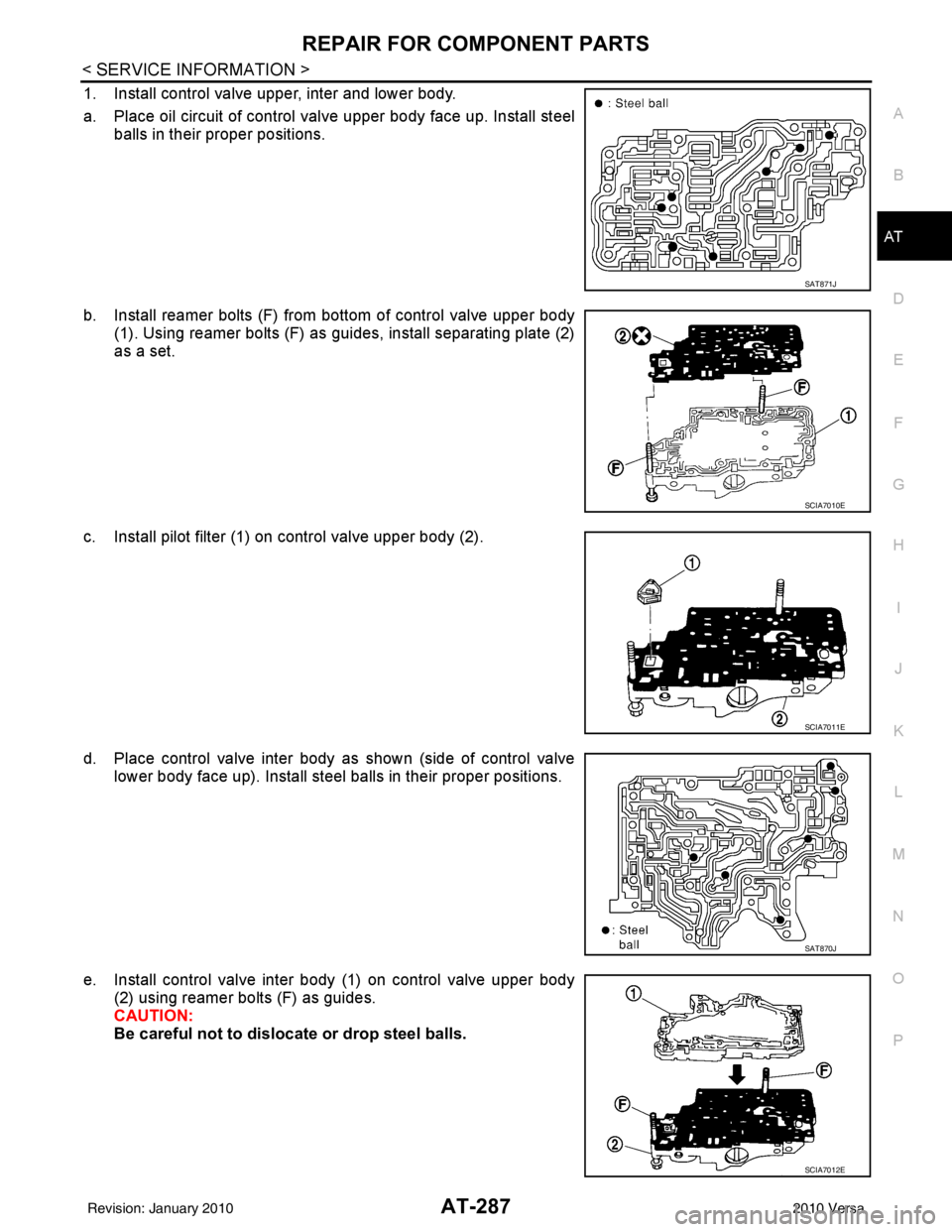

a. Place oil circuit of control valve upper body face up. Install steel balls in their proper positions.
b. Install reamer bolts (F) from bottom of control valve upper body (1). Using reamer bolts (F) as guides, install separating plate (2)
as a set.
c. Install pilot filter (1) on control valve upper body (2).
d. Place control valve inter body as shown (side of control valve lower body face up). Install steel balls in their proper positions.
e. Install control valve inter body (1) on control valve upper body (2) using reamer bolts (F) as guides.
CAUTION:
Be careful not to dislocate or drop steel balls.
SAT871J
SCIA7010E
SCIA7011E
SAT870J
SCIA7012E
Revision: January 20102010 Versa

AT-288
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS
f. Install check balls (1), line pressure relief valve springs (2) andtorque converter pressure holding spring (3) in their proper posi-
tions in control valve lower body (4).
g. Install bolts (E) from bottom of control valve lower body (1). Using bolts (E) as guides, install separating plate (2) as a set.
h. Install support plates (3) on control valve lower body (1).
i. Install control valve lower body (1) on control valve inter body (2) using reamer bolts (F) as guides, and tighten reamer bolts (F)
slightly.

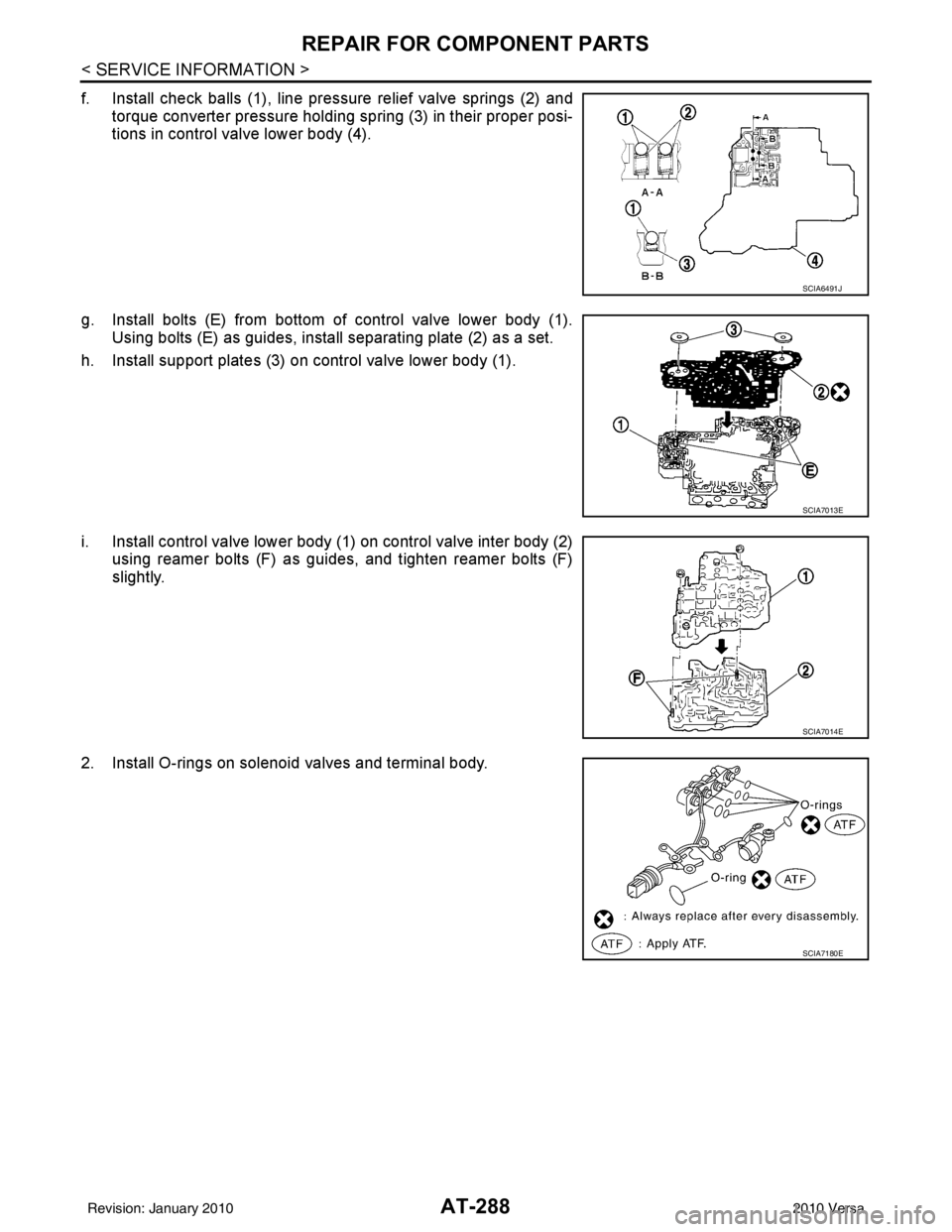

2. Install O-rings on solenoid valves and terminal body.
SCIA6491J
SCIA7013E
SCIA7014E
SCIA7180E
Revision: January 20102010 Versa

REPAIR FOR COMPONENT PARTSAT-289
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

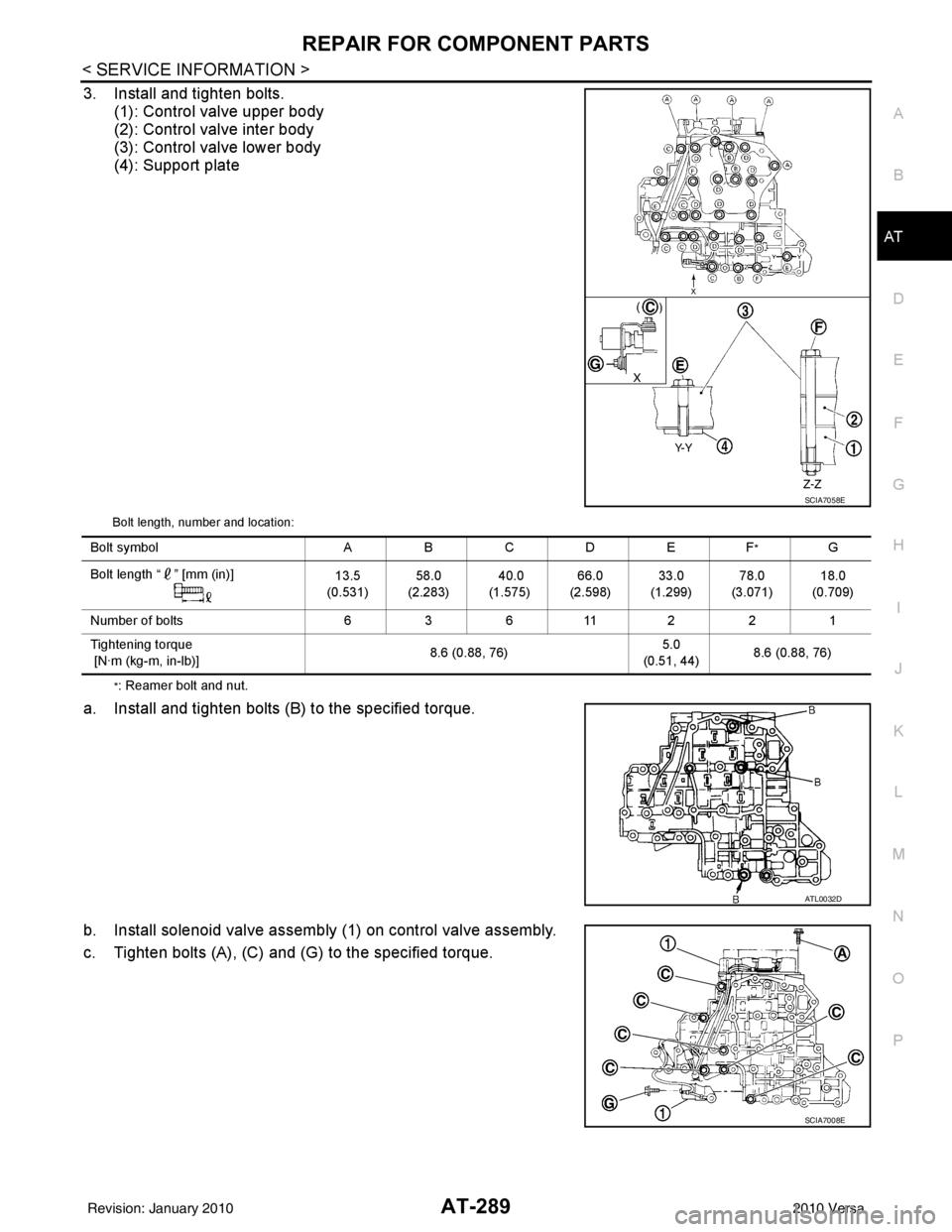

3. Install and tighten bolts. (1): Control valve upper body
(2): Control valve inter body
(3): Control valve lower body
(4): Support plate
Bolt length, number and location:
*: Reamer bolt and nut.
a. Install and tighten bolts (B) to the specified torque.
b. Install solenoid valve assembly (1) on control valve assembly.
c. Tighten bolts (A), (C) and (G) to the specified torque.
SCIA7058E
Bolt symbol ABC D EF*G
Bolt length “ ” [mm (in)] 13.5
(0.531) 58.0
(2.283) 40.0
(1.575) 66.0
(2.598) 33.0
(1.299) 78.0
(3.071) 18.0
(0.709)
Number of bolts 63 611 221
Tightening torque
[N·m (kg-m, in-lb)] 8.6 (0.88, 76)5.0
(0.51, 44) 8.6 (0.88, 76)
ATL0032D
SCIA7008E
Revision: January 20102010 Versa

AT-290
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS

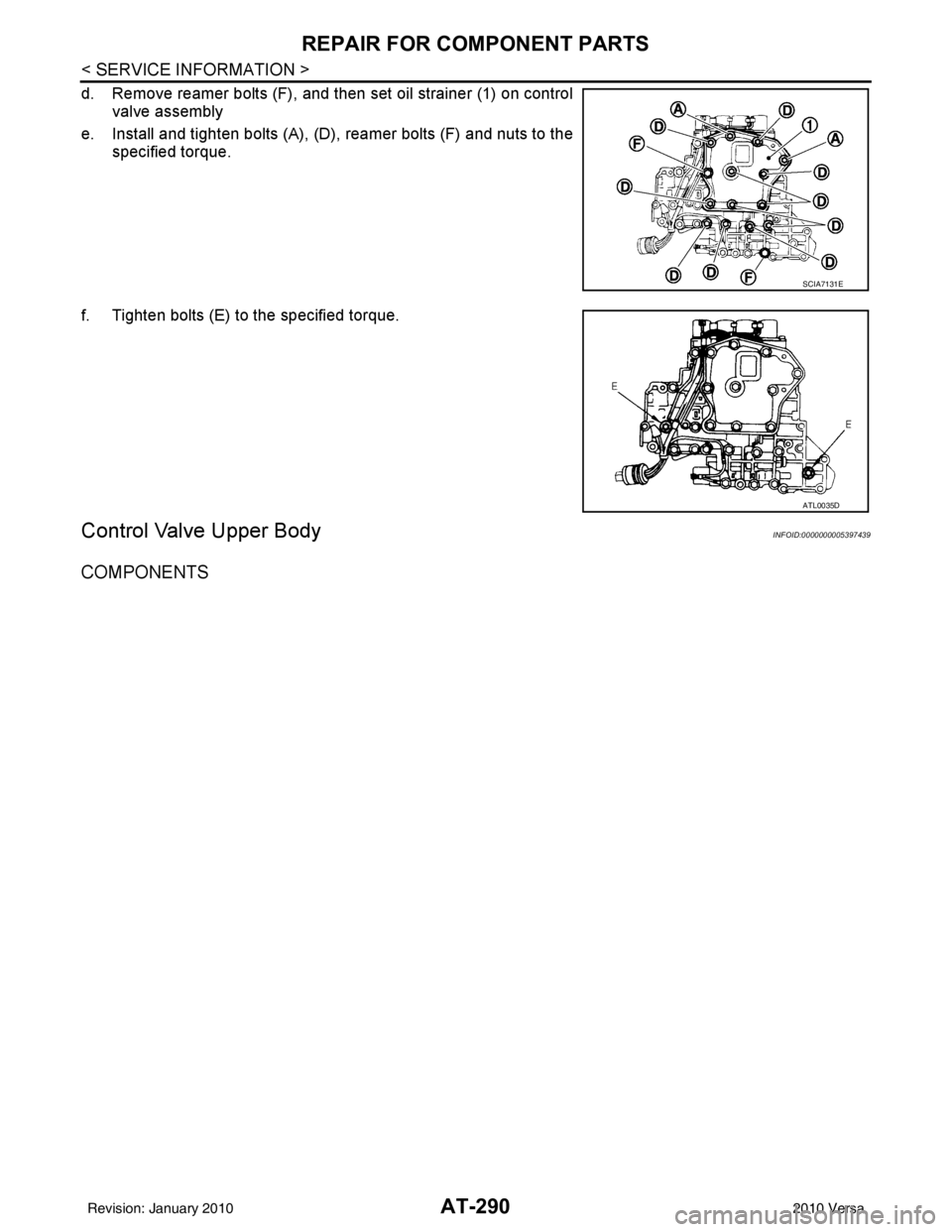

d. Remove reamer bolts (F), and then set oil strainer (1) on controlvalve assembly
e. Install and tighten bolts (A), (D), reamer bolts (F) and nuts to the specified torque.
f. Tighten bolts (E) to the specified torque.
Control Valve Upper BodyINFOID:0000000005397439
COMPONENTS
SCIA7131E
ATL0035D
Revision: January 20102010 Versa

REPAIR FOR COMPONENT PARTSAT-291
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

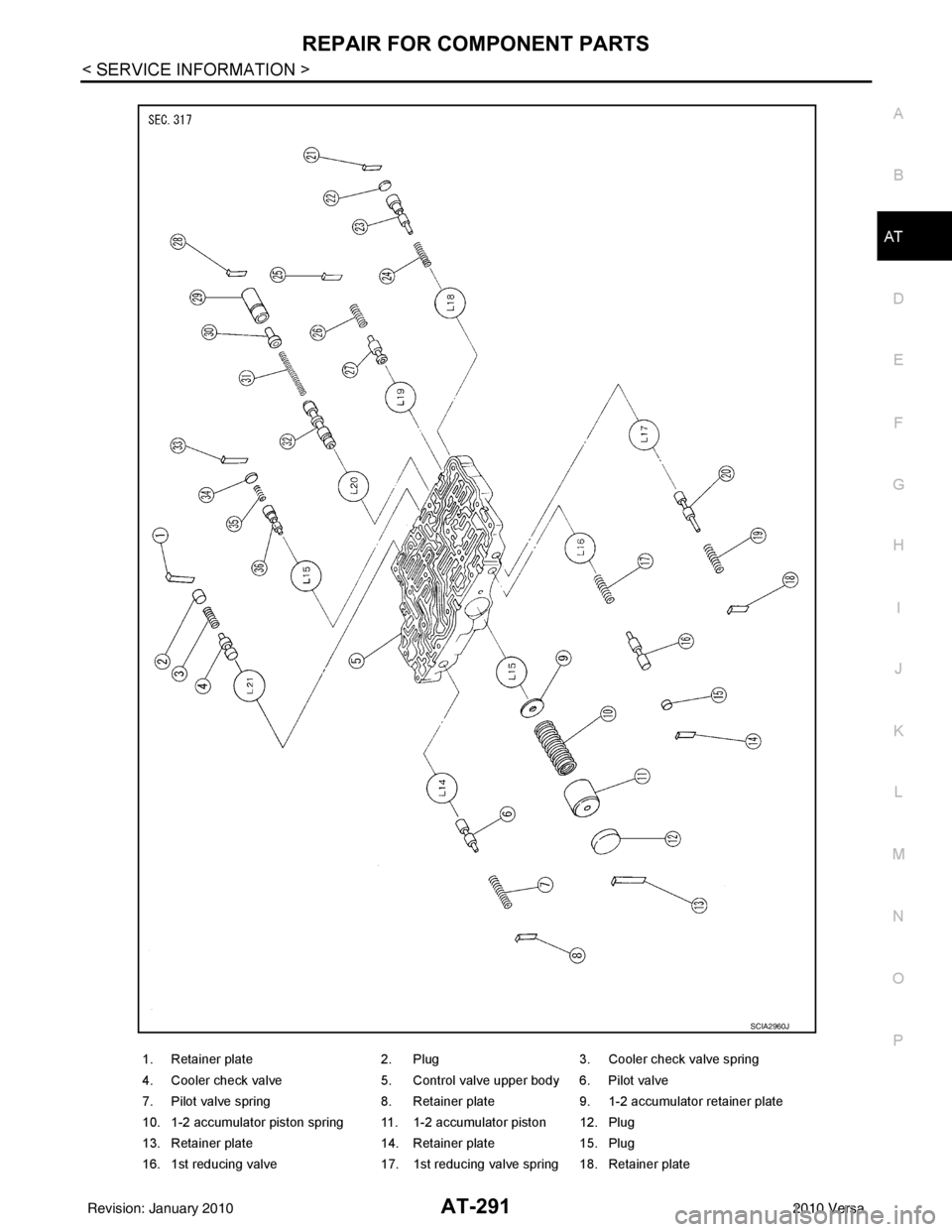

1. Retainer plate 2. Plug3. Cooler check valve spring
4. Cooler check valve 5. Control valve upper body 6. Pilot valve
7. Pilot valve spring 8. Retainer plate9. 1-2 accumulator retainer plate
10. 1-2 accumulator piston spring 11. 1-2 accumulator piston 12. Plug
13. Retainer plate 14. Retainer plate15. Plug
16. 1st reducing valve 17. 1st reducing valve spring 18. Retainer plate
SCIA2960J
Revision: January 20102010 Versa

AT-292
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS
DISASSEMBLY
1. Remove valves at retainer plates.CAUTION:
Do not use a magnetic pick-up tool.

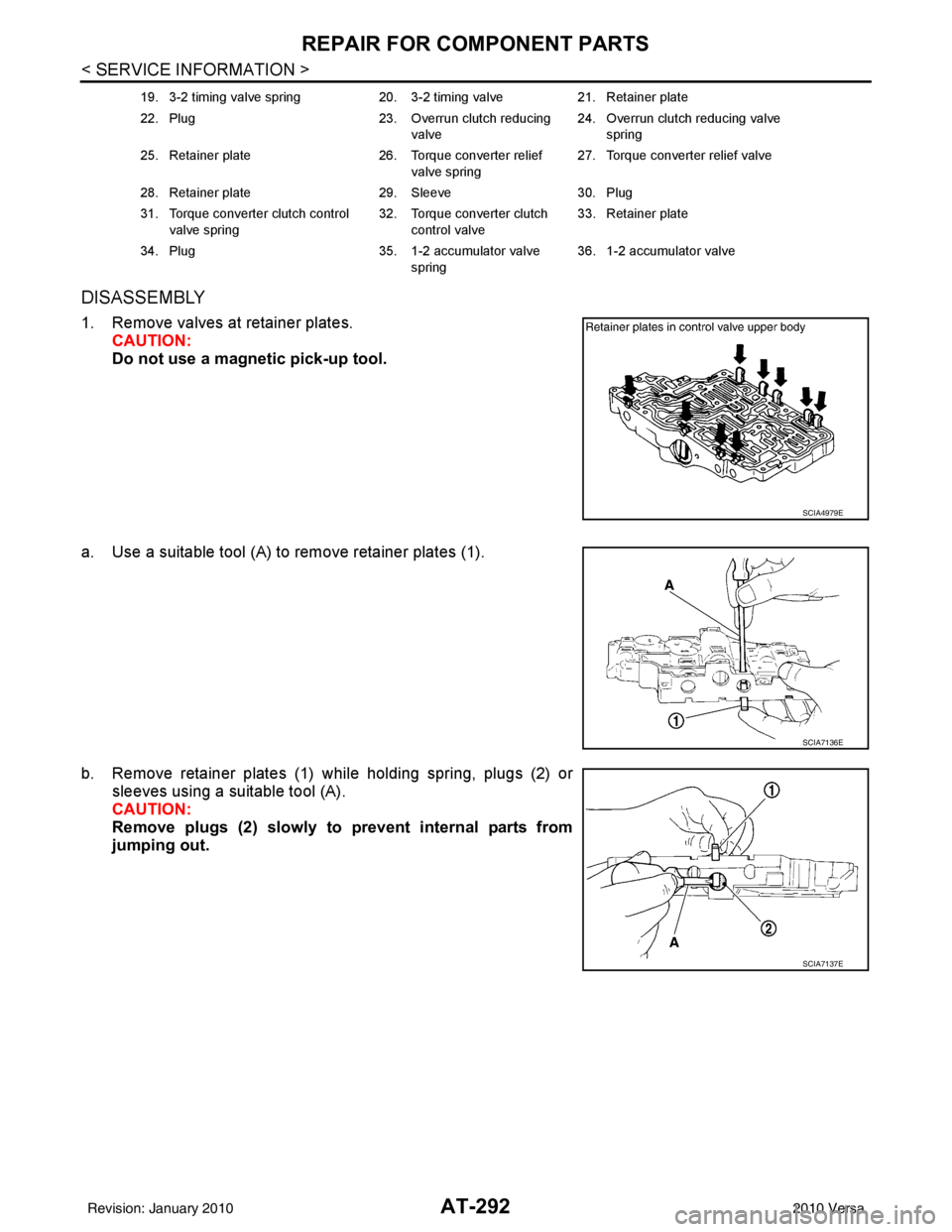

a. Use a suitable tool (A) to remove retainer plates (1).
b. Remove retainer plates (1) while holding spring, plugs (2) or sleeves using a suitable tool (A).
CAUTION:
Remove plugs (2) slowly to prevent internal parts from
jumping out.
19. 3-2 timing valve spring 20. 3-2 timing valve21. Retainer plate
22. Plug 23. Overrun clutch reducing
valve 24. Overrun clutch reducing valve
spring
25. Retainer plate 26. Torque converter relief
valve spring 27. Torque converter relief valve
28. Retainer plate 29. Sleeve30. Plug
31. Torque converter clutch control valve spring 32. Torque converter clutch
control valve 33. Retainer plate
34. Plug 35. 1-2 accumulator valve
spring 36. 1-2 accumulator valve
SCIA4979E
SCIA7136E
SCIA7137E
Revision: January 20102010 Versa

REPAIR FOR COMPONENT PARTSAT-293
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
c. Place mating surface of valve body face down, and remove internal parts.
CAUTION:
• If a valve is hard to remove, place valve body face downand lightly tap it with a soft hammer.
• Be careful not to drop or damage valves and sleeves.

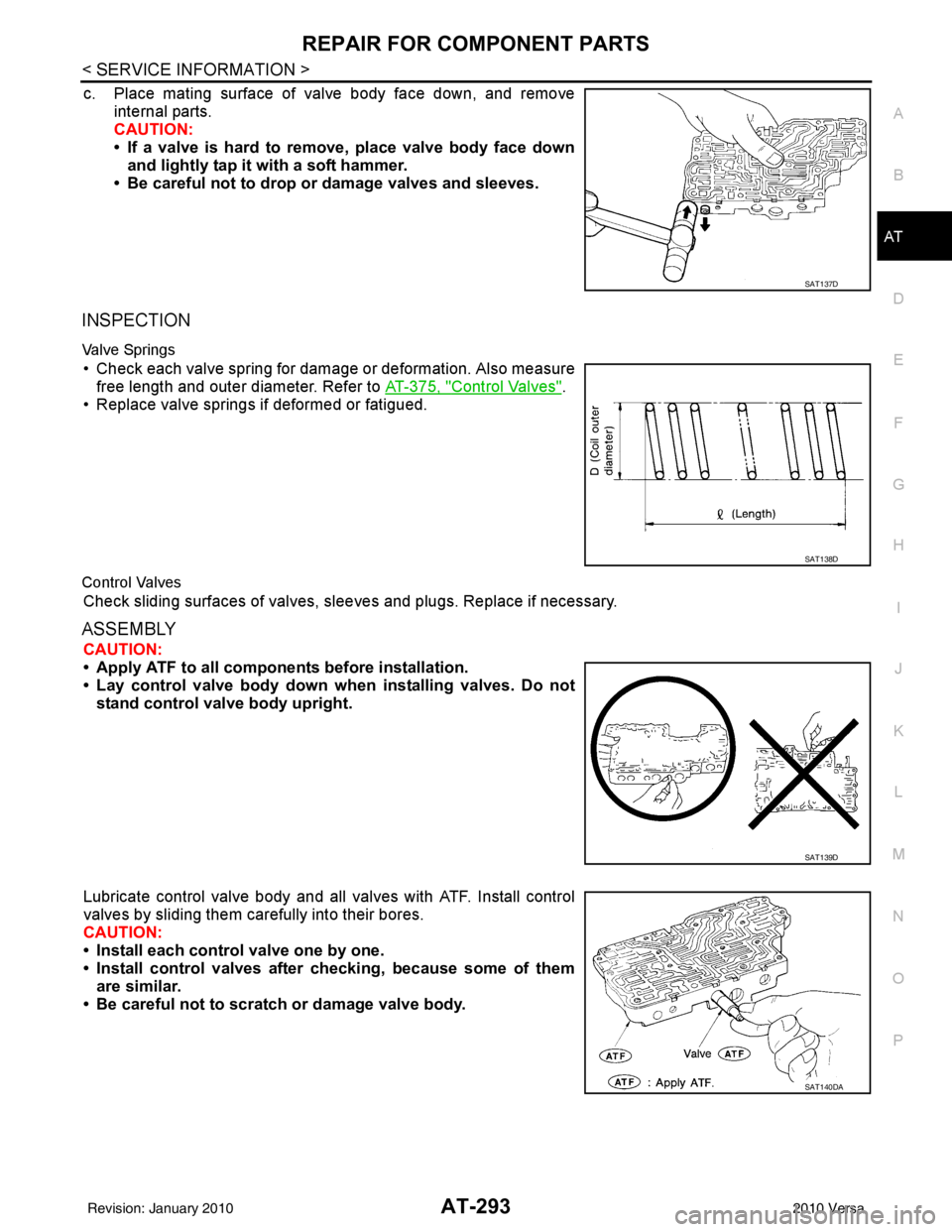

INSPECTION
Va l v e Sp r i n g s
• Check each valve spring for damage or deformation. Also measure
free length and outer diameter. Refer to AT-375, "
Control Valves".
• Replace valve springs if deformed or fatigued.
Control Valves
Check sliding surfaces of valves, sleeves and plugs. Replace if necessary.
ASSEMBLY
CAUTION:
• Apply ATF to all componen ts before installation.
• Lay control valve body down wh en installing valves. Do not
stand control valve body upright.
Lubricate control valve body and all valves with ATF. Install control
valves by sliding them carefully into their bores.
CAUTION:
• Install each control valve one by one.
• Install control valves after checking, because some of them are similar.
• Be careful not to scratch or damage valve body.
SAT137D
SAT138D
SAT139D
SAT140DA
Revision: January 20102010 Versa
