Page 21 of 40

NISSAN LEAF 2015 1.G First Responders Guide 5. Open the hood.
6.
Disconnect the negative (-) 12V battery cable (1) .
Insulate the negative (-) battery cable terminal with
insulated tape.
NOTE: : Arrow in illustration depicts vehicle front
direc

Page 22 of 40

NISSAN LEAF 2015 1.G First Responders Guide 2. Press and expand the pawls (A) on the sides of the fuse box and remove the fuse box (1) from its
housing.
NO
TE: : Arrow in illustration depicts vehicle front direction.
NO

TE:
There is no separat

Page 23 of 40

NISSAN LEAF 2015 1.G First Responders Guide 4. Remove the fuse box cover and remove the 20A VCM fuse.
NO TE: : Arrow in illustration depicts vehicle front direction.
5.

If you cannot identify the above fuses, remove all fuses in the fuse boxes

Page 24 of 40

NISSAN LEAF 2015 1.G First Responders Guide Alternate Procedure 2 (Remove Service Plug)
• Do not remove the service plug without always wearing appropriate Personal
Protective Equipment (PPE) to help protect the responder from serious injury

Page 25 of 40

NISSAN LEAF 2015 1.G First Responders Guide 4.
Waitat least (10) minutes for complete discharge of the high voltage capacitor after the
service plug has been removed.
5. Open the hood.
6. Disconnect the negative (-) 12V battery cable (1) . Insu

Page 26 of 40

NISSAN LEAF 2015 1.G First Responders Guide 3-3.2 Water Submersion
Damage level of submerged vehicle may not be apparent. Handling a submerged
vehicle without appropriate Personal Protective Equipment (PPE) will result in serious
injury or deat

Page 27 of 40

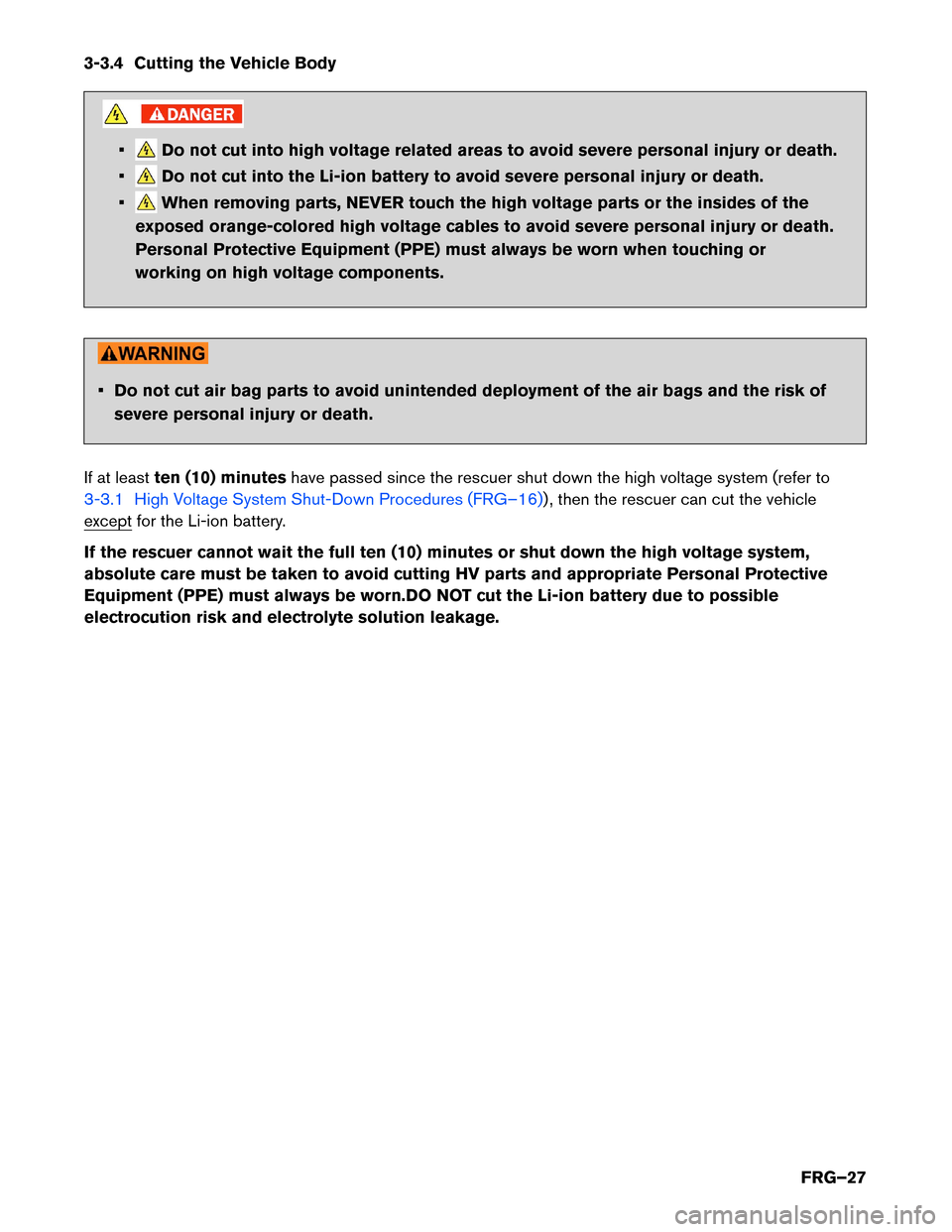

NISSAN LEAF 2015 1.G First Responders Guide 3-3.4 Cutting the Vehicle Body
• Do not cut into high voltage related areas to avoid severe personal injury or death.
• Do not cut into the Li-ion battery to avoid severe personal injury or death.

Page 28 of 40

NISSAN LEAF 2015 1.G First Responders Guide SRS Air Bag System Components Location
Avoid
cutting air bag system parts. However, the vehicle can be cut (except inflators) under the following
conditions: • The front, side and curtain air bags h

Page 29 of 40

NISSAN LEAF 2015 1.G First Responders Guide 1. Crash zone sensor
2. Supplemental front-impact air
bag modules3. Front seat-mounted side-impact
supplemental air bag modules
4. Roof-mounted curtain side-
impact supplemental air bag
inflators 5. R

Page 30 of 40

NISSAN LEAF 2015 1.G First Responders Guide Vehicle Cut Sheet12V Battery
Nissan North America, Inc. Version 2, February 2014
 DANGER
High voltage Li-ion battery
High voltage harness
12V battery
12V battery
1-800-387-0122 (Canada) (Monday-
