NISSAN MURANO 2013 2.G Owners Manual
Manufacturer: NISSAN, Model Year: 2013, Model line: MURANO, Model: NISSAN MURANO 2013 2.GPages: 507, PDF Size: 4.61 MB
Page 371 of 507
Black plate (369,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
JVS0159X
SSD0885
Example

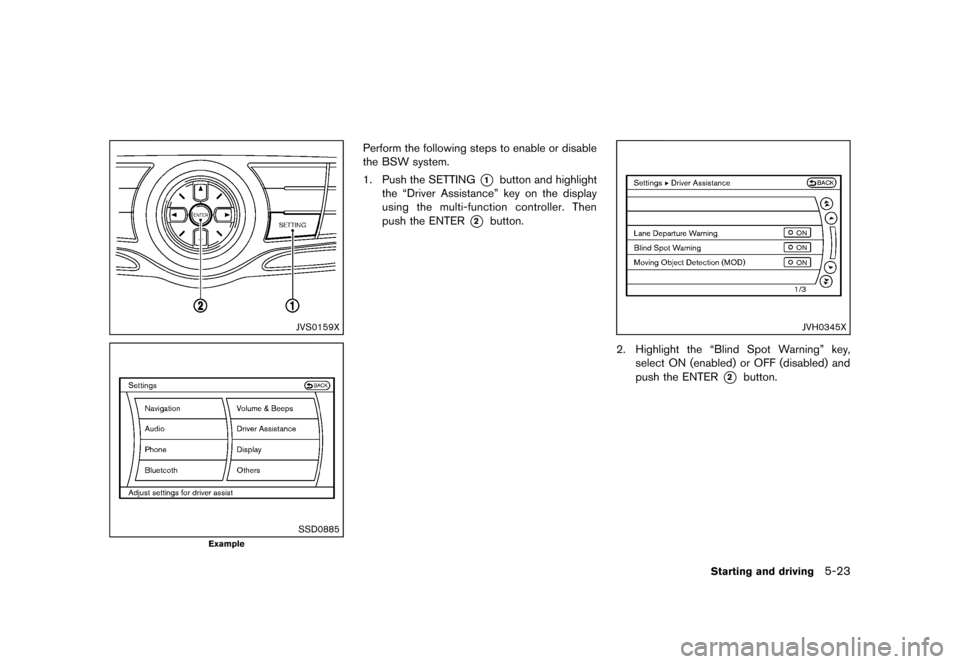

Perform the following steps to enable or disable
the BSW system.
1. Push the SETTING
*1button and highlight
the “Driver Assistance” key on the display
using the multi-function controller. Then
push the ENTER
*2button.
JVH0345X
2. Highlight the “Blind Spot Warning” key,
select ON (enabled) or OFF (disabled) and
push the ENTER
*2button.
Starting and driving5-23
Condition:
Page 372 of 507
Black plate (370,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

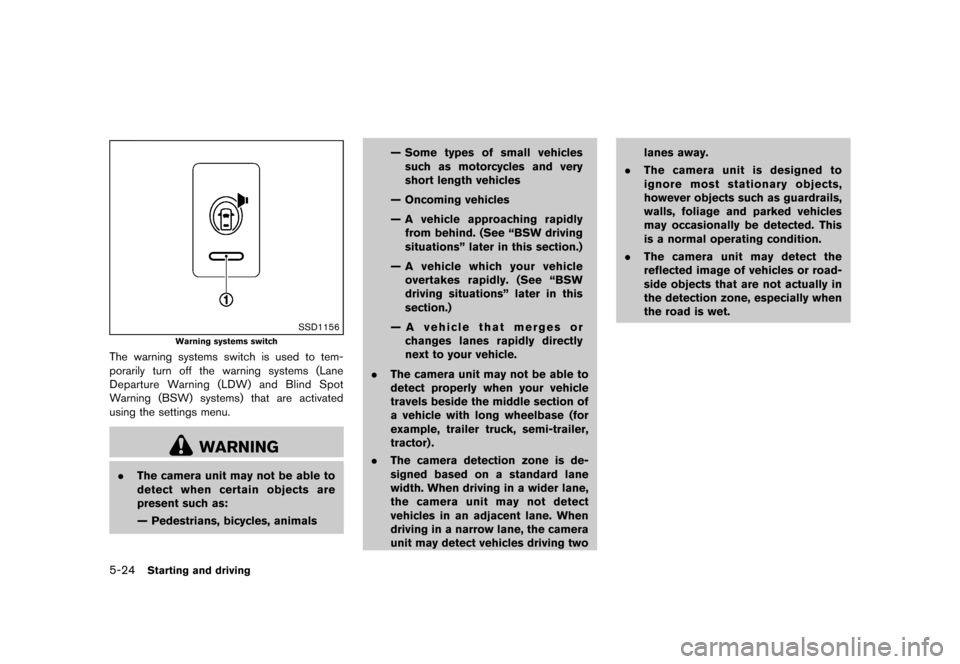

5-24Starting and driving
SSD1156
Warning systems switch
The warning systems switch is used to tem-
porarily turn off the warning systems (Lane
Departure Warning (LDW) and Blind Spot
Warning (BSW) systems) that are activated
using the settings menu.
WARNING
.The camera unit may not be able to
detect when certain objects are
present such as:
— Pedestrians, bicycles, animals — Some types of small vehicles
such as motorcycles and very
short length vehicles
— Oncoming vehicles
— A vehicle approaching rapidly from behind. (See “BSW driving
situations” later in this section.)
— A vehicle which your vehicle overtakes rapidly. (See “BSW
driving situations” later in this
section.)
— A vehicle that merges or changes lanes rapidly directly
next to your vehicle.
. The camera unit may not be able to
detect properly when your vehicle
travels beside the middle section of
a vehicle with long wheelbase (for
example, trailer truck, semi-trailer,
tractor) .
. The camera detection zone is de-
signed based on a standard lane
width. When driving in a wider lane,
the camera unit may not detect
vehicles in an adjacent lane. When
driving in a narrow lane, the camera
unit may detect vehicles driving two lanes away.
. The camera unit is designed to
ignore most stationary objects,
however objects such as guardrails,
walls, foliage and parked vehicles
may occasionally be detected. This
is a normal operating condition.
. The camera unit may detect the
reflected image of vehicles or road-
side objects that are not actually in
the detection zone, especially when
the road is wet.
Condition:
Page 373 of 507
Black plate (371,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSD1026

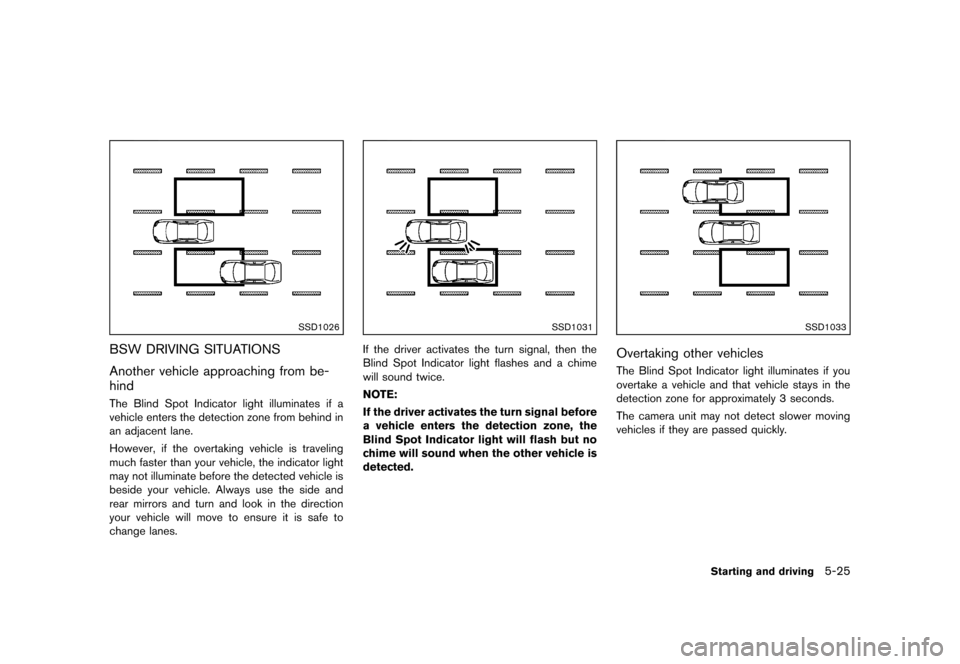

BSW DRIVING SITUATIONSGUID-3E2CF63C-6B46-4685-A31A-1A3DD3C826FA
Another vehicle approaching from be-
hind
GUID-00E249DA-9844-4822-9276-0651918C72BDThe Blind Spot Indicator light illuminates if a
vehicle enters the detection zone from behind in
an adjacent lane.
However, if the overtaking vehicle is traveling
much faster than your vehicle, the indicator light
may not illuminate before the detected vehicle is
beside your vehicle. Always use the side and
rear mirrors and turn and look in the direction
your vehicle will move to ensure it is safe to
change lanes.
SSD1031
If the driver activates the turn signal, then the
Blind Spot Indicator light flashes and a chime
will sound twice.
NOTE:
If the driver activates the turn signal before
a vehicle enters the detection zone, the
Blind Spot Indicator light will flash but no
chime will sound when the other vehicle is
detected.
SSD1033
Overtaking other vehiclesGUID-71136E60-FC62-41A7-9C97-97A64104428CThe Blind Spot Indicator light illuminates if you
overtake a vehicle and that vehicle stays in the
detection zone for approximately 3 seconds.
The camera unit may not detect slower moving
vehicles if they are passed quickly.
Starting and driving5-25
Condition:
Page 374 of 507
Black plate (372,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
5-26Starting and driving
SSD1034

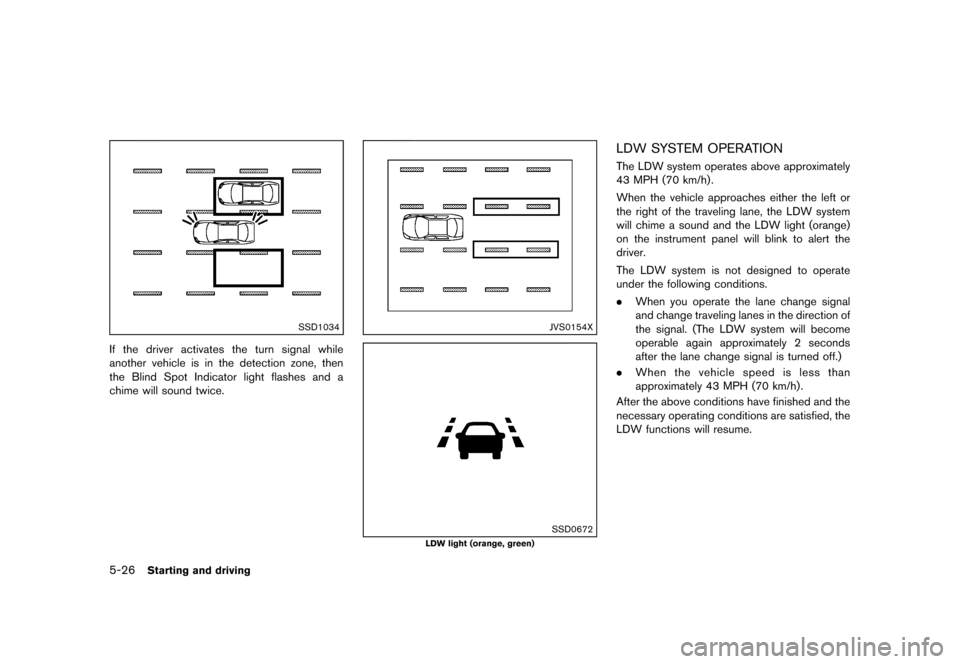

If the driver activates the turn signal while
another vehicle is in the detection zone, then
the Blind Spot Indicator light flashes and a
chime will sound twice.
JVS0154X
SSD0672
LDW light (orange, green)
LDW SYSTEM OPERATIONGUID-5A428BA7-251A-49AB-8955-F9AF33E9CC89The LDW system operates above approximately
43 MPH (70 km/h) .
When the vehicle approaches either the left or
the right of the traveling lane, the LDW system
will chime a sound and the LDW light (orange)
on the instrument panel will blink to alert the
driver.
The LDW system is not designed to operate
under the following conditions.
.When you operate the lane change signal
and change traveling lanes in the direction of
the signal. (The LDW system will become
operable again approximately 2 seconds
after the lane change signal is turned off.)
. When the vehicle speed is less than
approximately 43 MPH (70 km/h) .
After the above conditions have finished and the
necessary operating conditions are satisfied, the
LDW functions will resume.
Condition:
Page 375 of 507
Black plate (373,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

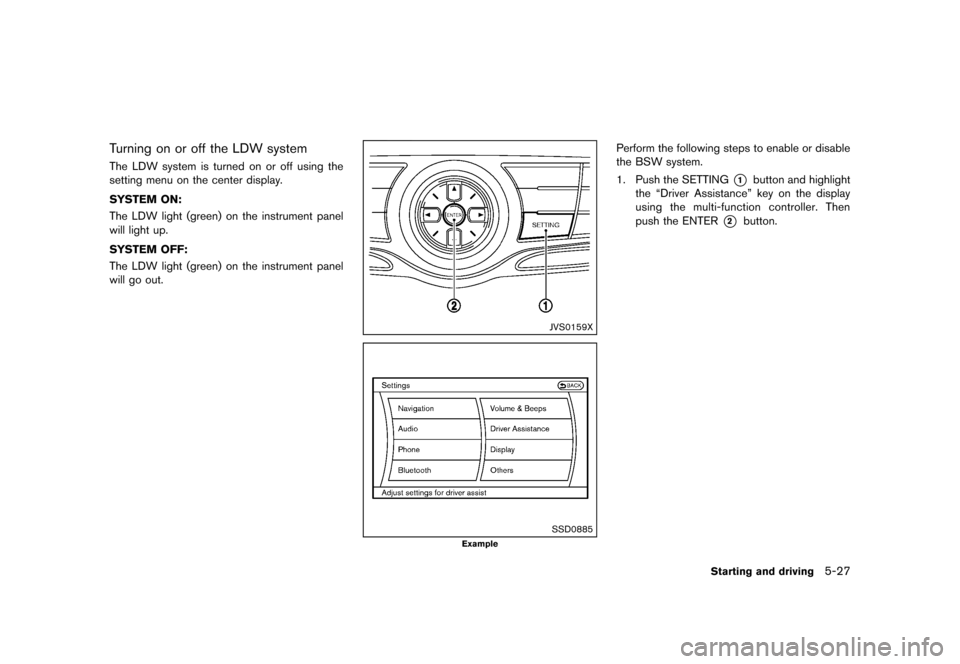

Turning on or off the LDW systemGUID-1EF8AD82-14EA-4DE4-82CA-349DE5262573The LDW system is turned on or off using the
setting menu on the center display.
SYSTEM ON:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The LDW light (green) on the instrument panel
will light up.
SYSTEM OFF:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The LDW light (green) on the instrument panel
will go out.
JVS0159X
SSD0885
Example
Perform the following steps to enable or disable
the BSW system.
1. Push the SETTING
*1button and highlight
the “Driver Assistance” key on the display
using the multi-function controller. Then
push the ENTER
*2button.
Starting and driving5-27
Condition:
Page 376 of 507
Black plate (374,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
5-28Starting and driving
JVH0345X

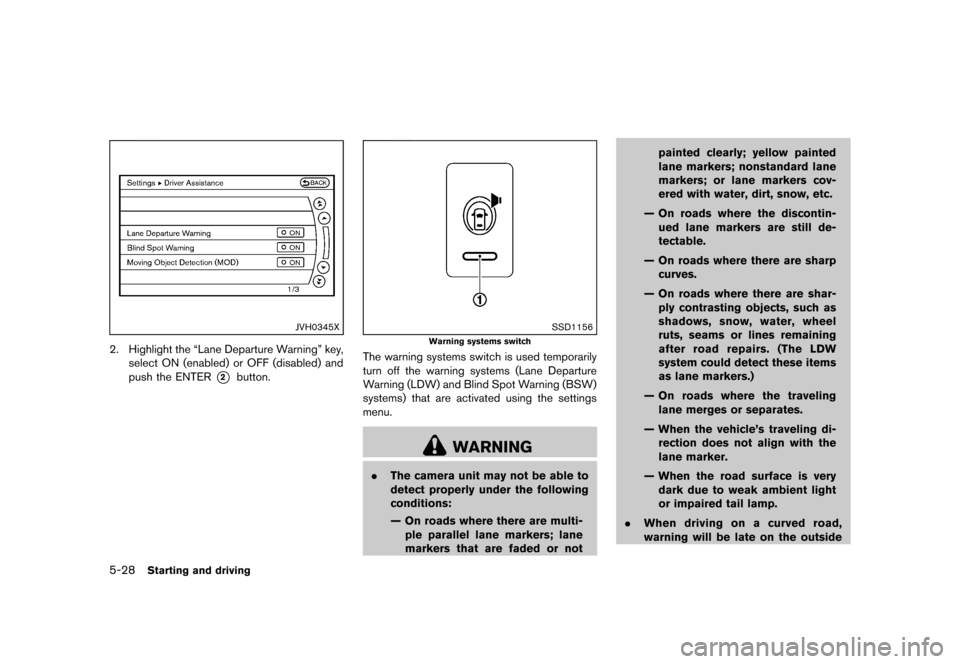

2. Highlight the “Lane Departure Warning” key,select ON (enabled) or OFF (disabled) and
push the ENTER
*2button.
SSD1156
Warning systems switch
The warning systems switch is used temporarily
turn off the warning systems (Lane Departure
Warning (LDW) and Blind Spot Warning (BSW)
systems) that are activated using the settings
menu.
WARNING
.The camera unit may not be able to
detect properly under the following
conditions:
— On roads where there are multi-
ple parallel lane markers; lane
markers that are faded or not painted clearly; yellow painted
lane markers; nonstandard lane
markers; or lane markers cov-
ered with water, dirt, snow, etc.
— On roads where the discontin- ued lane markers are still de-
tectable.
— On roads where there are sharp curves.
— On roads where there are shar- ply contrasting objects, such as
shadows, snow, water, wheel
ruts, seams or lines remaining
after road repairs. (The LDW
system could detect these items
as lane markers.)
— On roads where the traveling lane merges or separates.
— When the vehicle’s traveling di- rection does not align with the
lane marker.
— When the road surface is very dark due to weak ambient light
or impaired tail lamp.
. When driving on a curved road,
warning will be late on the outside
Condition:
Page 377 of 507
Black plate (375,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
of the curve.

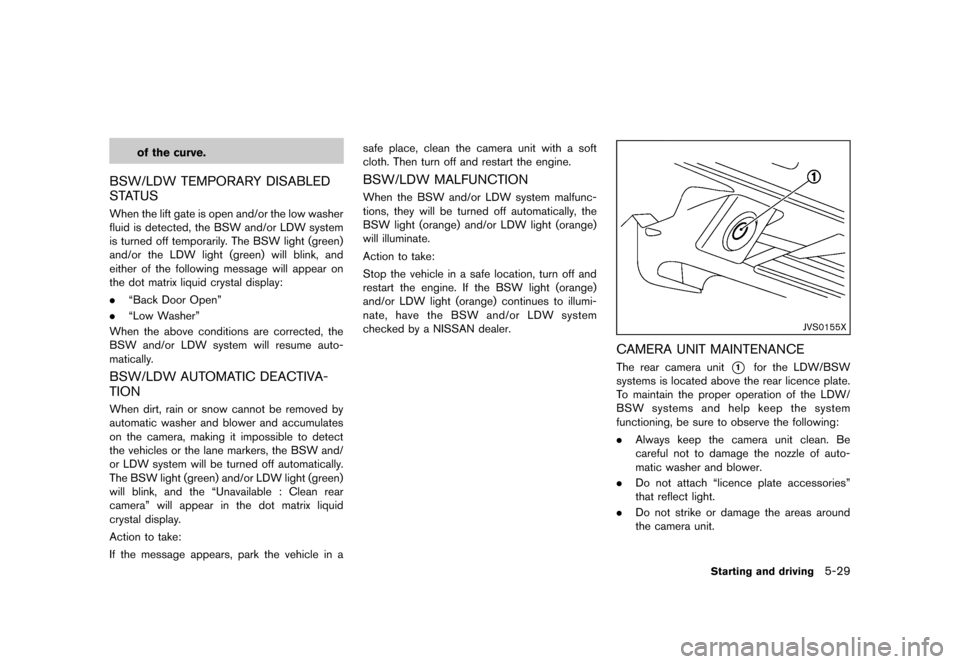

BSW/LDW TEMPORARY DISABLED
STATUS
GUID-7F625096-0715-4B5E-8EF0-30A6032AAA36When the lift gate is open and/or the low washer
fluid is detected, the BSW and/or LDW system
is turned off temporarily. The BSW light (green)
and/or the LDW light (green) will blink, and
either of the following message will appear on
the dot matrix liquid crystal display:
.“Back Door Open”
. “Low Washer”
When the above conditions are corrected, the
BSW and/or LDW system will resume auto-
matically.
BSW/LDW AUTOMATIC DEACTIVA-
TION
GUID-F0634B42-826D-43A4-96FB-AAAAB953C449When dirt, rain or snow cannot be removed by
automatic washer and blower and accumulates
on the camera, making it impossible to detect
the vehicles or the lane markers, the BSW and/
or LDW system will be turned off automatically.
The BSW light (green) and/or LDW light (green)
will blink, and the “Unavailable : Clean rear
camera” will appear in the dot matrix liquid
crystal display.
Action to take:
If the message appears, park the vehicle in a safe place, clean the camera unit with a soft
cloth. Then turn off and restart the engine.
BSW/LDW MALFUNCTIONGUID-D5EC8D81-780C-4FF0-BDA4-18027FB2E08CWhen the BSW and/or LDW system malfunc-
tions, they will be turned off automatically, the
BSW light (orange) and/or LDW light (orange)
will illuminate.
Action to take:
Stop the vehicle in a safe location, turn off and
restart the engine. If the BSW light (orange)
and/or LDW light (orange) continues to illumi-
nate, have the BSW and/or LDW system
checked by a NISSAN dealer.
JVS0155X
CAMERA UNIT MAINTENANCEGUID-A7091D0C-021B-437B-A128-5316DCBBA444The rear camera unit*1for the LDW/BSW
systems is located above the rear licence plate.
To maintain the proper operation of the LDW/
BSW systems and help keep the system
functioning, be sure to observe the following:
. Always keep the camera unit clean. Be
careful not to damage the nozzle of auto-
matic washer and blower.
. Do not attach “licence plate accessories”
that reflect light.
. Do not strike or damage the areas around
the camera unit.
Starting and driving5-29
Condition:
Page 378 of 507
Black plate (376,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
5-30Starting and driving

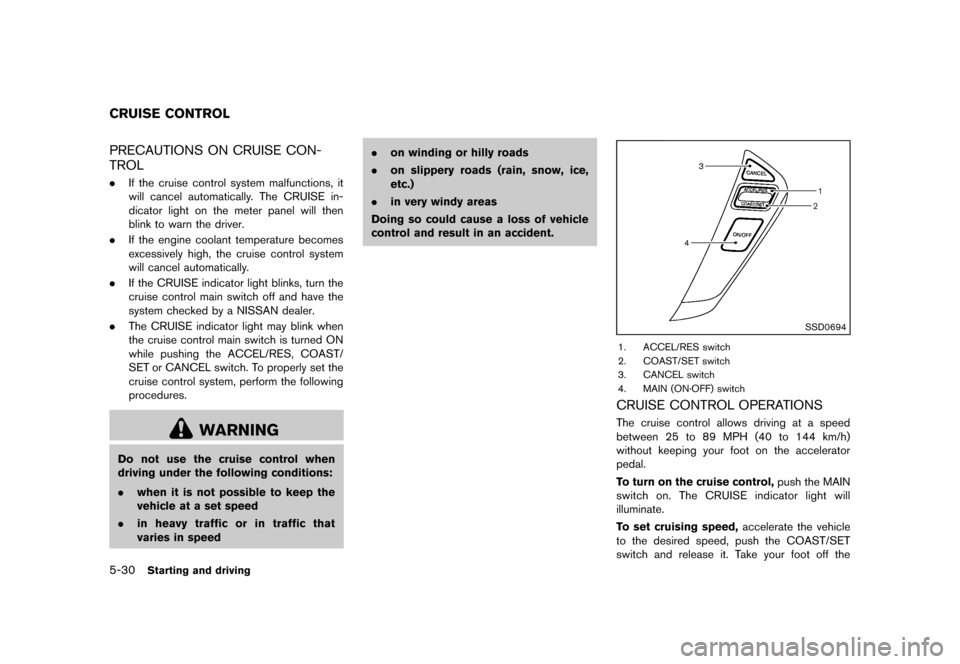

GUID-65CB3DFE-511B-4626-B4E4-906AB50ECAD1PRECAUTIONS ON CRUISE CON-
TROL
GUID-80F20175-468E-45AF-89B6-B813DC76FEBF.If the cruise control system malfunctions, it
will cancel automatically. The CRUISE in-
dicator light on the meter panel will then
blink to warn the driver.
. If the engine coolant temperature becomes
excessively high, the cruise control system
will cancel automatically.
. If the CRUISE indicator light blinks, turn the
cruise control main switch off and have the
system checked by a NISSAN dealer.
. The CRUISE indicator light may blink when
the cruise control main switch is turned ON
while pushing the ACCEL/RES, COAST/
SET or CANCEL switch. To properly set the
cruise control system, perform the following
procedures.
WARNING
Do not use the cruise control when
driving under the following conditions:
.when it is not possible to keep the
vehicle at a set speed
. in heavy traffic or in traffic that
varies in speed .
on winding or hilly roads
. on slippery roads (rain, snow, ice,
etc.)
. in very windy areas
Doing so could cause a loss of vehicle
control and result in an accident.
SSD0694
1. ACCEL/RES switch
2. COAST/SET switch
3. CANCEL switch
4. MAIN (ON·OFF) switch
CRUISE CONTROL OPERATIONSGUID-674D4903-B7FA-430D-83D5-F523C0724370The cruise control allows driving at a speed
between 25 to 89 MPH (40 to 144 km/h)
without keeping your foot on the accelerator
pedal.
To turn on the cruise control, push the MAIN
switch on. The CRUISE indicator light will
illuminate.
To set cruising speed, accelerate the vehicle
to the desired speed, push the COAST/SET
switch and release it. Take your foot off the
CRUISE CONTROL
Condition:
Page 379 of 507
Black plate (377,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

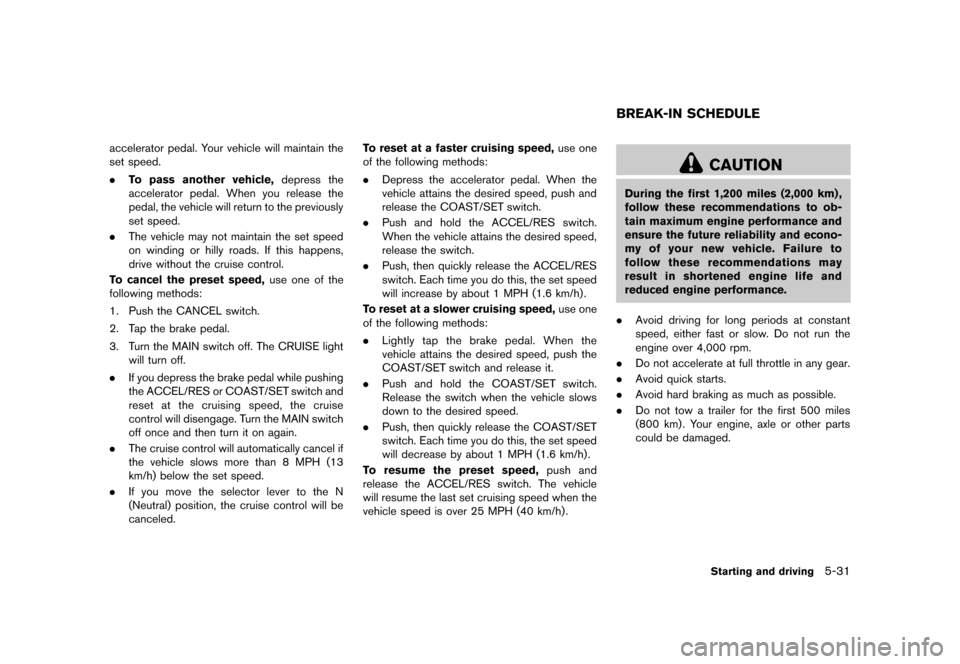

accelerator pedal. Your vehicle will maintain the
set speed.
.To pass another vehicle, depress the
accelerator pedal. When you release the
pedal, the vehicle will return to the previously
set speed.
. The vehicle may not maintain the set speed
on winding or hilly roads. If this happens,
drive without the cruise control.
To cancel the preset speed, use one of the
following methods:
1. Push the CANCEL switch.
2. Tap the brake pedal.
3. Turn the MAIN switch off. The CRUISE light will turn off.
. If you depress the brake pedal while pushing
the ACCEL/RES or COAST/SET switch and
reset at the cruising speed, the cruise
control will disengage. Turn the MAIN switch
off once and then turn it on again.
. The cruise control will automatically cancel if
the vehicle slows more than 8 MPH (13
km/h) below the set speed.
. If you move the selector lever to the N
(Neutral) position, the cruise control will be
canceled. To reset at a faster cruising speed,
use one
of the following methods:
. Depress the accelerator pedal. When the
vehicle attains the desired speed, push and
release the COAST/SET switch.
. Push and hold the ACCEL/RES switch.
When the vehicle attains the desired speed,
release the switch.
. Push, then quickly release the ACCEL/RES
switch. Each time you do this, the set speed
will increase by about 1 MPH (1.6 km/h).
To reset at a slower cruising speed, use one
of the following methods:
. Lightly tap the brake pedal. When the
vehicle attains the desired speed, push the
COAST/SET switch and release it.
. Push and hold the COAST/SET switch.
Release the switch when the vehicle slows
down to the desired speed.
. Push, then quickly release the COAST/SET
switch. Each time you do this, the set speed
will decrease by about 1 MPH (1.6 km/h).
To resume the preset speed, push and
release the ACCEL/RES switch. The vehicle
will resume the last set cruising speed when the
vehicle speed is over 25 MPH (40 km/h).
GUID-1450B7AB-549F-4778-B02E-889FA0A180B6
CAUTION
During the first 1,200 miles (2,000 km) ,
follow these recommendations to ob-
tain maximum engine performance and
ensure the future reliability and econo-
my of your new vehicle. Failure to
follow these recommendations may
result in shortened engine life and
reduced engine performance.
. Avoid driving for long periods at constant
speed, either fast or slow. Do not run the
engine over 4,000 rpm.
. Do not accelerate at full throttle in any gear.
. Avoid quick starts.
. Avoid hard braking as much as possible.
. Do not tow a trailer for the first 500 miles
(800 km) . Your engine, axle or other parts
could be damaged.
Starting and driving5-31
BREAK-IN SCHEDULE
Condition:
Page 380 of 507
Black plate (378,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

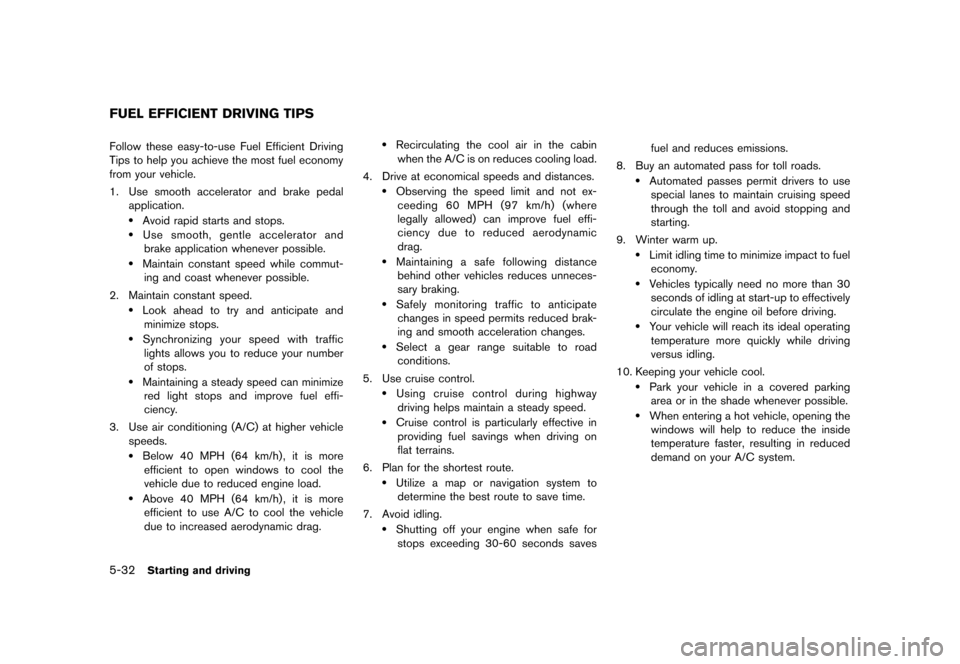

5-32Starting and driving
GUID-4F116AF9-48AB-405A-9C08-86C1AB50BE14Follow these easy-to-use Fuel Efficient Driving
Tips to help you achieve the most fuel economy
from your vehicle.
1. Use smooth accelerator and brake pedalapplication.
.Avoid rapid starts and stops..Use smooth, gentle accelerator andbrake application whenever possible.
.Maintain constant speed while commut-
ing and coast whenever possible.
2. Maintain constant speed.
.Look ahead to try and anticipate and minimize stops.
.Synchronizing your speed with traffic
lights allows you to reduce your number
of stops.
.Maintaining a steady speed can minimize red light stops and improve fuel effi-
ciency.
3. Use air conditioning (A/C) at higher vehicle speeds.
.Below 40 MPH (64 km/h), it is moreefficient to open windows to cool the
vehicle due to reduced engine load.
.Above 40 MPH (64 km/h) , it is moreefficient to use A/C to cool the vehicle
due to increased aerodynamic drag.
.Recirculating the cool air in the cabinwhen the A/C is on reduces cooling load.
4. Drive at economical speeds and distances.
.Observing the speed limit and not ex- ceeding 60 MPH (97 km/h) (where
legally allowed) can improve fuel effi-
ciency due to reduced aerodynamic
drag.
.Maintaining a safe following distancebehind other vehicles reduces unneces-
sary braking.
.Safely monitoring traffic to anticipatechanges in speed permits reduced brak-
ing and smooth acceleration changes.
.Select a gear range suitable to road conditions.
5. Use cruise control.
.Using cruise control during highway driving helps maintain a steady speed.
.Cruise control is particularly effective in providing fuel savings when driving on
flat terrains.
6. Plan for the shortest route.
.Utilize a map or navigation system to determine the best route to save time.
7. Avoid idling.
.Shutting off your engine when safe for stops exceeding 30-60 seconds saves fuel and reduces emissions.
8. Buy an automated pass for toll roads.
.Automated passes permit drivers to use special lanes to maintain cruising speed
through the toll and avoid stopping and
starting.
9. Winter warm up.
.Limit idling time to minimize impact to fuel economy.
.Vehicles typically need no more than 30seconds of idling at start-up to effectively
circulate the engine oil before driving.
.Your vehicle will reach its ideal operatingtemperature more quickly while driving
versus idling.
10. Keeping your vehicle cool.
.Park your vehicle in a covered parking area or in the shade whenever possible.
.When entering a hot vehicle, opening thewindows will help to reduce the inside
temperature faster, resulting in reduced
demand on your A/C system.
FUEL EFFICIENT DRIVING TIPS
Condition:
