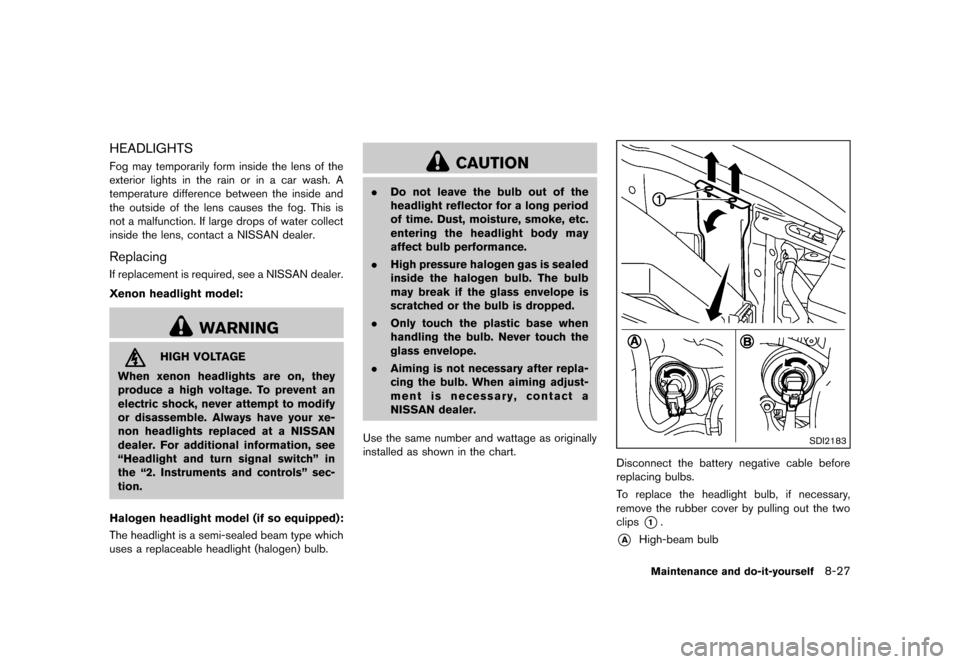

HEADLIGHTSGUID-B7024CBE-4176-4E16-8869-DEBDA14C4A55Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, contact a NISSAN dealer.
ReplacingGUID-06D0D99A-DBCB-47EA-BA6E-CE7EB8469ACBIf replacement is required, see a NISSAN dealer.
Xenon headlight model:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
WARNING
HIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xe-
non headlights replaced at a NISSAN
dealer. For additional information, see
“Headlight and turn signal switch” in
the “2. Instruments and controls” sec-
tion.
Halogen headlight model (if so equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb.
CAUTION
. Do not leave the bulb out of the
headlight reflector for a long period
of time. Dust, moisture, smoke, etc.
entering the headlight body may
affect bulb performance.
. High pressure halogen gas is sealed
inside the halogen bulb. The bulb
may break if the glass envelope is
scratched or the bulb is dropped.
. Only touch the plastic base when
handling the bulb. Never touch the
glass envelope.
. Aiming is not necessary after repla-
cing the bulb. When aiming adjust-
ment is necessary, contact a
NISSAN dealer.
Use the same number and wattage as originally
installed as shown in the chart.
SDI2183
Disconnect the battery negative cable before
replacing bulbs.
To replace the headlight bulb, if necessary,
remove the rubber cover by pulling out the two
clips
*1.
*AHigh-beam bulb
Maintenance and do-it-yourself8-27
Condition:
Page 452 of 507
Black plate (450,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
8-28Maintenance and do-it-yourself

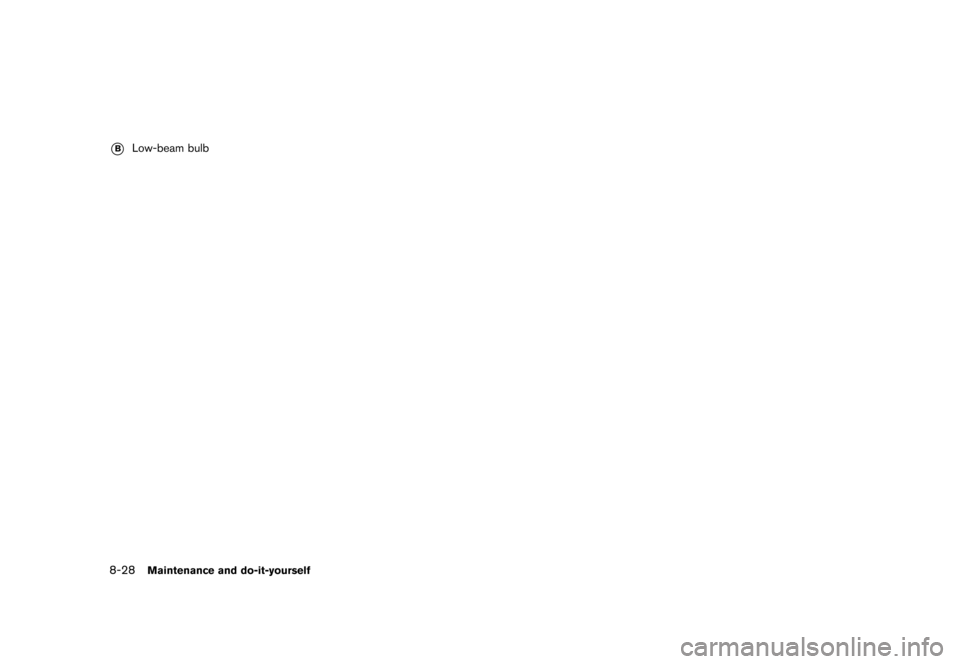

*BLow-beam bulb
Condition:
Page 453 of 507
Black plate (451,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

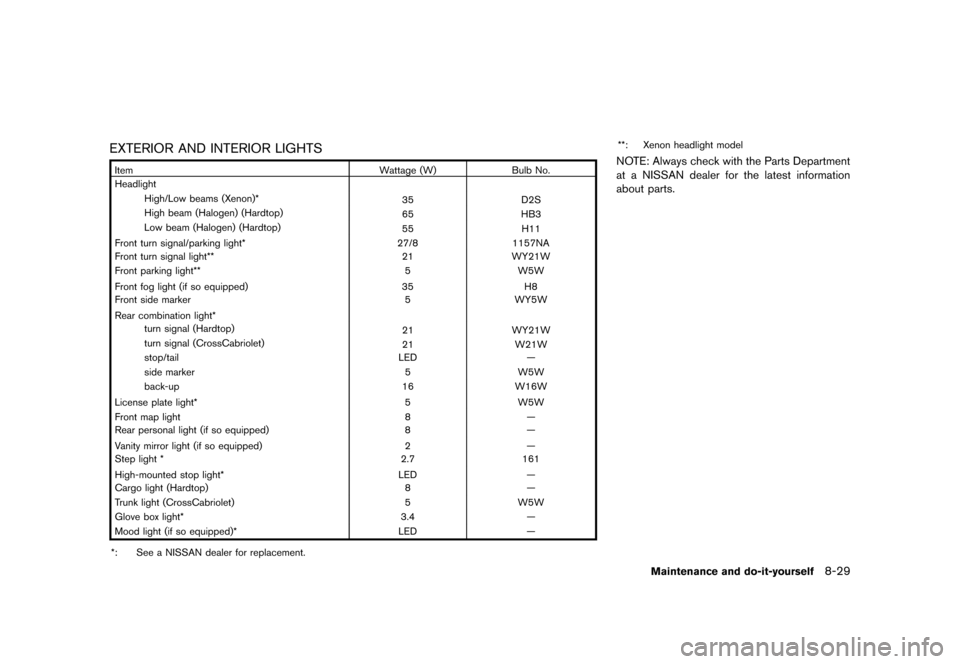

EXTERIOR AND INTERIOR LIGHTSGUID-A6B488A2-F57B-4F86-9182-F40F0F8F3000
ItemWattage (W)Bulb No.
Headlight
High/Low beams (Xenon)* 35D2S
High beam (Halogen) (Hardtop) 65HB3
Low beam (Halogen) (Hardtop) 55H11
Front turn signal/parking light* 27/81157NA
Front turn signal light** 21WY21W
Front parking light** 5W5W
Front fog light (if so equipped) 35H8
Front side marker 5WY5W
Rear combination light* turn signal (Hardtop) 21WY21W
turn signal (CrossCabriolet) 21W21W
stop/tail LED—
side marker 5W5W
back-up 16W16W
License plate light* 5W5W
Front map light 8—
Rear personal light (if so equipped) 8—
Vanity mirror light (if so equipped) 2—
Step light * 2.7161
High-mounted stop light* LED—
Cargo light (Hardtop) 8—
Trunk light (CrossCabriolet) 5W5W
Glove box light* 3.4—
Mood light (if so equipped)* LED—
*: See a NISSAN dealer for replacement. **: Xenon headlight modelNOTE: Always check with the Parts Department
at a NISSAN dealer for the latest information
about parts.
Maintenance and do-it-yourself8-29
Condition:
Page 454 of 507
Black plate (452,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
8-30Maintenance and do-it-yourself

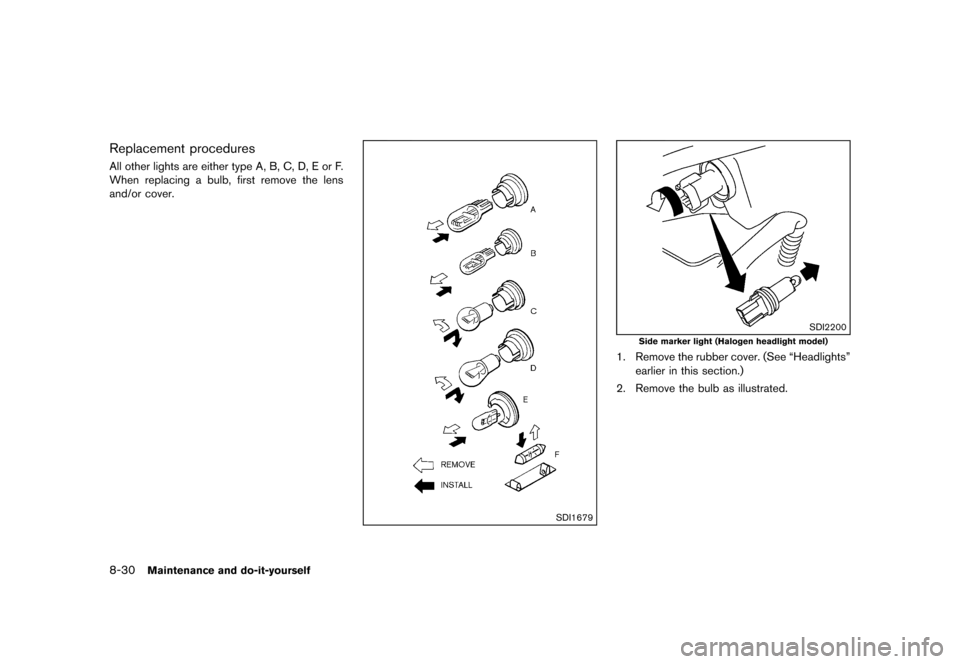

Replacement proceduresGUID-D7C1D5A3-D223-40B4-93DE-E7CBE6E86E47All other lights are either type A, B, C, D, E or F.
When replacing a bulb, first remove the lens
and/or cover.
SDI1679
SDI2200
Side marker light (Halogen headlight model)
1. Remove the rubber cover. (See “Headlights”earlier in this section.)
2. Remove the bulb as illustrated.
Condition:
Page 455 of 507
Black plate (453,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SDI2184

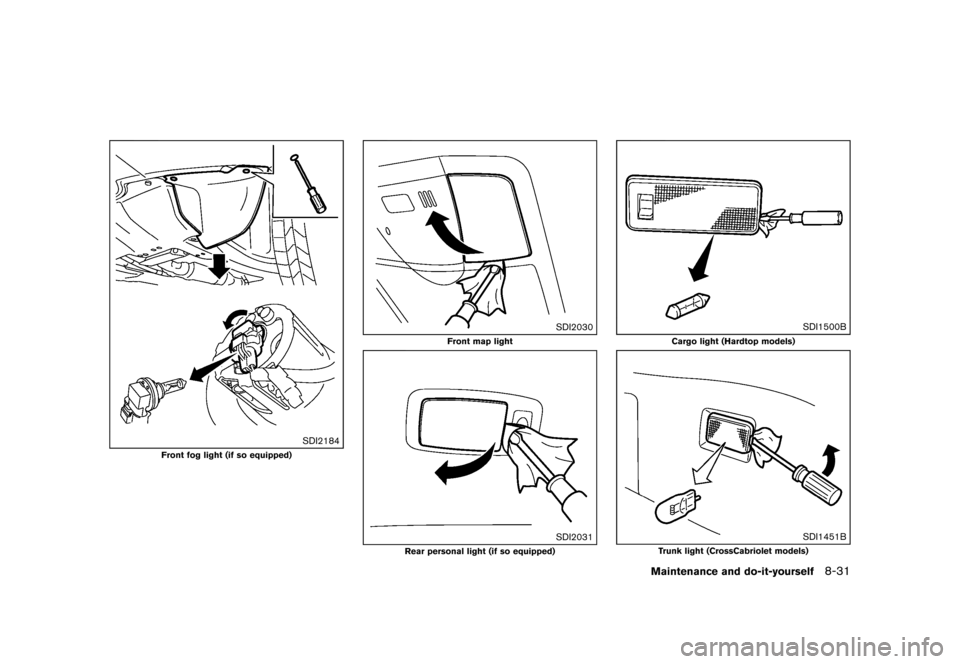

Front fog light (if so equipped)
SDI2030
Front map light
SDI2031
Rear personal light (if so equipped)
SDI1500B
Cargo light (Hardtop models)
SDI1451B
Trunk light (CrossCabriolet models)
Maintenance and do-it-yourself8-31
Condition:
Page 456 of 507
Black plate (454,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
8-32Maintenance and do-it-yourself
SDI2032

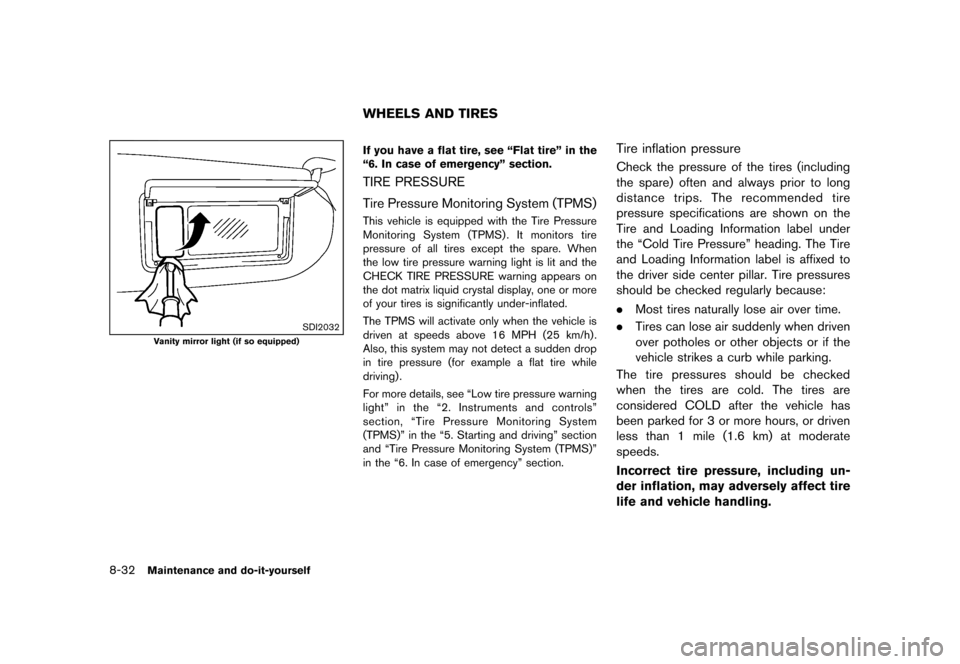

Vanity mirror light (if so equipped)
GUID-46CB2E70-031A-4F55-9AD6-348B824D56ADIf you have a flat tire, see “Flat tire” in the
“6. In case of emergency” section.
TIRE PRESSUREGUID-8F5553C8-DD7B-4C05-B269-57BEA6C2CD20
Tire Pressure Monitoring System (TPMS)GUID-06C227A1-45FE-48D6-A3EB-3BEE667CEF9CThis vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire
pressure of all tires except the spare. When
the low tire pressure warning light is lit and the
CHECK TIRE PRESSURE warning appears on
the dot matrix liquid crystal display, one or more
of your tires is significantly under-inflated.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h).
Also, this system may not detect a sudden drop
in tire pressure (for example a flat tire while
driving) .
For more details, see “Low tire pressure warning
light” in the “2. Instruments and controls”
section, “Tire Pressure Monitoring System
(TPMS)” in the “5. Starting and driving” section
and “Tire Pressure Monitoring System (TPMS)”
in the “6. In case of emergency” section.
Tire inflation pressureGUID-8058DB1F-E89F-47BE-A4CC-EB1666DA9B76Check the pressure of the tires (including
the spare) often and always prior to long
distance trips. The recommended tire
pressure specifications are shown on the
Tire and Loading Information label under
the “Cold Tire Pressure” heading. The Tire
and Loading Information label is affixed to
the driver side center pillar. Tire pressures
should be checked regularly because:
.Most tires naturally lose air over time.
. Tires can lose air suddenly when driven
over potholes or other objects or if the
vehicle strikes a curb while parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or driven
less than 1 mile (1.6 km) at moderate
speeds.
Incorrect tire pressure, including un-
der inflation, may adversely affect tire
life and vehicle handling.
WHEELS AND TIRES
Condition:
Page 457 of 507
Black plate (455,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

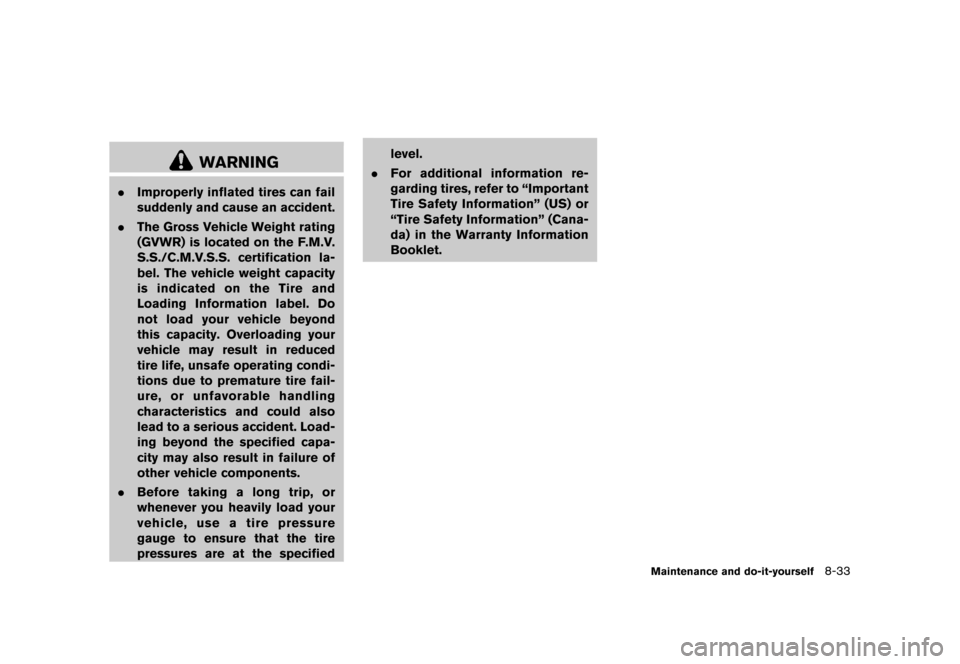

WARNING
.Improperly inflated tires can fail
suddenly and cause an accident.
. The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.
S.S./C.M.V.S.S. certification la-
bel. The vehicle weight capacity
is indicated on the Tire and
Loading Information label. Do
not load your vehicle beyond
this capacity. Overloading your
vehicle may result in reduced
tire life, unsafe operating condi-
tions due to premature tire fail-
ure, or unfavorable handling
characteristics and could also
lead to a serious accident. Load-
ing beyond the specified capa-
city may also result in failure of
other vehicle components.
. Before taking a long trip, or
whenever you heavily load your
vehicle, use a tire pressure
gauge to ensure that the tire
pressures are at the specified level.
. For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information” (Cana-
da) in the Warranty Information
Booklet.
Maintenance and do-it-yourself8-33
Condition:
Page 458 of 507
Black plate (456,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
8-34Maintenance and do-it-yourself
SDI2503

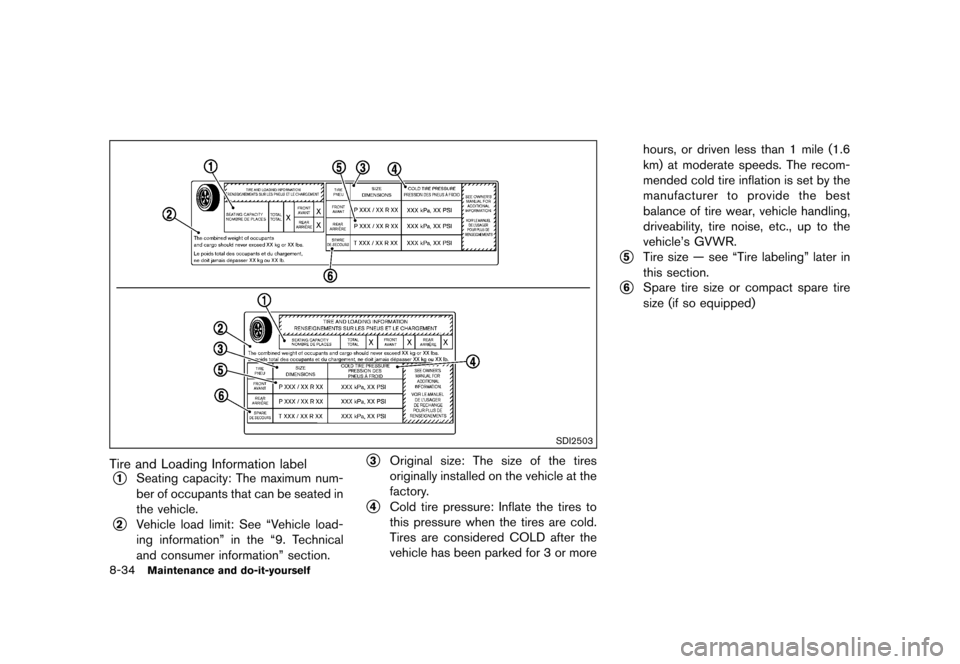

Tire and Loading Information labelGUID-C4A6DD26-5C30-4751-BF04-C2DCD621B313*1Seating capacity: The maximum num-
ber of occupants that can be seated in
the vehicle.
*2Vehicle load limit: See “Vehicle load-
ing information” in the “9. Technical
and consumer information” section.
*3Original size: The size of the tires
originally installed on the vehicle at the
factory.
*4Cold tire pressure: Inflate the tires to
this pressure when the tires are cold.
Tires are considered COLD after the
vehicle has been parked for 3 or morehours, or driven less than 1 mile (1.6
km) at moderate speeds. The recom-
mended cold tire inflation is set by the
manufacturer to provide the best
balance of tire wear, vehicle handling,
driveability, tire noise, etc., up to the
vehicle’s GVWR.
*5Tire size — see “Tire labeling” later in
this section.
*6Spare tire size or compact spare tire
size (if so equipped)
Condition:
Page 459 of 507
Black plate (457,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SDI1949

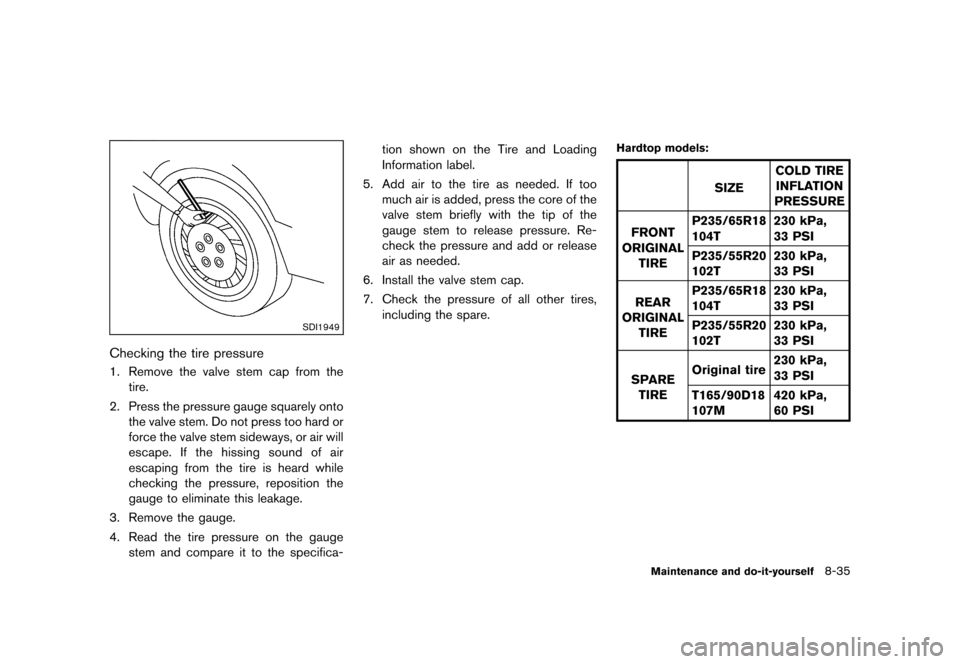

Checking the tire pressureGUID-2ED3159A-D506-43DB-9972-4F773CDD17B21. Remove the valve stem cap from thetire.
2. Press the pressure gauge squarely onto the valve stem. Do not press too hard or
force the valve stem sideways, or air will
escape. If the hissing sound of air
escaping from the tire is heard while
checking the pressure, reposition the
gauge to eliminate this leakage.
3. Remove the gauge.
4. Read the tire pressure on the gauge stem and compare it to the specifica- tion shown on the Tire and Loading
Information label.
5. Add air to the tire as needed. If too much air is added, press the core of the
valve stem briefly with the tip of the
gauge stem to release pressure. Re-
check the pressure and add or release
air as needed.
6. Install the valve stem cap.
7. Check the pressure of all other tires, including the spare.
Hardtop models:
SIZE COLD TIRE
INFLATION
PRESSURE
FRONT
ORIGINAL TIRE P235/65R18
104T
230 kPa,
33 PSI
P235/55R20
102T 230 kPa,
33 PSI
REAR
ORIGINAL TIRE P235/65R18
104T
230 kPa,
33 PSI
P235/55R20
102T 230 kPa,
33 PSI
SPARE TIRE Original tire
230 kPa,
33 PSI
T165/90D18
107M 420 kPa,
60 PSI
Maintenance and do-it-yourself8-35
Condition:
Page 460 of 507
Black plate (458,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
8-36Maintenance and do-it-yourself

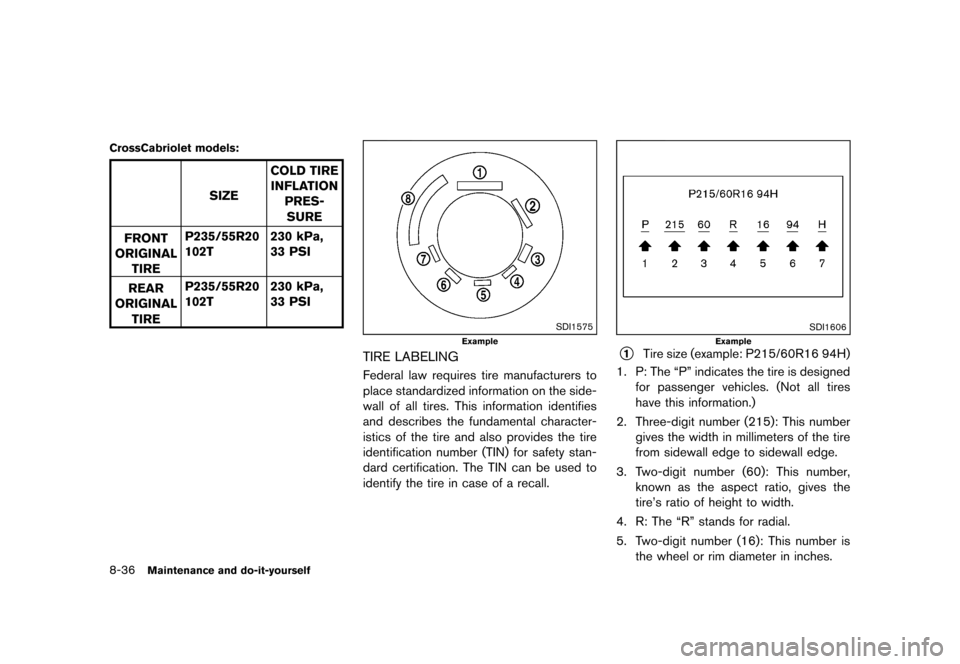

CrossCabriolet models:
SIZECOLD TIRE
INFLATION PRES-
SURE
FRONT
ORIGINAL TIRE P235/55R20
102T
230 kPa,
33 PSI
REAR
ORIGINAL
TIRE P235/55R20
102T
230 kPa,
33 PSI
SDI1575
Example
TIRE LABELINGGUID-696EC93A-2514-47AA-8FC2-5FE841ADB735Federal law requires tire manufacturers to
place standardized information on the side-
wall of all tires. This information identifies
and describes the fundamental character-
istics of the tire and also provides the tire
identification number (TIN) for safety stan-
dard certification. The TIN can be used to
identify the tire in case of a recall.
SDI1606
Example
*1Tire size (example: P215/60R16 94H)
1. P: The “P” indicates the tire is designed
for passenger vehicles. (Not all tires
have this information.)
2. Three-digit number (215): This number gives the width in millimeters of the tire
from sidewall edge to sidewall edge.
3. Two-digit number (60): This number, known as the aspect ratio, gives the
tire’s ratio of height to width.
4. R: The “R” stands for radial.
5. Two-digit number (16): This number is the wheel or rim diameter in inches.
Condition:
