PS-34
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
Steering WheelEGS001LR
Steering AngleEGS001LS
Steering ColumnEGS001LT
Steering Outer Socket and Inner SocketEGS001LU
Steering wheel axial end play 0 mm (0 in)
Steering wheel play 0 - 35 mm (0 - 1.38 in)
Inner wheel
Degree minute (Decimal degree)2WD 33°31¢-35°31¢(33.5°- 36.5°)
4WD 33°48¢-35°48¢(33.8°- 35.8°)
Outer wheel
Degree minute (Decimal degree)2WD 29°23¢-31°23¢(29.4°- 31.4°)
4WD 29°40¢-31°40¢(29.7°- 31.7°)
Steering column length “L” 423.1 mm (16.66 in)
SGIA1222E
Steering gear typePR32AM
Outer socketSwinging torque 0.3 - 2.9 N·m (0.03 - 0.29 kg-m, 3.0 - 25 in-lb)
Measurement on spring balance
Measuring point: cotter pin hole of stud4.84 - 46.7 N (0.5 - 4.8 kg, 1.1 - 10.6 lb)
Rotating torque 0.3 - 2.9 N·m (0.03 - 0.29 kg-m, 3.0 - 25 in-lb)
Axial end play 0.5 mm (0.020 in) or less
Inner socketSwinging torque 1.0 - 7.8 N·m (0.11 - 0.79 kg-m, 9.0 - 69 in-lb)
lMeasurement on spring balance
lMeasuring point at *mark shown in the figure12.1 - 93.7 N (1.2 - 9.6 kg, 2.6 - 21.2 lb)
Axial end play 0.2 mm (0.008 in) or less
Inner socket length “L”79 mm (3.11 in)
SGIA0950E

SERVICE DATA AND SPECIFICATIONS (SDS)
PS-35
C
D
E
F
H
I
J
K
L
MA
B
PS
Steering GearEGS001LV
Oil PumpEGS001LW
Steering FluidEGS001LX
Steering gear modelPR32AM
Rack neutral position, dimension “L” (rack stroke) 84 mm (3.31 in)
SGIA0877E
Oil pump relief hydraulic pressure
8,500 - 9,300 kpa (86.7 - 94.9 kg/cm2, 1,233 - 1,349 psi)
Fluid capacity
Approx. 1.0 (1 - 1/8 US qt, 7/8 Imp qt)

PS-36
SERVICE DATA AND SPECIFICATIONS (SDS)

RAX-1
REAR AXLE
D DRIVELINE/AXLE
CONTENTS
C
E
F
G
H
I
J
K
L
M
SECTIONRAX
A
B
RAX
REAR AXLE
M226
PRECAUTIONS .......................................................... 2
Precautions .............................................................. 2
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
Commercial Service tools ........................................ 4
NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 5
NVH Troubleshooting Chart ..................................... 5
ON-VEHICLE SERVICE ............................................. 6
Rear Axle Parts ........................................................ 6
Rear Axle Bearing .................................................... 6AXLE SHAFT .............................................................. 7
Removal and Installation .......................................... 7
REMOVAL ............................................................. 8
INSPECTION AFTER REMOVAL ......................... 9
INSTALLATION ..................................................... 9
DISASSEMBLY ..................................................... 9
INSPECTION AFTER DISASSEMBLY ................ 11
ASSEMBLY ......................................................... 11
AXLE BEARING ....................................................... 12
Removal and Installation ........................................ 12
AXLE OIL SEAL ....................................................... 13
Removal and Installation ........................................ 13
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 14
Axle Bearing ........................................................... 14

RAX-2
[M226]
PRECAUTIONS
[M226]PRECAUTIONSPFP:00001
PrecautionsEDS003HT
lWhen installing the rubber bushings, the final tightening must be done under unladen condition and with
the tires on level ground. Oil will shorten the life of the rubber bushings, so wipe off any spilled oil immedi-
ately.
lUnladen condition means the fuel tank, engine coolant and lubricants are at the full secification. The
spare tire, jack, hand tools, and mats are in their designated positions.
lLock nuts are not reusable. Always use new lock nuts for installation. New lock nuts are pre-oiled, do not
apply any additional lubrication.

PREPARATION
RAX-3
[M226]
C
E
F
G
H
I
J
K
L
MA
B
RAX
PREPARATIONPFP:00002

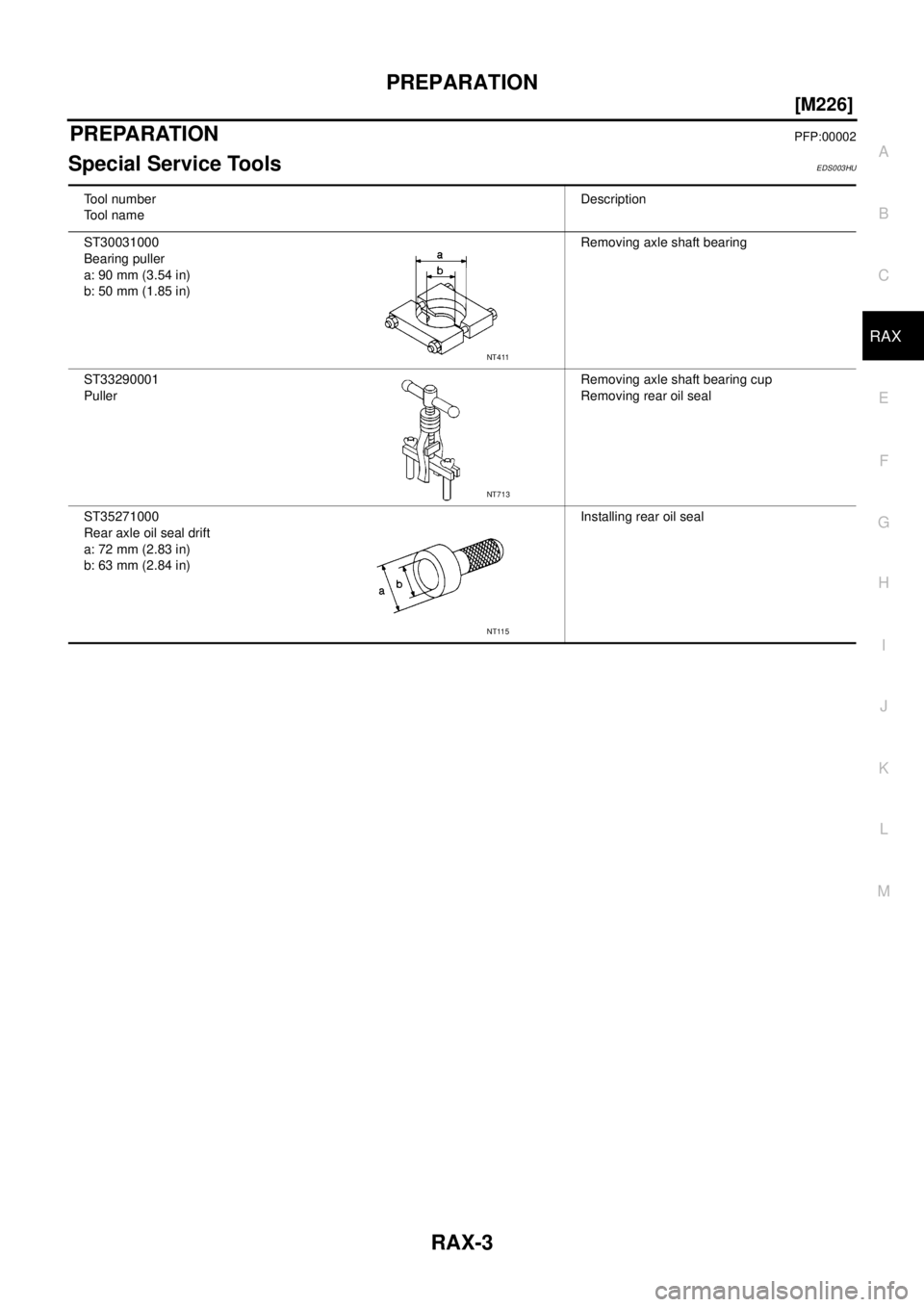

Special Service ToolsEDS003HU
Tool number
Tool nameDescription
ST30031000
Bearing puller
a: 90 mm (3.54 in)
b: 50 mm (1.85 in)Removing axle shaft bearing
ST33290001
PullerRemoving axle shaft bearing cup
Removing rear oil seal
ST35271000
Rear axle oil seal drift
a: 72 mm (2.83 in)
b: 63 mm (2.84 in)Installing rear oil seal
NT411
NT713
NT115

RAX-4
[M226]
PREPARATION

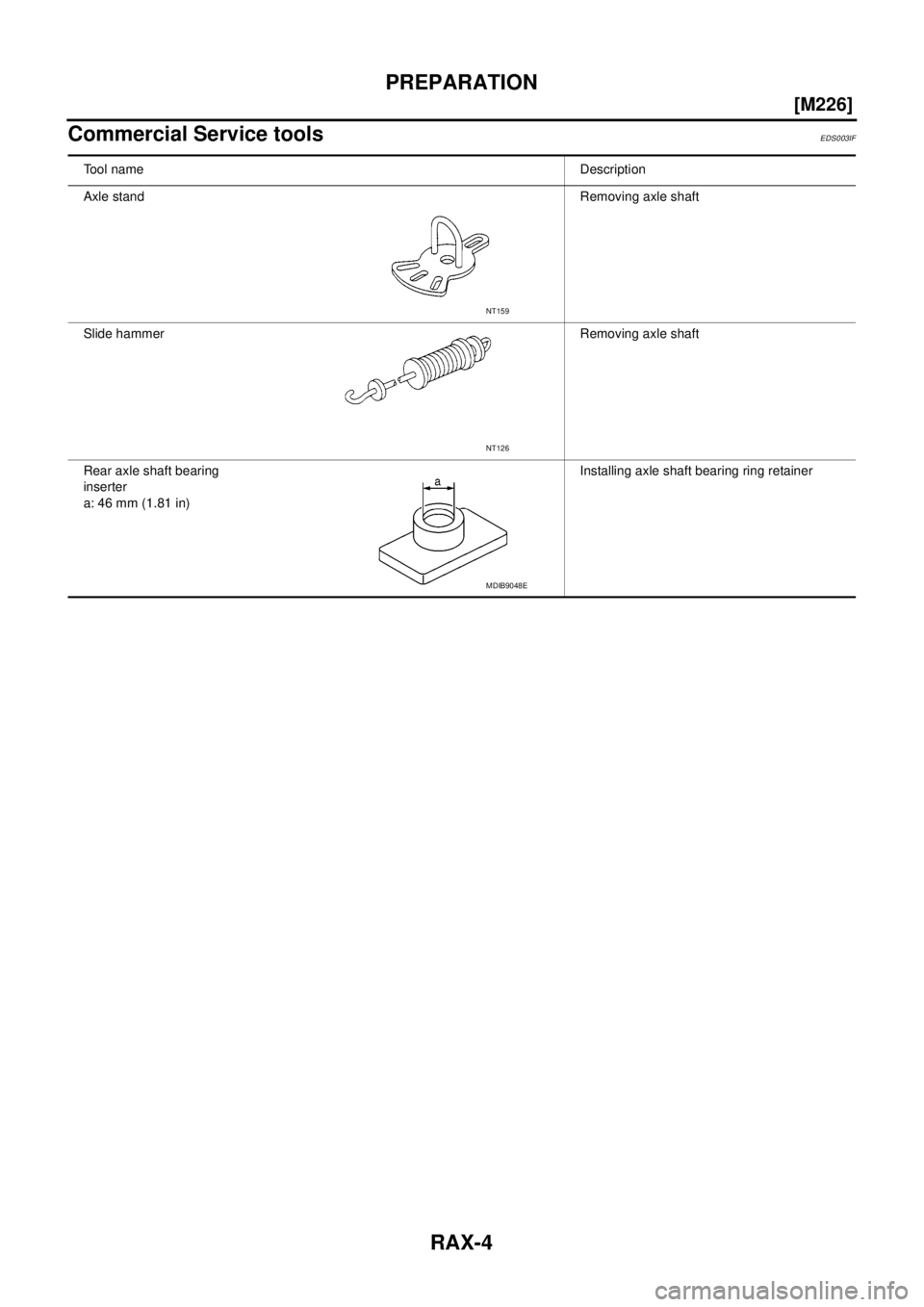

Commercial Service tools
EDS003IF
Tool nameDescription
Axle standRemoving axle shaft
Slide hammer Removing axle shaft
Rear axle shaft bearing
inserter
a: 46 mm (1.81 in)Installing axle shaft bearing ring retainer
NT159
NT126
MDIB9048E

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING
RAX-5
[M226]
C
E
F
G
H
I
J
K
L
MA
B
RAX
NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting ChartEDS003HW
Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.
´: Applicable Reference page
RAX-7
(M226 all)
RAX-7(M226 all)
RAX-7(M226 all)
PR-2, "
NVH Troubleshooting Chart
"
RFD-7
(with LSD),RFD-39
(with LD)
RSU-3, "
NVH Troubleshooting Chart
"
WT-2, "
NVH Troubleshooting Chart
"
WT-2, "
NVH Troubleshooting Chart
"
BR-5, "
NVH Troubleshooting Chart
"
Possible cause and SUSPECTED PARTS
Improper installation, looseness
Parts interference
Wheel bearing damage
PROPELLER SHAFT
REAR FINAL DRIVE
SUSPENSION
TIRES
ROAD WHEEL
BRAKES
SymptomNoise´´ ´´´´´´
Shake´´ ´ ´´´´
Vibration´´ ´ ´´
Shimmy´´ ´´´´
Shudder´ ´´´´
Poor quality ride or handling´´´ ´´´

RAX-6
[M226]
ON-VEHICLE SERVICE
ON-VEHICLE SERVICE
PFP:00000
Rear Axle PartsEDS003HX
lCheck the axle parts for excessive play, wear, and damage. Replace as necessary.

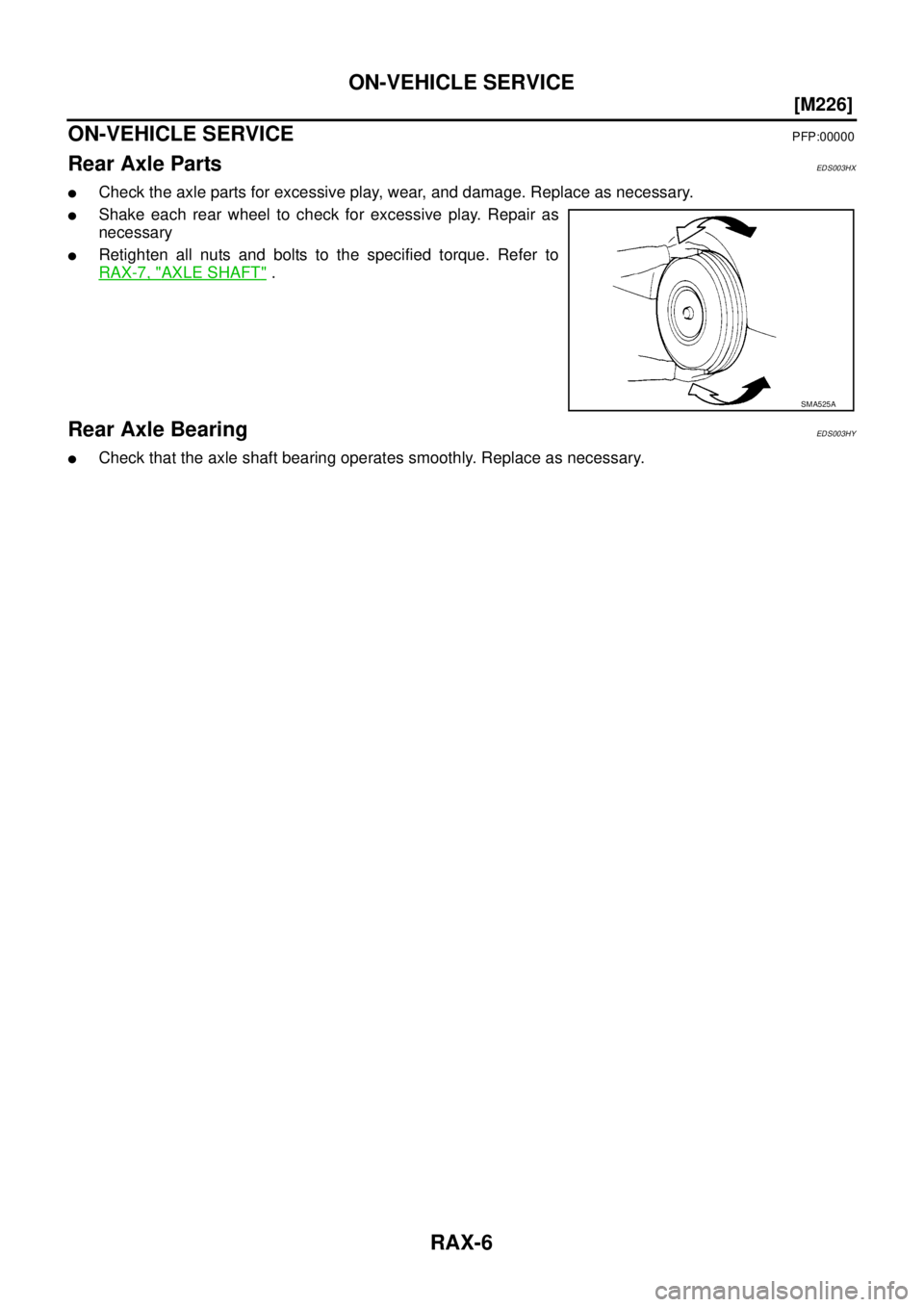

lShake each rear wheel to check for excessive play. Repair as
necessary
lRetighten all nuts and bolts to the specified torque. Refer to
RAX-7, "
AXLE SHAFT".
Rear Axle BearingEDS003HY
lCheck that the axle shaft bearing operates smoothly. Replace as necessary.
SMA525A

AXLE SHAFT
RAX-7
[M226]
C
E
F
G
H
I
J
K
L
MA
B
RAX
AXLE SHAFTPFP:38164
Removal and InstallationEDS003HZ

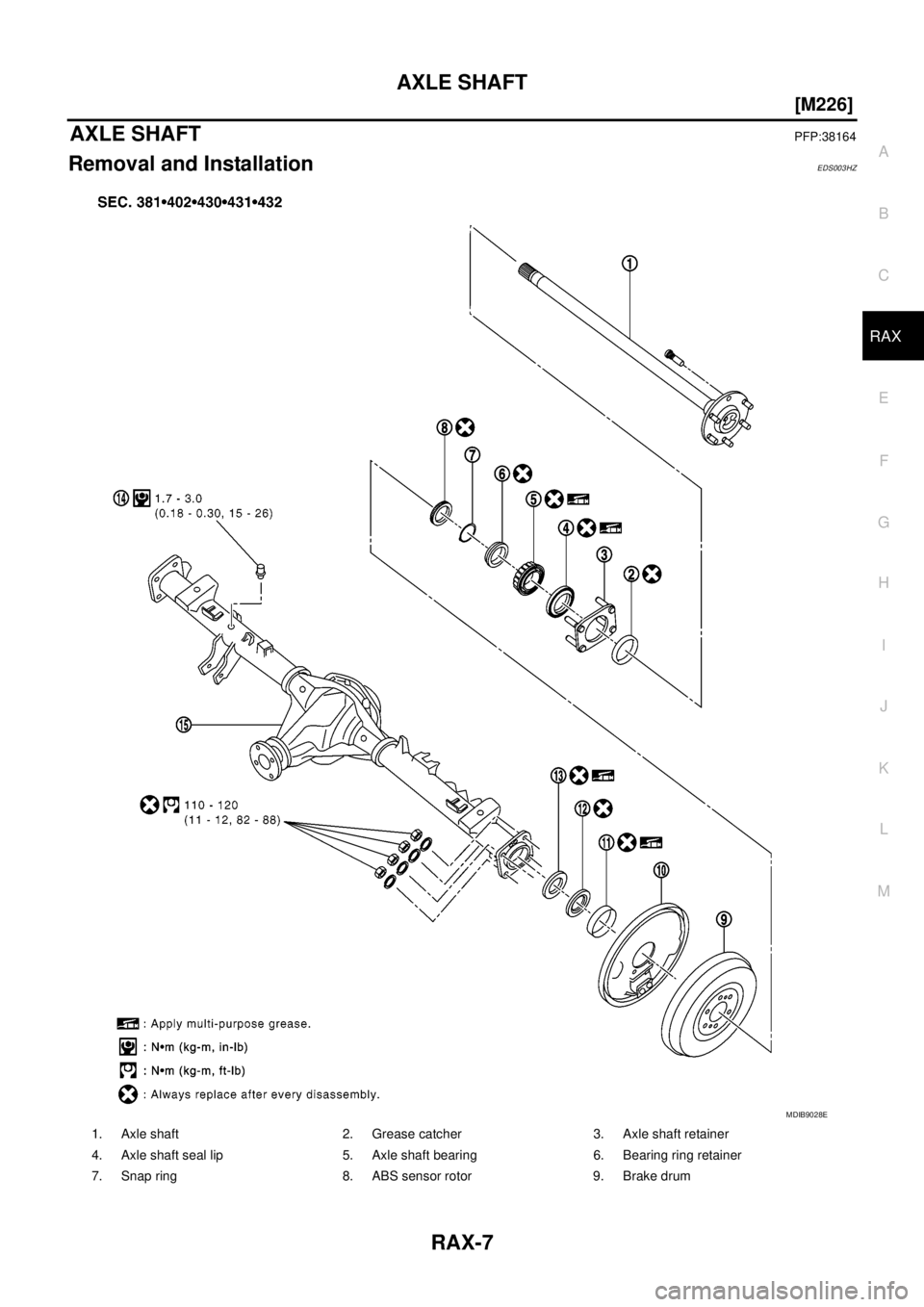

1. Axle shaft 2. Grease catcher 3. Axle shaft retainer
4. Axle shaft seal lip 5. Axle shaft bearing 6. Bearing ring retainer
7. Snap ring 8. ABS sensor rotor 9. Brake drum
MDIB9028E
