218 Electrical System
Connect a jumper lead from the negative
terminal of a 12 volt battery to the earth wire. Connect a jumper lead from the positive
terminal of a 12 volt battery and connect each of the
trailer lamp wires in turn to the positive battery terminal jumper lead, noting the color of the wire
and the lamp circuit operated.

(3) After installation, connect the trailer plug to
the socket on the vehicle and check for correct lamp
operation.

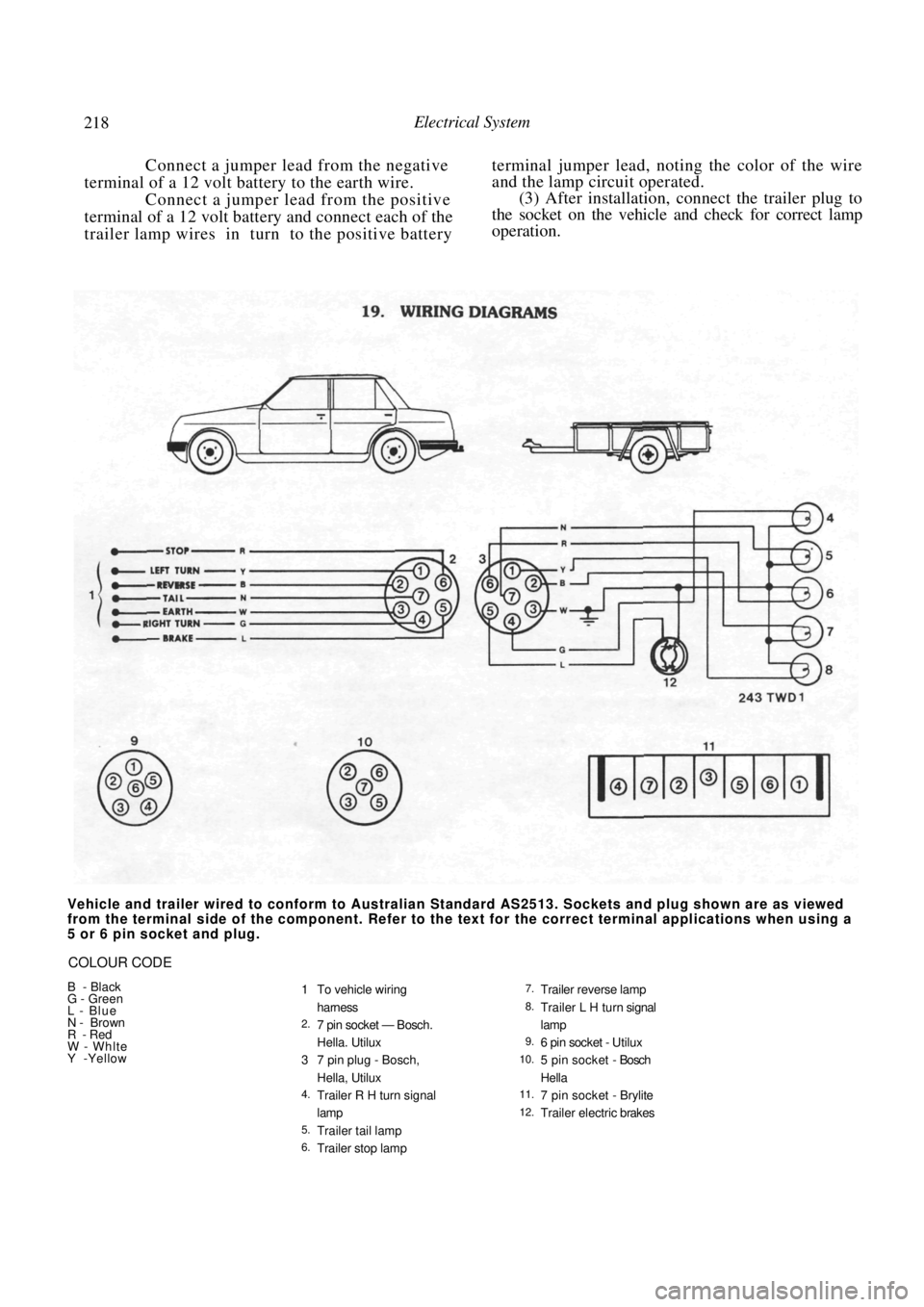

Vehicle and trailer wired to conform to Australian Standard AS2513. Sockets and plug shown are as viewed
from the terminal side of the component. Refer to the text for the correct terminal applications when using a
5 or 6 pin socket and plug.

COLOUR CODE
B - Black
G - Green
L - Blue
N - Brown
R - Red
W - Whlte
Y -Yellow

1 To vehicle wiring 7.Trailer reverse lamp

harness 8.Trailer L H turn signal
2. 7 pin socket — Bosch. lamp

Hella. Utilux 9.6 pin socket - Utilux
3 7 pin plug - Bosch, 10.5 pin socket - Bosch

Hella, Utilux Hella
4. Trailer R H turn signal 11.7 pin socket - Brylite

lamp 12.Trailer electric brakes
5. Trailer tail lamp
6. Trailer stop lamp

220 Electrical System


Wiring diagram (WD2) for the instruments, hazard and turning signal systems.
COLOUR CODE
The first letter of the code
represents the main wire color,
the other letters represent the
trace colors.

B - BLACK
L - BLUE
G - GREEN
R - RED
Y - YELLOW
W- WHITE
N - BROWN
O - OHANGE
K - PINK
S - GREY V -VIOLET
P - PURPLE X - LIGHT GREEN Z - LIGHT BLUE M - DARK GREEN T - DARK BLUE A - LIGHT BROWN E - SLATE D - TAN
KEY 1. Fuse 11 Ignition
2. Speedometer
3. Vehicle speed sensor
4. To No. 21 WD1
5. To ECU A10
6. To No. 13 WD1
7. Tachometer
8. Voltage regulator
9. Resistor
10. Temperature gauge
11. Fuel gauge
12. Temperature sender
13. Fuel sender
14. To ECM lamp
15. Oil lamp
16. Park brake lamp
17. Low fuel lamp
18. To ECU A5
19. To No. 20 WD1
20. Park brake switch
21. Low fuel switch
22. Brake switch
23. Brake fail lamp
24. Bulb check relay
25. Charge lamp
26. Door ajar lamp
27. To No. 6 VWD1
28. To No. 8 WD4
29. To No. 18 WD6
30. To No. 17 WD6 31. Hazard switch

32. Flasher unit
33. Turn signal switch
34. L H front combination
lamp
35. L H side indicator lamp
36. L H rear combination lamp
37. L H instrument warning
lamp
38. R H instrument warning lamp
39. R H rear combination lamp
40. R H side indicator lamp
41. R H front combination lamp
42. Divider circuit
