Page 411 of 482

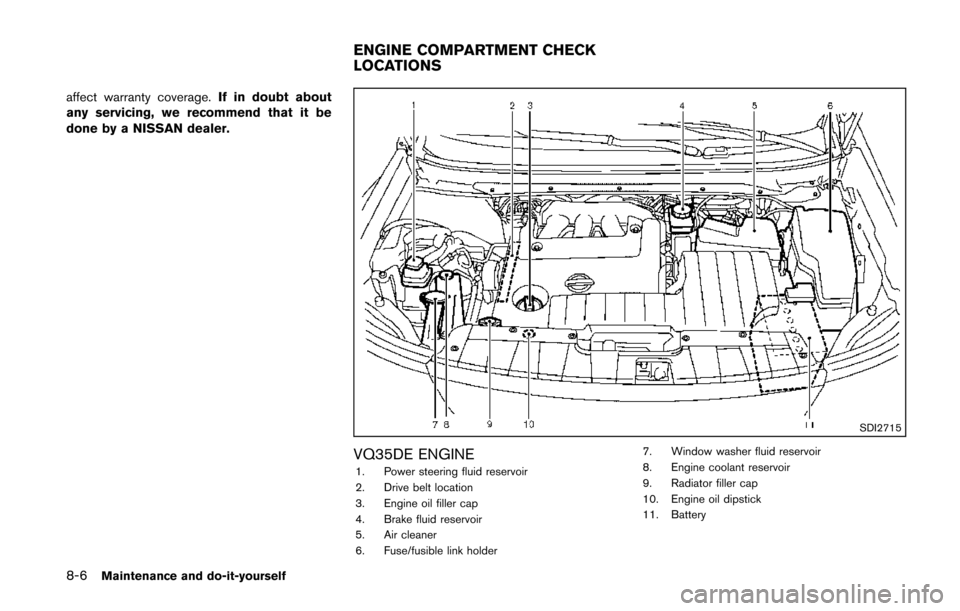

NISSAN QUEST 2014 RE52 / 4.G Owners Manual 8-6Maintenance and do-it-yourself
affect warranty coverage.If in doubt about
any servicing, we recommend that it be
done by a NISSAN dealer.
SDI2715
VQ35DE ENGINE1. Power steering fluid reservoir
2. D

Page 412 of 482

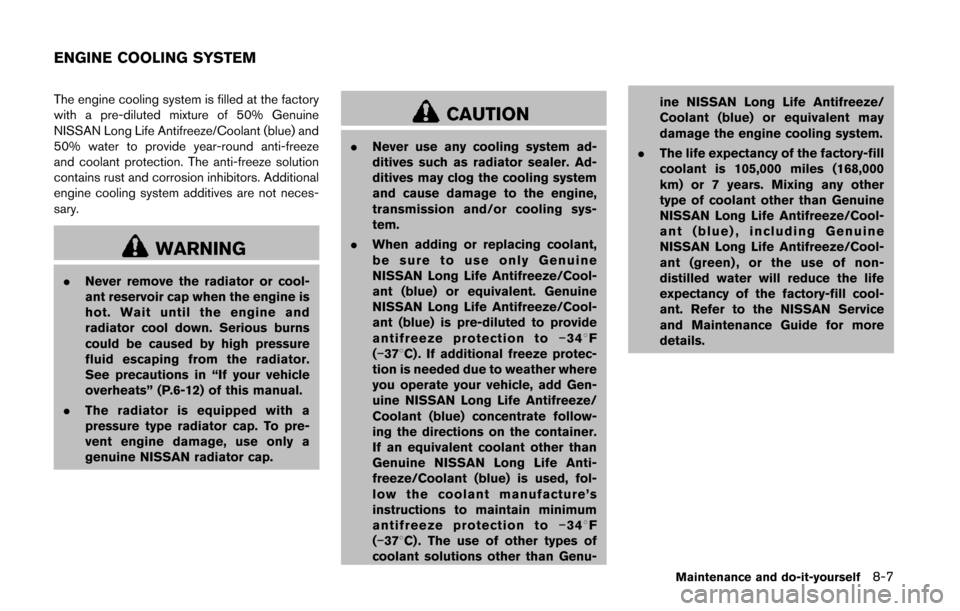

NISSAN QUEST 2014 RE52 / 4.G Owners Manual The engine cooling system is filled at the factory
with a pre-diluted mixture of 50% Genuine
NISSAN Long Life Antifreeze/Coolant (blue) and
50% water to provide year-round anti-freeze
and coolant prot

Page 413 of 482

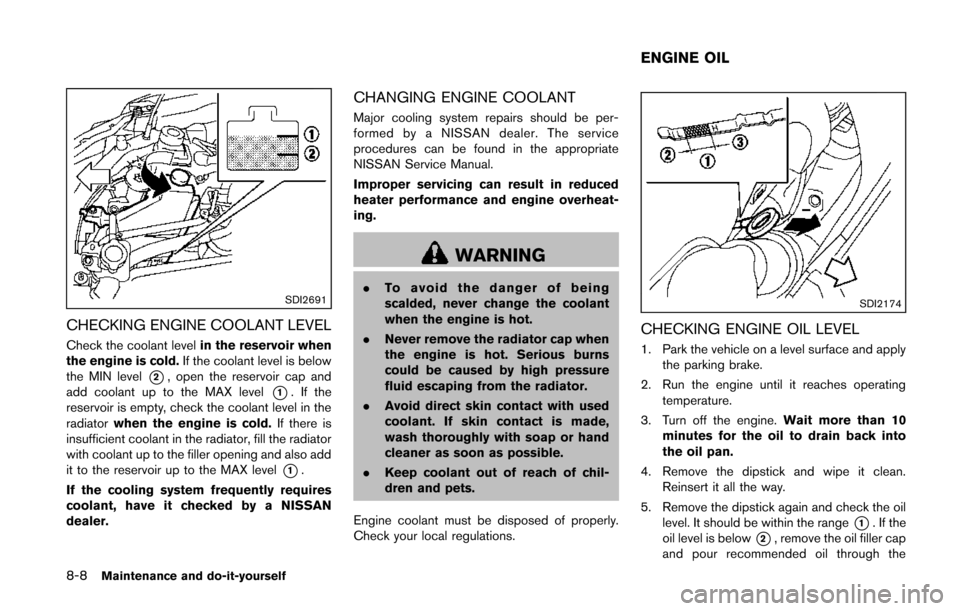

NISSAN QUEST 2014 RE52 / 4.G Owners Manual 8-8Maintenance and do-it-yourself
SDI2691
CHECKING ENGINE COOLANT LEVEL
Check the coolant levelin the reservoir when
the engine is cold. If the coolant level is below
the MIN level
*2, open the reserv

Page 414 of 482

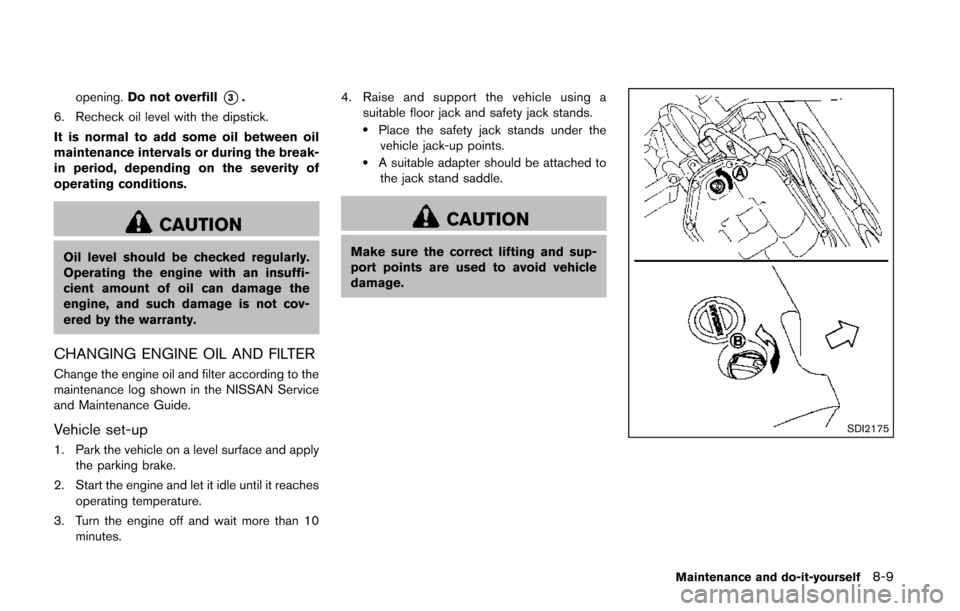

NISSAN QUEST 2014 RE52 / 4.G Owners Manual opening.Do not overfill*3.
6. Recheck oil level with the dipstick.
It is normal to add some oil between oil
maintenance intervals or during the break-
in period, depending on the severity of
operating

Page 415 of 482

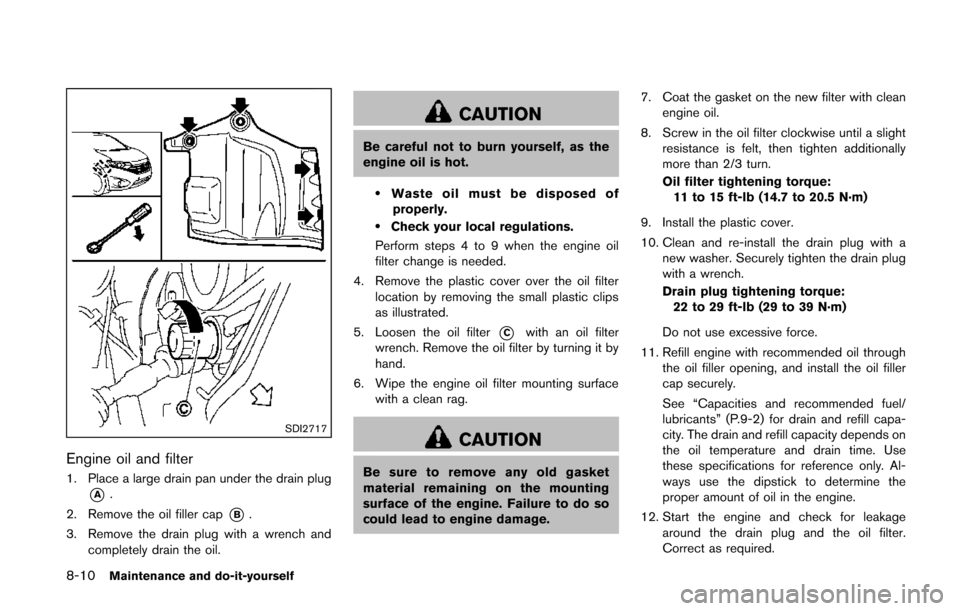

NISSAN QUEST 2014 RE52 / 4.G Owners Manual 8-10Maintenance and do-it-yourself
SDI2717
Engine oil and filter
1. Place a large drain pan under the drain plug
*A.
2. Remove the oil filler cap
*B.
3. Remove the drain plug with a wrench and complet

Page 416 of 482

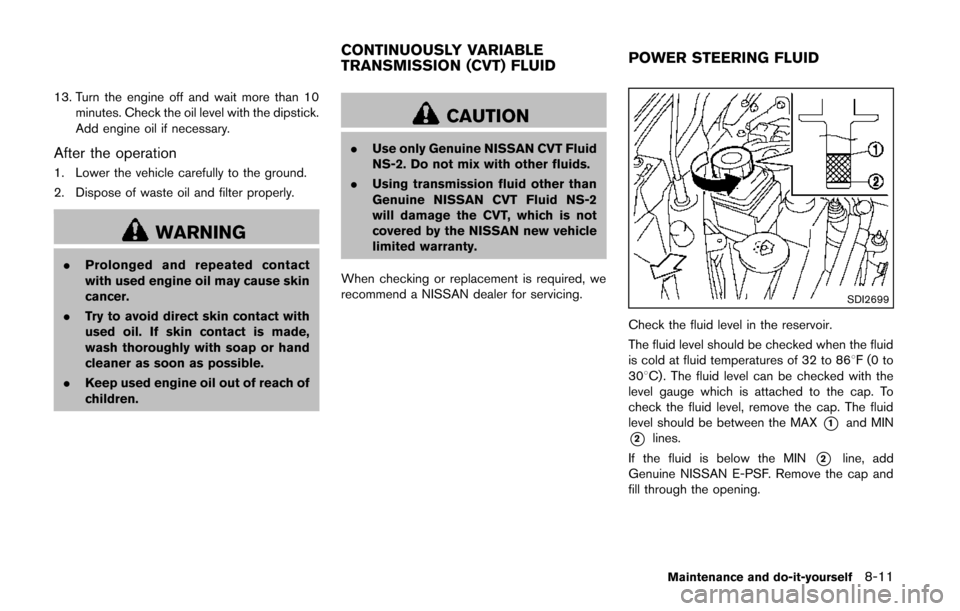

NISSAN QUEST 2014 RE52 / 4.G Owners Manual 13. Turn the engine off and wait more than 10minutes. Check the oil level with the dipstick.
Add engine oil if necessary.
After the operation
1. Lower the vehicle carefully to the ground.
2. Dispose o

Page 417 of 482

NISSAN QUEST 2014 RE52 / 4.G Owners Manual 8-12Maintenance and do-it-yourself
CAUTION
.Do not overfill.
. Use of a power steering fluid other
than Genuine NISSAN E-PSF will
prevent the power steering system
from operating properly. For additio

Page 418 of 482

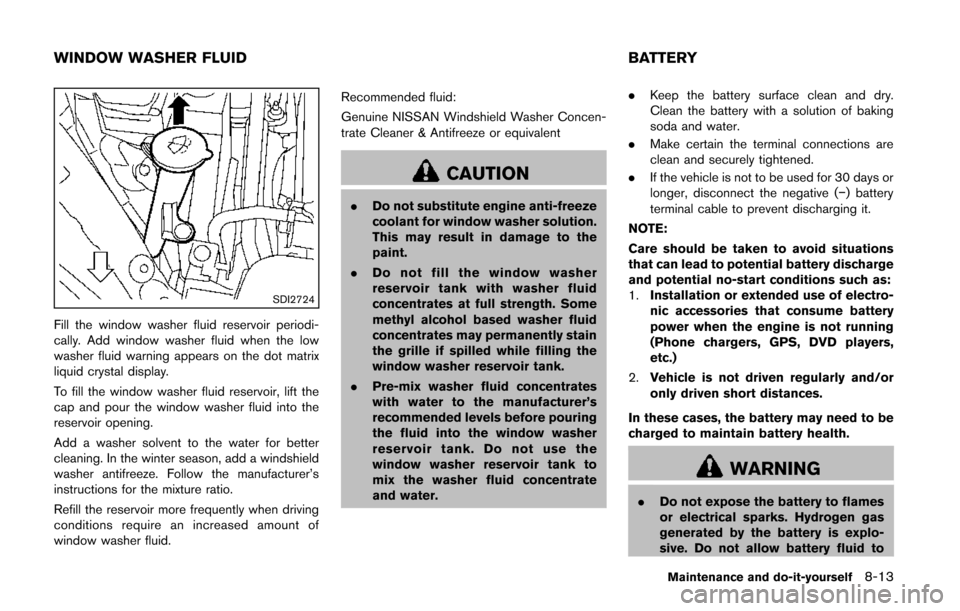

NISSAN QUEST 2014 RE52 / 4.G Owners Manual SDI2724
Fill the window washer fluid reservoir periodi-
cally. Add window washer fluid when the low
washer fluid warning appears on the dot matrix
liquid crystal display.
To fill the window washer flu

Page 419 of 482

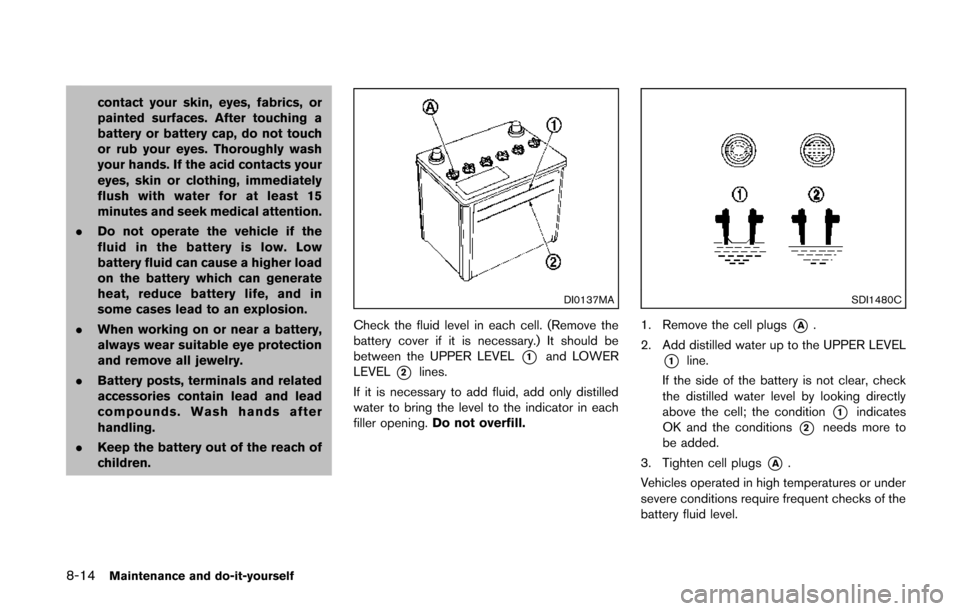

NISSAN QUEST 2014 RE52 / 4.G Owners Manual 8-14Maintenance and do-it-yourself
contact your skin, eyes, fabrics, or
painted surfaces. After touching a
battery or battery cap, do not touch
or rub your eyes. Thoroughly wash
your hands. If the aci

Page 420 of 482

NISSAN QUEST 2014 RE52 / 4.G Owners Manual JUMP STARTING
If jump starting is necessary, see “Jump starting”
(P.6-10) . If the engine does not start by jump
starting, the battery may have to be replaced.
Contact a NISSAN dealer.CAUTION
.Do
