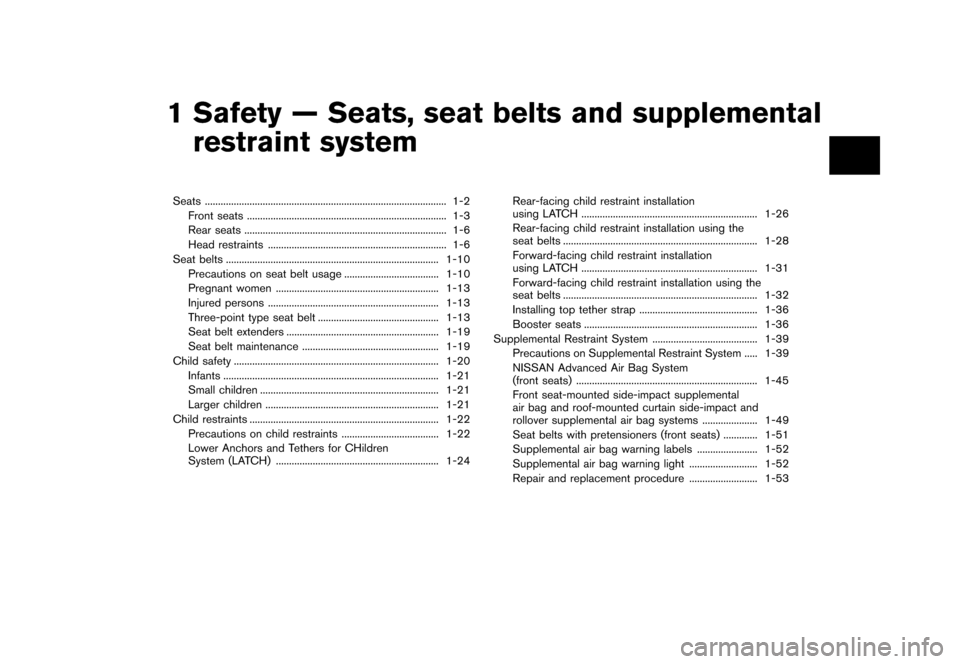

1 Safety — Seats, seat belts and supplementalrestraint system
Seats ...
........................................................................\
.................... 1-2
Front seats ...
........................................................................\
.... 1-3
Rear seats ...
........................................................................\
..... 1-6
Head restraints ...
.................................................................... 1-6
Seat belts ...
........................................................................\
......... 1-10
Precautions on seat belt usage ...
.................................... 1-10
Pregnant women ...
.............................................................. 1-13
Injured persons ...
................................................................. 1-13
Three-point type seat belt ...
.............................................. 1-13
Seat belt extenders ...
.......................................................... 1-19
Seat belt maintenance ...
.................................................... 1-19
Child safety ...
........................................................................\
...... 1-20
Infants ...
........................................................................\
.......... 1-21
Small children ...
.................................................................... 1-21
Larger children ...
.................................................................. 1-21
Child restraints ...
........................................................................\
1-22
Precautions on child restraints ...
..................................... 1-22
Lower Anchors and Tethers for CHildren
System (LATCH) ...
.............................................................. 1-24 Rear-facing child restraint installation
using LATCH
...
................................................................... 1-26
Rear-facing child restraint installation using the
seat belts ...
........................................................................\
.. 1-28
Forward-facing child restraint installation
using LATCH ...
................................................................... 1-31
Forward-facing child restraint installation using the
seat belts ...
........................................................................\
.. 1-32
Installing top tether strap ...
............................................. 1-36
Booster seats ...
.................................................................. 1-36
Supplemental Restraint System ...
........................................ 1-39
Precautions on Supplemental Restraint System ...
..... 1-39
NISSAN Advanced Air Bag System
(front seats) ...
..................................................................... 1-45
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact and
rollover supplemental air bag systems ...
..................... 1-49
Seat belts with pretensioners (front seats) ...
............. 1-51
Supplemental air bag warning labels ...
....................... 1-52
Supplemental air bag warning light ...
.......................... 1-52
Repair and replacement procedure ...
.......................... 1-53

Black plate (18,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
1-2Safety — Seats, seat belts and supplemental restraint system
S35-D-110201-E7A0F37F-C118-45BC-AF57-B050BFBD9D51
SSS0133

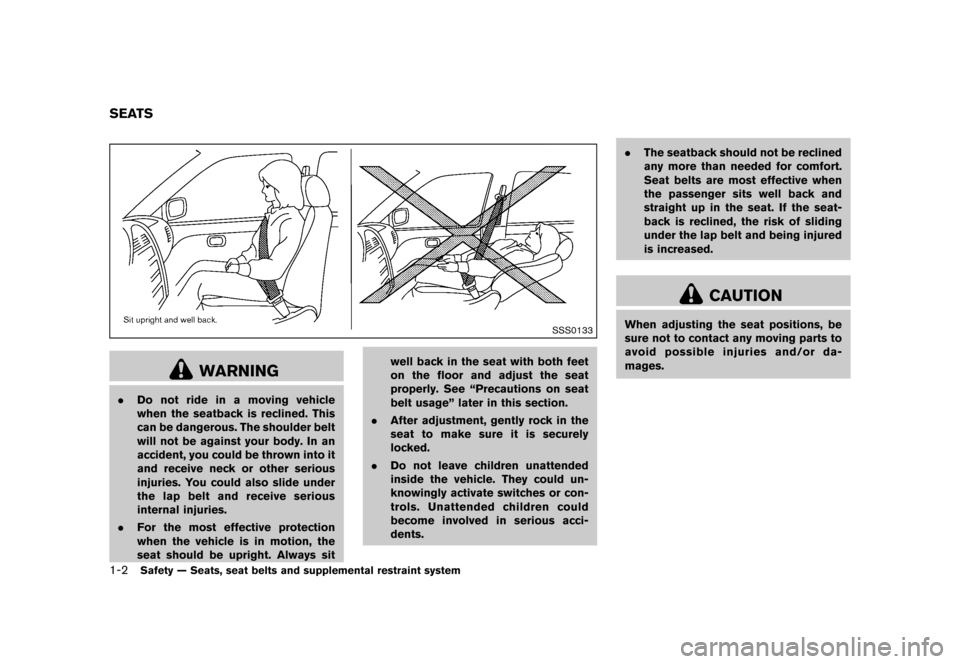

WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back in the seat with both feet
on the floor and adjust the seat
properly. See “Precautions on seat
belt usage” later in this section.
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents. .
The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or da-
mages.
SEATS

Black plate (19,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
SSS0792
FRONT SEATSS35-D-110201-0B2F8171-4FBB-4017-8E6D-A2ADBA98B68B
Front manual seat adjustmentS35-D-110201-39869990-85F6-41BF-8D6F-13366F5484E7

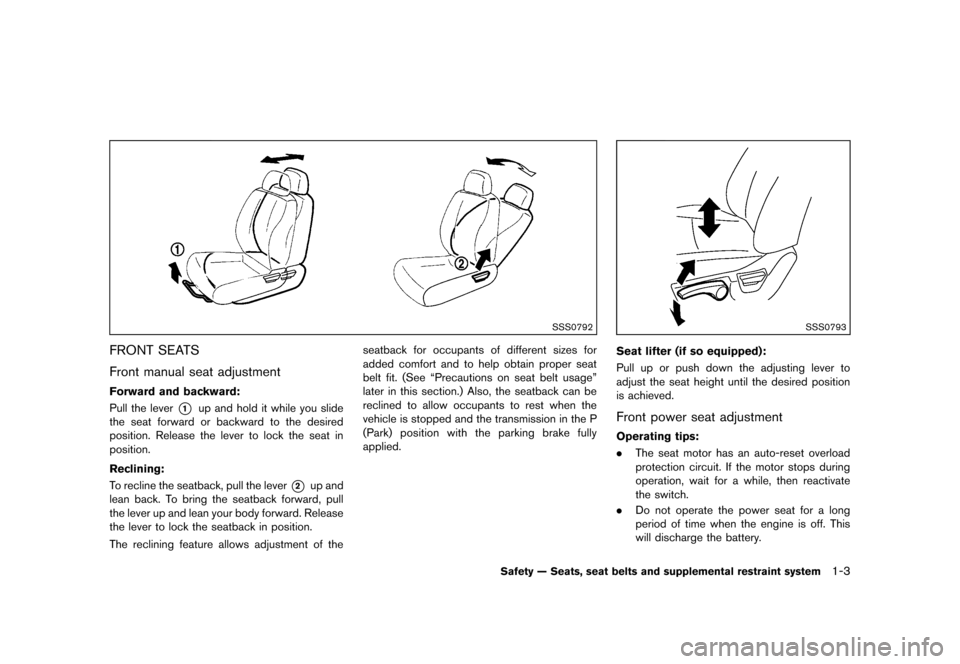

Forward and backward:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull the lever*1up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
Reclining:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To recline the seatback, pull the lever*2up and
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.
The reclining feature allows adjustment of the seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
later in this section.) Also, the seatback can be
reclined to allow occupants to rest when the
vehicle is stopped and the transmission in the P
(Park) position with the parking brake fully
applied.
SSS0793
Seat lifter (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.
Front power seat adjustmentS35-D-110201-E3D911AF-69FD-43AC-9099-E36EA61A5234
Operating tips:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.
The seat motor has an auto-reset overload
protection circuit. If the motor stops during
operation, wait for a while, then reactivate
the switch.
. Do not operate the power seat for a long
period of time when the engine is off. This
will discharge the battery.
Safety — Seats, seat belts and supplemental restraint system1-3

Black plate (20,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
1-4Safety — Seats, seat belts and supplemental restraint system
SSS1051

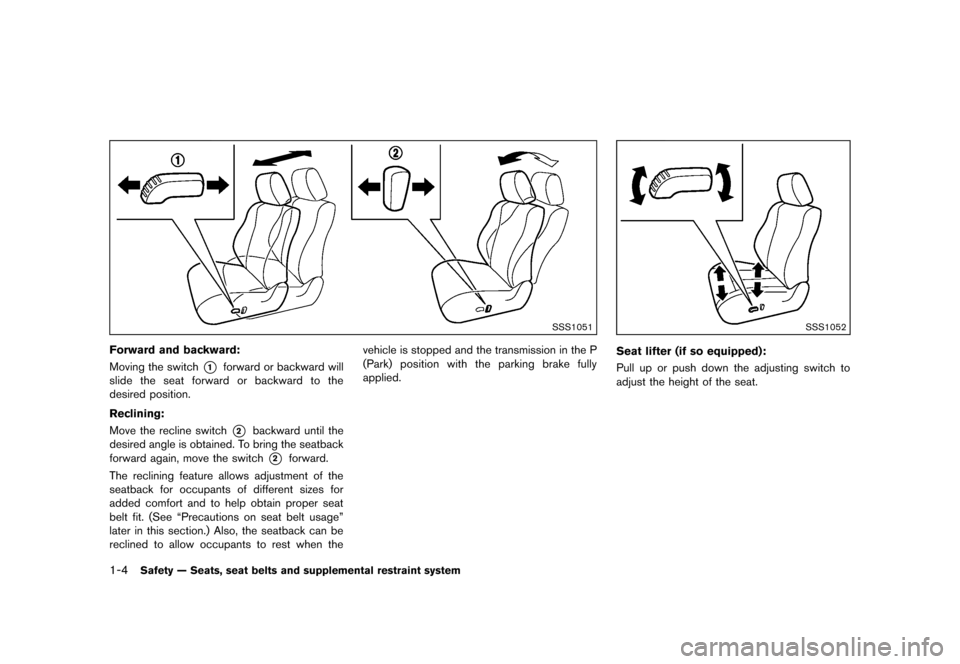

Forward and backward:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Moving the switch*1forward or backward will
slide the seat forward or backward to the
desired position.
Reclining:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Move the recline switch*2backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch
*2forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
later in this section.) Also, the seatback can be
reclined to allow occupants to rest when the vehicle is stopped and the transmission in the P
(Park) position with the parking brake fully
applied.
SSS1052
Seat lifter (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull up or push down the adjusting switch to
adjust the height of the seat.

Black plate (21,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
SSS1053
Lumbar support (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The lumbar support feature provides lower back
support to the driver.
Push the front or back end of the switch to
adjust the seat lumbar area.
SSS0796
Folding front passenger’s seat (if so
equipped)
S35-D-110201-C19042A4-37EC-4F5E-A2F3-CC2DCE9D4829The front passenger’s seatback can be folded
down. Some long objects may be loaded in the
vehicle when the rear seats are also folded
down. (See “Rear seats” later in this section for
folding rear seats.)
To fold the front passenger’s seatback, pull the
reclining lever all the way
*1.
When returning the front passenger’s seatback
to a seating position, lift it up to an upright
position. Pull the reclining lever and lean the
seatback to a proper seating position. (See
“Front manual seat adjustment” earlier in this section.)
WARNING
.
If you fold the front passenger’s
seatback down to carry longer ob-
jects, be sure this cargo is properly
secured and not near an air bag. In a
crash, an inflating air bag might
force that object toward a person.
This could cause severe injury or
even death. Secure objects away
from the area in which an air bag
would inflate. See “Precautions on
Supplemental Restraint System” la-
ter in this section.
. Never allow anyone to ride in the
cargo area or on the front passen-
ger’s seat when it is in the fold-
down position. Use of these areas
by passengers could result in ser-
ious injury in an accident or sudden
stop.
Safety — Seats, seat belts and supplemental restraint system1-5

Black plate (22,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
1-6Safety — Seats, seat belts and supplemental restraint system
SSS0797
REAR SEATSS35-D-110201-F1069FCA-D94F-46E4-9FA4-8088C2EFB096
FoldingS35-D-110201-F3098F1C-3843-46A3-9934-E20A6D0E0E98
Before folding the rear seats:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.Secure the seat belts on the seat belt hooks
on the side wall. (See “Seat belt hooks” later
in this section.)
. Release the connector tongue of the rear
center seat belt from the buckle, and store
the connector and seat belt tongues into the
retractor base on the ceiling. (See “Rear
center seat belt” later in this section.)
. If necessary, move the front seats forward to
provide enough clearance so that the rear
seats can be folded down completely. To fold down the seatback of each rear seat, pull
the adjusting knob
*A.
To return the seatback to the seating position, lift
up each seatback and push it to the upright
position until it is latched.
WARNING
. Do not use the rear seat belts when
the buckles are stowed in the seat
pockets. Failure to do so may re-
duce the effectiveness of the entire
restraint system and increase the
chance or severity of injury in an
accident.
. Do not fold down the rear seats
when occupants are in the rear seat
area or any objects are on the rear
seats.
. Never allow anyone to ride in the
cargo area or on the rear seats
when they are in the fold-down
position. Use of these areas by
passengers without proper re-
straints could result in serious injury
in an accident or sudden stop.
. Properly secure all cargo with ropes
or straps to help prevent it from sliding or shifting. Do not place
cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal
injury.
. When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured
in an accident or sudden stop.
HEAD RESTRAINTSS35-D-110201-8707514E-311A-4F34-AD80-2FBAE21FA9C7
WARNING
Head restraints supplement the other
vehicle safety systems. They may pro-
vide additional protection against injury
in certain rear end collisions. Adjust the
head restraints properly, as specified in
this section. Check the adjustment after
someone else uses the seat. Do not
attach anything to the head restraint
stalks or remove the head restraint. Do
not use the seat if the head restraint
has been removed. If the head restraint
was removed, install and properly ad-
just the head restraint before an occu-

Black plate (23,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
pant uses the seating position. Failure
to follow these instructions can reduce
the effectiveness of the head restraints.
This may increase the risk of serious
injury or death in a collision.
SSS1019
The illustration shows the seating positions
equipped with head restraints. The head re-
straints are adjustable.
Indicates the seating position is equipped
with a head restraint.
SSS0992
ComponentsGUID-DDD8B264-2306-4776-B3E1-9A8CEBB2AF8D1. Head restraint
2. Adjustment notches
3. Lock knob
4. Stalks
Safety — Seats, seat belts and supplemental restraint system1-7
