tire pressure NISSAN ROGUE 2018 Owner´s Manual

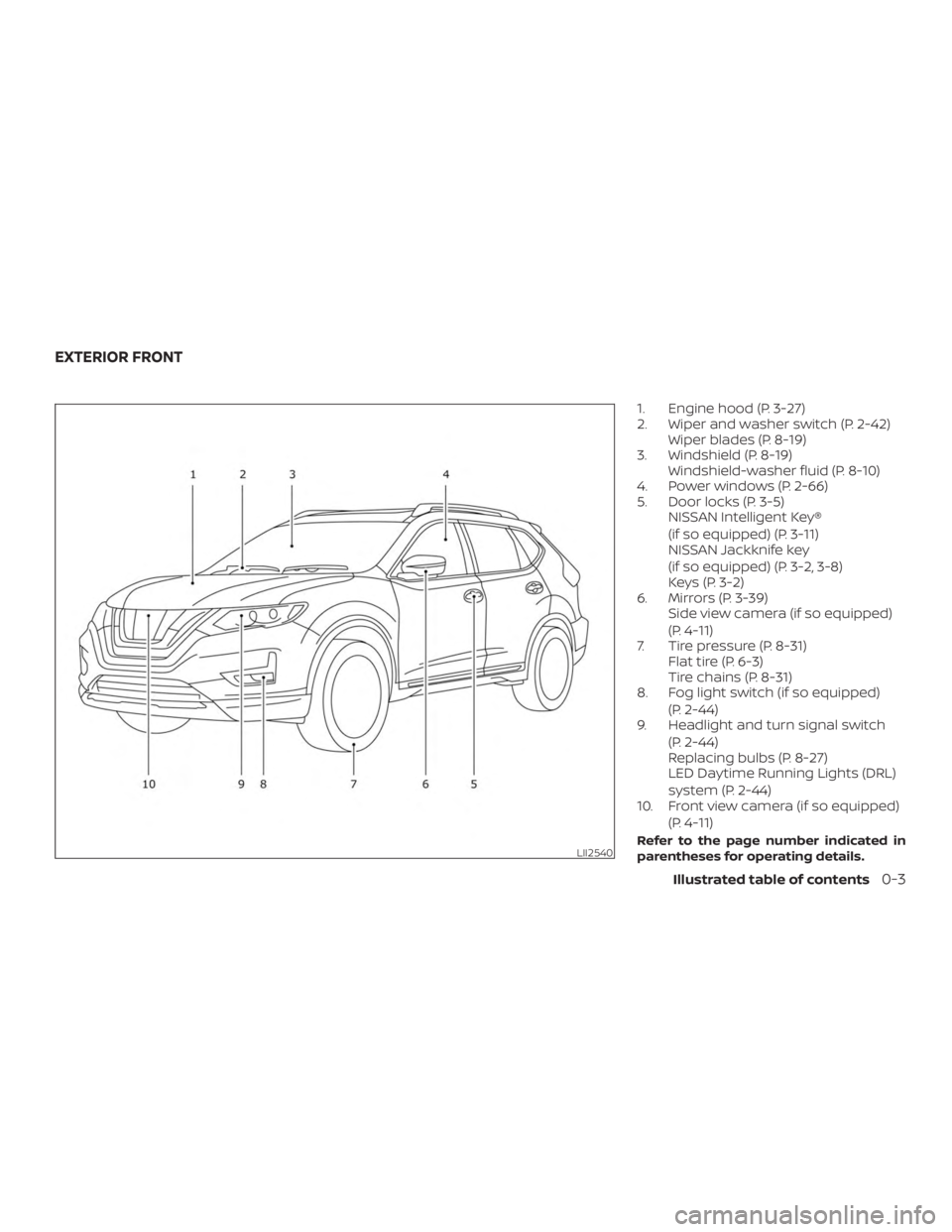

1. Engine hood (P. 3-27)
2. Wiper and washer switch (P. 2-42)Wiper blades (P. 8-19)
3. Windshield (P. 8-19) Windshield-washer fluid (P. 8-10)
4. Power windows (P. 2-66)
5. Door locks (P. 3-5) NISSAN Intelligent Key®
(if so equipped) (P. 3-11)
NISSAN Jackknife key
(if so equipped) (P. 3-2, 3-8)
Keys (P. 3-2)
6. Mirrors (P. 3-39) Side view camera (if so equipped)
(P. 4-11)
7. Tire pressure (P. 8-31) Flat tire (P. 6-3)
Tire chains (P. 8-31)
8. Fog light switch (if so equipped)
(P. 2-44)
9. Headlight and turn signal switch
(P. 2-44)
Replacing bulbs (P. 8-27)
LED Daytime Running Lights (DRL)
system (P. 2-44)
10. Front view camera (if so equipped)
(P. 4-11)
Refer to the page number indicated in
parentheses for operating details.LII2540
EXTERIOR FRONT
Illustrated table of contents0-3

Warninglight Name Page
or
Anti-lock Braking
System (ABS)
warning light 2-12
Automatic Emer-
gency Braking
(AEB) system
warning light (if so
equipped)2-12
Automatic Emer-
gency Braking
(AEB) with Pedes-
trian Detection
system warning
light (if so
equipped)2-12
or
Brake warning
light
2-13
Warning
light Name Page
Charge warning
light 2-13
or
Electronic parking
brake warning
light (if so
equipped)2-14
Low tire pressure
warning light
2-14
Master warning
light2-16
Power steering
warning light2-16
Seat belt warning
light and chime 2-17
Supplemental air
bag warning light2-17
Indicator
light Name Page
All-Wheel Drive
(AWD) LOCK indi-
cator light (if so
equipped) 2-18
Automatic brake
hold indicator
light (green) (if so
equipped)2-18
Automatic brake
hold indicator
light (white) (if so
equipped)2-18
Front fog light in-
dicator light (if so
equipped)
2-18
Front passenger
air bag status
light2-18
WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-9

orAnti-lock Braking System (ABS)
warning lightPower steering warning lightHigh beam assist indicator light (green)
(if so equipped)
Automatic Emergency Braking (AEB) system
warning light (if so equipped)Seat belt warning light and chimeHigh beam indicator light (blue)
Automatic Emergency Braking (AEB) with
Pedestrian Detection system warning light
(if so equipped)Supplemental air bag warning lightMalfunction Indicator Light (MIL)
orBrake warning lightAll-Wheel Drive (AWD) LOCK indicator
light (if so equipped)Security indicator light
Charge warning lightAutomatic brake hold indicator light
(green) (if so equipped)Side light and headlight indicator light
(green)
orElectronic parking brake warning
light (if so equipped)Automatic brake hold indicator light
(white) (if so equipped)Slip indicator light
Low tire pressure warning lightFront fog light indicator light
(if so equipped)Turn signal/hazard indicator lights
Master warning lightFront passenger air bag status lightVehicle Dynamic Control (VDC) OFF
indicator light
WARNING LIGHTS, INDICATOR LIGHTS
AND AUDIBLE REMINDERS
Instruments and controls2-11

CAUTION
∙ Do not ground electrical accessoriesdirectly to the battery terminal. Doing
so will bypass the variable voltage
control system and the vehicle bat-
tery may not charge completely. For
additional information, refer to “Vari-
able voltage control system” in the
“Do-it-yourself ” section of this
manual.
∙ Do not continue driving if the genera- tor belt is loose, broken or missing.
orElectronic parking
brake warning
light (if so
equipped)
This light illuminates when the electronic
parking brake is activated.
For additional information, refer to “Elec-
tronic parking brake” in the “Starting and
driving” section of this manual.
Low tire pressure warninglight
Your vehicle is equipped with a Tire Pres-
sure Monitoring System (TPMS) that moni-
tors the tire pressure of all tires except the
spare.
The low tire pressure warning light warns
of low tire pressure or indicates that the
TPMS is not functioning properly.
Af ter the ignition switch is placed in the ON
position, this light illuminates for about
1 second and turns off.
Low tire pressure warning
If the vehicle is being driven with low tire
pressure, the warning light will illumi-
nate. A “Tire Pressure Low - Add Air”
warning also appears in the vehicle in-
formation display.
When the low tire pressure warning light
illuminates, you should stop and adjust
the tire pressure of all four tires to the
recommended COLD tire pressure shown
on the Tire and Loading Information la-
bel located in the driver’s door opening.
The low tire pressure warning light does
not automatically turn off when the tire
pressure is adjusted. Af ter the tire is in-
flated to the recommended pressure, the vehicle must be driven at speeds
above 16 mph (25 km/h) to activate the
TPMS and turn off the low tire pressure
warning light. Use a tire pressure gauge
to check the tire pressure.
The “Tire Pressure Low - Add Air” warning
appears each time the ignition switch is
placed in the ON position as long as the low
tire pressure warning light remains illumi-
nated.
For additional information, refer to “Vehicle
information display” in this section and
“Tire Pressure Monitoring System (TPMS)” in
the “Starting and driving” section and in the
“In case of emergency” section of this
manual.
TPMS malfunction
If the TPMS is not functioning properly, the
low tire pressure warning light will flash for
approximately 1 minute when the ignition
switch is placed in the ON position. The
light will remain on af ter 1 minute. Have the
system checked. It is recommended that
you visit a NISSAN dealer for this service.
The "Tire Pressure Low — Add Air" warning
does not appear if the low tire pressure
warning light illuminates to indicate a
TPMS malfunction.
2-14Instruments and controls

For additional information, refer to “Tire
Pressure Monitoring System (TPMS)” in the
“Starting and driving” section and “Tire
pressure” in the “Do-it-yourself ” section of
this manual.
WARNING
∙ Radio waves could adversely affectelectric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment
manufacturer for the possible influ-
ences before use.
∙ If the light does not illuminate with the ignition switch placed in the ON
position, have the vehicle checked as
soon as possible. It is recommended
that you visit a NISSAN dealer for this
service. ∙ If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location and
stop the vehicle as soon as possible.
Driving with under-inflated tires may
permanently damage the tires and in-
crease the likelihood of tire failure. Se-
rious vehicle damage could occur and
may lead to an accident and could re-
sult in serious personal injury or
death. Check the tire pressure for all
four tires. Adjust the tire pressure to
the recommended COLD tire pressure
shown on the Tire and Loading Infor-
mation label located in the driver’s
door opening to turn the low tire pres-
sure warning light off. If the light still
illuminates while driving af ter adjust-
ing the tire pressure, a tire may be flat
or the TPMS may be malfunctioning. If
you have a flat tire, replace it with a
spare tire as soon as possible. If no tire
is flat and all tires are properly in-
flated, have the vehicle checked. It is
recommended that you visit a NISSAN
dealer for this service. ∙ When replacing a wheel without the
TPMS such as the spare tire, the TPMS
will not function and the low tire pres-
sure warning light will flash for ap-
proximately 1 minute. The light will re-
main on af ter 1 minute. Have your
tires replaced and/or TPMS system
reset as soon as possible. It is recom-
mended that you visit a NISSAN dealer
for these services.
∙ Replacing tires with those not origi- nally specified by NISSAN could affect
the proper operation of the TPMS.
CAUTION
∙ The TPMS is not a substitute for theregular tire pressure check. Be sure to
check the tire pressure regularly.
∙ If the vehicle is being driven at speeds of less than 16 mph (25 km/h), the
TPMS may not operate correctly.
∙ Be sure to install the specified size of tires to the four wheels correctly.
Instruments and controls2-15

Master warning light
When the ignition is in the ON position, the
master warning light illuminates if any of
the following are displayed on the vehicle
information display.∙ All-Wheel Drive (AWD) Tire Size Incorrect See Owner’s Manual
∙ All-Wheel Drive (AWD) High Temp. Stop vehicle
∙ All-Wheel Drive (AWD) Error See Owner’s Manual
∙ No key warning
∙ Low fuel warning
∙ Low windshield-washer fluid warning
∙ Parking brake release warning
∙ Door/lif tgate open warning
∙ Loose fuel cap warning
If the All-Wheel Drive (AWD) system mal-
functions, or the diameter of the front and
the rear wheels are different, the master
warning light will illuminate. For additional
information, refer to “All-Wheel Drive (AWD)”
in the “Starting and driving” section of this
manual. ∙ If the warning light comes on while driv-
ing there may be a malfunction in the
AWD system. Reduce the vehicle speed
and have your vehicle checked as soon
as possible. It is recommended that you
visit a NISSAN dealer for this service.
CAUTION
∙ If the master warning light was illumi-nated while driving:
—AWD High Temp Stop vehicle
Pull off the road in a safe area and idle
the engine. The driving mode will
change to 2WD to prevent the AWD sys-
tem from malfunctioning. If the warn-
ing light turns off, you can drive again.
—Tire Size Incorrect See Owner’s
Manual
Pull off the road in a safe area and idle
the engine. Check that all tire sizes are
the same, tire pressure is correct and
tires are not worn.
∙ If the warning light is still on af ter the above operations, have your vehicle
checked as soon as possible. It is rec-
ommended that you visit a NISSAN
dealer for this service.
Power steering warning
light
WARNING
∙ If the engine is not running or is turned off while driving, the power as-
sist for the steering will not work.
Steering will be harder to operate.
∙ When the power steering warning light illuminates with the engine run-
ning, there will be no power assist for
the steering. You will still have control
of the vehicle, but the steering will be
harder to operate. Have the power
steering system checked. It is recom-
mended that you visit a NISSAN dealer
for this service.
When the ignition switch is placed in the ON
position, the power steering warning light
illuminates. Af ter starting the engine, the
power steering warning light turns off. This
indicates the power steering is operational.
2-16Instruments and controls

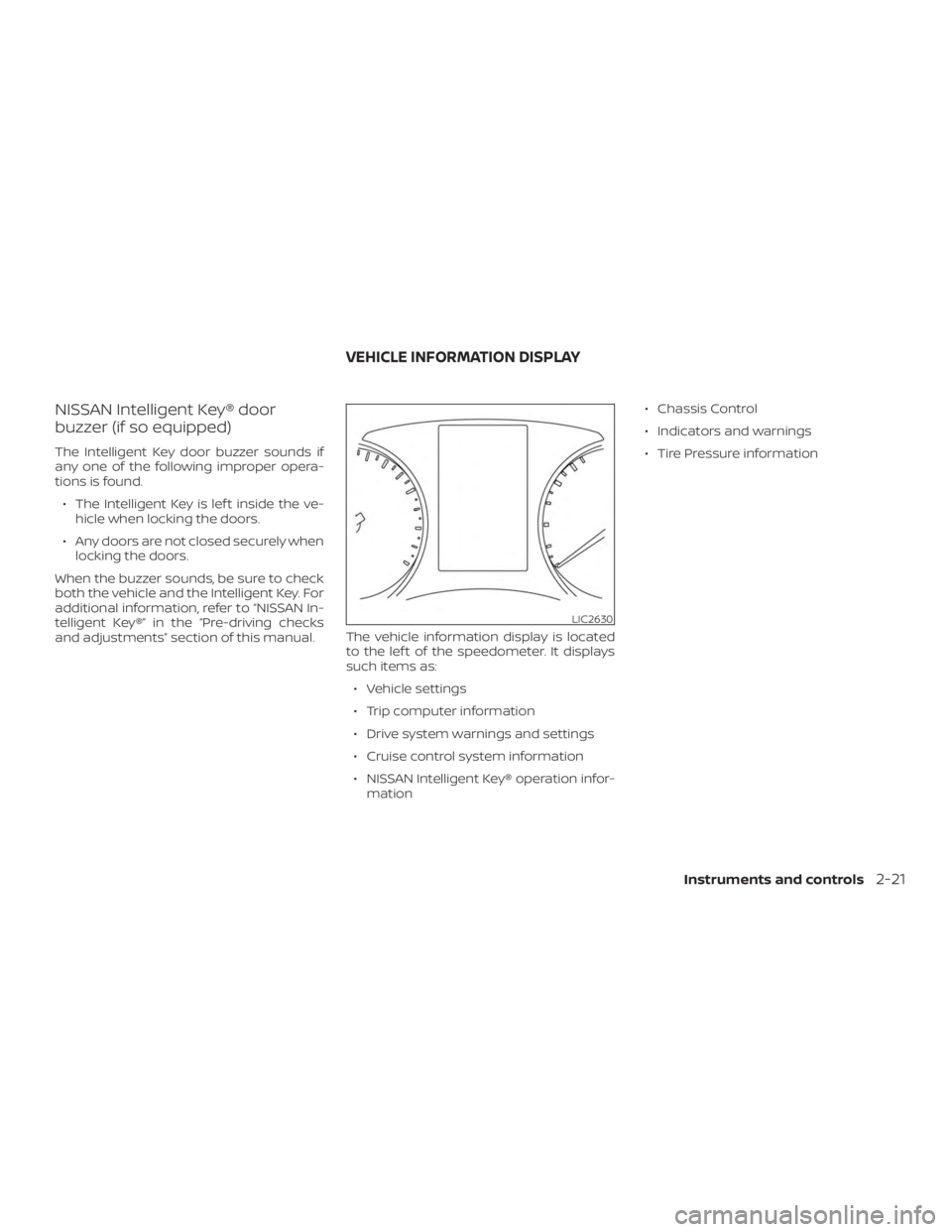

NISSAN Intelligent Key® door
buzzer (if so equipped)
The Intelligent Key door buzzer sounds if
any one of the following improper opera-
tions is found.∙ The Intelligent Key is lef t inside the ve- hicle when locking the doors.
∙ Any doors are not closed securely when locking the doors.
When the buzzer sounds, be sure to check
both the vehicle and the Intelligent Key. For
additional information, refer to “NISSAN In-
telligent Key®” in the “Pre-driving checks
and adjustments” section of this manual. The vehicle information display is located
to the lef t of the speedometer. It displays
such items as:
∙ Vehicle settings
∙ Trip computer information
∙ Drive system warnings and settings
∙ Cruise control system information
∙ NISSAN Intelligent Key® operation infor- mation ∙ Chassis Control
∙ Indicators and warnings
∙ Tire Pressure information
LIC2630
VEHICLE INFORMATION DISPLAY
Instruments and controls2-21

HOW TO USE THE VEHICLE
INFORMATION DISPLAY
The vehicle information display can be
changed using the
,, and OK buttons located on the
steering wheel.
1- Use these
buttons to navigate the vehicle infor-
mation display.
2OK - Change or select an item in the
vehicle information display.
3— Returns to the previous menu.
The OK,
andbuttons also
control audio and control panel functions
in some conditions. Most screens and
menus offer instruction prompts of the
steering switch buttons to indicate how to
control the vehicle information display.
Dots on the lef t side of the vehicle informa-
tion display will appear if there is more than
one page of menu items. The OK button
changes the audio source and
the
buttons also control voice
recognition manual mode. For additional
information, refer to the separate
NissanConnect® Owner’s Manual.
STARTUP DISPLAY
When the vehicle is placed in the ON posi-
tion, the vehicle information display may
display the following screens:
∙ Home
∙ Cruise Control
∙ Average speed
∙ Trip ∙ Fuel Economy
∙ Compass
∙ Audio
∙ Safety Shield
∙ Tire Pressure
∙ 4x4–i
∙ Chassis Control
∙ Warnings
∙ Settings
Warnings will only display if there are any
present. For additional information, refer to
“Vehicle information display warnings and
indicators” in this section.
To control which items display in the ve-
hicle information display, refer to “Meter
settings” in this section.
LIC3566
2-22Instruments and controls

RESETTING THE DRIVE COMPUTER
1. Press theorbuttons
until you reach the desired drive com-
puter mode.
NOTE:
Once you have a drive computer dis-
played, you can use the
andbuttons to switch between
Drive Computer
1or2.
2. Press the OK button.
3. Select one of the following items: ∙ “Cancel” — returns to the previous screen without resetting the trip com-
puter.
∙ Drive computer value – “Average Speed” - resets the averagespeed of the selected drive com-
puter. – “Distance” - resets the distance and
time of the selected drive computer.
– “Fuel Economy” - resets the fuel economy of the selected drive com-
puter.
∙ “All” — resets all linked values for the se- lected drive computer. This includes
distance and time, average fuel
economy and average speed informa-
tion for the selected drive computer.
NOTE:
Drive computer 2 will automatically reset
each time the ignition is placed in the
OFF position.
SETTINGS
The setting mode allows you to change the
information displayed in the vehicle infor-
mation display: ∙ Driver Assistance
∙ Clock
∙ Meter Settings
∙ Vehicle Settings
∙ Maintenance
∙ Alarm
∙ Tire Pressures
∙ Unit
∙ Language
∙ Factory Reset
Instruments and controls2-23

Meter Settings
The meter settings allow the user to change the settings for the vehicle information display.
Menu itemResult
Main Menu Selection Displays the available options.
Home Allows user to turn the home screen on or off in the vehicle information display.
Average Speed Allows user to turn the average speed screen on or off in the vehicle information display.
Trip Allows user to turn the trip display on or off in the vehicle information display.
Fuel Economy Allows user to turn the fuel economy display on or off in the vehicle information display.
Navigation (if so equipped) Allows user to turn the navigation display on or off in the vehicle information display. For additional information,
refer to the separate NissanConnect® Owner’s Manual.
Audio Allows user to turn the audio screen on or off in the vehicle information display. For additional information, refer
to “Audio system” in the “Monitor, climate, audio, phone and voice recognition systems” section of this manual.
Cruise Control Allows user to turn the cruise control display on or off in the vehicle information display.
Safety Shield (if so equipped) Allows user to turn the driving aids display on or off in the vehicle information display. For additional information, refer to “Driver Assistance” in this section.
Tire Pressures Allows user to turn the tire pressure display on or off in the vehicle information display.
4x4–i (if so equipped) Allows user to turn the 4x4–i display on or off in the vehicle information display.
Chassis Control Allows user to turn the chassis control display on or off in the vehicle information display.
Body Color Allows user to select the color of the vehicle displayed in the vehicle information display.
ECO Mode Settings Displays the available options for ECO mode settings.
ECO Indicator Allows the user to turn the ECO indicator on or off in the vehicle information display.
DISP Mode Allows user to select how the ECO mode in displayed.
Pedal Select to have the ECO mode shown as a pedal display.
Inst.FE Select to have the ECO mode shown as instant fuel economy.
ECO Drive Report Displays the available options for the ECO drive report.
Display Allows user to turn the ECO drive report on or off.
View History Allows user to view and reset ECO drive report history.
Welcome Effect Displays the available options for the welcome effect.
Dial Effect Allows user to turn the dial effect on or off.
Display Effect Allows user to turn the display effect on or off.
2-26Instruments and controls
