NISSAN SENTRA 2019 Owner´s Manual

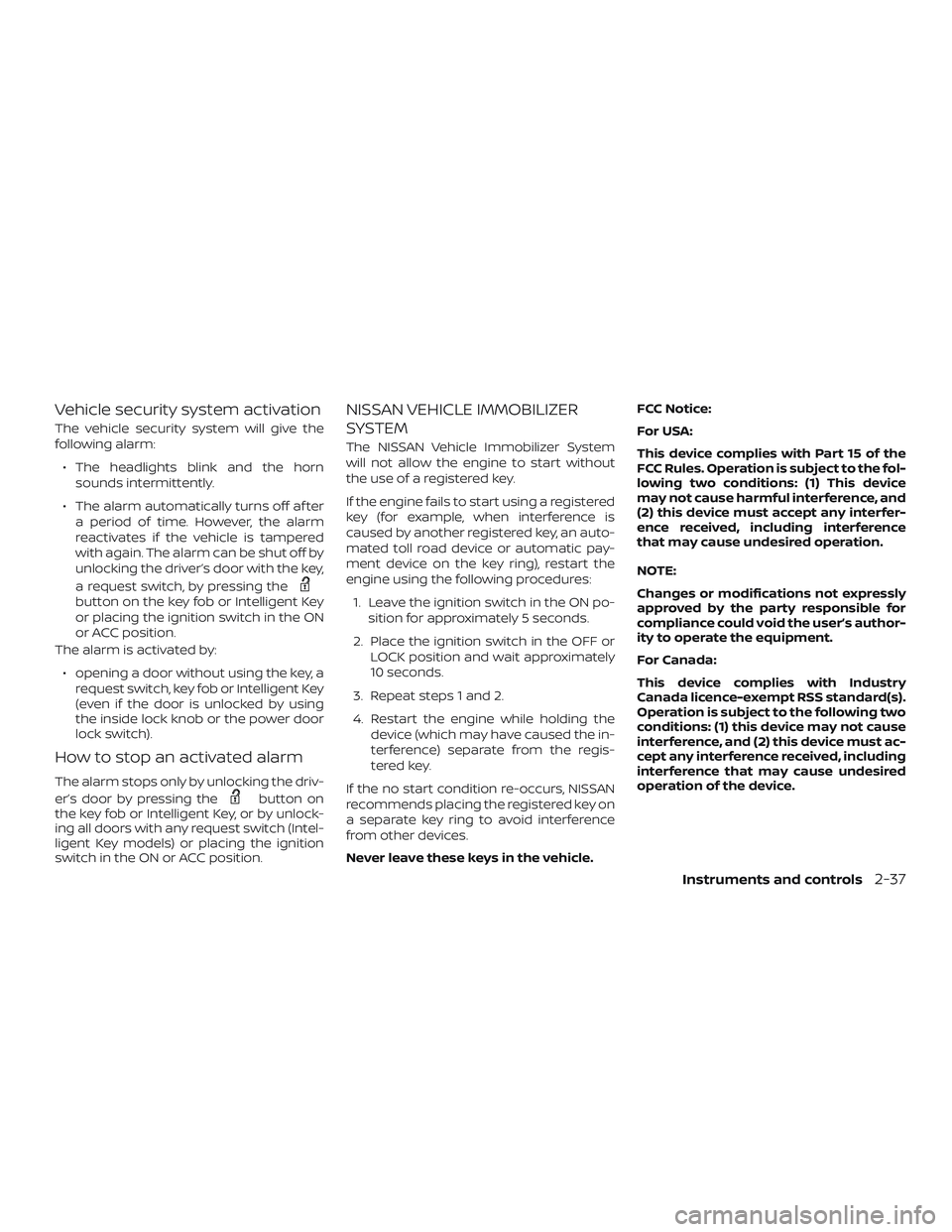

Vehicle security system activation
The vehicle security system will give the
following alarm:∙ The headlights blink and the horn sounds intermittently.
∙ The alarm automatically turns off af ter a period of time. However, the alarm
reactivates if the vehicle is tampered
with again. The alarm can be shut off by
unlocking the driver’s door with the key,
a request switch, by pressing the
button on the key fob or Intelligent Key
or placing the ignition switch in the ON
or ACC position.
The alarm is activated by:
∙ opening a door without using the key, a request switch, key fob or Intelligent Key
(even if the door is unlocked by using
the inside lock knob or the power door
lock switch).
How to stop an activated alarm
The alarm stops only by unlocking the driv-
er’s door by pressing the
button on
the key fob or Intelligent Key, or by unlock-
ing all doors with any request switch (Intel-
ligent Key models) or placing the ignition
switch in the ON or ACC position.
NISSAN VEHICLE IMMOBILIZER
SYSTEM
The NISSAN Vehicle Immobilizer System
will not allow the engine to start without
the use of a registered key.
If the engine fails to start using a registered
key (for example, when interference is
caused by another registered key, an auto-
mated toll road device or automatic pay-
ment device on the key ring), restart the
engine using the following procedures:
1. Leave the ignition switch in the ON po- sition for approximately 5 seconds.
2. Place the ignition switch in the OFF or LOCK position and wait approximately
10 seconds.
3. Repeat steps 1 and 2.
4. Restart the engine while holding the device (which may have caused the in-
terference) separate from the regis-
tered key.
If the no start condition re-occurs, NISSAN
recommends placing the registered key on
a separate key ring to avoid interference
from other devices.
Never leave these keys in the vehicle. FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.
For Canada:
This device complies with Industry
Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference received, including
interference that may cause undesired
operation of the device.
Instruments and controls2-37

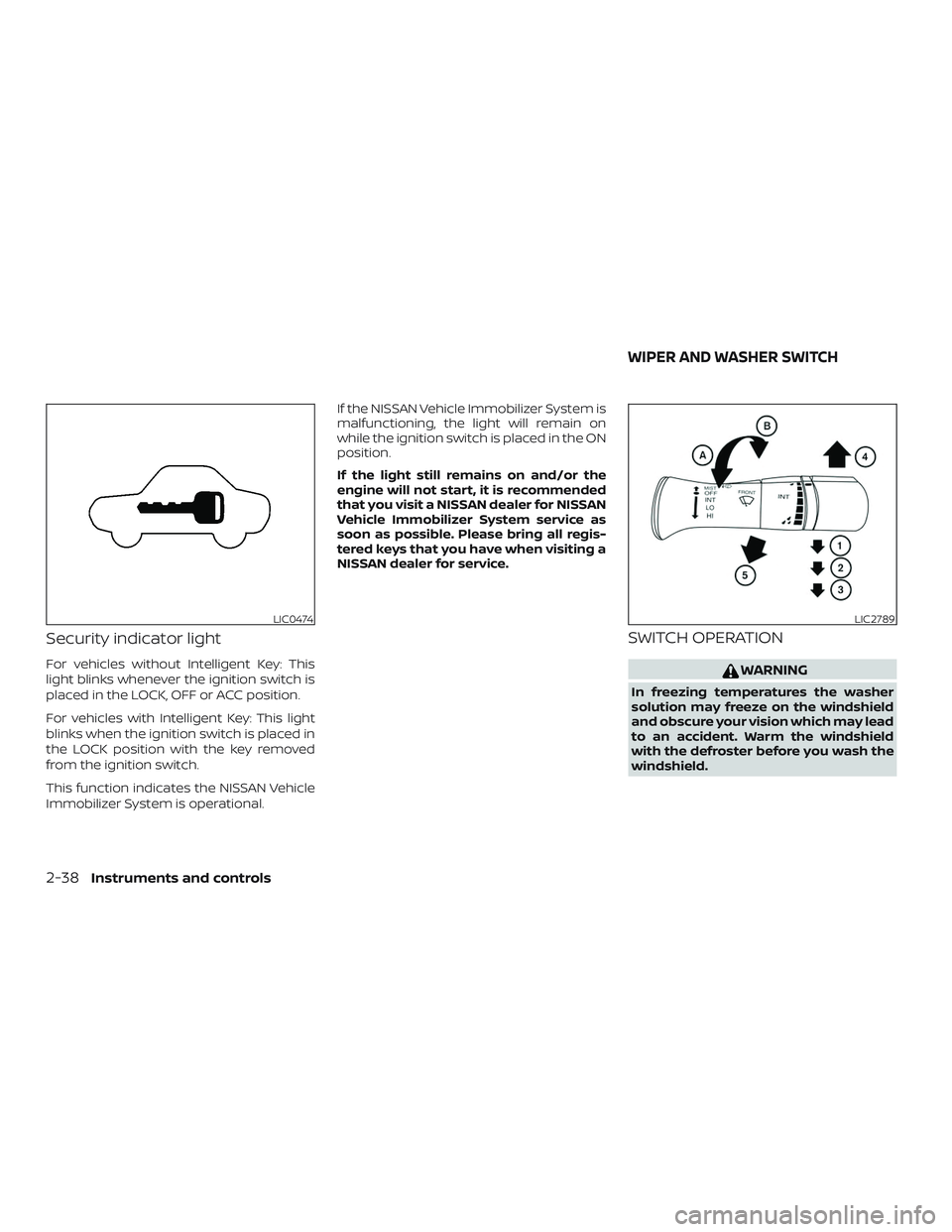

Security indicator light
For vehicles without Intelligent Key: This
light blinks whenever the ignition switch is
placed in the LOCK, OFF or ACC position.
For vehicles with Intelligent Key: This light
blinks when the ignition switch is placed in
the LOCK position with the key removed
from the ignition switch.
This function indicates the NISSAN Vehicle
Immobilizer System is operational.If the NISSAN Vehicle Immobilizer System is
malfunctioning, the light will remain on
while the ignition switch is placed in the ON
position.
If the light still remains on and/or the
engine will not start, it is recommended
that you visit a NISSAN dealer for NISSAN
Vehicle Immobilizer System service as
soon as possible. Please bring all regis-
tered keys that you have when visiting a
NISSAN dealer for service.
SWITCH OPERATION
WARNING
In freezing temperatures the washer
solution may freeze on the windshield
and obscure your vision which may lead
to an accident. Warm the windshield
with the defroster before you wash the
windshield.
LIC0474LIC2789
WIPER AND WASHER SWITCH
2-38Instruments and controls

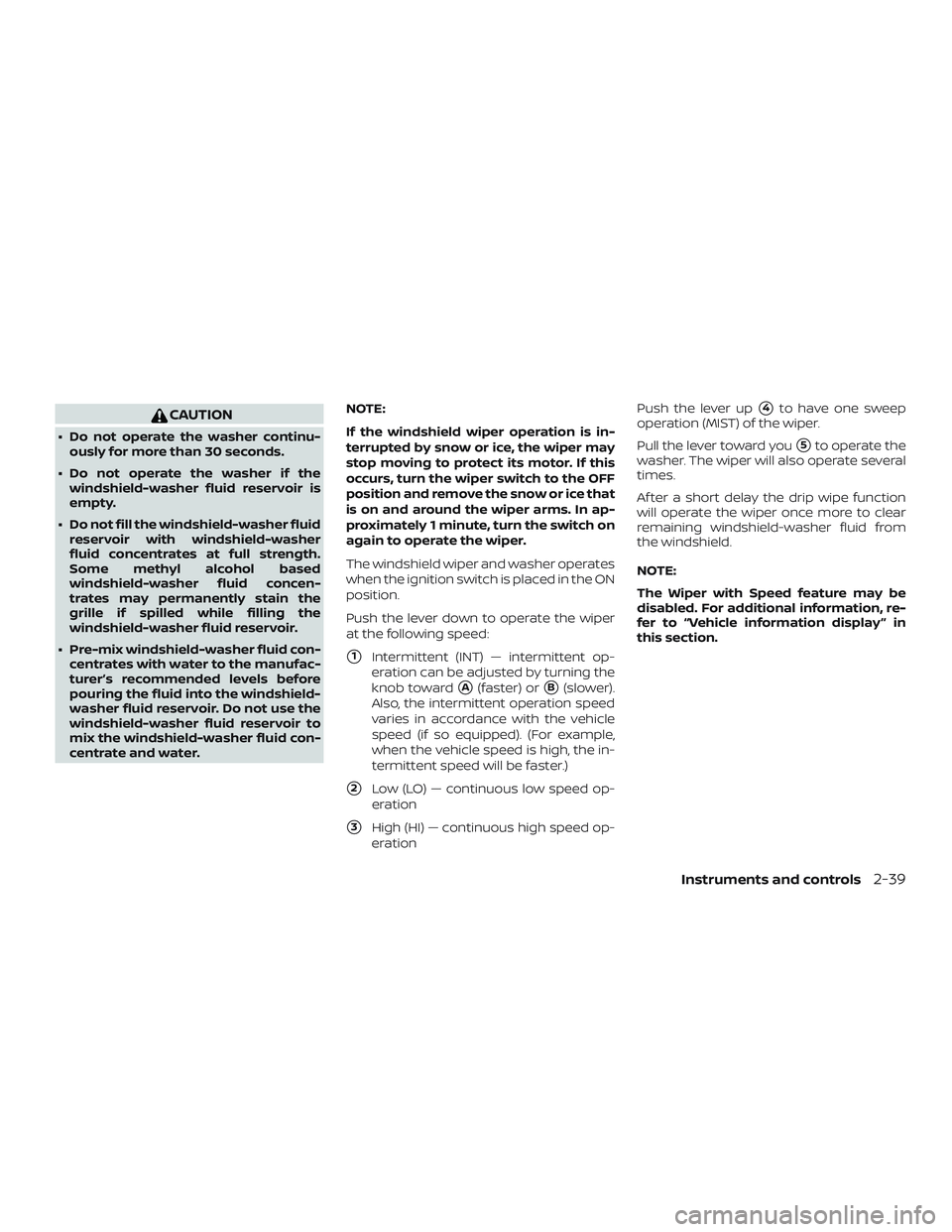

CAUTION
∙ Do not operate the washer continu-ously for more than 30 seconds.
∙ Do not operate the washer if the windshield-washer fluid reservoir is
empty.
∙ Do not fill the windshield-washer fluid reservoir with windshield-washer
fluid concentrates at full strength.
Some methyl alcohol based
windshield-washer fluid concen-
trates may permanently stain the
grille if spilled while filling the
windshield-washer fluid reservoir.
∙ Pre-mix windshield-washer fluid con- centrates with water to the manufac-
turer’s recommended levels before
pouring the fluid into the windshield-
washer fluid reservoir. Do not use the
windshield-washer fluid reservoir to
mix the windshield-washer fluid con-
centrate and water. NOTE:
If the windshield wiper operation is in-
terrupted by snow or ice, the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow or ice that
is on and around the wiper arms. In ap-
proximately 1 minute, turn the switch on
again to operate the wiper.
The windshield wiper and washer operates
when the ignition switch is placed in the ON
position.
Push the lever down to operate the wiper
at the following speed:
1Intermittent (INT) — intermittent op-
eration can be adjusted by turning the
knob toward
A(faster) orB(slower).
Also, the intermittent operation speed
varies in accordance with the vehicle
speed (if so equipped). (For example,
when the vehicle speed is high, the in-
termittent speed will be faster.)
2Low (LO) — continuous low speed op-
eration
3High (HI) — continuous high speed op-
eration Push the lever up
4to have one sweep
operation (MIST) of the wiper.
Pull the lever toward you
5to operate the
washer. The wiper will also operate several
times.
Af ter a short delay the drip wipe function
will operate the wiper once more to clear
remaining windshield-washer fluid from
the windshield.
NOTE:
The Wiper with Speed feature may be
disabled. For additional information, re-
fer to “Vehicle information display ” in
this section.
Instruments and controls2-39

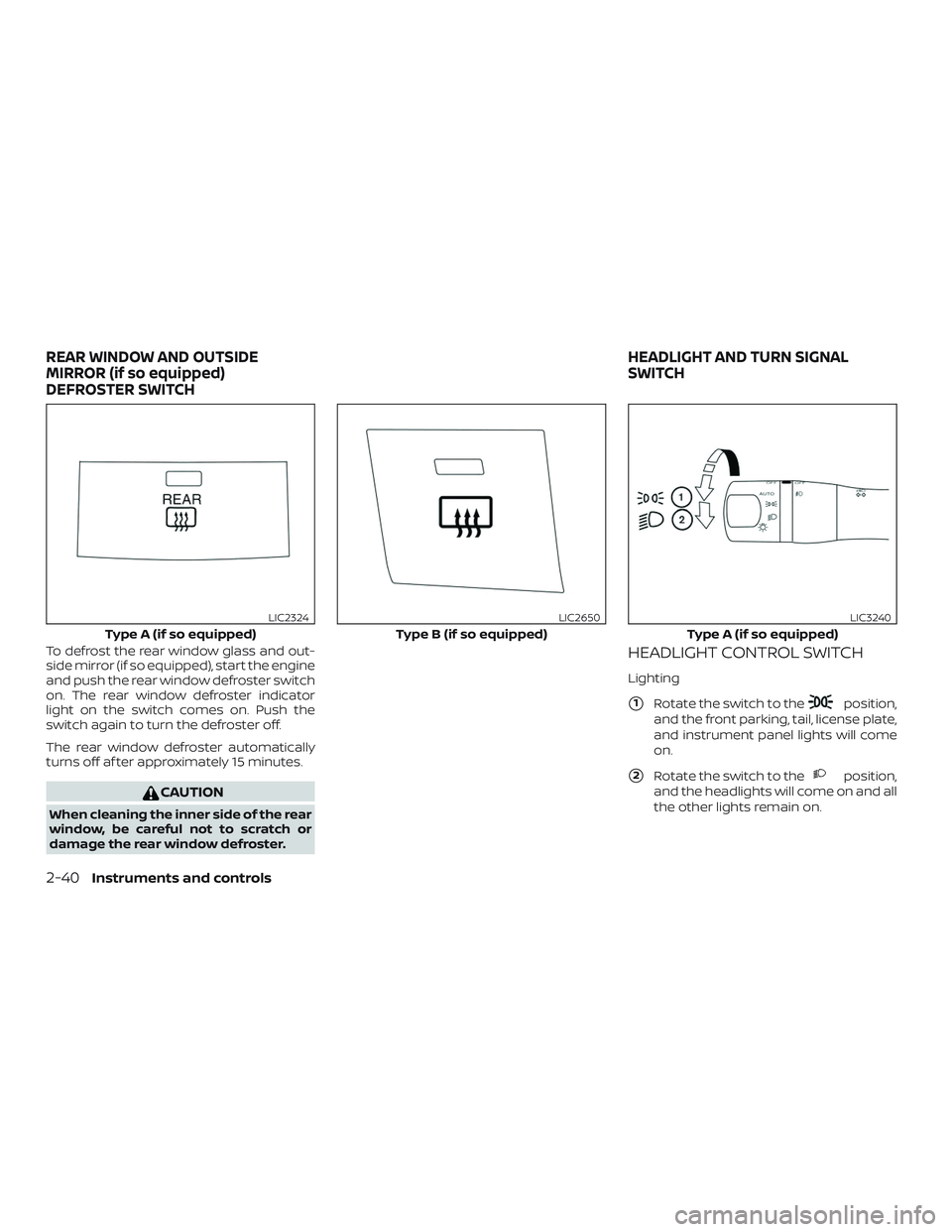

To defrost the rear window glass and out-
side mirror (if so equipped), start the engine
and push the rear window defroster switch
on. The rear window defroster indicator
light on the switch comes on. Push the
switch again to turn the defroster off.
The rear window defroster automatically
turns off af ter approximately 15 minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.
HEADLIGHT CONTROL SWITCH
Lighting
1Rotate the switch to theposition,
and the front parking, tail, license plate,
and instrument panel lights will come
on.
2Rotate the switch to theposition,
and the headlights will come on and all
the other lights remain on.
Type A (if so equipped)
LIC2324
Type B (if so equipped)
LIC2650
Type A (if so equipped)
LIC3240
REAR WINDOW AND OUTSIDE
MIRROR (if so equipped)
DEFROSTER SWITCH HEADLIGHT AND TURN SIGNAL
SWITCH
2-40Instruments and controls

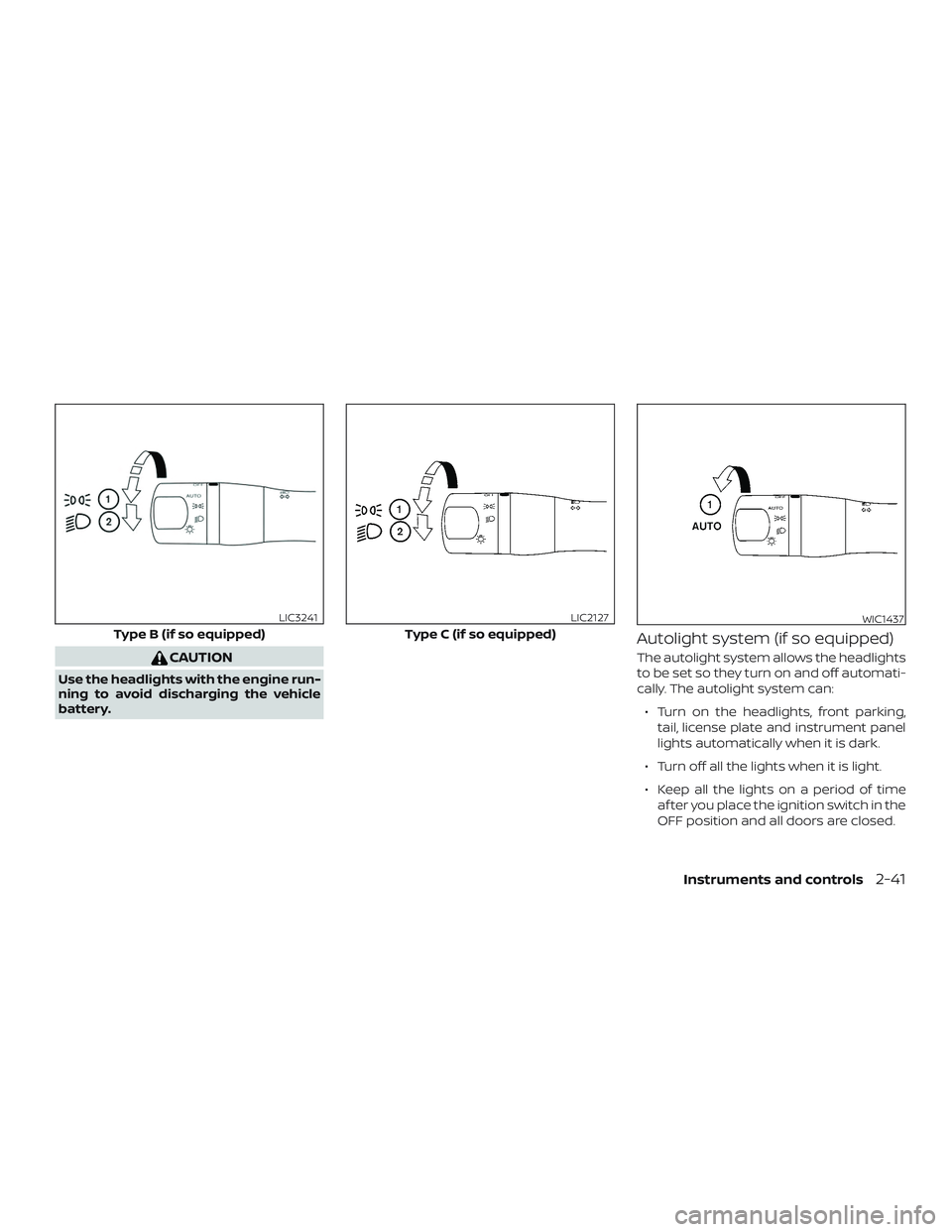

CAUTION
Use the headlights with the engine run-
ning to avoid discharging the vehicle
battery.
Autolight system (if so equipped)
The autolight system allows the headlights
to be set so they turn on and off automati-
cally. The autolight system can:∙ Turn on the headlights, front parking, tail, license plate and instrument panel
lights automatically when it is dark.
∙ Turn off all the lights when it is light.
∙ Keep all the lights on a period of time af ter you place the ignition switch in the
OFF position and all doors are closed.
Type B (if so equipped)
LIC3241
Type C (if so equipped)
LIC2127WIC1437
Instruments and controls2-41

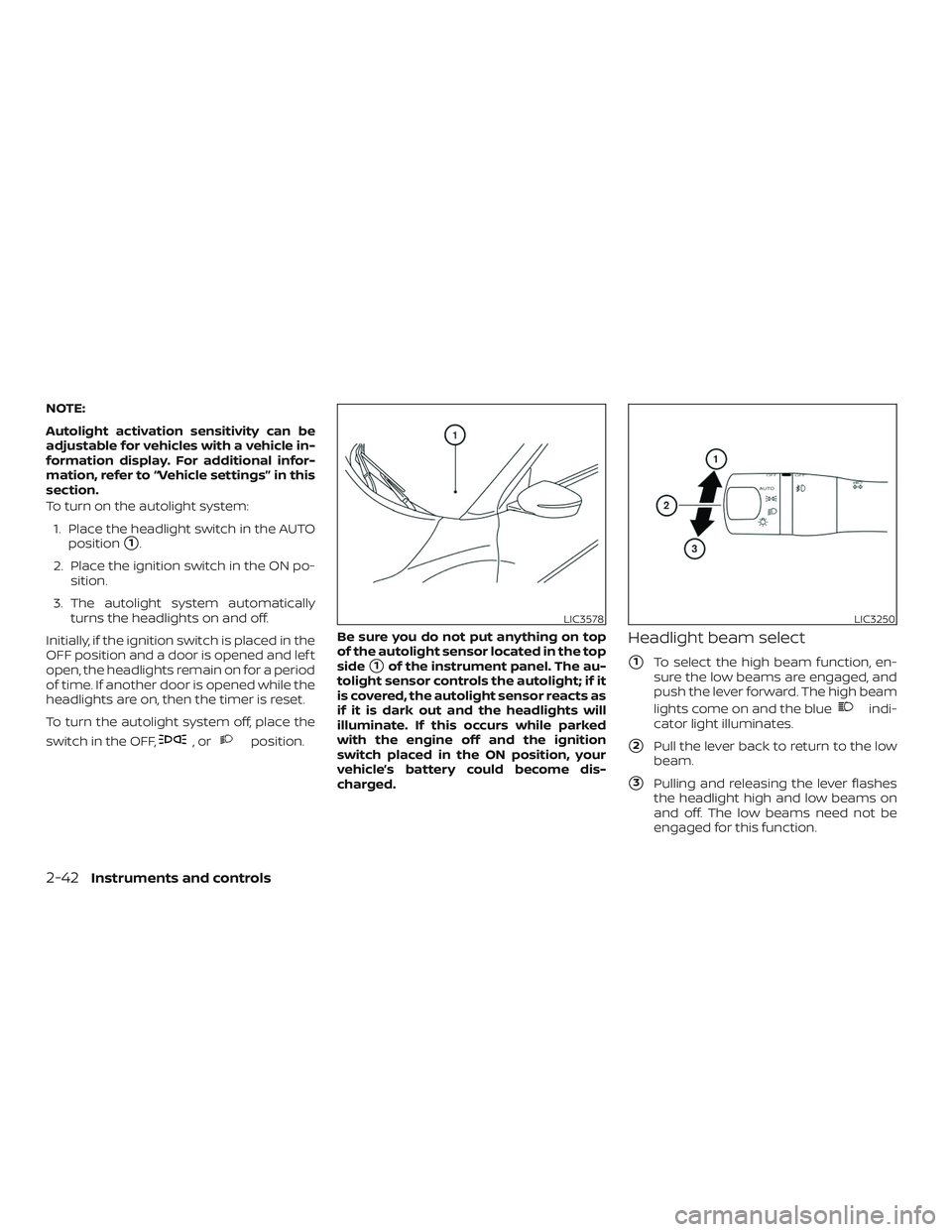

NOTE:
Autolight activation sensitivity can be
adjustable for vehicles with a vehicle in-
formation display. For additional infor-
mation, refer to “Vehicle settings” in this
section.
To turn on the autolight system:1. Place the headlight switch in the AUTO position
1.
2. Place the ignition switch in the ON po- sition.
3. The autolight system automatically turns the headlights on and off.
Initially, if the ignition switch is placed in the
OFF position and a door is opened and lef t
open, the headlights remain on for a period
of time. If another door is opened while the
headlights are on, then the timer is reset.
To turn the autolight system off, place the
switch in the OFF,
,orposition. Be sure you do not put anything on top
of the autolight sensor located in the top
side
1of the instrument panel. The au-
tolight sensor controls the autolight; if it
is covered, the autolight sensor reacts as
if it is dark out and the headlights will
illuminate. If this occurs while parked
with the engine off and the ignition
switch placed in the ON position, your
vehicle’s battery could become dis-
charged.
Headlight beam select
1To select the high beam function, en-
sure the low beams are engaged, and
push the lever forward. The high beam
lights come on and the blue
indi-
cator light illuminates.
2Pull the lever back to return to the low
beam.
3Pulling and releasing the lever flashes
the headlight high and low beams on
and off. The low beams need not be
engaged for this function.
LIC3578LIC3250
2-42Instruments and controls

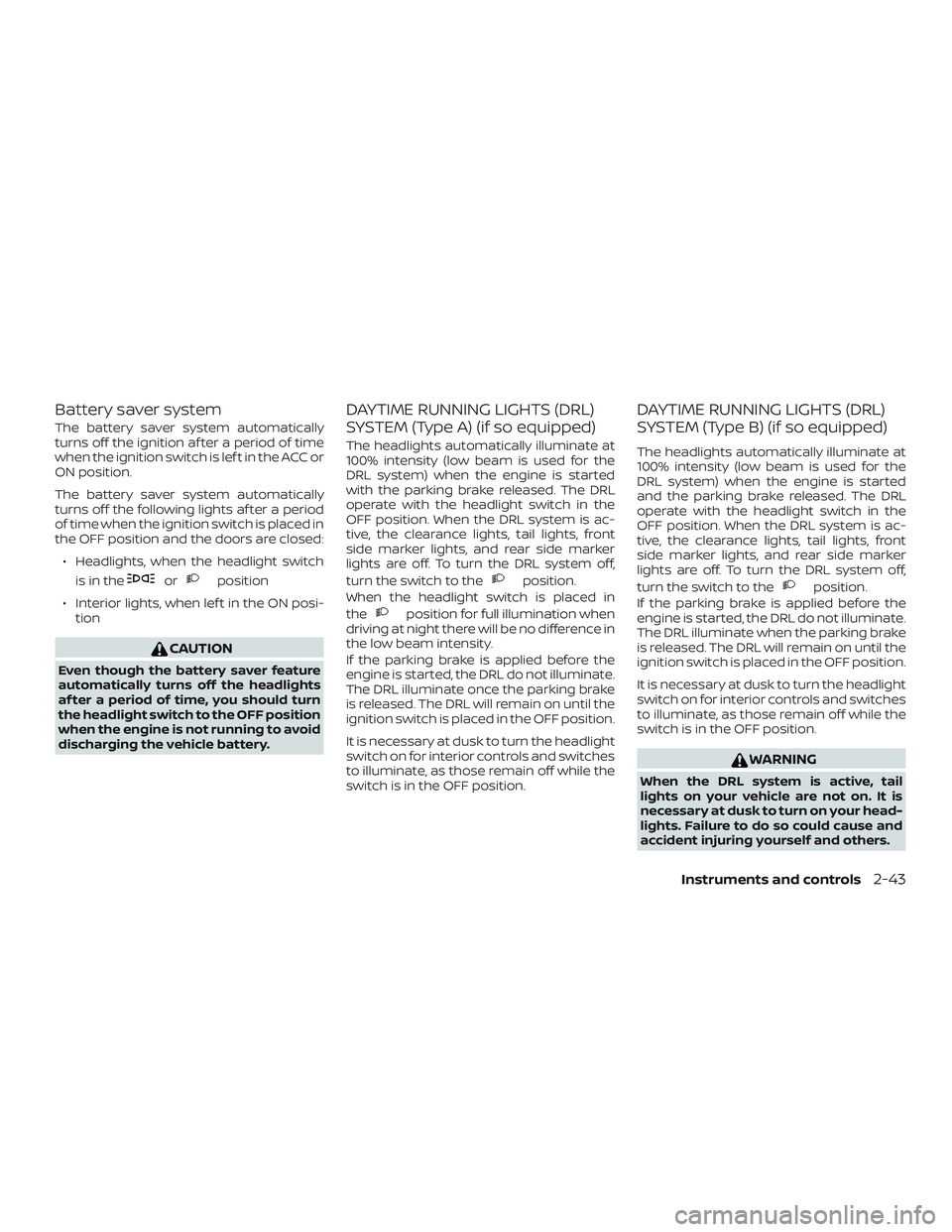

Battery saver system
The battery saver system automatically
turns off the ignition af ter a period of time
when the ignition switch is lef t in the ACC or
ON position.
The battery saver system automatically
turns off the following lights af ter a period
of time when the ignition switch is placed in
the OFF position and the doors are closed:∙ Headlights, when the headlight switch is in the
orposition
∙ Interior lights, when lef t in the ON posi- tion
CAUTION
Even though the battery saver feature
automatically turns off the headlights
af ter a period of time, you should turn
the headlight switch to the OFF position
when the engine is not running to avoid
discharging the vehicle battery.
DAYTIME RUNNING LIGHTS (DRL)
SYSTEM (Type A) (if so equipped)
The headlights automatically illuminate at
100% intensity (low beam is used for the
DRL system) when the engine is started
with the parking brake released. The DRL
operate with the headlight switch in the
OFF position. When the DRL system is ac-
tive, the clearance lights, tail lights, front
side marker lights, and rear side marker
lights are off. To turn the DRL system off,
turn the switch to the
position.
When the headlight switch is placed in
the
position for full illumination when
driving at night there will be no difference in
the low beam intensity.
If the parking brake is applied before the
engine is started, the DRL do not illuminate.
The DRL illuminate once the parking brake
is released. The DRL will remain on until the
ignition switch is placed in the OFF position.
It is necessary at dusk to turn the headlight
switch on for interior controls and switches
to illuminate, as those remain off while the
switch is in the OFF position.
DAYTIME RUNNING LIGHTS (DRL)
SYSTEM (Type B) (if so equipped)
The headlights automatically illuminate at
100% intensity (low beam is used for the
DRL system) when the engine is started
and the parking brake released. The DRL
operate with the headlight switch in the
OFF position. When the DRL system is ac-
tive, the clearance lights, tail lights, front
side marker lights, and rear side marker
lights are off. To turn the DRL system off,
turn the switch to the
position.
If the parking brake is applied before the
engine is started, the DRL do not illuminate.
The DRL illuminate when the parking brake
is released. The DRL will remain on until the
ignition switch is placed in the OFF position.
It is necessary at dusk to turn the headlight
switch on for interior controls and switches
to illuminate, as those remain off while the
switch is in the OFF position.
WARNING
When the DRL system is active, tail
lights on your vehicle are not on. It is
necessary at dusk to turn on your head-
lights. Failure to do so could cause and
accident injuring yourself and others.
Instruments and controls2-43

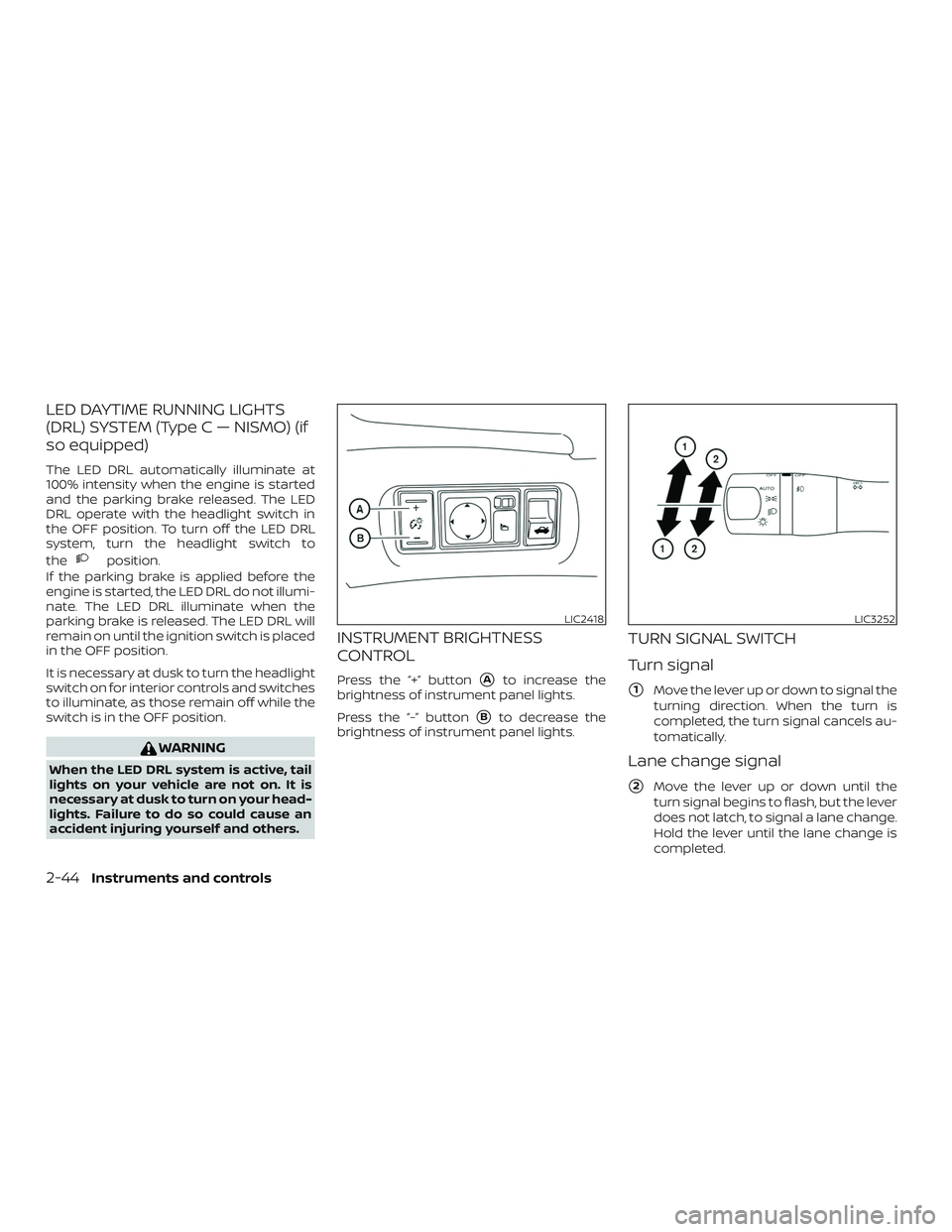

LED DAYTIME RUNNING LIGHTS
(DRL) SYSTEM (Type C — NISMO) (if
so equipped)
The LED DRL automatically illuminate at
100% intensity when the engine is started
and the parking brake released. The LED
DRL operate with the headlight switch in
the OFF position. To turn off the LED DRL
system, turn the headlight switch to
the
position.
If the parking brake is applied before the
engine is started, the LED DRL do not illumi-
nate. The LED DRL illuminate when the
parking brake is released. The LED DRL will
remain on until the ignition switch is placed
in the OFF position.
It is necessary at dusk to turn the headlight
switch on for interior controls and switches
to illuminate, as those remain off while the
switch is in the OFF position.
WARNING
When the LED DRL system is active, tail
lights on your vehicle are not on. It is
necessary at dusk to turn on your head-
lights. Failure to do so could cause an
accident injuring yourself and others.
INSTRUMENT BRIGHTNESS
CONTROL
Press the “+” buttonAto increase the
brightness of instrument panel lights.
Press the “-” button
Bto decrease the
brightness of instrument panel lights.
TURN SIGNAL SWITCH
Turn signal
1Move the lever up or down to signal the
turning direction. When the turn is
completed, the turn signal cancels au-
tomatically.
Lane change signal
2Move the lever up or down until the
turn signal begins to flash, but the lever
does not latch, to signal a lane change.
Hold the lever until the lane change is
completed.
LIC2418LIC3252
2-44Instruments and controls

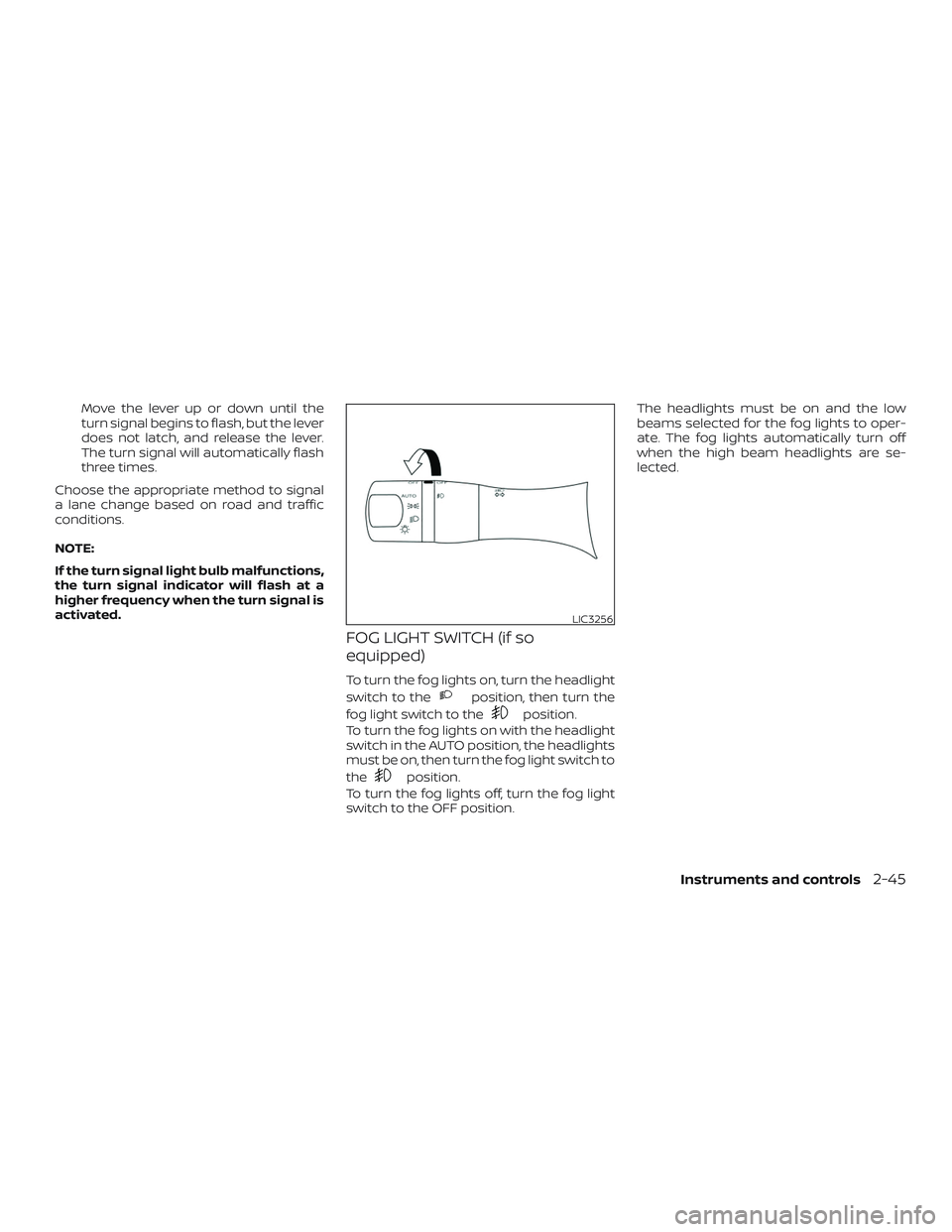

Move the lever up or down until the
turn signal begins to flash, but the lever
does not latch, and release the lever.
The turn signal will automatically flash
three times.
Choose the appropriate method to signal
a lane change based on road and traffic
conditions.
NOTE:
If the turn signal light bulb malfunctions,
the turn signal indicator will flash at a
higher frequency when the turn signal is
activated.
FOG LIGHT SWITCH (if so
equipped)
To turn the fog lights on, turn the headlight
switch to the
position, then turn the
fog light switch to the
position.
To turn the fog lights on with the headlight
switch in the AUTO position, the headlights
must be on, then turn the fog light switch to
the
position.
To turn the fog lights off, turn the fog light
switch to the OFF position. The headlights must be on and the low
beams selected for the fog lights to oper-
ate. The fog lights automatically turn off
when the high beam headlights are se-
lected.
LIC3256
Instruments and controls2-45

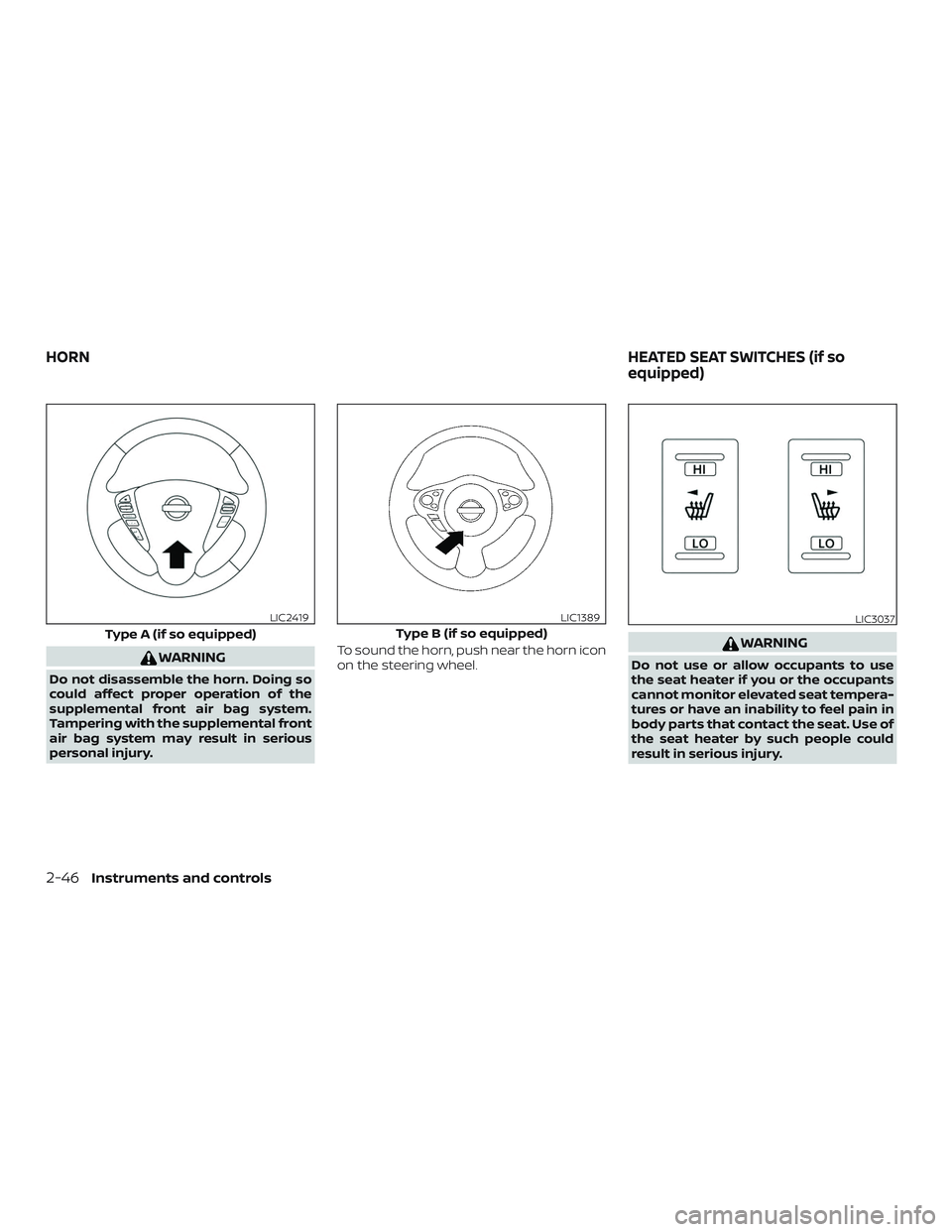

WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering with the supplemental front
air bag system may result in serious
personal injury.To sound the horn, push near the horn icon
on the steering wheel.
WARNING
Do not use or allow occupants to use
the seat heater if you or the occupants
cannot monitor elevated seat tempera-
tures or have an inability to feel pain in
body parts that contact the seat. Use of
the seat heater by such people could
result in serious injury.
Type A (if so equipped)
LIC2419
Type B (if so equipped)
LIC1389LIC3037
HORN
HEATED SEAT SWITCHES (if so
equipped)
2-46Instruments and controls
