NISSAN TEANA 2014 Service Manual

INL-70
< SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Bulb SpecificationsINFOID:0000000009463907
* Always check with the Parts Department for the latest parts information.Item Wattage (W)*
Front room/map lamp LED
Vanity mirror lamp -
Glove box lamp -
Front step lamp 3.8
Personal lamp rear 8
Trunk room lamp 3.4
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

INT-1
BODY INTERIOR
C
D E
F
G H
I
K L
M
SECTION INT
A
B
INT
N
O P
CONTENTS
INTERIOR
PRECAUTION ................ ...............................3
PRECAUTIONS .............................................. .....3
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
3
Precaution for Work ..................................................3
PREPARATION ............................................4
PREPARATION .............................................. .....4
Special Service Tools .......................................... ......4
Commercial Service Tools ........................................4
CLIP LIST ............................................................5
Descriptions for Clips .......................................... ......5
SYMPTOM DIAGNOSIS ...............................9
SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ........................................................... .....
9
Work Flow ........................................................... ......9
Generic Squeak and Rattle Troubleshooting ..........10
Diagnostic Worksheet .............................................13
REMOVAL AND INSTALLATION ...............15
FRONT DOOR FINISHER .............................. ....15
Exploded View .................................................... ....15
Removal and Installation .........................................15
REAR DOOR FINISHER ................................ ....18
Exploded View .................................................... ....18
Removal and Installation .........................................18
BODY SIDE TRIM .......................................... ....20
Exploded View .................................................... ....20
DASH SIDE FINISHER .......................................... ....20
DASH SIDE FINISHER : Removal and Installation
....
20
FRONT PILLAR FINISHER ................................... ....20
FRONT PILLAR FINISHER : Removal and Instal-
lation .................................................................... ....
21
FRONT KICKING PLATE ...................................... ....21
FRONT KICKING PLATE : Removal and Installa-
tion - Inner ........................................................... ....
21
FRONT KICKING PLATE : Removal and Installa-
tion - Outer ........................................................... ....
22
REAR KICKING PLATE ........................................ ....22
REAR KICKING PLATE : Removal and Installa-
tion - Inner ........................................................... ....
22
REAR KICKING PLATE : Removal and Installa-
tion - Outer ........................................................... ....
22
BODY SIDE WELT ................................................. ....23
BODY SIDE WELT : Removal and Installation -
Front Body Side Welt ........................................... ....
23
BODY SIDE WELT : Removal and Installation -
Rear Body Side Welt ........................................... ....
23
CENTER PILLAR LOWER FINISHER ................... ....23
CENTER PILLAR LOWER FINISHER : Removal
and Installation .................................................... ....
23
CENTER PILLAR UPPER FINISHER ........................24
CENTER PILLAR UPPER FINISHER : Removal
and Installation .................................................... ....
24
REAR PILLAR FINISHER ...................................... ....25
REAR PILLAR FINISHER : Removal and Installa-
tion ....................................................................... ....
25
REAR PARCEL SHELF FINISHER ..................26
Exploded View .........................................................26
Removal and Installation .........................................26
FLOOR TRIM ....................................................27
Exploded View .........................................................27
Removal and Installation .........................................27
HEADLINING ....................................................29
Exploded View .........................................................29
Revision: November 20132014 Altima NAM

INT-2
Removal and Installation ........................................30
TRUNK ROOM TRIM & TRUNK LID FINISH-
ER ................................................................... ...
33
Exploded View ..................................................... ...33
TRUNK LID FINISHER ........................................... ...33
TRUNK LID FINISHER : Removal and Installation ...33
TRUNK FLOOR CARPET ...................................... ...33
TRUNK FLOOR CARPET : Removal and Installa-
tion ....................................................................... ...
33
TRUNK SIDE FINISHER ........................................ ...34
TRUNK SIDE FINISHER : Removal and Installa-
tion ....................................................................... ...
34
TRUNK CARGO NET ............................................. ...34
TRUNK CARGO NET : Removal and Installation ...34
TRUNK REAR FINISHER .........................................35
TRUNK REAR FINISHER : Removal and Installa-
tion ....................................................................... ...
35
Revision: November 20132014 Altima NAM

PRECAUTIONSINT-3
< PRECAUTION >
C
D E
F
G H
I
K L
M A
B
INT
N
O P
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000009951557
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service t he system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoper ative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintentional act ivation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipm ent on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identi fied by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Un it or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or el ectric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three mi nutes before performing any service.
Precaution for WorkINFOID:0000000009461335
• When removing or disassembling each component, be ca reful not to damage or deform it. If a component
may be subject to interference, be sure to protect it with a shop cloth.
• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component with a shop cloth or vinyl tape to protect it.
• Protect the removed parts with a shop cloth and prevent them from being dropped.
• Replace a deformed or damaged clip.
• If a part is specified as a non-reusabl e part, always replace it with a new one.
• Be sure to tighten bolts and nuts securely to the specified torque.
• After installation is complete, be sure to check that each part works properly.
• Follow the steps below to clean components:
- Water soluble dirt:
• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.
• Then rub with a soft, dry cloth.
-Oily dirt:
• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty area.
• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.
• Then rub with a soft, dry cloth.
- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.
- For genuine leather seats, use a genuine leather seat cleaner.
Revision: November 20132014 Altima NAM

INT-4
< PREPARATION >
PREPARATION
PREPARATION
PREPARATION
Special Service ToolsINFOID:0000000009461336
The actual shapes of the tools may differ from those illustrated here.
Commercial Service ToolsINFOID:0000000009461337
Tool number
(TechMate No.)
Tool name Description
—
(J-39570)
Chassis Ear Locating the noise
—
(J-50397)
NISSAN Squeak and Rattle
Kit Repairing the cause of noise
—
(J-46534)
Trim Tool Set Removing trim components
SIIA0993E
ALJIA1232ZZ
AWJIA0483ZZ
(TechMate No.)
Tool name Description
(J-39565)
Engine Ear Locating the noise
Power tool Loosening nuts, screws and bolts
SIIA0995E
PIIB1407E
Revision: November 20132014 Altima NAM

CLIP LISTINT-5
< PREPARATION >
C
D E
F
G H
I
K L
M A
B
INT
N
O P

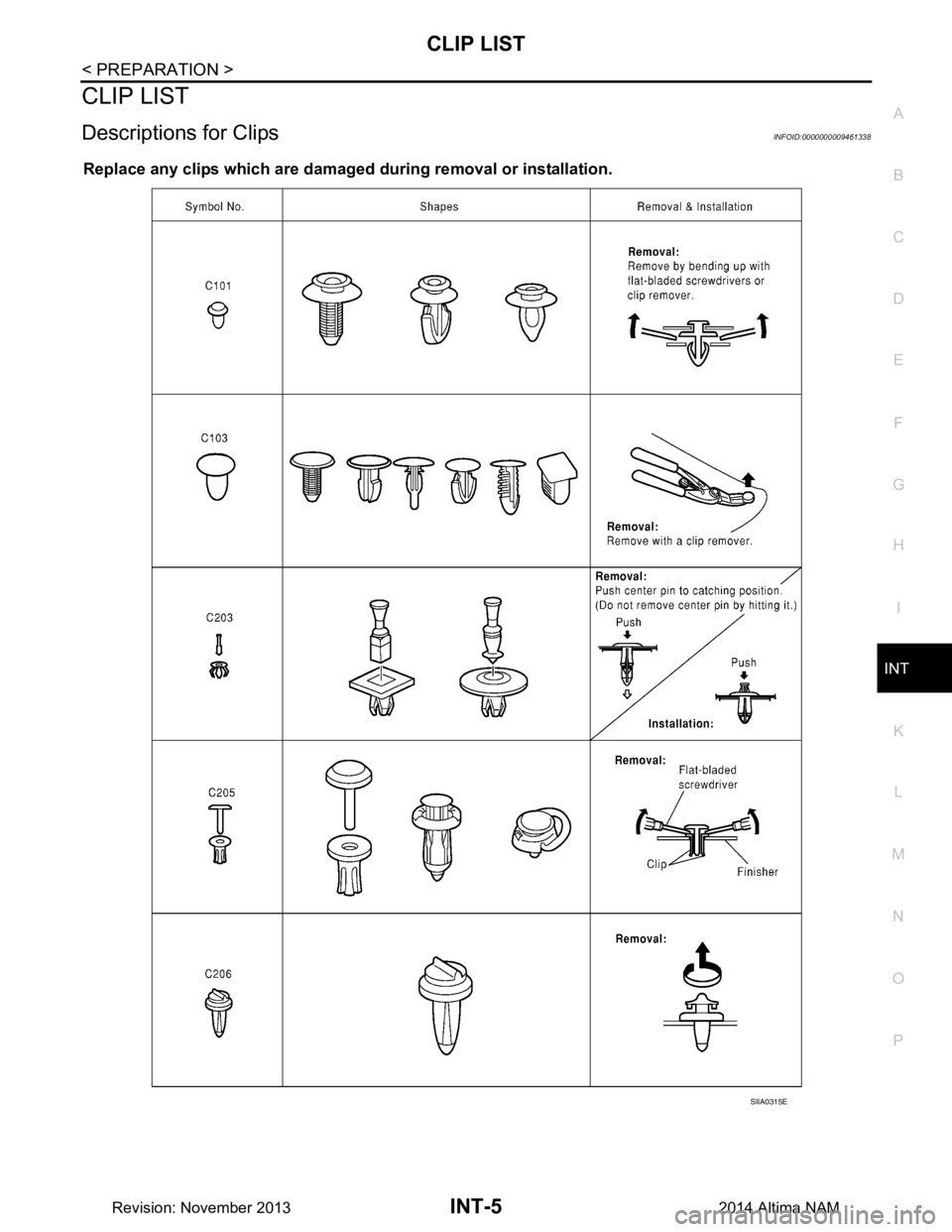

CLIP LIST
Descriptions for ClipsINFOID:0000000009461338
Replace any clips which are damaged during removal or installation.
SIIA0315E
Revision: November 20132014 Altima NAM

INT-6
< PREPARATION >

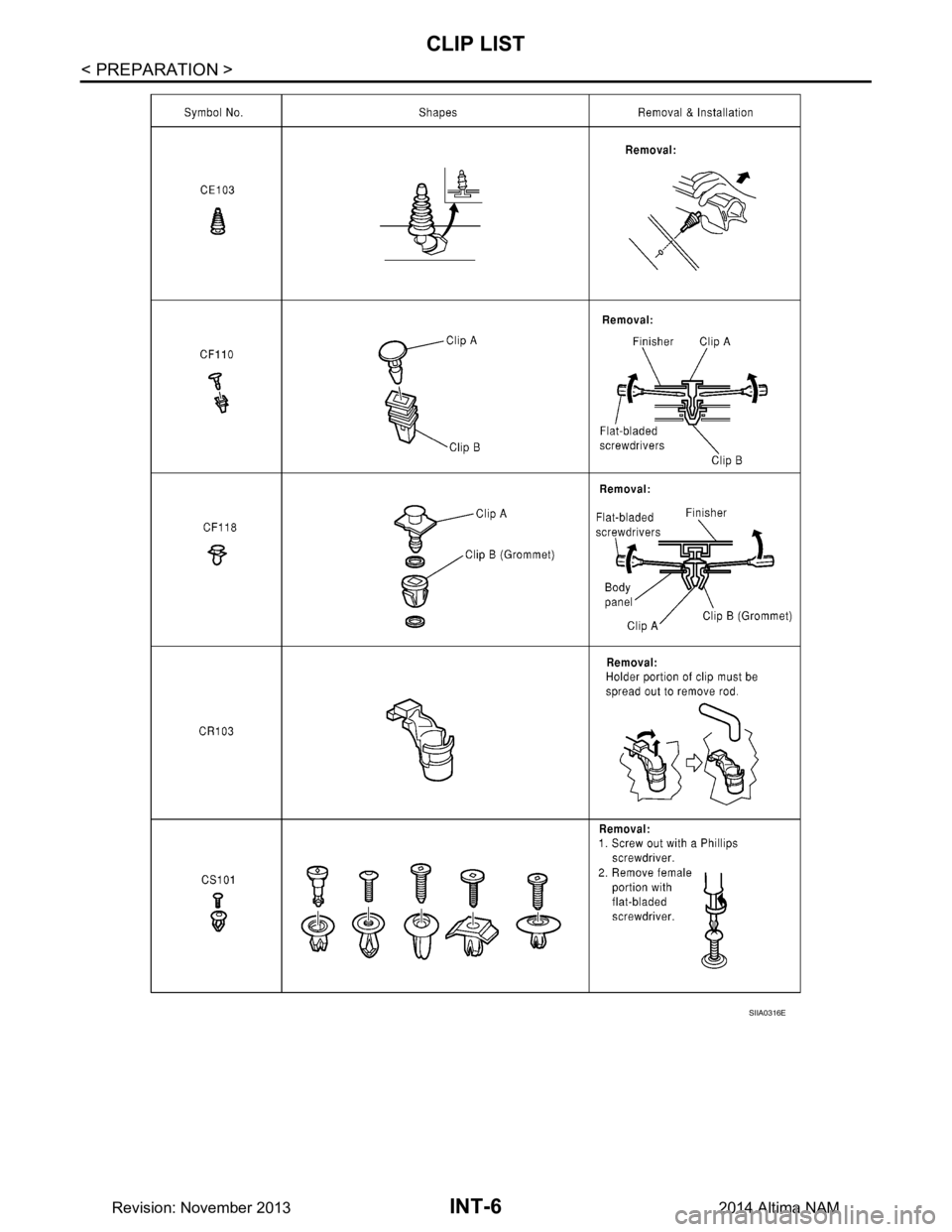

CLIP LIST
SIIA0316E
Revision: November 20132014 Altima NAM

CLIP LISTINT-7
< PREPARATION >
C
D E
F
G H
I
K L
M A
B
INT
N
O P
SIIA0317E
Revision: November 20132014 Altima NAM

INT-8
< PREPARATION >

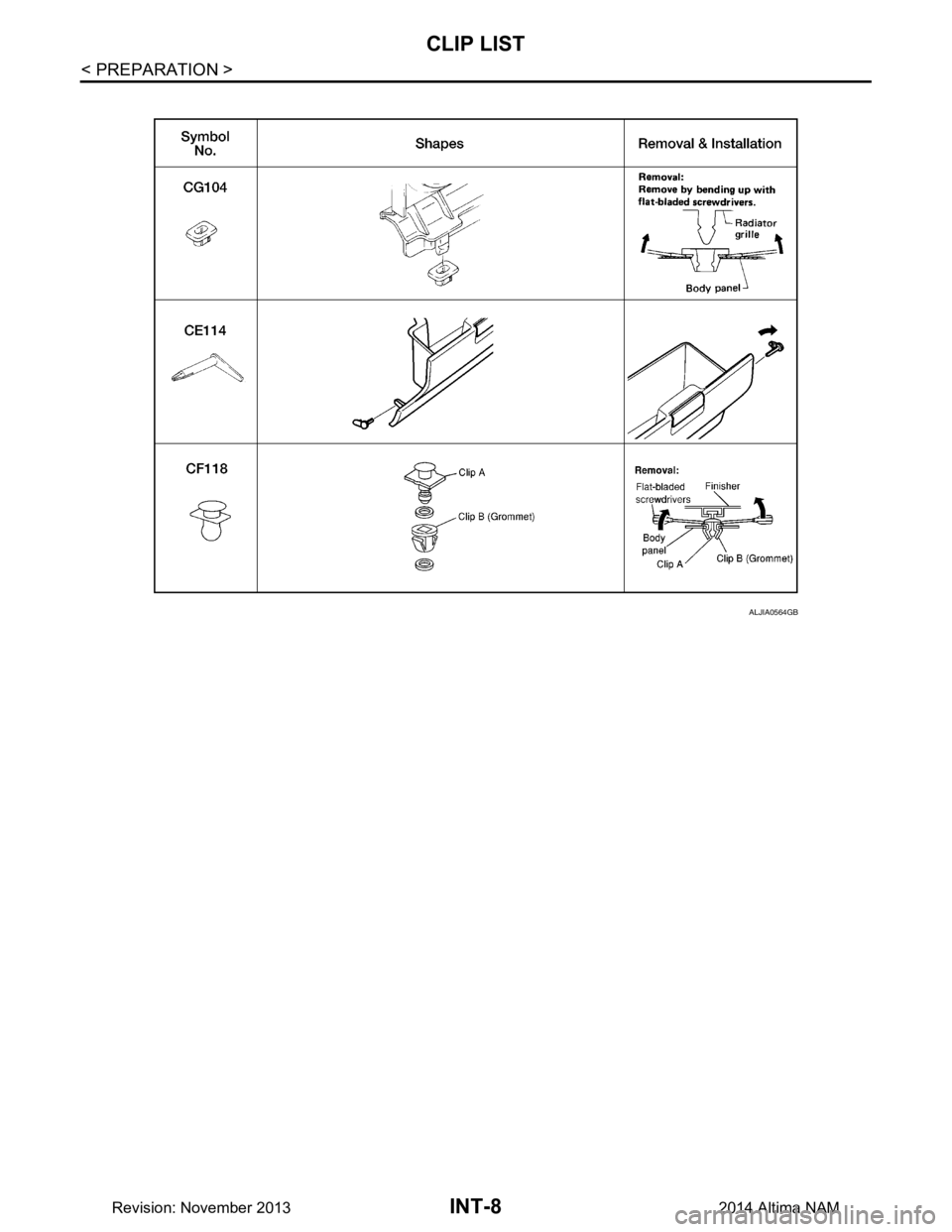

CLIP LIST
ALJIA0564GB
Revision: November 20132014 Altima NAM

SQUEAK AND RATTLE TROUBLE DIAGNOSESINT-9
< SYMPTOM DIAGNOSIS >
C
D E
F
G H
I
K L
M A
B
INT
N
O P
SYMPTOM DIAGNOSIS
SQUEAK AND RATTLE TROUBLE DIAGNOSES

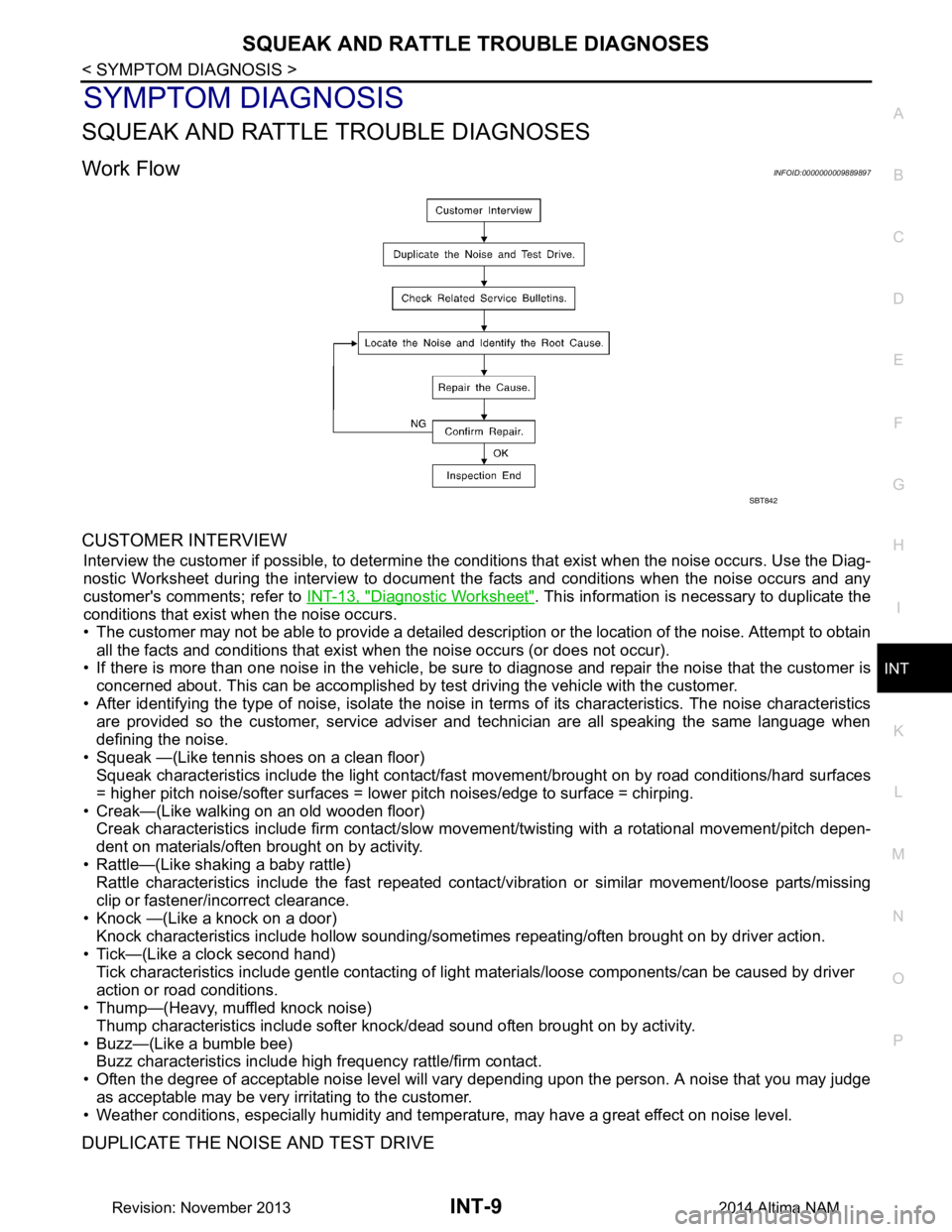

Work FlowINFOID:0000000009889897
CUSTOMER INTERVIEW
Interview the customer if possible, to determine the c onditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interv iew to document the facts and conditions when the noise occurs and any
customer's comments; refer to INT-13, "Diagnostic Worksheet"
. This information is necessary to duplicate the
conditions that exist when the noise occurs.
• The customer may not be able to provide a detailed descr iption or the location of the noise. Attempt to obtain
all the facts and conditions that exist when the noise occurs (or does not occur).
• If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer is
concerned about. This can be accomplished by test driving the vehicle with the customer.
• After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics
are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.
• Squeak —(Like tennis shoes on a clean floor) Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard surfaces
= higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping.
• Creak—(Like walking on an old wooden floor) Creak characteristics include firm contact/slow mo vement/twisting with a rotational movement/pitch depen-
dent on materials/often brought on by activity.
• Rattle—(Like shaking a baby rattle) Rattle characteristics include the fast repeated contac t/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.
• Knock —(Like a knock on a door) Knock characteristics include hollow sounding/someti mes repeating/often brought on by driver action.
• Tick—(Like a clock second hand) Tick characteristics include gentle contacting of li ght materials/loose components/can be caused by driver
action or road conditions.
• Thump—(Heavy, muffled knock noise)
Thump characteristics include softer k nock/dead sound often brought on by activity.
• Buzz—(Like a bumble bee) Buzz characteristics include high frequency rattle/firm contact.
• Often the degree of acceptable noise level will vary depending upon the person. A noise that you may judge
as acceptable may be very irritating to the customer.
• Weather conditions, especially humidity and temperature, may have a great effect on noise level.
DUPLICATE THE NOISE AND TEST DRIVE
SBT842
Revision: November 20132014 Altima NAM
