NISSAN TIIDA 2008  Service Repair Manual GW-30
< SERVICE INFORMATION >
POWER WINDOW SYSTEM

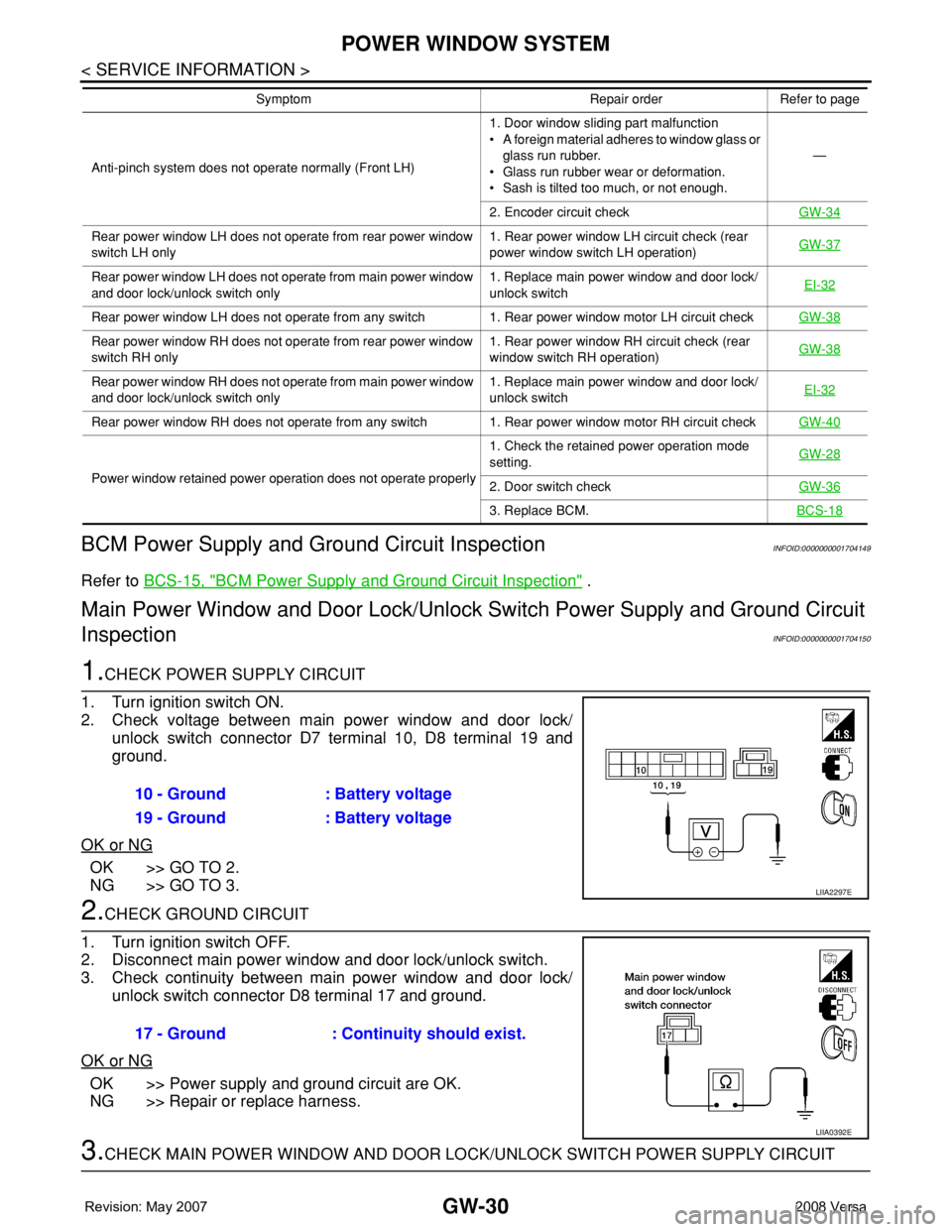

BCM Power Supply and Ground Circuit Inspection
INFOID:0000000001704149
Refer to BCS-15, "BCM Power Supply and Ground Circuit Inspection" .
Mai

Page 1932 of 2771

NISSAN TIIDA 2008  Service Repair Manual POWER WINDOW SYSTEM
GW-31
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
GW
N
O
P

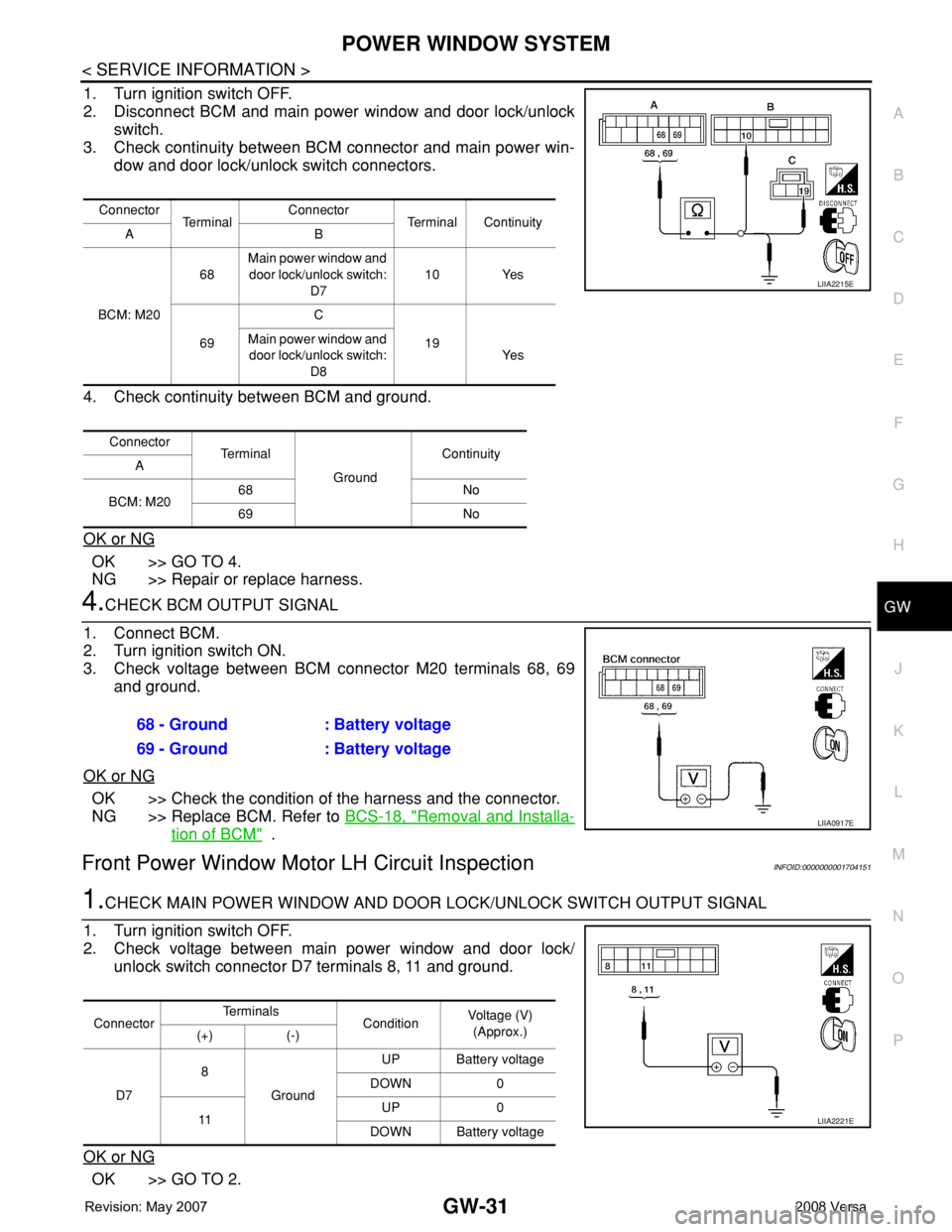

1. Turn ignition switch OFF.
2. Disconnect BCM and main power window and door lock/unlock
switch.
3. Check continuity

Page 1933 of 2771

NISSAN TIIDA 2008  Service Repair Manual GW-32
< SERVICE INFORMATION >
POWER WINDOW SYSTEM
NG >> Replace main power window and door lock/unlock switch. Refer to EI-32, "Removal and Installa-
tion" .

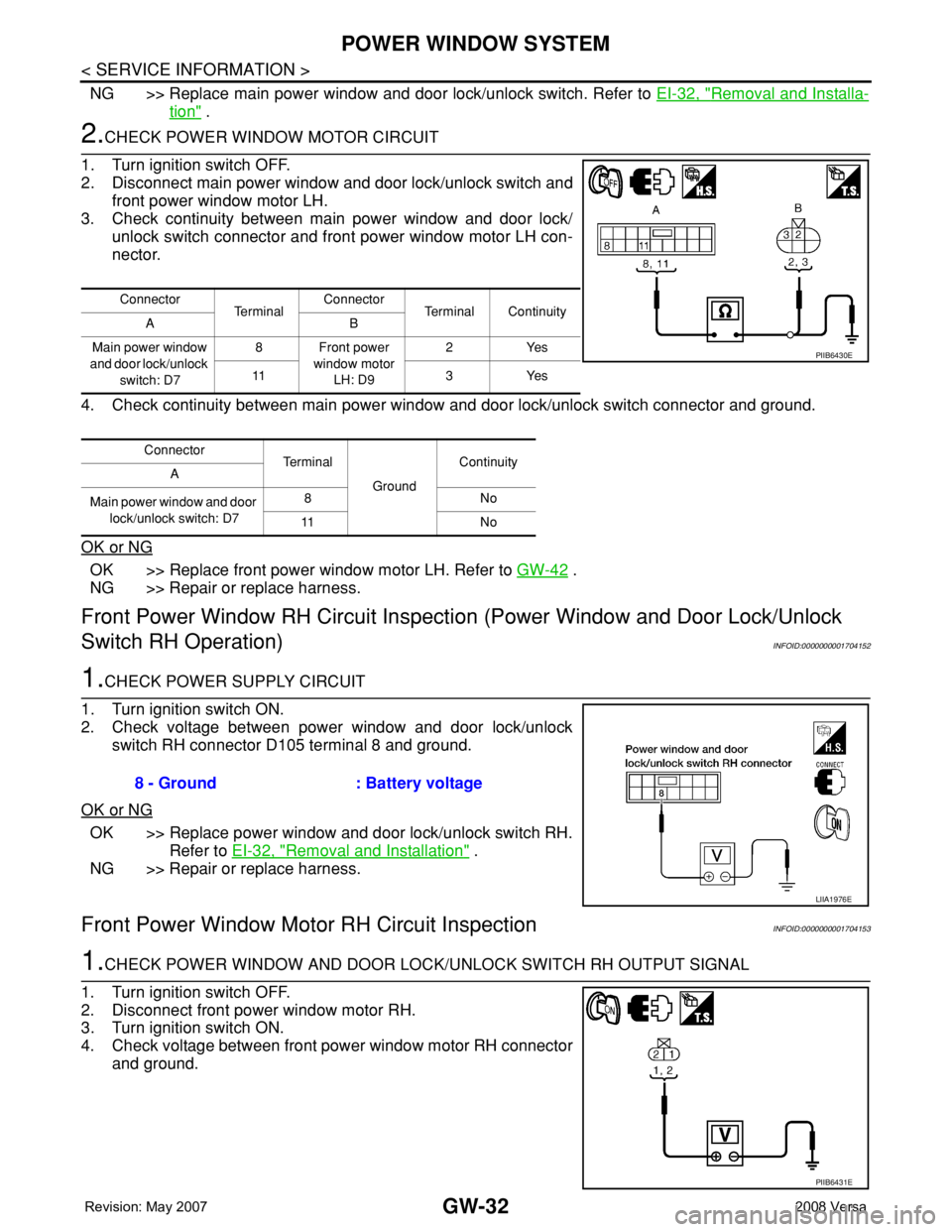

2.CHECK POWER WINDOW MOTOR CIRCUIT

Page 1934 of 2771

NISSAN TIIDA 2008  Service Repair Manual POWER WINDOW SYSTEM
GW-33
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
GW
N
O
P
OK or NG
OK >> Replace front power window motor RH. Refer to GW-42 .
NG >> GO TO 2.

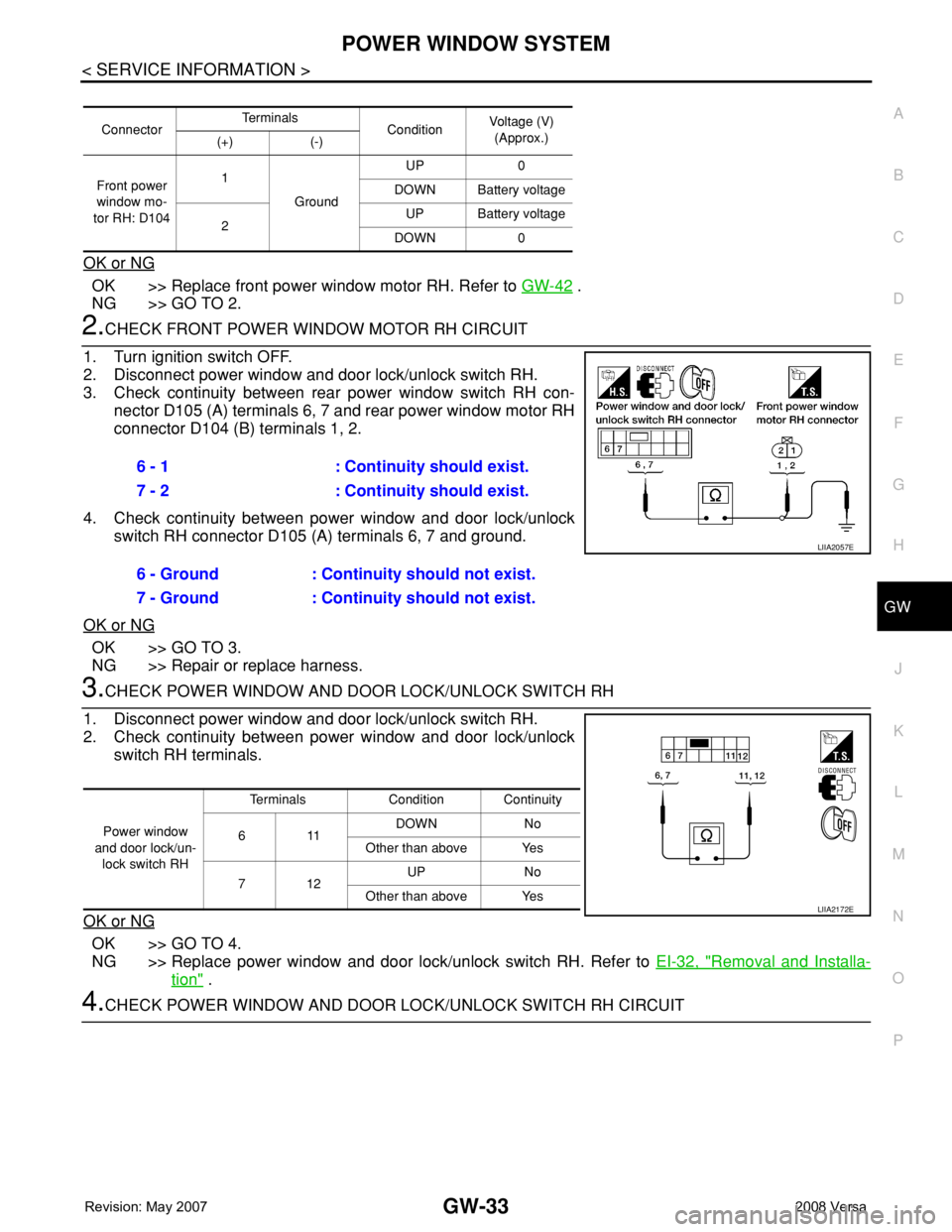

2.CHECK FRONT POWER WINDOW MOTOR R

Page 1935 of 2771

NISSAN TIIDA 2008  Service Repair Manual GW-34
< SERVICE INFORMATION >
POWER WINDOW SYSTEM

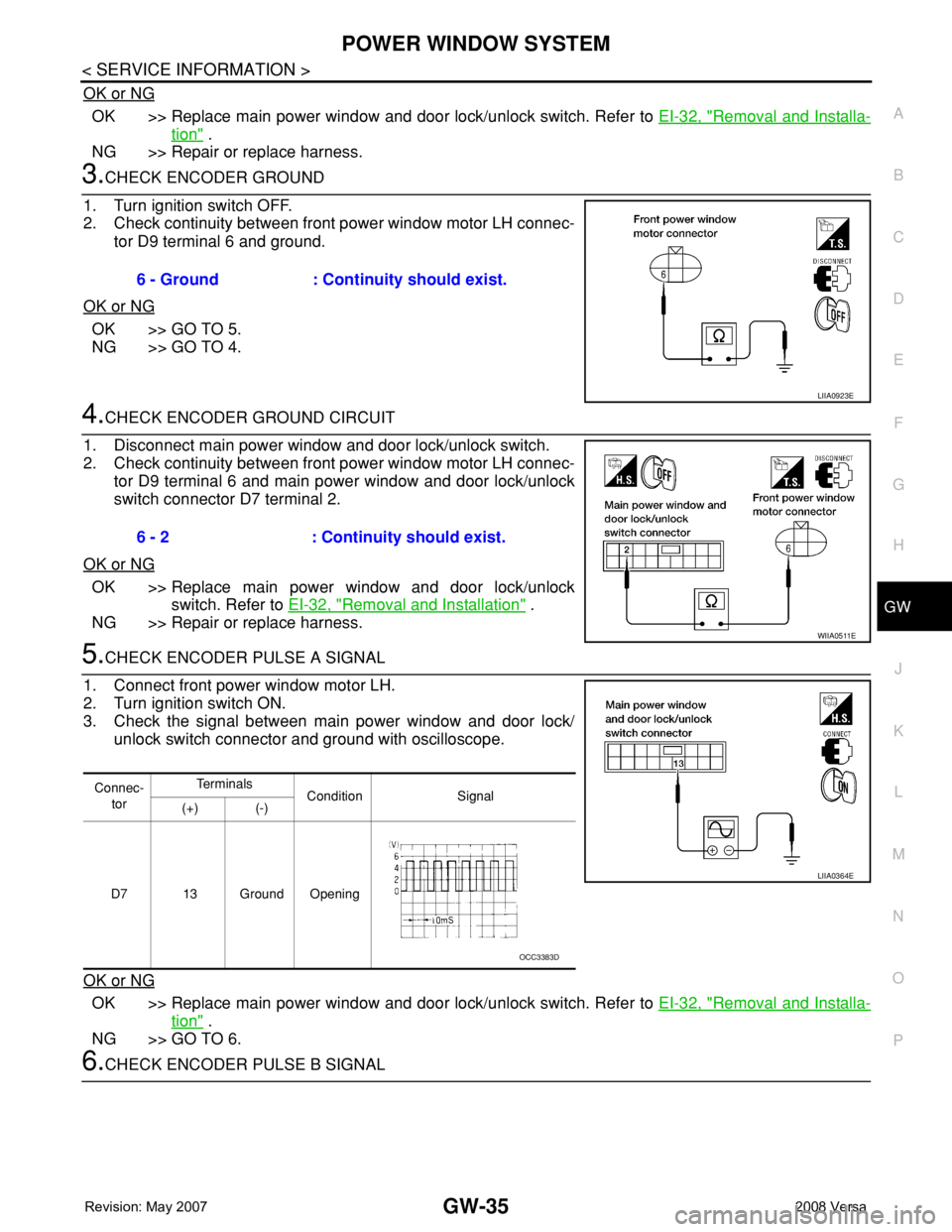

1. Disconnect main power window and door lock/unlock switch.

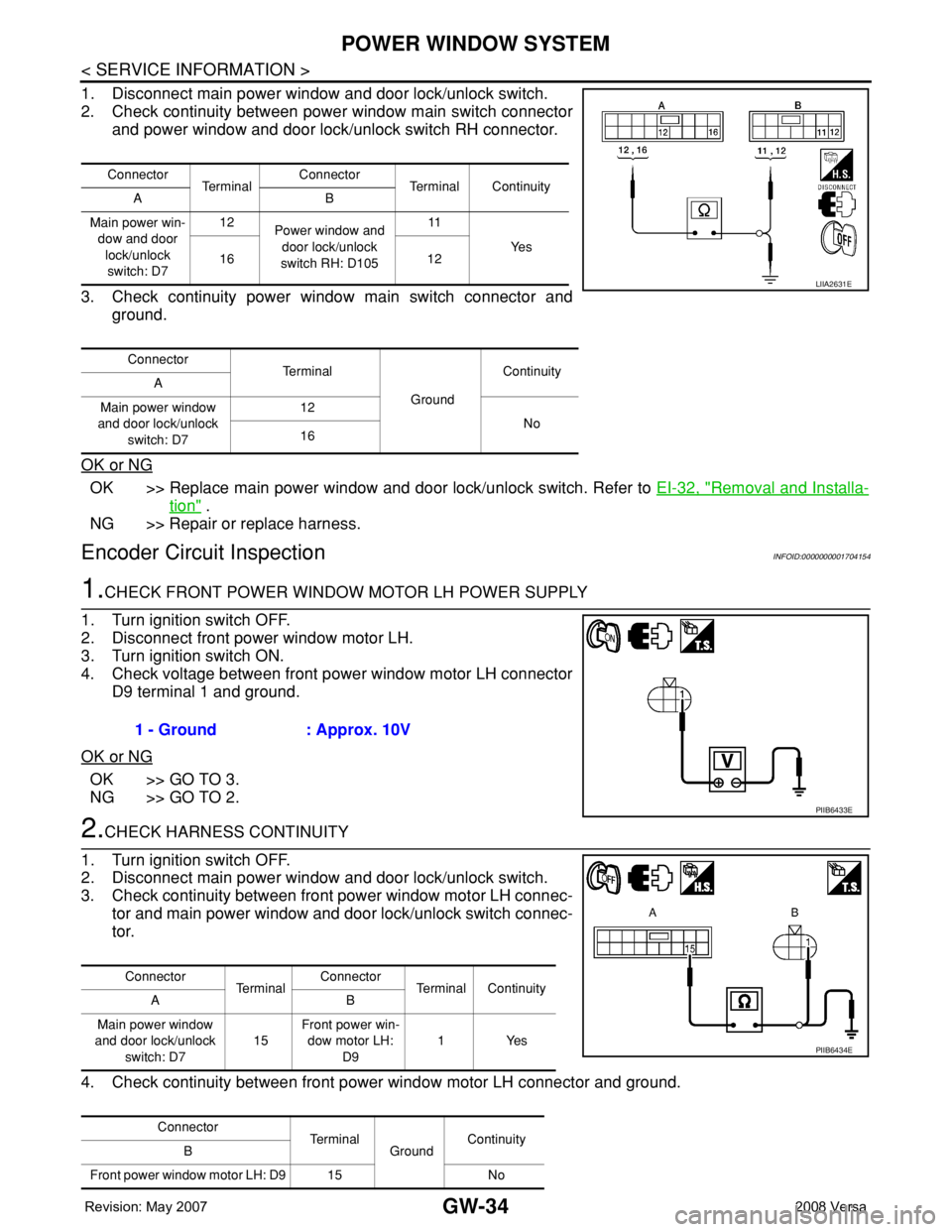

2. Check continuity between power window main switch connector
and power window and door

Page 1936 of 2771

NISSAN TIIDA 2008  Service Repair Manual POWER WINDOW SYSTEM
GW-35
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
GW
N
O
P
OK or NG
OK >> Replace main power window and door lock/unlock switch. Refer to EI-32, "Removal and Installa-
tion&

Page 1937 of 2771

NISSAN TIIDA 2008  Service Repair Manual GW-36
< SERVICE INFORMATION >
POWER WINDOW SYSTEM

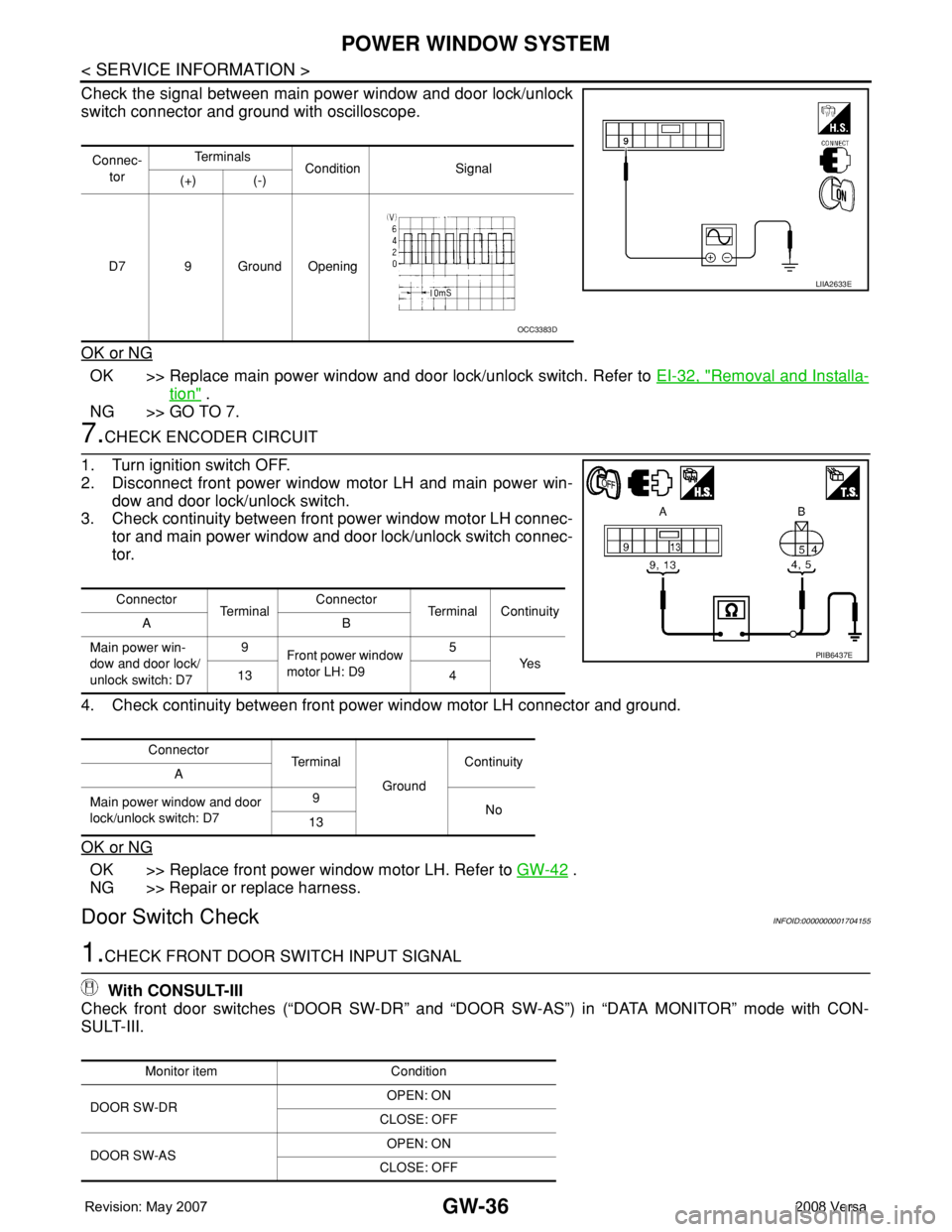

Check the signal between main power window and door lock/unlock
switch connector and ground with oscilloscope.
OK or NG
OK >> Replace main power windo

Page 1938 of 2771

NISSAN TIIDA 2008  Service Repair Manual POWER WINDOW SYSTEM
GW-37
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
GW
N
O
P

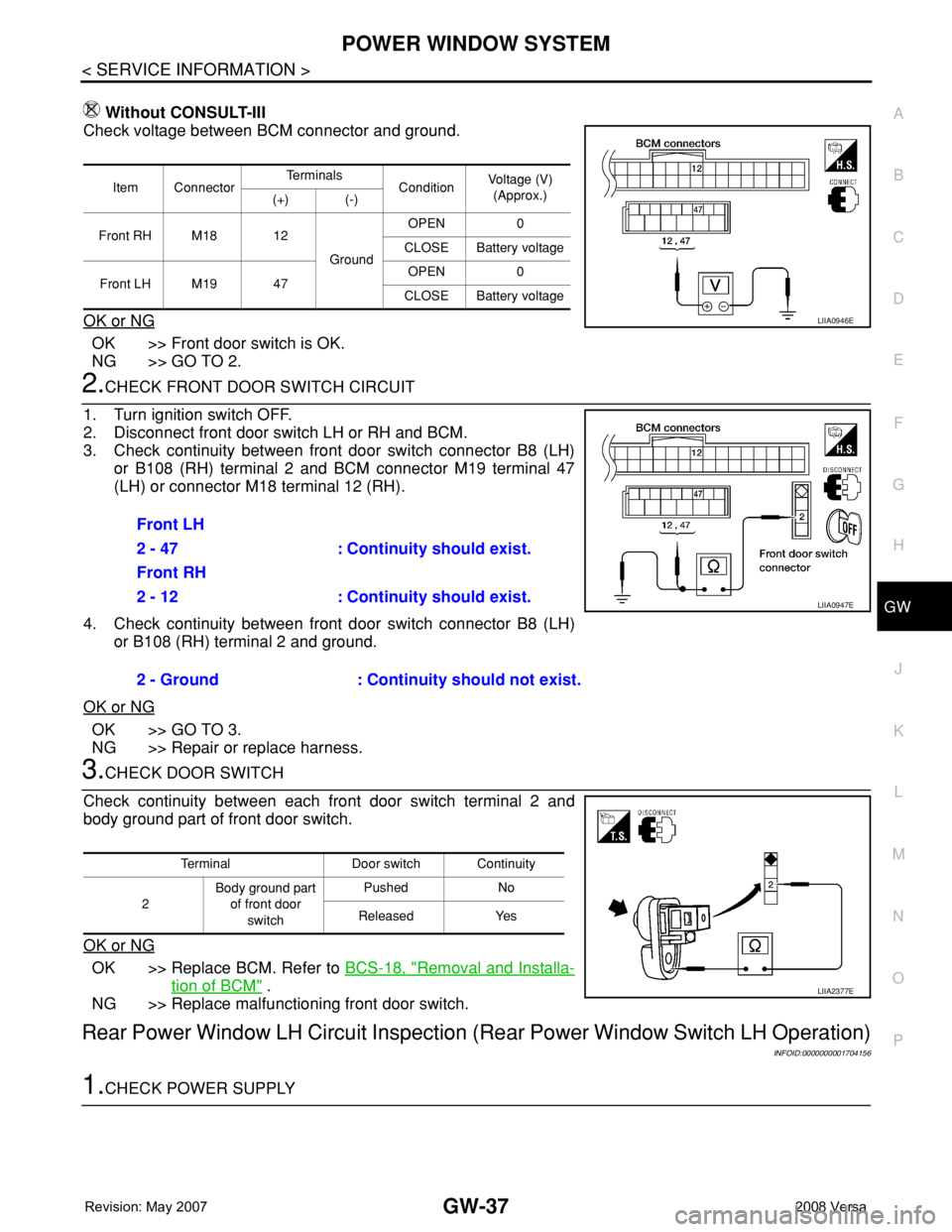

Without CONSULT-III
Check voltage between BCM connector and ground.
OK or NG
OK >> Front door switch is OK.
NG >> GO T

Page 1939 of 2771

NISSAN TIIDA 2008  Service Repair Manual GW-38
< SERVICE INFORMATION >
POWER WINDOW SYSTEM

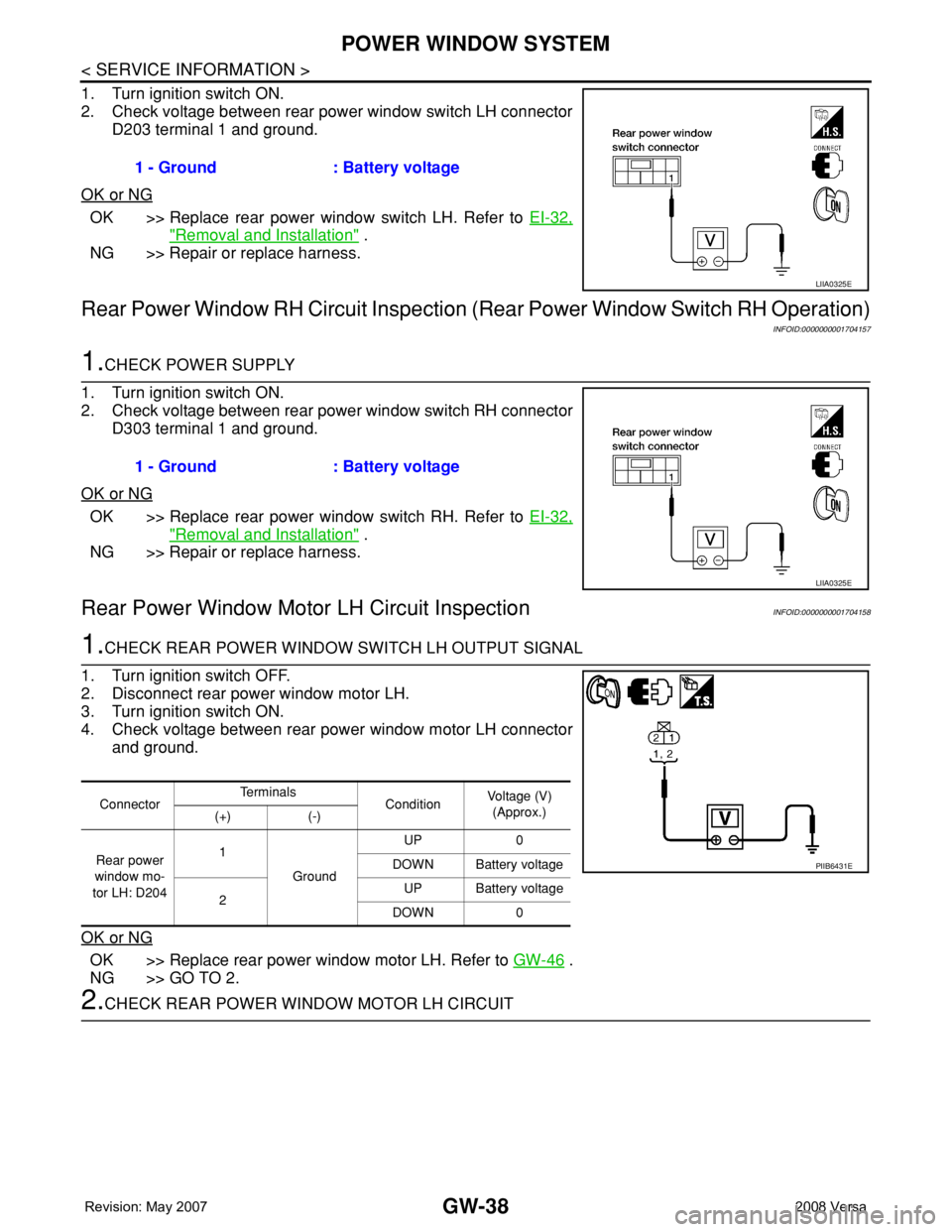

1. Turn ignition switch ON.
2. Check voltage between rear power window switch LH connector
D203 terminal 1 and ground.
OK or NG
OK >> Replace rear pow

Page 1940 of 2771

NISSAN TIIDA 2008  Service Repair Manual POWER WINDOW SYSTEM
GW-39
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
GW
N
O
P

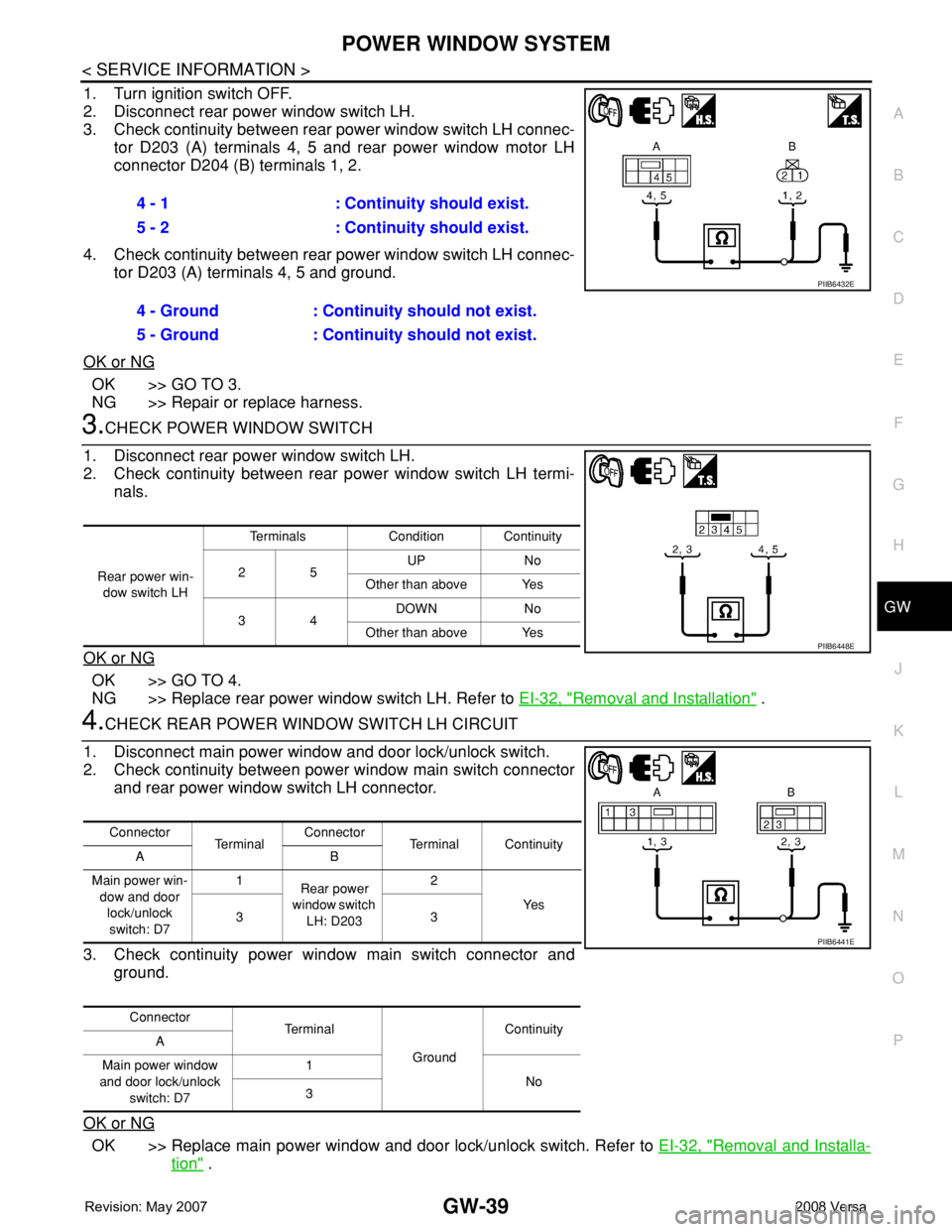

1. Turn ignition switch OFF.
2. Disconnect rear power window switch LH.
3. Check continuity between rear power window
