OLDSMOBILE AURORA 1996 Owners Manual

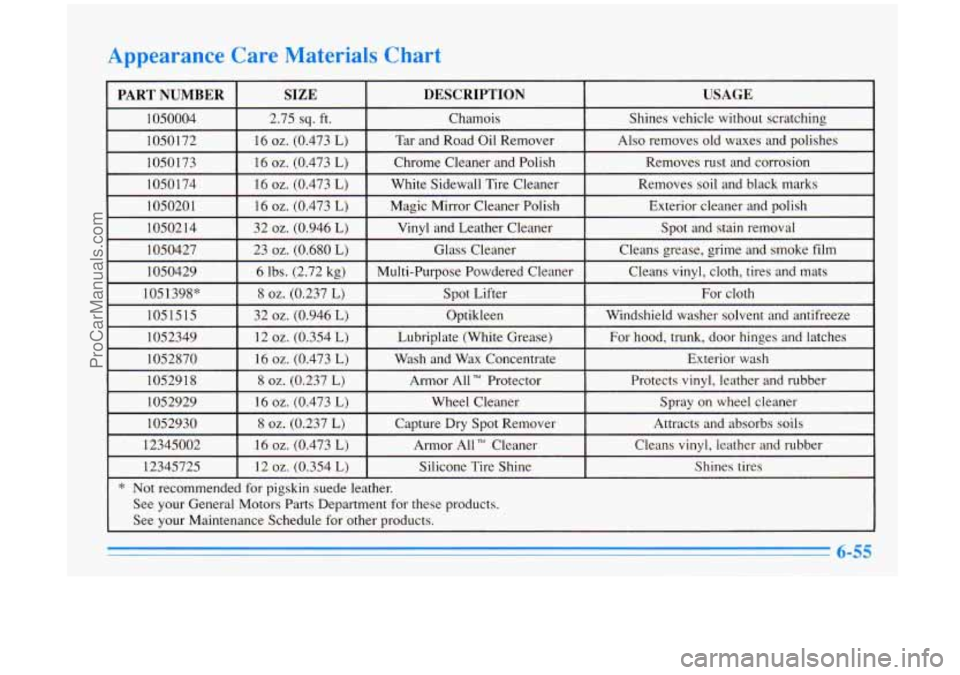

PART NUMBER I SIZE DESCRIPTION I USAGE I ~~~ ~~~~~~~ ~ ~~~ ~ ~
1050004 2.75 sq. ft. Chamois Shines vehicle without scratching
1050172
16 oz. (0.473 L) Tar and Road
Oil Remover Also removes old waxes and polishes
1050173
I 16 oz. (0.473~lp~Chrom~e~Cleaner and Polish I Removes rust and corrosion I
1050174 16 oz. (0.473 L) White Sidewall Tire Cleaner Removes soil
and black marks
1 05020 1 16 oz. (0.473 L) Magic Mirror Cleaner Polish Exterior cleaner and polish
1050214 32 oz. (0.946
L) Vinyl and Leather Cleaner Spot and stain removal
1050427 23
oz. (0.680 L) Glass Cleaner Cleans grease, grime and smoke film
1050429
6 lbs. (2.72 kg) Multi-Purpose Powdered Cleaner Cleans
vinyl, cloth, tires and mats
1051398* 8 oz. (0.237 L) Spot Lifter For cloth
1051515 32
oz. (0.946 L) Optikleen Windshield washer solvent and antifreeze
1052349 12
oz. (0.354 L) Lubriplate (White Grease) For hood, trunk, door hinges and latches
1052870 16 oz. (0.473 L) Wash and Wax Concentrate Exterior
wash
10529 18
8 oz. (0.237 L)
Armor All" Protector Protects vinyl, leather and rubber
1052929 16
oz. (0.473 L) Wheel Cleaner Spray on wheel cleaner
1052930
8 oz. (0.237 L) Capture Dry Spot Remover Attracts and absorbs
soils
12345002
16 oz. (0.473 L) Armor All" Cleaner Cleans vinyl, leather and rubber
I 12345725 I 12 oz. (0.354 L) I Silicone
Tire Shine I Shines tires I
* Not recommended for pigskin suede leather.
See your General Motors Parts Department for these products.
See your Maintenance Schedule for other products.
ProCarManuals.com

Vehicle Identification Number (VIN)
fi SAMPLE4UXTM072675 I I
ENGINE A96 f ASSEMBLY I
I CODE MODEL YEAR
This is the legal identifier for your Aurora. It appears on
a plate in the front corner
of the instrument panel, on the
driver’s side.
You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates
of title and registration.
Engine Identification
The eighth character in your VIN is the engine code.
This code will help you identify your engine,
specifications, and replacement parts.
Service Parts Identification Label
You’ll find this label on the underside of the spare tire
cover. It’s very helpful if you ever need to order parts.
On this label is:
your VIN,
the model designation,
paint information, and
0 a list of all production options and special
equipment.
Be sure that this label is not removed from the vehicle.
6-56
ProCarManuals.com

Electrical System
Add-on Electrical Equipment
I NOTICE:
Don’t add anything electrical to your Aurora
unless
you check with your retailer first. Some
electrical equipment can damage your vehicle and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment
can keep other components from working
as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your Aurora, see “Servicing
Your Air Bag-Equipped Aurora’’ in the Index.
Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the wiring harness. An electrical overload will cause the
lamps to go on and
off, or in some cases to remain off.
If this happens, have your headlamp system checked
right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by an internal
circuit breaker and a fuse in the fuse panel on the other
side of the instrument panel. If the motor overheats due
to heavy snow, etc., the wiper will stop until the motor
cools.
If the overload is caused by some electrical
problem, have it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed.
ProCarManuals.com

Maxifuse/Relay Center
It’s easy to check the fuses in this underhood relay
center. There are two locking
ms on either side of the
base of the cover. Reach down and unsnap each one by
pulling
the cover toward you, then pushing it away
while pulling up. Remove the cover.
The inside of the
cover has a chart that explains the features and controls
governed by each fuse and relay.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination
of fuses and circuit
breakers. This greatly reduces the chance
of damage
caused by electrical problems.
Look at the silver-colored band inside the fuse.
If the band
is broken or melted, replace the
fuse. Be sure you replace
a bad fuse with a new one of the correct amp rating.
Two spare fuses are located below the fuse puller. You’ll
also find spare fuses in the slots labeled “Spare” in the
following charts.
There are three main fuse panels: the instrument panel
fuse block and two (driver’s side and passenger’s side)
rear compartment
fuse blocks.
Instrument Panel Fuse Block
This is located on the left side of the instrument panel.
To open
it, push the latch to the left, then pull, and the
door will open.
You’ll find a fuse puller clipped to the inside
of the
cover. Place the wide end of the fuse puller over the
plastic end
of the fuse. Squeeze the ends over the fuse
and pull
it out. To close the fuse door, press the door
closed and it will latch.
ProCarManuals.com

/ INSTRUMENT PANEL
FUSE BLOCK
F! BAG
5
TURN ~
LPS
9
CHIME
SHIFT
I DIS I i
21 HVAC RELAY
PERIM LIGHTS
Fuse
1
2
3
4
5
6
7
8
9
10
11
12
13 14
15
16
Usage
Supplemental Inflatable Restraint
(Air Bag)
Injectors
Anti-Lock Brake System
Left Exterior Lamps
Turn Signal Lamps
Injectors Climate Controls, Magnetic Speed
Right Exterior Lamps
Chime (Ignition
I), Memory Set
Powertrain Control Module,
VATS PASS-Key@II
Auxiliary Power
Interior
Lamps
Shift Sols
Linear EGR
Cruise Control
Perimeter Lights
6-59
ProCarManuals.com

Fuse
17
18
19
20
21
22
23
24
25
26
27
28 Usage
Driver Information
Center
Converter Oxygen Sensors
Radio
Open
Climate Control Relay
Open
Windshield Wipers Open
TMNSS
Cigarette Lighter
Crank,
Air Bag Module
Climate Control Blower
Removing the Rear Seat Cushion
To access the battery and rear compartment fuse panels,
the rear seat cushion must be removed.
This procedure is
somewhat difficult. You may wish to have your retailer
do this for you.
I NOTICE:
The battery and main fuse boxes are located under
the rear seat cushion. The battery’s ground
terminal and some relay wires are exposed. To help
avoid damage to the battery and wires, be careful
when removing
or reinstalling the seat cushion. Do
not remove covers from covered parts. Do not store
anything under the seat,
as objects could touch
exposed wires and cause a short.
To Remove the Rear Seat Cushion
1. Pull up on the front of the cushion to release the
front hooks.
2. Pull the cushion up and out toward the front of the
vehicle.
6-60
ProCarManuals.com

To Reinstall the Rear Seat Cushion
A safety belt that isn’t properly routed through
the seat cushion or is twisted won’t provide the
protection needed in
a crash. If the safety belt
hasn’t been routed through the seat cushion at
all, it won’t be there to work for the next
CAUTION: (Continued)
I
passenger. The person sitting in that position
could be badly injured. After reinstalling the seat
cushion, always check to be sure that the safety
belts are properly routed and are not twisted.
1.
2.
3.
4.
Buckle the center passenger position safety belt, and
then route the safety belts through the proper slots in
the seat cushion. Don’t let the safety belt get twisted.
Slide the rear
of the cushion up and under the
seatback
so the rear locating guides hook into the
wire loops on the back frame.
With the seat cushion lowered, push rearward and
then press down on the seat cushion until the spring
locks on both ends engage.
Check to make sure the safety belts are properly
routed and that no portion of any safety belt
is
trapped under the seat. Also. make sure the seat
cushion is secured.
6-61
ProCarManuals.com

Rear Compartment Fuse Blocks
Once the seat is removed,
you’ll find two fuse panels
on the driver’s side
of the
battery. Each is protected by
a plastic box with four tabs.
Pull up on all four tabs at
the same time to loosen
them and pull off the box.
Of these two panels, the cover on the passenger’s side
fuse panel has an extra plastic cap attachment. You’ll
need to slide this out of the grooves which hold
it there
before removing the rest
of the box.
To replace the covers, line the four tabs up and simply
snap them back into place. The extra plastic cap
attachment slides back into place.
REAR COMPARTMENT
DRIVER SIDE FUSE BLOCK
I 112 3
1 OPEN 1, 11 REL TRUNK
c B A
1 OPEN II FPMP I D/DooR UNLOCK F E Dl
11
DEFG - RR #2
B
12
DEFG- RR #i
A
ACSRY DAP OPEN
