OLDSMOBILE BRAVADA 1998 Repair Manual

Never do this.
Here two children are wearing the same belt. The
belt can't properly spread the impact forces. In a
crash, the
two children can be crushed together
and seriously injured.
A belt must be used by
only one person at a time.
e: What if a child is wearing a lap-shoulder belt,
but the child is
so small that the shoulder belt is
very close to the child's face
or neck?
A: Move the child toward the center of the vehicle, but
be sure that the shoulder belt still
is on the child's
shoulder.
so that in a crash the child's upper body
would have the restraint that belts provide.
If the
child is sitting
in a rear seat outside position. see
"Rear Safety Belt Comfort Guides"
in the Index. If
the child is so small that the shoulder belt is still
very close to the child's face or neck, you might
want to place the child
in a seat that has a lap belt,
if your vehicle
has one.
1-49
ProCarManuals.com

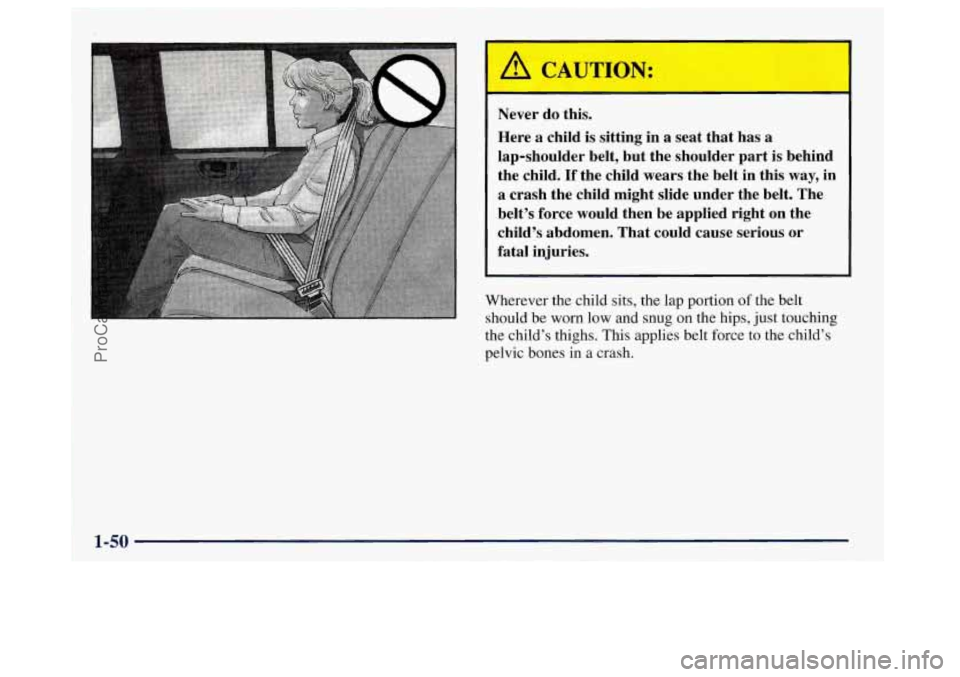

Never do this.
Here a child is sitting in a seat that has
a
lap-shoulder belt, but the shoulder part is behind
the child.
If the child wears the belt in this way, in
a crash the child might slide under the belt. The
belt’s force would then be applied right
on the
child’s abdomen. That could cause serious or
fatal injuries.
Wherever the child sits, the lap portion of the belt
should be worn low and snug on the hips, just touching
the child’s thighs. This applies belt force to the child’s
pelvic bones in a crash.
1-50
ProCarManuals.com

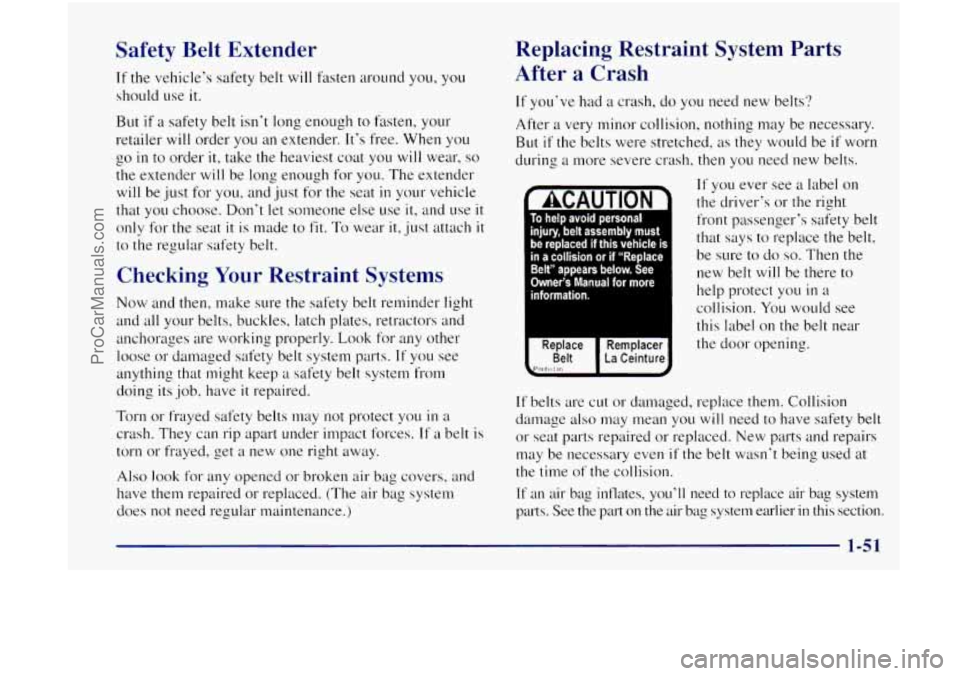

Safety Belt Extender
If the vehicle’s safety belt will fasten around you, you
should use
it.
But if a safety belt isn’t long enough to Fasten, your
retailer will order
you an extender. It’s free. When you
L eo in to order it, take the heaviest coat you will wear, so
the extender will be long enough for you. The extender
will be just for you, and just for the seat in your vehicle
that you choose. Don’t let someone else use
it, and use it
only for the seat it is made to fit. To wear it, just attach it
to the regular safety belt.
Checking Your Restraint Systems
Now and then, make sure the safety belt reminder light
and all your belts, buckles, latch plates, retractors and
anchorages are working properly. Look for any other
loose or damaged safety belt system parts.
If you see
anything that might keep
a safety belt system from
doing its job, have
it repaired.
Torn or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces.
If a belt is
torn or frayed, get a new one right away.
Also look for any opened or broken air bag covers, and
have them repaired or replaced. (The air bag system
does not need regular maintenance.)
Replacing Restraint System Parts
After a Crash
If you’ve had a crash, do you need new belts‘?
After a very minor collision, nothing may be necessary.
But if the belts were stretched, as they would be if worn
during a more severe crash, then you need new belts.
ACAUTION I
To help avoid personal
injury, belt assembly
must
be replaced if this vehicle is
in a collision or if “Replace
Belt” appears below. See
Owner’s Manual for more
information.
If you ever see a label on
the driver’s or the right
front passenger’s safety belt
that
says to replace the belt,
be sure to do
so. Then the
new belt will be there to
help protect you
in a
collision. You would see
this label on the belt near
the door opening.
If belts are cut or damaged, replace them. Collision
damage
also may mean you will need to have safety belt
or seat parts repaired or replaced. New parts and repairs
may be necessary even
if the belt wasn’t being used at
the time of the collision.
If an air bag inflates, you’ll need to replace air bag system
parts. See the part on the air bag system earlier in this section.
ProCarManuals.com

b% NOTES
1-52
ProCarManuals.com

a Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are
the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2-2
2-4
2-6
2-9
2-
10
2-1 1
2- 12 2- 12
2- 14
2- 15
2-16
2- 19
2-20
2-22
2-22
2-23
2-23
2- 24 Keys
Door Locks
Keyless Entry System
Liftgate
Theft Passlock
TM
New Vehicle “Break-In”
Ignition Positions
Starting Your Engine
Engine Coolant Heater
(If Equipped)
Automatic Transmission Operation
Parking Brake
Shifting Into PARK
(P)
Shifting Out of PARK (P)
Parking Over Things That Burn
Engine Exhaust
Running Your Engine While You’re Parked
Locking Rear Axle 2-24
2-25
2-25
2-26
2-26
2-32 2-34
2-35
2-37 2-44
2-44
2-45
2-45 2-46
2-50
2-5
1
2-53 All-Wheel Drive
Windows Horn
Tilt Wheel
Turn Signal/Multifunction Lever
Exterior Lamps
Interior Lamps
Mirrors
Storage Compartments Ashtrays and Cigarette Lighter
Sun Visors
Accessory Power Outlets
Sunroof (If Equipped)
Universal Transmitter Instrument Panel
Instrument Panel Cluster
Warning Lights, Gages and Indicators
ProCarManuals.com

Keys
Leaving young children in a vehicle with the
ignition key
is dangerous for many reasons.
A child or others could be badly injured or
even killed.
They could operate power windows or other
controls or even make the vehicle move. Don’t
leave the keys
in a vehicle with young children.
ProCarManuals.com

This vehicle has one double-sided key for
the ignition, liftgate
and door locks. It will
fit with either side up.
When a new vehicle is delivered, the retailer provides
the owner with a pair
of identical keys and a key
code number. The
key code number tells your retailer or a qualified
locksmith how to make extra keys. Keep this number in
a safe place.
If you lose your keys, you’ll be able to have
new ones made easily using this number. Your selling
retailer should also have this number.
-
NOTICE:
Your vehicle has a number of new features that
can help prevent theft. But you can have a lot
of
trouble getting into your vehicle if you ever lock
your keys inside. You may even have to damage
your vehicle to get in.
So be sure you have
extra keys.
2-3
ProCarManuals.com

Door Locks
Unlocked doors can be dangerous.
Passengers
-- especially children -- can easily
open the doors and fall out. When a door is
locked, the inside handle won't open it.
Outsiders can easily enter through an unlocked
door when you slow down
or stop your vehicle.
This may not be
so obvious: You increase the
chance of being thrown out
of the vehicle in a
crash if the doors aren't locked. Wear safety belts
properly, lock your doors, and you
will be far
better off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.
You can use the Keyless Entry System, if you have
this option.
You can use your key to unlock your door
from
the outside.
To lock your door from the inside, slide the lever on
your inside door down.
To unlock the door, slide the
lever on your inside door
up. You will see a red area
on the lever.
2-4
ProCarManuals.com

Power Door Locks Rear Door
Security Lock
With this feature, you can
lock
the rear doors so they
can't be opened from the
inside by passengers.
I
Move the lock up to lock the doors and down to release
the door locks.
The power door lock switch is located on the armrest.
Remove the ignition key and press
LOCK to lock all the Lockout Prevention
doors at once.
To unlock the doors, press the raised area next to the feature
stops the power door locks from locking when
key symbol. the
keys are
in the ignition and a door is open.
To protect you from locking your key in the vehicle, this
The lever on each rear door works only that door's lock. If the power lock switch is pressed when a door is open
and the key is
in the ignition, all the doors will lock, and
the driver's door will unlock.
2-5
ProCarManuals.com

Leaving Your Vehicle
If you are leaving the vehicle, take your key, open your
door and set the locks from inside. Then get out and
close the door.
Keyless Entry System
You can lock and unlock your doors or unlock your
liftgate from about
3 feet (1 m) up to 30 feet (9 m)
away using the keyless entry transmitter supplied with
your vehicle.
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules and
with Industry Canada.
This device complies with Part
15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies
with RSS-2 10 of Industry Canada.
Operation is subject to
the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation
of
the device. Changes
or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
This system has a range
of about 3 feet (1 m) up to
30 feet (9 m). At times you may notice a decrease in
range. This is normal for any remote keyless entry
system.
If the transmitter does not work or if you have
to stand closer to your vehicle for the transmitter to
work,
try this:
Check to determine if battery replacement or
resynchronization is necessary. See the instructions
that follow.
Check the distance. You may be too far from your
vehicle.
You may need to stand closer during rainy
or snowy weather.
0 Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.
If you’re still having trouble, see your retailer or a
qualified technician for service.
2-6
