To replace the battery in the keyless entry transmitter:
1. Insert a dime in the slot between the covers of the
transmitter housing near the key ring hole. Remove
the bottom by twisting the dime.
2. Remove and replace the battery with a three volt
CR2032 or equivalent battery, positive (+) side up.
3. Align the covers and snap them together
4. Resynchronize the transmitter.
5. Check the operation of the transmitter.
Resynchronization
Resynchronization may be necessary due to the security
method used by this system. The transmitter does not
send the same signal twice to the receiver. The receiver
will not respond to a signal it has been sent previously.
This prevents anyone from recording and playing back
the signal from the transmitter.
To resynchronize your transmitter, stand close to your
vehicle and simultaneously press and hold the
LOCK
and UNLOCK buttons on the transmitter for not more
than five seconds. The door locks should cycle to
confirm synchronization. If the locks do not cycle, see
your retailer for service.
2-8
ProCarManuals.com

Driver Information System
This system displays the outside air temperature,
compass direction and trip information in the
overhead console.
USMET The US/MET (United Statedmetric) button
allows you to switch the display between the English
and metric system.
MODE: The MODE button can be used to toggle
between three modes
of operation: OFF, COMP/TEMP
and TRIP.
OFF: This turns the system off.
COMP/TEMP: The display provides the outside
temperature and one of eight compass readings to
indicate the direction the vehicle is facing.
Before you turn on the ignition and move the vehicle,
the temperature indicated will be the last outside temperature recorded
with the ignition on. If the outside
temperature is
37 OF (3 O C) or lower, the display will
toggle between the word ICE and
the current
temperature every eight seconds. This is a warning to
the driver that road conditions may be icy, and that
appropriate precautions should be taken.
The compass is self-calibrating,
so it does not need to be
manually set. However, if C (Calibration) is displayed,
the compass will need to be calibrated.
You may also
place the compass in a noncalibrated mode by pressing
and holding the MODE and USMET buttons
simultaneously while in the COMPREMP mode. After
about
10 seconds, the compass will display C and you
can release
the buttons. Drive the vehicle in a complete
360" circle three times at a speed of less than 5 mph
(8 km/h), and the compass will function normally. Once
the calibration is complete, the display will return to a
compass reading.
2-38
ProCarManuals.com

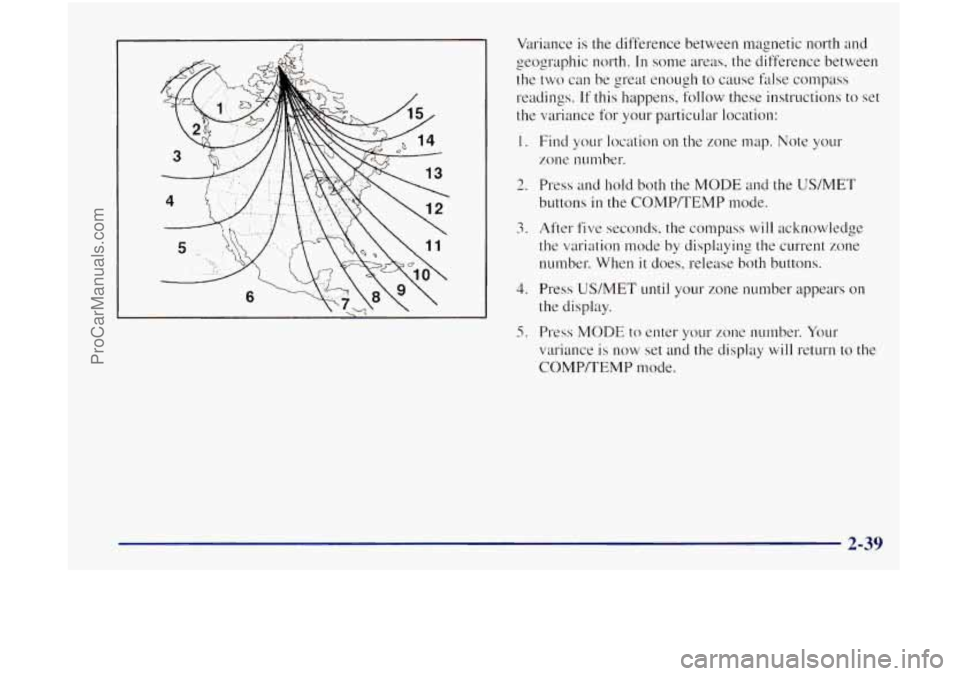

Variance is the difference between magnetic north and
c geographic north. In some areas, the difference between
the two can
be great enough to cause false compass
readings.
If this happens, follow these instructions to set
the variance for
your particular location:
I.
2.
3.
4.
5.
Find YOLK location on the zone map. Note your
zone number.
Press and hold both the
MODE and the UYMET
buttons in the COMP/TEMP mode.
After five seconds, the compass
will acknowledge
the variation mode
by displaying the current zone
number. When
it does, release both buttons.
Press
US/MET until your zone number appears on
the display.
Press
MODE to enter yo~~r zone number. Your
variance
is now set and the display will return to the
COMP/TEMP mode.
2-39
.. ~ -
ProCarManuals.com

TRIP: Once in the TRIP mode, pressing the MODE
button will step you tlx-ough
the following TRIP functions:
AVG ECON: The average fuel economy since the
last reset
is displayed.
INST ECON: Instantaneous fuel economy for the
last second
of driving is displayed.
RANGE: The display indicates the estimated
distance that can be travelled
with the remaining fuel
in the tank, based on the fuel economy for the last
few hours
of driving.
FUEL USED: The fuel used since the last reset
is displayed.
AVG SPEED: The average speed since the last reset
is displayed.
To reset the trip computer, press the MODE and US/MET
buttons simultaneously for at least two seconds.
All
functions will be displayed for half a second once the
system is reset. Reset can only be performed
in the AVG
ECON, FUEL USED and AVG SPEED modes. All three
modes are reset simultaneously.
Sunglasses Storage Compartment
I
To open the sunglasses storage Compartment in the
overhead console, press the release button. Then pull the
compartment down.
2-40
ProCarManuals.com

The transmitter will learn and transmit the frequencies
of most current transmitters and is powered by your
vehicle’s battery and charging system.
This device complies
with Pcxt 15 of the FCC Rules.
Operation is subject
to the following two conditions:
( I ) this device may not cause Ilarn~ful interference,
and
(2) this device rnust accept any interference received,
including interference that may cause undesired operation.
This device complies
with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
( 1) this device may not cause interference, and (2) this
device rnust accept any interference, including interference
that may cause undesired operation of the device.
Changes and modifications
to this system by other than
an authorized service facility could void authorization to
use this equipment.
Programming the Transmitter
Do not use the rransrnitter with any garage door opener
that does not have the “stop and reverse” feature. This
includes any garage door opener mode1 manufactured
before April
1. 1982.
Be s1.1~ thcrt people cmcl ol?jec.t.s u1-e dcwr ofthe g~[r~rge
cloor ~vrt (o-e /7t.oSI.Clrlllllirlg!
Your vehicle’s engine should be turned off while
programming the transmitter. Follow these steps to
program
up to three channels:
1. If you have not previously programmed a universal
channel, proceed to Step
2. Otherwise, hold down
the two outside buttons on the universal transmitter
~~ntil the red light begins to flash rapidly
(approximately 20 seconds). Then release the
buttons. This procedure initializes the memory and
erases any previous settings for all three channels.
2. Hold the end of the hand-held transmitter against the
bottom surface of the universal transmitter
so that
YOLI can still see the red light.
3. Decide which one of the three channels you want to
program. Using both hands, press the hand-held
transmitter button and the desired button on the
universal transmitter. Contin~le
to hold both buttons
through Step
4.
4. Hold down both buttons until you see the red light
on the ~~niversal transmitter flash rapidly. The rapid
flashing, which could take
LIP to 90 seconds,
indicates that the universal transmitter
has been
programmed. Release both buttons once the light
starts to flash rapidly.
2-47
ProCarManuals.com

If you have trouble programming the universal
transmitter, make sure that you have followed the
directions exactly as described and that the battery
in the
hand-held transmitter is not dead. If you still cannot
program
it, rotate the hand-held transmitter end over end
and try again. The universal transmitter may not work
with older garage door openers that do not meet current
Federal Consumer Safety Standards.
If you cannot
program the transmitter after repeated attempts, consult
your Oldsmobile retailer.
Be sure to keep the original hand-held transmitter
in case you need to erase and reprogram the
universal transmitter.
Operating the Transmitter
Press and hold the appropriate button on the universal
transmitter. The red light comes on while the signal is
being transmitted.
Note that the effective transmission range
of the
universal transmitter may differ from the hand-held
transmitter and from one channel to another.
Erasing Channels
To erase all three programmed channels, hold down the
two outside buttons
until the red light begins to flash.
Individual channels cannot be erased, but can be
reprogrammed using the procedure for programming the transmitter explained earlier.
Training a Garage Opener with a
“Rolling Code” Feature
If you programmed the universal transm-itter, but the
garage door
will not open, and if your garage door opener
was manufactured after
1995, your garage door may have
a security feature that changes the “code” of your garage
door opener every time
it is opened or closed.
To determine if your garage door opener has this
“rolling code” feature, press
the appropriate button on
the universal transmitter that was programmed. If the
red light flashes rapidly for one to two seconds, then
turns solid, your garage door opener has this feature.
2-48
ProCarManuals.com

PUSHBUTTONS: The five numbered pushbuttons let
you return to your favorite stations. You can set up to
15 stations (five AM, five FMl and five FM2). Just:
1. Turn the radio on.
2. Press AM-FM to select the band.
3. Tune in the desired station.
4. Press TONE to select the equalization that best suits
the type of station selected.
5. Press and hold one of the five numbered buttons.
The sound will mute. When
it returns, release the
button. Whenever you press that numbered button,
the station you set will return and the tone that you
selected will also be automatically selected for
that button.
6. Repeat the steps for each pushbutton.
P SCAN: Press SCAN for more than two seconds, and
P SCAN will appear on the display. The radio will go to
the first preset station stored
on your pushbuttons, stop
for
a few seconds, then go on to the next preset station.
Press SCAN again to stop scanning.
Setting the Tone
BASS:
Press this knob lightly so
knob to increase or decrease bass
control, the radio’s tone setting
w
it extends. Turn the
. When YOLI use this
ill switch to manual.
TREB: Press this knob lightly so it extends. Then pull
the knob all the way out. Turn the knob to increase or
decrease treble. When you use this control, the radio’s
tone setting will switch to manual.
If a station is weak or
noisy, you may want to decrease the treble.
Push these knobs back into their stored positions when
you’re not using them.
TONE: This feature allows you to choose preset bass
and treble equalization settings designed for jazz, vocal,
pop, rock and classical stations. JAZZ
will appear on the
display when you first press
TONE. Each time you press
it, another setting will appear on the display. Press it
again after CLASSIC appears and MANUAL will
appear. Manual tone control
will return to the BASS
and TREB knobs. Also, if you use the BASS and
TREB knobs, control
will return to them and MANUAL
will appear.
3-9
ProCarManuals.com

PUSHBUTTONS: The five numbered pushbuttons let
you return to your fworite stations.
You can set up to
15 stations (five AM, five FMI and five FM2). Just:
1.
2.
3.
4.
5.
6.
Turn the radio on.
Press AM-FM to select the band.
Tune
in the desired station.
Press
TONE to select the equalization that best suits
the type of station selected.
Press and hold one of the five numbered buttons.
The sound will mute. When
it returns, release the
button. Whenever you press that numbered button,
the station you set will return and the tone that you
selected will also be automatically selected for
that button.
Repeat the steps for each pushbutton.
P SCAN: Press SCAN for more than two seconds, and
P SCAN will appear
on the display. The radio will go to
the first preset station stored on your pushbuttons, stop
for a few seconds,
then go on to the next preset station.
Press SCAN again
to stop scanning.
Setting the Tone
BASS: Press this knob lightly so it extends. Turn the
knob to increase or decrease bass. When
you use this
control, the radio's tone setting
will switch to manual.
TREB: Press this knob lightly so it extends. Then pull
the knob all the way out. Turn the knob to increase or
decrease treble. When you use this control, the radio's
tone setting will switch to manual.
If a station is weak or
noisy, you may want
to decrease the treble.
Push these knobs back into their stored positions when
you're not using them.
TONE: This feature allows you to choose preset bass
and treble equalization settings designed for jazz, vocal,
pop, rock and classical stations.
JAZZ will appear on the
display when you first press TONE. Each time you press
it, another setting will appear on the display. Press it
again after CLASSIC appears and MANUAL will
appear. Tone control will return to the BASS and TREB
knobs.
Also, if you use the BASS and TREB knobs,
control
will return to them and MANUAL will appear.
ProCarManuals.com

Activating the Theft-Deterrent Feature
The instructions which follow explain how to enter your
secret code to activate the
THEFTLOCK system. It is
recommended that
you read through all nine steps
before starting the procedure.
NOTE:
If you allow more than 15 seconds to elapse
between any steps, the radio automatically reverts to
time and you must start the procedure over at Step
4.
1.
2.
3.
4.
5.
6.
Write down any three or four-digit number from
000 to 1999 and keep it in a safe place separate from
the vehicle.
Turn the ignition to
ACCESSORY or RUN.
Turn the radio off.
Press the 1 and 4 buttons together. Hold them down
until --- shows on the display. Next you will use the
secret code number which you have written down.
Press MN and
000 will appear on the display.
Press MN again
to make the last two digits agree
with your code.
7. Press HR to make the first one or two digits agree
with your code.
8. Press AM-FM after you have confirmed that the
code matches the secret code you have written down.
The display
will show REP to let you know that you
need
to repeat Steps 5 through 7 to confirm your
secret code.
9. Press AM-FM and this time the display will show
SEC to let you know that your radio is secure.
Unlocking the Theft-Deterrent Feature After a
Power Loss
Enter your secret code as follows; pause no more than
15 seconds between steps:
I. LOC appears when the ignition is on.
2. Press MN and 000 will appear on the display.
3. Press MN again to make the last two digits agree
with your code.
4. Press HR to make the first one or two digits agree
with your code.
3-18
ProCarManuals.com

5. Press AM-FM after YOLI have confirmed that the 5. Press MN again to make the last two digits agree
code matches the secret code you have written down.
with yo~lr code.
The display will show SEC, indicating the radio is
now operable and secure.
6. Press HR to make the first one or two digits agree
with your code.
If you enter the wrong code eight times, INOP will
appear on the display. You will have to wait an hour
with the ignition
on before you can try again. When YOLI
try again, you will only have three chances to enter the
correct code before INOP appears.
If you lose or forget your code, contact your retailer.
Disabling the Theft-Deterrent Feature
Enter your secret code as follows; pause no more than
15 seconds between steps:
I. Turn the ignition to ACCESSORY or RUN.
2. Turn the radio off.
3. Press the 1 and 4 buttons together. Hold them down
until SEC shows on the display.
4. Press MN and 000 will appear on the display.
7. Press AM-FM after you have confirmed that the
code matches the secret code
YOLI have written down.
The display
will show ---, indicating that the radio
is no longer secured.
If the code entered is incorrect, SEC will appear on the
display. The radio
will remain secured until the correct
code is entered.
When battery power is removed and later applied to
a
secured radio, the radio won’t turn on and LOC will
appear on the display.
To unlock a secured radio, see “Unlocking the
Theft-Deterrent Feature After a Power
Loss” earlier
in this section.
ProCarManuals.com
