2-43
COMP/TEMP: The display provides the outside
temperature and one of eight compass readings to
indicate the direction the vehicle is facing.
Before you turn on the ignition and move the vehicle,
the temperature indicated will be the last outside
temperature recorded with the ignition on. If the outside
temperature is 37
F (3
C) or lower, the display will
toggle between the word ICE and the current
temperature every eight seconds. This is a warning to
the driver that road conditions may be icy, and that
appropriate precautions should be taken.
The compass is self
-calibrating, so it does not need to be
manually set. However, if C (Calibration) is displayed,
the compass will need to be calibrated. You may also
place the compass in a noncalibrated mode by pressing
and holding the MODE and US/MET buttons
simultaneously while in the COMP/TEMP mode. After
about 10 seconds, the compass will display C and you
can release the buttons. Drive the vehicle in a complete
360
circle three times at a speed of less than
5 mph (8 km/h), and the compass will function
normally. Once the calibration is complete, the display
will return to a compass reading.

yellowblue
2-44
Variance is the difference between magnetic north and
geographic north. In some areas, the difference between
the two can be great enough to cause false compass
readings. If this happens, follow these instructions to set
the variance for your particular location:
1. Find your location on the zone map.
Note your zone number.
2. Press and hold both the MODE and the US/MET
buttons in the COMP/TEMP mode.
3. After five seconds, the compass will acknowledge
the variation mode by displaying the current zone
number. When it does, release both buttons.
4. Press US/MET until your zone number appears on
the display.
5. Press MODE to enter your zone number. Your
variance is now set and the display will return to the
COMP/TEMP mode.TRIP: Pressing the MODE button will step you through
the following TRIP functions:

AVG ECON: The average fuel economy since the
last reset is displayed.

INST ECON: Instantaneous fuel economy for the
last second of driving is displayed.

RANGE: The display indicates the estimated
distance that can be travelled with the remaining fuel
in the tank, based on the fuel economy for the last
few hours of driving.

FUEL USED: The fuel used since the last reset
is displayed.

AVG SPEED: The average speed since the last reset
is displayed.
To reset the trip computer, press the MODE and
US/MET buttons simultaneously for at least two
seconds. All functions will be displayed for half a
second once the system is reset. Reset can only be
performed in the AVG ECON, FUEL USED
and AVG SPEED modes. All three modes are
reset simultaneously.

yellowblue
2-45
Sunglasses Storage Compartment
To open the sunglasses storage compartment in the
overhead console, press the release button. Then pull the
compartment down.
Door Storage
You will find a storage compartment on each of the
doors. Cupholders are also located on the doors.
Front Storage Area
Lift the armrest cover of the console compartment to
reveal a coinholder and additional storage. Ribs have
been provided for convenient storage of cassette tapes
and compact discs.

yellowblue
2-46 Convenience Net
A convenience net in the rear of your vehicle helps keep
small items, like gloves and light clothing in place
during sharp turns or quick stops and starts.
The net is not designed to retain these items during
off
-road use. The net is not for larger, heavier items.
Attach the upper loops to the retainers on either side of
the liftgate opening (the label should be in the upper
passenger's side corner, visible from the rear of vehicle).
Attach the lower hooks to the rear cargo tie downs on
the floor.
Cargo Security Shade
You can use the cargo security shade to cover items in
the cargo area of your vehicle.
Grasp the handle and unroll the cover. Latch the posts
into the sockets on the inside of the vehicle to secure it.
CAUTION:
An improperly stored cargo cover could be
thrown about the vehicle during a collision or
sudden maneuver. You or others could be
injured. If you remove the cover, always store it
outside of the vehicle. When you put it back,
always be sure that it is securely reattached.

yellowblue
2-47

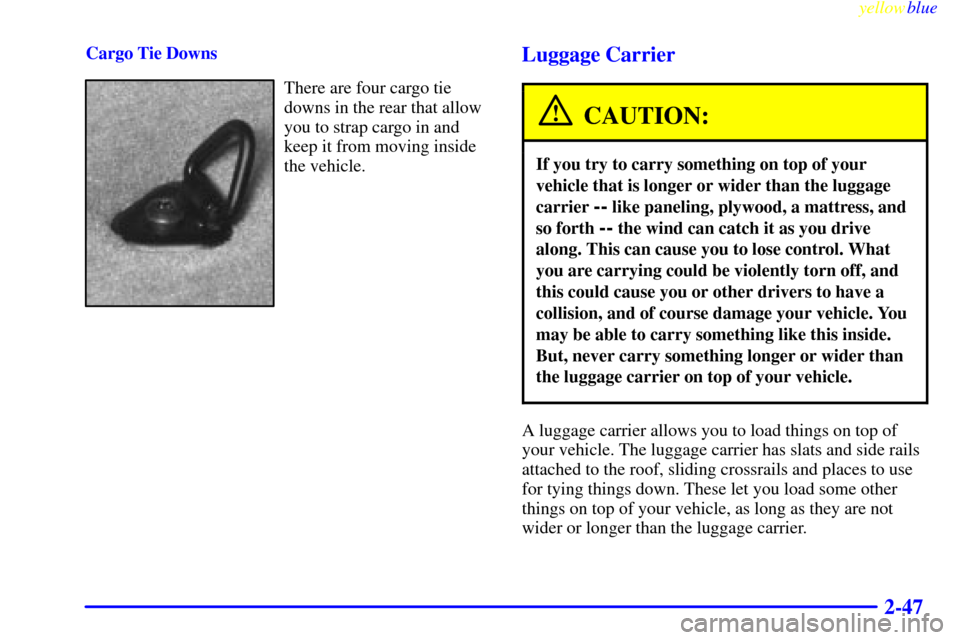

Cargo Tie Downs
There are four cargo tie
downs in the rear that allow
you to strap cargo in and
keep it from moving inside
the vehicle.
Luggage Carrier
CAUTION:
If you try to carry something on top of your
vehicle that is longer or wider than the luggage
carrier
-- like paneling, plywood, a mattress, and
so forth
-- the wind can catch it as you drive
along. This can cause you to lose control. What
you are carrying could be violently torn off, and
this could cause you or other drivers to have a
collision, and of course damage your vehicle. You
may be able to carry something like this inside.
But, never carry something longer or wider than
the luggage carrier on top of your vehicle.
A luggage carrier allows you to load things on top of
your vehicle. The luggage carrier has slats and side rails
attached to the roof, sliding crossrails and places to use
for tying things down. These let you load some other
things on top of your vehicle, as long as they are not
wider or longer than the luggage carrier.

yellowblue
2-48
To slide the crossrails to where you want them, push up
on the lever under each side of the crossrail. This will
release the crossrail and allow you to slide it. When the
crossrail is where you want it, push down on the lever to
lock it into place.
NOTICE:
Loading cargo that weighs more than
200 lbs. (91 kg) on the luggage carrier may
damage your vehicle.
When you carry cargo on the luggage carrier of a
proper size and weight, put it on the slats, as far
forward as you can. Then slide the crossrail up
against the rear of the load, to help keep it from
moving. You can then tie it down.
Don't exceed the maximum vehicle capacity when
loading your vehicle. For more information on vehicle
capacity and loading, see ªLoading Your Vehicleº in
the Index.
To prevent damage or loss of cargo as you're driving,
check now and then to make sure the luggage carrier is
locked and cargo is still securely fastened.
Ashtrays and Cigarette Lighter
Pull the front ashtray door down to open it.
NOTICE:
Don't put papers and other things that burn into
your ashtray. If you do, cigarettes or other
smoking materials could set them on fire
causing damage.
To remove the front ashtray, pull the bin upward.
To use the lighter, press it in all the way, and let go.
When it's ready, it will pop back by itself.
NOTICE:
Don't hold a cigarette lighter in with your hand
while it is heating. If you do, it won't be able to
back away from the heating element when it's
ready. That can make it overload, damaging the
lighter and the heating element.

yellowblue
2-49
Sun Visors
To block out glare, you can move down the top and
bottom visors (if your vehicle has one). You can also
move the bottom visor from side
-to-side. Your visors
may have an extension that can be pulled out for
additional glare protection and a strap for holding small
items, such as maps.
Visor Vanity Mirror
Pull the sun visor down and lift the cover to expose the
vanity mirror.
Illuminated Visor Vanity Mirror
Pull the sun visor down and lift the mirror cover to turn
on the lamps.

yellowblue
2-50
Accessory Power Outlets
With the accessory power outlets, you can plug in
auxiliary electrical equipment. The accessory power
outlets are located near the center of the vehicle on the
lower part of the instrument panel. Just remove the plug
from the outlet and follow the proper installation
instructions that are included with any electrical
equipment you install.
These circuits are protected by a fuse and have
maximum current levels.
NOTICE:
When using the accessory power outlets,
maximum electrical load must not exceed 20
amps. Always turn off any electrical equipment
when not in use. Leaving electrical equipment on
for extended periods will drain your battery.
Sunroof (Option)
Your vehicle may be equipped with a power sliding
sunroof. To open or close your sunroof, the ignition or
RAP needs to be on. See ªRetained Accessory Powerº
in the Index.
Press and release the rear side of the button in the mini
console to open the sunroof. You can press the forward
side of the button to close the sunroof. Once the sunroof
is closed, press the forward side of the button to open
the sunroof to the vent position.
The sunroof is also equipped with a sunshade which you
can pull forward to block sun rays.

yellowblue
2-51

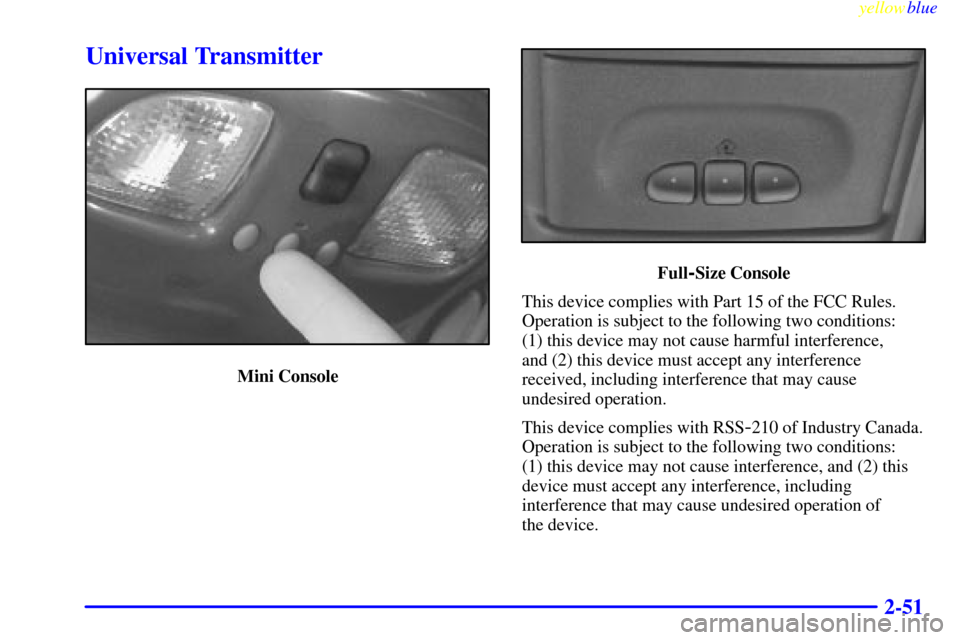

Universal Transmitter
Mini Console
Full-Size Console
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation of
the device.

yellowblue
2-52
Changes and modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
Programming the Transmitter
Do not use the universal transmitter with any garage
door opener that does not have the ªstop and reverseº
feature. This includes any garage door opener model
manufactured before April 1, 1982.
Be sure that people and objects are clear of the garage
door you are programming.
Your vehicle's engine should be turned off while
programming the transmitter. Follow these steps to
program up to three channels:
1. If you have previously programmed a transmitter
channel, proceed to Step 2. Otherwise, hold down
the two outside buttons on the universal transmitter
until the indicator light begins to flash rapidly (after
20 seconds). Then release the buttons. This
procedure initializes the memory and erases any
previous settings for all three channels.
2. Decide which one of the three channels you want to
program. Hold the end of the hand
-held transmitter
about 2 to 5 inches (5 to 13 cm) away from the
surface of the universal transmitter so that you can
still see the indicator light.3. Using both hands, press the hand
-held transmitter
button and the desired button on the universal
transmitter. Continue to press both buttons through
Step 4.
4. Hold down both buttons until you see the red light
on the universal transmitter flash rapidly. The rapid
flashing indicates that the universal transmitter has
been programmed. Release both buttons once the
light starts to flash rapidly.
If you have trouble programming the universal
transmitter, make sure that you have followed the
directions exactly as described and that the battery in the
hand
-held transmitter is not dead. If you still cannot
program it, rotate the hand
-held transmitter end over end
and try again. The universal transmitter may not work
with older garage door openers that do not meet current
Federal Consumer Safety Standards. If you cannot
program the transmitter after repeated attempts, refer to
ªTraining a Garage Door Opener with Rolling Codesº
later in this section or contact the manufacturer of the
unit at 1
-800-355-3515.
Be sure to keep the original hand
-held transmitter
in case you need to erase and reprogram the
universal transmitter.
