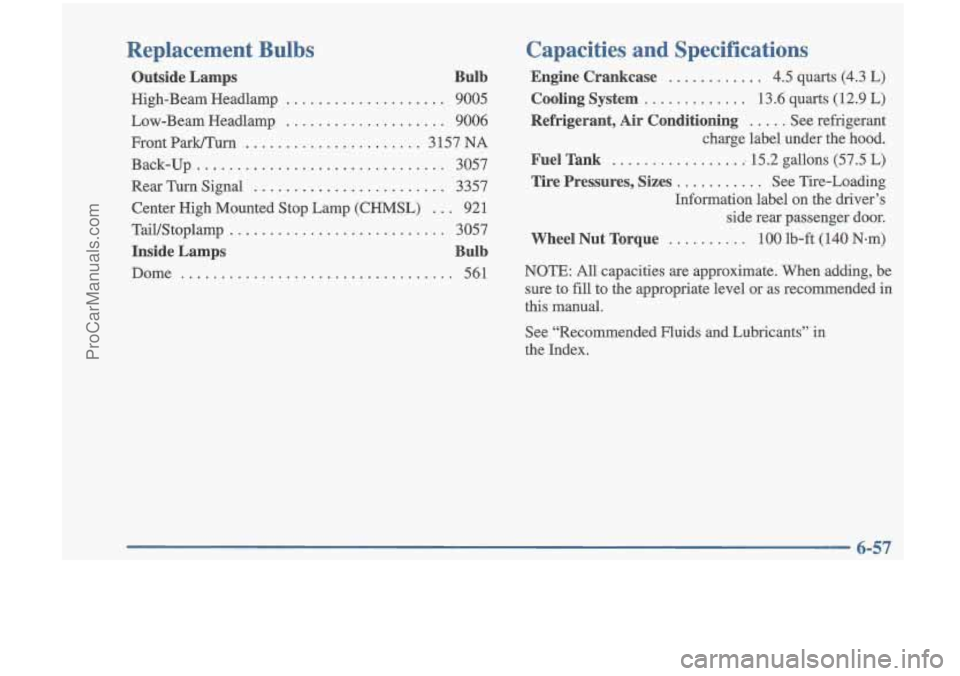

Replacement Bulbs
High-Beam Headlamp .................... 9005
Outside Lamps Bulb
Low-Beam Headlamp .................... 9006
Front
Park/Turn ...................... 3 157 NA
Back-up
............................... 3057
Rear Turn Signal
........................ 3357
Center High Mounted Stop Lamp
(CHMSL) ... 921
TaiUStoplarnp
........................... 3057
Inside Lamps Bulb
Dome .................................. 561
Capacities and Specificatio,ns
Cooling System ............. 13.6 quarts (12.9 L)
Engine Crankcase ............ 4.5 quarts (4.3 L)
Refrigerant, Air Conditioning ..... See refrigerant
charge label under the hood.
Fuel Tank ................ ._ 15.2 gallons (57.5 L)
Tire Pressures, Sizes ........... See Tire-Loading
Information label on the driver’s
side rear passenger door.
Wheel Nut Torque .......... 100 lb-ft (140 N-m)
NOTE: All capacities are approximate. When adding, be
sure to fill to the appropriate level or as recommended
in
this manual.
See “Recommended Fluids and Lubricants”
in
the Index.
6-57
ProCarManuals.com

’ 3100 Engine Specifications
VIN Engine Code ........................... M
Type .................................... V6
Displacement
........................ 3.1 Liters
Firing Order
...................... 1-2-3-4-5-6
Horsepower
............................. 155
Thermostat Temperature ........... 195°F (91°C)
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If you’re not sure, ask your Oldsmobile retailer.
Normal Maintenance
Replacement Parts
Air Cleaner Element ......... AC Type A- 1279C
Engine Oil Filter ................ AC Type PF-47
Spark Plugs ..... AC Type 041-940 (Platinum Plug)
Gap:
0.060 inch (1.52 mm)
Windshield Wiper Blades
Driver’s Side ................. 22 inches (56 cm)
Passenger’s Side
............... 19 inches (48 cm)
Dimensions
Length ......... I ......... 192 inches (487.8 cm)
Width
................... 69.4 inches (176.3 cm)
Height
................... 56.4 inches (143.2 cm)
Wheelbase
................ 107 inches (27 1.9 crn)
Front Tread
................ .59 inches (149.9 cm)
Rear Tread
............... 59.3 inches (150s cm)
ProCarManuals.com

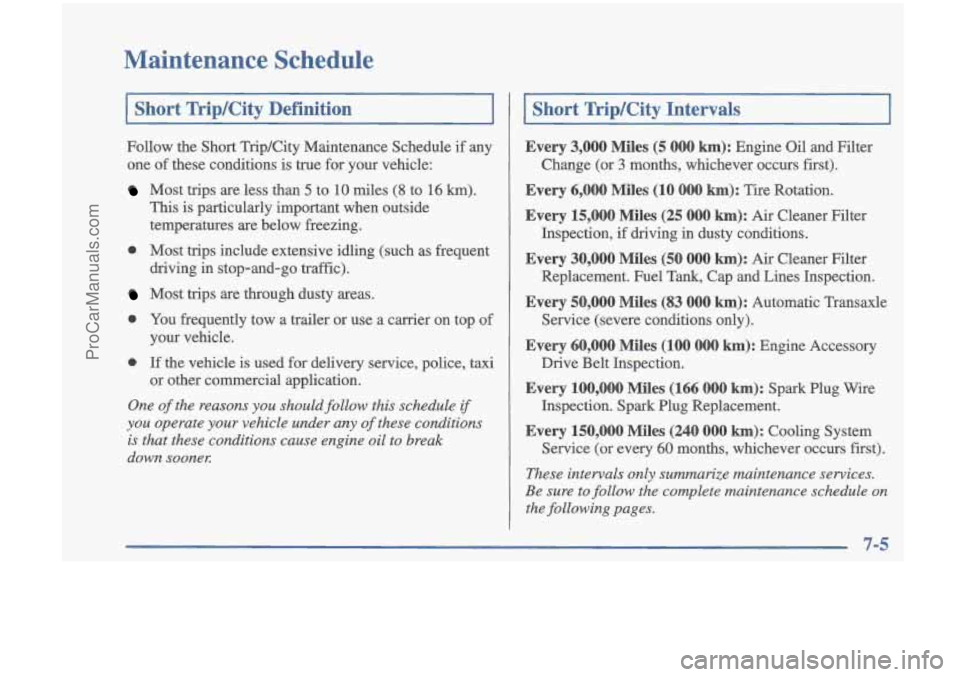

Maintenance Schedule
Short Trip/City Definition
Follow the Short Trip/City Maintenance Schedule if any
one of these conditions is true for your vehicle:
Most trips are less than 5 to 10 miles (8 to 16 km).
This is particularly important when outside
temperatures are below freezing.
0 Most trips include extensive idling (such as frequent
driving
in stop-and-go traffic).
Most trips are through dusty areas.
0 You frequently tow a trailer or use a carrier on top of
0 If the vehicle is used for delivery service, police, taxi
your vehicle.
or other commercial application.
One of the reasons you should follow this schedule if
you operate your vehicle under any of these conditions
is that these conditions cause engine oil
to break
down sooner
Short Trip/City Intervals
Every 3,000 Miles (5 000 km): Engine Oil and Filter
Change (or
3 months, whichever occurs first).
Every 6,000 Miles (10 000 km): Tire Rotation.
Every 15,000 Miles (25 000 km): Air Cleaner Filter
Inspection,
if driving in dusty conditions.
Every 30,000 Miles (50 000 km): Air Cleaner Filter
Replacement. Fuel Tank, Cap and Lines Inspection.
Every 50,000 Miles (83 000 km): Automatic Transaxle
Service (severe conditions only).
Every 60,000 Miles (100 000 km): Engine Accessory
Drive Belt Inspection.
Every 100,000 Miles (166 000 km): Spark Plug Wire
Inspection. Spark Plug Replacement.
Every 150,000 Miles (240 000 km): Cooling System
Service (or every
60 months, whichever occurs first).
These intervals only summarize maintenance services.
Be sure to follow the complete maintenance schedule
on
the following pages.
ProCarManuals.com

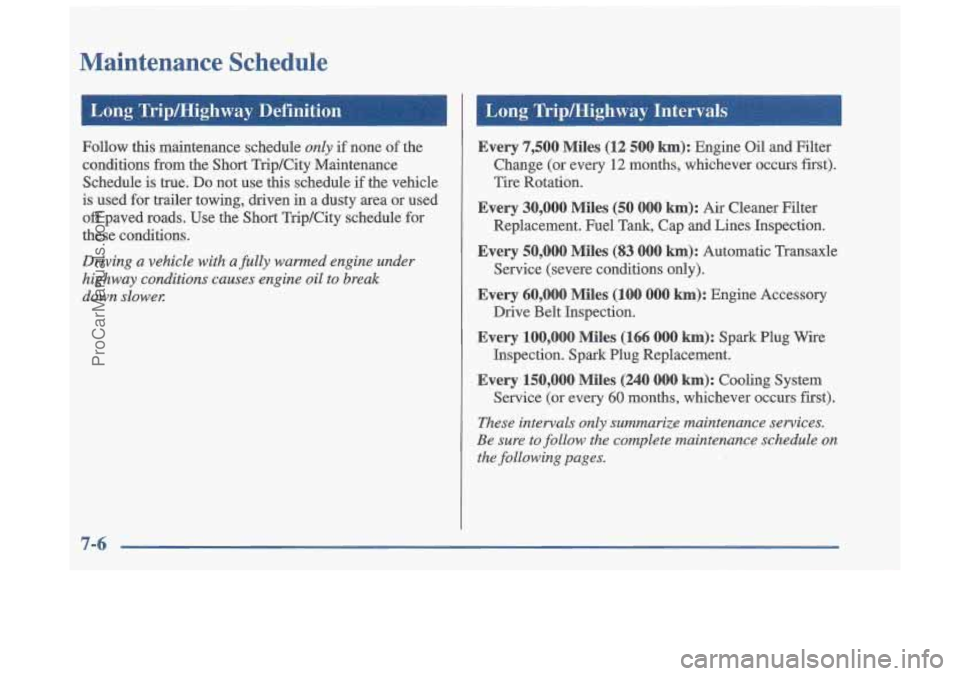

Maintenance Schedule
Follow this maintenance schedule only if none of the
conditions from the Short TripKity Maintenance
Schedule
is true. Do not use this schedule if the vehicle
is used for trailer towing, driven in a dusty area or used
off paved roads. Use the Short TripKity schedule for
these conditions.
Driving a vehicle with a filly warmed engine under
highway conditions causes engine oil to break
down slowel:
Every 7,500 Miles (12 500 km): Engine Oil and Filter
Change (or every
12 months, whichever occurs fist).
Tire Rotation.
Every 30,000 Miles (50 000 km): Air Cleaner Filter
Replacement. Fuel Tank, Cap and Lines Inspection.
Every 50,000 Miles (83 000 km): Automatic Transaxle
Service (severe conditions only).
Every 60,000 Miles (100 000 km): Engine Accessory
Drive Belt Inspection.
Every 100,000 Miles (166 000 km): Spark Plug Wire
Inspection. Spark Plug Replacement.
Every 150,000 Miles (240 000 km): Cooling System
Service (or every
60 months, whichever occurs first).
These intervals only summarize maintenance services.
Be sure
to follow the complete maintenance schedule on
the following pages.
ProCarManuals.com

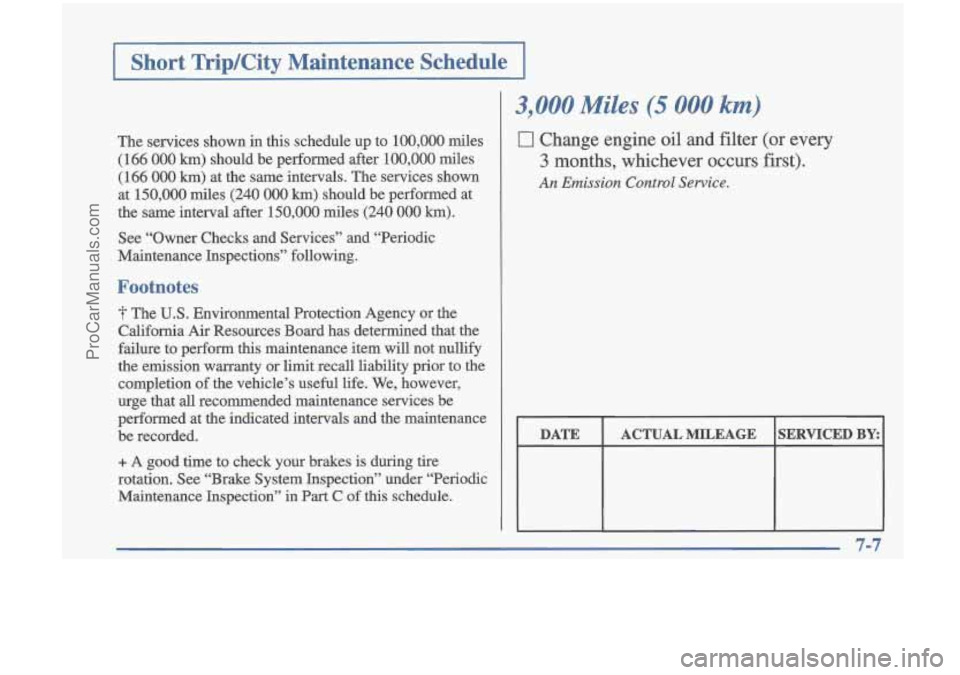

Short TripKity Maintenance Schedule
3,000 Miles (5 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Sewice.
DATE
ACTUAL MILEAGE SERVICED BY:
7-7
ProCarManuals.com

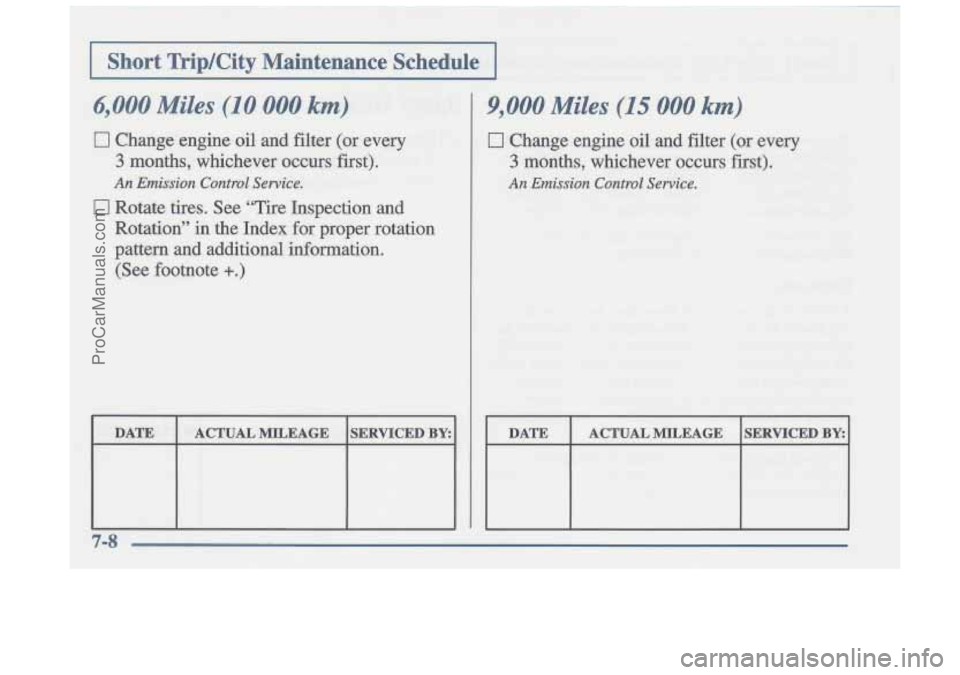

9,000 Miles (15 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
DATE ACTUAL MILEAGE SERVICED BY:
ProCarManuals.com

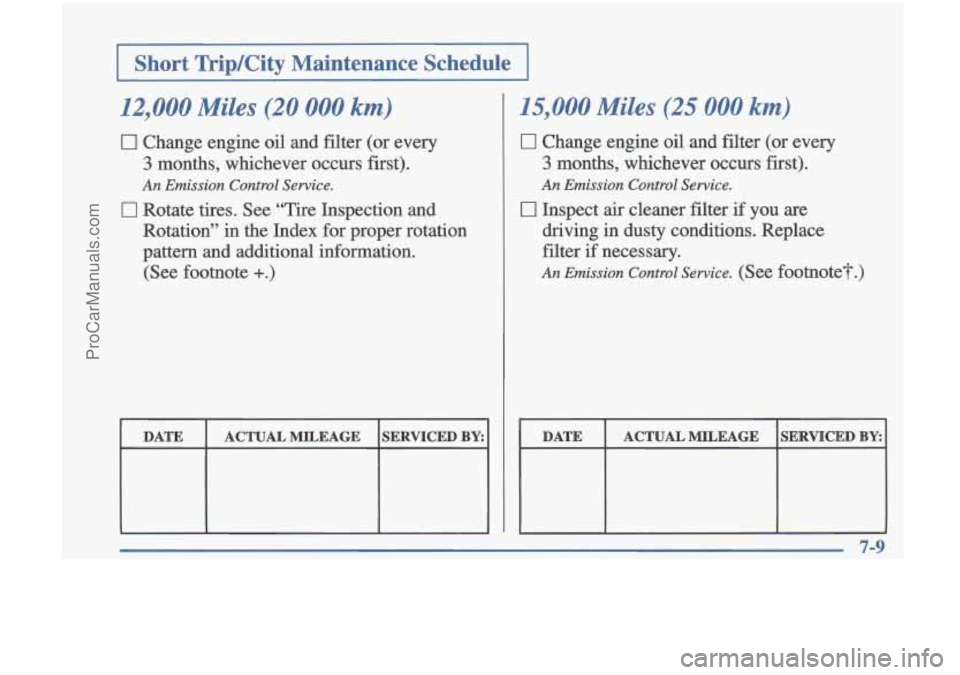

1 Short TripKity Maintenance Schedule I
12,000 Miles (20 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional inforrnation. (See footnote
+.)
An Emission Control Service.
I I I 1
DATE
SERVICED BY: ACTUAL MILEAGE
15,000 Miles (25 000 km)
17 Change engine oil and filter (or every
3 months, whichever occurs first).
0 Inspect air cleaner filter if you are
An Emission Control Service.
driving in dusty conditions. Replace
filter if necessary.
An Emission Control Service. (See footnote’f.)
I DATE I ACTUAL MILEAGE SERVICED BYJ
7-9
ProCarManuals.com

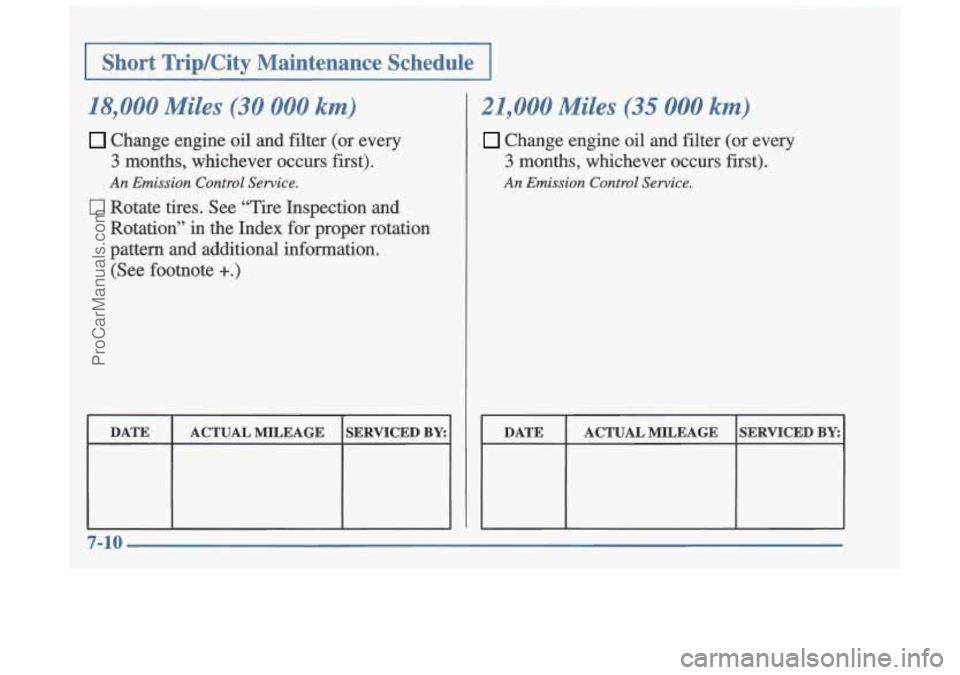

1 I Short TripKity Maintenance Schedule I
I I I
18,000 Miles (30 000 km)
Change engine oil and filter (or every
3 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information. (See footnote
+.)
An Emission Control Service.
DATE ACTUAL MILEAGE SERVICED BY:
21,000 Miles (35 000 km)
Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
DATE ACTUAL MILEAGE SERVICED BY:
ProCarManuals.com

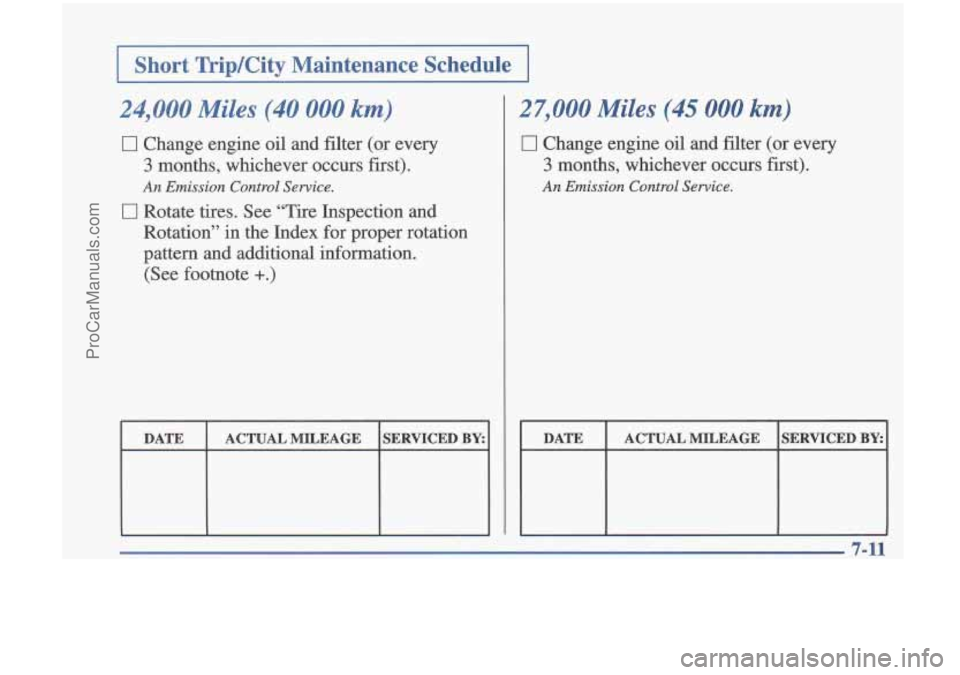

I Short Trip/City Maintenance Schedule I
24,000 Miles (40 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
DATE
SERVICED BY: ACTUAL MILEAGE
27,000 Miles (45 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
DATE
SERVICED BY: ACTUAL MILEAGE
n 44
ProCarManuals.com

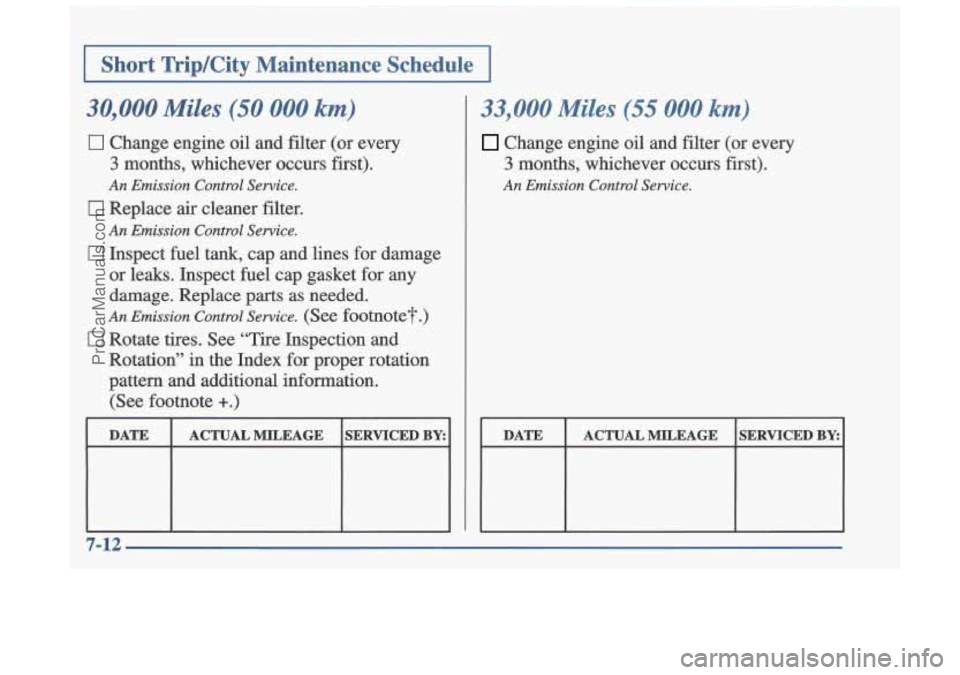

I Short Trip/City Maintenance Schedule I
30,000 Miles (50 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
17 Replace air cleaner filter.
An Emission Control Service.
0 Inspect fuel tank, cap and lines for damage
or leaks. Inspect
fuel cap gasket for any
darnage. Replace
parts as needed.
An Emission Contro-l Sewice. (See footnote?.)
0 Rotate tires-. See “Tire Inspection and
Rotation’’
in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
ACTUAL MILEAGE smvrcm BY:
I I
33,000 Miles (55 000 km)
Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Sewice.
DATE ACTUAL MILEAGE SERVICED BY:
I I
