Page 57 of 276

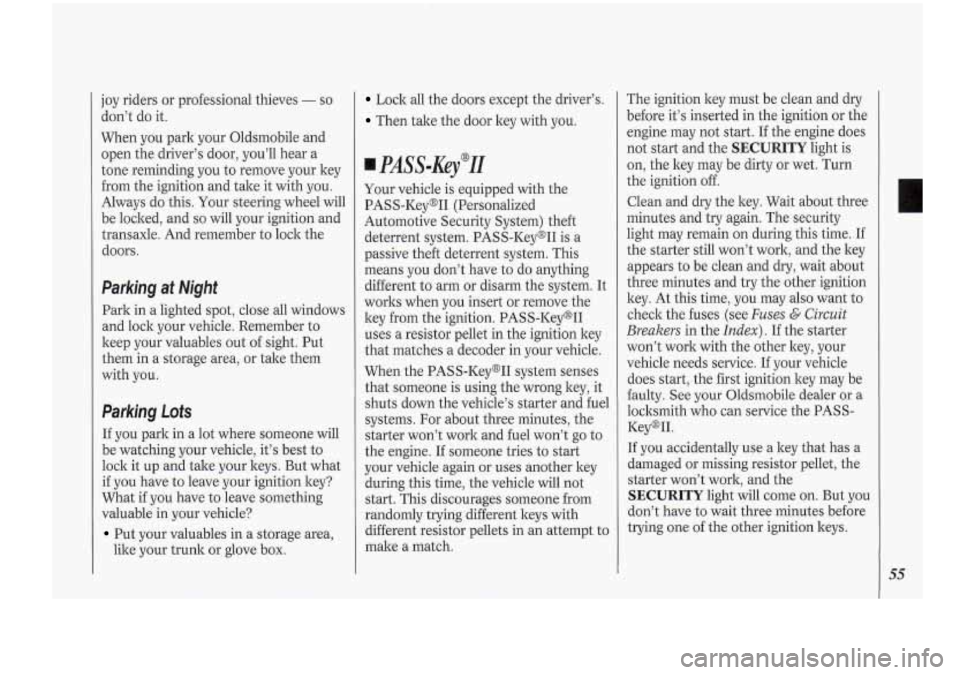

joy riders or professional thieves - so
don’t do it.
When you park your Oldsmobile and
open the driver’s door, you’ll hear a
tone reminding you to remove your key
from the ignition and take it with you.
Always do this. Your steering wheel will
be locked, and
so will your ignition and
transaxle. And remember to lock the
doors.
Parking at Night
Park in a lighted spot, close all windows
and lock your vehicle. Remember to
keep your valuables out of sight. Put
them in
a storage area, or take them
with you.
Parking Lots
If you park in a lot where someone will
be watching your vehicle, it’s best to
lock it up and take your keys. But what
if you have to leave your ignition key?
What if you have to leave something
valuable in your vehicle?
Put your valuables in a storage area,
like your trunk or glove box.
Lock all the doors except the driver’s.
Then take the door key with you.
PASS-Key@ll
Your vehicle is equipped with the
PASS-ICey@II (Personalized
Automotive Security System) theft
deterrent system. PASS-ICey@II is a
passive theft deterrent system. This
means you don’t have to do anything
different to arm or disarm the system. It
worlts when you insert or remove the
ltey from the ignition. PASS-I
that matches a decoder in your vehicle.
When the PASS-Keys11 system senses
that someone is using the wrong ltey, it
shuts down the vehicle’s starter and fuel
systems. For about three minutes, the
starter won’t work and fuel won’t go to
the engine. If someone tries to start
your vehicle again or uses another key
during this time, the vehicle will not
start. This discourages someone
from
randomly trying different keys with
different resistor pellets in an attempt to
make
a match. The
ignition key must be clean and dry
before it’s inserted in the ignition
or the
engine may not start. If the engine does
not start and the
SECURITY light is
on, the key may be dirty or wet. Turn
the ignition
off.
Clean and dry the ltey. Wait about three
minutes and try again. The security
light may remain on during this time. If
the starter still won’t work, and the ltey
appears to be clean and dry, wait about
three minutes and try the other ignition
ltey. At this time, you may also want to
check the fuses (see
Fuses G Circuit
Breakers
in the Index). If the starter
won’t work with the other ltey, your
vehicle needs service. If your vehicle
does start, the first ignition key may be
faulty. See your Oldsmobile dealer
or a
locksmith who can service the PASS-
I
damaged or missing resistor pellet, the
starter won’t work, and the
SECURITY light will come on. But you
don’t have to wait three minutes before
trying one
of the other ignition keys.
55
Page 91 of 276
3. Horn

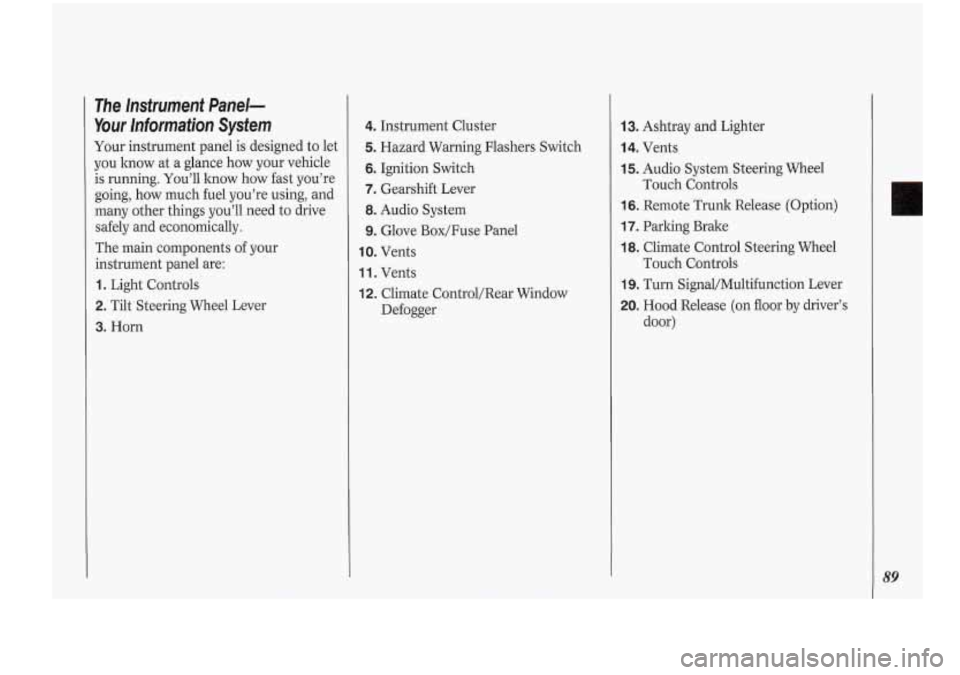

The Instrument Panel-
Your Information System
Your instrument panel is designed to let
you lmow at a glance how your vehicle
is running. You’ll how how fast you’re
going,
how much fuel you’re using, and
.many other things you’ll need to drive
safely and economically.
The main components
of your
instrument panel are:
1. Light Controls
2. Tilt Steering Wheel Lever
4. Instrument Cluster
5. Hazard Warning Flashers Switch
6. Ignition Switch
7. Gearshift Lever
8. Audio System
9. Glove Box/Fuse Panel
IO. Vents
1 1. Vents
12. Climate Control/Rear Window
Defogger
13. Ashtray and Lighter
14. Vents
15. Audio System Steering Wheel
16. Remote Trunk Release (Option)
17. Parking Brake
18. Climate Control Steering Wheel
19. Turn Signal/Multifunction Lever
20. Hood Release (on floor by driver’s
Touch Controls
Touch Controls
door)
Page 103 of 276

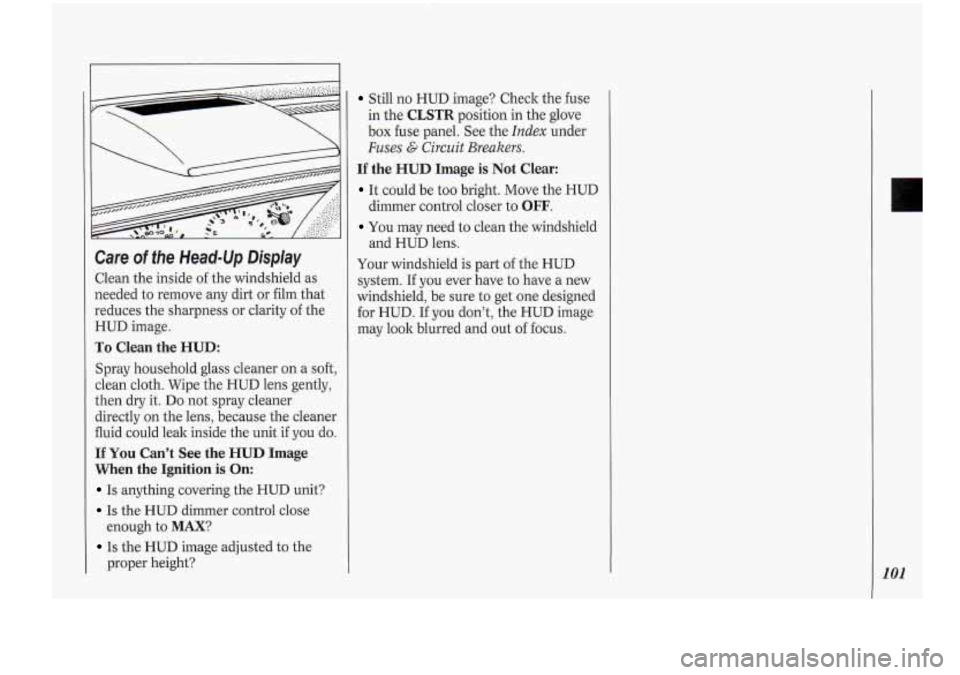

Care of the Head-Up Display
Clean the inside of the windshield as
needed to remove any dirt or film that
reduces the sharpness or clarity of the
HUD image.
To Clean the HUD:
Spray household glass cleaner on a soft,
clean cloth. Wipe the HUD lens gently,
then
dry it. Do not spray cleaner
directly on the lens, because the cleaner
fluid could leak inside the unit
if you do.
If You Can’t See the HUD Image
When the Ignition
is On:
Is anything covering the HUD unit?
Is the HUD dimmer control close
Is the HUD image adjusted to the
enough
to
MAX?
proper height?
Still no HUD image? Check the fuse
in the
CLSTR position in the glove
box fuse panel. See the Index under
Fuses G Circuit Breakers.
If the HUD Image is Not Clear:
It could be too bright. Move the HUD
dimmer control closer
to OFF.
You may need to clean the windshield
and HUD lens.
Your windshield is part of the HUD
system. If you ever have to have
a new
windshield, be sure to get one designed
for HUD. If you don’t, the HUD image
may look blurred and out of focus.
Page 222 of 276

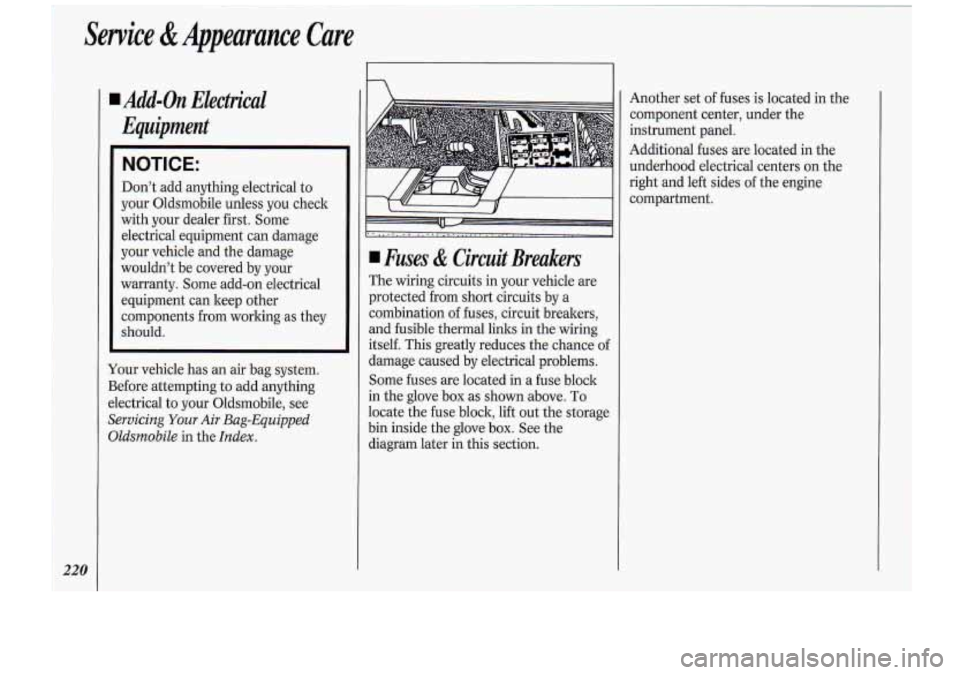

Service & Appearance Care
Add-on Electrical
Equijment
NOTICE:
Don’t add anything electrical to
your Oldsmobile unless you check
with your dealer first. Some
electrical equipment can damage
your vehicle and the damage
wouldn’t be covered by your
warranty. Some add-on electrical
equipment can keep other
components from working as they
should.
Your vehicle has an air bag system.
Before attempting to add anything
electrical to your Oldsmobile, see
Servicing Your Air Bag-Equipped
Oldsrnobile in the Index.
h
.. ...- . . . ... .. ....... . . _. . , 1
1 Fuses & Circuit Breakers
The wiring circuits in your vehicle are
protected from short circuits by a
combination of fuses, circuit breakers,
and fusible thermal links in the wiring
itself. This greatly reduces the chance of
damage caused by electrical problems.
Some fuses are located
in a fuse block
in the glove box as shown.above. To
locate the fuse block, lift out the storage
bin inside the glove box. See the
diagram later in this section. Another
set of fuses is located in the
component center, under the
instrument panel.
Additional fuses are located in the
underhood electrical centers
on the
right and left sides of the engine
compartment.
Page 223 of 276

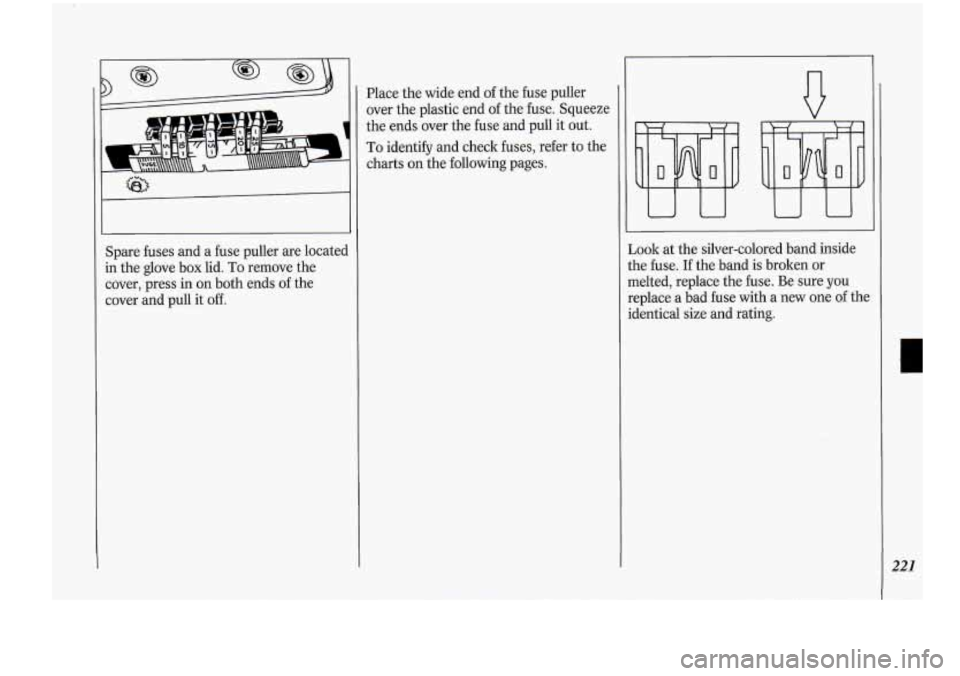

Spare fuses and a fuse puller are located
in the glove box lid.
To remove the
cover, press in on both ends of the
cover and pull it
off.
Place the wide end of the fuse puller
over the plastic end of the fuse. Squeeze
the ends over the fuse and pull it out.
To identify and check fuses, refer to the
charts on the following pages.
U
,ook at the silver-colored band inside
.he fuse.
If the band is broken or
nelted, replace the fuse. Be sure you
*eplace
a bad fuse with a new one of the
dentical size and rating.
221
Page 224 of 276
Service & Appearance Care

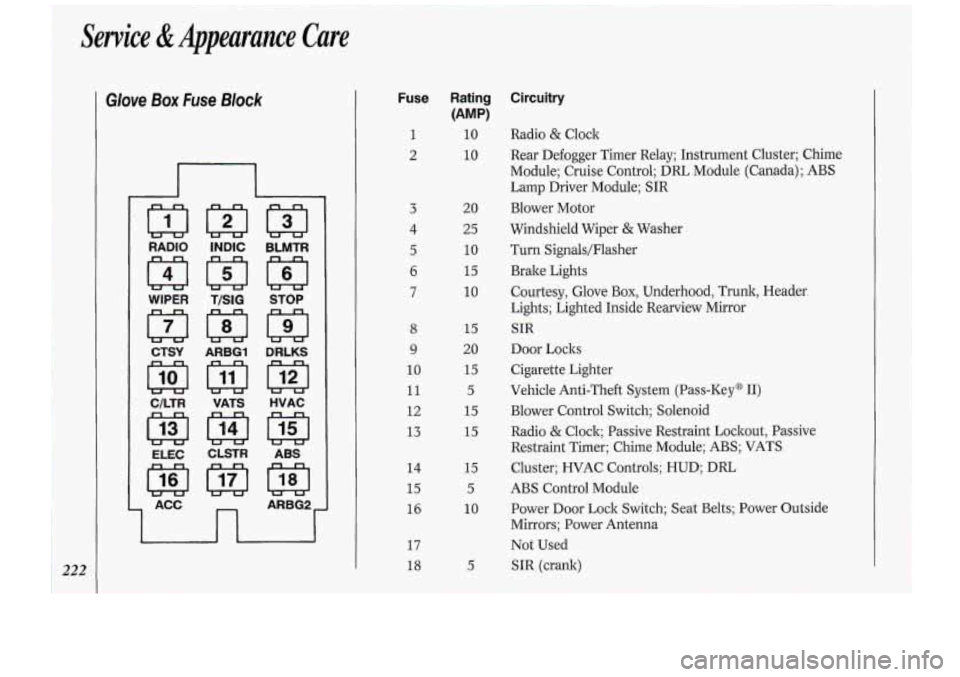

Glove Box Fuse Block
n I I
1111211311
RADIO INDlC BLMTR I
1411511611
WIPER T/SIG STOP I
CTSY ARBGI DRLKS I
C/LTR VATS HVAC I
'uu' w bij I
ELEC CLSTR ABS I
ARBGP
1
2
8
9
10
11
12
13
14
15
16
17
18
Fuse Rating Circuitry
(AMP)
10 Radio & Clock
10 Rear Defogger Timer Relay; Instrument Cluster; Chime
Module; Cruise Control; DIU Module (Canada); ABS
Lamp Driver Module; SIR
20 Blower Motor
25 Windshield Wiper & Washer
10 Turn Signals/Flasher
15 Brake Lights
10 Courtesy, Glove Box, Underhood, Trunk, Header
15 SIR
20 Door Locks
15 Cigarette Lighter
Lights; Lighted
Inside Rearview Mirror
5 Vehicle Anti-Theft System (Pass-I
15 Radio
& Clock; Passive Restraint Lockout, Passive
15 Cluster; HVAC Controls; HUD; DRL
5 ABS Control Module
Restraint
Timer; Chime Module; ABS; VATS
10 Power Door Lock Switch; Seat Belts; Power Outside
Mirrors; Power Antenna
Not Used
SIR (crank)
5
