oil filter OLDSMOBILE SILHOUETTE 1995 Owners Manual

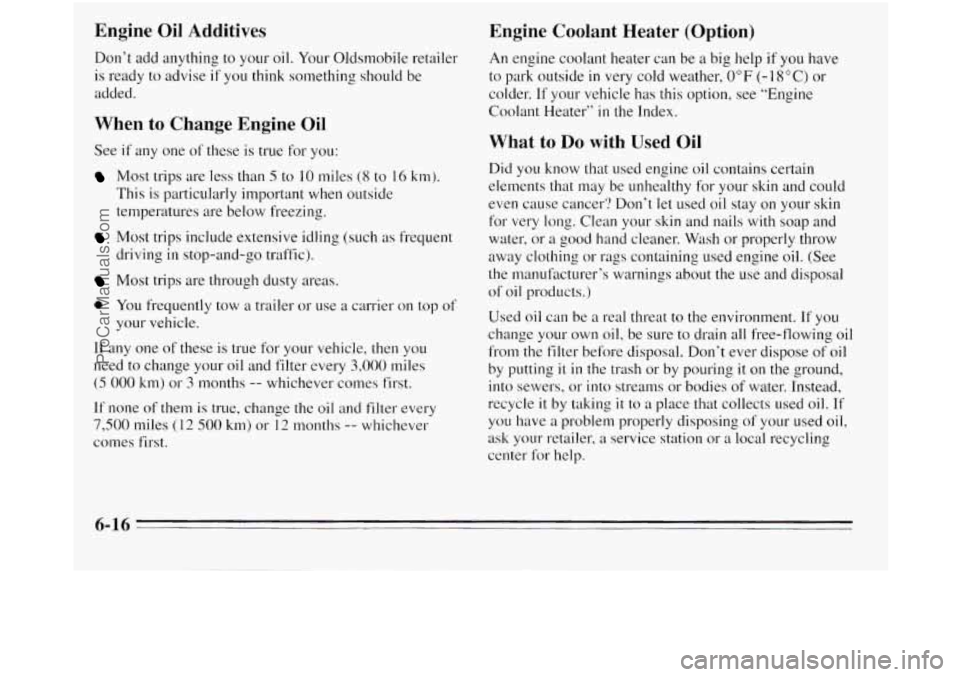

Engine Oil Additives
Don’t add anything to your oil. Your Oldsmobile retailer
is ready
to advise if you think something should be
added.
When to Change Engine Oil
See if any one of these is true for you:
Most trips are less than 5 to 10 miles (8 to 16 krn).
This
is particularly important when outside
temperatures are below freezing.
Most trips include extensive idling (such as frequent
driving
in stop-and-go traffic).
Most trips are through dusty areas.
0 You frequently tow a trailer or use a carrier 011 top of
your vehicle.
If any one
of these is true for your vehicle, then you
need to change your oil and filter every
3,000 miles
(5 000 km) or 3 months -- whichever comes first.
If none
of them is true, change the oil and filter every
7,500 miles (12 500 km) or I2 months -- whichever
comes first.
Engine Coolant Heater (Option)
An engine coolant heater can be a big help if you have
to park outside
in very cold weather, 0°F (- 18OC) or
colder.
If your vehicle has this option, see “Engine
Coolant Heater”
in the Index.
What to Do with Used Oil
Did you know that used engine oil contains certain
elements that may
be unhealthy for your skin and could
even cause cancer? Don’t let used oil stay on your skin
for very long. Clean your skin and nails with soap and
water, or
a good hand cleaner. Wash or properly throw
away clothing or rags containing used engine oil. (See
the manufacturer’s warnings about the use and disposal
of oil products.)
Used oil can be
a real threat to the environment. If you
change your own oil, be sure
to drain all free-flowing oil
from the filter before disposal. Don’t ever dispose of oil
by putting it
in the trash or by pouring it on the ground,
into sewers, or into streams or bodies of water. Instead,
recycle
it by taking it to a place that collects used oil. If
you have a problem properly disposing of your used oil,
ask your retailer, a service station or a local recycling
center for help.
6-16
ProCarManuals.com

Capacities and Specifications
Engine Crankcase (All Models) ...........................
Oil change with filter change. Use your dipstick to measure.
Automatic Transaxle
When draining or replacing torque convertec more fluid may be needed.
3-Speed
Pan Removal and Replacement ..............................
After Complete Overhaul ...................................
Pan Removal and Replacement ..............................
4-Speed
. . 4-1/2 to 5 marts 3.75 L
4 quarts
7 quarts
6 quarts
8 quarts
12 11’2 quarts 3.80
L
6.60 L
5.70 L
7.60 L
12.00 L
After Complete Overhaul ...................................
Cooling System
3.1L
V6 Engine
3800
V6 Engine
With Air Conditioning .....................................
With Air Conditioning ..................................... 11 1/2 quarts 10.75 L
With Rear Climate Control .................................. 13 quarts 12.25 L
NOTE: All capacities are approximate. When adding, be sure to fill to the appropriate level, as recommended in this manual.
FrontA/Conly
............................................. 2 1/4 pounds 1.02 kg
Front and Rear A/C .......................................... 3 pounds 1.36 kg
Not all air conditioning refrigerants are the same. If the air conditioning s-ystem in your vehicle needs refrigerant, be sure the
proper
refrigerant is used. If you’re not sure, ask your Oldsmobile retailer: For additional information, see your “Warranty and
Owner Assistance Information
” booklet.
Refrigerant (R134a), Air Conditioning
6-58
ProCarManuals.com

Engine Specifications
VIN Engine Code . . . . . . , . . . . . . . . . . . . . . . . . . . . . . . . . , . .
Type .............................................
Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compression Ratio . . . . . . . . . . . . . . . . - . . , . . . . . . . . . . . . . .
Firingorder .......................................
Thermostat Temperature Specification . . . . . . . , . . . . . . . . . .
3.1L V6 Engine
D
V6
3.1 Liters
8.5:
1
1-2-3-4-5-6
195
OF (91OC)
Normal Maintenance Replacement Parts
Air Cleaner Element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . , . . . AC Type A-773C
Engine Oil Filter.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AC Type PF-47
PCVValve
........................................ ACTypeCV-789C
Spark Plugs
, . . . . . . . . . , . . . . . . . . . . . . . . . . . . . . . . . . . . . . AC Type oR43TS
Remote Lock Control Battery (1)
. . . . . , . . . . . . . . . . . . . . . . CR2032
Gap: 0.045 inch
(1.14
mm)
3800 V6 Engine
1
V6
3.8 Liters
9.0:
1
1-6-5-4-3-2
195°F (91 "C)
AC Type A-974C AC Type PF-47
AC Type CV-892C AC Type 41-601
Gap: 0.060 inch (1.52 mm)
CR2032
6-60
ProCarManuals.com

Maintenance Schedule
I Schedule I Definition I
Follow Maintenance Schedule I if any one of these is
true for your vehicle:
0 Most trips are less than 5 to 10 miles (8 to 16 km).
This is particularly important when outside
temperatures are below freezing.
0 Most trips include extensive idling (such as frequent
driving in stop-and-go traffic).
0 Most trips are through dusty areas.
0 You frequently tow a trailer or use a carrier on top 0.f
your vehicle.
Schedule
I should also be followed if the vehicle is used
for delivery service, police, taxi, or other commercial
application.
Schedule I Intervals
Every 3,000 Miles (5 000 km) or 3 Months
Engine Oil and Filter Change
Every 6,000 Miles (10 000 km) or 6 months
Chassis Lubrication
At 6,000 Miles (10 000 km) - Then Every
12,000 Miles (25 000 km)
Tire Rotation
Every 15,000 Miles (25 000 km)
Air Cleaner Filter Inspection, if driving in dusty conditions
Every 30,000 Miles (50 000 km)
Air Cleaner Filter Replacement
Spark Plug Replacement
Cooling System Service (or every
24 months)
Automatic Transaxle Service (severe conditions)
Engine Accessory Drive Belt Inspection
Spark
Plug Wire Inspection
Exhaust
Gas Recirculation (EGR) System Inspection
(or every
60 months) (3.1L Code D engine only)
Engine Timing and Distributor Check (or every
60 months) (3.1 L Code D engine only)
Fuel Tank, Cap and Lines Inspection
(or every 60 months)
Every 50,000 Miles (83 000 km)
Every
60,000 Miles (100 000 km)
7-4
ProCarManuals.com

Maintenance Schedule
I Schedule I1 Definition
Follow Schedule I1 only if none of the conditions from
Schedule
I are true.
Every 7,500 Miles (12 500 km)
Engine Oil and Filter Change (or every 12 months)
Chassis Lubrication (or every
12 months)
At 7,500 Miles (12 500 km) - Then Every
15,000 Miles (25 000 km)
Every 30,000 Miles (50 000 km)
Tire Rotation
Cooling System Service (or every
24 months)
Spark Plug Replacement
Air Cleaner Filter Replacement
Air Cleaner Hoses, Ducts
& Valves Inspection
(3.1L Code D Engine Only)
Every 50,000 Miles (83 000 km)
Every 60,000 Miles (100 000 km)
Automatic Transaxle Service (severe conditions)
Engine Accessory Drive Belt Inspection
Spark Plug Wire Inspection
Exhaust Gas Recirculation (EGR) System Inspection
(or every
60 months) (3.1L Code D engine only)
Fuel Tank, Cap and Lines Inspection (or every
60 months)
Engine Timing and Distributor Check (or every
60 months) (3.1L Code D engine only)
7-5
ProCarManuals.com

I Maintenance Schedule I I
3,000 Miles (5 000 km)
The services shown in ms. schedule up to 100,000 miles
(166 000 km) should be performed after 100,000 miles
(166 000 km) at the same intervals.
Footnotes
The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to the
completion of the vehicle's useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the maintenance
be recorded.
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
DATE ACTUAL MILEAGE SERVICED BY: I
7-6
ProCarManuals.com

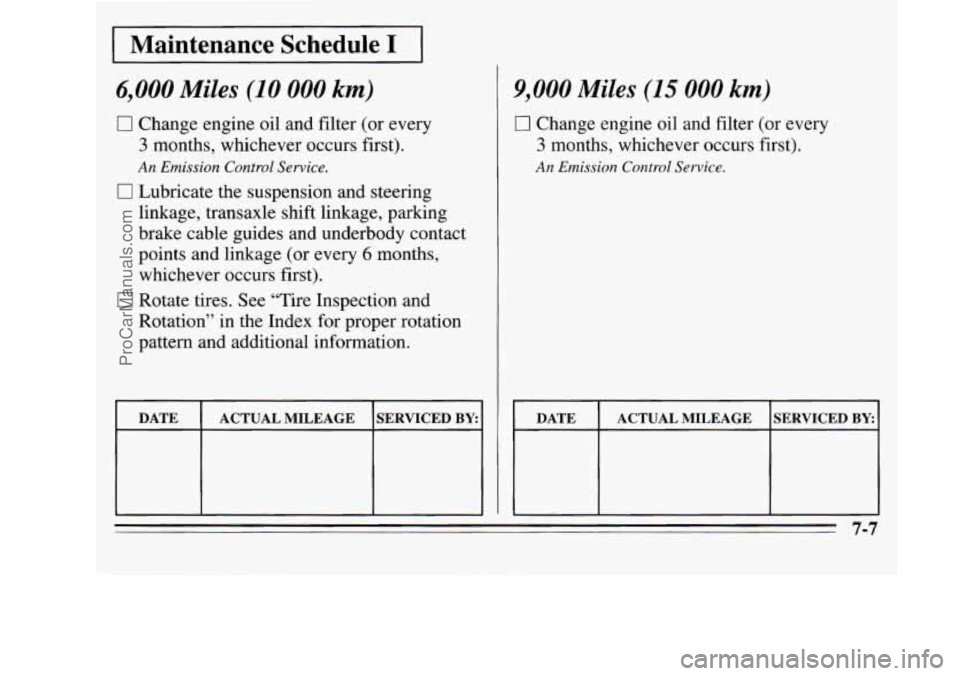

I Maintenance Schedule I I
6,000 Miles (10 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the suspension and steering
linkage, transaxle shift linkage, parking
brake cable guides and underbody contact
points and linkage (or every
6 months,
whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
DATE
SERVICED BY: ACTUAL MILEAGE
9,000 Miles (15 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
I DATE I ACTUAL MILEAGE SERVICED BY I
7-7
ProCarManuals.com

12,000 Miles '(20 000 km)
0 Change engine uil and filter (or every
3 months, whichever ocars. first).
0 Lubricate the suspension and steering
An Emission Control Sewice.
linkage, transaurle shift Wage, parking
brake cable guides and underbody contact
pohts and linkage (or evev 6 months,
whichever occurs first).
DATE ACTUAL MILEAGE SERVICED BY:
15,000 Miles (25 000 km)
0 Change engine oil and filter (or every
3 months, whichever occws first).
An Emission Control Service.
in dusty conditions. Replace filter if
necessary.
An Emission Control Service.
0 Inspect air cleaner filter if you are driving
DATE ACTUAL MILEAGE SERVICED BY:
7-8
ProCarManuals.com

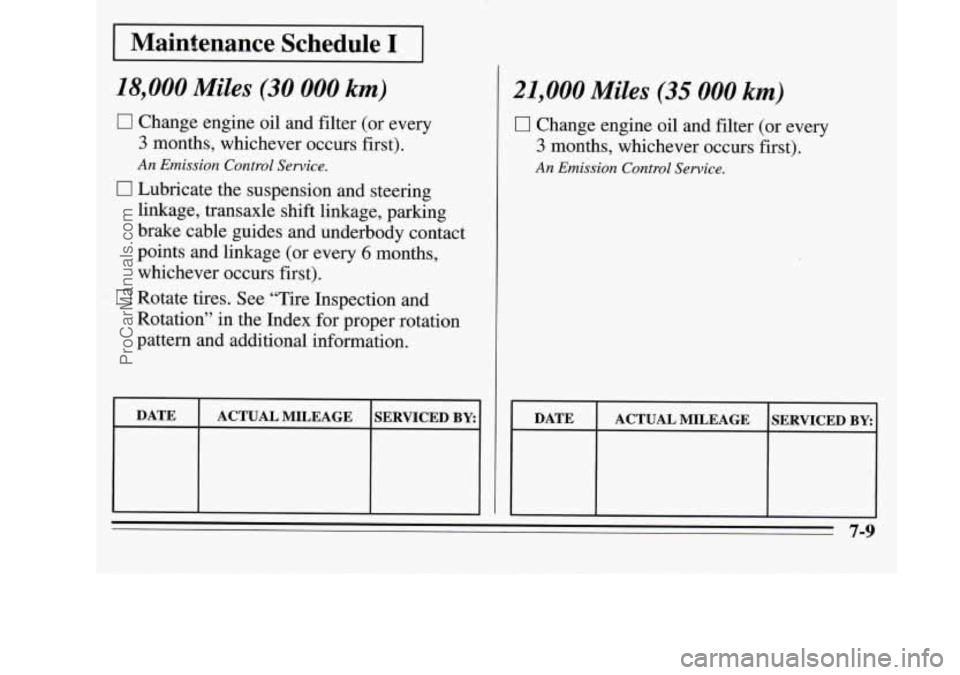

1 Maintenance Schedule I 1
18,000 Miles (30 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the suspension and steering
linkage, transaxle shift linkage, parking
brake cable guides and underbody contact
points and linkage (or every
6 months,
whichever occurs
first).
17 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
DATE
SERVICED BY: ACTUAL MILEAGE
21,000 Miles (35 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
DATE
SERVICED BY: ACTUAL MILEAGE
7-9
ProCarManuals.com

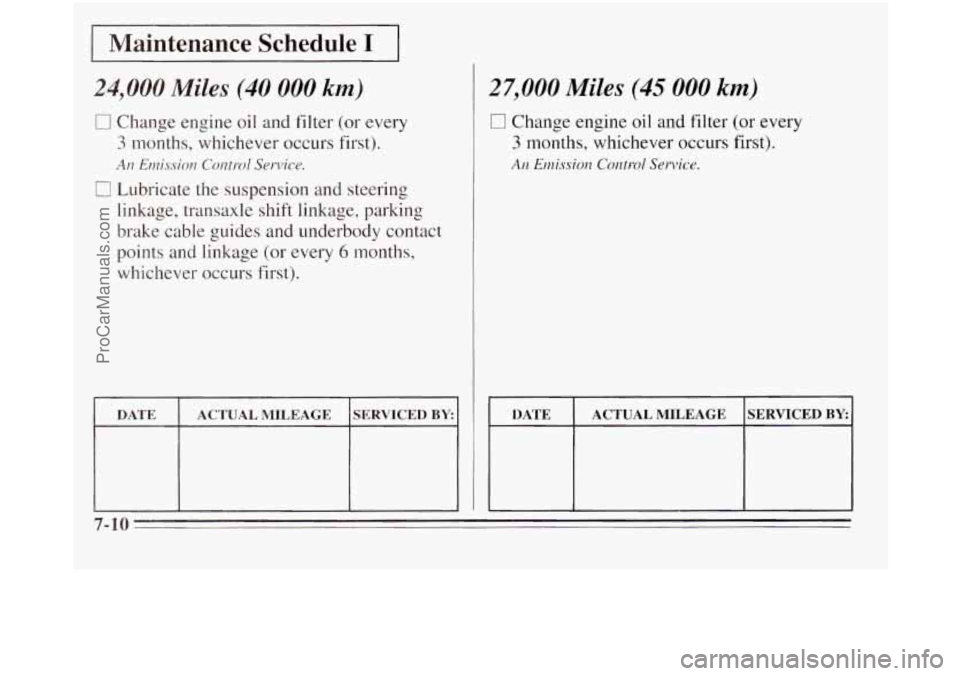

I Maintenance Schedule I I
24,000 Miles (40 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
0 Lubricate the suspension and steering
An Emission Control Service.
linkage, transaxle shift linkage, parking
brake cable guides and underbody contact
points and linkage (or every
6 months,
whichever occurs first).
I DATE I ACTUAL MILEAGE I SERVICED BY I
27,000 Miles (45 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
DATE ACTUAL MILEAGE SERVICED BY:
7-10
