ELECTRIC WINDOWS
1. Driver's electric windowManual mode : press or pull the switch gently.
The window stops as soon as the switch is released. Automatic mode : press or pull the switch firmly.
One touch completely opens or closes the
window. Automatic opening and closing only operate when the engine is running.
2. Passenger's electric window.
3. Rear left electric window
4. Rear right electric window. ELECTRIC MIRRORS
Turn knob
5to the right or to the left to select the cor-
responding mirror. Move knob 5in all four directions to adjust.
Electric folding mirrors With the ignition on, turn knob 5to position A. 7
YOUR 206 AT A GLANCE
17-06-2002

8586
LOCKING / UNLOCKING THE BOOT AND THE REAR SCREEN (206 SW)
The boot and the rear screen cannot be opened simultaneously. With the rear screen closed, to open the boot, pull the handle Aand lift.
With the boot closed, to open the rear
screen , pull the handle B, then lift
using the windscreen wiper arm (at C).
The lighting is switched on by ope-ning the boot or the rear screen. Note: Close the rear screen using the
windscreen wiper arm or by pressing
the centre of the window.
DOORS Front doors (saloon and 206 SW) Rear doors (206 SW)
6
YOUR 206 AT A GLANCE
17-06-2002

9788
13YOUR 206 AT A GLANCE
STEERING WHEEL HEIGHT ADJUSTMENT
When stationary, lower the hand- le to unlock the steering wheel. Adjust to the desired height and lift the handle to lock the steeringwheel.OPENING THE BONNET From inside the vehicle :
pull
the handle. From the outside:
lift the catch
and raise the bonnet. Secure the strut to hold the bonnet open.
17-06-2002

104
YOUR 206 AT A GLANCE14P.Park.
R. Reverse.
N. Neutral.
D. Drive: in this position, all four gears change automatically.
3. Automatic changing of the first three gears only.
2. Automatic changing of the first two gears only.
A. Sport programme.
B. Snow programme.
THE AUTOMATIC AUTOADAPTIVE GEARBOX Starting
To start the engine, place the selector lever in position
Nor P.
Press the brake to leave position P and when selecting forward or
reverse gear. Position of the selector lever This is shown by an indicator on the instrument panel.
17-06-2002

66
68
YOUR 206 AT A GLANCE11
N¡ Symbol Function
HEATING / AIR CONDITIONING
Setting the air distribution.
1
Air intake control.
2
Temperature adjustment.
3
Demisting the rearscreen and mirrors.
4
Air flow adjustment.
5
Air conditioning control.
6
17-06-2002

70
YOUR 206 AT A GLANCE12
N¡ Symbol Function
AUTOMATIC AIR CONDITIONING
Air flow adjustment. Setting the air distribution.
1 23 4 56 7 89 Air intake control. Air conditioning control.
Switching off.
Demisting the rearscreen and mirrors.
Temperature adjustment. Automatic comfort programme.
Automatic visibility programme.
17-06-2002

PEUGEOT SERVICING
Your vehicle benefits from extended service intervals.
¥ For petrol engines: every 20,000 miles (30,000 km) or every two years.
¥ For direct injection diesel engines: every 12,000 miles (20,000 km) or every two years.
¥ For indirect injection diesel engines: every 10,000 miles (15,000 km) or every two years. The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the oil between oil changes is normal. It is for this reason, and for your complete peace of mind, that your PEUGEOT dealer is offering you an intermediate visit between regular services. This will be undertaken free of charge, provided that the maintenance of your vehicle has been carried out within
the Peugeot network at the time or distance intervals specified. At the same time, your PEUGEOT dealer will offeryou a PEUGEOT safety check, for a nominal fee.
A PEUGEOT dealer will carry out a quick check and top up the levels if necessary (oil up to one litre, coolant and screen wash).
The date of the intermediate visit is not shown by the service indicator. It is to be carried out at least every 10 000 miles (15,000 km) for petrol engines; every 6,000 miles (10,000 km) for direct injection diesel engines andevery 5,000 miles (7,500 km) for indirect injection diesel engines. If the oil level is too low there is a risk of serious damage to the engine : check the engine oil level at least every 2,000 to 3,000 miles (3 000 to 5 000 km), depending on the conditions of use. This extended servicing has been made possible by modifications to our vehicles and to the lubricants:
THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS THAT ARE APPROVED AND RECOMMENDED BY THE
MANUFACTURER.
PEUGEOT SERVICING
18
17-06-2002

SPECIAL FEATURES Some of your vehicle's vital components have specific servicing schedules. The air bags and the pretensioning seat belts must be replaced every 10 years.The brake fluid must be replaced every 36,000/40,000 miles (60,000 km) or every 2 years.
The pollen filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regular services).
The timing belt: consult your PEUGEOT dealer.
PEUGEOT SERVICING19

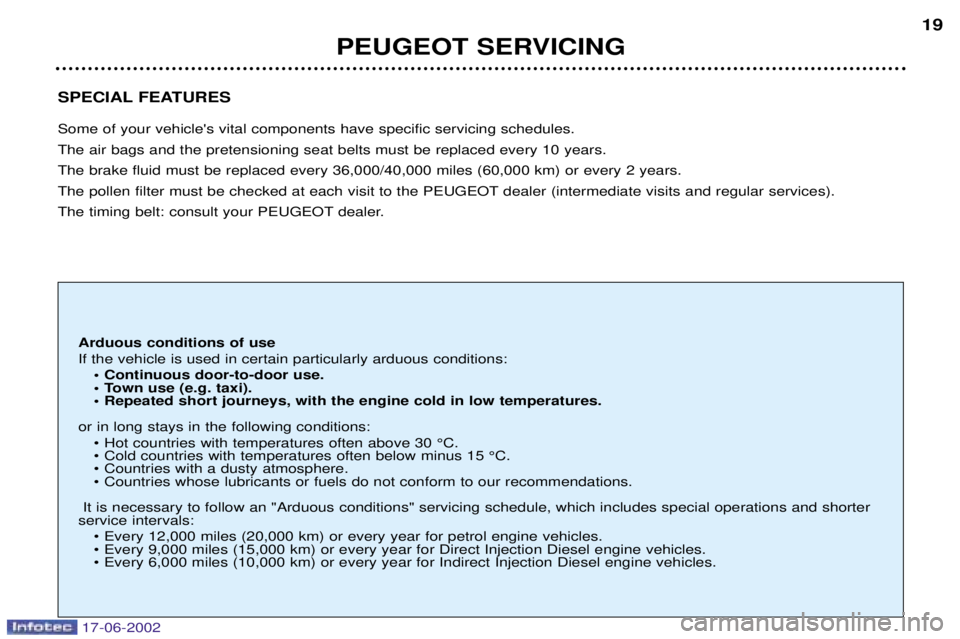

Arduous conditions of use If the vehicle is used in certain particularly arduous conditions:
¥ Continuous door-to-door use.
¥ Town use (e.g. taxi).¥ Repeated short journeys, with the engine cold in low temperatures.
or in long stays in the following conditions: ¥ Hot countries with temperatures often above 30 ¡C.¥ Cold countries with temperatures often below minus 15 ¡C.¥ Countries with a dusty atmosphere.¥ Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an "Arduous conditions" servicing schedule, which includes special operations and shorter
service intervals:
¥ Every 12,000 miles (20,000 km) or every year for petrol engine vehicles.¥ Every 9,000 miles (15,000 km) or every year for Direct Injection Diesel engine vehicles.¥ Every 6,000 miles (10,000 km) or every year for Indirect Injection Diesel engine vehicles.
17-06-2002

SERVICE INDICATOR This is a visual reminder of when the
next service is due. This service is to be carried out according to themanufacturer's servicing schedule. Operation As soon as the ignition is switched on and for 5 seconds, the spanner sym-
bolising ''service operation'' is lit. Thetrip recorder display shows you thedistance remaining (in round figures)before the next service. Example:4,800 miles remain before
the next service is due.When the ignition comes on and for 5 seconds the display indicates: 5 seconds after the ignition is switched on, the total distance recorder resumesnormal operation and the displayshows the total or trip distances. The distance remaining before the
next service is less than 500 miles. Example:
400 miles remain before
the next service is due. When switching on the ignition and for 5 seconds, the display shows: 5 seconds after the ignition is swit- ched on, the total distance recorderresumes normal operation and thesymbol remains lit. This indicates that a service should
be carried out shortly. The displayshows the total or trip distances. The service is overdue Each time the ignition is switched on and for 5 seconds, the symbol andthe excess distance flash. Example:
the service is overdue by
300 miles. The service should be
carried out very shortly.When the ignition is switched on andfor 5 seconds, the display shows: 5 seconds after the ignition is switched on, the total distance recorder resumes normal operation
and the symbol remains lit. The display shows the total or trip distances.
PEUGEOT SERVICING
20
17-06-2002

Resetting the service indicator
Your PEUGEOT dealer carries out this operation after each service.
However, if you carry out the service yourself, the reset procedure is as follows:
Ð Switch off the ignition.
Ð Press and hold button 1.
Ð Switch on the ignition. The display begins a 10 second count- down.
Ð Keep button 1pressed for
10 seconds.
The display shows [=0]and the
service symbol disappears.
PEUGEOT SERVICING 21
