warning PEUGEOT 206 CC DAG 2001 Owners Manual
[x] Cancel search | Manufacturer: PEUGEOT, Model Year: 2001, Model line: 206 CC DAG, Model: PEUGEOT 206 CC DAG 2001Pages: 123, PDF Size: 2.86 MB
Page 2 of 123
1Bonnet opening control
2 Fuse box
3 Storage
4 Steering wheel height adjust- ment control
5 Headlamp height adjustment
6 Lights and fog lamps stalk
7 Adjustable side vent
8 Heated seats switch*
9 Side windows demisting vents
10 Passenger air bag disarmingswitch*
11 Driver's air bag / horn
12 Instrument panel lighting rheostat
13 Windscreen wash/wipe stalk 14
Radio steering column stalk
15 Steering lock
16 Central adjustable vents
17 Hazard warning lights switch
18 Multifunction display
19 Audio equipment
20 Windscreen demisting vents
21 Passenger air bag
22 Glove box
23 Controls for heating, ventila-tion, air conditioning and rearscreen and mirrors demisting
24 Front ashtray
25 Gear lever
26 Lighter
27 Electric mirrors switch 28
Electric windows switch
29 Handbrake
30 Retractable roof switch
* According to specification.
3YOUR AT A GLANCE
Page 10 of 123
11YOUR AT A GLANCE
FRONT AIR BAGS Disarming the passenger air bag Insert the ignition key into switch 1 and turn it to:
Ð the passenger air bag ONposi-
tion,
Ð the passenger air bag OFF
position.
Operating check
With the ignition on (2nd notch onthe key), switching on of thiswarning light, accompanied by anaudible signal and the message*''Passenger air bag disarmed''on the multifunction screen, indi-cates that the passenger air bag
is switched off ( ''OFF''position
on the switch). The warning light remains switched on throughout the dura-tion of the disarming process. Precautions concerning the passenger air bag
Vehicle fitted with a passenger air bag disarming switch:
Ð disarm the air
bag if you install a rearwards-fac-ing child seat
Ð arm the air bag when you trans-port an adult.
Vehicle not fitted with a passen-ger air bag disarming switch:
Ð do not install a rear-facing child seat on the frontpassenger seat.
Never place your feet or anyobject on the instrument panel. "ISOFIX" MOUNTINGS
Available on the front passenger seat, Isofix mountings allow fit-ting of a
special child seat , sold
by PEUGEOT dealers. The locks incorporated in the child seat fit onto the "Isofix"mountings, ensuring reliable,
safe and fast assembly. The childseat must be fitted in the rear-facing position for children weigh-ing less than 29 lbs or 13 kg (to
do this it is essential to disarmthe passenger air bag) .
Follow the instructions for fittingthe child seat in the manufactur-er's installation brochure.
8864
Page 22 of 123
INSTRUMENTS AND CONTROLS
26
1.Seat belt not fastened* warning light
2. Passenger air bag disarming* indi- cator light
3. Front and side air bags* warning light
4. Front fog lamps indicator light
5. ABS*: Anti-lock Braking Systemwarning light
6. Rear fog lamp indicator light
7. Left-hand direction indicator
8. Total distance recorder, service indi-cator and engine oil level indicator 9.
Right-hand direction indicator
10. Engine autodiagnostics warning light
11 . Main beam headlamps
12. Handbrake, brake fluid level andelectronic brake force distributionwarning light
13. Dipped beam headlamps
14. Battery charge warning light
15. Engine oil pressure warning light
16. Temperature and coolant low levelwarning light 17.
Engine oil temperature indicator
18. Total distance recorder button
19. Central (STOP) warning light
20. Speedometer
21. Coolant temperature indicator
22. Rev counter
23. Lighting rheostat
24. Fuel gauge
25. Low fuel level warning light
* According to specification

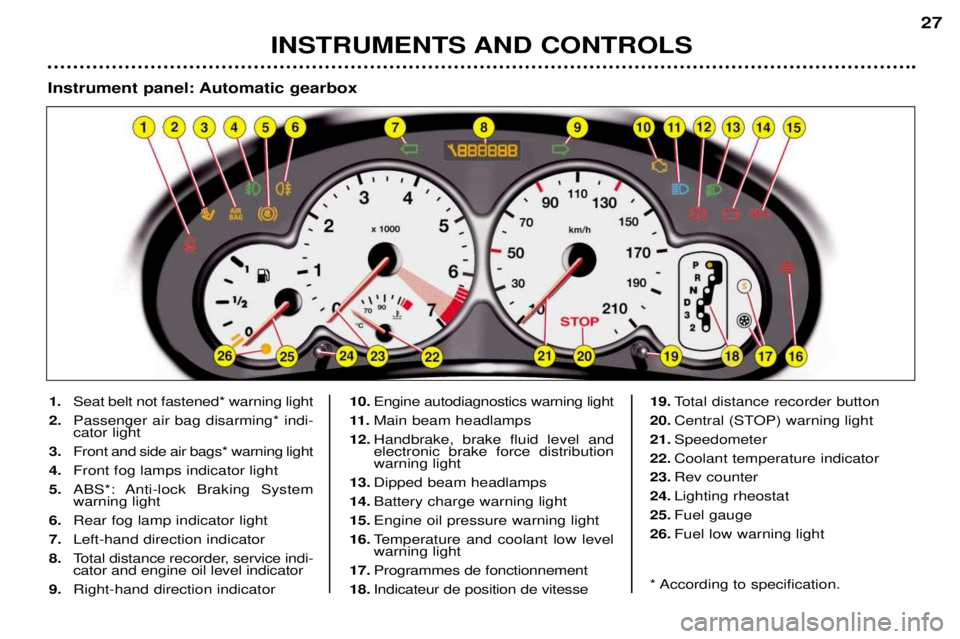

Instrument panel
Page 23 of 123
INSTRUMENTS AND CONTROLS27
1. Seat belt not fastened* warning light
2. Passenger air bag disarming* indi- cator light
3. Front and side air bags* warning light
4. Front fog lamps indicator light
5. ABS*: Anti-lock Braking Systemwarning light
6. Rear fog lamp indicator light
7. Left-hand direction indicator
8. Total distance recorder, service indi-cator and engine oil level indicator
9. Right-hand direction indicator 10.
Engine autodiagnostics warning light
11 . Main beam headlamps
12. Handbrake, brake fluid level andelectronic brake force distributionwarning light
13. Dipped beam headlamps
14. Battery charge warning light
15. Engine oil pressure warning light
16. Temperature and coolant low levelwarning light
17. Programmes de fonctionnement
18. Indicateur de position de vitesse 19.
Total distance recorder button
20. Central (STOP) warning light
21. Speedometer
22. Coolant temperature indicator
23. Rev counter
24. Lighting rheostat
25. Fuel gauge
26. Fuel low warning light
* According to specification.
Instrument panel: Automatic gearbox
Page 24 of 123
INSTRUMENTS AND CONTROLS
28
Handbrake and low brake fluid level or fault inElectronic Brake ForceDistribution system
warning light
Indicates either:
- that the handbrake is on or has not been released correctly,
- an excessive drop in the brake fluid level (if the light remains lit even with the handbrake released),
- a fault in the Electronic Brake Force Distribution system if lit simultane-
ously with the ABS warning light.
Stop immediately.
Contact a PEUGEOT dealer.
Instruments and controls
A permantly lit warning light or one that flashes with the engine run-ning, indicates an operating fault inthe relevant unit. Some warninglights may be accompanied by anaudible signal and a message onthe multifunction screen. Do notignore this warning: contact a PEUGEOT dealer as soon as possi-
ble. If the Central STOP warninglight comes on when you are dri-ving, stop immediately where it issafe to do so.
Anti-lock brake system (ABS) warning light*
When this is lit continuously, it
indicates a malfunction of the ABS system.
However, the vehicle retains con- ventional servo-assisted braking.
Contact a PEUGEOT dealer.
* According to specification
Engine oil pressure warning light
Linked with the central STOP
warning light.
Stop immediately.This warning light indicates either:
- insufficient oil pressure,
- lack of oil in the lubrication circuit. Top up the oil level.
- oil temperature which is too high. Switching on of the warning light is accompanied by an audible signal.
To lower the oil temperature, reduceyour speed.
Contact a PEUGEOT dealer as soonas possible.
Temperature and coolant low level warning light
Linked with the the central STOP warning light.
Stop immediately.Allow the engine to cool before top- ping up. The cooling system is pressurised.In the event of breakdown and to pre-
vent the risk of scalding , turn the
cap twice to allow the pressure to drop. Once the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
Central STOP warning light Linked with the warning
light for the "engine oil pressure", the "coolant temperature and low levelgauge", the "handbrake", the "brakefluid low level" and ''electronic brakingsystem fault'' as well as the "dooropen" warning indicated by a symbol
on the multifunction display. Stop immediately if the light is flashing with the engine running.
Contact a PEUGEOT dealer.
Page 25 of 123
INSTRUMENTS AND CONTROLS29
Air bag warning light The warning light comes on for a few seconds when the
ignition is switched on. Switching on of this warning light, with the engine running, is accompanied byan audible signal and a message onthe multifunction display indicating afault in the air bags.
Contact a PEUGEOT dealer. Seat belt not fastened* warning light
With the engine running, the warninglight comes on when the driver has notfastened his seat belt.
Engine autodiagnostics warning light This comes on each time the
ignition is switched on. If it comes on when the engine is run- ning, it indicates a malfunction in theinjection, ignition or emission control
system. There is a risk of damage to
your catalytic converter.
Contact a PEUGEOT dealer rapidly.
Low fuel level warning light When the warning light
first comes on, you have enough fuel to drive at least 35 miles (50 km) (thetank capacity is approximately 47 litres(10.3 gallons).
Coolant temperature indicator light
- When the needle is in zone A, the
temperature is correct.
- When the needle is in zone B, the
temperature is too high. The central
STOP warning light flashes.
You must stop immediately.
Contact a PEUGEOT dealer.
* According to specification.
Passenger air bag disarming indicatorlight*
Switching on of this indicator light is accompanied by an audible signal andthe message "Passenger air bag disarmed" on
the multifunction display. If the passenger air bag is disarmed, the indicator light switches on andremains on. In all cases, if the warning light
flashes, contact a PEUGEOT dealer.
Battery charge warning light This can indicate any of the
following situations:
- faulty operation of the charging cir- cuit,
- loose battery or starter terminals, - a cut or slack alternator belt,- an alternator fault.
Contact a PEUGEOT dealer.
Page 26 of 123
INSTRUMENTS AND CONTROLS29
Air bag warning light The warning light comes on for a few seconds when the
ignition is switched on. Switching on of this warning light, with the engine running, is accompanied byan audible signal and a message onthe multifunction display indicating afault in the air bags.
Contact a PEUGEOT dealer. Seat belt not fastened* warning light
With the engine running, the warninglight comes on when the driver has notfastened his seat belt.
Engine autodiagnostics warning light This comes on each time the
ignition is switched on. If it comes on when the engine is run- ning, it indicates a malfunction in theinjection, ignition or emission control
system. There is a risk of damage to
your catalytic converter.
Contact a PEUGEOT dealer rapidly.
Low fuel level warning light When the warning light
first comes on, you have enough fuel to drive at least 35 miles (50 km) (thetank capacity is approximately 47 litres(10.3 gallons).
Coolant temperature indicator light
- When the needle is in zone A, the
temperature is correct.
- When the needle is in zone B, the
temperature is too high. The central
STOP warning light flashes.
You must stop immediately.
Contact a PEUGEOT dealer.
* According to specification.
Passenger air bag disarming indicatorlight*
Switching on of this indicator light is accompanied by an audible signal andthe message "Passenger air bag disarmed" on
the multifunction display. If the passenger air bag is disarmed, the indicator light switches on andremains on. In all cases, if the warning light
flashes, contact a PEUGEOT dealer.
Battery charge warning light This can indicate any of the
following situations:
- faulty operation of the charging cir- cuit,
- loose battery or starter terminals, - a cut or slack alternator belt,- an alternator fault.
Contact a PEUGEOT dealer.
Page 29 of 123
INSTRUMENTS AND CONTROLS31
Hazard warning lights
Press the button, the direction indica- tors flash.
They can operate with the ignition off.

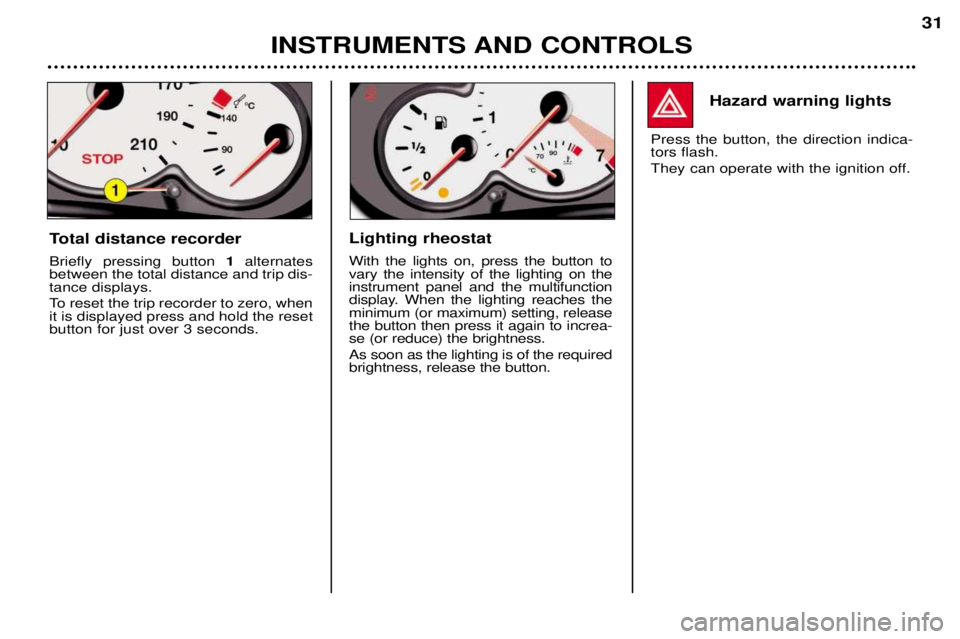

Total distance recorder Briefly pressing button 1alternates
between the total distance and trip dis- tance displays.
To reset the trip recorder to zero, when it is displayed press and hold the resetbutton for just over 3 seconds.Lighting rheostat With the lights on, press the button to vary the intensity of the lighting on theinstrument panel and the multifunction
display. When the lighting reaches theminimum (or maximum) setting, releasethe button then press it again to increa-se (or reduce) the brightness. As soon as the lighting is of the required brightness, release the button.
Page 30 of 123
YOUR 206 CC IN DETAIL
32
Setting the parameters Press button 1for two seconds to access the settings. The information flashes
to show it is ready to be modified.Then, individual presses on button 1allow you to scroll through the various data
in the following sequence:- language in which the information is displayed,- unit of distance (kms or miles),- unit of temperature (degrees Celsius or Fahrenheit),- time format (12 then 24 hour mode)
- hour,- minutes,
- year,- month,
- day,Pressing button 2allows you to change the information selected. Maintain the
pressure for rapid scrolling. After ten seconds without operation, the screen returns to the main display and the modified data is recorded.
Display B This enables the following information to be displayed:
- the time,
- the date,
- the outside temperature (this flashes when there is a risk of ice),
- the radio displays,
- the status of the doors. The dis- play shows you, by means of a graphic, whether a door is open.
- the warning messages (e.g. ''bat-
tery charge low'') or informationmessages (e.g. "fuel tank low''),
displayed temporarily, can becleared by pressing button 1or 2,
- the trip computer
Page 31 of 123
YOUR 206 CC IN DETAIL33
Display C This enables the following informa- tion to be displayed:
- the time,
- the date,
- the outside temperature (this
flashes when there is a risk of ice),
- the radio displays,
- the status of the doors. The dis- play shows you by means of a graphic whether a door is open, - the warning messages are displayed temporarily (e.g. "low fuel level'') and can be
cleared using the remote control,
- the trip computer (see following page),
- the satellite navigation system* (see corresponding section). Setting the parameters
The remote control allows you to access the settings. Accessing the different menus is described in the section "Satellite Navigation System".
* According to specification.
