INSTRUMENTS AND CONTROLS31
Seat belt not fastened warning light*
When the ignition is switched on, thisindicator light comes on if the driverhas not fastened his seat belt. Air bag warning light
The light will come on for a few secondswhen the ignition is switched on. With the engine running, illumination of this warning light is accompaniedby an audible signal and a messageon the multi-function display indica-ting a fault in the air bags.
Consult a PEUGEOT dealer.
Battery charge warning light
This indicates one of the following:
Ð faulty operation of the charging cir- cuit,
Ð slack battery or starter terminals,
Ð a cut or slack alternator belt,
Ð an alternator failure.
Consult a PEUGEOT dealer.
Engine diagnostics warning light
This comes on each time the ignitionis switched on. If it comes on with the engine run- ning, this indicates incorrect opera-tion of the injection, ignition or emis-
sion control system. There is a risk ofdamage to the catalytic converter(petrol engine only).
Consult a PEUGEOT dealer.
* According to destination.
Water in diesel filter indicator*
Consult a PEUGEOT dealer as soonas possible. There is a risk of damage to the injection system.
Passenger air bag disarming warning light*
Illumination of this warning light is accompanied by an audible signal and
the message "Passenger air bagdisarmed" on the multi-function display.
If the passenger air bag is disarmed, thewarning light comes on when the ignitionis switched on and it remains on.
Always consult a PEUGEOT dealer if the warning light flashes. Low fuel level warning light
When this light first comes on, you haveenough fuel to drive at least 50 km. The tank capacity is approximately 50 litres.
Diesel engine pre-heatwarning light
Wait until the warning light goes outbefore starting the engine. If the temperature is high enough, the warning light comes on for less
than one second. You can start theengine without waiting.
Coolant temperature indicator
Ð needle in zone (A), the temperatu-
re is correct,
Ð needle in zone (B), the temperatu-
re is too high. The central STOP
warning light flashes.
You must stop.
Consult a PEUGEOT dealer.
17-06-2002
Page 32 of 155
INSTRUMENTS AND CONTROLS
32
Instrument panel display After switching on the ignition, three functions are shown in succession:
- service indicator (see corresponding section),
- engine oil level indicator,
- total distance recorder/total and trip distances.Note:the total and trip distances are displayed for 30 seconds when the ignition
is switched off, on opening the driver's door, as well as on locking and unlocking the vehicle. Engine oil level When the ignition is switched on, the engine oil level is indicated for approxima- tely 10 seconds, after the servicing information.
Maximum Check the level using the dipstick to confirm whether the level indicated is correct; a surplusof oil can cause damage to the engine.
Consult a PEUGEOT dealer without delay. Minimum. Check the level with the dipstick and top it up. The level indicated is only correct if the vehiclehas been on stable, level ground, with the engi-ne stopped, for 10 minutes. Oil level gauge fault The 6 segments flash to indicate a fault in the oil level gauge. There is a risk the engine will be damaged.
Consult a PEUGEOT dealer.
Engine oil temperature indicator With the engine running, this indi- cates the oil temperature:
Ð needle in zone
(C), the temperatu-
re is correct,
Ð needle in zone (D), the temperature
is too high. To lower the oil tempera- ture, reduce your speed.
17-06-2002
Page 33 of 155
INSTRUMENTS AND CONTROLS
32
Instrument panel display After switching on the ignition, three functions are shown in succession:
- service indicator (see corresponding section),
- engine oil level indicator,
- total distance recorder/total and trip distances.Note:the total and trip distances are displayed for 30 seconds when the ignition
is switched off, on opening the driver's door, as well as on locking and unlocking the vehicle. Engine oil level When the ignition is switched on, the engine oil level is indicated for approxima- tely 10 seconds, after the servicing information.
Maximum Check the level using the dipstick to confirm whether the level indicated is correct; a surplusof oil can cause damage to the engine.
Consult a PEUGEOT dealer without delay. Minimum. Check the level with the dipstick and top it up. The level indicated is only correct if the vehiclehas been on stable, level ground, with the engi-ne stopped, for 10 minutes. Oil level gauge fault The 6 segments flash to indicate a fault in the oil level gauge. There is a risk the engine will be damaged.
Consult a PEUGEOT dealer.
Engine oil temperature indicator With the engine running, this indi- cates the oil temperature:
Ð needle in zone
(C), the temperatu-
re is correct,
Ð needle in zone (D), the temperature
is too high. To lower the oil tempera- ture, reduce your speed.
17-06-2002
Page 34 of 155
INSTRUMENTS AND CONTROLS33
Total distance recorder Briefly pressing button 1alternates
between the total and trip distance displays.
To return the trip recorder to zero, when it is displayed press the buttonfor more than 3 seconds. HAZARD WARNINGLIGHTS
Press the button, the direction indicatorsflash.
They can operate with the ignition off.
Lighting rheostat With the lights on, press the button to vary the intensity of the lighting of theinstrument panel and the multi-func-
tion display. When the lightingreaches the minimum (or maximum)setting, release the button then pressit again to increase (or reduce) thebrightness. As soon as the lighting is of the requi- red brightness, release the button.
17-06-2002
Page 35 of 155
17-06-2002
YOUR 206 IN DETAIL35
DISPLAY A This displays the following informa- tion:
- the time,
- the date,
- the outside temperature (this
flashes if there is a risk of ice),
- the audio system displays,
- a door check (e.g.: ''left front door open''),
- warning messages (e.g. ''remote control battery flat'') or information messages (e.g. ''economy mode
active''), displayed temporarily. Adjusting the parameters Press and hold button 1 for two seconds to access the settings; the data flashes, indicating it is ready to be modified. Then, each press of button
1scrolls through the various data in the following
order:
Ð language of information displayed,
Ð hours (12 then 24 hour mode),
Ð minutes,
Ð year,
Ð month,
Ð day,
Ð unit of temperature (degrees Celsius or Fahrenheit).Pressing button 2alters the value of the parameter selected. Press and hold for
rapid advance (return to start after the last possible value). After 7 seconds with no action, the main display returns; the modified data are now recorded. Note: Pressing button 2briefly displays the outside temperature for a few
seconds.
Page 36 of 155
17-06-2002
YOUR 206 IN DETAIL
36
Setting the parameters Press and hold button 1for two seconds to access the settings. The data
flashes, indicating it is ready to be modified. Then, individual presses on button 1allow you to scroll through the various data
in the following sequence:
- language in which the information is displayed,
- unit of distance (kms or miles),
- unit of temperature (degrees Celsius or Fahrenheit),
- time format (12 then 24 hour mode),
- hour,
- minutes,
- year,
- month,
- day.Pressing button 2allows you to change the data selected. Maintain the pressu-
re for rapid scrolling.After 7 seconds without moving, the main display returns; the modified data are now recorded.
DISPLAY B This enables the following informa- tion to be displayed:
- the time,
- the date,
- the outside temperature (this flashes when there is a risk of ice),
- the radio displays,
- a door check. The display shows you, by means of a graphic, whe- ther a door is open.
- warning messages (e.g. ''battery charge low'') or information mes-sages (e.g. " fuel level low''), dis-
played temporarily. These can becleared by pressing button 1or 2,
- the trip computer.
Page 37 of 155
17-06-2002
YOUR 206 IN DETAIL37
DISPLAY C This enables the following informa- tion to be displayed:
- the time,
- the date,
- the outside temperature (this flashes when there is a risk of ice),
- the radio displays,
- a door check. The display shows you, by means of a graphic, whe- ther a door is open, - the warning messages (e.g. "fuel level low''), displayed temporarily. These
can be cleared using the remote control,
- the trip computer (see corresponding section),
- the satellite navigation system (see corresponding section). Setting the parameters
The remote control allows you to access the settings. Accessing the different menus is described in the section ''Satellite Navigation System''.
Page 38 of 155
17-06-2002
AUDIO RB3
YOUR 206 IN DETAIL
40
Stalk movement
Function
1 - Press (behind) Increase volume
2 - Press (behind) Decrease volume
1 + 2 - Simultaneous press Sound cut-off (mute); restoring of the sound by pressing any button
3 - Press Automatic search of higher frequencies (radio)
Selection of the next track (CD)
4 - Press Automatic search of lower frequencies (radio)
Selection of the previous track (CD)
5 - Press the end Change of source (radio/cassette/CD changer)
6 - Rotation Selection of next station stored in memory (radio) - Selection of next CD
(clockwise)
7 - Rotation Selection of previous station stored in memory (radio) - Selection of previous CD
(anti-clockwise)
Page 39 of 155
17-06-2002
YOUR 206 IN DETAIL41

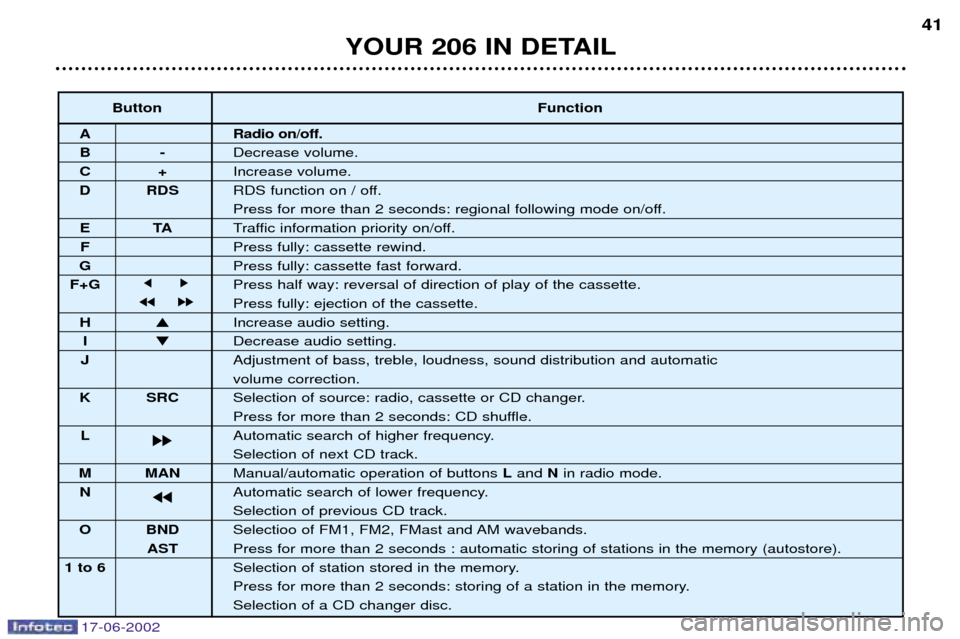

Button
Function
A Radio on/off.
B-Decrease volume.
C+Increase volume.
D RDS RDS function on / off.
Press for more than 2 seconds: regional following mode on/off.
ETATraffic information priority on/off.
F Press fully: cassette rewind.
G Press fully: cassette fast forward.
F+G jk Press half way: reversal of direction of play of the cassette.
jj kk Press fully: ejection of the cassette.
H Increase audio setting.
I Decrease audio setting.
J Adjustment of bass, treble, loudness, sound distribution and automatic
volume correction.
K SRC Selection of source: radio, cassette or CD changer.
Press for more than 2 seconds: CD shuffle.
L kk Automatic search of higher frequency.
Selection of next CD track.
M MAN
Manual/automatic operation of buttons Land Nin radio mode.
N jj Automatic search of lower frequency.
Selection of previous CD track.
O BND Selectioo of FM1, FM2, FMast and AM wavebands.
ASTPress for more than 2 seconds : automatic storing of stations in the memory (autostore).
1 to 6 Selection of station stored in the memory.
Press for more than 2 seconds: storing of a station in the memory.Selection of a CD changer disc.
Page 40 of 155
17-06-2002
GENERAL FUNCTIONSOn/off With the ignition key in the accessories or ignition on position, press button Ato switch the set on or off.
The set can operate for 30 minutes without the vehicle ignition being switched on.
Anti-theft systemThe audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to another vehicle. The anti-theft system is automatic and requires no action on your part. ADJUSTING THE VOLUME Press button Cto increase the volume, or button Bto decrease it.
Continuous pressure on buttons Band Callows a gradual adjustment of the volume.
AUDIO SETTINGS Press button Jseveral times in succession to access the bass (BASS), treble (TREB), loudness (LOUD),
fader (FAD) , balance (BAL)and automatic volume correction.
Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing button J
after configuration of the automatic volume correction. Note: bass and treble settings are specific to each source. It is possible to set them differently for radio, cas-
sette (RB3) , CD (RD3) and CD changer.
YOUR 206 IN DETAIL
44
