PEUGEOT 207 2011 Owners Manual

229
09

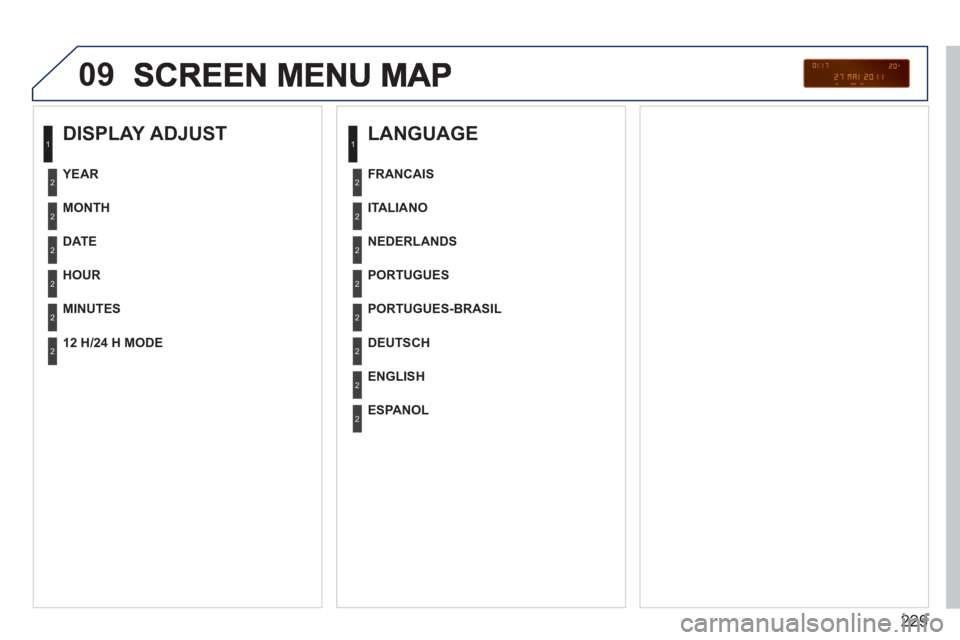

DISPLAY ADJUST


MONTH

DATE

HOUR

MINUTES
YEAR


12 H/24 H MODE


LANGUAGE


ITALIANO

NEDERLANDS

PORTUGUES

PORTUGUES-BRASIL
FRANCAIS

DEUTSCH

ENGLISH

ESPANOL
1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2

230

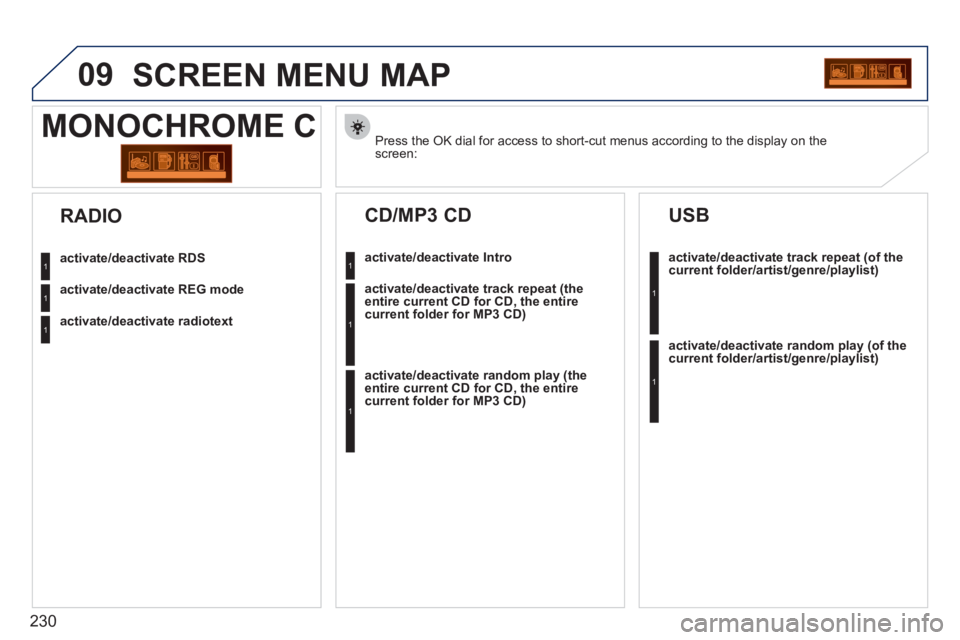

09SCREEN MENU MAP
Press the OK dial for access to short-cut menus according to the display on thescreen:
MONOCHROME C
activate/deactivate RDS
activate/deactivate REG mode
activate/deactivate radiotext


RADIO
activate/deactivate Intro


CD/MP3 CD
activate/deactivate track repeat (the
entire current CD for CD, the entire
current folder for MP3 CD)
activate/deactivate random play (the
entire current CD for CD, the entire
current folder for MP3 CD)
activate/deactivate track repeat (of the current folder/artist/genre/playlist)

USB
activate/deactivate random play(of thecurrent folder/artist/genre/playlist)
1
1
1
1
1
1
1
1

231
09

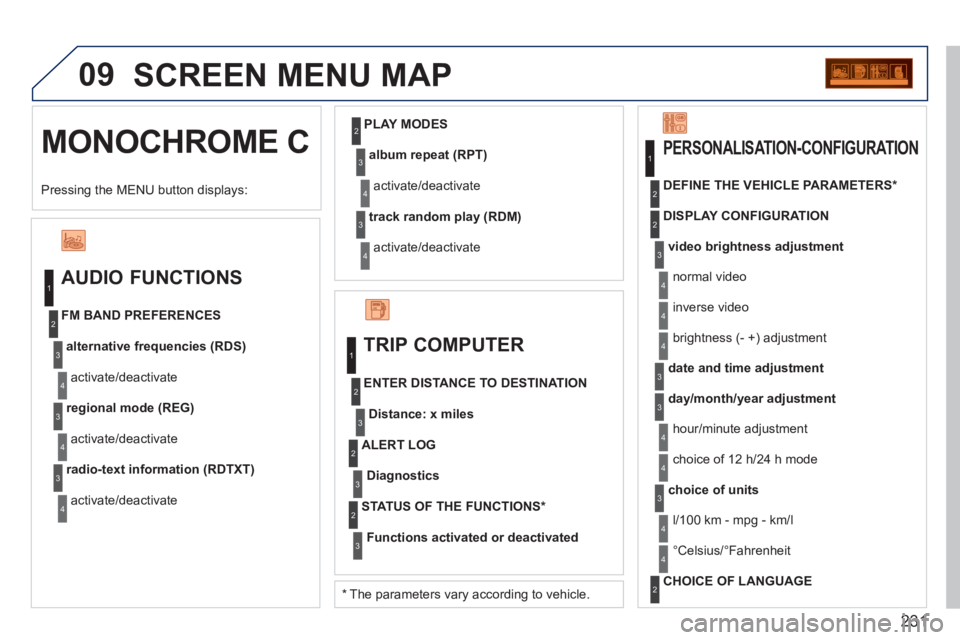

MONOCHROME C SCREEN MENU MAP


AUDIO FUNCTIONS
alternative frequencies (RDS)
activate/deactivate FM BAND PREFERENCES
regional mode (REG)
activate/deactivate
radio-text information (RDTXT)
activate/deactivate
1
2
3
4
3
4
3
4
PLAY MODES
album repeat (RPT)
activate/deactivate
track random play (RDM)

activate/deactivate

2
3
4
3
4


TRIP COMPUTER
Distance: x miles
ENTER DISTANCE TO DESTINATION
Diagnostics


ALERT LOG
Functions activated or deactivated


STATUS OF THE FUNCTIONS *
1
2
3
3
2
3
2
video brightness adjustment
DISPLAY CONFIGURATION DEFINE THE VEHICLE PARAMETERS *

PERSONALISATION-CONFIGURATION
normal video
inverse video
brightness (- +) adjustment
date and time adjustmen
t
day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode
choice of units
l/100 km - mp
g - km/l
°
Celsius/°Fahrenheit
CHOICE OF LANGUAGE

1
2
4
3
2
4
4
3
3
4
4
2
3
4
4
Pressing the MENU button displays:

*
The parameters vary according to vehicle.

232

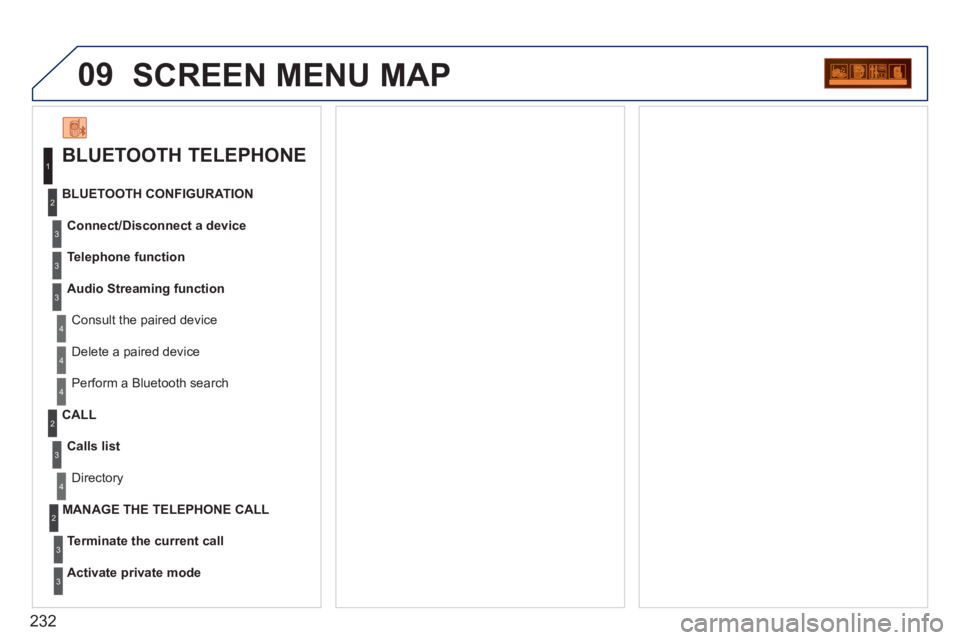

09SCREEN MENU MAP

BLUETOOTH TELEPHONE
Connect/Disconnect a device
Consult the paired device BLUETOOTH CONFIGURATION
Telephone function
Audio Streamin
g function
Delete a
paired device
P
erform a Bluetooth search
Calls lis
t
CALL

Directory
Terminate the current call

MANAGE THE TELEPHONE CALL
Activate
private mode
1
2
3
3
3
4
4
4
2
3
4
2
3
3

233

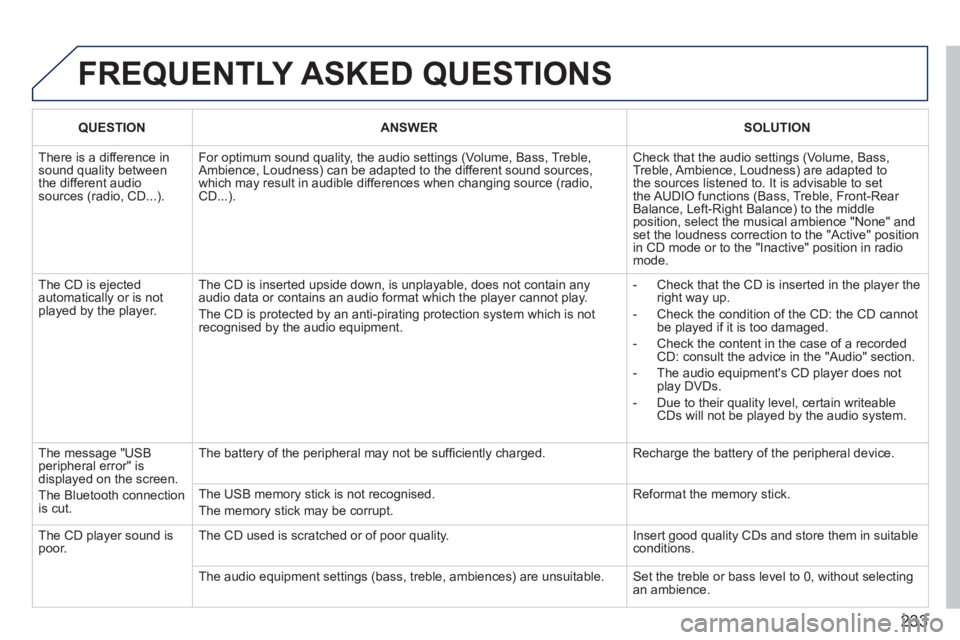

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION

There is a difference in sound quality betweenthe different audiosources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources,which may result in audible differences when changing source (radio,CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted tothe sources listened to. It is advisable to setthe AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.

The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.


- Check that the CD is inserted in the player the right way up.


- Check the condition of the CD: the CD cannot be played if it is too damaged.


- Check the content in the case of a recordedCD: consult the advice in the "Audio" section.


- The audio equipment's CD player does notplay DVDs.


- Due to their quality level, certain writeableCDs will not be played by the audio system.
The message "USB peripheral error" isdisplayed on the screen.

The Bluetooth connectionis cut.

The battery of the peripheral may not be suffi ciently charged.

Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt.

Reformat the memory stick.

The CD player sound ispoor.The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selectingan ambience.

234

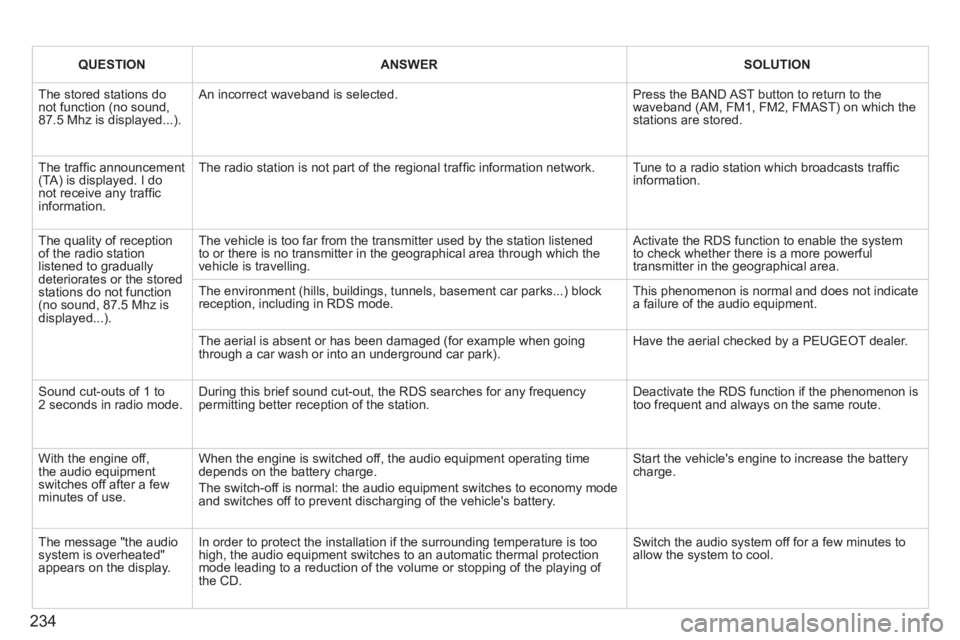

QUESTIONANSWERSOLUTION
The stored stations donot function (no sound, 87.5 Mhz is displayed...).

An incorrect waveband is selected.
Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which thestations are stored.

The traffi c announcement(TA) is displayed. I donot receive any traffi c information.
The radio station is not part of the regional traffi c information network.
Tune to a radio station which broadcasts traffi c information.

The quality of receptionof the radio station listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 Mhz is displayed...).

The vehicle is too far from the transmitter used by the station listenedto or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode.

This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park).
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station.
Deactivate the RDS function if the phenomenon is too frequent and always on the same route.

With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating timedepends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.

Start the vehicle's engine to increase the batterycharge.

The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is toohigh, the audio equipment switches to an automatic thermal protectionmode leading to a reduction of the volume or stopping of the playing of the CD.
Switch the audio system off for a few minutes toallow the system to cool.

235
VISUAL SEARCH
EXTERIOR (SALOON)

7Door mirrors ............................. 57 Lighting controls ....................82-84
Headlamp adjustment ................ 85
Changing bulbs .................142-143


- front lamps

- foglamps

- direction indicator repeaters
Electric windows ....................72-73
Rear quarter panel windows ....... 73 Doors .....................................74-76


- opening/closing

- central locking

- emergency control Remote control key ...............68-71


- opening/closing

- anti-theft protection

- starting

- battery
Accessories .............................. 160
Roof bars .................................. 159
Panoramic sunroof ..................... 78
Fuel tank ..................................... 79
Misfuel prevention ...................... 81 Wiper controls .......................86-88
Changing a wiper blade ............ 155
Boot ............................................ 76


- opening/closing

- emergency control
Changing a wheel .............132-136,
137-138, 140-141


- tools

- removal

- temporary tyre repair kit
Parking sensors ........................ 121
Towbar ...................................... 157
Towing ...................................... 156 Changing bulbs .................144-145


- rear lamps

- 3rd brake lamp

- number plate lamps
Braking assistance ................... 103
Trajectory control ...................... 104
Tyre pressure ........................... 175

236
VISUAL SEARCH
EXTERIOR (SW)

Door mirrors ............................... 57 Lighting controls ....................82-84
Headlamp adjustment ................ 54
Changing bulbs .................142-143


- front lamps

- foglamps

- direction indicator repeaters
Electric windows ....................72-73 Doors .....................................74-76


- opening/closing

- central locking

- emergency control Remote control key ...............68-71


- opening/closing

- anti-theft protection

- starting

- battery
Accessories .............................. 160
Roof bars .................................. 159
Panoramic sunroof ..................... 78
Fuel tank ..................................... 79
Misfuel prevention ...................... 81 Wiper controls .......................86-88
Changing a wiper blade ............ 155
Boot .......................................76-77


- opening/closing

- emergency control
Changing
a wheel ............ 132-137, 139-141


- tools

- removal

- temporary tyre repair kit
Parking sensors ........................ 121
Towbar ...................................... 157
Towing ...................................... 156 Changing bulbs .................146-147


- rear lamps

- 3rd brake lamp
- number plate lamps
Braking assistance ................... 103
Trajectory control ...................... 104
Tyre pressures .......................... 175

237
VISUAL SEARCH

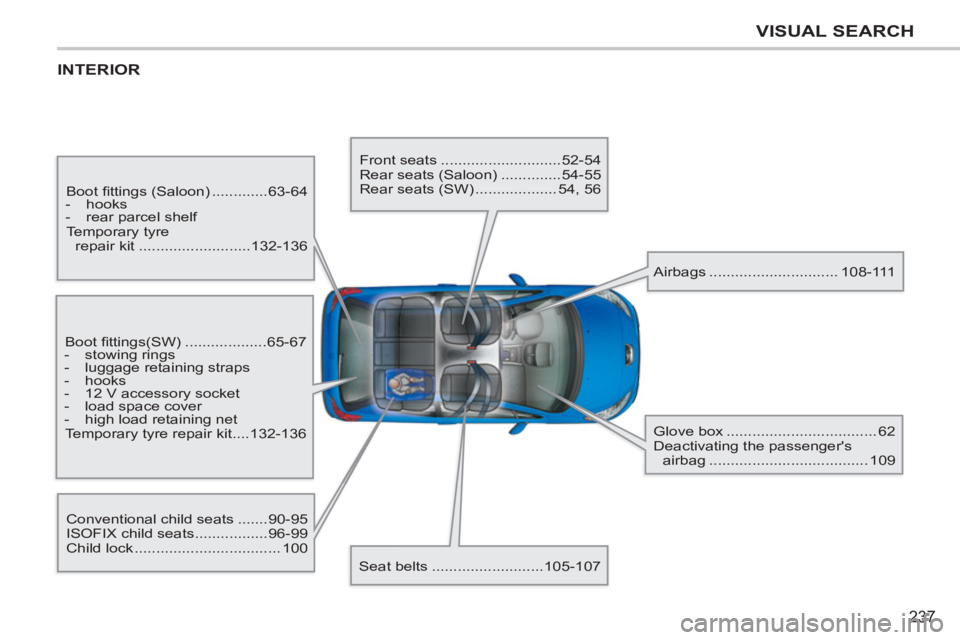

INTERIOR

Boot fi ttings (Saloon) .............63-64


- hooks

- rear parcel shelf
Temporary tyre
repair kit ..........................132-136
Conventional child seats .......90-95
ISOFIX child seats .................96-99
Child lock .................................. 100 Front seats ............................52-54
Rear seats (Saloon) ..............54-55
Rear seats (SW) ................... 54, 56
Seat belts ..........................105-107 Airbags .............................. 108-111
Glove box ................................... 62
Deactivating the passenger's
airbag ..................................... 109 Boot fi ttings(SW) ...................65-67


- stowing rings

- luggage retaining straps

- hooks

- 12 V accessory socket

- load space cover

- high load retaining net
Temporary tyre repair kit ....132-136

238
VISUAL SEARCH

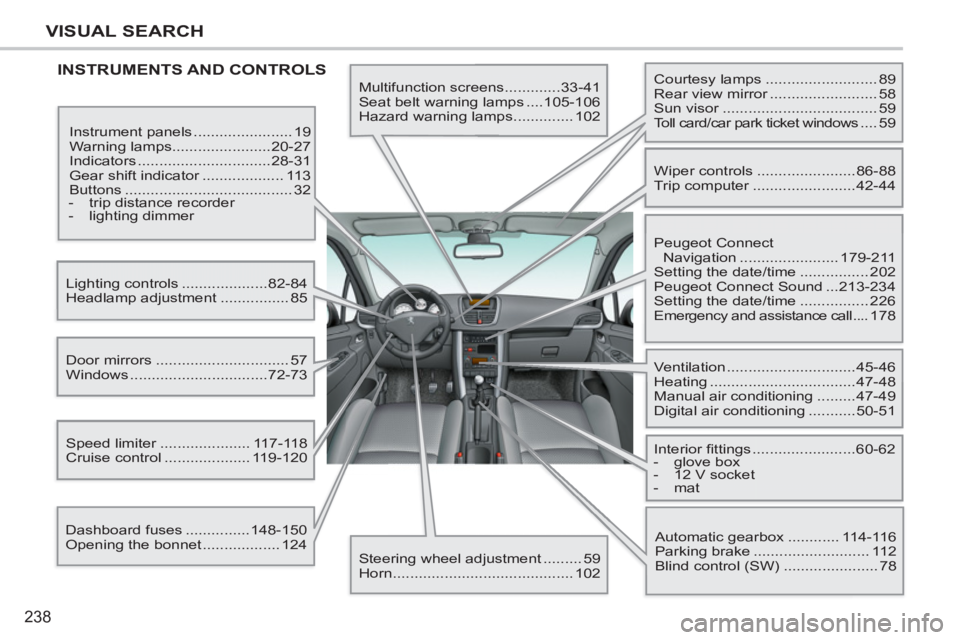

INSTRUMENTS AND CONTROLS

Multifunction screens .............33-41
Seat belt warning lamps ....105-106
Hazard warning lamps .............. 102
Instrument panels ....................... 19
Warning lamps .......................20-27
Indicators ...............................28-31
Gear shift indicator ................... 113
Buttons ....................................... 32


- trip distance recorder

- lighting dimmer
Lighting controls ....................82-84
Headlamp adjustment ................ 85
Speed limiter ..................... 117-118
Cruise control .................... 119-120 Door mirrors ............................... 57
Windows ................................72-73
Dashboard fuses ...............148-150
Opening the bonnet .................. 124
Steering wheel adjustment ......... 59
Horn .......................................... 102 Courtesy lamps .......................... 89
Rear view mirror ......................... 58
Sun visor .................................... 59
Toll card/car park ticket windows .... 59
Wiper controls .......................86-88
Trip computer ........................42-44
Peugeot Connect
Navigation ....................... 179-211
Setting the date/time ................ 202
Peugeot Connect Sound ...213-234
Setting the date/time ................ 226
Emergency and assistance call ....178
Ventilation ..............................45-46
Heating ..................................47-48
Manual air conditioning .........47-49
Digital air conditioning ...........50-51
Interior fi ttings ........................60-62


- glove box

- 12 V socket

- mat
Automatic gearbox ............ 114-116
Parking brake ........................... 112
Blind control (SW) ...................... 78
