Checks
308_EN_CHAP08_VERIFICATIONS_ED02-2013
The various caps and covers allow access for checking the levels of the various fluids, for replacing certain components and for priming the fuel system.
* According to engine.

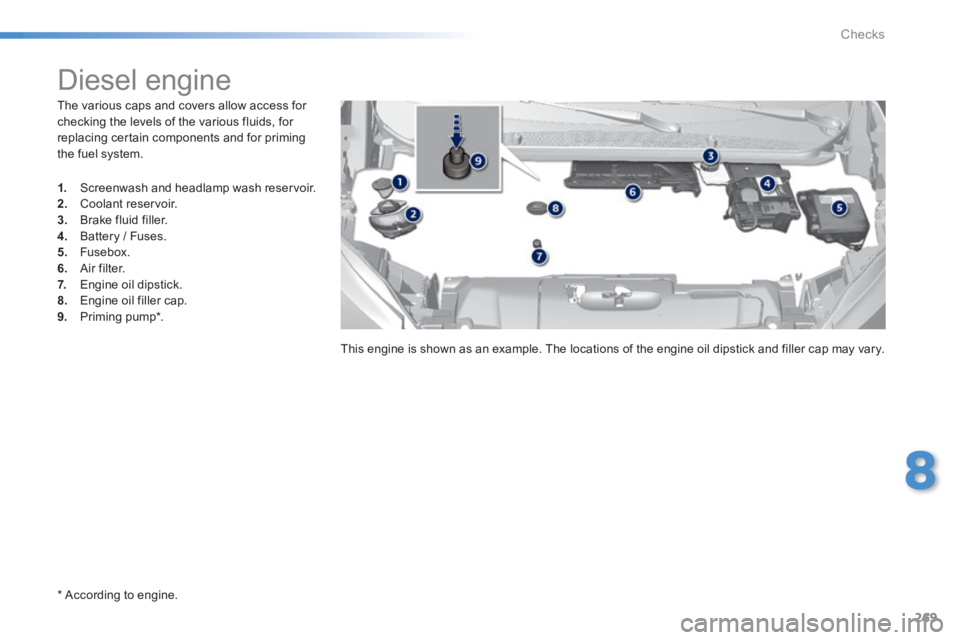

Diesel engine
1. Screenwash and headlamp wash reservoir. 2. Coolant reservoir. 3. Brake fluid filler. 4. Battery / Fuses. 5. Fusebox. 6. Air filter. 7. Engine oil dipstick. 8. Engine oil filler cap. 9. Priming pump * .
This engine is shown as an example. The locations of the engine oil dipstick and filler cap may vary.

270
Checks
308_EN_CHAP08_VERIFICATIONS_ED02-2013
On vehicles fitted with HDi engines, the fuel system must be primed if you run out of fuel; refer to the corresponding engine compartment view.

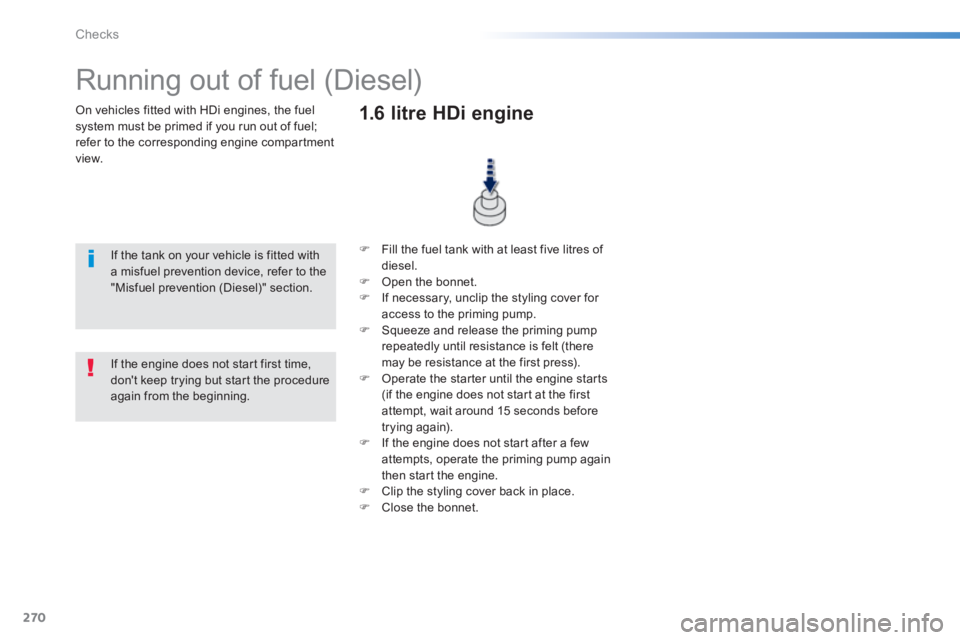

Running out of fuel (Diesel)
If the tank on your vehicle is fitted with a misfuel prevention device, refer to the "Misfuel prevention (Diesel)" section.
 Fill the fuel tank with at least five litres of diesel.  Open the bonnet.  If necessary, unclip the styling cover for access to the priming pump.  Squeeze and release the priming pump repeatedly until resistance is felt (there may be resistance at the first press).  Operate the starter until the engine starts (if the engine does not start at the first attempt, wait around 15 seconds before trying again).  If the engine does not start after a few attempts, operate the priming pump again then start the engine.  Clip the styling cover back in place.  Close the bonnet.
1.6 litre HDi engine
If the engine does not start first time, don't keep trying but start the procedure again from the beginning.

271
8
Checks
308_EN_CHAP08_VERIFICATIONS_ED02-2013

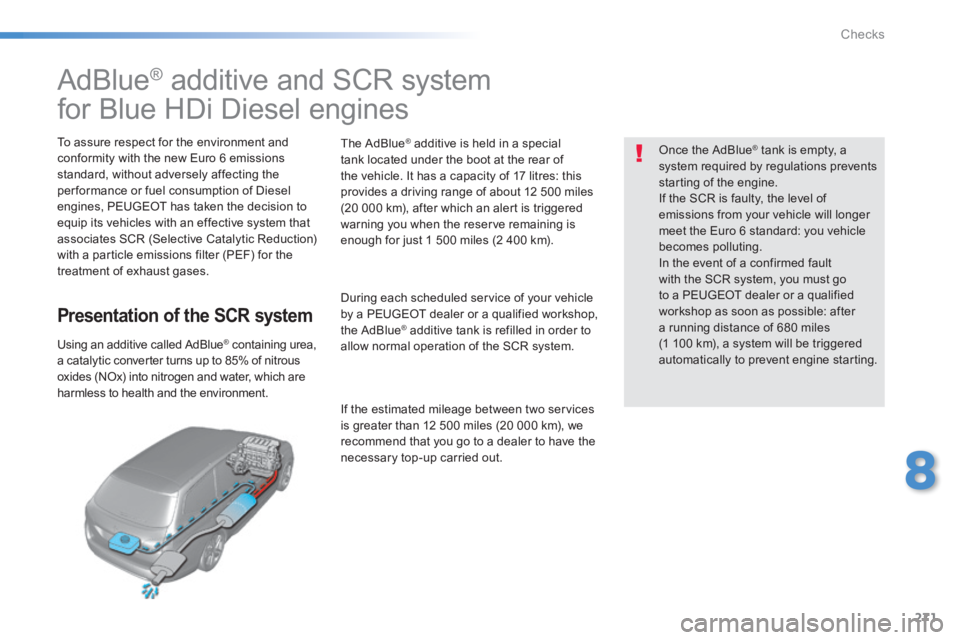

AdBlue ® additive and SCR system
for Blue HDi Diesel engines
To assure respect for the environment and conformity with the new Euro 6 emissions standard, without adversely affecting the per formance or fuel consumption of Diesel engines, PEUGEOT has taken the decision to equip its vehicles with an effective system that associates SCR (Selective Catalytic Reduction) with a particle emissions filter (PEF) for the treatment of exhaust gases.
Presentation of the SCR system
Using an additive called AdBlue ® containing urea, ® containing urea, ®
a catalytic converter turns up to 85% of nitrous oxides (NOx) into nitrogen and water, which are harmless to health and the environment.
The AdBlue ® additive is held in a special ® additive is held in a special ®
tank located under the boot at the rear of the vehicle. It has a capacity of 17 litres: this provides a driving range of about 12 500 miles (20 000 km), after which an alert is triggered warning you when the reserve remaining is enough for just 1 500 miles (2 400 km).
During each scheduled service of your vehicle by a PEUGEOT dealer or a qualified workshop, the AdBlue ® additive tank is refilled in order to ® additive tank is refilled in order to ®
allow normal operation of the SCR system.
If the estimated mileage between two services is greater than 12 500 miles (20 000 km), we recommend that you go to a dealer to have the necessary top-up carried out.
Once the AdBlue ® tank is empty, a ® tank is empty, a ®
system required by regulations prevents starting of the engine. If the SCR is faulty, the level of emissions from your vehicle will longer meet the Euro 6 standard: you vehicle becomes polluting. In the event of a confirmed fault with the SCR system, you must go to a PEUGEOT dealer or a qualified workshop as soon as possible: after a running distance of 680 miles (1 100 km), a system will be triggered automatically to prevent engine starting.

272
Checks
308_EN_CHAP08_VERIFICATIONS_ED02-2013

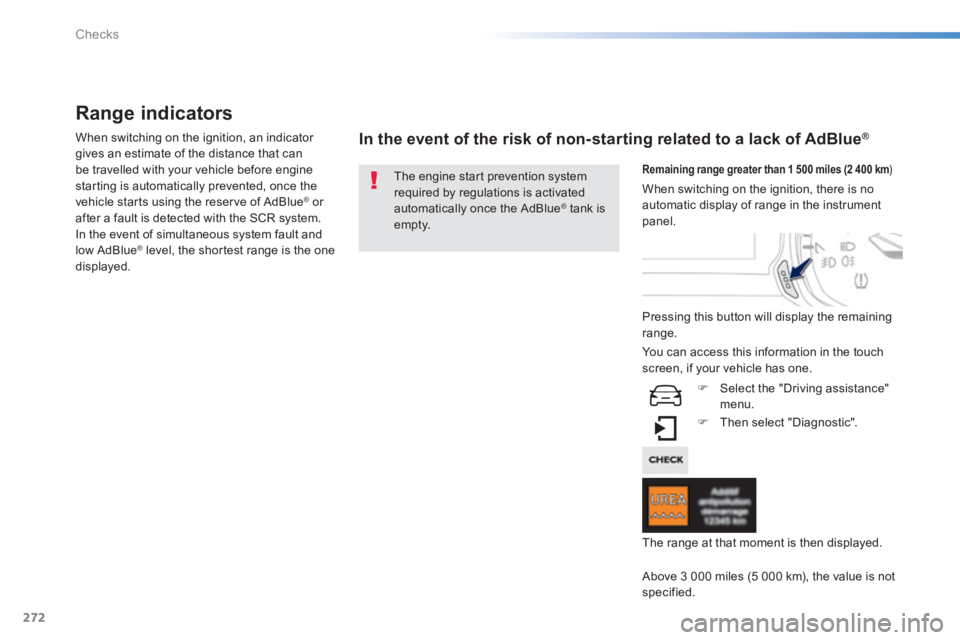

Range indicators
When switching on the ignition, an indicator gives an estimate of the distance that can be travelled with your vehicle before engine starting is automatically prevented, once the vehicle starts using the reserve of AdBlue ® or ® or ®
after a fault is detected with the SCR system. In the event of simultaneous system fault and low AdBlue ® level, the shortest range is the one ® level, the shortest range is the one ®
displayed.
In the event of the risk of non-starting related to a lack of AdBlue ® In the event of the risk of non-starting related to a lack of AdBlue ® In the event of the risk of non-starting related to a lack of AdBlue
The engine start prevention system required by regulations is activated automatically once the AdBlue ® tank is ® tank is ®
e m pt y.
Remaining range greater than 1 500 miles (2 400 km ) miles (2 400 km ) miles (2 400 km
Pressing this button will display the remaining range.
 Then select "Diagnostic".
Above 3 000 miles (5 000 km), the value is not specified.
When switching on the ignition, there is no automatic display of range in the instrument panel.
The range at that moment is then displayed.
You can access this information in the touch screen, if your vehicle has one.
 Select the "Driving assistance" menu.

273
8
Checks
308_EN_CHAP08_VERIFICATIONS_ED02-2013

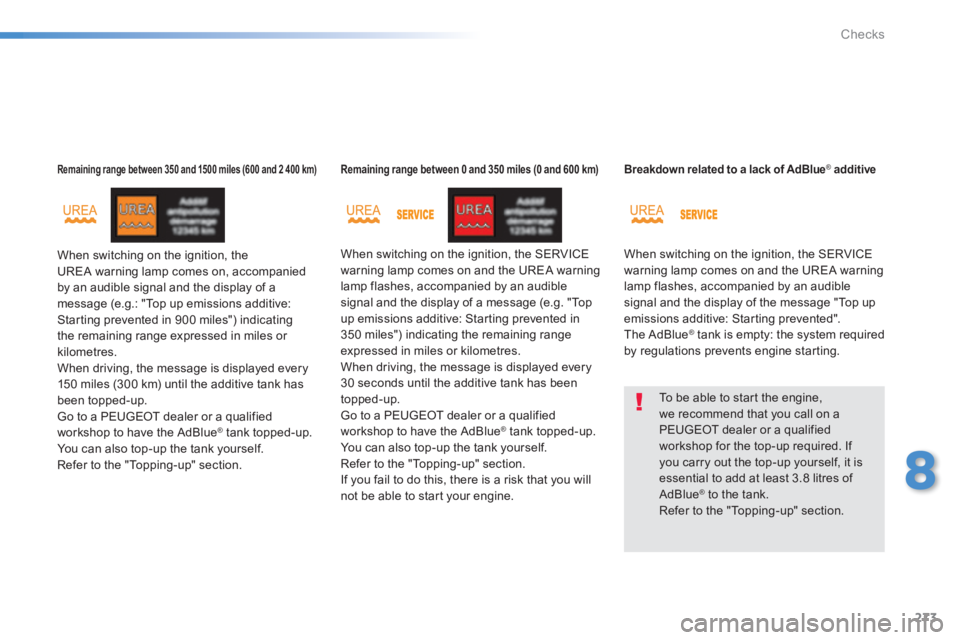

Remaining range between 350 and 15 0 0 miles (600 and 2 400 km)
When switching on the ignition, the UREA warning lamp comes on, accompanied by an audible signal and the display of a message (e.g.: "Top up emissions additive: Starting prevented in 900 miles") indicating the remaining range expressed in miles or kilometres. When driving, the message is displayed every 150 miles (300 km) until the additive tank has been topped-up. Go to a PEUGEOT dealer or a qualified workshop to have the AdBlue ® tank topped-up. ® tank topped-up. ®
You can also top-up the tank yourself. Refer to the "Topping-up" section.
Remaining range between 0 and 350 miles (0 and 600 km)
When switching on the ignition, the SERVICE warning lamp comes on and the UREA warning lamp flashes, accompanied by an audible signal and the display of a message (e.g. "Top up emissions additive: Starting prevented in 350 miles") indicating the remaining range expressed in miles or kilometres. When driving, the message is displayed every 30 seconds until the additive tank has been topped-up. Go to a PEUGEOT dealer or a qualified workshop to have the AdBlue ® tank topped-up. ® tank topped-up. ®
You can also top-up the tank yourself. Refer to the "Topping-up" section. If you fail to do this, there is a risk that you will not be able to start your engine.
Breakdown related to a lack of AdBlue ® additive
When switching on the ignition, the SERVICE warning lamp comes on and the UREA warning lamp flashes, accompanied by an audible signal and the display of the message "Top up emissions additive: Starting prevented". The AdBlue ® tank is empty: the system required ® tank is empty: the system required ®
by regulations prevents engine starting.
To be able to start the engine, we recommend that you call on a PEUGEOT dealer or a qualified workshop for the top-up required. If you carry out the top-up yourself, it is essential to add at least 3.8 litres of AdBlue ® to the tank. ® to the tank. ®
Refer to the "Topping-up" section.

274
Checks
308_EN_CHAP08_VERIFICATIONS_ED02-2013

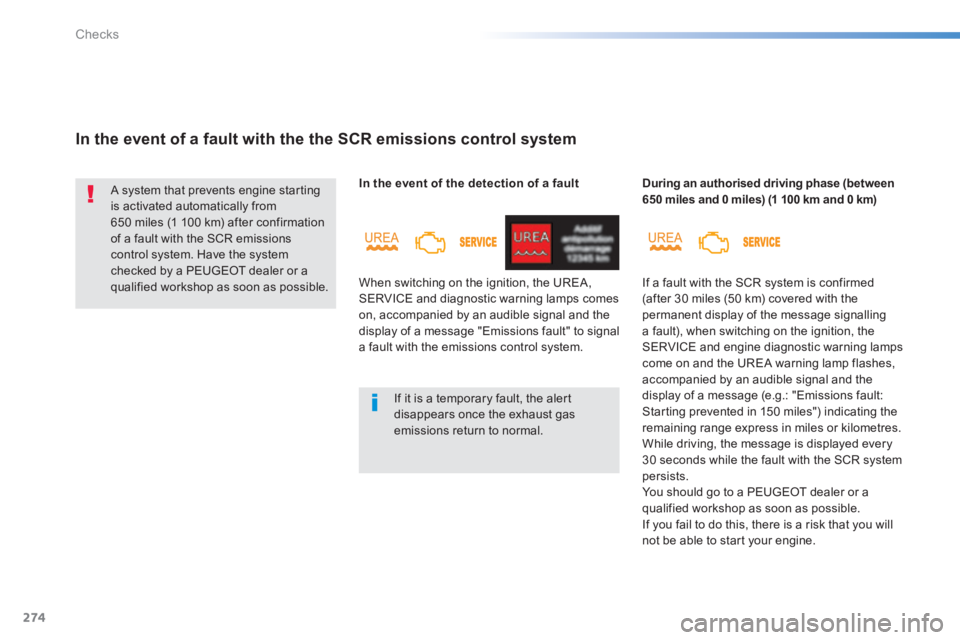

In the event of a fault with the the SCR emissions control system
A system that prevents engine starting is activated automatically from 650 miles (1 100 km) after confirmation of a fault with the SCR emissions control system. Have the system checked by a PEUGEOT dealer or a qualified workshop as soon as possible.
If it is a temporary fault, the alert disappears once the exhaust gas emissions return to normal.
In the event of the detection of a fault
When switching on the ignition, the UREA, SERVICE and diagnostic warning lamps comes on, accompanied by an audible signal and the display of a message "Emissions fault" to signal a fault with the emissions control system.
During an authorised driving phase (between 650 miles and 0 miles) (1 100 km and 0 km)
If a fault with the SCR system is confirmed (after 30 miles (50 km) covered with the permanent display of the message signalling a fault), when switching on the ignition, the SERVICE and engine diagnostic warning lamps come on and the UREA warning lamp flashes, accompanied by an audible signal and the display of a message (e.g.: "Emissions fault: Starting prevented in 150 miles") indicating the remaining range express in miles or kilometres. While driving, the message is displayed every 30 seconds while the fault with the SCR system persists. You should go to a PEUGEOT dealer or a qualified workshop as soon as possible. If you fail to do this, there is a risk that you will
not be able to start your engine.

275
8
Checks
308_EN_CHAP08_VERIFICATIONS_ED02-2013

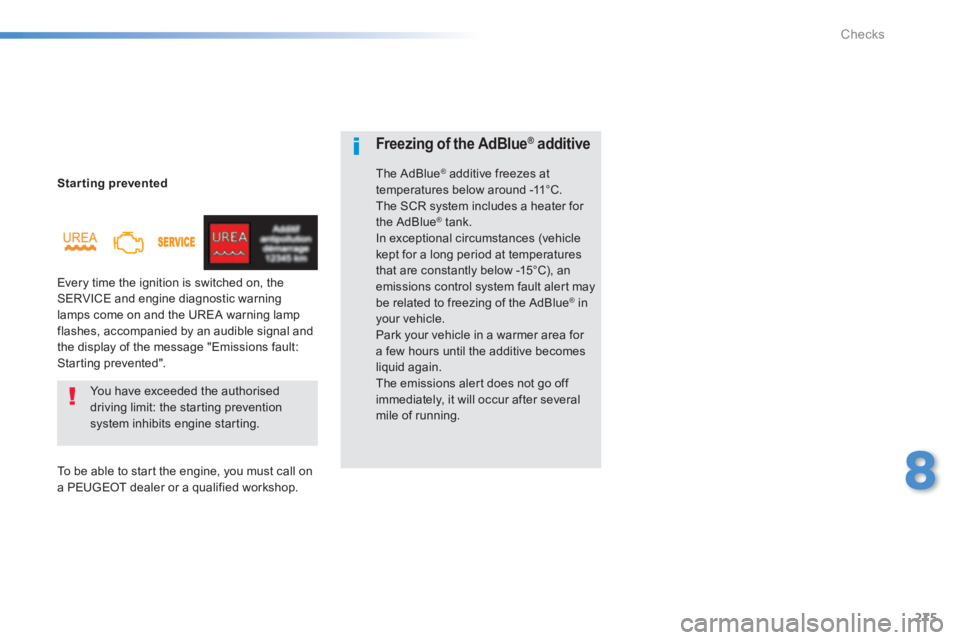

Starting prevented
Every time the ignition is switched on, the SERVICE and engine diagnostic warning lamps come on and the UREA warning lamp flashes, accompanied by an audible signal and the display of the message "Emissions fault: Starting prevented".
You have exceeded the authorised driving limit: the starting prevention system inhibits engine starting.
To be able to start the engine, you must call on a PEUGEOT dealer or a qualified workshop.
Freezing of the AdBlue ® Freezing of the AdBlue ® Freezing of the AdBlue additive ® additive ®
The AdBlue ® additive freezes at ® additive freezes at ®
temperatures below around -11°C. The SCR system includes a heater for the AdBlue ® tank. ® tank. ®
In exceptional circumstances (vehicle kept for a long period at temperatures that are constantly below -15°C), an emissions control system fault alert may be related to freezing of the AdBlue ® in ® in ®
your vehicle. Park your vehicle in a warmer area for a few hours until the additive becomes liquid again. The emissions alert does not go off immediately, it will occur after several mile of running.

276
Checks
308_EN_CHAP08_VERIFICATIONS_ED02-2013

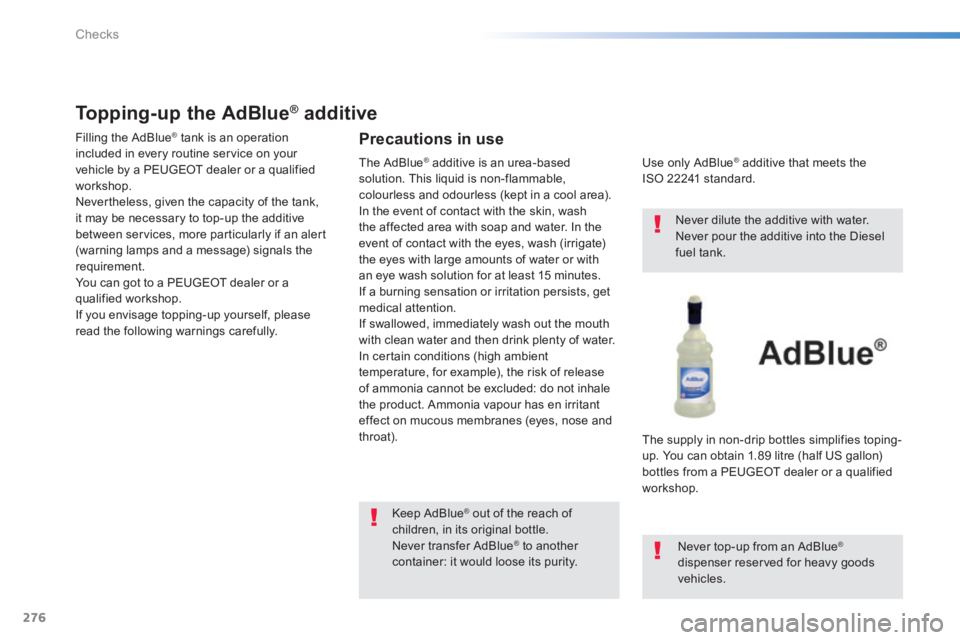

Topping-up the AdBlue ®Topping-up the AdBlue ®Topping-up the AdBlue additive ® additive ®
Filling the AdBlue ® tank is an operation ® tank is an operation ®
included in every routine service on your vehicle by a PEUGEOT dealer or a qualified workshop. Nevertheless, given the capacity of the tank, it may be necessary to top-up the additive between services, more particularly if an alert (warning lamps and a message) signals the requirement. You can got to a PEUGEOT dealer or a qualified workshop. If you envisage topping-up yourself, please read the following warnings carefully.
Precautions in use
Keep AdBlue ® out of the reach of ® out of the reach of ®
children, in its original bottle. Never transfer AdBlue ® to another ® to another ®
container: it would loose its purity.
Use only AdBlue ® additive that meets the ® additive that meets the ®
ISO 22241 standard.
Never dilute the additive with water. Never pour the additive into the Diesel fuel tank.
The supply in non-drip bottles simplifies toping-up. You can obtain 1.89 litre (half US gallon) bottles from a PEUGEOT dealer or a qualified workshop.
Never top-up from an AdBlue ®
dispenser reserved for heavy goods vehicles.
The AdBlue ® additive is an urea-based ® additive is an urea-based ®
solution. This liquid is non-flammable, colourless and odourless (kept in a cool area). In the event of contact with the skin, wash the affected area with soap and water. In the event of contact with the eyes, wash (irrigate) the eyes with large amounts of water or with an eye wash solution for at least 15 minutes. If a burning sensation or irritation persists, get medical attention. If swallowed, immediately wash out the mouth with clean water and then drink plenty of water. In certain conditions (high ambient temperature, for example), the risk of release of ammonia cannot be excluded: do not inhale the product. Ammonia vapour has en irritant effect on mucous membranes (eyes, nose and throat).

277
8
Checks
308_EN_CHAP08_VERIFICATIONS_ED02-2013

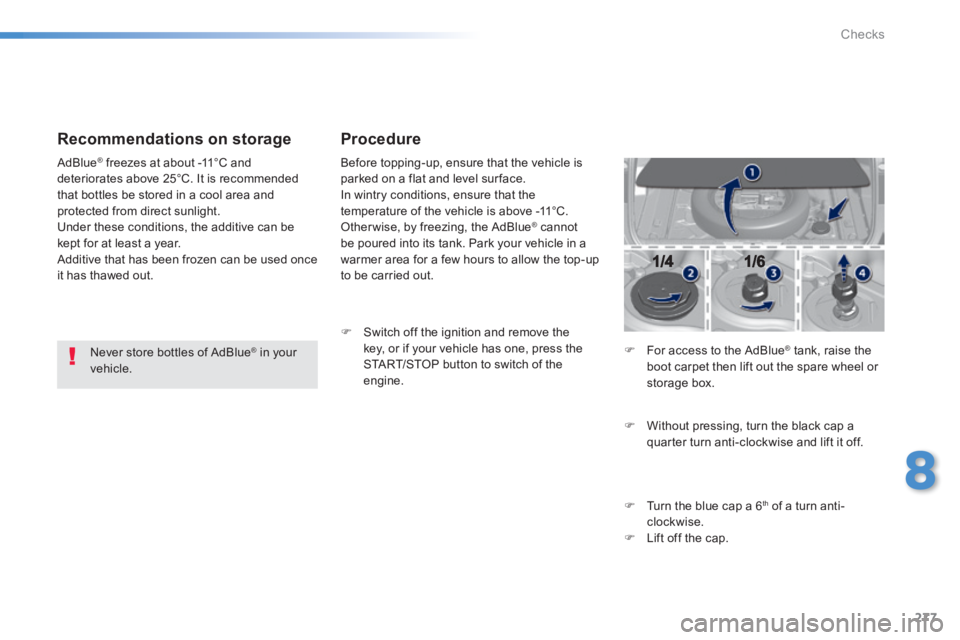

Recommendations on storage
Never store bottles of AdBlue ® in your ® in your ®
vehicle.
AdBlue ® freezes at about -11°C and ® freezes at about -11°C and ®
deteriorates above 25°C. It is recommended that bottles be stored in a cool area and protected from direct sunlight. Under these conditions, the additive can be kept for at least a year. Additive that has been frozen can be used once it has thawed out.
Procedure
Before topping-up, ensure that the vehicle is parked on a flat and level sur face. In wintry conditions, ensure that the temperature of the vehicle is above -11°C.
Otherwise, by freezing, the AdBlue ® cannot ® cannot ®
be poured into its tank. Park your vehicle in a warmer area for a few hours to allow the top-up to be carried out.
 Switch off the ignition and remove the key, or if your vehicle has one, press the START/STOP button to switch of the engine.
 For access to the AdBlue ® tank, raise the ® tank, raise the ®
boot carpet then lift out the spare wheel or storage box.
 Without pressing, turn the black cap a quarter turn anti-clockwise and lift it off.
 Turn the blue cap a 6 th of a turn anti-clockwise.  Lift off the cap.

278
Checks
308_EN_CHAP08_VERIFICATIONS_ED02-2013

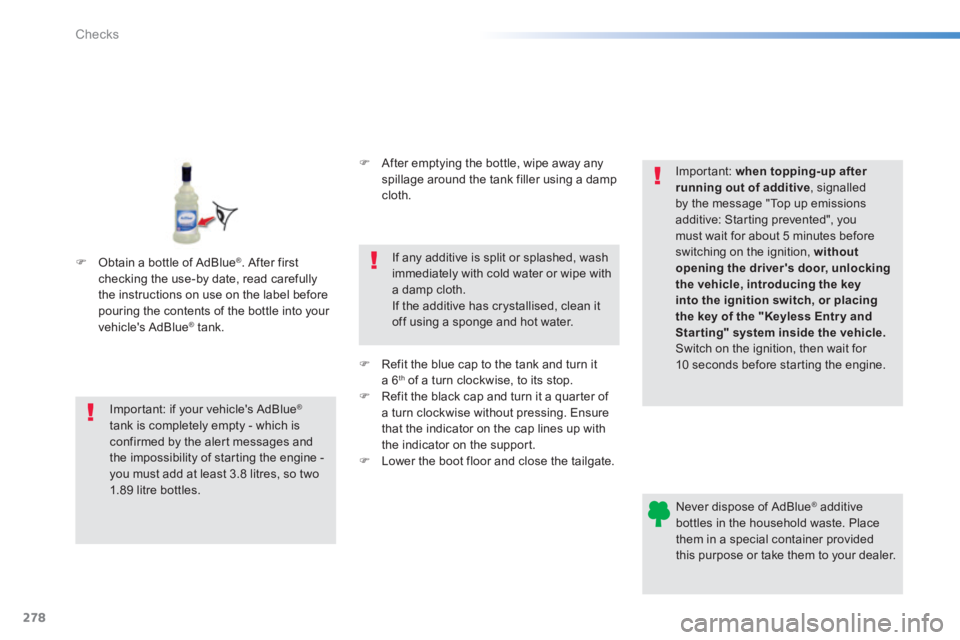

Never dispose of AdBlue ® additive ® additive ®
bottles in the household waste. Place them in a special container provided this purpose or take them to your dealer.
Important: if your vehicle's AdBlue ®
tank is completely empty - which is
confirmed by the alert messages and the impossibility of starting the engine - you must add at least 3.8 litres, so two 1.89 litre bottles.
 After emptying the bottle, wipe away any spillage around the tank filler using a damp cloth.
If any additive is split or splashed, wash immediately with cold water or wipe with a damp cloth. If the additive has crystallised, clean it off using a sponge and hot water.
 Refit the blue cap to the tank and turn it a 6 th of a turn clockwise, to its stop.  Refit the black cap and turn it a quarter of a turn clockwise without pressing. Ensure that the indicator on the cap lines up with
the indicator on the support.  Lower the boot floor and close the tailgate.
Important: when topping-up after running out of additive , signalled by the message "Top up emissions additive: Starting prevented", you must wait for about 5 minutes before switching on the ignition, without opening the driver's door, unlocking the vehicle, introducing the key into the ignition switch, or placing the key of the "Keyless Entr y and Star ting" system inside the vehicle. Switch on the ignition, then wait for 10 seconds before starting the engine.
 Obtain a bottle of AdBlue ® . After first checking the use-by date, read carefully the instructions on use on the label before pouring the contents of the bottle into your vehicle's AdBlue ® tank. ® tank. ®
