Page 33 of 294
2
36
MULTIFUNCTION DISPLAYS
General menu "Audio functions" menu
Press the "MENU" button to gain
access to the general menu :
- audio functions,
- vehicle diagnostics,
- p e r s o n a l i s a t i o n - c o n fi g u r a t i o n ,
- telephone (hands-free kit).
Press the " " or " " buttons to se-
l e c t t h e m e n u r e q u i r e d , t h e n c o n fi r m
by pressing the "OK" button.
With the PC Sound switched on, once
this menu has been selected you can
activate or deactivate the functions
linked with use of the radio (RDS, REG,
R a d i o T e x t ) o r t h e C D ( i n t r o s c a n , s h u f fl e ,
CD repeat).
For further details concerning the
"Audio functions" application, refer to
the PC Sound part of the "Audio and
Telematics" section.
MONOCHROME SCREEN C (WITH PC SOUND)
Displays on the screen
This displays the following information:
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e ( t h i s fl a s h e s if there is a risk of ice),
- the status of the accesses (doors, boot...),
- the audio sources (radio, CD...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission control
system faulty") or information messages (e.g.:
"Automatic switching on of the headlamps
activated") may appear temporarily. These
can be cleared by pressing the "ESC"
button.
Controls
From the control panel of your PC Sound,
you can:
press the "MENU" button to gain
access to the general menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source...),
press the " " or " " buttons to change
a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress.
Page 35 of 294
2
!
38
MULTIFUNCTION DISPLAYS
For safety reasons, it is imperative
t h a t c o n fi g u r a t i o n o f t h e m u l t i f u n c t i o n
displays by the driver takes place
when stationary. "Telephone" menu
D i s p l a y c o n fi g u r a t i o n
Once this menu has been selected, you
can gain access to the following settings:
- brightness-video setting,
- date and time setting,
- selection of the units.
Selection of the language
Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands, Portugues,
Portugues-Brasil, Türkçe * ).
Example: setting of the duration of the
"follow-me-home" lighting
Press the " " or " " buttons, then
the "OK" button to select the menu
required.
Press the " " or " " buttons,
then the "OK" button to select the
"Follow-me-home lighting" line.
Press the " " or " " buttons to
set the value required (15, 30 or
60 seconds), then press the "OK"
b u t t o n t o c o n fi r m .
Press the " " or " " buttons, then
the "OK" button to select the "OK"
b o x a n d c o n fi r m o r p r e s s t h e "ESC"
button to cancel. With the PC Sound switched on, once
this menu has been selected you can
c o n fi g u r e y o u r B l u e t o o t h h a n d s - f r e e k i t
(matching), consult the various telephone
directories (calls log, services...) and
manage your communications (pick up,
hang up, call waiting, secret mode...).
For further details concerning the
"Telephone" application, refer to the
PC Sound part of the "Audio and
Telematics" section.
* According to country.

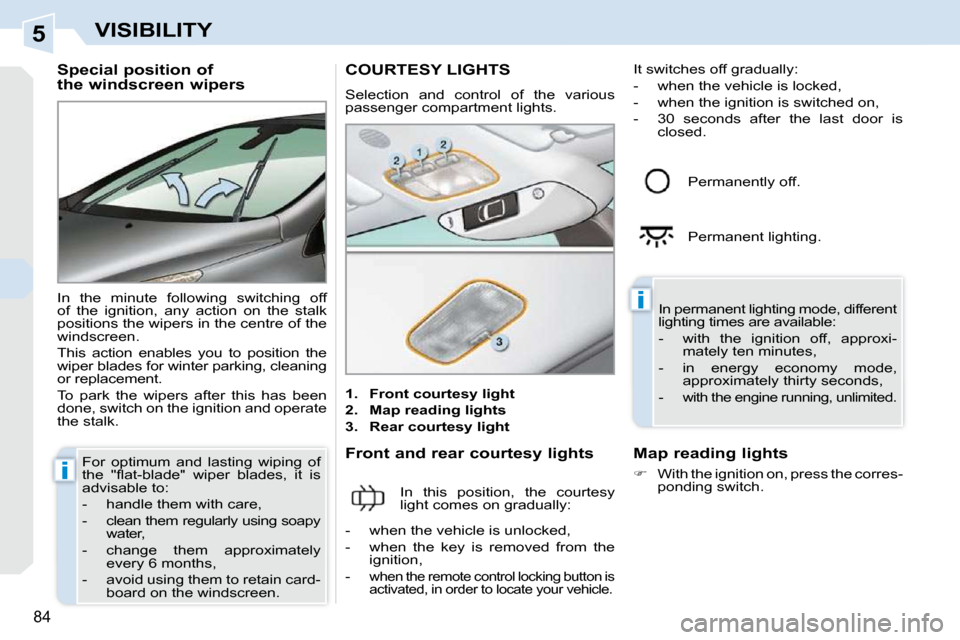

Page 91 of 294
5
i
i
84
VISIBILITY
Special position of
the windscreen wipers
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of the
windscreen.
This action enables you to position the
wiper blades for winter parking, cleaning
or replacement.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk. For optimum and lasting wiping of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- change them approximately every 6 months,
- avoid using them to retain card- board on the windscreen. COURTESY LIGHTS
Selection and control of the various
passenger compartment lights.
1. Front courtesy light
2. Map reading lights
3. Rear courtesy light
Front and rear courtesy lights
In this position, the courtesy
light comes on gradually: In permanent lighting mode, different
lighting times are available:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, approximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
- when the key is removed from the ignition,
-
when the remote control locking button is
activated, in order to locate your vehicle.
Permanently off.
Permanent lighting.
Map reading lights
With the ignition on, press the corres-
ponding switch.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
Page 93 of 294
5
i
i
84
VISIBILITY
Special position of
the windscreen wipers
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of the
windscreen.
This action enables you to position the
wiper blades for winter parking, cleaning
or replacement.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk. For optimum and lasting wiping of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- change them approximately every 6 months,
- avoid using them to retain card- board on the windscreen. COURTESY LIGHTS
Selection and control of the various
passenger compartment lights.
1. Front courtesy light
2. Map reading lights
3. Rear courtesy light
Front and rear courtesy lights
In this position, the courtesy
light comes on gradually: In permanent lighting mode, different
lighting times are available:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, approximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
- when the key is removed from the ignition,
-
when the remote control locking button is
activated, in order to locate your vehicle.
Permanently off.
Permanent lighting.
Map reading lights
With the ignition on, press the corres-
ponding switch.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.

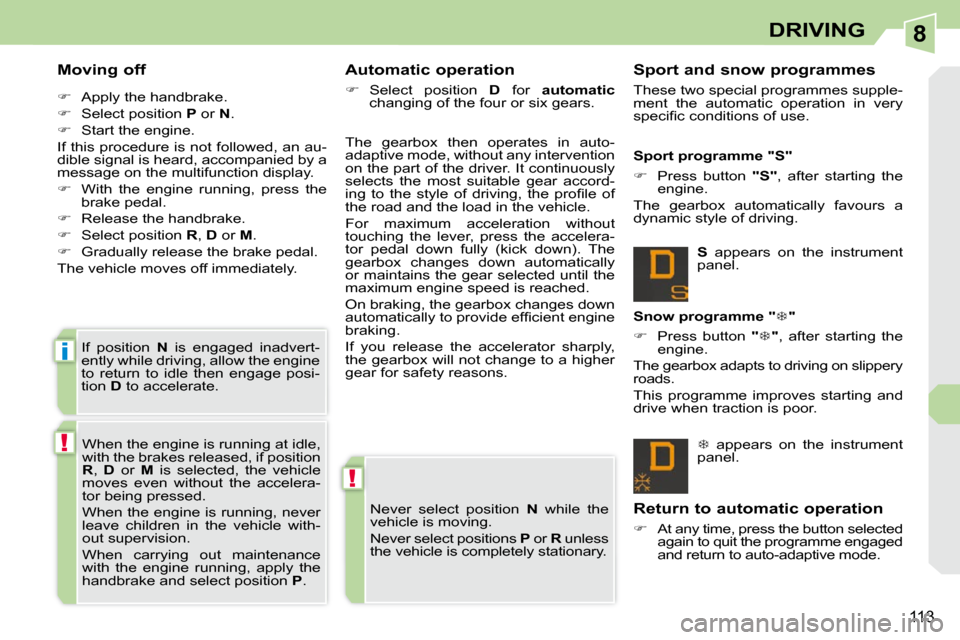

Page 127 of 294
8
!
!
i
113
DRIVING
Moving off
Apply the handbrake.
Select position P or N .
Start the engine.
If this procedure is not followed, an au-
dible signal is heard, accompanied by a
message on the multifunction display.
With the engine running, press the
brake pedal.
Release the handbrake.
Select position R , D or M .
Gradually release the brake pedal.
The vehicle moves off immediately.
If position N is engaged inadvert-
ently while driving, allow the engine
to return to idle then engage posi-
tion D to accelerate. The gearbox then operates in auto-
adaptive mode, without any intervention
on the part of the driver. It continuously
selects the most suitable gear accord-
i n g t o t h e s t y l e o f d r i v i n g , t h e p r o fi l e o f
the road and the load in the vehicle.
For maximum acceleration without
touching the lever, press the accelera-
tor pedal down fully (kick down). The
gearbox changes down automatically
or maintains the gear selected until the
maximum engine speed is reached.
On braking, the gearbox changes down
a u t o m a t i c a l l y t o p r o v i d e e f fi c i e n t e n g i n e
braking.
If you release the accelerator sharply,
the gearbox will not change to a higher
gear for safety reasons.
Automatic operation
Select position D for automatic
changing of the four or six gears.
appears on the instrument
panel.
Snow programme "
"
Press button " ", after starting the
engine.
The gearbox adapts to driving on slippery
roads.
This programme improves starting and
drive when traction is poor.
S appears on the instrument
panel.
Sport programme "S"
Press button "S" , after starting the
engine.
The gearbox automatically favours a
dynamic style of driving.
Never select position N while the
vehicle is moving.
Never select positions P or R unless
the vehicle is completely stationary.
When the engine is running at idle,
with the brakes released, if position
R , D or M is selected, the vehicle
moves even without the accelera-
tor being pressed.
When the engine is running, never
leave children in the vehicle with-
out supervision.
When carrying out maintenance
with the engine running, apply the
handbrake and select position P . Sport and snow programmes
These two special programmes supple-
ment the automatic operation in very
s p e c i fi c c o n d i t i o n s o f u s e .
Return to automatic operation
At any time, press the button selected
again to quit the programme engaged
and return to auto-adaptive mode.

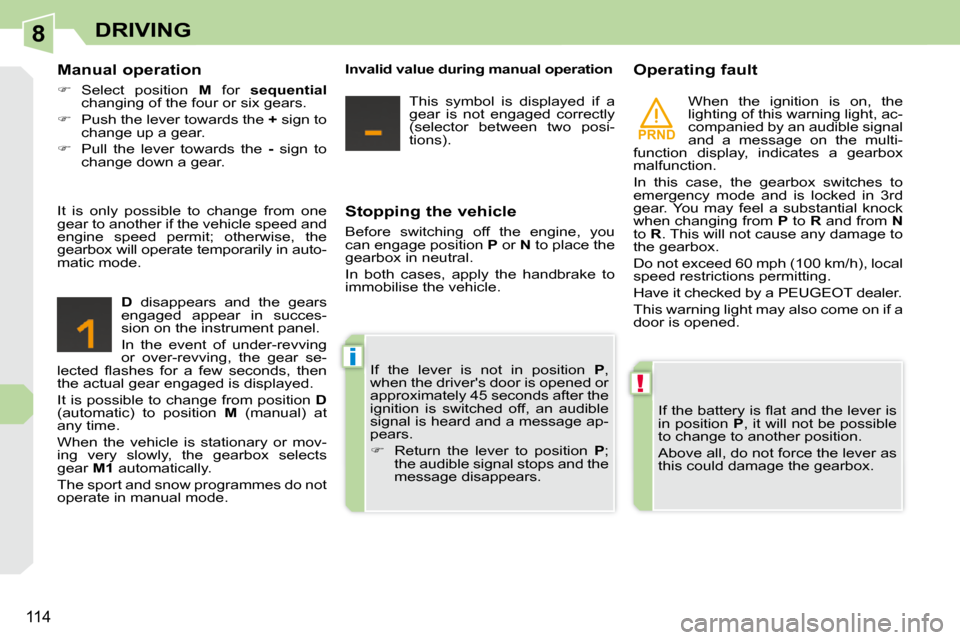

Page 128 of 294
8
PRND
!
i
114
DRIVING
Stopping the vehicle
Before switching off the engine, you
can engage position P or N to place the
gearbox in neutral.
In both cases, apply the handbrake to
immobilise the vehicle. Operating fault
When the ignition is on, the
lighting of this warning light, ac-
companied by an audible signal
and a message on the multi-
function display, indicates a gearbox
malfunction.
In this case, the gearbox switches to
emergency mode and is locked in 3rd
gear. You may feel a substantial knock
when changing from P to R and from N
to R . This will not cause any damage to
the gearbox.
Do not exceed 60 mph (100 km/h), local
speed restrictions permitting.
Have it checked by a PEUGEOT dealer.
This warning light may also come on if a
door is opened.
I f t h e b a t t e r y i s fl a t a n d t h e l e v e r i s
in position P , it will not be possible
to change to another position.
Above all, do not force the lever as
this could damage the gearbox.
Manual operation
Select position M for sequential
changing of the four or six gears.
Push the lever towards the + sign to
change up a gear.
Pull the lever towards the - sign to
change down a gear.
D disappears and the gears
engaged appear in succes-
sion on the instrument panel.
In the event of under-revving
or over-revving, the gear se-
l e c t e d fl a s h e s f o r a f e w s e c o n d s , t h e n
the actual gear engaged is displayed.
It is possible to change from position D
(automatic) to position M (manual) at
any time.
When the vehicle is stationary or mov-
ing very slowly, the gearbox selects
gear M1 automatically.
The sport and snow programmes do not
operate in manual mode. If the lever is not in position
P ,
when the driver's door is opened or
approximately 45 seconds after the
ignition is switched off, an audible
signal is heard and a message ap-
pears.
Return the lever to position P ;
the audible signal stops and the
message disappears.
It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
gearbox will operate temporarily in auto-
matic mode.
Invalid value during manual operation
This symbol is displayed if a
gear is not engaged correctly
(selector between two posi-
tions).
