MULTIFUNCTION DISPLAYS
V e h i c l e c o n fi g u r a t i o n Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active, not
active, faulty).
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode. Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
Once you have selected a setting,
press the "OK" button to change its
value.
W a i t f o r a p p r o x i m a t e l y t e n s e c o n d s
without any action to allow the
changed data to be recorded or
press the "ESC" button to cancel.
The display then returns to the normal
display.
O n c e t h e " V e h i c l e c o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- selective unlocking (refer to the "Access" section),
- wiper linked with reverse gear (refer to the "Visibility" section),
- "follow-me-home" and welcome light- ing (refer to the "Visibility" section),
- daytime lights (refer to the "Visibility" section).
For safety reasons, it is imperative
t h a t c o n fi g u r a t i o n o f t h e m u l t i f u n c -
tion displays by the driver takes
place when stationary.
Page 19 of 260
!
40
MULTIFUNCTION DISPLAYS For safety reasons, it is imperative
t h a t c o n fi g u r a t i o n o f t h e m u l t i f u n c -
tion displays by the driver takes
place when stationary.
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
Once you have selected a setting,
press the " " or " " buttons to
change its value.
Press the " " or " " buttons to
switch respectively to the previous
o r n e x t s e t t i n g .
Press the "OK" button to record
the change and return to the normal
display or press the "ESC" button to
cancel.
V e h i c l e c o n fi g u r a t i o n
Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active, not
active, faulty).
O n c e t h e " V e h i c l e C o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- selective unlocking (refer to the
"Access" section),
- wiper linked with reverse gear (refer to the "Visibility" section),
- "follow-me-home" and welcome light- ing (refer to the "Visibility" section),
- daytime lights (refer to the "Visibility" section).
Page 20 of 260
41
MULTIFUNCTION DISPLAYS
MONOCHROME SCREEN C AND COLOUR SCREEN C General menu
Displays on the screen
This displays the following information:
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e * ( t h i s fl a s h e s if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the audio sources (radio, CD, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic switching
on of the headlamps activated") may ap-
pear temporarily. These can be cleared
by pressing the "ESC" button. "Audio functions" menu Controls
From the RD4 audio equipment control
panel, you can:
press the "MENU" button to gain
access to the general menu ,
press the " " or " " buttons to
scroll through the items on the
screen,
press the "MODE" button to change
the permanent application (trip
computer, audio source, ...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress.
Press the "MENU" button to gain
access to the general menu :
- audio functions,
- vehicle diagnostics,
- p e r s o n a l i s a t i o n - c o n fi g u r a t i o n ,
- telephone (hands-free kit).
Press the " " or " " buttons to
select the menu required, then
c o n fi r m b y p r e s s i n g t h e "OK"
button.
* With air conditioning only.
With the RD4 audio equipment switched
on, once this menu has been select-
ed you can activate or deactivate the
functions linked with use of the radio
( R D S , R E G , R a d i o T e x t ) , t h e C D o r t h e
C D c h a n g e r ( i n t r o s c a n , s h u f fl e , C D
repeat).
For further details concerning the "Audio
functions" application, refer to the RD4
part of the "Audio and Telematics"
section.
Page 21 of 260
42
MULTIFUNCTION DISPLAYS
"Vehicle diagnostics"
menu
Press the "MENU" button to gain
access to the general menu.
Press the arrows, then the "OK"
button to select the "
Vehicle
diagnostics" menu.
On the "Vehicle diagnostics" menu,
select the following application:
Warnings log
This summarises the active warning
messages, displaying them in succes-
sion on the multifunction display.
Once this menu has been selected,
you can consult information concerning
the status of the vehicle, such as the
warnings log.
D e fi n e t h e v e h i c l e p a r a m e t e r s
Once this menu has been selected, you
can activate or deactivate the following
equipment:
- selective unlocking (refer to the
"Access" section),
- wiper linked with reverse gear (refer to the "Visibility" section),
- "follow-me-home" and welcome lighting (refer to the "Visibility" sec-
tion),
- ambient lighting (refer to the "Visibility" section),

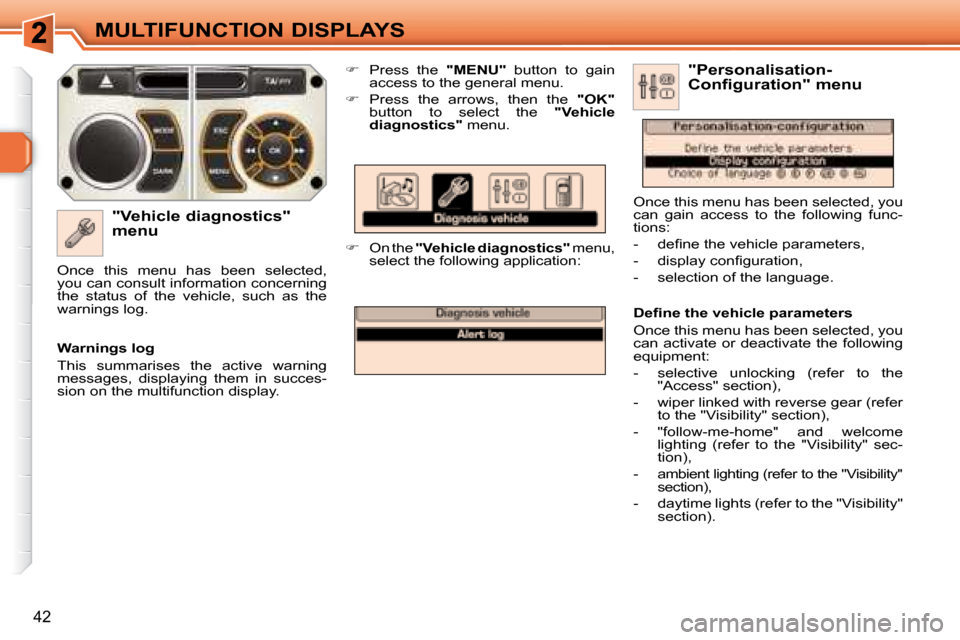

- daytime lights (refer to the "Visibility" section). "Personalisation-
Configuration" menu
Once this menu has been selected, you
can gain access to the following func-
tions:
- d e fi n e t h e v e h i c l e p a r a m e t e r s ,
- d i s p l a y c o n fi g u r a t i o n ,
- selection of the language.
Page 23 of 260
44
MULTIFUNCTION DISPLAYS
Displays on the screen
When the screen is open, it displays the
following information automatically and
directly:
- the time,
- the date,
- the outside temperature (if there is a risk of ice, you are warned by a
message). When the RT4 GPS audio/telephone is
switched on, select the menu which cor-
responds to the following applications:
- the satellite navigation system,
- the guidance on the map,
- t h e t r a f fi c i n f o r m a t i o n ,
- the audio sources (radio, CD, ...),
- the telephone and the phonebooks,
- t h e c o n fi g u r a t i o n o f t h e s c r e e n a n d
the setting of the vehicle equipment
parameters,
- the displaying of videos,
- the vehicle diagnostics. Controls
From the RT4 GPS audio/telephone
control panel, to select one of the ap-
plications:
press the "MENU" button to gain
access to the general menu ,
turn the navigator to move the
selection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the operation in progress and return
to the previous display.

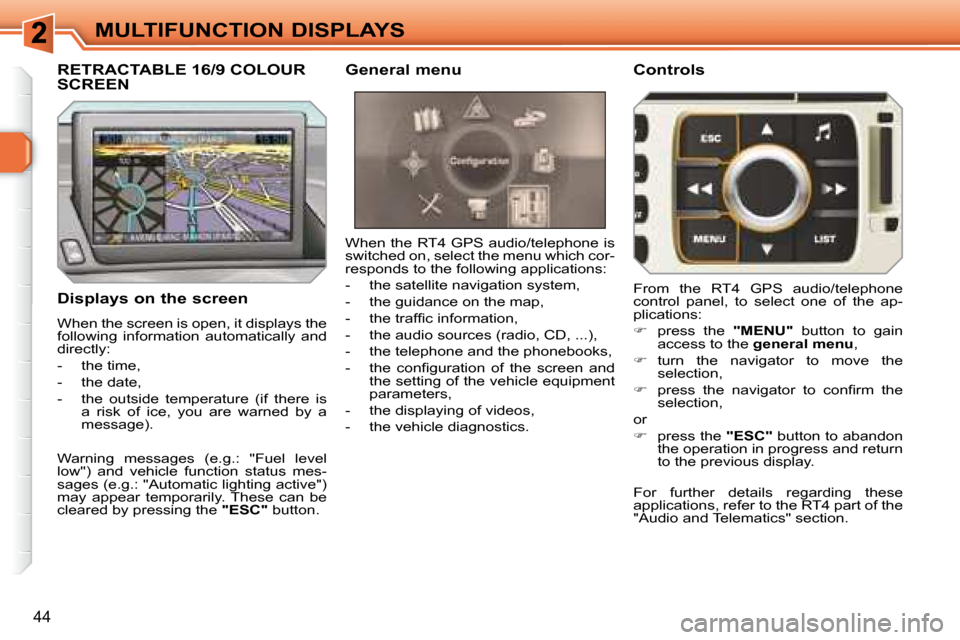

RETRACTABLE 16/9 COLOUR SCREEN General menu
Warning messages (e.g.: "Fuel level
low") and vehicle function status mes-
sages (e.g.: "Automatic lighting active")
may appear temporarily. These can be
cleared by pressing the "ESC" button. For further details regarding these
applications, refer to the RT4 part of the
"Audio and Telematics" section.
Page 27 of 260
48
MULTIFUNCTION DISPLAYS
Warnings log
This summarises the active warning
messages, displaying them in succes-
sion on the multifunction display.

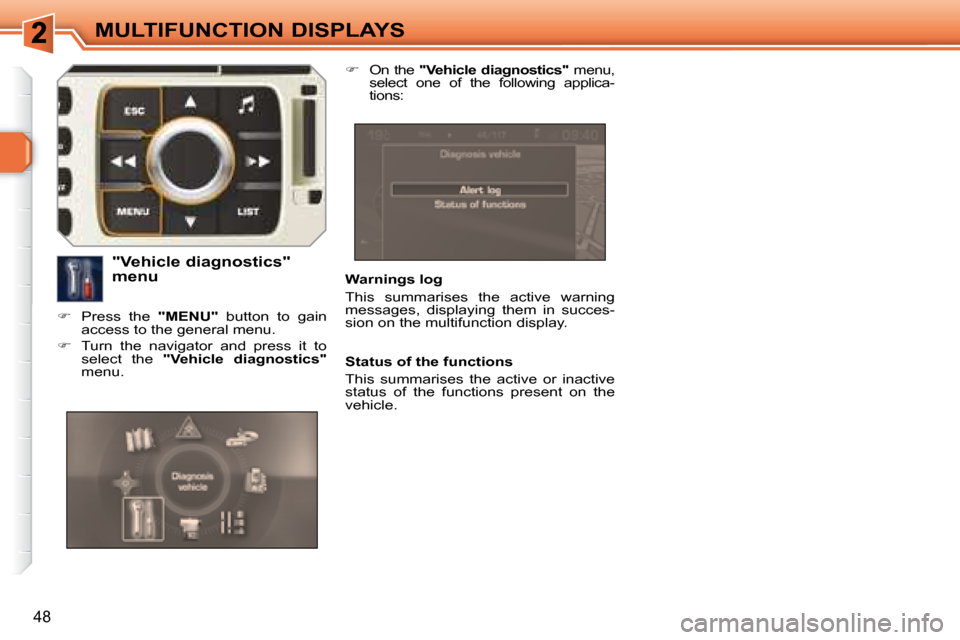

"Vehicle diagnostics"
menu
Press the "MENU" button to gain
access to the general menu.
Turn the navigator and press it to
select the "Vehicle diagnostics"
menu.
On the "Vehicle diagnostics" menu,
select one of the following applica-
tions:
Status of the functions
This summarises the active or inactive
status of the functions present on the
vehicle.
Page 210 of 260
213
02 GENERAL MENU

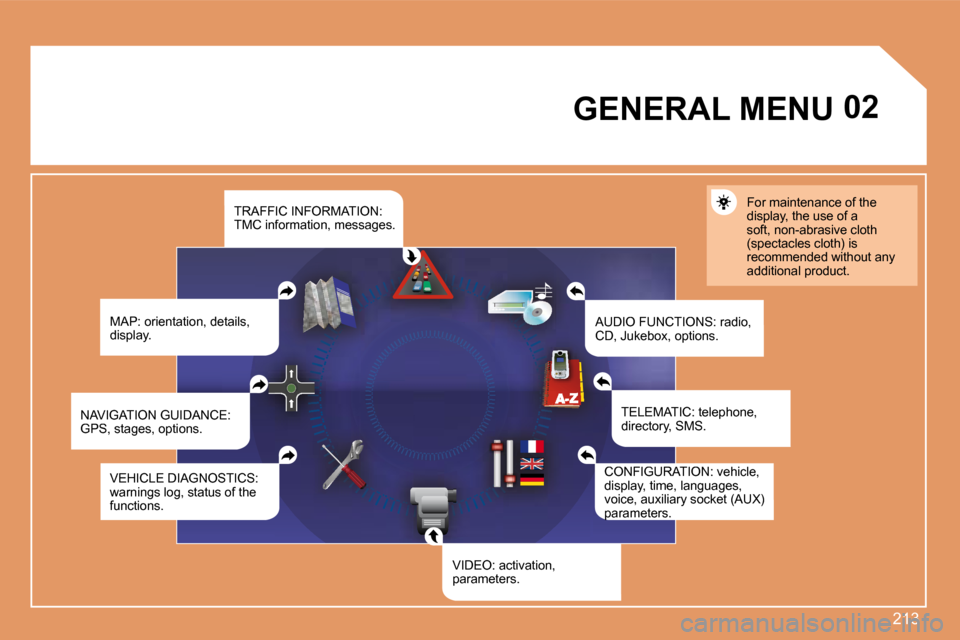

MAP: orientation, details, display. AUDIO FUNCTIONS: radio, C D , J u k e b o x , o p t i o n s .
For maintenance of the display, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended without any additional product.
TELEMATIC: telephone, directory, SMS.
CONFIGURATION: vehicle, display, time, languages, v o i c e , a u x i l i a r y s o c k e t ( A U X ) parameters. parameters.
VIDEO: activation, parameters.
VEHICLE DIAGNOSTICS: warnings log, status of the functions.
NAVIGATION GUIDANCE: GPS, stages, options.
TRAFFIC INFORMATION: TMC information, messages.
Page 238 of 260
241
1
2
3
3
3
3
2
3
3
4
4
1
3
2
3
1
2
3
3
2
2
2
1
2
2
2
1
1
MENU
4
3
2
2
3
3
6
1

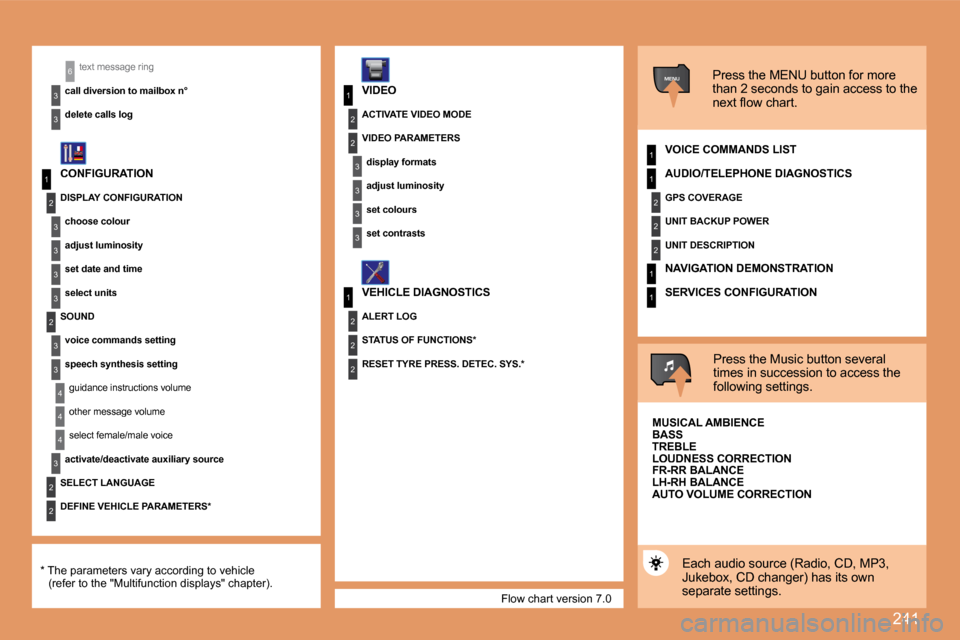

Flow chart version 7.0
t e x t m e s s a g e r i n g
call diversion to mailbox n°
delete calls log
* The parameters vary according to vehicle (refer to the "Multifunction displays" chapter).
CONFIGURATION
VIDEO
VEHICLE DIAGNOSTICS
Press the MENU button for more than 2 seconds to gain access to the n e x t fl o w c h a r t .
VOICE COMMANDS LIST
Press the Music button several times in succession to access the following settings.
MUSICAL AMBIENCE
Each audio source (Radio, CD, MP3, J u k e b o x , C D c h a n g e r ) h a s i t s o w n separate settings.
DISPLAY CONFIGURATION
choose colour
adjust luminosity
set date and time
select units
SOUND
voice commands setting
speech synthesis setting
guidance instructions volume
other message volume
select female/male voice
activate/deactivate auxiliary source
SELECT LANGUAGE
DEFINE VEHICLE PARAMETERS *
ACTIVATE VIDEO MODE
VIDEO PARAMETERS
display formats
adjust luminosity
set colours
set contrasts
ALERT LOG
STATUS OF FUNCTIONS *
RESET TYRE PRESS. DETEC. SYS. *
AUDIO/TELEPHONE DIAGNOSTICS
GPS COVERAGE
UNIT BACKUP POWER
UNIT DESCRIPTION
NAVIGATION DEMONSTRATION
SERVICES CONFIGURATION
BASS TREBLE LOUDNESS CORRECTION FR-RR BALANCE LH-RH BALANCE AUTO VOLUME CORRECTION
Page 241 of 260
256
SOLUTION RESPONSE

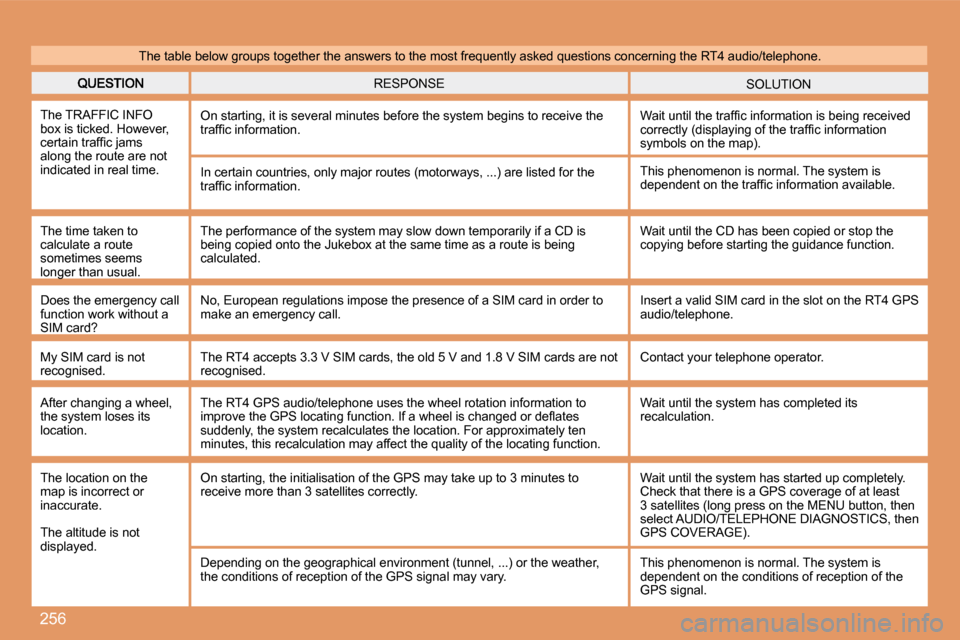

The TRAFFIC INFO b o x i s t i c k e d . H o w e v e r , c e r t a i n t r a f fi c j a m s along the route are not indicated in real time.
On starting, it is several minutes before the system begins to receive the t r a f fi c i n f o r m a t i o n . W a i t u n t i l t h e t r a f fi c i n f o r m a t i o n i s b e i n g r e c e i v e d c o r r e c t l y ( d i s p l a y i n g o f t h e t r a f fi c i n f o r m a t i o n symbols on the map).
In certain countries, only major routes (motorways , ...) are listed for the t r a f fi c i n f o r m a t i o n .
The time taken to calculate a route sometimes seems longer than usual. longer than usual.
This phenomenon is normal. The system is d e p e n d e n t o n t h e t r a f fi c i n f o r m a t i o n a v a i l a b l e .
The performance of the system may slow down tempor arily if a CD is b e i n g c o p i e d o n t o t h e J u k e b o x a t t h e s a m e t i m e a s a r o u t e i s b e i n g calculated.
Wait until the CD has been copied or stop the copying before starting the guidance function.
Does the emergency call function work without a SIM card?
No, European regulations impose the presence of a SIM card in order to make an emergency call. Insert a valid SIM card in the slot on the RT4 GPS audio/telephone.
My SIM card is not recognised. The RT4 accepts 3.3 V SIM cards, the old 5 V and 1.8 V SIM cards are not recognised. Contact your telephone operator.
After changing a wheel, the system loses its location.
The RT4 GPS audio/telephone uses the wheel rotatio n information to i m p r o v e t h e G P S l o c a t i n g f u n c t i o n . I f a w h e e l i s c h a n g e d o r d e fl a t e s s u d d e n l y , t h e s y s t e m r e c a l c u l a t e s t h e l o c a t i o n . F o r a p p r o x i m a t e l y t e n minutes, this recalculation may affect the quality of the locating function.
Wait until the system has completed its recalculation.
The table below groups together the answers to the most frequently asked questions concerning the RT4 audio/telephone.
The location on the map is incorrect or inaccurate.
The altitude is not displayed.
On starting, the initialisation of the GPS may take up to 3 minutes to receive more than 3 satellites correctly. Wait until the system has started up completely. Check that there is a GPS coverage of at least 3 satellites (long press on the MENU button, then select AUDIO/TELEPHONE DIAGNOSTICS, then GPS COVERAGE).
Depending on the geographical environment (tunnel, ...) or the weather, the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is dependent on the conditions of reception of the GPS signal.
Page 244 of 260
244

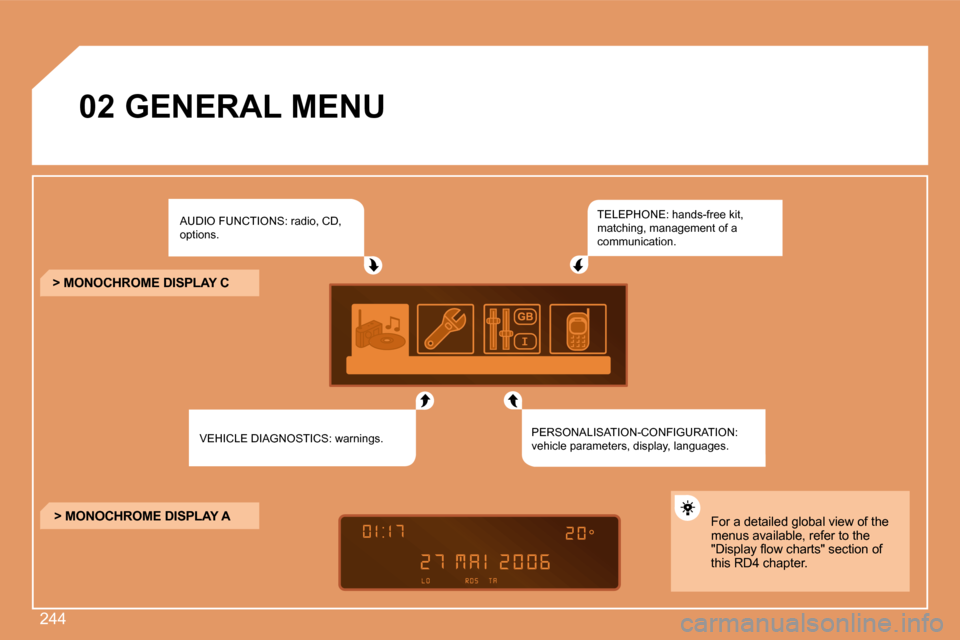

02 GENERAL MENU
AUDIO FUNCTIONS: radio, CD, options.
VEHICLE DIAGNOSTICS: warnings.
TELEPHONE: hands-free kit, matching, management of a communication.
PERSONALISATION-CONFIGURATION: vehicle parameters, display, languages.
> MONOCHROME DISPLAY C
> MONOCHROME DISPLAY A For a detailed global view of the menus available, refer to the " D i s p l a y fl o w c h a r t s " s e c t i o n o f this RD4 chapter.
